chrisando
chrisando
Posted
Posted

Hi guys I am using Os X 10.4.10 and cant get audio working my sound card is a Intel 82801G intel HDA at 0xfe138000 ICH7 using ALC 883 I tried all the driver on this forum and none is working I also tried the steps to generate them from Linux codec files please help

Link to comment
Share on other sites
7stars
7stars
Posted
Posted
Hi

i have a P5KC with ICH9 and ALC883 realtek.

I have installed leo but with this driver don't work

What i have to do?

thanks

i have the same problem with P5K...i think that's no good for ICH9...

anyone can help?? alc883 for ICH9 kernel 9.0.0+

Link to comment
Share on other sites
  • 2 weeks later...
duklaa
duklaa
Posted
Posted

I have Gigabyte 965P-DS3 (rev 3.3) and with ACL888Audio I was able get stereo and microphone working. But like others have reported before me, I cannot select 5.1 ...it's grayed out.



Has this issue been resolved? I read through all pages in this thread so far and couldn't find a solution.



Thanks in advance!

Link to comment
Share on other sites
chrisando
chrisando
Posted
Posted

Hi guys I have tried everything and still no sound on both 10.4.10 and 10.5 I have attached my Linux dump, please help.



Codec: Realtek ALC883
Address: 0
Vendor Id: 0x10ec0883
Subsystem Id: 0x14620349
Revision Id: 0x100002
Default PCM: rates 0x560, bits 0x0e, types 0x1
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
Node 0x02 [Audio Output] wcaps 0x11: Stereo
 PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x03 [Audio Output] wcaps 0x11: Stereo
 PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x04 [Audio Output] wcaps 0x11: Stereo
 PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x05 [Audio Output] wcaps 0x11: Stereo
 PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital
 PCM: rates 0x560, bits 0x1e, types 0x1
Node 0x07 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x08 [Audio Input] wcaps 0x10011b: Stereo Amp-In
 Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1
 Amp-In vals:  [0x00 0x00]
 PCM: rates 0x160, bits 0x06, types 0x1
 Connection: 1
 0x23
Node 0x09 [Audio Input] wcaps 0x10011b: Stereo Amp-In
 Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1
 Amp-In vals:  [0x00 0x00]
 PCM: rates 0x160, bits 0x06, types 0x1
 Connection: 1
 0x22
Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital
 PCM: rates 0x560, bits 0x1e, types 0x1
 Connection: 1
 0x1f
Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In
 Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
 Connection: 10
 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17
Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
 0x02 0x0b
Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
 0x03 0x0b
Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
 0x04 0x0b
Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
 0x05 0x0b
Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x12 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x14 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x00 0x00]
 Pincap 0x083e: IN OUT HP Detect
 Pin Default 0x0121441f: [Jack] HP Out at Ext Rear
Conn = 1/8, Color = Green
 Pin-ctls: 0xc0: OUT HP
 Connection: 5
 0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x15 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083e: IN OUT HP Detect
 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
 Pin-ctls: 0x20: IN
 Connection: 5
 0x0c 0x0d* 0x0e 0x0f 0x26
Node 0x16 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083e: IN OUT HP Detect
 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
 Pin-ctls: 0x20: IN
 Connection: 5
 0x0c 0x0d 0x0e* 0x0f 0x26
Node 0x17 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x083e: IN OUT HP Detect
 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
 Pin-ctls: 0x20: IN
 Connection: 5
 0x0c 0x0d 0x0e 0x0f* 0x26
Node 0x18 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08173e: IN OUT HP Detect
 Pin Default 0x01a19c30: [Jack] Mic at Ext Rear
Conn = 1/8, Color = Pink
 Pin-ctls: 0x24: IN
 Connection: 5
 0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x19 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08173e: IN OUT HP Detect
 Pin Default 0x99a30931: [Fixed] Mic at Int ATAPI
Conn = ATAPI, Color = Unknown
 Pin-ctls: 0x24: IN
 Connection: 5
 0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x80 0x80]
 Pincap 0x08173e: IN OUT HP Detect
 Pin Default 0x0181343f: [Jack] Line In at Ext Rear
Conn = 1/8, Color = Blue
 Pin-ctls: 0x20: IN
 Connection: 5
 0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1b [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-Out vals:  [0x00 0x00]
 Pincap 0x08173e: IN OUT HP Detect
 Pin Default 0x99130110: [Fixed] Speaker at Int ATAPI
Conn = ATAPI, Color = Unknown
 Pin-ctls: 0x40: OUT
 Connection: 5
 0x0c* 0x0d 0x0e 0x0f 0x26
Node 0x1c [Pin Complex] wcaps 0x400001: Stereo
 Pincap 0x0820: IN
 Pin Default 0x593301f0: [N/A] CD at Int ATAPI
Conn = ATAPI, Color = Unknown
 Pin-ctls: 0x00:
Node 0x1d [Pin Complex] wcaps 0x400000: Mono
 Pincap 0x0820: IN
 Pin Default 0x598301f0: [N/A] Line In at Int ATAPI
Conn = ATAPI, Color = Unknown
 Pin-ctls: 0x00:
Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital
 Pincap 0x0810: OUT
 Pin Default 0x01454120: [Jack] SPDIF Out at Ext Rear
Conn = Optical, Color = Green
 Pin-ctls: 0x00:
 Connection: 1
 0x06
Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital
 Pincap 0x0820: IN
 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear
Conn = 1/8, Color = Black
 Pin-ctls: 0x00:
Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono
Node 0x21 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x22 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
 Amp-Out caps: N/A
 Amp-Out vals:  [0x00 0x00]
 Connection: 11
 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b
Node 0x23 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80]
 Amp-Out caps: N/A
 Amp-Out vals:  [0x00 0x00]
 Connection: 11
 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b
Node 0x24 [Vendor Defined Widget] wcaps 0xf00000: Mono
Node 0x25 [Audio Output] wcaps 0x11: Stereo
 PCM: rates 0x560, bits 0x0e, types 0x1
Node 0x26 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out
 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0
 Amp-Out vals:  [0x00 0x00]
 Connection: 2
 0x25 0x0b

codec_0.txt

Link to comment
Share on other sites
chinasky
chinasky
Posted
Posted

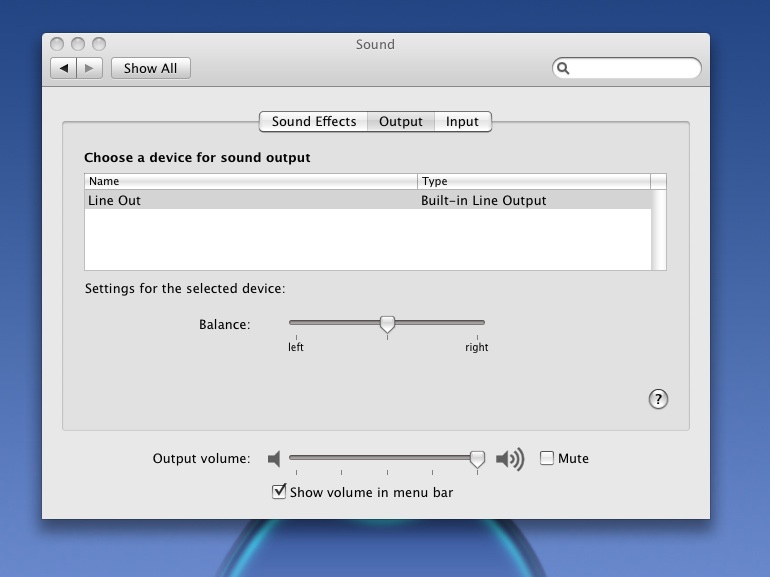

I installed the patch for my gigabyte 945GCMX-S2 board (acl888) and now i have four

built in line out in the output optins and another two in the input, but, i have to choose one of the built in line output so it will only sound the front speakers or the rears one but not together at the same time, i mean, how can i make it work like a 5.1 system?



Thanks

Link to comment
Share on other sites
Stravaganza
Stravaganza
Posted
Posted

Hello everyone,



I have some noob questions.

  1. Basically I want to *uninstall* 3-pot and 3-port digital subpackages of skippytard's ALC888 package installed on my Hackintosh running Leopard. (I installed all subpackages.) Is there a way to do this?
  2. And if I remove these two subpackages, does the system still work with my 6 channels?
  3. Is there a way to show the audio information in System Profiler?

Thanks. :)



--S

Link to comment
Share on other sites
ufolog
ufolog
Posted
Posted

I also have a problem with my ASUS P5K (ALC883 on ICH9)..





I've tried many times with different variations, but no result

Does someone have any experience with making soun work on P5K? And what I actually have to do for that, stap by stap?



Really appreciate for any help with this problem..

Link to comment
Share on other sites
thysm00
thysm00
Posted
Posted

Hi all i have a big question: how is the mapping done with your kexts?

I have a alc889a wich wa almost fully working (only no 5.1) and i broke the left channel by pluging the out cable of my self amplified monitoring speakers into the stereo output... :D

I thought that maybe i could get it back working by changing the output channel since there are 6 stereo plugs and only 3 used (mic, streo out, line in).

Does anyone know how to map it, i remember seeing a post saying tha the mapping for his card was wrong and that he changed it...



PS: I bought a usb soundcard to get sound but this is {censored}, just don't get tempted (hercules muse pocket LT usb it's written 5,1 and mac compatible on front of the box but on the rear there's written only stereo out for mac, and the best thing is that the stereo out has no bass at all and has a lot of noise).



Please help me with it...

Link to comment
Share on other sites
wigworm
wigworm
Posted
Posted
OK, I have started a new thread so I can keep all my drivers together in one easy to find post. For a little background info on this project refer to THIS thread. I would also like to mention that this would not be possible without Semthex, Taruga, TheMax32000, Rene204 and the countless testers that have helped develop these kext!SkippyAzaliaAudio.pkg should give 2ch output on most High Def Audio chipsets (updated v1.1)AzaliaAudio.pkg.zipALC883Audio.pkg includes kext's for ALC883 support on mobo's with 3ports, 3ports w/digital, 6ports and 6ports w/digitalALC883Audio.mpkg.zipALC888Audio.pkg includes kext's for ALC888 support on mobo's with 3ports, 3ports w/digital, 6ports and 6ports w/digitalALC888Audio.mpkg.zipYOU MUST USE 8.8.1 OR NEWER KERNEL WITH ALC883AUDIO.PKG AND ALC888AUDIO.PKG If you have 3 outputs working you can setup 5.1 using Audio MIDI Setup found in the /Applications/Utilities/ folder. On the menu bar select "Audio>Open Aggregate Device Editor". Click on the "+" square and it will add a new aggregate device. Now select "Use" next to each output you want to add(usually the first 3) and click "done". Change Default Output to the "Aggregate Device". Now select "Aggregate Device" in the Properties For: box and click on "Configure Speakers". Click "Multichannel" and select "5.1 Surround". When your done configuring your speakers the way you want them, make sure you click "Apply" before "Done". You should now have 5.1 surround sound working.
I'm little confused, kinda new to this audio fix thing. Before I just use USB sound. Question: I have a Gigabyte board with onboard ALC888 sound. Do I install both AzaliaAudio.pkg and ALC888Audio.pkg or just ALC888Audio.pkg alone? Thanks!
Okay, so I've got basic line-out working now on my alc888 (ga-p35-ds3L - ICH9) by adding the proper ids after installing the alc888 package in the first post.Now, is there anything special I need to do to get the front panel audio working? The front panel on my case (cooler master cm 690) had multiple audio connections for my motherboard, including HD Audio, AC 97, and Azalia. From what I can tell from my motherboards book, both HDA and AC97 are supported. My understanding was that this is an HDA driver. Should I try another driver, or is there something else I need to do?There is also only one output option in the sound menu (basic line-out), even though my motherboard has multichannel/digital/spdif/optical.Is this the wrong driver to get all this working?
Hi there, I have the same board as you. Can you give me a quick rundown on how did you install the ALC888 and what ID added to which kext? Thanks a bunch. Have you tried install AzaliaAudio.pkg to get the front pannel working yet? I don't think it matters which case you are using as the chip is on motherboard. Am I right?
Link to comment
Share on other sites
JeremyFr
JeremyFr
Posted
Posted

Ok well I wanted to say thanks the post starter for providing these kext's. Needless to say they work fine on my system spec's are as follows



OS - JAS 10.4.8 release

Mobo - Gigabyte GA-G31 MX-S2 - G31 with ICH7 chipset, ALC888 Audio

Proc - Intel Allendale E4400 2.0GHz running @ 2.8GHz

Ram - Kingston Value Ram 2GB 667Mhz @ 932 MHz 2.1v

HDD - Seagate Barracuda 10.1 80GB Sata II

Video - EVGA 7600GS



Needless to say the only 2 things I had issues with was my NIC (which I was able to get up and running just fine) and my ALC888 HDA, no other issues at all, 10.4.8 is no up and running beautifully.



Once again thanks for your work on these drivers!!!

Link to comment
Share on other sites
Disdain
Disdain
Posted
Posted
Hey Skippy,



Is your MSI-945-gm3(f) still working for you in 10.5.1? I've tried all 4 install options in your 883 installer, no love so far. Generic 2-CH installer is working great..



Josh



Same thing here, I have the 2 ch, but nothing with the 883 package. Anyone come across a solution for this?

Link to comment
Share on other sites
mant3ra
mant3ra
Posted
Posted

hey im using gigabyte p965-DS4 rev. 3.3 sound woring only when i use headphones but i cant get my 5.1 speaker system to work.I have downloaded file in 1st posto and used 6 chanal audio but then spekers working but not all in same time only 2 sides or just cener or just subbufer in speaker configuration i cant select 5.1 sorround only stereo or 2 spekers :(how to get it working im using kalyway leopard 10.5.1 do i need more patches or what?how to get 5.1 system working on P965-DS4 motherbord. i get my headphones working but speakers dont.im using kalyway 10.5.1 leopard dvd plz help

Link to comment
Share on other sites
mant3ra
mant3ra
Posted
Posted

ok i get them working all :unsure: using Aggregate Device Editor all speakers responding correctly when im testing them :tomato:

but i cant use all speakers when play music with itunes, only 2 set of speakers..



anybody know how to set Aggregate Device to be default output device for all programs?

Link to comment
Share on other sites
robotskip
robotskip
Posted
Posted

I tried the first package, the Azalia one, and it didn't work with my mobo/chipset.



My vendor ID is 10EC and the device ID is 0885, it's just the ALC889A chipset also known as Azalia. Is there a way I can edit the kexts I now have thanks to previous methods and just add in my own device ID?



I'm going to try the ALC888 package now though.



Edit[1]: I have my audio working (Every port too, it seems) thanks to another method. That is all.

Link to comment
Share on other sites
idividebyzero
idividebyzero
Posted
Posted

I get jacked up sound with my headphones when using the 883 installer (I tried 3 and 6 port modes, what is the difference anyways?), but line-in works. The sound has 0 bass, so it sounds like something over the telephone which is just terrible for music. Ive tried the 4 line-out ports and they all sound the same. The 2ch one sounds fine but I dont get line-in.



Is there any way I can have good sound over headphones as well as line-in?

Link to comment
Share on other sites
attempts
attempts
Posted
Posted

what method did you use?

I tried the first package, the Azalia one, and it didn't work with my mobo/chipset.My vendor ID is 10EC and the device ID is 0885, it's just the ALC889A chipset also known as Azalia. Is there a way I can edit the kexts I now have thanks to previous methods and just add in my own device ID?I'm going to try the ALC888 package now though.Edit[1]: I have my audio working (Every port too, it seems) thanks to another method. That is all.
does anyone have line out on conexant?
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
