darkbluecode Posted July 16, 2018 Share Posted July 16, 2018 7 minutes ago, arsradu said: So, just to be clear, you're trying to enable the microphone near the camera, right? Do you have it listed in System Preferences -> Sound -> Input (built-in)? Can you provide a screenshot of that? Also, does the microphone work on its own or doesn't work in a specific app? What happens if you test it in System Preferences? i have it but i haven't any volume in it i test it in many app but it doesn't work . Link to comment Share on other sites More sharing options...
arsradu Posted July 16, 2018 Share Posted July 16, 2018 7 minutes ago, darkbluecode said: i have it but i haven't any volume in it i test it in many app but it doesn't work . I'm not an expert in laptop audio but...it looks ok... And the point I was trying to make is to try without any app by default. Since, some of them have their own setting for microphone. So, if when you tap the microphone near the camera, or speak, you get no change in Input Level, then the problem might be somewhere else. And honestly I don't know where. Link to comment Share on other sites More sharing options...
SavageAUS Posted July 16, 2018 Share Posted July 16, 2018 Hi i have asus gl553vd and i used yout kext and speaker working now but microphone doesn't work but when i used voodahda microphone work but i don't love that audio because it has so bad noise now how can i fix microphone ? * when i using headphone , headphone microphone work goodWhich version of (AppleALC & Lilu) kexts are you using? Which version of macOS? What is your codec? alcxxx?Can you enable/disable microphone from bios? Does it work in windows/linux? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
darkbluecode Posted July 16, 2018 Share Posted July 16, 2018 54 minutes ago, SavageAUS said: Which version of (AppleALC & Lilu) kexts are you using? Which version of macOS? What is your codec? alcxxx? Can you enable/disable microphone from bios? Does it work in windows/linux? Sent from my SM-G930F using Tapatalk kext last V . yesterday i update all . 10.13.5 no . yes work so good. when i used vooodahda it was work so good. Link to comment Share on other sites More sharing options...
Pavo Posted July 18, 2018 Share Posted July 18, 2018 @vit9696Would you happen to know why I lose audio when using your latest commented AppleALC that I compiled when I don't have npci=0x2000 as a bootarg? Link to comment Share on other sites More sharing options...
twsps Posted July 19, 2018 Share Posted July 19, 2018 Hi @vandroiy2012 @vit9696 , I tried the latest AppleALC and Lilu (that have just been released an hour ago), these latest kexts do not work for ALC3254/295 on my Dell Inspiron 7370 laptop. I will have a grey out sound icon that I'm not able to control the volume (meaning didn't work). I tried id=3, 13, 28. Thanks. Link to comment Share on other sites More sharing options...
jaliskillu Posted July 20, 2018 Share Posted July 20, 2018 Hi, I updated ApleALC from 1.2.8 to 1.3.0 and my ALC889 stop working. In previous v1.2.8 I injected Audio id 12 from Clover. When Updating to 1.3.0 (previously I updated Lilu to 1.2.5) I have no sound and grey audio icon. Reverting to AppleALC 1.2.8 works again. No need to revert Lili from 1.2.5 to previous version. I also tried other layouts: 11, 0x00004 and layout 1. No success. Any help? Thanks Link to comment Share on other sites More sharing options...
SavageAUS Posted July 20, 2018 Share Posted July 20, 2018 Hi, I updated ApleALC from 1.2.8 to 1.3.0 and my ALC889 stop working. In previous v1.2.8 I injected Audio id 12 from Clover. When Updating to 1.3.0 (previously I updated Lilu to 1.2.5) I have no sound and grey audio icon. Reverting to AppleALC 1.2.8 works again. No need to revert Lili from 1.2.5 to previous version. I also tried other layouts: 11, 0x00004 and layout 1. No success. Any help? ThanksWhich OS. Sierra, High Sierra or Mojave?hdas -> hdef ? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
jaliskillu Posted July 20, 2018 Share Posted July 20, 2018 (edited) 50 minutes ago, SavageAUS said: Which OS. Sierra, High Sierra or Mojave? hdas -> hdef ? Sent from my SM-G930F using Tapatalk AppleALC 1.2.8 works for me in HSierra and Mojave beta. None of them works with 1.3.0. In 1.3.0, I tried with "hdas -> hdef" patch enabled and disabled. Not working. In v1.2.8 hdas->hdef has no effect. It works with or without it. Edited July 20, 2018 by jaliskillu Link to comment Share on other sites More sharing options...

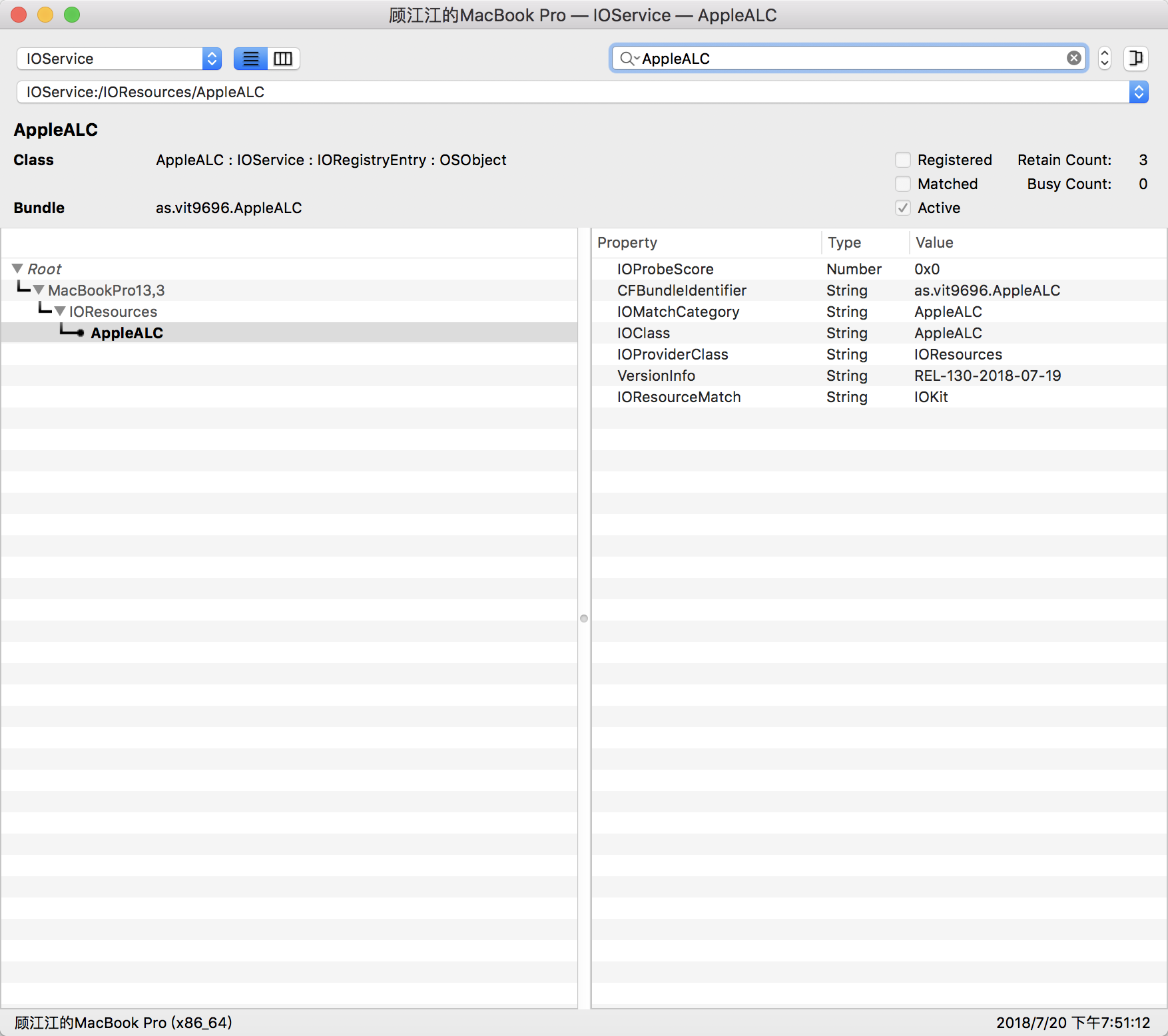

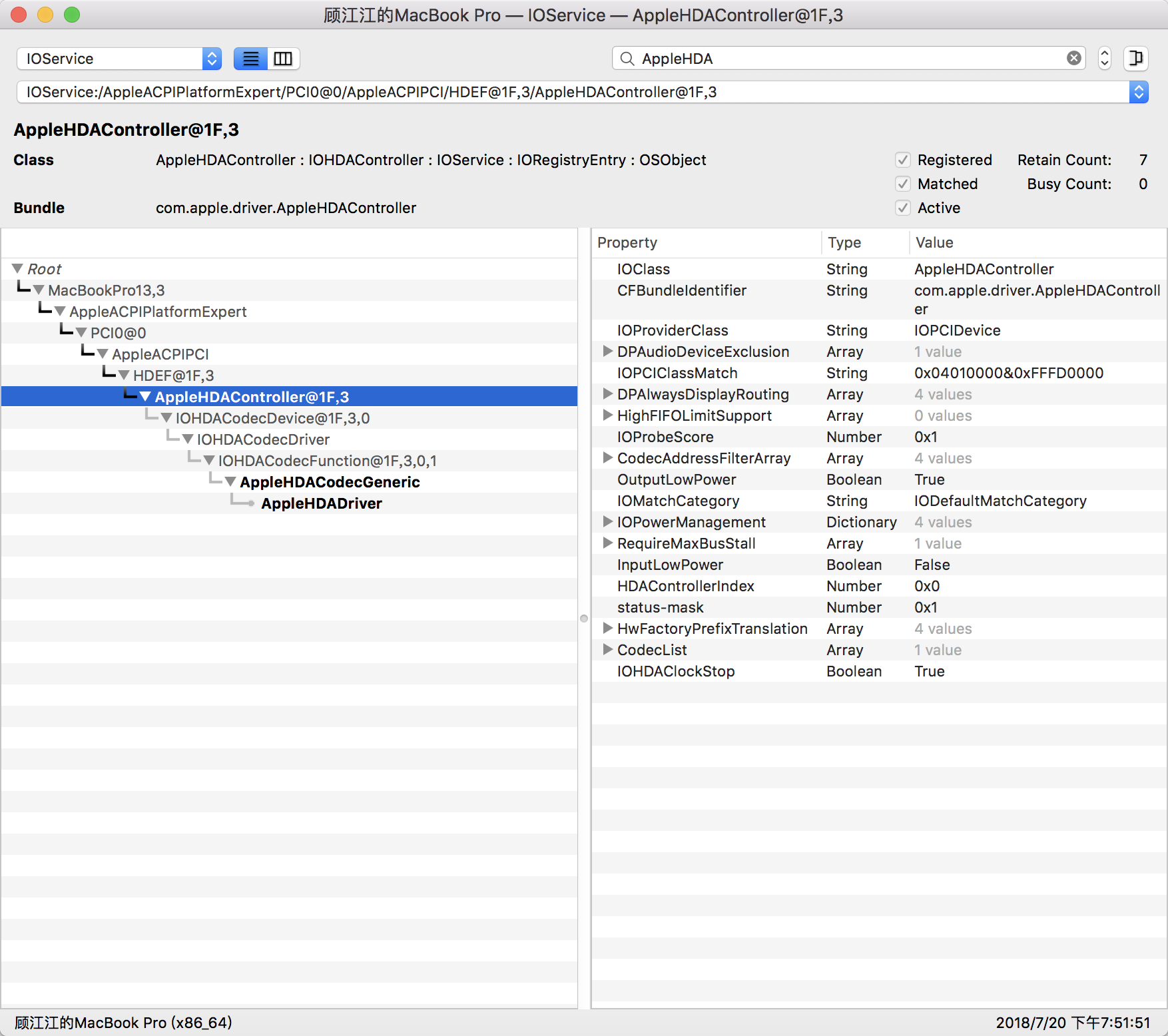

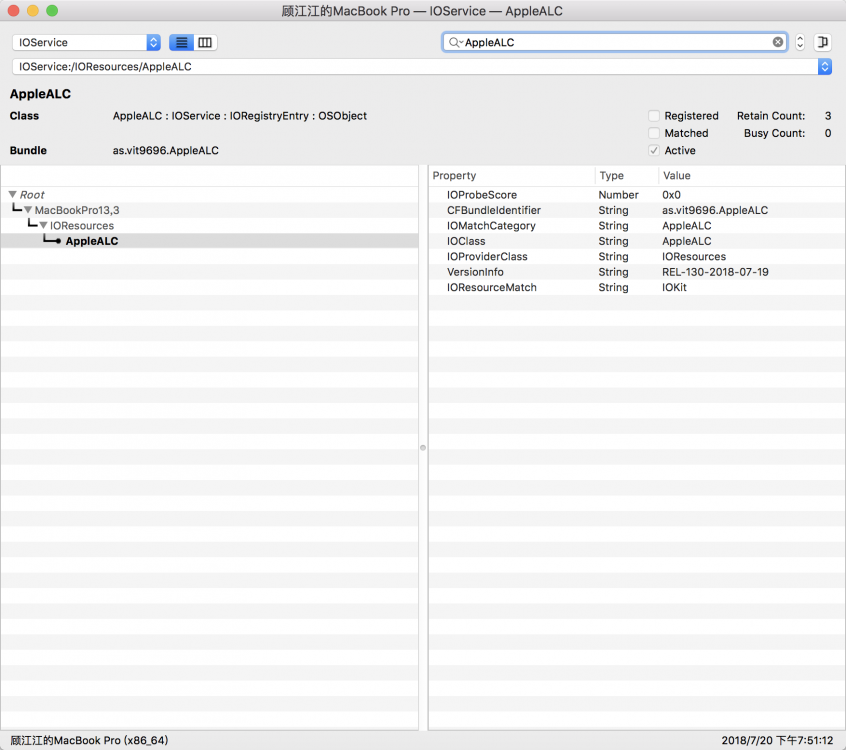

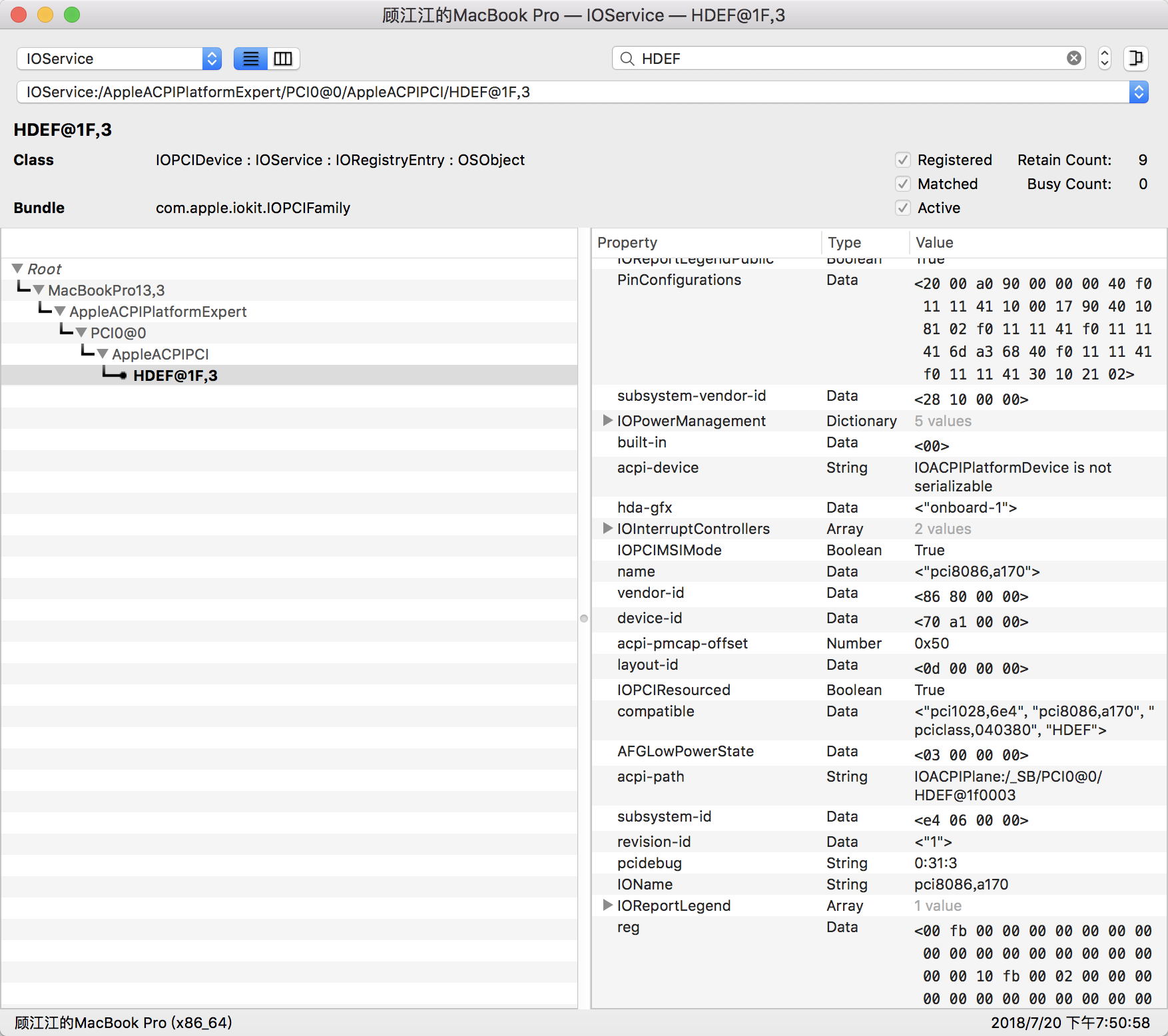

gujiangjiang Posted July 20, 2018 Share Posted July 20, 2018 Today when i update to AppleALC1.3.0 and my sound have stop working now and it shows grey icon on state bar. I'm using HDEF to using AppleALC and my laptop is XPS15-9550. I had to redownload AppleALC1.2.8 to rework my sound. All look fine but my sound still cant work. Link to comment Share on other sites More sharing options...

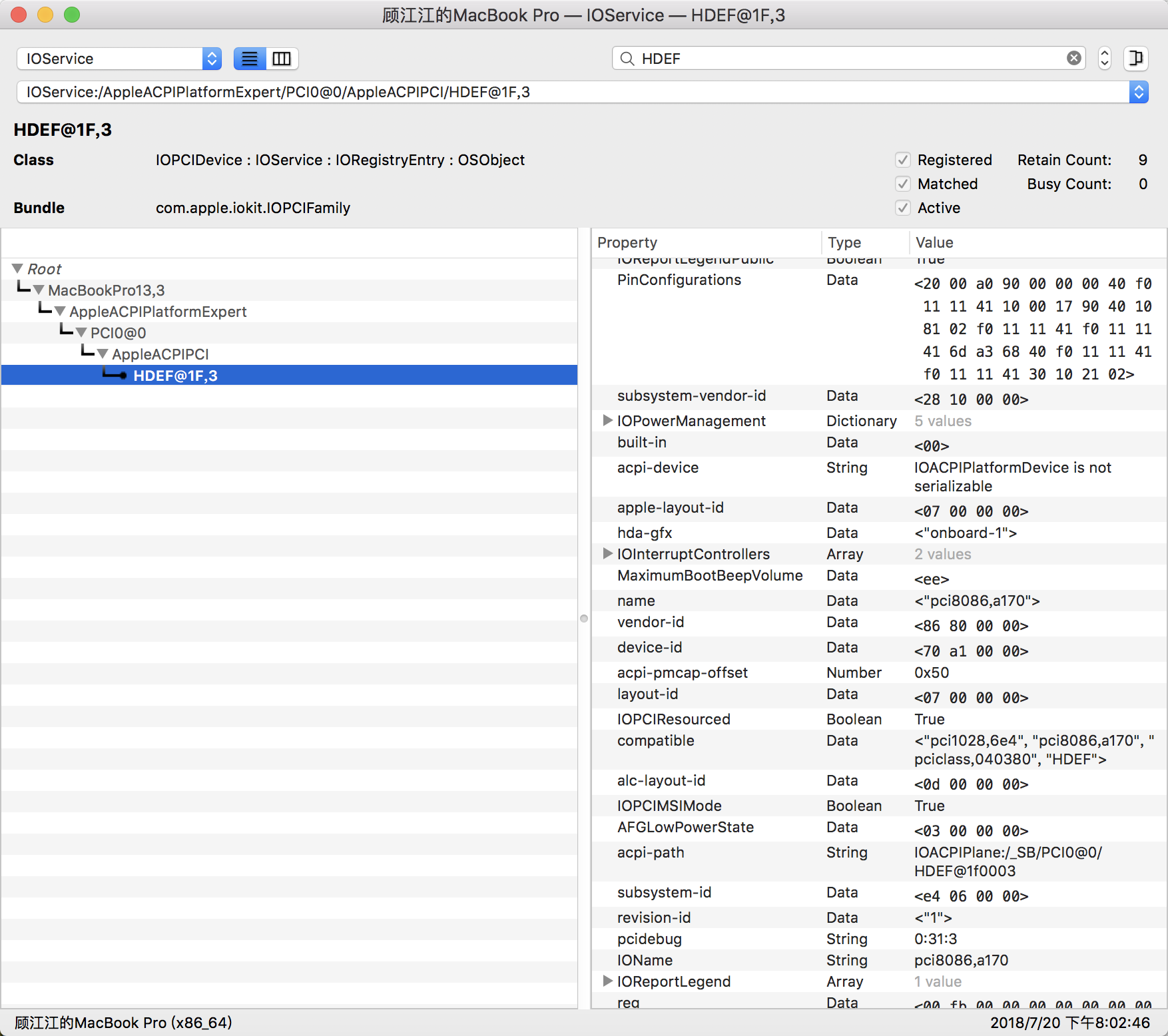

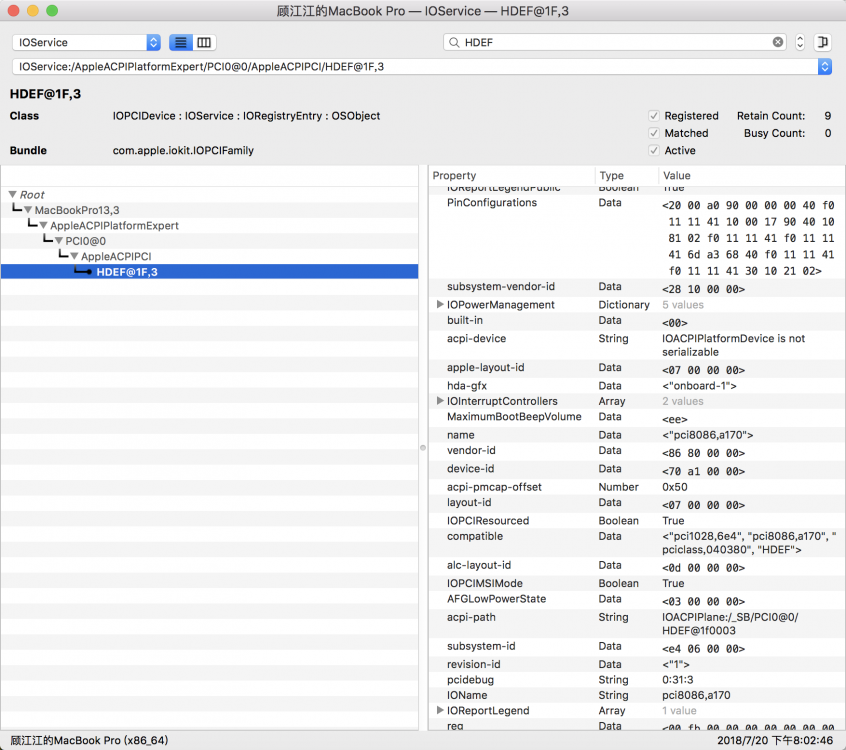

gujiangjiang Posted July 20, 2018 Share Posted July 20, 2018 Now i'm using AppleALC1.2.8 and sound works fine and i looked into Ioreg and i found AppleALC1.2.8 have more properties than AppleALC1.3.0 such as apple-layout-id MaximumBootBeepVolume alc-layout-id IOPCIMSIMode I hope this found can help to debug how AppleALC1.3.0 dont work. Thanks for your works. Link to comment Share on other sites More sharing options...
ameenjuz Posted July 21, 2018 Share Posted July 21, 2018 Hi vit9696 I couldn't find my codec in your AppleALC source my codec 10EC0230 I have patched AplpleHDA.kext I have attached all info using utility command above and I have few issue in this patched applehda.kext when I go to sound preference output balance slider issue when I draw slider left working fine and right slider not fine please fix this issue and add my codec id in your source because this codec id haven't your source I also attached codec_dump which I extracted from linux. this is working 10.13 and 10.14 using layout id 13 PatchedAppleHDA-info.zip Link to comment Share on other sites More sharing options...
limurphy Posted July 21, 2018 Share Posted July 21, 2018 (edited) I also lost my sound after update AppleALC from 1.28 to 1.30 + lilu 1.2.5 in os x 10.13.6 with DSDT . Mine codec is ALC885.And rollback to 1.28 + lilu 1.2.4 without any problem. Edited July 22, 2018 by limurphy Link to comment Share on other sites More sharing options...
bronxteck Posted July 22, 2018 Share Posted July 22, 2018 maybe the new applealc needs clover device properties injection in devices section of config. Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 Can you post IOREG dump? Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 The ioreg is corrupted Link to comment Share on other sites More sharing options...
MaLd0n Posted July 22, 2018 Share Posted July 22, 2018 6 minutes ago, WinstonAce said: The ioreg is corrupted just use Version 3.0.2 Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 Are you also using Clover dsdt rename PEGP to GFX0? Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 try this ssdt instead the one you uploaded SSDT-1.aml Link to comment Share on other sites More sharing options...

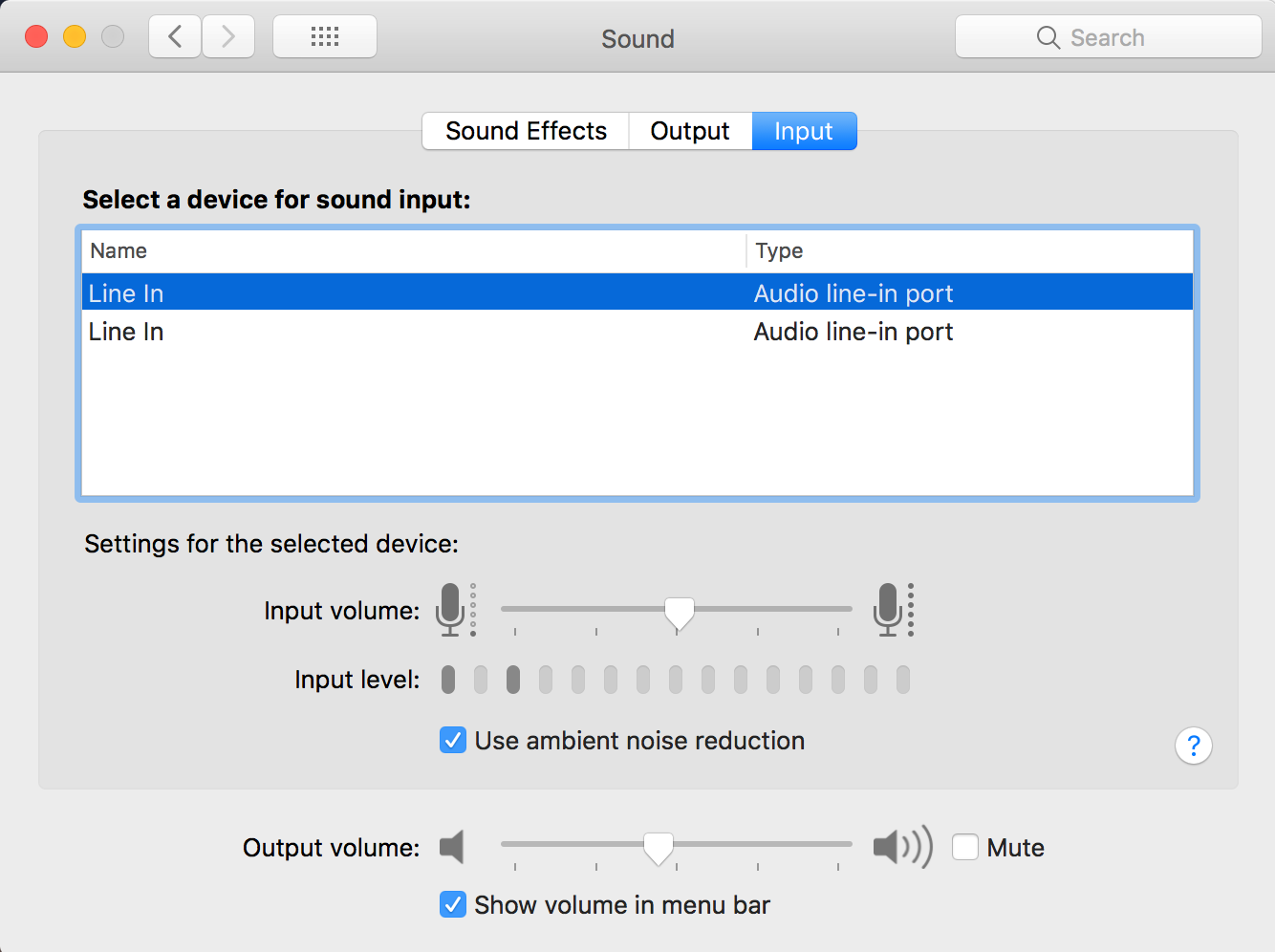

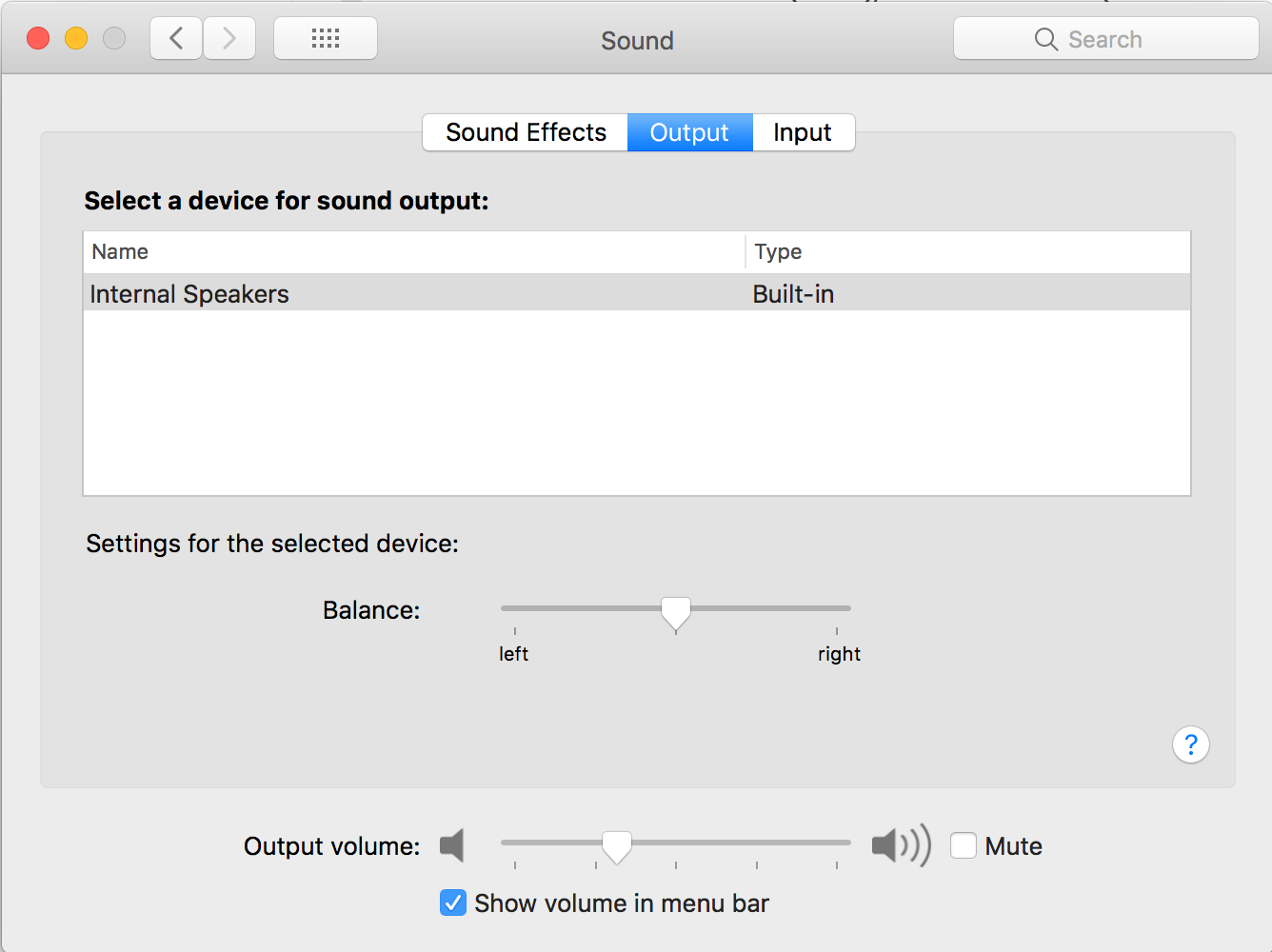

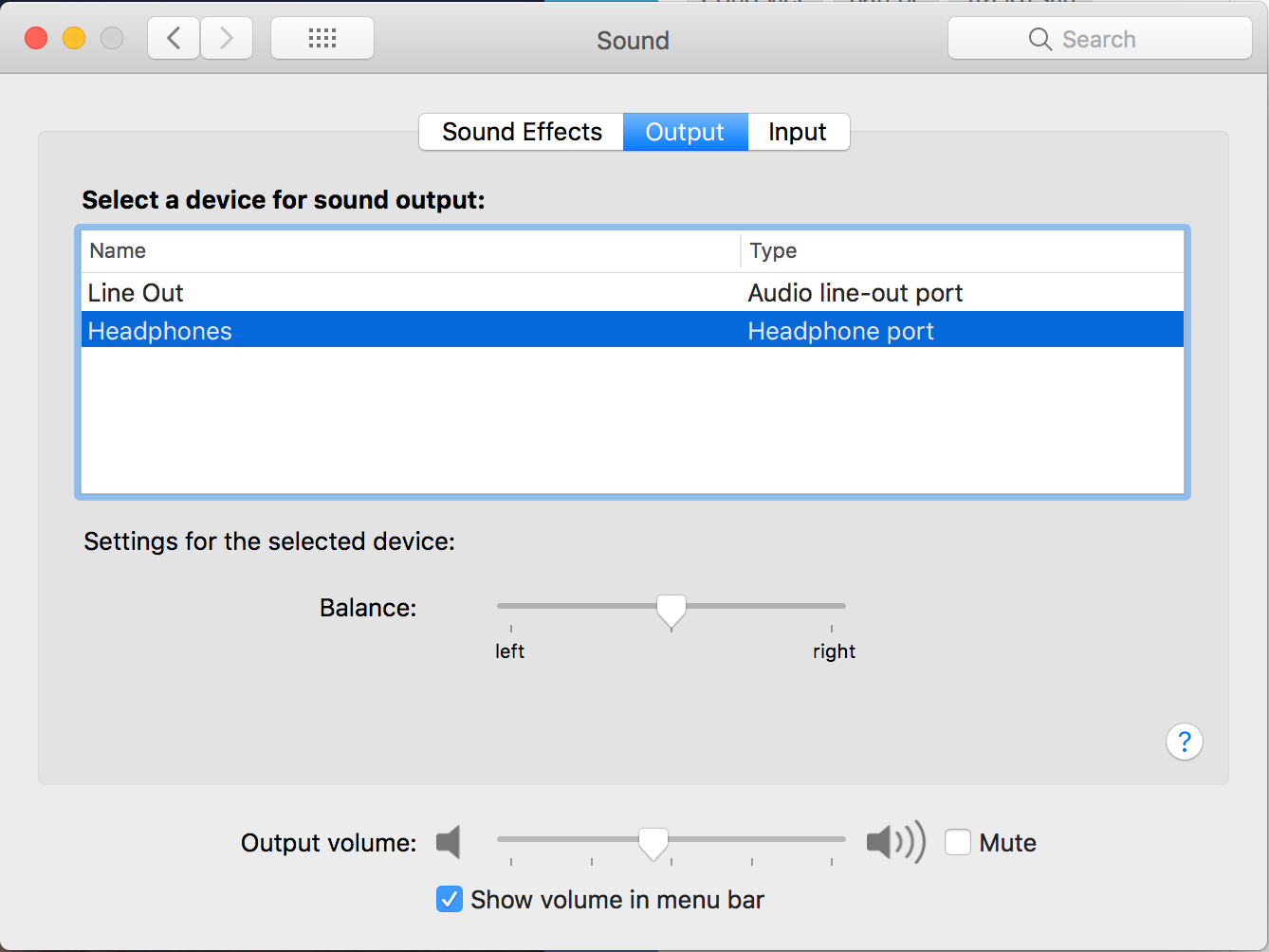

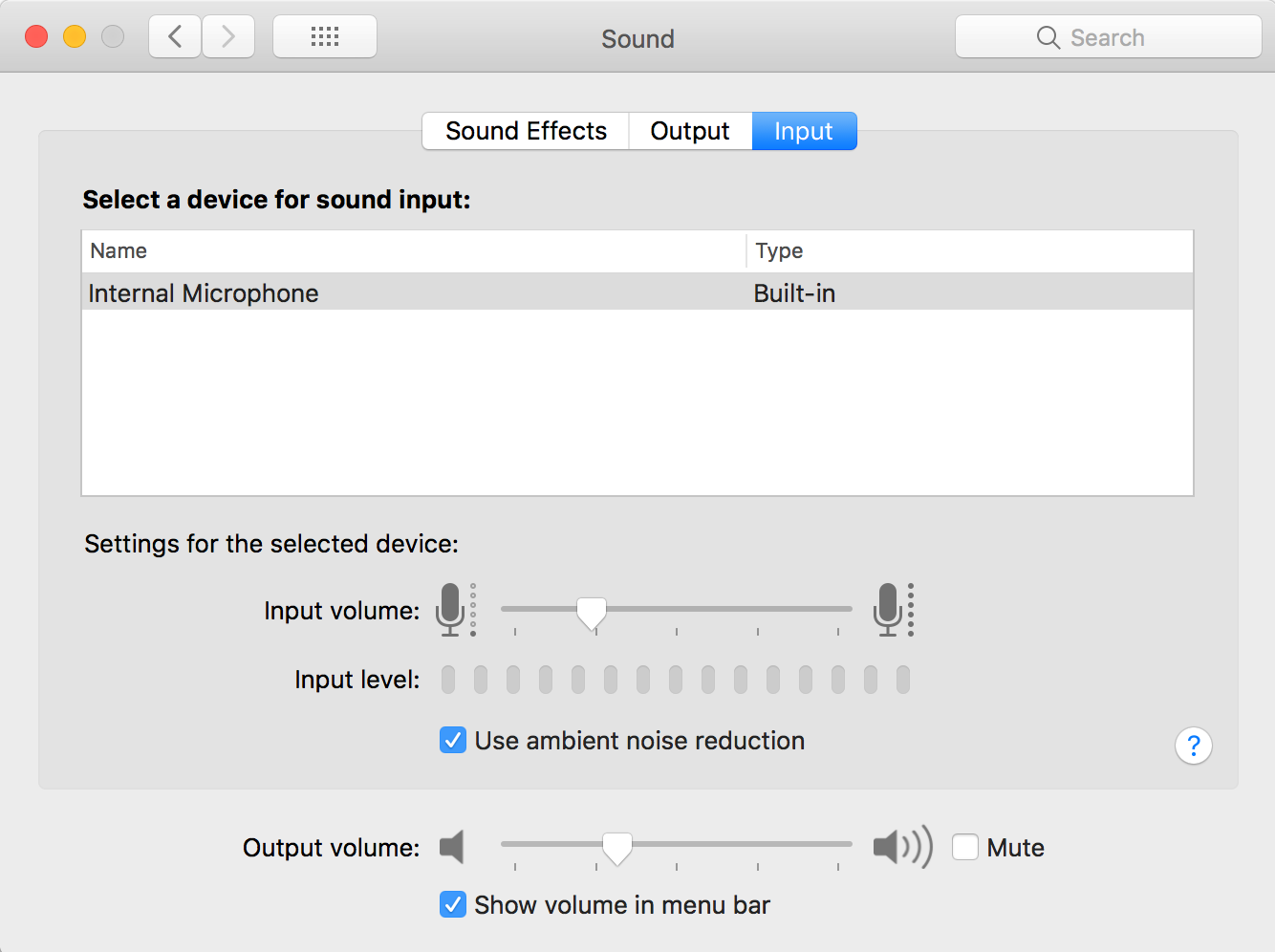

Unnamed X Posted July 22, 2018 Share Posted July 22, 2018 (edited) Hi, I need help in creating a new layout to support the Docking audio port on Zbook 15 G2 (ALC280). Currently: Layout 4: + Built-in mic works, ext mic (line in) works with noise (no ambient noise reduction option). + Internal speaker and headphone hot-swap works, but no line out for the docking. Layout 13: + No internal speaker or mic. + Headphone works, line out for the docking works. + There are 2 selections for ext mic (line in), the first one works (with ambient noise reduction option). I tried to clone the layout 13 and adding internal speaker and mic from layout4 to it, but didn't work. My procedure: + Modify layout.xml and platforms.xml + Add record to info.plist and pin.plist + Build with Xcode and import to Clover Kext folder. Even if I tried to modify layout 13 or 4 instead of making a new one, it still results same as the original one, nothing was changed. Here is my files, I sorry for my bad modification. Thank you so much! codec_dump.txt Codec Map.txt Archive.zip Edited July 22, 2018 by Unnamed X Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 No, it didn't work. Any other thoughts?What kexts are you using?Sent from my SM-G960F using Tapatalk Link to comment Share on other sites More sharing options...
WinstonAce Posted July 22, 2018 Share Posted July 22, 2018 Nvidiagraphicfixup is deprecated by WhatEverGreen. Try to replace and use it without the hdmi ssdt.Also, it should take care of the gfx/igpu renaming instead of clover, right now your Ethernet is also gfx0.Also, although you injected on-board-2 it's set to on-board-1 in ioreg. Too many solutions all at once maybe? Sent from my SM-G960F using Tapatalk Link to comment Share on other sites More sharing options...
iCanaro Posted July 22, 2018 Share Posted July 22, 2018 Link to comment Share on other sites More sharing options...
SavageAUS Posted July 22, 2018 Share Posted July 22, 2018 Whatevergreen is for AMDNot anymore. It's for AMD Nvidia and Intel.Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Pavo Posted July 22, 2018 Share Posted July 22, 2018 18 minutes ago, meaganmargaret said: Whatevergreen is for AMD, I have an Nvidia and so Nvidiagraphicfixup is the right kext for my system. Sorry, and I appreciate your efforts, but I'm not going to use Whatevergreen on an Nvidia card based system. I appreciate your time. Thank you. WhateverGreen is now for all GFXs, AMD, Nvidia and Intel and it also replaces Shiki. vit9696 merged them all into WhateverGreen. Link to comment Share on other sites More sharing options...
