darkbluecode Posted July 23, 2018 Share Posted July 23, 2018 On 7/15/2018 at 9:20 PM, darkbluecode said: Hi i have asus gl553vd and i used yout kext and speaker working now but microphone doesn't work but when i used voodahda microphone work but i don't love that audio because it has so bad noise now how can i fix microphone ? * when i using headphone , headphone microphone work good any one can't help me ? Link to comment Share on other sites More sharing options...
LockDown Posted July 23, 2018 Share Posted July 23, 2018 (edited) 8 hours ago, meaganmargaret said: Whatevergreen is for AMD, I have an Nvidia and so Nvidiagraphicfixup is the right kext for my system. Sorry, and I appreciate your efforts, but I'm not going to use Whatevergreen on an Nvidia card based system. I appreciate your time. Thank you. Quote NvidiaGraphicsFixup NvidiaGraphicsFixup is now part of WhateverGreen, please use it instead. Edited July 23, 2018 by ellaosx 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted July 23, 2018 Share Posted July 23, 2018 (edited) @ellaosx Thanks for this news: "NvidiaGraphicsFixup NvidiaGraphicsFixup is now part of WhateverGreen, please use it instead." Do you confirm is the same for IntelgrahicFixup and Shiki? Sorry my english is so bad that I don't understand explanations from github.com/acidanthera/WhateverGreen. Edited July 23, 2018 by Matgen84 Link to comment Share on other sites More sharing options...
LockDown Posted July 23, 2018 Share Posted July 23, 2018 (edited) 28 minutes ago, Matgen84 said: @ellaosx Thanks for this news: "NvidiaGraphicsFixup NvidiaGraphicsFixup is now part of WhateverGreen, please use it instead." Do you confirm is the same for IntelgrahicFixup and Shiki? Sorry my english is so bad that I don't understand explanations from github.com/acidanthera/WhateverGreen. Yes... NvidiaGraphicsFixup, IntelGraphicsFixup & Shiki Back to topic Edited July 23, 2018 by ellaosx 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted July 23, 2018 Share Posted July 23, 2018 any one can't help me ?Try different layout id?Which codec?Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
darkbluecode Posted July 23, 2018 Share Posted July 23, 2018 11 minutes ago, SavageAUS said: Try different layout id? Which codec? Sent from my SM-G930F using Tapatalk yes . Link to comment Share on other sites More sharing options...
Kynyo Posted July 23, 2018 Share Posted July 23, 2018 (edited) Tried latest lilu and AppleALC kexts and i dont have sound, but all needed kexts are loaded. DSDT made by MaLd0n. Codec ID: ALC892. Thank you for this great project! Isn't DSDT related, even if all HDA kexts, Lilu and AppleALC are loaded, i dont get any output devices. Maybe I have another codec revision of ALC892? With AppleALC 1.2.8 and latest lilu it is working normally. DSDT.aml Edited July 23, 2018 by Kynyo Link to comment Share on other sites More sharing options...

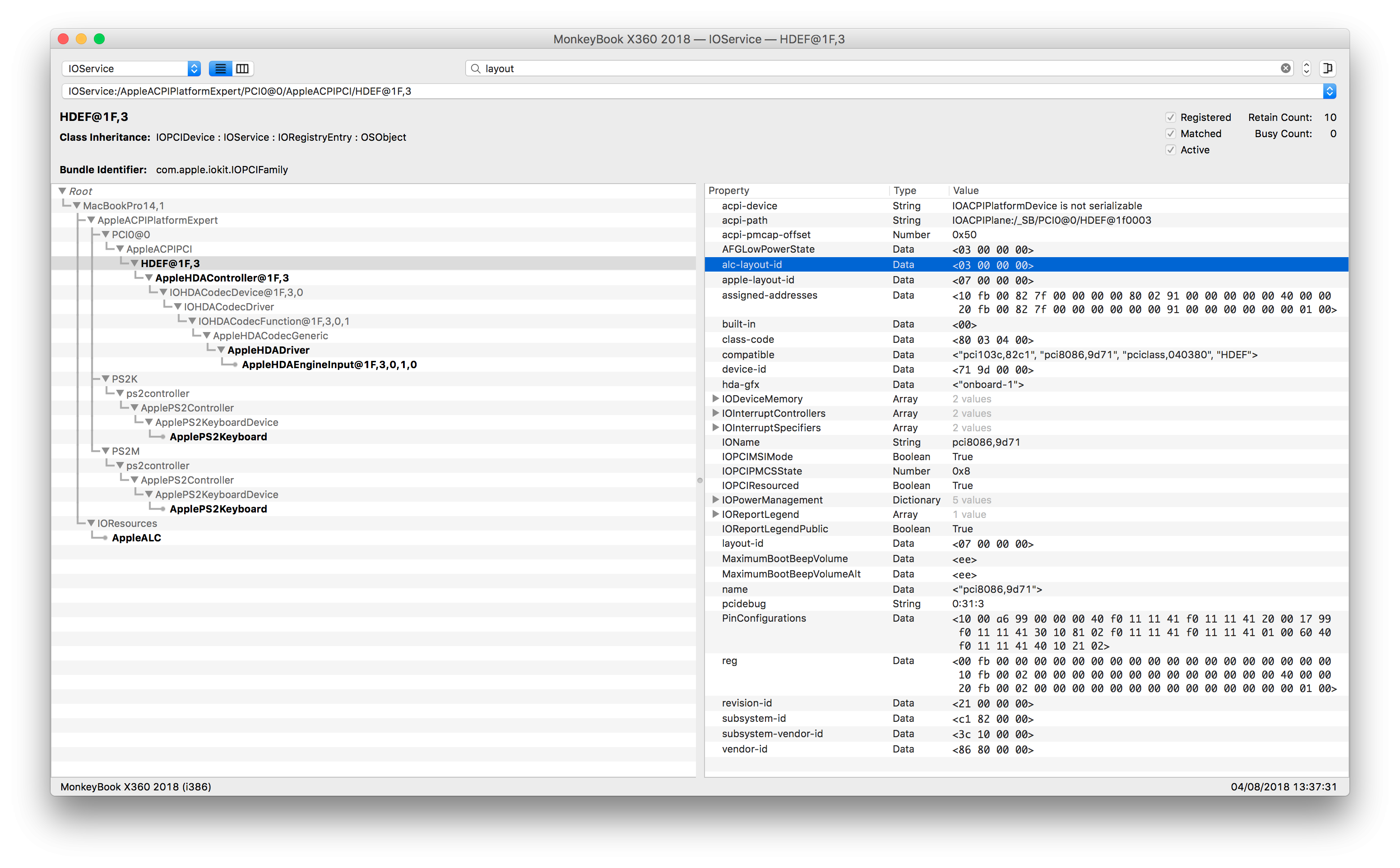

ncafferkey Posted July 23, 2018 Share Posted July 23, 2018 Hi, I'm trying to get AppleALC working on my Dell Precision T7500 with AD1984A codec, without success so far. I'm using AppleALC 1.2.8, Lilu 1.2.5, macOS 10.12.6. No audio outputs are shown in sound prefs. I've attached a log from running the debug version of AppleALC. In IORegistryExplorer, layout-id=7, apple-layout-id=7 and alc-layout-id=1. Am I doing something wrong, or do I have an unsupported codec variant? AppleALC_1.2.8.DEBUG_3.log Link to comment Share on other sites More sharing options...
volc Posted July 24, 2018 Share Posted July 24, 2018 (edited) On 2/26/2018 at 12:02 AM, volc said: 1. Lenovo Ideapad 510s-14ISK 2. 0x10ec0236 3. 15 (already tried them all, and 15 works the best) 4. 10.13.3 5. Attached Problem: There are two internal mics in my laptop, but the right mic is the only one which works, the second one (the left mic) doesn't. Also it can't detect external mic. Can you help me with this problem? Info.plist.zip I'm going to bump this and attach my codec_bump.txt. Can someone please help me? codec_dump.txt Edited July 24, 2018 by volc Link to comment Share on other sites More sharing options...
Pavo Posted July 24, 2018 Share Posted July 24, 2018 25 minutes ago, meaganmargaret said: Okay, tried it, (the new latest WhatEverGreen) but it doesn't matter.....didn't work or change anything....still no HDMI output for the monitor (which works just fine in Windows). And VoodooHDA does work, although, as usual, it has delays....particularly with system sounds, and I would prefer a clean HDMI working solution. And yes, I'm loading the latest AppleALC, Lilu and Shiki (tried with Shiki and without Shiki, no difference). Please stop comparing stuff that works in Windows to stuff that isn't working in macOS. Just because it works in Windows does not mean it will work in macOS. 1 Link to comment Share on other sites More sharing options...
darkbluecode Posted July 24, 2018 Share Posted July 24, 2018 (edited) On 7/23/2018 at 12:38 PM, SavageAUS said: Try different layout id? Which codec? Sent from my SM-G930F using Tapatalk Hi now i use voodahda and remove applelac and now may microphone working so good but speaker work so nad with nose and so low !!! but i get ior file in zip . ( with out change layout , it's on 1 ) now can you help me ? MR. do you have an idea @al6042 voodohda.zip Edited July 24, 2018 by darkbluecode Link to comment Share on other sites More sharing options...
al6042 Posted July 24, 2018 Share Posted July 24, 2018 (edited) Not without knowing your currently used Mainboard and your current EFI-Folder. Edited July 24, 2018 by al6042 Link to comment Share on other sites More sharing options...
MacPeet Posted July 25, 2018 Share Posted July 25, 2018 On 7/22/2018 at 11:26 PM, Unnamed X said: Hi, I need help in creating a new layout to support the Docking audio port on Zbook 15 G2 (ALC280). Currently: Layout 4: + Built-in mic works, ext mic (line in) works with noise (no ambient noise reduction option). + Internal speaker and headphone hot-swap works, but no line out for the docking. Layout 13: + No internal speaker or mic. + Headphone works, line out for the docking works. + There are 2 selections for ext mic (line in), the first one works (with ambient noise reduction option). ... Too few nodes for the project. Same nodes on HP and LineOut. Speaker 20-13-3 HP 21-12-2 LineOut 27-12-2 We can try Speaker and HP both with 13-3 in SwitchMode. I can not say if it works. You can try! I have configured with LayoutID 16 (for DSDT HEX 10): Speaker and HP in SwitchMode LineOut MIC internally from the ID4 LineIn from the ID13 try this with ID16 trial1_alc280_layoutID16.zip 1 Link to comment Share on other sites More sharing options...
Unnamed X Posted July 25, 2018 Share Posted July 25, 2018 7 hours ago, MacPeet said: Too few nodes for the project. Same nodes on HP and LineOut. Speaker 20-13-3 HP 21-12-2 LineOut 27-12-2 We can try Speaker and HP both with 13-3 in SwitchMode. I can not say if it works. You can try! I have configured with LayoutID 16 (for DSDT HEX 10): Speaker and HP in SwitchMode LineOut MIC internally from the ID4 LineIn from the ID13 try this with ID16 trial1_alc280_layoutID16.zip Hi MacPeet, Thank you so much for your time, unfortunately, it (layout16) doesn't work. The speaker icon is just greyed out, it also happens when I tried to clone the layout13 (everything exactly the same as the old layout13), just changed the layoutID to another number for testing. You mentioned I had "few nodes", does that mean for the Platforms.xml or the layout.xml? I'm sorry for any dumb question, still learning Thank you. Link to comment Share on other sites More sharing options...
MacPeet Posted July 25, 2018 Share Posted July 25, 2018 in Platforms.xml either Speaker or LineOut both difficult try this with layoutID16 and layoutID17 also try ID4 and ID13 with this trial, if it will load at all Sierra or HS trial2_alc280_layoutID16_and_layoutID17.zip 1 Link to comment Share on other sites More sharing options...
Unnamed X Posted July 25, 2018 Share Posted July 25, 2018 45 minutes ago, MacPeet said: in Platforms.xml either Speaker or LineOut both difficult try this with layoutID16 and layoutID17 also try ID4 and ID13 with this trial, if it will load at all Sierra or HS trial2_alc280_layoutID16_and_layoutID17.zip Hi MacPeet, I tried both ID16 and 17, none of them worked. ID4 and 13 still work and resulted same as previous tests. Thank you again for you time. I really appreciate it! Link to comment Share on other sites More sharing options...
MacPeet Posted July 26, 2018 Share Posted July 26, 2018 try next (16 and 17): trial3_alc280_layoutID16_and_layoutID17.zip 1 Link to comment Share on other sites More sharing options...
Unnamed X Posted July 26, 2018 Share Posted July 26, 2018 11 hours ago, MacPeet said: try next (16 and 17): trial3_alc280_layoutID16_and_layoutID17.zip Hi MacPeet, Thank you for you work, sadly, it still doesn't work. I forgot to mention that for layout ID 15, SwitchMode and internal speaker works, but no line out. No internal mic but 2 line in, work as layout 13. Hope this information is helpful. Thank you again! Link to comment Share on other sites More sharing options...
gujiangjiang Posted July 27, 2018 Share Posted July 27, 2018 When i update to AppleALC 1.3.0 and it will not work and show grey icon but with AppleALC1.2.8 Works well. Here are the logs. 2018-07-26 22:39:41.162591+0800 localhost kernel[0]: (kernel) Lilu: api @ (DBG) got load request from AppleALC (130) 2018-07-26 22:39:45.753496+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753500+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753504+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753511+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753514+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753528+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753533+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753543+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753547+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753550+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753554+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found 1 audio controllers 2018-07-26 22:39:45.753558+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 0 controller 8086:191B:6 2018-07-26 22:39:45.753561+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-26 22:39:45.753564+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-26 22:39:45.753567+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-26 22:39:45.753570+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-26 22:39:45.753573+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-26 22:39:45.753576+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-26 22:39:45.753579+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-26 22:39:45.753582+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-26 22:39:45.753585+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-26 22:39:45.753593+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 1002:AAC8 2018-07-26 22:39:45.753597+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 10DE:E0F 2018-07-26 22:39:45.753600+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 10DE:10EF 2018-07-26 22:39:45.753603+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 10DE:10F1 2018-07-26 22:39:45.753606+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 10DE:FBA 2018-07-26 22:39:45.753609+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 10DE:FB0 2018-07-26 22:39:45.753612+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 10DE:FBB 2018-07-26 22:39:45.753616+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 10DE:FB8 2018-07-26 22:39:45.753618+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 10DE:FB9 2018-07-26 22:39:45.753622+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 10DE:10F0 2018-07-26 22:39:45.753625+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.760291+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.793310+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 2018-07-26 22:39:45.793315+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller Link to comment Share on other sites More sharing options...
Hackmac101 Posted July 27, 2018 Share Posted July 27, 2018 21 minutes ago, gujiangjiang said: When i update to AppleALC 1.3.0 and it will not work and show grey icon but with AppleALC1.2.8 Works well. Here are the logs. 2018-07-26 22:39:41.162591+0800 localhost kernel[0]: (kernel) Lilu: api @ (DBG) got load request from AppleALC (130) 2018-07-26 22:39:45.753496+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753500+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753504+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753511+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753514+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753528+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753533+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753543+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753547+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753550+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753554+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found 1 audio controllers 2018-07-26 22:39:45.753558+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 0 controller 8086:191B:6 2018-07-26 22:39:45.753561+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-26 22:39:45.753564+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-26 22:39:45.753567+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-26 22:39:45.753570+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-26 22:39:45.753573+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-26 22:39:45.753576+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-26 22:39:45.753579+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-26 22:39:45.753582+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-26 22:39:45.753585+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-26 22:39:45.753593+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 1002:AAC8 2018-07-26 22:39:45.753597+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 10DE:E0F 2018-07-26 22:39:45.753600+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 10DE:10EF 2018-07-26 22:39:45.753603+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 10DE:10F1 2018-07-26 22:39:45.753606+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 10DE:FBA 2018-07-26 22:39:45.753609+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 10DE:FB0 2018-07-26 22:39:45.753612+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 10DE:FBB 2018-07-26 22:39:45.753616+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 10DE:FB8 2018-07-26 22:39:45.753618+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 10DE:FB9 2018-07-26 22:39:45.753622+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 10DE:10F0 2018-07-26 22:39:45.753625+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.760291+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.793310+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 2018-07-26 22:39:45.793315+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller You need to update your Lilu too. Link to comment Share on other sites More sharing options...
gujiangjiang Posted July 27, 2018 Share Posted July 27, 2018 Just now, Hackmac101 said: You need to update your Lilu too. lilu 1.2.5 + AppleALC1.3.0 dont work. lilu 1.2.5 + AppleALC1.2.8 works well without problem. Link to comment Share on other sites More sharing options...
MacPeet Posted July 27, 2018 Share Posted July 27, 2018 @Unnamed X No, it does not help. ID13 and ID15 is also my work for a Dell T20 I do not understand that 16 and 17 did not even work. Hardly any changes compared to 4, 13 and 15. At the moment I have no more ideas. 1 Link to comment Share on other sites More sharing options...
Unnamed X Posted July 27, 2018 Share Posted July 27, 2018 1 hour ago, MacPeet said: @Unnamed X No, it does not help. ID13 and ID15 is also my work for a Dell T20 I do not understand that 16 and 17 did not even work. Hardly any changes compared to 4, 13 and 15. At the moment I have no more ideas. Hi MacPeet, Thank you so much for your effort, I really appreciate that. Have a great day! Link to comment Share on other sites More sharing options...
gujiangjiang Posted July 27, 2018 Share Posted July 27, 2018 13 hours ago, gujiangjiang said: When i update to AppleALC 1.3.0 and it will not work and show grey icon but with AppleALC1.2.8 Works well. Here are the logs. 2018-07-26 22:39:41.162591+0800 localhost kernel[0]: (kernel) Lilu: api @ (DBG) got load request from AppleALC (130) 2018-07-26 22:39:45.753496+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753500+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753504+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753511+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753514+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753528+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-26 22:39:45.753533+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-26 22:39:45.753543+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-26 22:39:45.753547+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-26 22:39:45.753550+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-26 22:39:45.753554+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found 1 audio controllers 2018-07-26 22:39:45.753558+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 0 controller 8086:191B:6 2018-07-26 22:39:45.753561+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-26 22:39:45.753564+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-26 22:39:45.753567+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-26 22:39:45.753570+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-26 22:39:45.753573+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-26 22:39:45.753576+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-26 22:39:45.753579+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-26 22:39:45.753582+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-26 22:39:45.753585+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-26 22:39:45.753593+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 1002:AAC8 2018-07-26 22:39:45.753597+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 10DE:E0F 2018-07-26 22:39:45.753600+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 10DE:10EF 2018-07-26 22:39:45.753603+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 10DE:10F1 2018-07-26 22:39:45.753606+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 10DE:FBA 2018-07-26 22:39:45.753609+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 10DE:FB0 2018-07-26 22:39:45.753612+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 10DE:FBB 2018-07-26 22:39:45.753616+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 10DE:FB8 2018-07-26 22:39:45.753618+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 10DE:FB9 2018-07-26 22:39:45.753622+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 10DE:10F0 2018-07-26 22:39:45.753625+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.760291+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-26 22:39:45.793310+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 2018-07-26 22:39:45.793315+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller I have tested AppleALC by myself and find it caused by the commit "Added digital audio property injection for AMD, Intel, NVIDIA" https://github.com/acidanthera/AppleALC/commit/7ba397832fed6fbc21047dcf2573a5eaa09045d0 I compile AppleALC with this code and it shows grey icon and have no sound output. So i guess it may be this commit cause someone have no sound when update to AppleALC1.3.0? Link to comment Share on other sites More sharing options...
gujiangjiang Posted July 28, 2018 Share Posted July 28, 2018 (edited) To figure out what happend i test again with Lilu1.2.5+AppleALC1.2.8 and Lilu1.2.5+AppleALC1.3.0 and have follow 2 logs. Here are Lilu1.2.5 + AppleALC1.2.8 log Here shows it recognize 3 controllers and can recognize my all audio output devices and drive it successfully. 2018-07-29 04:25:40.033712+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:25:40.033718+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has 191B value 2018-07-29 04:25:40.033732+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 6 value 2018-07-29 04:25:40.033738+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData AAPL,ig-platform-id has 191B0000 value 2018-07-29 04:25:40.033744+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) AAPL,ig-platform-id 191B0000 was found in controller at IGPU 2018-07-29 04:25:40.033854+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:25:40.033860+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-29 04:25:40.033865+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-29 04:25:40.033870+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id has D value 2018-07-29 04:25:40.033875+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData AAPL,ig-platform-id was not found 2018-07-29 04:25:40.033884+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData AAPL,snb-platform-id was not found 2018-07-29 04:25:40.033902+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:25:40.033908+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-29 04:25:40.033913+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-29 04:25:40.033918+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id has D value 2018-07-29 04:25:40.033923+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData AAPL,ig-platform-id was not found 2018-07-29 04:25:40.033930+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData AAPL,snb-platform-id was not found 2018-07-29 04:25:40.033935+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found 3 audio controllers 2018-07-29 04:25:40.033940+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 0 controller 8086:191B:6 2018-07-29 04:25:40.033946+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-29 04:25:40.033952+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-29 04:25:40.033956+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-29 04:25:40.033960+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-29 04:25:40.033963+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-29 04:25:40.033968+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-29 04:25:40.033972+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-29 04:25:40.033977+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-29 04:25:40.033981+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-29 04:25:40.033986+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 8086:412 2018-07-29 04:25:40.033990+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 8086:412 2018-07-29 04:25:40.033995+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 8086:1616 2018-07-29 04:25:40.033999+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 8086:1612 2018-07-29 04:25:40.034004+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 8086:1626 2018-07-29 04:25:40.034008+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 8086:191E 2018-07-29 04:25:40.034013+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 8086:1916 2018-07-29 04:25:40.034019+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 8086:191B 2018-07-29 04:25:40.034024+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) not matching platform was found 19160000 vs 191B0000 2018-07-29 04:25:40.034028+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 8086:191B 2018-07-29 04:25:40.034032+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found mod for 0 controller 2018-07-29 04:25:40.034037+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 1 controller 8086:A170:31 2018-07-29 04:25:40.034041+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-29 04:25:40.034050+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-29 04:25:40.034055+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-29 04:25:40.034059+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-29 04:25:40.034063+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-29 04:25:40.034067+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-29 04:25:40.034072+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-29 04:25:40.034076+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-29 04:25:40.034080+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-29 04:25:40.034085+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 8086:412 2018-07-29 04:25:40.034089+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 8086:412 2018-07-29 04:25:40.034093+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 8086:1616 2018-07-29 04:25:40.034098+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 8086:1612 2018-07-29 04:25:40.034102+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 8086:1626 2018-07-29 04:25:40.034107+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 8086:191E 2018-07-29 04:25:40.034111+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 8086:1916 2018-07-29 04:25:40.034116+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 8086:191B 2018-07-29 04:25:40.034120+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 8086:191B 2018-07-29 04:25:40.034124+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 8086:1912 2018-07-29 04:25:40.034129+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 19 mod 8086:5912 2018-07-29 04:25:40.034133+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 20 mod 8086:166 2018-07-29 04:25:40.034138+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 21 mod 8086:166 2018-07-29 04:25:40.034142+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 22 mod 8086:162 2018-07-29 04:25:40.034146+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 23 mod 8086:126 2018-07-29 04:25:40.034151+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 24 mod 8086:116 2018-07-29 04:25:40.034155+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 25 mod 1002:AAC8 2018-07-29 04:25:40.034159+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 26 mod 10DE:E0F 2018-07-29 04:25:40.034164+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 27 mod 10DE:10EF 2018-07-29 04:25:40.034168+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 28 mod 10DE:10F1 2018-07-29 04:25:40.034173+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 29 mod 10DE:FBA 2018-07-29 04:25:40.034177+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 30 mod 10DE:FB0 2018-07-29 04:25:40.034181+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 31 mod 10DE:FBB 2018-07-29 04:25:40.034186+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 32 mod 10DE:FB8 2018-07-29 04:25:40.034190+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 33 mod 10DE:FB9 2018-07-29 04:25:40.034194+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 34 mod 10DE:10F0 2018-07-29 04:25:40.034199+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 2 controller 8086:A170:31 2018-07-29 04:25:40.034203+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-29 04:25:40.034208+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-29 04:25:40.034212+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-29 04:25:40.034216+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-29 04:25:40.034223+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-29 04:25:40.034228+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-29 04:25:40.034232+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-29 04:25:40.034237+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-29 04:25:40.034241+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-29 04:25:40.034245+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 8086:412 2018-07-29 04:25:40.034249+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 8086:412 2018-07-29 04:25:40.034254+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 8086:1616 2018-07-29 04:25:40.034258+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 8086:1612 2018-07-29 04:25:40.034262+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 8086:1626 2018-07-29 04:25:40.034267+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 8086:191E 2018-07-29 04:25:40.034271+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 8086:1916 2018-07-29 04:25:40.034275+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 8086:191B 2018-07-29 04:25:40.034280+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 8086:191B 2018-07-29 04:25:40.034284+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 8086:1912 2018-07-29 04:25:40.034289+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 19 mod 8086:5912 2018-07-29 04:25:40.034293+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 20 mod 8086:166 2018-07-29 04:25:40.034297+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 21 mod 8086:166 2018-07-29 04:25:40.034301+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 22 mod 8086:162 2018-07-29 04:25:40.034305+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 23 mod 8086:126 2018-07-29 04:25:40.034309+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 24 mod 8086:116 2018-07-29 04:25:40.034314+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 25 mod 1002:AAC8 2018-07-29 04:25:40.034318+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 26 mod 10DE:E0F 2018-07-29 04:25:40.034322+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 27 mod 10DE:10EF 2018-07-29 04:25:40.034326+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 28 mod 10DE:10F1 2018-07-29 04:25:40.034331+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 29 mod 10DE:FBA 2018-07-29 04:25:40.034335+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 30 mod 10DE:FB0 2018-07-29 04:25:40.034339+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 31 mod 10DE:FBB 2018-07-29 04:25:40.034343+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 32 mod 10DE:FB8 2018-07-29 04:25:40.034348+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 33 mod 10DE:FB9 2018-07-29 04:25:40.034352+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 34 mod 10DE:10F0 2018-07-29 04:25:40.034356+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying patches for 3 kext 2018-07-29 04:25:40.034361+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 0 patch for 3 kext 2018-07-29 04:25:40.040914+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 1 controller 2018-07-29 04:25:40.040921+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 2 controller 2018-07-29 04:25:40.054536+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying patches for 8 kext 2018-07-29 04:25:40.054542+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 1 controller 2018-07-29 04:25:40.054547+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 2 controller 2018-07-29 04:25:40.054746+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:25:40.054758+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-29 04:25:40.054764+0800 localhost kernel[0]: (kernel) AppleALC: audio @ (DBG) corrects analog audio for hdef at HDEF with 8086:A170 2018-07-29 04:25:40.054770+0800 localhost kernel[0]: (kernel) AppleALC: audio @ (DBG) found normal alc-layout-id 13 2018-07-29 04:25:40.054774+0800 localhost kernel[0]: (kernel) AppleALC: audio @ (DBG) found apple-layout-id 7 2018-07-29 04:25:40.054780+0800 localhost kernel[0]: (kernel) AppleALC: audio @ (DBG) found existing built-in in hdef 2018-07-29 04:25:40.087998+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found supported Realtek ALC298 codec revision 0x100103 2018-07-29 04:25:40.088015+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying patches for 10 kext 2018-07-29 04:25:40.088020+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 1 controller 2018-07-29 04:25:40.088025+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 2 controller 2018-07-29 04:25:40.088031+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) will route resource loading callbacks 2018-07-29 04:25:40.088036+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying patches for 10 kext 2018-07-29 04:25:40.088041+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 1 patch for 10 kext 2018-07-29 04:25:40.088559+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 2 patch for 10 kext 2018-07-29 04:25:40.088912+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 3 patch for 10 kext 2018-07-29 04:25:40.090585+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 4 patch for 10 kext 2018-07-29 04:25:40.094604+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 5 patch for 10 kext 2018-07-29 04:25:40.095982+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) applying 6 patch for 10 kext 2018-07-29 04:25:40.106609+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) isAnalogAudio found 7 represented layout 2018-07-29 04:25:40.106619+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) initializePinConfig AppleHDACodecGeneric received hda 0xFFFFFF8045D930B0, config 0xFFFFFF8045B9F460 config name AppleHDAHardwareConfigDriver, detect 0 valid 1 apple layout 7 2018-07-29 04:25:40.106629+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) discovered analog codec 10EC0298 and layout 13 2018-07-29 04:25:40.106636+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) discovered HDAConfigDefault with 293 entries 2018-07-29 04:25:40.106792+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) current config entry has boot 1, wake 1, reinit 1 2018-07-29 04:25:40.588058+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) layoutLoadCallback 2 0 1 15073 1 2018-07-29 04:25:40.588063+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) resource-request arrived layout 2018-07-29 04:25:40.588066+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) checking codec 10EC:298:100103 2018-07-29 04:25:40.588070+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) selecting from 10 files 2018-07-29 04:25:40.588073+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 0 layout 3/D 2018-07-29 04:25:40.588076+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 1 layout B/D 2018-07-29 04:25:40.588078+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 2 layout D/D 2018-07-29 04:25:40.588081+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found layout at 2 index 2018-07-29 04:25:40.588084+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) layoutLoadCallback done 2 0 1 1684 1 2018-07-29 04:25:40.614865+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) platformLoadCallback 4 0 1 17735 1 2018-07-29 04:25:40.614871+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) resource-request arrived platform 2018-07-29 04:25:40.614874+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) checking codec 10EC:298:100103 2018-07-29 04:25:40.614877+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) selecting from 10 files 2018-07-29 04:25:40.614880+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 0 layout 3/D 2018-07-29 04:25:40.614883+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 1 layout B/D 2018-07-29 04:25:40.614886+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing 2 layout D/D 2018-07-29 04:25:40.614889+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found platform at 2 index 2018-07-29 04:25:40.614892+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) platformLoadCallback done 4 0 1 469 1 2018-07-29 04:25:40.659147+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) performPowerChange AppleHDADriver from 1 to 2 in from sleep 0 hdef 1 detect 1 Here are Lilu1.2.5 + AppleALC1.3.0 and it getOSData show less than AppleALC1.2.8 and it cant recognize my ALC298 device so it cant drive my sound and show grey icon. 2018-07-29 04:23:22.053879+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:23:22.053884+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-29 04:23:22.053888+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-29 04:23:22.053898+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-29 04:23:22.053901+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-29 04:23:22.053912+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2018-07-29 04:23:22.053942+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData device-id has A170 value 2018-07-29 04:23:22.053945+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData revision-id has 31 value 2018-07-29 04:23:22.053948+0800 localhost kernel[0]: (kernel) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2018-07-29 04:23:22.053951+0800 localhost kernel[0]: (kernel) AppleALC: alc @ alc-layout-id was not provided by controller at HDEF 2018-07-29 04:23:22.053955+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) found 1 audio controllers 2018-07-29 04:23:22.053958+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) validating 0 controller 8086:191B:6 2018-07-29 04:23:22.053962+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2018-07-29 04:23:22.053965+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2018-07-29 04:23:22.053982+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2018-07-29 04:23:22.053984+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2018-07-29 04:23:22.053987+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2018-07-29 04:23:22.053990+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2018-07-29 04:23:22.053993+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2018-07-29 04:23:22.053996+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2018-07-29 04:23:22.053999+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2018-07-29 04:23:22.054002+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 9 mod 1002:AAC8 2018-07-29 04:23:22.054005+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 10 mod 10DE:E0F 2018-07-29 04:23:22.054008+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 11 mod 10DE:10EF 2018-07-29 04:23:22.054010+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 12 mod 10DE:10F1 2018-07-29 04:23:22.054013+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 13 mod 10DE:FBA 2018-07-29 04:23:22.054016+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 14 mod 10DE:FB0 2018-07-29 04:23:22.054019+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 15 mod 10DE:FBB 2018-07-29 04:23:22.054022+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 16 mod 10DE:FB8 2018-07-29 04:23:22.054025+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 17 mod 10DE:FB9 2018-07-29 04:23:22.054028+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) comparing to 18 mod 10DE:10F0 2018-07-29 04:23:22.054031+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-29 04:23:22.060324+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2018-07-29 04:23:22.093375+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 2018-07-29 04:23:22.093384+0800 localhost kernel[0]: (kernel) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller I have try my best to find out what happend but i only can find logs between AppleALC1.2.8 and AppleALC1.3.0 but i dont know why cause this with same SSDT same Kexts and same Lilu Version but only AppleALC1.2.8 and AppleALC1.3.0 and the AppleALC1.3.0 dont work on my XPS anymore. I also try to inject devices properties such as HDA layout-id and alc-layout-id but stil show grey icon. If anyody have some probelm with me with AppleALC1.3.0,hope we can find the reason of this bugs. Thanks for anyone to help us. 1.2.8.zip 1.3.0.zip Edited July 28, 2018 by gujiangjiang Link to comment Share on other sites More sharing options...
