Lucy183 Posted July 13, 2017 Share Posted July 13, 2017 Are you using a patched DSDT? Yes, attached. Does exist a kext for JMB38x card reader compatible with high sierra?(I'm asking for HDX 16) DSDT.aml.zip Link to comment Share on other sites More sharing options...
arsradu Posted July 13, 2017 Share Posted July 13, 2017 You're welcome Yes it's from 2016 but it will make more sense now that we can test it and use it first hand. Watching it now. And yeah, with APFS, cloning doesn't take up extra space. Well, it does, but it's just a fraction of the initial size. 1 Link to comment Share on other sites More sharing options...
cecekpawon Posted July 13, 2017 Share Posted July 13, 2017 Oops. This could be catastrophic. You can try with more longer & unique pattern to make it sure.. I finally found the way to determine exact kernel size from Pike LZVN and going to implement this into my other project, to let user choose to patch the whole prelinked or just the kernel. You can change Clover max range (KERNEL_MAX_SIZE = 40000000) to more accurate size to prevent those catastrophic.. 4 Link to comment Share on other sites More sharing options...
Cyberdevs Posted July 13, 2017 Share Posted July 13, 2017 Watching it now. And yeah, with APFS, cloning doesn't take up extra space. Well, it does, but it's just a fraction of the initial size. I downloaded it and but haven't watched it completely, but I will watch it tonight Link to comment Share on other sites More sharing options...
Badruzeus Posted July 14, 2017 Share Posted July 14, 2017 ACPIBatteryManager was loaded on my laptop HS PB3. I checked all with debug log. Log is good. It seems same log like sierra. FYi... for Battery issue, it also happened on some Real MBPs since DP1 I guess. So, it looks like Apple bugs with Beta... hmmb. 2 Link to comment Share on other sites More sharing options...
Sherlocks Posted July 14, 2017 Share Posted July 14, 2017 FYi... for Battery issue, it also happened on some Real MBPs since DP1 I guess. So, it looks like Apple bugs with Beta... hmmb. Thank you for great info. 나의 LG-F800S 의 Tapatalk에서 보냄 1 Link to comment Share on other sites More sharing options...
blayze® Posted July 14, 2017 Share Posted July 14, 2017 With clover config updated. Has anybody got smbios MacBook Pro 14,3 to boot into High Sierra? Mine starts loading then reboots. Link to comment Share on other sites More sharing options...

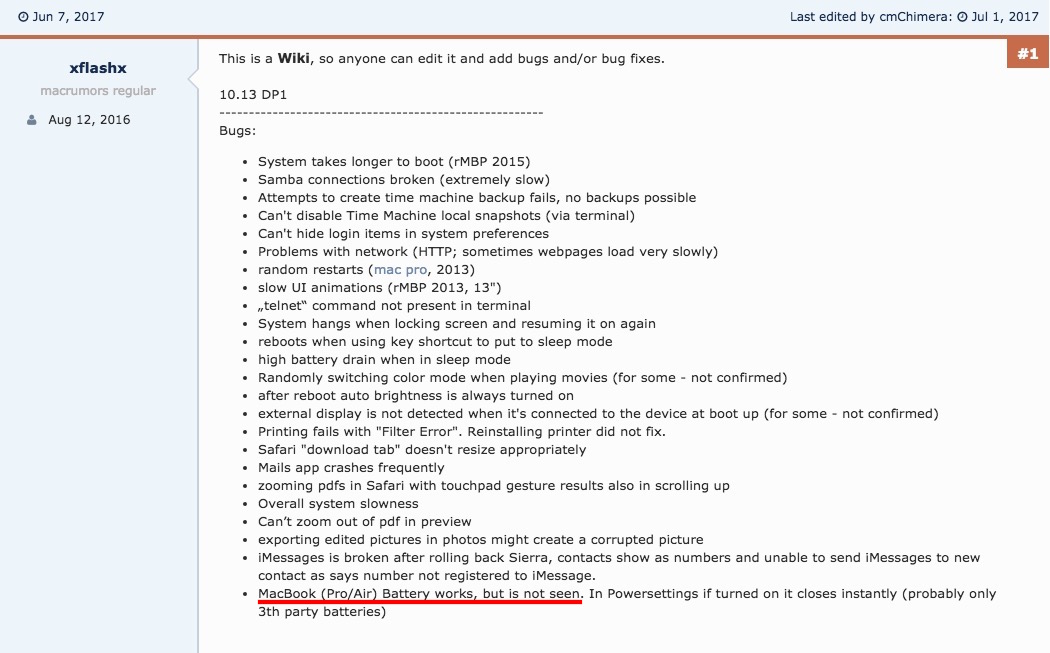

SavageAUS Posted July 14, 2017 Share Posted July 14, 2017 FYi... for Battery issue, it also happened on some Real MBPs since DP1 I guess. So, it looks like Apple bugs with Beta... hmmb. Can you share where you got that information? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
Badruzeus Posted July 14, 2017 Share Posted July 14, 2017 Can you share where you got that information? Sure, here is.. Link Link to comment Share on other sites More sharing options...
KGP-iMacPro Posted July 14, 2017 Share Posted July 14, 2017 Hi, I don't know whether this is somewhat off-topic, if so, feel free to contact me and delete the post. As for XCPM for unsupported CPUs patches of 10.13, please try this one: 1) Patch for _cpuid_set_info: The disassembled code looks like this: ffffff80003a1326 8a 05 21 5d 75 00 movb 0x755d21(%rip), %al ffffff80003a132c 04 72 addb $0x72, %al ffffff80003a132e 3c d0 cmpb $-0x30, %al ffffff80003a1330 77 50 ja 0xffffff80003a1382 Alright, so that add is what we want to patch, and it's only needed for Broadwell-E CPUs, the patch will be: 75 00 04 72 3c d0 77 50 0f b6 c0 to 75 00 04 6a 3c d0 77 50 0f b6 c0 2) Patch for _xcpm_bootstrap: The disassembled code looks like this: ffffff80003d08c3 89 d8 movl %ebx, %eax ffffff80003d08c5 04 c4 addb $-0x3c, %al ffffff80003d08c7 3c 22 cmpb $0x22, %al ffffff80003d08c9 77 22 ja 0xffffff80003d08ed And the patch will be: 89 d8 04 c4 3c 22 77 22 to 89 d8 04 xx 3c 22 77 22 Note: The xx is your exact platform CPUID, for example, the default one is 0x3C and I want it to be Ivy Bridge which is 0x3A, and the desired patch is: 89 d8 04 c4 3c 22 77 22 to 89 d8 04 c6 3c 22 77 22 3) Instant reboot fix Look at these ones: ffffff80003d107e 48 8d 3d 9b e1 65 00 leaq _xcpm_pkg_scope_msrs(%rip), %rdi ffffff80003d1085 be 07 00 00 00 movl $0x7, %esi ffffff80003d108a 31 d2 xorl %edx, %edx ffffff80003d108c e8 8f fc ff ff callq 0xffffff80003d0d20 ffffff80003d1091 83 fb 00 cmpl $0x0, %ebx ffffff80003d1094 74 05 je 0xffffff80003d109b ffffff80003d1096 45 20 e5 andb %r12b, %r13b ffffff80003d1099 74 13 je 0xffffff80003d10ae ffffff80003d109b 48 8d 3d ce e2 65 00 leaq _xcpm_core_scope_msrs(%rip), %rdi ffffff80003d10a2 be 03 00 00 00 movl $0x3, %esi ffffff80003d10a7 31 d2 xorl %edx, %edx ffffff80003d10a9 e8 72 fc ff ff callq 0xffffff80003d0d20 ffffff80003d10ae 48 8d 3d 4b e3 65 00 leaq _xcpm_SMT_scope_msrs(%rip), %rdi ffffff80003d10b5 be 0b 00 00 00 movl $0xb, %esi ffffff80003d10ba 31 d2 xorl %edx, %edx ffffff80003d10bc e8 5f fc ff ff callq 0xffffff80003d0d20 Alright, so the patches will be: # _xcpm_SMT_scope_msrs be 0b 00 00 00 5d e9 08 00 00 00 -> be 0b 00 00 00 5d c3 90 90 90 90 and be 0b 00 00 00 31 d2 e8 5f fc ff ff -> be 0b 00 00 00 31 d2 90 90 90 90 90 # _xcpm_core_scope_msrs be 03 00 00 00 31 d2 e8 72 fc ff ff -> be 03 00 00 00 31 d2 90 90 90 90 90 # _xcpm_pkg_scope_msrs be 07 00 00 00 31 d2 e8 8f fc ff ff -> be 07 00 00 00 31 d2 90 90 90 90 90 And if you want to disable the calls/jumps entirely, you should ret this offset: ffffff80003d0d20 55 pushq %rbp // Change this '55' to 'c3' The patch is: BE 0B 00 00 00 5D E9 08 00 00 00 0F 1F 84 00 00 00 00 00 55 48 89 E5 41 57 -> BE 0B 00 00 00 5D E9 08 00 00 00 0F 1F 84 00 00 00 00 00 C3 48 89 E5 41 57 EDIT @ 22/06/17: Removed redundant bytes for 10.13 DP2 compatibility @PMheart, please would you be so kind and also provide the correct 10.13 _cpuid_set_info and _xcpm_bootstrap KernelToPatch entries for unsupported Haswell-E and Ivy-Bridge processors? I am sure many people would be interested! Many thanks in advance! KGP P.S.: My Broadwell-E System is up and successfully running XCPM! Many thanks for the correct 10.13 xcpm KernelToPatch entries for this kind of processor architecture. Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 @PMheart, please would you be so kind and also provide the correct 10.13 _cpuid_set_info and _xcpm_bootstrap KernelToPatch entries for unsupported Haswell-E and Ivy-Bridge processors? I am sure many people would be interested! Many thanks in advance! KGP P.S.: My Broadwell-E System is up and successfully running XCPM! Many thanks for the correct 10.13 xcpm KernelToPatch entries for this kind of processor architecture. Hi. Sure. Here you are: First of all. Both Haswell-E and Ivy Bridge don't need to patch _cpuid_set_info(). # Haswell-E # _xcpm_bootstrap 89 d8 04 c4 3c 22 77 22 -> 89 d8 04 c1 3c 22 77 22 # Ivy Bridge # _xcpm_bootstrap 89 d8 04 c4 3c 22 77 22 -> 89 d8 04 c6 3c 22 77 22 And also, don't forget to add necessary instant reboot fix patches! 2 Link to comment Share on other sites More sharing options...
Matgen84 Posted July 14, 2017 Share Posted July 14, 2017 Hi. Sure. Here you are: First of all. Both Haswell-E and Ivy Bridge don't need to patch _cpuid_set_info(). # Haswell-E # _xcpm_bootstrap 89 d8 04 c4 3c 22 77 22 -> 89 d8 04 c1 3c 22 77 22 # Ivy Bridge # _xcpm_bootstrap 89 d8 04 c4 3c 22 77 22 -> 89 d8 04 c6 3c 22 77 22 And also, don't forget to add necessary instant reboot fix patches! Where I can find "Instant reboot fix patches". Thanks. Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 Where I can find "Instant reboot fix patches". Thanks. Here you go: http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/page-3?do=findComment&comment=2435885 1 Link to comment Share on other sites More sharing options...
Lucy183 Posted July 14, 2017 Share Posted July 14, 2017 I'm stuck here, any suggestion? DB1, DB2, DB2U1 works for me but DB3 stuck here. Sent from my HTC One M9 using Tapatalk Link to comment Share on other sites More sharing options...
Matgen84 Posted July 14, 2017 Share Posted July 14, 2017 Here you go: http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/page-3?do=findComment&comment=2435885 Thanks _xcpm_bootstrap and "Instant reboot fix" patches. Do you think this interrsant for my cpu Core i7 3770K? Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 Thanks _xcpm_bootstrap and "Instant reboot fix" patches. Do you think this interrsant for my cpu Core i7 3770K? Yes. That's enough. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted July 14, 2017 Share Posted July 14, 2017 Yes. That's enough. Sorry for my english. I wanted just to know if these patches were really interesting or indispsensable for my config under macOS 10.13 Link to comment Share on other sites More sharing options...
artur_pt Posted July 14, 2017 Share Posted July 14, 2017 I'm stuck here, any suggestion? DB1, DB2, DB2U1 works for me but DB3 stuck here. Sent from my HTC One M9 using Tapatalk hello something related with ur ethernet kext Link to comment Share on other sites More sharing options...
Lucy183 Posted July 14, 2017 Share Posted July 14, 2017 hello something related with ur ethernet kext I tried without injecting kexts and with only FakeSMC, result is the same but without the RTL8139 line. Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 Sorry for my english. I wanted just to know if these patches were really interesting or indispsensable for my config under macOS 10.13 Well, the patch for _xcpm_bootstrap() is indispensable to enable XCPM. And instant reboot fix could not be obligatory. On my E3 1230 v2 I just need the patch for _xcpm_pkg_scope_msr I'm stuck here, any suggestion? DB1, DB2, DB2U1 works for me but DB3 stuck here. Sent from my HTC One M9 using Tapatalk I guess USB problems. 1 Link to comment Share on other sites More sharing options...
Lucy183 Posted July 14, 2017 Share Posted July 14, 2017 Well, the patch for _xcpm_bootstrap() is indispensable to enable XCPM. And instant reboot fix could not be obligatory. On my E3 1230 v2 I just need the patch for _xcpm_pkg_scope_msr I guess USB problems. I'm trying to install from internal hdd, not from usb. Link to comment Share on other sites More sharing options...
Sherlocks Posted July 14, 2017 Share Posted July 14, 2017 i finished xcpm learning on 10.12 and 10.13 thanks Pike R. Alpha for his great guide. 2 Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 I'm trying to install from internal hdd, not from usb. I see. Sorry. Try removing FakeSMC sensors/plugins then. Link to comment Share on other sites More sharing options...
Lucy183 Posted July 14, 2017 Share Posted July 14, 2017 I see. Sorry. Try removing FakeSMC sensors/plugins then.Ok, now I have only FakeSMC without plugins in kexts/other and removed all usb devices and got the same problem. Sent from my HTC One M9 using Tapatalk Link to comment Share on other sites More sharing options...
PMheart Posted July 14, 2017 Share Posted July 14, 2017 Ok, now I have only FakeSMC without plugins in kexts/other and removed all usb devices and got the same problem. Sent from my HTC One M9 using Tapatalk Oops. Sorry I don't know why this occurs... Link to comment Share on other sites More sharing options...
