Riley Freeman Posted September 20, 2013 Share Posted September 20, 2013 I think it's needed if your sensor isn't fully supported by LPCSensors. I don't install it here. Link to comment Share on other sites More sharing options...
TimeWalker75a Posted September 20, 2013 Share Posted September 20, 2013 It's needed if your SIO chip is not supported by LPCSensors at all, means you can only monitor EC registers to obtain temp/rpm/voltage/power data.. Here's an example of such a case: https://raw.github.com/Dolnor/Vostro-3450-Fan-Override/master/custom_ssdt.dsl 1 Link to comment Share on other sites More sharing options...
nyolc8 Posted September 21, 2013 Share Posted September 21, 2013 Thanks, so I can delete it.... (I always installed it lol) 1 Link to comment Share on other sites More sharing options...
artur_pt Posted September 23, 2013 Share Posted September 23, 2013 hello kozlek last 2 versions something broke in cpusensors.kext cpudie in istat menus 4.06 don't show .. if i use the plugin from 5.3.832 it works without any problem thanks 1 Link to comment Share on other sites More sharing options...
D-an-W Posted September 23, 2013 Share Posted September 23, 2013 Anyone else having a problem in trying to compile the latest build from github? Link to comment Share on other sites More sharing options...
vatoesse Posted September 24, 2013 Share Posted September 24, 2013 Can someone explain how the formula for manually adding sensor info works? My memory is showing 0.096, when it should be 2.096. I'm looking at other keys like Main 5V for my board that have +630 gain, but the highest I can make it go is 1.999 and then it resets back to 0.000 :\ ( Vref - Vraw ) / Vraw (2.096 - 0.096) / 0.096 2 / 0.096 20.83 So I put 2083 in gain for memory, and still get 0.096, I think there's a bug, no matter how you work out the math it won't show a reading higher than 1.999 Link to comment Share on other sites More sharing options...
Lordadmiral Drake Posted September 24, 2013 Share Posted September 24, 2013 HWSensors doesnt read core 3 and 4 temperatures for me: 24.09.13 11:57:31,000 kernel[0]: CPUSensors: platform set to k62 24.09.13 11:57:31,000 kernel[0]: SMC: [Error] key TC2D already handled 24.09.13 11:57:31,000 kernel[0]: CPUSensors: [Warning] failed to add temperature sensor 24.09.13 11:57:31,000 kernel[0]: SMC: [Error] key TC3D already handled 24.09.13 11:57:31,000 kernel[0]: CPUSensors: [Warning] failed to add temperature sensor Link to comment Share on other sites More sharing options...
calmesal Posted September 25, 2013 Share Posted September 25, 2013 Have this kernel error with the latest build : SuperIODevice: [Fatal] found unsupported ship ITE sequence ID=0xffff, Winbond sequence ID=0xfc11 I have temps for core 1, core 2 and thermal zone showing correctly. Any ides? Link to comment Share on other sites More sharing options...

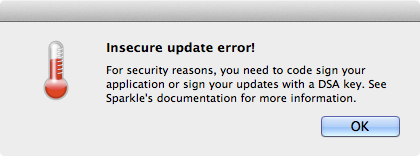

kantok Posted September 26, 2013 Share Posted September 26, 2013 Hi, Thanks for the continuous work. But 5.3.860, still I can't compile HWMonitor.app ------------------------ edit: Works. 5.3.873. Many thanks! But sorry, I get ------------------------ edit 2: App in the installer from Souceforge, I don't get that alert. Thanks, Link to comment Share on other sites More sharing options...
Zprood Posted October 5, 2013 Share Posted October 5, 2013 Hi kozlek, i have some questions about customise ACPIMonitor for laptop. Even though HWsensors isn't support laptop well. First, i can make sure there are some sensors in the field of EC with AIDA64 under Windows. It works with Slice's monitor version by patching. Like this: And i can see the "Platform Profile - DISABLED" which is under "ACPI Customizable Monitoring Plugin" section is disabled by default. I try to correct it, but no good luck. My question is, how can i add customise keys in the Platform Profile, make it read dsdt EC registry(i can find key spec in the sources)? Link to comment Share on other sites More sharing options...
Dr. Hurt Posted October 5, 2013 Share Posted October 5, 2013 HWmonitor says my cpu heatsink temp is 126C and my ambient is 73C. It also lists 3 fans without stating speeds (Mainboard fan 5, System fan 1, power fan). Is there anyway I could fix this? Link to comment Share on other sites More sharing options...
TimeWalker75a Posted October 5, 2013 Share Posted October 5, 2013 Hi kozlek, i have some questions about customise ACPIMonitor for laptop. Even though HWsensors isn't support laptop well. First, i can make sure there are some sensors in the field of EC with AIDA64 under Windows. It works with Slice's monitor version by patching. Like this: Screen Shot 2013-10-05 at 12.06.01 PM.png And i can see the "Platform Profile - DISABLED" which is under "ACPI Customizable Monitoring Plugin" section is disabled by default. I try to correct it, but no good luck. My question is, how can i add customise keys in the Platform Profile, make it read dsdt EC registry(i can find key spec in the sources)? https://github.com/kozlek/HWSensors/blob/master/ACPISensors/SSDT.dsl Link to comment Share on other sites More sharing options...
Mr MagOO Posted October 5, 2013 Share Posted October 5, 2013 https://github.com/kozlek/HWSensors/blob/master/ACPISensors/SSDT.dsl Can't compile with last IASL : 54 Error EISAID string must be of the form "UUUXXXX" (3 uppercase, 4 hex digits) (PROB0000) Missed something ? Link to comment Share on other sites More sharing options...
TimeWalker75a Posted October 5, 2013 Share Posted October 5, 2013 You have to make your own, its only for reference. Config now done in acpi. Link to comment Share on other sites More sharing options...
artur_pt Posted October 7, 2013 Share Posted October 7, 2013 hello kozlek all good now with this last version it is possible this with Clover ? i change the rev data to the right version of the smc from apple and Clover always show the same data.. is a fakesmc problem or Clover #2510 thanks for u time Link to comment Share on other sites More sharing options...

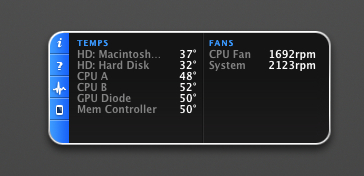

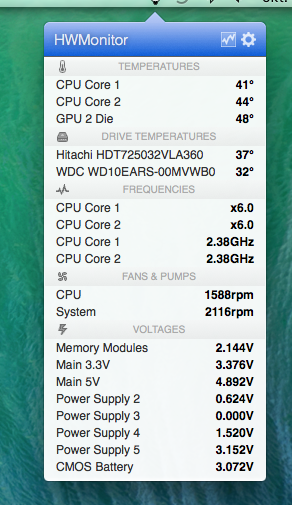

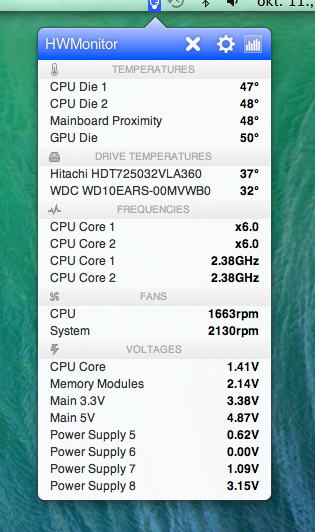

nyolc8 Posted October 11, 2013 Share Posted October 11, 2013 I have problems with the latest version. Using old 5.1.68 HWMonitor package: Using the latest 5.3.891 HWMonitor package: With the latest version I lost two temps in iStat widget and lost one temp in HWMonitor App. I didn't tested between these two versions so I don't know when this got broken... Rollbacked to 5.1.68. Link to comment Share on other sites More sharing options...
alexanderq Posted October 11, 2013 Share Posted October 11, 2013 As HWSENSORS updates i lose or changes every time a new value on temps or voltage or fan.sometimes it displays a negative value sometimes zero value or 130 celsius.And this hapens on my main pc and laptop too while on laptop i have only cpu ang gpu sensors nothing else. Link to comment Share on other sites More sharing options...
RobertX Posted October 12, 2013 Share Posted October 12, 2013 hi kozlek...after the 5.3.8.77 update, the app says update available...but only installs the updated fakesmc, not the hardware monitor app...normal? ...my mistake, it was updating the app in the binaries folder, not the app in my applications folder Link to comment Share on other sites More sharing options...
calmesal Posted October 15, 2013 Share Posted October 15, 2013 Hi! Running MavGM clean install with latest HW sensor, I get Core 1, core 2 and thermal zone temp, but I have an error in kernel log regarding this sensor chip. 2013-10-15 17:00:25,000 kernel[0]: SuperIODevice: [Fatal] found unsupported ship ITE sequence ID=0xffff, Winbond sequence ID=0xfc11 What could this mean? Link to comment Share on other sites More sharing options...
Slice Posted October 16, 2013 Share Posted October 16, 2013 Hi! Running MavGM clean install with latest HW sensor, I get Core 1, core 2 and thermal zone temp, but I have an error in kernel log regarding this sensor chip. 2013-10-15 17:00:25,000 kernel[0]: SuperIODevice: [Fatal] found unsupported ship ITE sequence ID=0xffff, Winbond sequence ID=0xfc11 What could this mean? Is this Dell notebook? If yes then forget superio.kext. Link to comment Share on other sites More sharing options...
calmesal Posted October 17, 2013 Share Posted October 17, 2013 Is this Dell notebook? If yes then forget superio.kext. Yes. Dell Vostro 3300. Why should I forget this superio? Isn't that the fan sensor? Cause I try to make the fan be detected by HWmonitor but no success. Link to comment Share on other sites More sharing options...
TimeWalker75a Posted October 17, 2013 Share Posted October 17, 2013 ACPI sensors are meant for that, not LPC sensors. You have to code ACPI methods that pull fan speed readings. Link to comment Share on other sites More sharing options...
Huckleberry Pie Posted October 17, 2013 Share Posted October 17, 2013 Can anyone help me with what appears to be a problem regarding my GPU sensor readings? I'm using a GeForce GT240 and it appears to be stuck at 37 degrees Celsius even if I run a game or a benchmark on it. Link to comment Share on other sites More sharing options...
stefano.85 Posted October 17, 2013 Share Posted October 17, 2013 Can anyone help me with what appears to be a problem regarding my GPU sensor readings? I'm using a GeForce GT240 and it appears to be stuck at 37 degrees Celsius even if I run a game or a benchmark on it. take a look at this topic.... http://www.insanelymac.com/forum/topic/292663-no-gpu-power-management/ i think you have the same problem.... Link to comment Share on other sites More sharing options...
calmesal Posted October 19, 2013 Share Posted October 19, 2013 ACPI sensors are meant for that, not LPC sensors. You have to code ACPI methods that pull fan speed readings. Hi! How do I do this ACPI coding? I cant find anything in my DSDT or SSDT table related to fan or voltage. HWmonitor can detect temp for cores and thermalzone. I Aida64 I can see some informations, but I dont have any skils to port these codes. Any help will be grateful. Sensortyp Dell SMI (ISA B2h) Temperaturer CPU 51 ∞C (124 ∞F) CPU 1 / K‰rna 1 48 ∞C (118 ∞F) CPU 1 / K‰rna 2 52 ∞C (126 ∞F) Chipset 51 ∞C (124 ∞F) PCH diod 80 ∞C (176 ∞F) IMC 58 ∞C (136 ∞F) GMCH 31 ∞C (88 ∞F) Aux 16 ∞C (61 ∞F) DIMM 54 ∞C (129 ∞F) ST9320423AS 45 ∞C (113 ∞F) Fan CPU 3160 RPM Voltage Batteri 17.142 V Power CPU 5.52 W Batteriets laddningstakt V‰xelstrˆmsn‰t ------[ Motherboard Info ]------ Motherboard ID : 63-0100-000001-00101111-010910-Chipset$0AAAA000_BIOS DATE: 01/09/10 15:17:22 VER: 08.00.10 Motherboard Model : Dell Vostro 3300 Motherboard Chipset : Intel Ibex Peak-M HM57, Intel Ironlake-M DMI MB Manufacturer : Dell Inc. DMI MB Product : 030DMJ DMI MB Version : A10 DMI MB Serial : .GMSB7L1.CN7016603R001Z. DMI SYS Manufacturer: Dell Inc. DMI SYS Product : Vostro 3300 DMI SYS Version : A10 DMI SYS Serial : GMSB7L1 DMI BIOS Version : A10 ------[ GPIO @ isa 0500 ]------ 0000 EA DB 7F 3F E3 C7 FF C6 00 00 00 00 B3 D7 EF E4 0010 00 00 00 00 00 00 00 00 00 00 04 00 00 00 00 00 0020 00 00 08 00 00 00 00 00 00 00 00 00 82 41 00 00 0030 FA F4 03 13 B0 BF 55 1D 76 FF FC FD 00 00 00 00 ITE 87xx Port = 00h ITE 87xx HWMonitor Port = 0000h ITE 87xx Device ID = 0000h ITE 87xx Version = 00h Winbond SuperIO Port = 4Eh Winbond SuperIO HWMonitor Port = 0000h Winbond SuperIO Device ID = FC11h Fintek SuperIO Port = 00h Fintek SuperIO HWMonitor Port = 0000h Fintek SuperIO Device ID = 0000h LPC47 SuperIO HWMonitor Port = 0000h LPC47 SuperIO Device ID = FC11h ------[ ACPI Temperatures & Fans ]------ _TZ_.THM0._TMP : _TZ_.THM1._TMP : _TZ_.THR0._TMP : _TZ_.THR1._TMP : _TZ_.TZ00._TMP : _TZ_.TZ01._TMP : _TZ_.RTMP : _TZ_.RFAN : _TZ_.RFAN(0) : _TZ_.RFAN(1) : _SB_.ATKD._HID : _SB_.ATKD.TMPR : _SB_.PCI0.LPC0.EC0_.CCTV : _SB_.PCI0.LPC0.EC0_.LRPM : _SB_.PCI0.LPC0.EC0_.HRPM : _SB_.PCI0.SBRG.EC0_.ECPU : _SB_.PCI0.SBRG.EC0_.TACH(0): _SB_.PCI0.SBRG.EC0_.TACH(1): _SB_.PCI0.SBRG.EC0_.TAH0 : _SB_.PCI0.SBRG.EC0_.TAH1 : _SB_.PCI0.SBRG.EC0_.ST00 : _SB_.PCI0.SBRG.EC0_.SC01 : _SB_.PCI0.SBRG.EC0_.SC02 : _SB_.PCI0.SBRG.EC0_.SC03 : _SB_.PCI0.SBRG.EC0_.SC04 : _SB_.PCI0.SBRG.EC0_.SC05 : _SB_.PCI0.SBRG.EC0_.SC06 : _SB_.PCI0.PIB_.EC0_.TCRT : _SB_.PCI0.SBRG.EC0_.CTPM : _SB_.PCI0.SBRG.EC__.CPUT : _SB_.PCI0.SBRG.EC__.SYST : _SB_.PCI0.LPC_.EC0_.CTMP : _SB_.PCI0.LPCB.EC0_.CTMP : _SB_.PCI0.LPC_.EC0_.TMP1 : _SB_.PCI0.LPC_.EC0_.TMP2 : _SB_.PCI0.LPC_.EC0_.TMPI : _SB_.PCI0.LPC_.EC0_.TMPV : _SB_.PCI0.LPCB.EC0_.A1TP : _SB_.PCI0.LPCB.EC0_.A2TP : _SB_.PCI0.LPCB.EC0_.FAN0 : _SB_.PCI0.LPCB.EC__.TS1R : _SB_.PCI0.LPCB.EC__.TS2R : _SB_.PCI0.LPCB.EC__.TS3R : _SB_.PCI0.LPCB.EC__.F1FL : _SB_.PCI0.LPCB.EC__.F1FH : _SB_.PCI0.LPCB.EC__.F2FL : _SB_.PCI0.LPCB.EC__.F2FH : _SB_.PCI0.LPC_.H8EC.RTMP : _SB_.PCI0.LPC_.H8EC.LTMP : _SB_.PCI0.LPC_.H8EC.MTMP : _SB_.PCI0.LPC_.H8EC.GTMP : _SB_.PCI0.LPCB.H8EC.CTMP : _SB_.PCI0.LPCB.H8EC.DTMP : _SB_.PCI0.LPCB.H8EC.GTMP : _SB_.PCI0.LPCB.H8EC.ITMP : _SB_.PCI0.LPCB.H8EC.MTMP : _SB_.PCI0.LPCB.H8EC.STMP : _SB_.PCI0.LPCB.H8EC.PFAN : ------[ Dell SMI Command FEA3 (SMBIOS Version) took 0 msec ]------ Cmd 0000FEA3 --> 44494147 Data 00000000 --> 00000000 Stat1 00000000 --> 00000000 Stat2 00000000 --> 44454C4C ------[ Dell SMI Command FFA3 (SMBIOS Interface) took 0 msec ]------ Cmd 0000FFA3 --> 44494147 Data 00000000 --> 00000000 Stat1 00000000 --> 00000000 Stat2 00000000 --> 44454C4C ------[ Dell SMI Command 00A3 / Data 0000 (Fan Speed) took 0 msec ]------ Cmd 000000A3 --> 00000001 Data 00000000 --> 00000000 Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 ------[ Dell SMI Command 00A3 / Data 0001 (Fan Speed) took 16 msec ]------ <FAILED> ------[ Dell SMI Command 00A3 / Data 0002 (Fan Speed) took 0 msec ]------ <FAILED> ------[ Dell SMI Command 00A3 / Data 0003 (Fan Speed) took 0 msec ]------ <FAILED> ------[ Dell SMI Command 02A3 / Data 0000 (Fan RPM) took 0 msec ]------ Cmd 000002A3 --> 00000C58 Data 00000000 --> 00000000 Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 ------[ Dell SMI Command 02A3 / Data 0001 (Fan RPM) took 0 msec ]------ <FAILED> ------[ Dell SMI Command 02A3 / Data 0002 (Fan RPM) took 0 msec ]------ <FAILED> ------[ Dell SMI Command 02A3 / Data 0003 (Fan RPM) took 0 msec ]------ <FAILED> ------[ Dell SMI Command 10A3 / Data 0000 (Temperature) took 0 msec ]------ Cmd 000010A3 --> 00000035 Data 00000000 --> 0000003C Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 ------[ Dell SMI Command 10A3 / Data 0001 (Temperature) took 15 msec ]------ Cmd 000010A3 --> 00000036 Data 00000001 --> 0000007E Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 ------[ Dell SMI Command 10A3 / Data 0002 (Temperature) took 0 msec ]------ Cmd 000010A3 --> 00000010 Data 00000002 --> 0000007E Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 ------[ Dell SMI Command 10A3 / Data 0003 (Temperature) took 0 msec ]------ Cmd 000010A3 --> 00000033 Data 00000003 --> 00000038 Stat1 00000000 --> 00000000 Stat2 00000000 --> 00000000 Total time = 31 msec ========================================================================== ------[ 1 SMBus detected ]------ ------[ SMBus #0 ]------ SMBus Type : Intel ICH SMBus Port : F000 Can Have SPD: Yes Scan Type : Full ------[ SMBus Device B00-D1D ]------ 0000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3B ...............; 0010 12 88 8D 00 11 11 11 92 11 D0 00 48 00 00 00 00 ...........H.... 0020 C7 0B 1B 00 00 00 00 FF 00 FB 00 01 00 3B 00 00 .............;.. 0030 95 25 98 06 2A 15 AC FF 00 00 00 00 00 00 00 00 .%..*........... 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0080 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3B ...............; 0090 12 88 8D 00 11 11 11 92 11 D0 00 48 00 00 00 00 ...........H.... 00A0 C7 0B 1B 00 00 00 00 FF 00 FA 00 01 00 39 00 00 .............9.. 00B0 95 25 98 06 2A 15 AC FF 00 00 00 00 00 00 00 00 .%..*........... 00C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ ------[ SMBus Device B00-D1D ]------ 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 3B3B 0010 1212 8888 8D8D 0000 1111 1111 1111 9292 1111 D0D0 0000 4848 0000 0000 0000 0000 0020 C7C7 0B0B 1B1B 0000 0000 0000 0000 FFFF 0000 FCFC 0000 0404 0000 3939 0000 0000 0030 9595 2525 9898 0606 2A2A 1515 ACAC FFFF 0000 0000 0000 0000 0000 0000 0000 0000 0040 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0050 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0060 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0070 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 3B00 123B 0090 8812 8D88 008D 1100 1111 1111 9211 1192 D011 00D0 4800 0048 0000 0000 0000 C700 00A0 0BC7 1B0B 001B 0000 0000 0000 FF00 00FF FA00 00FC 0200 0002 3700 0037 0000 9500 00B0 2595 9825 0698 2A06 152A AC15 FFAC 00FF 0000 0000 0000 0000 0000 0000 0000 0000 00C0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 00D0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 00E0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 00F0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ------[ SMBus Device B00-D44 ]------ 0000 00 00 00 04 00 01 00 00 00 27 40 23 00 13 10 13 .........'@#.... 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0080 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0090 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ ------[ SMBus Device B00-D44 ]------ 0000 FF00 FF00 FF00 FF04 FF00 FF01 FF00 FF00 FF00 FF27 FF40 FF23 FF00 FF13 FF10 FF13 0010 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0020 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0030 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0040 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0050 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0060 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0070 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0080 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 0090 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00A0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00B0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00C0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00D0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00E0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 00F0 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 FF00 ------[ SMBus Device B00-D50 ]------ 0000 92 10 0B 03 02 09 00 0A 03 52 01 08 0C 00 3C 00 .........R....<. 0010 69 78 69 3C 69 11 20 89 70 03 3C 3C 01 68 83 01 ixi<i. .p.<<.h.. 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 20 00 .............. . 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 00 00 00 00 00 80 CE 02 09 41 78 D1 3B 87 B9 22 .........Ax.;.." 0080 4D 34 37 31 42 32 38 37 34 45 48 31 2D 43 48 39 M471B2874EH1-CH9 0090 20 20 00 00 80 CE 00 00 00 43 57 48 30 35 30 36 .......CWH0506 00A0 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00B0 01 A0 01 84 03 00 45 4F 01 A0 01 84 03 00 45 56 ......EO......EV 00C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ ------[ SMBus Device B00-D52 ]------ 0000 92 10 0B 03 02 11 00 09 03 52 01 08 0C 00 3C 00 .........R....<. 0010 69 78 69 30 69 11 20 89 70 03 3C 3C 00 F0 83 01 ixi0i. .p.<<.... 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 45 00 ..............E. 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0070 00 00 00 00 00 80 CE 01 10 09 44 82 7B A2 1F 87 ..........D.{... 0080 4D 34 37 31 42 35 36 37 33 46 48 30 2D 43 48 39 M471B5673FH0-CH9 0090 20 20 00 00 80 CE 00 00 00 57 47 35 38 31 30 31 .......WG58101 00A0 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 03 ................ 00B0 01 F0 20 94 20 11 57 4B 01 F0 20 94 20 05 57 4B .. . .WK.. . .WK 00C0 01 F0 20 94 20 02 57 4B 00 00 00 00 00 00 00 00 .. . .WK........ 00D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 00F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ ------[ Chips Found ]------ B00-D52: SPD Arkiv.zip Link to comment Share on other sites More sharing options...
