Am i the only person who doesn't get a UI for hardware monitor. I've installed it loads of times and it still doesn't show on screen. When i look in activity monitor it shows as being loaded and working. If i access it from applications and click quick view i can get a screen with two options, 1 being open and the other being forward to airdrop or something. I really want this working so i can check the details from it.

Thank you to anybody that tell me what i'm doing wrong here.



I'm running 10.10.3 with clover install

Link to comment
Share on other sites

  • 5 months later...
  • 5 weeks later...

My platform profile for Gigabyte H81M-HD3 (have to put into 'Default' to make it working)



bash-3.2# ioreg -l | grep ITE
    | |   | +-o ITE,IT8620E  <class SuperIODevice, id 0x100000218, registered, matched, active, busy 0 (0 ms), retain 6>
    | |   | | |   "vendor-name" = "ITE"
    | |   | |       "IONameMatch" = ("ITE,IT8512F","ITE,IT8505F","ITE,IT8712F","ITE,IT8716F","ITE,IT8718F","ITE,IT8720F","ITE,IT8721F","ITE,IT8726F","ITE,IT8620E","ITE,IT8728F","ITE,IT8752F","ITE,IT8771E","ITE,IT8772E")
    | |   | |       "IONameMatched" = "ITE,IT8620E"


			<key>Platform Profile</key>
			<dict>
				<key>Default</key>
				<dict>
					<key>FANIN0</key>
					<string>CPUFan</string>
					<key>FANIN1</key>
					<string>SystemFan1</string>
					<key>TEMPIN0</key>
					<string>Mainboard</string>
					<key>TEMPIN1</key>
					<string>CPU Heatsink</string>
					<key>TEMPIN2</key>
					<string>Ambient</string>
					<key>VIN0</key>
					<string>CPU Core</string>
					<key>VIN1</key>
					<dict>
						<key>gain</key>
						<integer>649</integer>
						<key>name</key>
						<string>Main 3V</string>
						<key>offset</key>
						<integer>0</integer>
						<key>reference</key>
						<integer>0</integer>
					</dict>
					<key>VIN2</key>
					<dict>
						<key>gain</key>
						<integer>1485</integer>
						<key>name</key>
						<string>Main 5V</string>
						<key>offset</key>
						<integer>0</integer>
						<key>reference</key>
						<integer>0</integer>
					</dict>
					<key>VIN3</key>
					<dict>
						<key>gain</key>
						<integer>5035</integer>
						<key>name</key>
						<string>Main 12V</string>
						<key>offset</key>
						<integer>0</integer>
						<key>reference</key>
						<integer>0</integer>
					</dict>
					<key>VIN4</key>
					<string>CPU GFX</string>
					<key>VIN5</key>
					<string>CPU VRM</string>
					<key>VIN6</key>
					<string>Memory</string>
					<key>VIN7</key>
					<dict>
						<key>gain</key>
						<integer>1000</integer>
						<key>name</key>
						<string>Auxiliary 3V</string>
						<key>offset</key>
						<integer>0</integer>
						<key>reference</key>
						<integer>0</integer>
					</dict>
					<key>VIN8</key>
					<dict>
						<key>gain</key>
						<integer>1000</integer>
						<key>name</key>
						<string>CMOS Battery</string>
						<key>offset</key>
						<integer>0</integer>
						<key>reference</key>
						<integer>0</integer>
					</dict>
				</dict>
			</dict>
Ups, may this is the wrong thread? Edited by uglyJoe
Link to comment
Share on other sites

  • 2 weeks later...

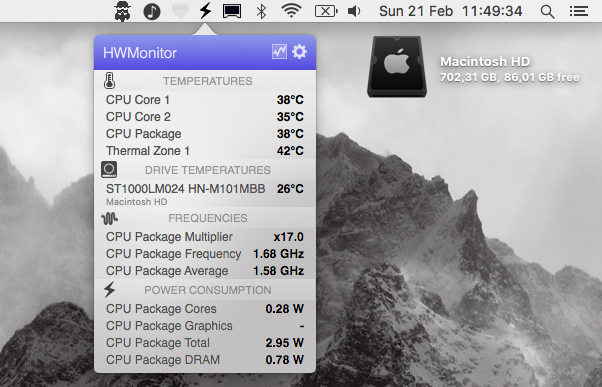

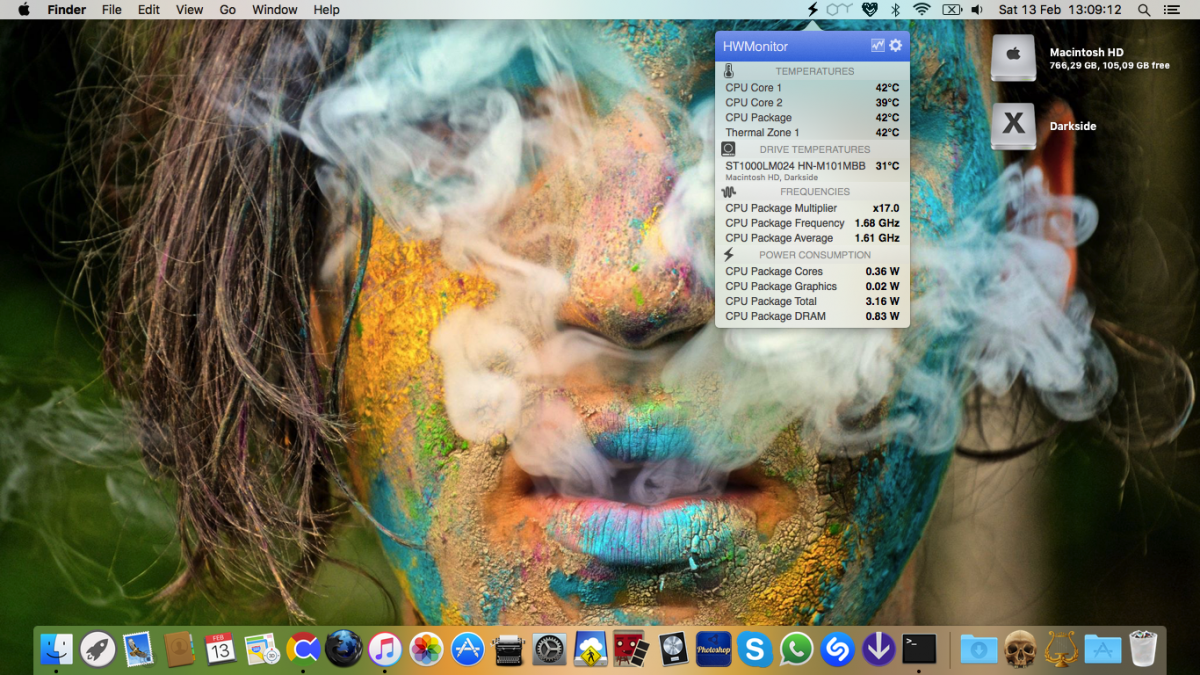

Anybody knows how to get fan speed readings on ASUS X55 laptops?

I would like to know where to start digging if it is something that needs a lot of work.

Thanks to this wonderful program, after install , almost all sensors work perfectly!








Thank you so much for this program, and a big thanks to the creator of SMC emulator, without him, most of Hackintosh would be impossible





Link to comment
Share on other sites

HWMonitor hardly ever provides fan info on laptops, except for discrete GPUs. Never seen it, whether on 945GM/PM, GM965, Series 5, Series 6, Series 8, etc. chipset-based (i.e. C2D, Arrandale, Sandy Bridge, Ivy Bridge, Haswell) laptops, except for the GPU of my nVidia NVS 135M-based D630.

Link to comment
Share on other sites

Hmmm ... Would there be any other alternative to HW Monitor?

Or some DSDT patch so that HWMonitor would read it?

You can try this

https://github.com/RehabMan/OS-X-FakeSMC-kozlek



Here maide helping you

attaching the HWM I am used on my HP Probook 4530s all working




Link to comment
Share on other sites

It obviously depends on what ACPI sensors can detect and provide. That particular (and older) FakeSMC version + PlugIns + HWM does not bring anything specific regarding fan monitoring (I've just verified it vs. Kozlek's v6.13.1363).



I see you're using Clover; maybe you have a special config setting to get your system fans speed reported through ACPI or a DSDT patch or even a BIOS setting.

Link to comment
Share on other sites

You can try this

https://github.com/RehabMan/OS-X-FakeSMC-kozlek



Here maide helping you

attaching the HWM I am used on my HP Probook 4530s all working

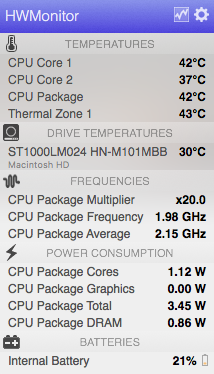

I tried the attached HWMonitor and FakeSMC, and it works the same way. No fan speed. @Herve is right. There is need of ACPI patching or some other kext?.. What could I do?

Link to comment
Share on other sites

Oh sorry for that man, I was using my normal DSDT not the one you sent me. Let me post ioreg and config plist witht that

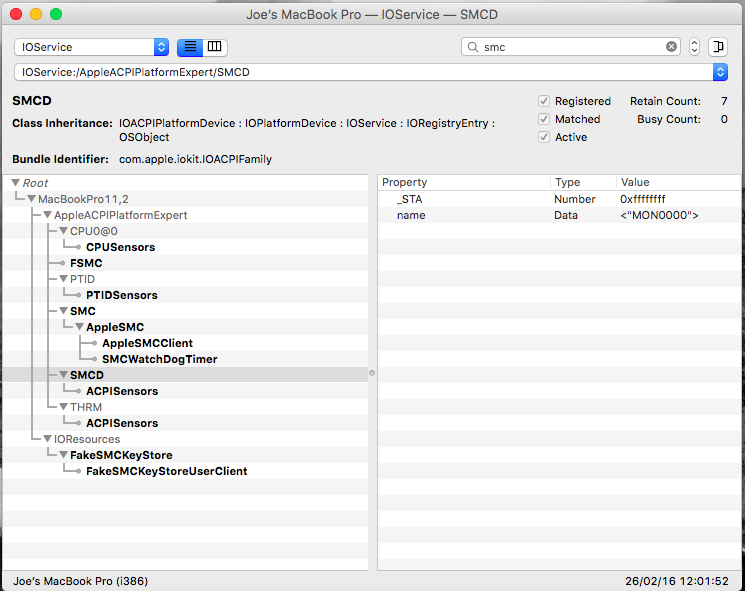

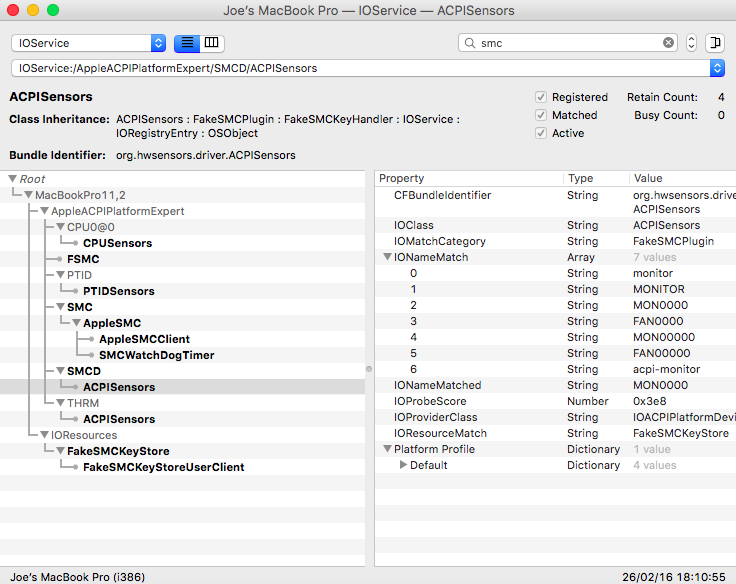

I can find this SMCD device you say but only when I use your DSDT






Here goes the ioreg and the config plist



Archive.zip

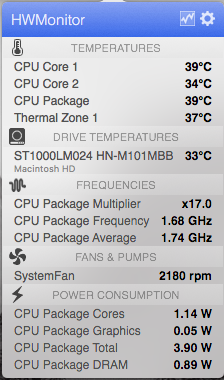

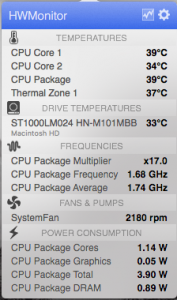

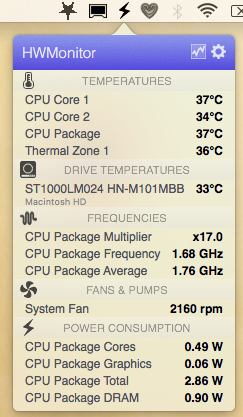

THANKS TO @legot28 fan reading works very nice now! Thanks so much  :w00t:
