Hello,

I have now added WhateverGreen.kext along with your clover.zip file



Now in verbose mode every thing went fine.. Point last stuck at

kextd stall [0] (240s) 'AppleACPICPU'

kextd stall [1] (240s) ...

kextd stall [2] (240s) ...

Stucked at black screen ending with above 3 lines for 5- 10 minutes..



Since then it is stucked at Black Screen with apple white logo and loader. Mouse Cursor has vanished and no progress is being shown since last 15 minutes..





I am booting again and creating a video for you...



I never told you adding WhateverGreen.kext

Link to comment
Share on other sites

Yes but one of my friend told me that WhateverGreen kext also works some  times when you have DSMOS errors.

WhateverGreen kext is not for the 5450

did you have put the good kext for your Optiplex 780 on 10.12 Clover/kexts folder

  • Like 1
Link to comment
Share on other sites

Yes. I have used all necessary kexts from very first post.



See attached zip for clover folder.

I am uploading video to Dropbox and will share it with you shortly..



Sorry previously my folder was not uploaded..  It is in two parts as it size is more than 10MB. This was my previous clover

Now i am trying your new folder







CLOVER1.rar

Link to comment
Share on other sites

Sorry previously my folder was not uploaded..  It is in two parts as it size is more than 10MB. This was my previous clover

Now i am trying your new folder

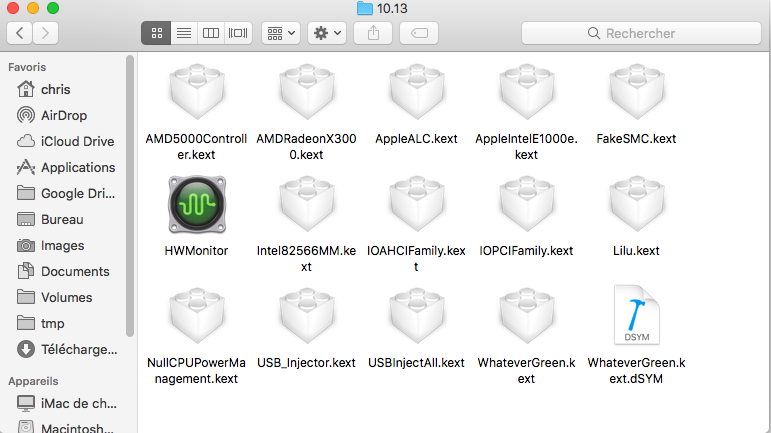

you try 10.12 and you have kext in 10.13

This is a joke or what ??

Also HWMonitor  :hysterical:  :hysterical:





  • Like 1
Link to comment
Share on other sites

My Old Clover Part 2


Sorry previously my folder was not uploaded..  It is in two parts as it size is more than 10MB. This was my previous clover
Now i am trying your new folder




Ended up with DSMOS has arrived


you try 10.12 and you have kext in 10.13

This is a joke or what ??

Also HWMonitor  :hysterical:  :hysterical:

No .. We are mixing two things ..

1st i have tried 10.13 and i got DSMOS has arrived.. posted another post in forum and didn't received a single reply. Then yesterday i tried to installed 10.12 and in  that USB i have kexts in 10.12

Now today again i am trying to install 10.13

I have also tried putting kexts in Others folder.




Clover 2.zip

Link to comment
Share on other sites

My Old Clover Part 2

Ended up with DSMOS has arrived

No .. We are mixing two things ..



1st i have tried 10.13 and i got DSMOS has arrived.. posted another post in forum and didn't received a single reply. Then yesterday i tried to installed 10.12 and in  that USB i have kexts in 10.12



Now today again i am trying to install 10.13



I have also tried putting kexts in Others folder.







Hello



I  have removed HWmonitor and other kexts. but still i am getting same error: DSMOS has arrived and then after few seconds Screen goes off.



But before monitor becomes black, some lines popup on screen very rapidly which are difficult to read or identity.

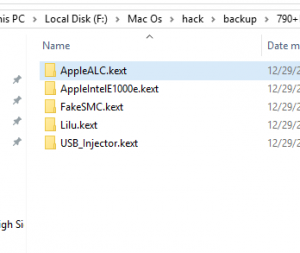

See attached file for my current KExt folder


Link to comment
Share on other sites

i am getting same error: DSMOS has arrived and then after few seconds Screen goes off.

DSMOS has arrived is not an error! Actually, it means everything's OK.



But before monitor becomes black, some lines popup on screen very rapidly which are difficult to read or identity.

That's because the 5450 won't work with High Sierra. You need to rollback some kexts from 10.12 and you'll need a working setup to do that.



You should stuck on Sierra for now.

  • Like 1
Link to comment
Share on other sites

DSMOS has arrived is not an error! Actually, it means everything's OK.





That's because the 5450 won't work with High Sierra. You need to rollback some kexts from 10.12 and you'll need a working setup to do that.



You should stuck on Sierra for now.

To me it is working as an error. After DSMOS has arrived. Screen goes to black. Monitor , mouse and keyboard is turned off but CPU remains On ..



See this video for detail

https://www.facebook.com/groups/hackintosch/permalink/10156304726097446/



You may need to join FB group to see this video.

Link to comment
Share on other sites

After DSMOS has arrived. Screen goes to black. Monitor , mouse and keyboard is turned off but CPU remains On ..

It just means that your 5450 has lost signal which is normal since it's unsupported by High Sierra.



Have you tried the same CLOVER folder with Sierra? I'm pretty sure it will work :).

Link to comment
Share on other sites

It just means that your 5450 has lost signal which is normal since it's unsupported by High Sierra.



Have you tried the same CLOVER folder with Sierra? I'm pretty sure it will work :).

Yes i have tried it with Sierra.. I have same issue.

It just means that your 5450 has lost signal which is normal since it's unsupported by High Sierra.



Have you tried the same CLOVER folder with Sierra? I'm pretty sure it will work :).

Do you know any other Nvidia or ATi cards that works well with High Sierra.

Link to comment
Share on other sites

Yes i have tried it with Sierra.. I have same issue.

Do you know any other Nvidia or ATi cards that works well with High Sierra.

for Sierra try to remove DSDT, used the config.plist I made fo you



Video not available

  • Like 1
Link to comment
Share on other sites

Thank you all of you guys for helping me out.
Special Thanks and respects to Chris1111, with his help i am able complete my build. I will share details in another article.


My Hardware Specs & Costs:

- Dell Optiplex 780
- Intel Core 2 Duo 3 8400
- 4GB DDR3 RAM
- 320 GB HDD   (Whole PC cost me US $55 or 5500 Pak Rupees)
- Graphics Card PNY Geforce 210 1GB ( Used Graphics Card cost me $30 or 3000 Pak Rupees. Graphics card is little costly as its difficult to find graphics cards in Pakistan)

Total System Cost: 85$ ( or  8500 Pak Rupees)



On board LAN, Audio front and back ports, USB ports, Sleep and restart all works fine as normal.



  • Like 3
Link to comment
Share on other sites

Thank you all of you guys for helping me out.

Special Thanks and respects to Chris1111, with his help i am able complete my build. I will share details in another article.





My Hardware Specs & Costs:



- Dell Optiplex 780

- Intel Core 2 Duo 3 8400

- 4GB DDR3 RAM

- 320 GB HDD   (Whole PC cost me US $55 or 5500 Pak Rupees)

- Graphics Card PNY Geforce 210 1GB ( Used Graphics Card cost me $30 or 3000 Pak Rupees. Graphics card is little costly as its difficult to find graphics cards in Pakistan)



Total System Cost: 85$ ( or  8500 Pak Rupees)



On board LAN, Audio front and back ports, USB ports, Sleep and restart all works fine as normal.





I am Happy for you  :D

One last tip will be to put an SSD to make your machine more faster  B)

Also upgrading RAM to 8 gIg

Link to comment
Share on other sites

I am Happy for you  :D

One last tip will be to put an SSD to make your machine more faster  B)

Also upgrading RAM to 8 gIg

Yes sure.

This is was just a test PC.

I am upgrading  this to Quad Core and 8 GB RAM. I have created this for students who have low budget and want to learn iOS development. So i don't think any one will afford HDD. and yes if any one who can afford SSD, then i will suggest him to use SSD. I will put complete article on Insanely mac soon.

Link to comment
Share on other sites

Yes sure.

This is was just a test PC.

I am upgrading  this to Quad Core and 8 GB RAM. I have created this for students who have low budget and want to learn iOS development. So i don't think any one will afford HDD. and yes if any one who can afford SSD, then i will suggest him to use SSD. I will put complete article on Insanely mac soon.

The Dell Optiplex is a Special machine, the compatibility with Mac is amazing

  • Like 1
Link to comment
Share on other sites



Some news:

Without Injector iGPU many AMD graphics cards no longer work with HighSierra.

However I have made a rollback of Sierra with following Kext's and the Optiplex780 works:


AMDRadeonX3000.kext

AMDRadeonX3000GLDriver.bundle

IOAccelerator2D.plugin

IOAcceleratorFamily2.kext


Unfortunately of course not update safe.

Audio works with flags -alcbeta -lilubeta and HDMI audio works as always with Shrike.




I'm on high Sierra 10.13.2 and my audio isn't working. You mind sharing those graphics kext with me so I could get graphics and full acceleration to work with my ati 5450 with 100268E0 please?  I"m using Nvidia 310 now and boot up is so slow. Whenever I boot up with the 5450, I jus get a black screen..

Link to comment
Share on other sites

Too big for the 10MB upload limit.

Do not you have a Hackintosh with Sierra 10.12.6 ???
From 10.12.6 S/L/E...:
AMDRadeonX3000.kext
AMDRadeonX3000GLDriver.bundle
IOAccelerator2D.plugin
IOAcceleratorFamily2.kext
... and replace them in HS! Rebuild Cache!
  • Like 1
Link to comment
Share on other sites


Hello everyone,

I have a small problem with a High Sierra installation on an Optiplex 780 (Q9650 / 3.00GHz, GeForce 310M). I installed without much problem and it works (graphics card, usb, Firewire card, I would see the sound after).



My concern is that when I do update 10.13.2, mac osx reboot before updating! (on the option Mas osx update in Clover).



I installed Clover UEFI on the EFI partition and I still have access to version 10.13.0.



An idea ? :)




Bruno

Link to comment
Share on other sites



Too big for the 10MB upload limit.

Do not you have a Hackintosh with Sierra 10.12.6 ???
From 10.12.6 S/L/E...:
AMDRadeonX3000.kext
AMDRadeonX3000GLDriver.bundle
IOAccelerator2D.plugin
IOAcceleratorFamily2.kext
... and replace them in HS! Rebuild Cache!



I installed the kexts from my 10.12.6 to my optiplex 755 sff running 10.13.2 and im still not getting qe/ci.  One strange thing is, the device id is shown as different from clover bootloader than it shows under DPCIManager.  Could that be a reason?

Link to comment
Share on other sites

@Over
Old version Lilu no longer works under 10.13.2 and causes KP's.
Update on last Release AppleALC and Lilu !!!



@Blaggah

I do not use FakeID in the Clover.

I use the DSDT patch for my HD5450 and these settings in the Clover:


Device (PEG0)
            {
                Name (_ADR, 0x00010000)
                Device (GFX0)
                {
                    Name (_ADR, Zero)
                    Method (_DSM, 4, NotSerialized)
                    {
                        Store (Package (0x10)
                            {
                                "device-id",
                                Buffer (0x04)
                                {
                                    0xE0, 0x68, 0x00, 0x00
                                },
                                "ATY,DeviceID",
                                Buffer (0x02)
                                {
                                    0xE0, 0x68
                                },
                                "vendor-id",
                                Buffer (0x04)
                                {
                                    0x02, 0x10, 0x00, 0x00
                                },
                                "ATY,VendorID",
                                Buffer (0x02)
                                {
                                    0x02, 0x10
                                },
                                "AAPL,slot-name",
                                Buffer (0x07)
                                {
                                    "Slot-1"
                                },
                                "model",
                                Buffer (0x1C)
                                {
                                    "XFX one HD5450 HDMI/DVI/VGA"
                                },
                                "hda-gfx",
                                Buffer (0x0A)
                                {
                                    "onboard-1"
                                },
                                "@0,AAPL,boot-display",
                                Buffer (Zero) {}
                            }, Local0)
                        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                        Return (Local0)
                    }
                }
                Device (HDAU)
                {
                    Name (_ADR, One)
                    Method (_DSM, 4, NotSerialized)
                    {
                        Store (Package (0x02)
                            {
                                "hda-gfx",
                                Buffer (0x0A)
                                {
                                    "onboard-1"
                                }
                            }, Local0)
                        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                        Return (Local0)
                    }
                }
            }
Link to comment
Share on other sites



@Over
Old version Lilu no longer works under 10.13.2 and causes KP's.
Update on last Release AppleALC and Lilu !!!



@Blaggah

I do not use FakeID in the Clover.

I use the DSDT patch for my HD5450 and these settings in the Clover:


Device (PEG0)
            {
                Name (_ADR, 0x00010000)
                Device (GFX0)
                {
                    Name (_ADR, Zero)
                    Method (_DSM, 4, NotSerialized)
                    {
                        Store (Package (0x10)
                            {
                                "device-id",
                                Buffer (0x04)
                                {
                                    0xE0, 0x68, 0x00, 0x00
                                },
                                "ATY,DeviceID",
                                Buffer (0x02)
                                {
                                    0xE0, 0x68
                                },
                                "vendor-id",
                                Buffer (0x04)
                                {
                                    0x02, 0x10, 0x00, 0x00
                                },
                                "ATY,VendorID",
                                Buffer (0x02)
                                {
                                    0x02, 0x10
                                },
                                "AAPL,slot-name",
                                Buffer (0x07)
                                {
                                    "Slot-1"
                                },
                                "model",
                                Buffer (0x1C)
                                {
                                    "XFX one HD5450 HDMI/DVI/VGA"
                                },
                                "hda-gfx",
                                Buffer (0x0A)
                                {
                                    "onboard-1"
                                },
                                "@0,AAPL,boot-display",
                                Buffer (Zero) {}
                            }, Local0)
                        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                        Return (Local0)
                    }
                }
                Device (HDAU)
                {
                    Name (_ADR, One)
                    Method (_DSM, 4, NotSerialized)
                    {
                        Store (Package (0x02)
                            {
                                "hda-gfx",
                                Buffer (0x0A)
                                {
                                    "onboard-1"
                                }
                            }, Local0)
                        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                        Return (Local0)
                    }
                }
            }



Hi MacPeet,



I did not see your answer and I came to put the solution;) Which is exactly what you say :)
It is necessary to put the last version of Lilu (1.2.1 to date) and the last of AppleALC. By cons I have a GeForce 310 M (I know it's old but it's recovery). The ID is 0x0a66, I must also patch the DSDT? I used a DSDT from the first post without the HD5440 patch. Normally it seems to work I have PC Partner GeForce 310 M as recognized.

Thank you for your answer ;)
Bruno
Link to comment
Share on other sites
