[Guide] macOS Sierra 10.12 - Dell Optiplex 780 (760) (755) (790) (990)


1,596 posts in this topic

Recommended Posts



@vdubbus77


KernelPanic by Lilu !!!
Lilu too old.
Boot with flag -liluoff -alcoff
... then renew Lilu and AppleALC !!!
Update Lilu to version 1.2.1 and AppleALC 1.2.2, then all right!



LayoutID 11 (0B) or even better (NEW) LayoutID 13 (0D) !!!ill will

Optiplex works, yes.  :wub:

@for all:
First DP Beta 10.13.4 works here, too.



Unfortunately this did not work for me. Using -alcoff and -liluoff gets me much further into the boot however it still will not complete the boot. It takes a very long time then just hangs.

Hello again,

So yesterday I got my hands on 2 SSD drives!

Thought it would be a great idea to RAID them together in the 0 config.

I installed Sierra with no problems, however I cannot seem to boot from the RAID partition using normal clover methods.

I just wondered if this was possible at all?

The only way I can get into the OS is by using a USB stick to start off with.

I also have 2 other drives in the machine both 1TB also in the RAID 0 config.

Neither of which seem to show life after the machine powers on.



Dell 780 core 2 Duo HD5450



Thanks in advance

Unfortunately this did not work for me. Using -alcoff and -liluoff gets me much further into the boot however it still will not complete the boot. It takes a very long time then just hangs.

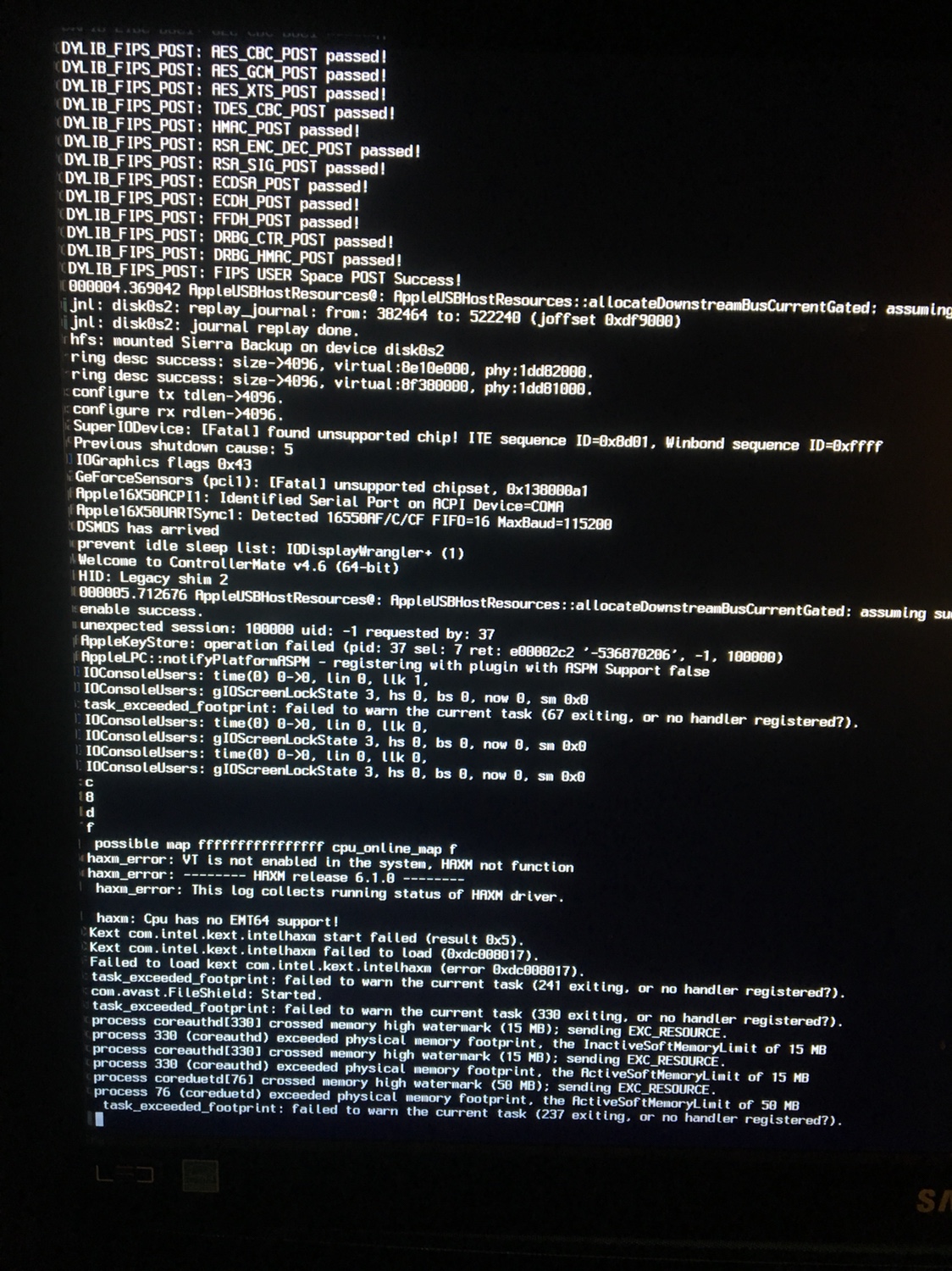

This is what I am getting now. Did I have some hardware fail at the same time as the update?








Sent from my iPhone using Tapatalk

This is what I am getting now. Did I have some hardware fail at the same time as the update?








Sent from my iPhone using Tapatalk





This is what I am getting now. Did I have some hardware fail at the same time as the update?








Sent from my iPhone using Tapatalk



This is what I am getting now. Did I have some hardware fail at the same time as the update?








Sent from my iPhone using Tapatalk

Same problem with my Dell 790/I3/HD5450...But i am able to  boot in single user mode from clover.



Any advise?

Same problem with my Dell 790/I3/HD5450...But i am able to  boot in single user mode from clover.



Any advise?

Make a good Signature CPU exact  model , Graphics exact brand and VRam



what you try 10.12 or 10.13 ?



Share EFI of SSD or HD

Also share EFI of USB Installer if you try USB Installer

Make a good Signature CPU exact  model , Graphics exact brand and VRam



what you try 10.12 or 10.13 ?



Share EFI of SSD or HD

Also share EFI of USB Installer if you try USB Installer



Sorry for the delay

Well i will provide a more detailed info

I made the update via apple web page (.dmg file) not via App Store.

After this i got the same as above KP  "as.vit9696.Lilu(1.0).... etc"

After that i boot in Single user mode from Clover to remove Lilu.kext from S/L/E and when i type "exit" in the console the computer continued to load kexts or whatever (i had also checked -V) and after this booted normally .

That means i have back my computer with everything working except audio.

So i double checked that the Lilu kexts was removed from S/L/E (from contents, plugins also) and rebooted.

Unfortunatelly i got the same KP "as.vit9696.Lilu(1.0).... etc"

I rebooted again in single user mode and searched for Lilu.kext everywhere in S/L/E and there wasn't present at all.

So i am in this state now. If the computer reboots normally  i have the above KP, but it is working normally  if i boot in single user mode after typing "exit" in the console.

I attach the config.plist and the system info .spx file for further information but with a short description the machine is iMac 12,1 Intel core I3 and Graphics Hd 5450 XFX silent 1GB .

Any help would be welcome.

I forgot  to say that i have tried and installed the latest ALC.kext and Lilu.kext (both of them 1.2.2. release) as advised in previous posts without any result.

I have also removed the ALC.kext from EFI/Clover/Kexts/10.12 (i am runing Sierra 10.12.6)

Dell790.zip

Sorry for the delay

Well i will provide a more detailed info

I made the update via apple web page (.dmg file) not via App Store.

After this i got the same as above KP  "as.vit9696.Lilu(1.0).... etc"

After that i boot in Single user mode from Clover to remove Lilu.kext from S/L/E and when i type "exit" in the console the computer continued to load kexts or whatever (i had also checked -V) and after this booted normally .

That means i have back my computer with everything working except audio.

So i double checked that the Lilu kexts was removed from S/L/E (from contents, plugins also) and rebooted.

Unfortunatelly i got the same KP "as.vit9696.Lilu(1.0).... etc"

I rebooted again in single user mode and searched for Lilu.kext everywhere in S/L/E and there wasn't present at all.

So i am in this state now. If the computer reboots normally  i have the above KP, but it is working normally  if i boot in single user mode after typing "exit" in the console.

I attach the config.plist and the system info .spx file for further information but with a short description the machine is iMac 12,1 Intel core I3 and Graphics Hd 5450 XFX silent 1GB .

Any help would be welcome.

witch Intel core I3 ? see bios infos about CPU

​I demand complet EFI your put config.plist



Well it looks OK. Mind to share your EFI/CLOVER folder?



No problem, but i am in share screen with the computer and i do not risk to make a reboot remotely.

So i will go to my work tomorrow to make a try with your config.plist and respond.

Thanks for your effort i will reply ASAP

Didn't manage to make any trial today but tomorrow i will.

So i will update

Thanks again

Well everything OK.

I used chris1111's config 5450.plist and booted normally WITH Audio.

Many many thanks for your effort.

  • Like 1

Well everything OK.

I used chris1111's config 5450.plist and booted normally WITH Audio.

Many many thanks for your effort.

One more question if anybody knows .

is there any budget Low Profile Graphics card (silent preferred & without extra power connector) that can play 4K@60Hz in Dell 780 or Dell790 O.O.B full working with at least two digital outputs HDMI-DVI?

I have two Dell Hackintoshes (780-790) and want to use one of them as Home Theater P.C. with Kodi.

Thanks.

One more question if anybody knows .

is there any budget Low Profile Graphics card (silent preferred & without extra power connector) that can play 4K@60Hz in Dell 780 or Dell790 O.O.B full working with at least two digital outputs HDMI-DVI?

I have two Dell Hackintoshes (780-790) and want to use one of them as Home Theater P.C. with Kodi.

Thanks.

Not sure for the 4K ?

Gigabyte Geforce GT 710

OR

Zotac Geforce  GT 1030 (webDrivers)



I have both card  for my 790 Optiplex

  • Like 1

Has anyone had time to look at mine?





Sent from my iPhone using Tapatalk

You can try this EFI

I am not touch the DSDT





Edit *****

you have the Geforce GT 1030 so I guess the WebDrivers are well install
The config.plist is according to this
  • Like 1



You can try this EFI

I am not touch the DSDT





Edit *****

you have the Geforce GT 1030 so I guess the WebDrivers are well install
The config.plist is according to this









Still doesn't boot. thanks for the attempt. This update must have screwed something up bad. I guess I will need to reinstall, just a shame this system has been up since El Capitan.

Still doesn't boot. thanks for the attempt. This update must have screwed something up bad. I guess I will need to reinstall, just a shame this system has been up since El Capitan.

Reinstall fresh  and used My EFI and retry Update



for the GT 1030 You have to boot nv_disable=1 for Update thats it

  • Like 1
