Only AMD builds. Only tested working builds. Post your successful OSX instalation, listing CPU, Motherboard (detailing what works and doesn't), OSX version, boot loader brand and revision, with the boot flags if possible, graphics, sound and any other information you can or want to share with your fellow AMD users.



I'll be the first:



AMD Athlon II X2 250 3.0 GHZ;



ECS EliteGroup A780 LM-MB:

- Audio codec VIA 1705 (working with Voodoo HDA)

- LAN RTL 8111E (not working)

- On-board video ATI HD3100 (not working, neither QE/CI nor resolution)

- 6 USB ports, 4 rear, two front, USB 2.0, all working

- PS2 working but unstable with VoodooPS2;



GeForce G210 VGA/DVI/HDMI - QE/CI with all outs in both Snow Leopard and Lion with GraphicsEnabler=Y, HDMI audio with VoodooHDA;



Network card (PCI-e): RTL 8168, worked out of the box;



Bluetooth USB dongle: Cambridge Silicon Radio Firmware v. 3164, bluetooth 2.4.5f3;



8 GB RAM;



3 HDs: 1x500GB (250 for each OS), 1x40GB (IDE, for Windows, not seen on OSX), 1x500GB (time machine);



Snow Leopard 10.6.8, 32-bit kernel from AnV (http://www.osx86.net...do=file&id=1675) with 64-bit user land: take a little while to boot, but shuts down and restart in less than 3 seconds. For using more than 4GB of RAM, i had to use this method: [GUIDE] Use more than 4gb RAM on AMD with 32 and 64 bit apps ..., bootflags: legacy_kernel arch=i386 -force64, GraphicsEnabler=Y, npci=0x2000;



Lion 10.7.5. 32-bit kernel (connactic.zip) in pure 32-bit mode (-legacy): had to swap the stock finder with this one: Finder from Lion DP 2 - Downloads - OSx86.net), iCloud with this method: iCloud for AMD hackintoshes: a workaround. - OSx86 10.7 (Lion ... and solved the core apps crashing using jeaton's method:



1) Wait for xpchelper to crash

2) Open terminal and type these in:

"sudo su"

"cd /private/var/folders"

"find /private/var/folders/ -type f | grep -i com.apple.xpchelper.cache"

3) cd to the first one that shows up on the list (it will be in a separate folder from the other xpchelper caches)

"rm -r com.apple.xpchelper.cache"

"pico com.apple.xpchelper.cache" ---> hit ctrl+o to save and ctrl+x to exit

"chflags uchg com.apple.xpchelper.cache"

4) Reboot and you're done!



Bootflags: connactic arch=i386 -legacy, GraphicsEnabler=Y, npci=0x2000;



Chameleon bootloader 2.2, installed with this package (no modules selected): Chameleon 2.2svn r2117 - Downloads - OSx86.net

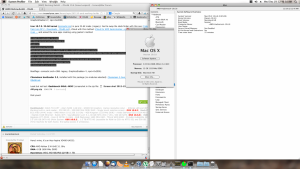

Least but not last: Geekbench 64bit: 4450! (screenshot in the zip file: Screen shot 2012-12-19 at 7.18.55 AM.png.zip)



Post yours!

Share this post


Link to post
Share on other sites
Advertisement

Here's mine, it's an Acer Aspire X3400-U4032:



CPU: AMD Athlon II X4 645 3.1 GHz

RAM: 6 GB 1600 MHz DDR3 (2x 1 GB, 2x 2 GB)

Hard Drive: WDC WD10EARS-22Y5B1 1 TB

Graphics: ASUS EAH5450 SILENT 512MB, full QE/CI with this, only VGA and DVI tested; Onboard NVIDIA GeForce 9200 no QE/CI

Network: Ralink RT3090; Using self-built X86 Wifi; Ethernet not tested.

Audio: Using AppleAzaliaAudio.kext, back audio-out port working.

PS/2: Not tested.

Optical drive: HL-DT-ST DVDRAM GH60N working

I/O Ports: 3/4 Back USB working, 2/5 front USB working. Tested front headphone jack, not working.



Now on to my OS X configuration:



Snow Leopard: Successfully installed with the following guide: http://philtesone.com/hackintosh/; 64-bit Snow Leopard success, although no sound.



Lion: Successfully installed using this guide: http://www.insanelym...erimental-only/ then updated to 10.7.5 using the method theconnactic mentioned.



Mountain Lion: Successfully installed with iATKOS_ML2 and AnV's latest amd_kernel! Retail installer crashes:





Hi all,



Congratulations to everyone that can install Mountain Lion and boot! I'm having trouble installing Mountain Lion on my PC, as the installer always "fails to complete". :wallbash: I can boot into it just fine, but when I choose the installation drive and click "Install" the installer freezes, then a few moments later, it crashes. The log can be found below:





Jan 5 22:56:40 localhost opendirectoryd[101]: opendirectoryd (build 197.11.16) launched - installer mode
Jan 5 22:56:40 localhost opendirectoryd[101]: Logging level limit changed to 'notice'
Jan 5 22:56:40 localhost opendirectoryd[101]: Initialize trigger support
Jan 5 22:56:40 localhost opendirectoryd[101]: created endpoint for mach service 'com.apple.private.opendirectoryd.rpc' with work limit 10
Jan 5 22:56:40 localhost opendirectoryd[101]: set default handler for RPC 'reset_cache'
Jan 5 22:56:40 localhost opendirectoryd[101]: set default handler for RPC 'reset_statistics'
Jan 5 22:56:40 localhost opendirectoryd[101]: set default handler for RPC 'show'
Jan 5 22:56:40 localhost opendirectoryd[101]: starting endpoint for service 'com.apple.private.opendirectoryd.rpc'
Jan 5 22:56:40 localhost opendirectoryd[101]: no dynamic data found at '/System/Library/OpenDirectory/DynamicData/Configure.plist'
Jan 5 22:56:40 localhost opendirectoryd[101]: Registered node with name '/Configure' as hidden
Jan 5 22:56:40 localhost opendirectoryd[101]: no dynamic data found at '/System/Library/OpenDirectory/DynamicData/Local.plist'
Jan 5 22:56:40 localhost opendirectoryd[101]: Registered node with name '/Local' as hidden
Jan 5 22:56:46 localhost Unknown[286]: kern.boottime: { sec = 1357455395, usec = 0 } Sat Jan 5 22:56:35 2013
Jan 5 22:56:46 localhost Unknown[295]: Launching the Language Chooser for an OS Install
Jan 5 22:56:56 localhost configd[112]: bootp_session_transmit: bpf_write(en1) failed: Network is down (50)
Jan 5 22:56:56 localhost configd[112]: DHCP en1: INIT transmit failed
Jan 5 22:56:57 localhost Unknown[297]: 2013-01-05 22:56:57.216 LCA[296:707] NSSoftLinking - The Librarian framework's library couldn't be loaded from (null).
Jan 5 22:56:57 localhost Unknown[297]: 2013-01-05 22:56:57.218 LCA[296:707] NSSoftLinking - The function 'LBCurrentProcessHasUbiquityContainer' can't be found in the Librarian framework.
Jan 5 22:57:00 localhost Unknown[297]: 2013-01-05 22:57:00.541 LCA[296:707] LCA+BT2: systemHasBluetooth entry
Jan 5 22:57:00 localhost Unknown[297]: 2013-01-05 22:57:00.541 LCA[296:707] LCA+BT2: [[NSProcessInfo processInfo] processName] LCA
Jan 5 22:57:00 localhost Unknown[297]: 2013-01-05 22:57:00.542 LCA[296:707] LCA+BT2: systemHasBluetooth exit - controller = 0x0
Jan 5 22:57:03 localhost LCA[296]: Launching the Installer using language code "English"
Jan 5 22:57:03 localhost Unknown[297]: 2013-01-05 22:57:03.545 OS X Installer[317:707] NSSoftLinking - The Librarian framework's library couldn't be loaded from (null).
Jan 5 22:57:03 localhost Unknown[297]: 2013-01-05 22:57:03.546 OS X Installer[317:707] NSSoftLinking - The function 'LBCurrentProcessHasUbiquityContainer' can't be found in the Librarian framework.
Jan 5 22:57:03 localhost OSInstaller[317]: OS X Installer application started
Jan 5 22:57:03 localhost OSInstaller[317]: 1 display(s) found.
Jan 5 22:57:03 localhost OSInstaller[317]: Display[1] is NOT using OpenGL acceleration.
Jan 5 22:57:03 localhost OSInstaller[317]: @(#)PROGRAM:Install PROJECT:Install-729
Jan 5 22:57:03 localhost OSInstaller[317]: @(#)PROGRAM:OS X Installer PROJECT:OSInstaller-419
Jan 5 22:57:03 localhost OSInstaller[317]: Hardware: MacPro3,1 @ 3.10 GHz (x 4), 6144 MB RAM
Jan 5 22:57:03 localhost OSInstaller[317]: Running OS Build: Mac OS X 10.8 (12A269)
Jan 5 22:57:03 localhost OSInstaller[317]: Env: DYLD_NO_FIX_PREBINDING=1
Jan 5 22:57:03 localhost OSInstaller[317]: Env: __CF_USER_TEXT_ENCODING=0x0:0:0
Jan 5 22:57:03 localhost OSInstaller[317]: Env: PATH=/usr/bin:/bin:/usr/sbin:/sbin
Jan 5 22:57:03 localhost OSInstaller[317]: Env: PWD=/
Jan 5 22:57:03 localhost OSInstaller[317]: Env: SHLVL=1
Jan 5 22:57:03 localhost OSInstaller[317]: Env: __OSINSTALL_ENVIRONMENT=1
Jan 5 22:57:03 localhost OSInstaller[317]: Env: CI_DEFAULT_OPENCL_USAGE=0
Jan 5 22:57:03 localhost OSInstaller[317]: Env: OS_INSTALL=1
Jan 5 22:57:03 localhost OSInstaller[317]: Env: _=/System/Installation/CDIS/LCA.app/Contents/MacOS/LCA
Jan 5 22:57:03 localhost OSInstaller[317]: No mutable product specified in NVRAM.
Jan 5 22:57:04 localhost OSInstaller[317]: We are not image source booted ignoring automation backup.
Jan 5 22:57:04 localhost OSInstaller[317]: No mutable product specified on boot disk.
Jan 5 22:57:04 localhost OSInstaller[317]: Opening OSInstall package '/System/Installation/Packages/OSInstall.mpkg'.
Jan 5 22:57:04 localhost OSInstaller[317]: Using product <OSInstallRootProduct> at distance 5
Jan 5 22:57:05 localhost OSInstaller[317]: JS: installCheckScript threw exception TypeError: 'null' is not an object (evaluating 'my.target.systemVersion')
Jan 5 22:57:05 localhost OSInstaller[317]: Memory statistics for 'Install OS X' pane:
Jan 5 22:57:05 localhost OSInstaller[317]: Physical Memory Allocation: 484 MB wired, 2 MB trapped, 159 MB active, 103 MB inactive, 5396 MB free, 5658 MB usable, 6144 MB total
Jan 5 22:57:06 localhost Unknown[297]: Keyboard Layouts: duplicate keyboard layout identifier -16899.
Jan 5 22:57:06 localhost Unknown[297]: Keyboard Layouts: keyboard layout identifier -16899 has been replaced with -28673.
Jan 5 22:57:06 localhost Unknown[297]: Keyboard Layouts: duplicate keyboard layout identifier -16900.
Jan 5 22:57:06 localhost Unknown[297]: Keyboard Layouts: keyboard layout identifier -16900 has been replaced with -28674.
Jan 5 22:57:08 localhost OSInstaller[317]: Allowing machine sleep.
Jan 5 22:57:09 localhost Unknown[297]: 2013-01-05 22:57:09.244 OS X Installer[317:707] *** WARNING: -[NSImage compositeToPoint:operation:] is deprecated in MacOSX 10.8 and later. Please use -[NSImage drawAtPoint:fromRect:operation:fraction:] instead.
Jan 5 22:57:09 localhost Unknown[297]: 2013-01-05 22:57:09.245 OS X Installer[317:707] *** WARNING: -[NSImage compositeToPoint:fromRect:operation:] is deprecated in MacOSX 10.8 and later. Please use -[NSImage drawAtPoint:fromRect:operation:fraction:] instead.
Jan 5 22:57:09 localhost Unknown[297]: 2013-01-05 22:57:09.254 OS X Installer[317:707] *** WARNING: -[NSImage compositeToPoint:operation:fraction:] is deprecated in MacOSX 10.8 and later. Please use -[NSImage drawAtPoint:fromRect:operation:fraction:] instead.
Jan 5 22:57:09 localhost Unknown[297]: 2013-01-05 22:57:09.255 OS X Installer[317:707] *** WARNING: -[NSImage compositeToPoint:fromRect:operation:fraction:] is deprecated in MacOSX 10.8 and later. Please use -[NSImage drawAtPoint:fromRect:operation:fraction:] instead.
Jan 5 22:57:12 localhost OSInstaller[317]: Preventing machine sleep.
Jan 5 22:57:12 localhost OSInstaller[317]: InstallerStatusNotifications plugin loaded
Jan 5 22:57:12 localhost OSInstaller[317]: ================================================================================
Jan 5 22:57:12 localhost OSInstaller[317]: Choices selected for installation:
Jan 5 22:57:12 localhost OSInstaller[317]: Install: "OS X"
Jan 5 22:57:12 localhost OSInstaller[317]: BaseSystemBinaries.pkg : com.apple.pkg.BaseSystemBinaries : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: BaseSystemResources.pkg : com.apple.pkg.BaseSystemResources : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: OSInstall.mpkg : com.apple.mpkg.OSInstall : 10.8.0
Jan 5 22:57:12 localhost OSInstaller[317]: Essentials.pkg : com.apple.pkg.Essentials : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: BSD.pkg : com.apple.pkg.BSD : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: JavaTools.pkg : com.apple.pkg.JavaTools : 1.0.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: RemoteDesktop.pkg : com.apple.pkg.RemoteDesktop : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: AdditionalEssentials.pkg : com.apple.pkg.AdditionalEssentials : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: AdditionalSpeechVoices.pkg : com.apple.pkg.AdditionalSpeechVoices : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: AsianLanguagesSupport.pkg : com.apple.pkg.AsianLanguagesSupport : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: MediaFiles.pkg : com.apple.pkg.MediaFiles : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: JavaEssentials.pkg : com.apple.pkg.JavaEssentials : 1.0.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: OxfordDictionaries.pkg : com.apple.pkg.OxfordDictionaries : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: X11redirect.pkg : com.apple.pkg.X11redirect : 10.8.0.1.1.1306847324
Jan 5 22:57:12 localhost OSInstaller[317]: OSInstall.pkg : com.apple.pkg.OSInstall : 10.8.0.1
Jan 5 22:57:12 localhost OSInstaller[317]: ================================================================================
Jan 5 22:57:12 localhost OSInstaller[317]: It took 0.00 seconds to summarize the package selections.
Jan 5 22:57:12 localhost OSInstaller[317]: Memory statistics for 'Installing' pane:
Jan 5 22:57:12 localhost OSInstaller[317]: Physical Memory Allocation: 496 MB wired, 2 MB trapped, 159 MB active, 105 MB inactive, 5382 MB free, 5646 MB usable, 6144 MB total
Jan 5 22:57:12 localhost OSInstaller[317]: Remote Install Assistant found at 1024:(null)
Jan 5 22:57:46 localhost ReportCrash[322]: LaunchServices/5123589: Unable to lookup coreservices session port for session 0x186a0 uid=0 euid=0
Jan 5 22:57:46 localhost ReportCrash[322]: LaunchServices/5123589: Unable to lookup coreservices session port for session 0x186a0 uid=0 euid=0
Jan 5 22:57:46 localhost ReportCrash[322]: LaunchServices/5123589: Unable to lookup coreservices session port for session 0x186a0 uid=0 euid=0
Jan 5 22:57:46 localhost ReportCrash[322]: LaunchServices/5123589: Unable to lookup coreservices session port for session 0x186a0 uid=0 euid=0
Jan 5 22:57:46 localhost ReportCrash[322]: LaunchServices/5123589: Unable to lookup coreservices session port for session 0x186a0 uid=0 euid=0
Jan 5 22:57:46 localhost LCA[296]: Child exited with status 11
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1 - ODNodeCreateWithNameAndOptions request, SessionID: 00000000-0000-0000-0000-000000000000, Name: /Local/Default, Options: 0x0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1 - loading configuration for '/Local' from '/System/Library/OpenDirectory/Configurations/Local.plist'
Jan 5 22:57:46 localhost opendirectoryd[101]: Loaded bundle at path '/System/Library/OpenDirectory/Modules/PlistFile.bundle'
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1 - unable to find authentication module 'ConfigurationProfiles'
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1 - unable to find service discovery callback for module 'PlistFile'
Jan 5 22:57:46 localhost opendirectoryd[101]: Registered subnode with name '/Local/Default'
Jan 5 22:57:46 localhost opendirectoryd[101]: Registering for network changes
Jan 5 22:57:46 localhost opendirectoryd[101]: failed to open local node for internal record copy
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1.2 - Block: nodestate '/Local/Default'
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1.2, Module: PlistFile - Node is 10.7 or later
Jan 5 22:57:46 localhost opendirectoryd[101]: Registering for power changes
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1.2 - nodestate - flagging '/Local/Default' online
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1.2 - Block completed
Jan 5 22:57:46 localhost opendirectoryd[101]: Registering for network power changes
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1, Node: /Local/Default - node assigned UUID - 0268E967-59CF-451F-96E9-30A967D97F16
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.1, Node: /Local/Default - ODNodeCreateWithNameAndOptions completed
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.3 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.3 - ODNodeCopyDetails request, NodeID: 0268E967-59CF-451F-96E9-30A967D97F16, Keys: dsAttrTypeStandard:NodePath
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.3, Node: /Local/Default, Module: PlistFile - ODNodeCopyDetails completed, delivered 1 result
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.4 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.4 - ODNodeRelease request, NodeID: 0268E967-59CF-451F-96E9-30A967D97F16
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.4, Node: /Local/Default - ODNodeRelease completed
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.5 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.5 - ODNodeCreateWithNameAndOptions request, SessionID: 00000000-0000-0000-0000-000000000000, Name: /Search, Options: 0x0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.5 - ODNodeCreateWithNameAndOptions failed with error 'Unknown node name' (2000)
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.6 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.6 - ODNodeCreateWithNameAndOptions request, SessionID: 00000000-0000-0000-0000-000000000000, Name: /Search, Options: 0x0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.6 - ODNodeCreateWithNameAndOptions failed with error 'Unknown node name' (2000)
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.7 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.7 - ODNodeCreateWithNameAndOptions request, SessionID: 00000000-0000-0000-0000-000000000000, Name: /Local/Default, Options: 0x0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.7, Node: /Local/Default - node assigned UUID - DFDD8EF9-9E25-4451-8C50-916B5BBE5115
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.7, Node: /Local/Default - ODNodeCreateWithNameAndOptions completed
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.8 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:46 localhost opendirectoryd[101]: 322.8 - ODQueryCreateWithNode request, NodeID: DFDD8EF9-9E25-4451-8C50-916B5BBE5115, RecordType(s): dsRecTypeStandard:Users, Attribute: dsAttrTypeStandard:RecordName, MatchType: Any, Equality: CaseIgnore, Value(s): dsRecordsAll, Requested Attributes: dsAttrTypeStandard:GeneratedUID,dsAttrTypeNative:LinkedIdentity,dsAttrTypeStandard:RealName,dsAttrTypeStandard:GroupMembership,dsAttrTypeStandard:Picture,dsAttrTypeStandard:UserCertificate,dsAttrTypeStandard:AppleMetaNodeLocation,dsAttrTypeStandard:RecordType,dsAttrTypeStandard:Comment,dsAttrTypeStandard:NestedGroups,dsAttrTypeStandard:PrimaryGroupID,dsAttrTypeStandard:AuthenticationAuthority,dsAttrTypeStandard:Keywords,dsAttrTypeStandard:RecordName,dsAttrTypeStandard:JPEGPhoto,dsAttrTypeNative:_guest,dsAttrTypeStandard:AppleMetaRecordName,dsAttrTypeStandard:UserShell,dsAttrTypeStandard:GroupMembers,dsAttrTypeStandard:UniqueID,dsAttrTypeStandard:EMailAddress,dsAttrTypeStandard:NFSHomeDirectory, Max Results: 2147483647
Jan 5 22:57:47 localhost opendirectoryd[101]: 322.8, Node: /Local/Default, Module: PlistFile - ODQueryCreateWithNode completed, delivered 71 results
Jan 5 22:57:47 localhost opendirectoryd[101]: 322.9 - Client: ReportCrash, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:57:47 localhost opendirectoryd[101]: 322.9 - ODNodeRelease request, NodeID: DFDD8EF9-9E25-4451-8C50-916B5BBE5115
Jan 5 22:57:47 localhost opendirectoryd[101]: 322.9, Node: /Local/Default - ODNodeRelease completed
Jan 5 22:57:47 localhost ReportCrash[322]: Process: OS X Installer [317]
Jan 5 22:57:47 localhost ReportCrash[322]: Path: /Volumes/VOLUME/*/OS X Installer.app/Contents/MacOS/OS X Installer
Jan 5 22:57:47 localhost ReportCrash[322]: Identifier: OS X Installer
Jan 5 22:57:47 localhost ReportCrash[322]: Version: 401 (419)
Jan 5 22:57:47 localhost ReportCrash[322]: Code Type: X86-64 (Native)
Jan 5 22:57:47 localhost ReportCrash[322]: Parent Process: LCA [296]
Jan 5 22:57:47 localhost ReportCrash[322]: User ID: 0
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Date/Time: 2013-01-05 22:57:12.327 -0800
Jan 5 22:57:47 localhost ReportCrash[322]: OS Version: Mac OS X 10.8 (12A269)
Jan 5 22:57:47 localhost ReportCrash[322]: Report Version: 10
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Crashed Thread: 16
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Exception Type: EXC_BAD_ACCESS (SIGSEGV)
Jan 5 22:57:47 localhost ReportCrash[322]: Exception Codes: KERN_INVALID_ADDRESS at 0x0000000000000001
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: VM Regions Near 0x1:
Jan 5 22:57:47 localhost ReportCrash[322]: -->
Jan 5 22:57:47 localhost ReportCrash[322]: __TEXT 00000001045ed000-00000001045fd000 [ 64K] r-x/rwx SM=COW /Volumes/VOLUME/*/OS X Installer.app/Contents/MacOS/OS X Installer
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 0:: Dispatch queue: com.apple.main-thread
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1c686 mach_msg_trap + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_kernel.dylib 0x0000000107c1bc42 mach_msg + 70
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.CoreFoundation 0x0000000104c2bf23 __CFRunLoopServiceMachPort + 195
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.CoreFoundation 0x0000000104c31606 __CFRunLoopRun + 1078
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.CoreFoundation 0x0000000104c30dd2 CFRunLoopRunSpecific + 290
Jan 5 22:57:47 localhost ReportCrash[322]: 5 com.apple.HIToolbox 0x00000001090d5774 RunCurrentEventLoopInMode + 209
Jan 5 22:57:47 localhost ReportCrash[322]: 6 com.apple.HIToolbox 0x00000001090d5512 ReceiveNextEventCommon + 356
Jan 5 22:57:47 localhost ReportCrash[322]: 7 com.apple.HIToolbox 0x00000001090d53a3 BlockUntilNextEventMatchingListInMode + 62
Jan 5 22:57:47 localhost ReportCrash[322]: 8 com.apple.AppKit 0x0000000105628fa3 _DPSNextEvent + 685
Jan 5 22:57:47 localhost ReportCrash[322]: 9 com.apple.AppKit 0x0000000105628862 -[NSApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 128
Jan 5 22:57:47 localhost ReportCrash[322]: 10 com.apple.AppKit 0x000000010561fc03 -[NSApplication run] + 517
Jan 5 22:57:47 localhost ReportCrash[322]: 11 com.apple.AppKit 0x00000001055c4656 NSApplicationMain + 869
Jan 5 22:57:47 localhost ReportCrash[322]: 12 com.apple.MacOSXInstaller 0x00000001045f3c0b 0x1045ed000 + 27659
Jan 5 22:57:47 localhost ReportCrash[322]: 13 libdyld.dylib 0x0000000107a457e1 start + 1
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 1:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e386 __semwait_signal + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107b35828 nanosleep + 163
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107b356b2 sleep + 61
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.installframework 0x00000001047cd59e do_log_watch + 55
Jan 5 22:57:47 localhost ReportCrash[322]: 4 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 2:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e6d6 __workq_kernreturn + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aadf2c _pthread_workq_return + 25
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107aadcf3 _pthread_wqthread + 412
Jan 5 22:57:47 localhost ReportCrash[322]: 3 libsystem_c.dylib 0x0000000107a981b1 start_wqthread + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 3:: Dispatch queue: com.apple.libdispatch-manager
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1ed16 kevent + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libdispatch.dylib 0x0000000107a10e26 _dispatch_mgr_invoke + 883
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libdispatch.dylib 0x0000000107a10a2a _dispatch_mgr_thread + 54
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 4:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e6d6 __workq_kernreturn + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aadf2c _pthread_workq_return + 25
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107aadcf3 _pthread_wqthread + 412
Jan 5 22:57:47 localhost ReportCrash[322]: 3 libsystem_c.dylib 0x0000000107a981b1 start_wqthread + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 5:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e386 __semwait_signal + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107b35828 nanosleep + 163
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.Foundation 0x0000000104fe6cc4 +[NSThread sleepForTimeInterval:] + 156
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.SystemMigration 0x000000010d3ab66d -[sMManager _suppressSpotlightThread:] + 106
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.Foundation 0x0000000104fe5842 __NSThread__main__ + 1345
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 6:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e386 __semwait_signal + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107b35828 nanosleep + 163
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.Foundation 0x0000000104fe6cc4 +[NSThread sleepForTimeInterval:] + 156
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.SystemMigration 0x000000010d3ab376 -[sMManager _suppressTimeMachineThread:] + 111
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.Foundation 0x0000000104fe5842 __NSThread__main__ + 1345
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 7:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e6d6 __workq_kernreturn + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aadf2c _pthread_workq_return + 25
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107aadcf3 _pthread_wqthread + 412
Jan 5 22:57:47 localhost ReportCrash[322]: 3 libsystem_c.dylib 0x0000000107a981b1 start_wqthread + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 8:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107ab0003 _pthread_cond_wait + 927
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.Foundation 0x0000000105010b63 -[NSCondition waitUntilDate:] + 357
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.Foundation 0x00000001050109b9 -[NSConditionLock lockWhenCondition:beforeDate:] + 235
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.installframework 0x000000010479ca9a -[iFSession(Jobs) _runMetaQueueEngine] + 353
Jan 5 22:57:47 localhost ReportCrash[322]: 5 com.apple.Foundation 0x0000000104fe5842 __NSThread__main__ + 1345
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 7 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 9:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107ab0003 _pthread_cond_wait + 927
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.Foundation 0x0000000105010b63 -[NSCondition waitUntilDate:] + 357
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.Foundation 0x00000001050109b9 -[NSConditionLock lockWhenCondition:beforeDate:] + 235
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.installframework 0x000000010478d028 +[iFDTargetController(WorkerThread) _handleTargetRequests] + 77
Jan 5 22:57:47 localhost ReportCrash[322]: 5 com.apple.Foundation 0x0000000104fe5842 __NSThread__main__ + 1345
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 7 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 10:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e6d6 __workq_kernreturn + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aadf2c _pthread_workq_return + 25
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107aadcf3 _pthread_wqthread + 412
Jan 5 22:57:47 localhost ReportCrash[322]: 3 libsystem_c.dylib 0x0000000107a981b1 start_wqthread + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 11:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e6d6 __workq_kernreturn + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aadf2c _pthread_workq_return + 25
Jan 5 22:57:47 localhost ReportCrash[322]: 2 libsystem_c.dylib 0x0000000107aadcf3 _pthread_wqthread + 412
Jan 5 22:57:47 localhost ReportCrash[322]: 3 libsystem_c.dylib 0x0000000107a981b1 start_wqthread + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 12:: JavascriptCore::BlockFree
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aaffc9 _pthread_cond_wait + 869
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.JavascriptCore 0x000000011290cd66 WTF::ThreadCondition::timedWait(WTF::Mutex&, double) + 118
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.JavascriptCore 0x0000000112b2e43a JSC::BlockAllocator::blockFreeingThreadMain() + 90
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.JavascriptCore 0x0000000112b43a9f WTF::wtfThreadEntryPoint(void*) + 15
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 13:: JavascriptCore::Marking
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aaffc9 _pthread_cond_wait + 869
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.JavascriptCore 0x0000000112a910f4 JSC::SlotVisitor::drainFromShared(JSC::SlotVisitor::SharedDrainMode) + 212
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.JavascriptCore 0x0000000112a90fd6 JSC::MarkStackThreadSharedData::markingThreadMain() + 214
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.JavascriptCore 0x0000000112b43a9f WTF::wtfThreadEntryPoint(void*) + 15
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 14:: JavascriptCore::Marking
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aaffc9 _pthread_cond_wait + 869
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.JavascriptCore 0x0000000112a910f4 JSC::SlotVisitor::drainFromShared(JSC::SlotVisitor::SharedDrainMode) + 212
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.JavascriptCore 0x0000000112a90fd6 JSC::MarkStackThreadSharedData::markingThreadMain() + 214
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.JavascriptCore 0x0000000112b43a9f WTF::wtfThreadEntryPoint(void*) + 15
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 15:: JavascriptCore::Marking
Jan 5 22:57:47 localhost ReportCrash[322]: 0 libsystem_kernel.dylib 0x0000000107c1e0fa __psynch_cvwait + 10
Jan 5 22:57:47 localhost ReportCrash[322]: 1 libsystem_c.dylib 0x0000000107aaffc9 _pthread_cond_wait + 869
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.JavascriptCore 0x0000000112a910f4 JSC::SlotVisitor::drainFromShared(JSC::SlotVisitor::SharedDrainMode) + 212
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.JavascriptCore 0x0000000112a90fd6 JSC::MarkStackThreadSharedData::markingThreadMain() + 214
Jan 5 22:57:47 localhost ReportCrash[322]: 4 com.apple.JavascriptCore 0x0000000112b43a9f WTF::wtfThreadEntryPoint(void*) + 15
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 6 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 16 Crashed:
Jan 5 22:57:47 localhost ReportCrash[322]: 0 com.apple.osinstallframework 0x00000001046eb92f -[OSInstallController(Private) _buildInstallPlan] + 276
Jan 5 22:57:47 localhost ReportCrash[322]: 1 com.apple.installframework 0x000000010479dd9b -[iFDInstallController(Private) _install] + 406
Jan 5 22:57:47 localhost ReportCrash[322]: 2 com.apple.osinstallframework 0x00000001046eb7fb -[OSInstallController(Private) _install] + 598
Jan 5 22:57:47 localhost ReportCrash[322]: 3 com.apple.Foundation 0x0000000104fe5842 __NSThread__main__ + 1345
Jan 5 22:57:47 localhost ReportCrash[322]: 4 libsystem_c.dylib 0x0000000107aab782 _pthread_start + 327
Jan 5 22:57:47 localhost ReportCrash[322]: 5 libsystem_c.dylib 0x0000000107a981c1 thread_start + 13
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Thread 16 crashed with X86 Thread State (64-bit):
Jan 5 22:57:47 localhost ReportCrash[322]: rax: 0x0000000000000001 rbx: 0x0000000104ac72c0 rcx: 0x000000000000002f rdx: 0x0000000000000000
Jan 5 22:57:47 localhost ReportCrash[322]: rdi: 0x0000000104d8321f rsi: 0x000000010481e34f rbp: 0x000000011d7b0b30 rsp: 0x000000011d7b09a0
Jan 5 22:57:47 localhost ReportCrash[322]: r8: 0x0000000000012068 r9: 0x000000011d7b08e0 r10: 0x00007f838902ce70 r11: 0x00007f838841aef0
Jan 5 22:57:47 localhost ReportCrash[322]: r12: 0x00007f838841c9c0 r13: 0x0000000000000002 r14: 0x00007f838b3fad30 r15: 0x00007f8388442df0
Jan 5 22:57:47 localhost ReportCrash[322]: rip: 0x00000001046eb92f rfl: 0x0000000000010246 cr2: 0x0000000000000001
Jan 5 22:57:47 localhost ReportCrash[322]: Logical CPU: 2
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: Binary Images:
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1045ed000 - 0x1045fcfff com.apple.MacOSXInstaller (401 - 419) <DFBA1BBC-E0D6-3B8B-9861-419B87BE3EE1> /Volumes/VOLUME/*/OS X Installer.app/Contents/MacOS/OS X Installer
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104609000 - 0x10464aff7 com.apple.framework.corewlankit (2.0 - 200.10) <F6082718-6384-3649-B80E-2AD2E6F9C93E> /System/Library/PrivateFrameworks/CoreWLANKit.framework/Versions/A/CoreWLANKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104677000 - 0x1046c2fff com.apple.framework.CoreWLAN (3.0 - 300.9) <8BAF8D34-3A22-3F27-B136-F39A04F9ACE9> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1046e9000 - 0x104732fff com.apple.osinstallframework (700 - 729) <E6BF93E8-4EE2-3CF6-BE4E-98B39E7BDA0D> /System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A/OSInstall
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104762000 - 0x104762fff com.apple.Cocoa (6.7 - 19) <1F77945C-F37A-3171-B22E-F7AB0FCBB4D4> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10476a000 - 0x104774fff com.apple.framework.Assistant (2.0 - 15.1) <6B9672B0-B885-3D75-A233-0AD74C1883E2> /System/Library/PrivateFrameworks/Assistant.framework/Versions/A/Assistant
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104783000 - 0x104847fff com.apple.installframework (700 - 729) <65442A42-A69E-34B6-B9F7-9DC2A013CCE2> /System/Library/PrivateFrameworks/Install.framework/Versions/A/Install
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1048d2000 - 0x1048e9fff com.apple.InstallerPlugins (6.0 - 614) <97819596-9A0F-300E-946E-144C35377BB3> /System/Library/Frameworks/InstallerPlugins.framework/Versions/A/InstallerPlugins
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104906000 - 0x104957fff com.apple.SystemConfiguration (1.12 - 1.12) <7A8300B5-F5B3-39F0-A4B2-4C0C293FA29F> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104987000 - 0x1049f4ff7 com.apple.framework.IOKit (2.0 - 755.9.7) <9B7C5E7A-3F7A-3E70-8179-4384992B84E0> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104a2a000 - 0x104a30fff com.apple.DiskArbitration (2.5 - 2.5) <348AC0CC-6BCE-3416-9141-A5C1164EDDFF> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104a3b000 - 0x104a3bfff com.apple.CoreServices (57 - 57) <9DD44CB0-C644-35C3-8F57-0B41B3EC147D> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104a43000 - 0x104a88ff7 com.apple.DiskManagement (5.0 - 631) <1F1CFE5E-39C9-3D8C-B7DE-A1B31E12F44C> /System/Library/PrivateFrameworks/DiskManagement.framework/Versions/A/DiskManagement
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104ab3000 - 0x104ab4ff7 libSystem.B.dylib (169.3) <365477AB-D641-389D-B8F4-A1FAE9657EEE> /usr/lib/libSystem.B.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104ac1000 - 0x104bd9a27 libobjc.A.dylib (532) <9FA80CDA-97F4-3801-8879-0C1B976BC5CA> /usr/lib/libobjc.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104bfc000 - 0x104de5fff com.apple.CoreFoundation (6.8 - 744) <47AEA7C7-EF9B-3FC6-AEBF-CE02FC650301> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104f46000 - 0x104f46fff com.apple.ApplicationServices (45 - 45) <A3ABF20B-ED3A-32B5-830E-B37831A45A80> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x104f50000 - 0x1052acff7 com.apple.Foundation (6.8 - 945) <0C972F73-0C07-3384-98F2-B176E0289494> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1054cc000 - 0x1054ccff1 +cl_kernels (???) <CD4248F3-0EB0-4F17-A023-AE1F0482B402> cl_kernels
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1054d2000 - 0x1060fcfff com.apple.AppKit (6.8 - 1187) <C9309F5C-9441-3E5B-A120-B03FEDDA63F9> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1067f0000 - 0x1067f1ff3 +cl_kernels (???) <1FE2D33B-69E8-49CD-8D3C-1C077DF93C0A> cl_kernels
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1067f3000 - 0x1069a1fff com.apple.QuartzCore (1.8 - 304.0) <BDC66714-F60C-386D-A773-F897D1E87AB6> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106a5c000 - 0x106a5cfff com.apple.Carbon (154 - 155) <372716D2-6FA1-3611-8501-3DD1D4A6E8C8> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106a65000 - 0x106ab0ff7 com.apple.GraphKit (1.0.5 - 30) <3041F39B-5372-334E-9757-3EBFE0CDA293> /System/Library/PrivateFrameworks/GraphKit.framework/Versions/A/GraphKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106ad4000 - 0x106b08fff com.apple.securityinterface (6.0 - 55024.3) <1AF13976-72BB-351F-A263-09284BA25C88> /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106b34000 - 0x106bb2ff7 com.apple.securityfoundation (6.0 - 55115.4) <C5461971-E455-31A6-99B8-AF80C4BC26DD> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106bf1000 - 0x106bf1ff5 +cl_kernels (???) <9D95E514-F397-4CB7-8222-E3779758A05B> cl_kernels
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106bf5000 - 0x106c1dff7 com.apple.SystemConfiguration.EAP8021X (12.0.0 - 12.0) <1BCC05B1-1E08-377C-A01D-4F421E63868B> /System/Library/PrivateFrameworks/EAP8021X.framework/Versions/A/EAP8021X
Jan 5 22:57:47 localhost ReportCrash[322]: 0x106c30000 - 0x106efdff7 com.apple.security (7.0 - 55163.44) <E62305A2-958D-3EBC-B7E5-9A151D3E1777> /System/Library/Frameworks/Security.framework/Versions/A/Security
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107030000 - 0x107030ff7 +cl_kernels (???) <49F01E67-AA1C-426D-84B8-7F3E6795DFBB> cl_kernels
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107034000 - 0x10714dff7 com.apple.ImageIO.framework (3.2.0 - 843) <A9AC2A79-331A-3B06-AFE6-7E34EF876221> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1071b1000 - 0x1071fdff7 libauto.dylib (185.1) <73CDC482-16E3-3FC7-9BB4-FBA2DA44DBC2> /usr/lib/libauto.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107219000 - 0x107419fff libicucore.A.dylib (491.11.1) <17E8B610-6B16-3F91-B49C-7CAE0D08E9CF> /usr/lib/libicucore.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1074bc000 - 0x1075b9ff7 libxml2.2.dylib (22.3) <47B09CB2-C636-3024-8B55-6040F7829B4C> /usr/lib/libxml2.2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1075ef000 - 0x107601ff7 libz.1.dylib (43) <2A1551E8-A272-3DE5-B692-955974FE1416> /usr/lib/libz.1.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107609000 - 0x10777cff7 com.apple.CFNetwork (596.0.1 - 596.0.1) <82109BE9-19E2-399B-BACD-23D53814B873> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10783b000 - 0x10783cfff liblangid.dylib (116) <864C409D-D56B-383E-9B44-A435A47F2346> /usr/lib/liblangid.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107846000 - 0x107867ff7 libCRFSuite.dylib (33) <736ABE58-8DED-3289-A042-C25AF7AE5B23> /usr/lib/libCRFSuite.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107876000 - 0x10788dfff com.apple.GenerationalStorage (1.1 - 132.1) <EAB41613-0145-3CE5-AA60-A8A791A3EE22> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107898000 - 0x10789bfff com.apple.TCC (1.0 - 1) <DE7ECAC3-BD08-323A-9C12-EE4A49B72871> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1078a2000 - 0x10790aff7 libc++.1.dylib (65.1) <20E31B90-19B9-3C2A-A9EB-474E08F9FE05> /usr/lib/libc++.1.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107966000 - 0x10798aff7 libc++abi.dylib (24.2) <340E7C7B-DC93-3AA2-B015-B1C9541EC255> /usr/lib/libc++abi.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1079be000 - 0x1079c3fff libcache.dylib (57) <65187C6E-3FBF-3EB8-A1AA-389445E2984D> /usr/lib/system/libcache.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1079cd000 - 0x1079dbfff libcommonCrypto.dylib (60026) <2D6537F5-1B5E-305C-A1CF-D1FA80CA3939> /usr/lib/system/libcommonCrypto.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1079e8000 - 0x1079edfff libcompiler_rt.dylib (30) <08F8731D-5961-39F1-AD00-4590321D24A9> /usr/lib/system/libcompiler_rt.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1079f9000 - 0x107a00fff libcopyfile.dylib (89) <876573D0-E907-3566-A108-577EAD1B6182> /usr/lib/system/libcopyfile.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a0c000 - 0x107a21ff7 libdispatch.dylib (228.18) <0B6B6E7F-4D8A-3F3B-A4BF-6CF34638DBBB> /usr/lib/system/libdispatch.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a3b000 - 0x107a3cff7 libdnsinfo.dylib (453.16) <38A3E0F4-E34C-3D45-A2C9-4CDE2DF007BD> /usr/lib/system/libdnsinfo.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a43000 - 0x107a46ff7 libdyld.dylib (210.2.3) <F59367C9-C110-382B-A695-9035A6DD387E> /usr/lib/system/libdyld.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a54000 - 0x107a54fff libkeymgr.dylib (25) <CC9E3394-BE16-397F-926B-E579B60EE429> /usr/lib/system/libkeymgr.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a5c000 - 0x107a64fff liblaunch.dylib (442.21) <224CB010-6CF8-3FC2-885C-6F80330321EB> /usr/lib/system/liblaunch.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a71000 - 0x107a77fff libmacho.dylib (829) <BF332AD9-E89F-387E-92A4-6E1AB74BD4D9> /usr/lib/system/libmacho.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a7d000 - 0x107a7ffff libquarantine.dylib (52) <4BE2E642-A14F-340A-B482-5BD2AEFD9C24> /usr/lib/system/libquarantine.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a87000 - 0x107a88ff7 libremovefile.dylib (23.1) <DBBFAF35-AC78-3856-92F6-6E4FD9DF14A2> /usr/lib/system/libremovefile.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a8f000 - 0x107a90fff libsystem_blocks.dylib (59) <D92DCBC3-541C-37BD-AADE-ACC75A0C59C8> /usr/lib/system/libsystem_blocks.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107a97000 - 0x107b63fef libsystem_c.dylib (825.24) <16B6B86C-53EE-36E8-AC2B-4AADC1008098> /usr/lib/system/libsystem_c.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107ba8000 - 0x107bb0ff7 libsystem_dnssd.dylib (379.27) <057906EA-206E-3C35-B43F-5D936FD0A84F> /usr/lib/system/libsystem_dnssd.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107bba000 - 0x107bf0fff libsystem_info.dylib (406.17) <4FFCA242-7F04-365F-87A6-D4EFB89503C1> /usr/lib/system/libsystem_info.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107c0c000 - 0x107c27ff7 libsystem_kernel.dylib (2050.7.9) <E0447BF5-E104-35B0-B28B-4156887D58F1> /usr/lib/system/libsystem_kernel.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107c3d000 - 0x107c6bff7 libsystem_m.dylib (3022.6) <B434BE5C-25AB-3EBD-BAA7-5304B34E3441> /usr/lib/system/libsystem_m.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107c77000 - 0x107c85ff7 libsystem_network.dylib (77.10) <0D99F24E-56FE-380F-B81B-4A4C630EE587> /usr/lib/system/libsystem_network.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107c97000 - 0x107ca2fff libsystem_notify.dylib (98.5) <C49275CC-835A-3207-AFBA-8C01374927B6> /usr/lib/system/libsystem_notify.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107cad000 - 0x107caeff7 libsystem_sandbox.dylib (220) <3C3B03CF-C525-3CB3-8557-62E91B93AC95> /usr/lib/system/libsystem_sandbox.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107cb4000 - 0x107cb6ff7 libunc.dylib (25) <92805328-CD36-34FF-9436-571AB0485072> /usr/lib/system/libunc.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107cbe000 - 0x107cc4ff7 libunwind.dylib (35.1) <21703D36-2DAB-3D8B-8442-EAAB23C060D3> /usr/lib/system/libunwind.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107ccb000 - 0x107cccfff com.apple.SIUInstallationprogress (1.2 - 1.2) <5149EC54-BBCD-3080-8A2D-20ECBBDBCABE> /System/Library/CoreServices/InstallerStatusNotifications.bundle/Contents/MacOS/InstallerStatusNotifications
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107cd0000 - 0x107cf2ff7 libxpc.dylib (140.37) <C552985C-2171-3136-A1B9-3AB21CBF7C4A> /usr/lib/system/libxpc.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107d0b000 - 0x107d5aff7 libcorecrypto.dylib (106) <57BC99C6-3C3F-344C-BDD6-25E845D956F2> /usr/lib/system/libcorecrypto.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107d6e000 - 0x107dd7fff libstdc++.6.dylib (56) <EAA2B53E-EADE-39CF-A0EF-FB9D4940672A> /usr/lib/libstdc++.6.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107e3f000 - 0x107e40fff libDiagnosticMessagesClient.dylib (7) <56A70657-E8C2-3804-AB87-77DC100512A4> /usr/lib/libDiagnosticMessagesClient.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107e4b000 - 0x107e5eff7 libbsm.0.dylib (32) <F497D3CE-40D9-3551-84B4-3D5E39600737> /usr/lib/libbsm.0.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107e6c000 - 0x107f69fff libsqlite3.dylib (138) <8D6A6805-1494-30D1-9F2A-F58FA3C0D7EE> /usr/lib/libsqlite3.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107f83000 - 0x107f92ff7 libxar.1.dylib (105) <370ED355-E516-311E-BAFD-D80633A84BE1> /usr/lib/libxar.1.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107f9e000 - 0x107fa2fff libpam.2.dylib (20) <C8F45864-5B58-3237-87E1-2C258A1D73B8> /usr/lib/libpam.2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107fad000 - 0x107fadfff libOpenScriptingUtil.dylib (148) <4DB14EC4-422C-3AE8-83BF-354FEC197FD3> /usr/lib/libOpenScriptingUtil.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107fb7000 - 0x107fc4fff libbz2.1.0.dylib (29) <CE9785E8-B535-3504-B392-82F0064D9AF2> /usr/lib/libbz2.1.0.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x107fcc000 - 0x1082e3ff7 com.apple.CoreServices.CarbonCore (1037 - 1037) <5127E2AB-AE98-3393-AEF6-CA8C1090F921> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108362000 - 0x1083e3fff com.apple.Metadata (10.7.0 - 707.1) <ED39A710-1D87-3207-BB7D-4465B2673C1D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108439000 - 0x1084dffff com.apple.CoreServices.OSServices (557 - 557) <F5955FD8-E6E1-359F-9D9D-381E55E3EF37> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108542000 - 0x1085cfff7 com.apple.SearchKit (1.4.0 - 1.4.0) <C7F43889-F8BF-3CB9-AD66-11AEFCBCEDE7> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108617000 - 0x108674ff7 com.apple.AE (645 - 645) <9C3E54BA-EE6B-3F02-8775-9C4AF40F40CD> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1086a1000 - 0x108752fff com.apple.LaunchServices (539 - 539) <04FA5C61-6349-3841-9609-B650B6222800> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1087a6000 - 0x1087d7fff com.apple.DictionaryServices (1.2 - 184) <B37F9A90-8954-3DEC-A216-8ABB15C615A1> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1087fe000 - 0x108805fff com.apple.NetFS (5.0 - 4.0) <82E24B9A-7742-3DA3-9E99-ED267D98C05E> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108811000 - 0x10881fff7 libkxld.dylib (2050.7.9) <8194156D-8B7D-3881-AF62-BCBE3306EE49> /usr/lib/system/libkxld.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10882a000 - 0x108837ff7 com.apple.NetAuth (4.0 - 4.0) <F5BC7D7D-AF28-3C83-A674-DADA48FF7810> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108848000 - 0x1088b5fff com.apple.datadetectorscore (4.0 - 269.1) <C94C372B-3821-3A46-A8C2-091AB1CFF7F4> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1088f6000 - 0x10890dfff com.apple.CFOpenDirectory (10.8 - 151.10) <FFBBA538-00B5-334E-BA5B-C8AD6CDCDA14> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108928000 - 0x108953fff libxslt.1.dylib (11.3) <441776B8-9130-3893-956F-39C85FFA644F> /usr/lib/libxslt.1.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108966000 - 0x1089a8fff com.apple.RemoteViewServices (2.0 - 80.3) <E0224421-A421-3DB6-99AF-B249684FD13A> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1089e3000 - 0x108b33fff com.apple.audio.toolbox.AudioToolbox (1.8 - 1.8) <8019964B-4FFB-3328-A425-B1A702177A25> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108bbd000 - 0x108bbdffd com.apple.audio.units.AudioUnit (1.8 - 1.8) <ECC4891A-9BA8-3C13-9A2B-6116521B7B46> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108bc9000 - 0x108de7fff com.apple.CoreData (106 - 407.5) <45EF39FE-7FD6-366E-BB5C-3E86E0B7DA3C> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
Jan 5 22:57:47 localhost ReportCrash[322]: 0x108ee5000 - 0x109004fff com.apple.desktopservices (1.7.0 - 1.7.0) <F84224B1-BA28-31AF-8C89-1C2DBBFE4753> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109076000 - 0x1093a5ff7 com.apple.HIToolbox (2.0 - 624) <49C4A53E-9239-3B9A-95DC-8C7B398E491D> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1094fd000 - 0x109507fff com.apple.speech.recognition.framework (4.1.5 - 4.1.5) <D803919C-3102-3515-A178-61E9C86C46A1> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109514000 - 0x1095d9fff com.apple.coreui (2.0 - 181) <CFCB6868-36AC-3734-ACEA-DF9CAB2B84F2> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109651000 - 0x1096aefff com.apple.audio.CoreAudio (4.1.0 - 4.1.0) <B3198BD6-EA1D-3E5E-ADD4-37D8E6B72678> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1096d6000 - 0x1096ecfff com.apple.MultitouchSupport.framework (235.27 - 235.27) <78E356A6-78E8-3CAB-8982-7A4958C7A955> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109702000 - 0x109729ff7 com.apple.PerformanceAnalysis (1.16 - 16) <E4888388-F41B-313E-9CBB-5807D077BDA9> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10974d000 - 0x10975cff7 com.apple.opengl (1.8.5 - 1.8.5) <C554C4DA-517D-3F77-BC7E-DDFD9E01A891> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109769000 - 0x10983aff7 com.apple.CoreText (260.0 - 275.14) <98A59BFB-9AC0-3EAB-B5A4-26C2F965A65D> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109899000 - 0x109973fff com.apple.backup.framework (1.4 - 1.4) <00964E68-4A36-3F9F-B0A5-B782575C64DE> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1099fc000 - 0x109a22fff com.apple.framework.familycontrols (4.0 - 400) <B296674D-6D0B-323D-84C0-1D356F6F3BFA> /System/Library/PrivateFrameworks/FamilyControls.framework/Versions/A/FamilyControls
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109a42000 - 0x109ae0fff com.apple.ink.framework (1.4 - 110) <C6E43ED5-7189-3291-80F0-BB7702AD051A> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
Jan 5 22:57:47 localhost ReportCrash[322]: 0x109b16000 - 0x10a4a739f com.apple.CoreGraphics (1.600.0 - 322) <2F5D7032-9A96-36AE-A227-428E95CAE0C5> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a5af000 - 0x10a62fff7 com.apple.ApplicationServices.ATS (332 - 341) <0CAA1A5C-59DB-3ACE-8478-05D72CBB7C76> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a65e000 - 0x10a71bff7 com.apple.ColorSync (4.8.0 - 4.8.0) <6CE333AE-EDDB-3768-9598-9DB38041DC55> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a762000 - 0x10a7b8fff com.apple.HIServices (1.20 - 416) <E7DC75C4-A3E0-3D6B-B961-C9849442BCA6> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a7ec000 - 0x10a7ffff7 com.apple.LangAnalysis (1.7.0 - 1.7.0) <2F2694E9-A7BC-33C7-B4CF-8EC907DF0FEB> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a80f000 - 0x10a869fff com.apple.print.framework.PrintCore (8.0 - 387) <3CA8A004-8F93-3936-9F9E-7030BD474D2B> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a89c000 - 0x10a8dbff7 com.apple.QD (3.42 - 285) <8DF36FCA-C06B-30F4-A631-7BE2FF7E56D1> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a8f4000 - 0x10a908fff com.apple.speech.synthesis.framework (4.1.10 - 4.1.10) <21086D96-F997-38D3-BB59-8600CCC3A36F> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a922000 - 0x10a926fff com.apple.IOSurface (86.0.2 - 86.0.2) <739A481A-DF06-39EB-B784-D03BA1CBD762> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a930000 - 0x10a930fff com.apple.Accelerate (1.8 - Accelerate 1.8) <6AD48543-0864-3D40-80CE-01F184F24B45> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10a939000 - 0x10aa44fff libFontParser.dylib (84.5) <617A7D30-C7BC-39FC-A1FE-59367B4A5719> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10aaa9000 - 0x10aaf8ff7 libFontRegistry.dylib (100) <2E03D7DA-9B8F-31BB-8FB5-3D3B6272127F> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ab21000 - 0x10acbcfef com.apple.vImage (6.0 - 6.0) <FAE13169-295A-33A5-8E6B-7C2CC1407FA7> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10acdf000 - 0x10acdffff com.apple.Accelerate.vecLib (3.8 - vecLib 3.8) <B5A18EE8-DF81-38DD-ACAF-7076B2A26225> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ace7000 - 0x10ad4ffff libvDSP.dylib (380.6) <CD4C5EEB-9E63-30C4-8103-7A5EAEA0BE60> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ad59000 - 0x10adf3fff libvMisc.dylib (380.6) <714336EA-1C0E-3735-B31C-19DFDAAF6221> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10adff000 - 0x10b1f6fff libLAPACK.dylib (1073.3) <E670020A-6969-3ED7-B80B-285AE1DE5F95> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b260000 - 0x10b3e6fff libBLAS.dylib (1073.3) <6B71AB8C-3D9A-33C2-9EAF-2A0BA504D493> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b415000 - 0x10b43dfff libJPEG.dylib (843) <377EC31E-1831-32E2-AEEB-C375E0A80335> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b448000 - 0x10b49dff7 libTIFF.dylib (843) <4EB491F3-8DA4-3E4F-AE83-E207720F38B3> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b4b0000 - 0x10b4d0fff libPng.dylib (843) <8F83F355-CA33-3D15-8178-54A135BA23BA> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b4db000 - 0x10b4dffff libGIF.dylib (843) <21324AF8-AFDA-3149-B547-C5109C1FBECF> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b4ea000 - 0x10b5ecfff libJP2.dylib (843) <04915A7F-EE27-3C01-8582-0BD9919558B1> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b61c000 - 0x10b61ffff libRadiance.dylib (843) <61405840-A8B0-368E-B39A-704B5A04FDA5> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b628000 - 0x10b66cfff libcups.2.dylib (327) <9B3F3321-D2BC-3195-BF20-4008FC52A390> /usr/lib/libcups.2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b680000 - 0x10b6a2ff7 com.apple.Kerberos (2.0 - 1) <C49B8820-34ED-39D7-A407-A3E854153556> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b6c0000 - 0x10b6fafff com.apple.GSS (3.0 - 2.0) <0BDF8090-5EF4-3759-94DE-8521D74188AA> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b71c000 - 0x10b73bff7 libresolv.9.dylib (51) <0882DC2D-A892-31FF-AD8C-0BB518C48B23> /usr/lib/libresolv.9.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b74c000 - 0x10b841fff libiconv.2.dylib (34) <FEE8B996-EB44-37FA-B96E-D379664DEFE1> /usr/lib/libiconv.2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b851000 - 0x10b8d3fff com.apple.Heimdal (3.0 - 2.0) <660A6C64-4912-32C8-A332-B64164032A2D> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b900000 - 0x10b902fff com.apple.TrustEvaluationAgent (2.0 - 23) <A97D348B-32BF-3E52-8DF2-59BFAD21E1A3> /System/Library/PrivateFrameworks/TrustEvaluationAgent.framework/Versions/A/TrustEvaluationAgent
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b90a000 - 0x10b90ffff com.apple.OpenDirectory (10.8 - 151.10) <CF44120B-9B01-32DD-852E-C9C0E1243FC0> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b920000 - 0x10b92bfff com.apple.CommonAuth (3.0 - 2.0) <74A86DDD-57D0-3178-AB74-E1F31DBFFC39> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b939000 - 0x10b97cff7 com.apple.bom (12.0 - 192) <0BF1F2D2-3648-36B7-BE4B-551A0173209B> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b992000 - 0x10b9bcff7 com.apple.CoreVideo (1.8 - 99.0) <ED17EF3A-2775-3840-BBD1-6513B5B112F2> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10b9d7000 - 0x10bc67fff com.apple.CoreImage (8.0.17 - 1.0.1) <FFD6159F-DF31-3EFC-9C59-7FC4F4219D43> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/CoreImage.framework/Versions/A/CoreImage
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10bd45000 - 0x10bd9cff7 com.apple.ScalableUserInterface (1.0 - 1) <F1D43DFB-1796-361B-AD4B-39F1EED3BE19> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/ScalableUserInterface.framework/Versions/A/ScalableUserInterface
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10bdc4000 - 0x10be0eff7 libGLU.dylib (8.5) <47CB8E1C-F98F-352E-B235-DE9EA7A3454F> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10be20000 - 0x10be26fff libGFXShared.dylib (8.5) <34093C75-3ECB-3899-A2C0-A52ECAA7C3FC> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10be2d000 - 0x10be41fff libGL.dylib (8.5) <BE75219E-DC86-343A-983C-CA3ECADE659F> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10be56000 - 0x10be93fe7 libGLImage.dylib (8.5) <9583CF74-F84A-33C7-B06A-3A72F090E544> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10be9e000 - 0x10bea0fff libCVMSPluginSupport.dylib (8.5) <437A72B8-1FA6-346C-8949-D63164A062F7> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10bea5000 - 0x10beb2fff libCoreVMClient.dylib (24.4) <A0E83074-D4CA-3BE8-B77E-FC476B4BF328> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10bebe000 - 0x10c772f1f libLLVMContainer.dylib (24.4) <F4F7E5F1-F5B8-3B25-A6B7-2667F9055840> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libLLVMContainer.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cbe6000 - 0x10cbf2ff7 com.apple.CrashReporterSupport (10.8 - 411) <FA7EA7CD-103D-30B1-BF2F-862E68A6B5B7> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cc06000 - 0x10cc5cff7 com.apple.opencl (2.1.17 - 2.1.17) <CA9E8BED-17C9-393B-A53E-8EAA8BF01C47> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cc71000 - 0x10cc7efff com.apple.AppleFSCompression (49 - 1.0) <5508344A-2A7E-3122-9562-6F363910A80E> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cc88000 - 0x10cca9fff Ubiquity (234.2) <AC544B6F-0879-39A3-90A3-8BC8C29CBAD5> /System/Library/PrivateFrameworks/Ubiquity.framework/Versions/A/Ubiquity
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ccc2000 - 0x10cccdff7 com.apple.bsd.ServiceManagement (2.0 - 2.0) <7A5F12E8-C1C2-39C7-8599-2362EAAB9F03> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ccd9000 - 0x10ccf8fff com.apple.ChunkingLibrary (2.0 - 132) <F5051C19-6C4E-3E65-9BEC-B0A4BA82457A> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cd07000 - 0x10cd07fff com.apple.vecLib (3.8 - vecLib 3.8) <794317C7-4E38-338A-A874-5E18001C8503> /System/Library/Frameworks/vecLib.framework/Versions/A/vecLib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cd0c000 - 0x10cd15fff com.apple.CommerceCore (1.0 - 26) <997CD214-BC78-3C61-A1B8-813EA1CB9997> /System/Library/PrivateFrameworks/CommerceKit.framework/Versions/A/Frameworks/CommerceCore.framework/Versions/A/CommerceCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cd25000 - 0x10cdbffff com.apple.CoreSymbolication (3.0 - 87) <75F2C0DD-549A-36F6-BD9E-FB40A924344F> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ce0f000 - 0x10ce6bff7 com.apple.Symbolication (1.3 - 93) <F2C7E0B6-B241-3020-B30A-0636D0FA3378> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10ceb1000 - 0x10cee7fff com.apple.DebugSymbols (98 - 98) <14E788B1-4EB2-3FD7-934B-849534DFC198> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf0c000 - 0x10cf10ff7 com.apple.CommonPanels (1.2.5 - 94) <AAC003DE-2D6E-38B7-B66B-1F3DA91E7245> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf1b000 - 0x10cf1efff com.apple.help (1.3.2 - 42) <343904FE-3022-3573-97D6-5FE17F8643BA> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf2a000 - 0x10cf3ffff com.apple.ImageCapture (8.0 - 8.0) <17A45CE6-7DA3-36A5-B7EF-72BC136981AE> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf5f000 - 0x10cf7bfff com.apple.openscripting (1.3.5 - 148) <ACDE22A1-6170-3289-AF26-E501E6326BD7> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf90000 - 0x10cf92ff7 com.apple.print.framework.Print (8.0 - 258) <34666CC2-B86D-3313-B3B6-A9977AD593DA> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cf9b000 - 0x10cf9dfff com.apple.securityhi (4.0 - 55002) <34E45C60-DC7E-3FCC-A1ED-EBF48B77C559> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10cfa6000 - 0x10cfeefff CoreWiFi (100.10) <0E863B4A-1094-3F8D-BEDE-D99537E9C588> /System/Library/Frameworks/CoreWiFi.framework/Versions/A/CoreWiFi
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d027000 - 0x10d0aeff7 libCoreStorage.dylib (274.4) <7CCA18AC-1A7D-3962-8817-D70AA927973F> /usr/lib/libCoreStorage.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d0d9000 - 0x10d0e3fff libcsfde.dylib (274.4) <BA21D512-35F1-3B00-8FF6-E0D6A29A21FF> /usr/lib/libcsfde.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d0f1000 - 0x10d0f3ff7 com.apple.EFILogin (2.0 - 2) <6D339047-85C5-35CD-B48F-8C43A6071416> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d0fd000 - 0x10d1edff7 com.apple.DiskImagesFramework (10.8 - 344) <3A30B9B5-5099-35E2-9DCD-C96764FA2D26> /System/Library/PrivateFrameworks/DiskImages.framework/Versions/A/DiskImages
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d24e000 - 0x10d279fff com.apple.framework.Apple80211 (8.0 - 800.15) <378C6564-96EC-3BFF-9AC0-8A6F87030254> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d291000 - 0x10d331fff com.apple.PackageKit (3.0 - 241) <5E940616-96F0-33C9-9020-8D9F216CEA09> /System/Library/PrivateFrameworks/PackageKit.framework/Versions/A/PackageKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x10d3a2000 - 0x10d472fff com.apple.SystemMigration (500 - 538) <B9D8FED3-9909-3465-8A65-D0DF52D97D6C> /System/Library/PrivateFrameworks/SystemMigration.framework/Versions/A/SystemMigration
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1124da000 - 0x1124ddfff libutil.dylib (30) <EF3340B2-9A53-3D5E-B9B4-BDB5EEECC178> /usr/lib/libutil.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1124e9000 - 0x1125bcff7 com.apple.DiscRecording (7.0 - 7000.2.4) <49FD2D2F-4F2C-39B6-877B-6E3172577D18> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112628000 - 0x112670fff libcurl.4.dylib (69.2) <EBDBF42D-E4A6-3D05-A76B-2817D79D59E2> /usr/lib/libcurl.4.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112686000 - 0x1126c6fff com.apple.MediaKit (13 - 658) <3614D66C-0712-3049-9C5A-1ED9A94D82C5> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1126df000 - 0x112716ff7 libssl.0.9.8.dylib (47) <923945E6-C489-3406-903B-A362410753F8> /usr/lib/libssl.0.9.8.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112731000 - 0x112833fff libcrypto.0.9.8.dylib (47) <74F165AD-4572-3B26-B0E2-A97477FE59D0> /usr/lib/libcrypto.0.9.8.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11289d000 - 0x1128d8fff com.apple.LDAPFramework (2.4.28 - 194.5) <012E3038-92EA-3DC8-82B1-A71462DDAE9E> /System/Library/Frameworks/LDAP.framework/Versions/A/LDAP
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1128eb000 - 0x1128fcff7 libsasl2.2.dylib (166) <649CAE0E-8FFE-3C60-A849-BE6300E4B726> /usr/lib/libsasl2.2.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112906000 - 0x112b9fff7 com.apple.JavascriptCore (8536 - 8536.24) <3A80677B-3381-3281-8033-0F96F7D8D01A> /System/Library/Frameworks/JavascriptCore.framework/Versions/A/JavascriptCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112c4d000 - 0x112c7ffff com.apple.framework.Admin (12.0 - 12.0) <5D6978C8-0B1B-3D0E-A122-C0ABD0AA8488> /System/Library/PrivateFrameworks/Admin.framework/Versions/A/Admin
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112ca6000 - 0x112cb2ff7 com.apple.DirectoryService.Framework (10.8 - 151.10) <DA05EF06-8EBD-3759-B5D3-E6FC86C5D850> /System/Library/Frameworks/DirectoryService.framework/Versions/A/DirectoryService
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112cc2000 - 0x112cc7fff com.apple.BezelServicesFW (235.55 - 235.55) <E83A9657-AD7A-3FFE-883F-305574C2FC8C> /System/Library/PrivateFrameworks/BezelServices.framework/Versions/A/BezelServices
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112cd3000 - 0x112cd6ff7 com.apple.LoginUICore (2.0 - 2.0) <965559B0-1F0E-3767-A16B-F91AABFA5275> /System/Library/PrivateFrameworks/LoginUIKit.framework/Versions/A/Frameworks/LoginUICore.framework/Versions/A/LoginUICore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x112cde000 - 0x112cdffff libodfde.dylib (18) <015DD2A0-D59A-3547-909D-7C028A65C312> /usr/lib/libodfde.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1182bd000 - 0x1182ebfff com.apple.CoreServicesInternal (153 - 153) <11507A03-9165-350C-9492-A545EA7331BD> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/CoreServicesInternal
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11830f000 - 0x11831bfff libCSync.A.dylib (322) <C1321292-F5D3-3B8F-8CBB-57AC8E05F90C> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCSync.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x118326000 - 0x118352ff7 libRIP.A.dylib (322) <36880C8B-7FC0-3689-91FF-A0E8F4F57FE4> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11972b000 - 0x11972ffff libCGXType.A.dylib (322) <0FA2272E-7733-36EA-9B9B-9279169D5919> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXType.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x119737000 - 0x11974bff7 com.apple.menuextra.airport (8.0 - 800.7) <349A5FE9-5496-3D2B-9DA7-7B034315684B> /System/Library/CoreServices/Menu Extras/AirPort.menu/Contents/MacOS/AirPort
Jan 5 22:57:47 localhost ReportCrash[322]: 0x119758000 - 0x11975ffff com.apple.TIMCore (1.2.1 - 1.2.1) <53895413-D843-3836-9DFD-81D6212D1F95> /System/Library/CoreServices/Menu Extras/TextInput.menu/Contents/SharedSupport/TIMCore.bundle/Contents/MacOS/TIMCore
Jan 5 22:57:47 localhost ReportCrash[322]: 0x119768000 - 0x11977afff com.apple.TextInputUI (1.1 - 1.1) <98D248A6-E7FE-3A4E-9275-B7C81BD7B400> /System/Library/CoreServices/Menu Extras/TextInput.menu/Contents/SharedFrameworks/TextInputUI.framework/Versions/A/TextInputUI
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11978d000 - 0x119796fef libcldcpuengine.dylib (2.1.16) <BA5F6C17-7A08-3DCF-A30E-E9C4D76B7356> /System/Library/Frameworks/OpenCL.framework/Libraries/libcldcpuengine.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11979c000 - 0x11979fff7 libCoreFSCache.dylib (24.4) <C375CAA0-F91F-3D9F-AF90-DB951BD86983> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreFSCache.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1197ae000 - 0x1197e6fff com.apple.XInstall.InstallAssistant (401 - 419) <22076BDE-D849-359A-8D66-BF7AC77C93BA> /Volumes/VOLUME/*/OS X Installer.app/Contents/Resources/OSXInstallAssistant.bundle/Contents/MacOS/OSXInstallAssistant
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1198a3000 - 0x1198a9fff libCGXCoreImage.A.dylib (322) <18394988-137B-3D59-8B6B-2B04EDB87478> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXCoreImage.A.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x1198b4000 - 0x1198d3fff libCLVMCPUPlugin.dylib (2.1.16) <2979D0DA-1F2A-38BD-AC89-95988DEC34DD> /System/Library/Frameworks/OpenCL.framework/Libraries/libCLVMCPUPlugin.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11c2c5000 - 0x11c829ff7 libcl2module.dylib (2.1.17) <A1BD9E94-7FA6-3577-9E9A-392F062D441B> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/libcl2module.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11c8bf000 - 0x11c943fff Vectorizer.dylib (11.0.2) <FC27BA84-34A4-3B2E-8A59-2794DBD2154A> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/Vectorizer.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x11ca6b000 - 0x11cb06ff7 unorm8_bgra.dylib (2.1.16) <14128E4A-6050-35C3-A493-3C8AEAF9B14D> /System/Library/Frameworks/OpenCL.framework/Libraries/ImageFormats/unorm8_bgra.dylib
Jan 5 22:57:47 localhost ReportCrash[322]: 0x7fff641ed000 - 0x7fff6422193f dyld (210.2.3) <A40597AA-5529-3337-8C09-D8A014EB1578> /usr/lib/dyld
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: External Modification Summary:
Jan 5 22:57:47 localhost ReportCrash[322]: Calls made by other processes targeting this process:
Jan 5 22:57:47 localhost ReportCrash[322]: task_for_pid: 6
Jan 5 22:57:47 localhost ReportCrash[322]: thread_create: 0
Jan 5 22:57:47 localhost ReportCrash[322]: thread_set_state: 0
Jan 5 22:57:47 localhost ReportCrash[322]: Calls made by this process:
Jan 5 22:57:47 localhost ReportCrash[322]: task_for_pid: 0
Jan 5 22:57:47 localhost ReportCrash[322]: thread_create: 0
Jan 5 22:57:47 localhost ReportCrash[322]: thread_set_state: 0
Jan 5 22:57:47 localhost ReportCrash[322]: Calls made by all processes on this machine:
Jan 5 22:57:47 localhost ReportCrash[322]: task_for_pid: 15
Jan 5 22:57:47 localhost ReportCrash[322]: thread_create: 0
Jan 5 22:57:47 localhost ReportCrash[322]: thread_set_state: 0
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: VM Region Summary:
Jan 5 22:57:47 localhost ReportCrash[322]: ReadOnly portion of Libraries: Total=144.9M resident=141.4M(98%) swapped_out_or_unallocated=3612K(2%)
Jan 5 22:57:47 localhost ReportCrash[322]: Writable regions: Total=1.1G written=26.4M(2%) resident=40.0M(4%) swapped_out=0K(0%) unallocated=1.1G(96%)
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]: REGION TYPE VIRTUAL
Jan 5 22:57:47 localhost ReportCrash[322]: =========== =======
Jan 5 22:57:47 localhost ReportCrash[322]: CG backing stores 3432K
Jan 5 22:57:47 localhost ReportCrash[322]: CG image 152K
Jan 5 22:57:47 localhost ReportCrash[322]: CG raster data 116K
Jan 5 22:57:47 localhost ReportCrash[322]: CG shared images 1184K
Jan 5 22:57:47 localhost ReportCrash[322]: CoreImage 8K
Jan 5 22:57:47 localhost ReportCrash[322]: CoreServices 404K
Jan 5 22:57:47 localhost ReportCrash[322]: JS JIT generated code 128.0M
Jan 5 22:57:47 localhost ReportCrash[322]: JS JIT generated code (reserved) 896.0M reserved VM address space (unallocated)
Jan 5 22:57:47 localhost ReportCrash[322]: JS VM register file 4096K
Jan 5 22:57:47 localhost ReportCrash[322]: JS garbage collector 772K
Jan 5 22:57:47 localhost ReportCrash[322]: MALLOC 64.8M
Jan 5 22:57:47 localhost ReportCrash[322]: MALLOC guard page 48K
Jan 5 22:57:47 localhost ReportCrash[322]: Memory tag=242 12K
Jan 5 22:57:47 localhost ReportCrash[322]: Memory tag=249 240K
Jan 5 22:57:47 localhost ReportCrash[322]: OpenCL 36K
Jan 5 22:57:47 localhost ReportCrash[322]: STACK GUARD 56.1M
Jan 5 22:57:47 localhost ReportCrash[322]: Stack 16.2M
Jan 5 22:57:47 localhost ReportCrash[322]: VM_ALLOCATE 84.2M
Jan 5 22:57:47 localhost ReportCrash[322]: __DATA 92.0M
Jan 5 22:57:47 localhost ReportCrash[322]: __IMAGE 528K
Jan 5 22:57:47 localhost ReportCrash[322]: __LINKEDIT 30.9M
Jan 5 22:57:47 localhost ReportCrash[322]: __TEXT 114.1M
Jan 5 22:57:47 localhost ReportCrash[322]: __UNICODE 544K
Jan 5 22:57:47 localhost ReportCrash[322]: mapped file 45.9M
Jan 5 22:57:47 localhost ReportCrash[322]: shared memory 1528K
Jan 5 22:57:47 localhost ReportCrash[322]: =========== =======
Jan 5 22:57:47 localhost ReportCrash[322]: TOTAL 1.5G
Jan 5 22:57:47 localhost ReportCrash[322]: TOTAL, minus reserved VM space 644.9M
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:47 localhost ReportCrash[322]:
Jan 5 22:57:49 localhost Unknown[327]: Launching the Installer Crash Log Viewer
Jan 5 22:58:12 localhost opendirectoryd[101]: 322 - Client: 'ReportCrash', exited with 0 session(s), 0 node(s) and 0 active request(s)
Jan 5 22:59:25 localhost Viewer[328]: Connection to NetworkBrowserAgent became invalid
Jan 5 22:59:25 localhost Viewer[328]: Connection to NetworkBrowserAgent became invalid
Jan 5 22:59:25 localhost Viewer[328]: Connection to NetworkBrowserAgent became invalid
Jan 5 22:59:25 localhost Viewer[328]: Folder Manager is being asked to create a folder (docs) while running as uid 0
Jan 5 22:59:25 localhost Viewer[328]: Folder Manager is being asked to create a folder (docs) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (docs) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (mdoc) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (pubb) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (µdoc) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (pdoc) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (pubb) while running as uid 0
Jan 5 22:59:31 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.10 - Client: coreservicesd, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.10 - ODNodeCreateWithNameAndOptions request, SessionID: 00000000-0000-0000-0000-000000000000, Name: /Local/Default, Options: 0x0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.10, Node: /Local/Default - node assigned UUID - 97E14424-A9AD-47C8-922D-CB07CEFABA6F
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.10, Node: /Local/Default - ODNodeCreateWithNameAndOptions completed
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.11 - Client: coreservicesd, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.11 - ODQueryCreateWithNode request, NodeID: 97E14424-A9AD-47C8-922D-CB07CEFABA6F, RecordType(s): dsRecTypeNative:config, Attribute: dsAttrTypeStandard:RecordName, MatchType: EqualTo, Equality: CaseExact, Value(s): SharePoints, Requested Attributes: dsAttributesAll, Max Results: 1
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.11, Node: /Local/Default, Module: PlistFile - client is using a native record type 'config' which is not portable
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.11, Node: /Local/Default, Module: PlistFile - client is using a native record type 'config' which is not portable
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.11, Node: /Local/Default, Module: PlistFile - ODQueryCreateWithNode completed
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.12 - Client: coreservicesd, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.12 - ODNodeCreateRecord request, NodeID: 97E14424-A9AD-47C8-922D-CB07CEFABA6F, RecordType: dsRecTypeNative:config, RecordName: SharePoints, Attributes: <none>
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.12, Node: /Local/Default, Module: PlistFile - client is using a native record type 'config' which is not portable
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.12, Node: /Local/Default, Module: PlistFile - ODNodeCreateRecord completed, delivered 1 result
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13 - Client: coreservicesd, UID: 0, EUID: 0, GID: 0, EGID: 0
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13 - ODQueryCreateWithNode request, NodeID: 97E14424-A9AD-47C8-922D-CB07CEFABA6F, RecordType(s): dsRecTypeNative:config/SharePoints, Attribute: dsAttrTypeStandard:RecordName, MatchType: Any, Equality: CaseExact, Value(s): dsRecordsAll, Requested Attributes: dsAttrTypeStandard:GeneratedUID,dsAttrTypeNative:ftp_guestaccess,dsAttrTypeNative:smb_name,dsAttrTypeNative:sharepoint_account_uuid,dsAttrTypeNative:smb_createmask,dsAttrTypeNative:sharepoint_version,dsAttrTypeStandard:AppleMetaNodeLocation,dsAttrTypeNative:afp_guestaccess,dsAttrTypeNative:afp_shared,dsAttrTypeStandard:RecordType,dsAttrTypeNative:ftp_shared,dsAttrTypeNative:afp_name,dsAttrTypeNative:smb_oplocks,dsAttrTypeNative:afp_use_parent_owner,dsAttrTypeNative:smb_directorymask,dsAttrTypeStandard:RecordName,dsAttrTypeNative:afp_use_parent_privs,dsAttrTypeNative:smb_guestaccess,dsAttrTypeNative:smb_inherit_permissions,dsAttrTypeStandard:AppleMetaRecordName,dsAttrTypeNative:smb_shared,dsAttrTypeNative:directory_path,dsAttrTypeNative:smb_strictlocking,dsAttrTypeNative:sharepoint_group_id,dsAttrTypeNative:ftp_name, Max Results: 2147483647
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13, Node: /Local/Default, Module: PlistFile - client is using an old record type 'dsRecTypeNative:config/SharePoints' should be using kODRecordTypeSharePoints
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13, Node: /Local/Default, Module: PlistFile - client is using an old record type 'dsRecTypeNative:config/SharePoints' should be using kODRecordTypeSharePoints
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13, Node: /Local/Default, Module: PlistFile - flushing record '/private/var/db/dslocal/nodes/Default/config/SharePoints'
Jan 5 22:59:31 localhost opendirectoryd[101]: Module: PlistFile - ___index_record_block_invoke_0: sqlite3_prepare_v2: 21
Jan 5 22:59:31 localhost opendirectoryd[101]: Module: PlistFile - ___index_record_block_invoke_0: sqlite3_prepare_v2: 21
Jan 5 22:59:31 localhost opendirectoryd[101]: 299.13, Node: /Local/Default, Module: PlistFile - ODQueryCreateWithNode completed
Jan 5 22:59:33 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:33 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:38 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:38 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:40 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:40 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:42 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0
Jan 5 22:59:42 localhost Viewer[328]: Folder Manager is being asked to create a folder (down) while running as uid 0





I booted with the following flags:

npci=0x2000 GraphicsEnabler=Yes -v



I used the kernel "test2" here and AnV's corecrypto found at the first post of this thread.



Thanks to the devs for their hard work and dedication to the AMD Hackintosh scene!



:soldiers:





For complete installation and mods, check out my guide here: http://acert0sh.weebly.com



Who's next? :afro:

Share this post


Link to post
Share on other sites

Who's next? :afro:

Me me me!

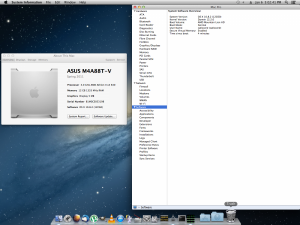

CPU: AMD Athlon II x4 640 3.0 GHz

Motherboard: ASUS M4A88T-V EVO/USB3

SB/NB: AMD 880G/AMD SB710

RAM: 12GB 1333 MHz DDR3 (2x2GB, 2x4GB)

SATA: Any device attached to the onboard SATA or eSATA (AHCI set in BIOS, of course) port works just fine.

IDE: Not detected. Google's not being helpful, and I'm being lead to believe that perhaps there is no OS X driver for AMD IDE controllers.

USB 2.0: All four rear ports plus the three internal headers work perfectly.

USB 3.0: I don't have any USB 3 devices, so I have no idea. USB 2 devices plugged in work fine.

Firewire: Quickly tested it. The HDD shows up in Disk Utility, so I say it works.

GPU: XFX ATI Radeon HD 5670 1GB (Works perfectly in Snow Leopard 10.6.8 and Lion 10.7.5.)

LAN: Realtek RTL8168B PCI-Express (onboard) (Works with Lnx2Mac's RTL8XXX driver.)

Sound: Intel HDA (Azalia) (I'm sure this would work fine if only I could figure out DSDT patching... Using AppleAzaliaAudio.kext for now.)

PS2: I am now typing this on an old PS2 HP keyboard with VoodooPS2Controller.kext, so I guess it works.



Bootloader: Chameleon v2.1svn ErmaC (Trunk) r1926



cat /proc/cpuinfo





xxxx@xxxx-desktop-Arch ~ % cat /proc/cpuinfo
processor     : 0
vendor_id     : AuthenticAMD
cpu family     : 16
model         : 5
model name     : AMD Athlon(tm) II X4 640 Processor
stepping     : 3
microcode     : 0x10000b6
cpu MHz         : 800.000
cache size     : 512 KB
physical id     : 0
siblings     : 4
core id         : 0
cpu cores     : 4
apicid         : 0
initial apicid : 0
fpu             : yes
fpu_exception : yes
cpuid level     : 5
wp             : yes
flags         : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm 3dnowext 3dnow constant_tsc rep_good nopl nonstop_tsc extd_apicid pni monitor cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs skinit wdt hw_pstate npt lbrv svm_lock nrip_save
bogomips     : 6029.25
TLB size     : 1024 4K pages
clflush size : 64
cache_alignment : 64
address sizes : 48 bits physical, 48 bits virtual
power management: ts ttp tm stc 100mhzsteps hwpstate

processor     : 1
vendor_id     : AuthenticAMD
cpu family     : 16
model         : 5
model name     : AMD Athlon(tm) II X4 640 Processor
stepping     : 3
microcode     : 0x10000b6
cpu MHz         : 800.000
cache size     : 512 KB
physical id     : 0
siblings     : 4
core id         : 1
cpu cores     : 4
apicid         : 1
initial apicid : 1
fpu             : yes
fpu_exception : yes
cpuid level     : 5
wp             : yes
flags         : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm 3dnowext 3dnow constant_tsc rep_good nopl nonstop_tsc extd_apicid pni monitor cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs skinit wdt hw_pstate npt lbrv svm_lock nrip_save
bogomips     : 6029.25
TLB size     : 1024 4K pages
clflush size : 64
cache_alignment : 64
address sizes : 48 bits physical, 48 bits virtual
power management: ts ttp tm stc 100mhzsteps hwpstate

processor     : 2
vendor_id     : AuthenticAMD
cpu family     : 16
model         : 5
model name     : AMD Athlon(tm) II X4 640 Processor
stepping     : 3
microcode     : 0x10000b6
cpu MHz         : 800.000
cache size     : 512 KB
physical id     : 0
siblings     : 4
core id         : 2
cpu cores     : 4
apicid         : 2
initial apicid : 2
fpu             : yes
fpu_exception : yes
cpuid level     : 5
wp             : yes
flags         : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm 3dnowext 3dnow constant_tsc rep_good nopl nonstop_tsc extd_apicid pni monitor cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs skinit wdt hw_pstate npt lbrv svm_lock nrip_save
bogomips     : 6029.25
TLB size     : 1024 4K pages
clflush size : 64
cache_alignment : 64
address sizes : 48 bits physical, 48 bits virtual
power management: ts ttp tm stc 100mhzsteps hwpstate

processor     : 3
vendor_id     : AuthenticAMD
cpu family     : 16
model         : 5
model name     : AMD Athlon(tm) II X4 640 Processor
stepping     : 3
microcode     : 0x10000b6
cpu MHz         : 800.000
cache size     : 512 KB
physical id     : 0
siblings     : 4
core id         : 3
cpu cores     : 4
apicid         : 3
initial apicid : 3
fpu             : yes
fpu_exception : yes
cpuid level     : 5
wp             : yes
flags         : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm 3dnowext 3dnow constant_tsc rep_good nopl nonstop_tsc extd_apicid pni monitor cx16 popcnt lahf_lm cmp_legacy svm extapic cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw ibs skinit wdt hw_pstate npt lbrv svm_lock nrip_save
bogomips     : 6029.25
TLB size     : 1024 4K pages
clflush size : 64
cache_alignment : 64
address sizes : 48 bits physical, 48 bits virtual
power management: ts ttp tm stc 100mhzsteps hwpstate





lspci -vv





xxxx@xxxx-desktop-Arch ~ % sudo lspci -vv
[sudo] password for xxxx:
00:00.0 Host bridge: Advanced Micro Devices [AMD] RS880 Host Bridge
    Subsystem: ASUSTeK Computer Inc. M5A88-V EVO
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ >SERR- <PERR- INTx-
    Latency: 0
    Capabilities: [c4] HyperTransport: Slave or Primary Interface
            Command: BaseUnitID=0 UnitCnt=12 MastHost- DefDir- DUL-
            Link Control 0: CFlE- CST- CFE- <LkFail- Init+ EOC- TXO- <CRCErr=0 IsocEn+ LSEn- ExtCTL- 64b-
            Link Config 0: MLWI=16bit DwFcIn- MLWO=16bit DwFcOut- LWI=16bit DwFcInEn- LWO=16bit DwFcOutEn-
            Link Control 1: CFlE- CST- CFE- <LkFail+ Init- EOC+ TXO+ <CRCErr=0 IsocEn- LSEn- ExtCTL- 64b-
            Link Config 1: MLWI=8bit DwFcIn- MLWO=8bit DwFcOut- LWI=8bit DwFcInEn- LWO=8bit DwFcOutEn-
            Revision ID: 3.00
            Link Frequency 0: [b]
            Link Error 0: <Prot- <Ovfl- <EOC- CTLTm-
            Link Frequency Capability 0: 200MHz+ 300MHz- 400MHz+ 500MHz- 600MHz+ 800MHz+ 1.0GHz+ 1.2GHz- 1.4GHz- 1.6GHz- Vend-
            Feature Capability: IsocFC- LDTSTOP+ CRCTM- ECTLT- 64bA- UIDRD-
            Link Frequency 1: 200MHz
            Link Error 1: <Prot- <Ovfl- <EOC- CTLTm-
            Link Frequency Capability 1: 200MHz- 300MHz- 400MHz- 500MHz- 600MHz- 800MHz- 1.0GHz- 1.2GHz- 1.4GHz- 1.6GHz- Vend-
            Error Handling: PFlE- OFlE- PFE- OFE- EOCFE- RFE- CRCFE- SERRFE- CF- RE- PNFE- ONFE- EOCNFE- RNFE- CRCNFE- SERRNFE-
            Prefetchable memory behind bridge Upper: 00-00
            Bus Number: 00
    Capabilities: [54] HyperTransport: UnitID Clumping
    Capabilities: [40] HyperTransport: Retry Mode
    Capabilities: [9c] HyperTransport: #1a
    Capabilities: [f8] HyperTransport: #1c

00:02.0 PCI bridge: Advanced Micro Devices [AMD] RS780 PCI to PCI bridge (ext gfx port 0) (prog-if 00 [Normal decode])
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
    I/O behind bridge: 0000c000-0000cfff
    Memory behind bridge: fe900000-fe9fffff
    Prefetchable memory behind bridge: 00000000d0000000-00000000dfffffff
    Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
    BridgeCtl: Parity+ SERR+ NoISA- VGA+ MAbort- >Reset- FastB2B-
            PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [58] Express (v2) Root Port (Slot+), MSI 00
            DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
                    ExtTag+ RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 128 bytes
            DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
            LnkCap: Port #0, Speed 5GT/s, Width x16, ASPM L0s L1, Latency L0 <64ns, L1 <1us
                    ClockPM- Surprise- LLActRep+ BwNot+
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt+
            SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
                    Slot #2, PowerLimit 75.000W; Interlock- NoCompl+
            SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
                    Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
            SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
                    Changed: MRL- PresDet+ LinkState+
            RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
            RootCap: CRSVisible-
            RootSta: PME ReqID 0000, PMEStatus- PMEPending-
            DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR-, OBFF Not Supported ARIFwd-
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
            LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit-
            Address: fee0f00c Data: 4181
    Capabilities: [b0] Subsystem: ASUSTeK Computer Inc. Device 843e
    Capabilities: [b8] HyperTransport: MSI Mapping Enable+ Fixed+
    Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
    Capabilities: [110 v1] Virtual Channel
            Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
            Arb: Fixed- WRR32- WRR64- WRR128-
            Ctrl: ArbSelect=Fixed
            Status: InProgress-
            VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
                    Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
                    Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
                    Status: NegoPending- InProgress-
    Kernel driver in use: pcieport

00:09.0 PCI bridge: Advanced Micro Devices [AMD] RS780/RS880 PCI to PCI bridge (PCIE port 4) (prog-if 00 [Normal decode])
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
    I/O behind bridge: 0000d000-0000dfff
    Prefetchable memory behind bridge: 00000000fdf00000-00000000fdffffff
    Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
    BridgeCtl: Parity+ SERR+ NoISA+ VGA- MAbort- >Reset- FastB2B-
            PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [58] Express (v2) Root Port (Slot+), MSI 00
            DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
                    ExtTag+ RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 128 bytes
            DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
            LnkCap: Port #0, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <64ns, L1 <1us
                    ClockPM- Surprise- LLActRep+ BwNot+
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
            SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
                    Slot #9, PowerLimit 25.000W; Interlock- NoCompl+
            SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
                    Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
            SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
                    Changed: MRL- PresDet+ LinkState+
            RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
            RootCap: CRSVisible-
            RootSta: PME ReqID 0000, PMEStatus- PMEPending-
            DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR-, OBFF Not Supported ARIFwd-
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
            LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit-
            Address: fee0f00c Data: 4191
    Capabilities: [b0] Subsystem: ASUSTeK Computer Inc. Device 843e
    Capabilities: [b8] HyperTransport: MSI Mapping Enable+ Fixed+
    Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
    Capabilities: [110 v1] Virtual Channel
            Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
            Arb: Fixed- WRR32- WRR64- WRR128-
            Ctrl: ArbSelect=Fixed
            Status: InProgress-
            VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
                    Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
                    Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
                    Status: NegoPending- InProgress-
    Kernel driver in use: pcieport

00:0a.0 PCI bridge: Advanced Micro Devices [AMD] RS780/RS880 PCI to PCI bridge (PCIE port 5) (prog-if 00 [Normal decode])
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
    Memory behind bridge: fea00000-feafffff
    Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
    BridgeCtl: Parity+ SERR+ NoISA+ VGA- MAbort- >Reset- FastB2B-
            PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [58] Express (v2) Root Port (Slot+), MSI 00
            DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
                    ExtTag+ RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 128 bytes
            DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
            LnkCap: Port #1, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <64ns, L1 <1us
                    ClockPM- Surprise- LLActRep+ BwNot+
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt+ ABWMgmt-
            SltCap: AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug- Surprise-
                    Slot #10, PowerLimit 25.000W; Interlock- NoCompl+
            SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
                    Control: AttnInd Unknown, PwrInd Unknown, Power- Interlock-
            SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet+ Interlock-
                    Changed: MRL- PresDet+ LinkState+
            RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
            RootCap: CRSVisible-
            RootSta: PME ReqID 0000, PMEStatus- PMEPending-
            DevCap2: Completion Timeout: Not Supported, TimeoutDis-, LTR-, OBFF Not Supported ARIFwd-
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled ARIFwd-
            LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit-
            Address: fee0f00c Data: 41a1
    Capabilities: [b0] Subsystem: ASUSTeK Computer Inc. Device 843e
    Capabilities: [b8] HyperTransport: MSI Mapping Enable+ Fixed+
    Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
    Capabilities: [110 v1] Virtual Channel
            Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
            Arb: Fixed- WRR32- WRR64- WRR128-
            Ctrl: ArbSelect=Fixed
            Status: InProgress-
            VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
                    Arb: Fixed+ WRR32- WRR64- WRR128- TWRR128- WRR256-
                    Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
                    Status: NegoPending- InProgress-
    Kernel driver in use: pcieport

00:11.0 SATA controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode] (prog-if 01 [AHCI 1.0])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 22
    Region 0: I/O ports at b000 [size=8]
    Region 1: I/O ports at a000 [size=4]
    Region 2: I/O ports at 9000 [size=8]
    Region 3: I/O ports at 8000 [size=4]
    Region 4: I/O ports at 7000 [size=16]
    Region 5: Memory at fe8ffc00 (32-bit, non-prefetchable) [size=1K]
    Capabilities: [60] Power Management version 2
            Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [70] SATA HBA v1.0 InCfgSpace
    Kernel driver in use: ahci

00:12.0 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 USB OHCI0 Controller (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 16
    Region 0: Memory at fe8fe000 (32-bit, non-prefetchable) [size=4K]
    Kernel driver in use: ohci_hcd

00:12.1 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0 USB OHCI1 Controller (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 16
    Region 0: Memory at fe8fd000 (32-bit, non-prefetchable) [size=4K]
    Kernel driver in use: ohci_hcd

00:12.2 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 USB EHCI Controller (prog-if 20 [EHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin B routed to IRQ 17
    Region 0: Memory at fe8ff800 (32-bit, non-prefetchable) [size=256]
    Capabilities: [c0] Power Management version 2
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold-)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
            Bridge: PM- B3+
    Capabilities: [e4] Debug port: BAR=1 offset=00e0
    Kernel driver in use: ehci_hcd

00:13.0 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 USB OHCI0 Controller (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 18
    Region 0: Memory at fe8fc000 (32-bit, non-prefetchable) [size=4K]
    Kernel driver in use: ohci_hcd

00:13.1 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0 USB OHCI1 Controller (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 18
    Region 0: Memory at fe8f7000 (32-bit, non-prefetchable) [size=4K]
    Kernel driver in use: ohci_hcd

00:13.2 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 USB EHCI Controller (prog-if 20 [EHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin B routed to IRQ 19
    Region 0: Memory at fe8ff400 (32-bit, non-prefetchable) [size=256]
    Capabilities: [c0] Power Management version 2
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0+,D1+,D2+,D3hot+,D3cold-)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
            Bridge: PM- B3+
    Capabilities: [e4] Debug port: BAR=1 offset=00e0
    Kernel driver in use: ehci_hcd

00:14.0 SMBus: Advanced Micro Devices [AMD] nee ATI SBx00 SMBus Controller (rev 3c)
    Subsystem: ASUSTeK Computer Inc. M4A785TD Motherboard
    Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
    Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Capabilities: [b0] HyperTransport: MSI Mapping Enable- Fixed+

00:14.1 IDE interface: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 IDE Controller (prog-if 8a [Master SecP PriP])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64
    Interrupt: pin A routed to IRQ 16
    Region 0: I/O ports at 01f0 [size=8]
    Region 1: I/O ports at 03f4
    Region 2: I/O ports at 0170 [size=8]
    Region 3: I/O ports at 0374
    Region 4: I/O ports at ff00 [size=16]
    Capabilities: [70] MSI: Enable- Count=1/1 Maskable- 64bit-
            Address: 00000000 Data: 0000
    Kernel driver in use: pata_atiixp

00:14.2 Audio device: Advanced Micro Devices [AMD] nee ATI SBx00 Azalia (Intel HDA)
    Subsystem: ASUSTeK Computer Inc. M5A88-V EVO
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=slow >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 16
    Region 0: Memory at fe8f0000 (64-bit, non-prefetchable) [size=16K]
    Capabilities: [50] Power Management version 2
            Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: snd_hda_intel

00:14.3 ISA bridge: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 LPC host controller
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O+ Mem+ BusMaster+ SpecCycle+ MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0

00:14.4 PCI bridge: Advanced Micro Devices [AMD] nee ATI SBx00 PCI to PCI Bridge (prog-if 01 [subtractive decode])
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64
    Bus: primary=00, secondary=04, subordinate=04, sec-latency=64
    I/O behind bridge: 0000e000-0000efff
    Memory behind bridge: feb00000-febfffff
    Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
    BridgeCtl: Parity+ SERR+ NoISA+ VGA- MAbort- >Reset- FastB2B-
            PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-

00:14.5 USB controller: Advanced Micro Devices [AMD] nee ATI SB7x0/SB8x0/SB9x0 USB OHCI2 Controller (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. Device 8389
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64, Cache Line Size: 64 bytes
    Interrupt: pin C routed to IRQ 18
    Region 0: Memory at fe8f6000 (32-bit, non-prefetchable) [size=4K]
    Kernel driver in use: ohci_hcd

00:18.0 Host bridge: Advanced Micro Devices [AMD] Family 10h Processor HyperTransport Configuration
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Capabilities: [80] HyperTransport: Host or Secondary Interface
            Command: WarmRst+ DblEnd- DevNum=0 ChainSide- HostHide+ Slave- <EOCErr- DUL-
            Link Control: CFlE- CST- CFE- <LkFail- Init+ EOC- TXO- <CRCErr=0 IsocEn+ LSEn+ ExtCTL- 64b-
            Link Config: MLWI=16bit DwFcIn- MLWO=16bit DwFcOut- LWI=16bit DwFcInEn- LWO=16bit DwFcOutEn-
            Revision ID: 3.00
            Link Frequency: [b]
            Link Error: <Prot- <Ovfl- <EOC- CTLTm-
            Link Frequency Capability: 200MHz+ 300MHz- 400MHz+ 500MHz- 600MHz+ 800MHz+ 1.0GHz+ 1.2GHz+ 1.4GHz- 1.6GHz- Vend-
            Feature Capability: IsocFC+ LDTSTOP+ CRCTM- ECTLT- 64bA+ UIDRD- ExtRS- UCnfE-

00:18.1 Host bridge: Advanced Micro Devices [AMD] Family 10h Processor Address Map
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

00:18.2 Host bridge: Advanced Micro Devices [AMD] Family 10h Processor DRAM Controller
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

00:18.3 Host bridge: Advanced Micro Devices [AMD] Family 10h Processor Miscellaneous Control
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Capabilities: [f0] Secure device <?>
    Kernel driver in use: k10temp

00:18.4 Host bridge: Advanced Micro Devices [AMD] Family 10h Processor Link Control
    Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

01:00.0 VGA compatible controller: Advanced Micro Devices [AMD] nee ATI Redwood [Radeon HD 5670] (prog-if 00 [VGA controller])
    Subsystem: XFX Pine Group Inc. Device 3061
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 43
    Region 0: Memory at d0000000 (64-bit, prefetchable) [size=256M]
    Region 2: Memory at fe9c0000 (64-bit, non-prefetchable) [size=128K]
    Region 4: I/O ports at c000 [size=256]
    Expansion ROM at fe9a0000 [disabled] [size=128K]
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [58] Express (v2) Legacy Endpoint, MSI 00
            DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
                    ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 512 bytes
            DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr- TransPend-
            LnkCap: Port #0, Speed 5GT/s, Width x16, ASPM L0s L1, Latency L0 <64ns, L1 <1us
                    ClockPM- Surprise- LLActRep- BwNot-
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
            DevCap2: Completion Timeout: Range ABCD, TimeoutDis+, LTR-, OBFF Not Supported
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled
            LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
            Address: 00000000fee0f00c Data: 41b1
    Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
    Capabilities: [150 v1] Advanced Error Reporting
            UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
            CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            AERCap: First Error Pointer: 00, GenCap+ CGenEn- ChkCap+ ChkEn-
    Kernel driver in use: radeon

01:00.1 Audio device: Advanced Micro Devices [AMD] nee ATI Redwood HDMI Audio [Radeon HD 5000 Series]
    Subsystem: XFX Pine Group Inc. Device aa60
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin B routed to IRQ 50
    Region 0: Memory at fe9f8000 (64-bit, non-prefetchable) [size=16K]
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [58] Express (v2) Legacy Endpoint, MSI 00
            DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
                    ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 512 bytes
            DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr- TransPend-
            LnkCap: Port #0, Speed 5GT/s, Width x16, ASPM L0s L1, Latency L0 <64ns, L1 <1us
                    ClockPM- Surprise- LLActRep- BwNot-
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 5GT/s, Width x16, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
            DevCap2: Completion Timeout: Range ABCD, TimeoutDis+, LTR-, OBFF Not Supported
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
            Address: 00000000fee0f00c Data: 4192
    Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
    Capabilities: [150 v1] Advanced Error Reporting
            UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
            CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            AERCap: First Error Pointer: 00, GenCap+ CGenEn- ChkCap+ ChkEn-
    Kernel driver in use: snd_hda_intel

02:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168B PCI Express Gigabit Ethernet controller (rev 06)
    Subsystem: ASUSTeK Computer Inc. P8P67 and other motherboards
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 49
    Region 0: I/O ports at d800 [size=256]
    Region 2: Memory at fdfff000 (64-bit, prefetchable) [size=4K]
    Region 4: Memory at fdff8000 (64-bit, prefetchable) [size=16K]
    Capabilities: [40] Power Management version 3
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=375mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
            Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
            Address: 00000000fee0f00c Data: 4172
    Capabilities: [70] Express (v2) Endpoint, MSI 01
            DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <512ns, L1 <64us
                    ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
                    MaxPayload 128 bytes, MaxReadReq 4096 bytes
            DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr+ TransPend-
            LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Latency L0 <512ns, L1 <64us
                    ClockPM+ Surprise- LLActRep- BwNot-
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
            DevCap2: Completion Timeout: Not Supported, TimeoutDis+, LTR-, OBFF Not Supported
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled
            LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [b0] MSI-X: Enable- Count=4 Masked-
            Vector table: BAR=4 offset=00000000
            PBA: BAR=4 offset=00000800
    Capabilities: [d0] Vital Product Data
            Unknown small resource type 00, will not decode more.
    Capabilities: [100 v1] Advanced Error Reporting
            UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
            CESta: RxErr+ BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            AERCap: First Error Pointer: 00, GenCap+ CGenEn- ChkCap+ ChkEn-
    Capabilities: [140 v1] Virtual Channel
            Caps: LPEVC=0 RefClk=100ns PATEntryBits=1
            Arb: Fixed- WRR32- WRR64- WRR128-
            Ctrl: ArbSelect=Fixed
            Status: InProgress-
            VC0: Caps: PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
                    Arb: Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
                    Ctrl: Enable+ ID=0 ArbSelect=Fixed TC/VC=ff
                    Status: NegoPending- InProgress-
    Capabilities: [160 v1] Device Serial Number 01-00-00-00-68-4c-e0-00
    Kernel driver in use: r8169

03:00.0 USB controller: NEC Corporation uPD720200 USB 3.0 Host Controller (rev 03) (prog-if 30 [XHCI])
    Subsystem: ASUSTeK Computer Inc. P8P67 Deluxe Motherboard
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 18
    Region 0: Memory at feafe000 (64-bit, non-prefetchable) [size=8K]
    Capabilities: [50] Power Management version 3
            Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
            Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [70] MSI: Enable- Count=1/8 Maskable- 64bit+
            Address: 0000000000000000 Data: 0000
    Capabilities: [90] MSI-X: Enable+ Count=8 Masked-
            Vector table: BAR=0 offset=00001000
            PBA: BAR=0 offset=00001080
    Capabilities: [a0] Express (v2) Endpoint, MSI 00
            DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
                    ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
            DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
                    RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+
                    MaxPayload 128 bytes, MaxReadReq 512 bytes
            DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr+ TransPend-
            LnkCap: Port #0, Speed 5GT/s, Width x1, ASPM L0s L1, Latency L0 <4us, L1 unlimited
                    ClockPM+ Surprise- LLActRep- BwNot-
            LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk+
                    ExtSynch- ClockPM+ AutWidDis- BWInt- AutBWInt-
            LnkSta: Speed 5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
            DevCap2: Completion Timeout: Not Supported, TimeoutDis+, LTR+, OBFF Not Supported
            DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled
            LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                        Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                        Compliance De-emphasis: -6dB
            LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete-, EqualizationPhase1-
                        EqualizationPhase2-, EqualizationPhase3-, LinkEqualizationRequest-
    Capabilities: [100 v1] Advanced Error Reporting
            UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
            UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
            CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- NonFatalErr+
            AERCap: First Error Pointer: 00, GenCap- CGenEn- ChkCap- ChkEn-
    Capabilities: [140 v1] Device Serial Number ff-ff-ff-ff-ff-ff-ff-ff
    Capabilities: [150 v1] Latency Tolerance Reporting
            Max snoop latency: 0ns
            Max no snoop latency: 0ns
    Kernel driver in use: xhci_hcd

04:06.0 Ethernet controller: ADMtek NC100 Network Everywhere Fast Ethernet 10/100 (rev 11)
    Subsystem: ADMtek Device 0574
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64 (63750ns min, 63750ns max), Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 21
    Region 0: I/O ports at e800 [size=256]
    Region 1: Memory at febffc00 (32-bit, non-prefetchable) [size=1K]
    Expansion ROM at febc0000 [disabled] [size=128K]
    Capabilities: [c0] Power Management version 2
            Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=100mA PME(D0+,D1+,D2+,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: tulip

04:08.0 FireWire (IEEE 1394): VIA Technologies, Inc. VT6306/7/8 [Fire II(M)] IEEE 1394 OHCI Controller (rev c0) (prog-if 10 [OHCI])
    Subsystem: ASUSTeK Computer Inc. M4A series motherboard
    Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 64 (8000ns max), Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 23
    Region 0: Memory at febff000 (32-bit, non-prefetchable) [size=2K]
    Region 1: I/O ports at ec00 [size=128]
    Capabilities: [50] Power Management version 2
            Flags: PMEClk- DSI- D1- D2+ AuxCurrent=0mA PME(D0-,D1-,D2+,D3hot+,D3cold+)
            Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
    Kernel driver in use: firewire_ohci







Mac OS X 10.6.8



Installed using Nawcom's ModCD, installed his 10.8.0 legacy kernel, installed 10.6.8 Combo Update, applied this patch, rebooted, enjoyed the awsomeness!



<key>Kernel Flags</key> <string>arch=i386 -force64 busratio=14</string>



Mac OS X 10.7.5



IiTz ShAnE has built a 64-bit lion kernel that needs -nossse3bit. 32-bit apps don't work at the moment. I haven't tried this wit a myHack installer, so I don't know if you can install on an AMD machine. That kernel boots a myHack installer perfectly.





I did EXACTLY what The Connactic said above (except the iCloud fix):

Lion 10.7.5. 32-bit kernel (connactic.zip) in pure 32-bit mode (-legacy): had to swap the stock finder with this one: Finder from Lion DP 2 - Downloads - OSx86.net), iCloud with this method: iCloud for AMD hackintoshes: a workaround. - OSx86 10.7 (Lion ... and solved the core apps crashing using jeaton's method:



1) Wait for xpchelper to crash

2) Open terminal and type these in:

"sudo su"

"cd /private/var/folders"

"find /private/var/folders/ -type f | grep -i com.apple.xpchelper.cache"

3) cd to the first one that shows up on the list (it will be in a separate folder from the other xpchelper caches)

"rm -r com.apple.xpchelper.cache"

"pico com.apple.xpchelper.cache" ---> hit ctrl+o to save and ctrl+x to exit

"chflags uchg com.apple.xpchelper.cache"

4) Reboot and you're done!



I installed Lion with a USB MyHack installer with my Intel hackintosh and then moved the HDD to my AMD rig after installing the kernel, 32-bit Finder, etc... The only reason I didn't keep it around was the fact that I couldn't get my GPU to work with Lion.



OS X 10.8.2



AnV's amd_kernel with a myHack installer works just fine. All 32 and 64-bit apps working.



Also have a look at my 10.6.8 wiki entry: http://wiki.osx86pro...HCL_10.6.8#Asus





Next??



Share this post


Link to post
Share on other sites

CPU: AMD Phenom II 965 @ 3.4Ghz

Motherboard: Asus M4A785TD-V EVO

SB/NB: SB:710 & NB:785G

RAM: 8GB DDR3 1333Mhz

SATA: Tested with 2 HDDs, 80GB and 1Tb, both worked. DVD drive worked too, also burning.

IDE: No idea.

USB 2.0: All ports work.

USB 3.0: I don't have any ports or devices.

Firewire: Sometimes stucks the booting process, when disabled -> boots always

GPU: AMD Radeon HD 5870, works OOB, GraphicsEnabler. QE/CI

LAN: Realtek RTL8112L onboard / Realtek RTL8169 (Lnx2Mac)

Sound: VIA VT1708S -> no support, but modified VoodooHDA works sometimes.

PS2: Not tested, and I fried my keyboard port by plugging a faulty keyboard in.



Bootloader: Chameleon 2.1 R2069



Lion: Works in 32-bit, some fixes were needed (IOPCIFamily.kext etc. basic stuff)

Snow Leopard: Booted installer only from myHack USB and then installed correctly. Tried with ModCD & various distros, got instant KP. After install everything worked correctly with appropriate kexts.





Will probably post my other system later, you can always see the specs from my signature below.

Share this post


Link to post
Share on other sites

CPU: AMD Phenom II 945 4x 3.0 GHz

Motherboard: MSI K9AG Neo2-Digital

Chipset: AMD 690G + SB600

RAM: 8GB 800MHz

SATA: 1x Corsair SSD Force 3 120GB + 4x Samsung F3 1TB + DVD RW Drive (detected as Superdrive with DeviceMergeNub.kext ); additional 2 Port SATA Controller (of course AHCI Mode)

USB : All detected as integrated (enabled with patched IOUSBFamily; OHCI on AMD Systems isn´t possible to inject via dsdt)

GPU: MSI ATI R5770 OC (injected via dsdt)

LAN: Realtek RTL 8168B (lnx2mac kext and injected "builtin" with dsdt)

Sound: Realtek ALC888 (VoodooHDA) + HDMI from Graphicscard (injected with dsdt) + GR Session i/O

Belkin Bluetooth USB Dongle Broadcom Chipset (BroadcomAppleBluetooth.kext patched from AnV; working after sleepmode; able to prevent sleep with keyboard)



Bootloader: Newest Chameleon



Snow Leopard: Retail install; 32 bit Kernel in 64 Bit Userland; AnVs Legacy Kernel 10.8.0 V2

Got my SnowLeopard fully working in 64 bit Kernelmode.



Lion: Cloned Partition from a install; 32 Bit Kernel in 32 Bit Userland, RAW´s last Kernel, solved XPCHelper issue as discriped above.

64 Bit Kernel is working great. (Got it from Lion Thread, litzashane compiled it)



ML: Still testing



Injected as much as possible via dsdt.

Share this post


Link to post
Share on other sites

CPU: AMD Athlon II X2 215 @ 2.71GHz
Motherboard: Pegatron M2N68-LA
Chipset:NVIDIA GeForce 6150SE nForce 430 ( NForceATA )
RAM: 6GB 800MHz
HDD: 1x 2TB Seagate 1x 640GB WDC
USB : 2.0 All working from and rear with USBLegacyOff=Yes
GPU: Sapphire HD 5450 1GB (0x68E11002)
LAN: Realtek RTL8201N ( NForceLAN )
Sound: Realtek ALC662 ( VoodooHDA )
Sleep: Not Working in Mavericks. Works in Lion



Installation Method: Pandora's Box USB



Lion 10.7.5 with Bronya's 10.7.5 kernel in x86_64 ( No Problems )

Mavericks 10.9 with Andy's RC5 Kernel ( Working with minimal problems.

Windows 7 SP1 x64

Share this post


Link to post
Share on other sites

Dell Inspiron 531



CPU: AMD Athlon II X2 5000+

Motherboard: M2N61-AX OEM

Chipset: nForce 430i (AppleNForceATA AnV)

Ram: 4GB 667MHz

HDD: 2 x 500GB WDC WD5000AAKS

Graphics: Nvidia GeForce 8600 GT 256 MB (GraphicsEnabler)

USB: 2.0 All working OOTB

Audio: Realtek ALC888 (VoodooHDA)

Ethernet: Nvidia MCP61 Ethernet (NForceLAN)



Running 10.6.8 as Plex Media Center/Download Server. 10.8.0 legacy nawcom kernel, 64-bit userland.

Connected to Acer H5360 3D 720p Projector

CouchPotato for Movies

Sickbeard for TV Shows

Headphones for Music

SABnzbd for Downloads



lspci -nn





00:00.0 RAM memory [0500]: nVidia Corporation MCP61 Memory Controller [10de:03ea] (rev a1)

00:01.0 ISA bridge [0601]: nVidia Corporation MCP61 LPC Bridge [10de:03e0] (rev a2)

00:01.1 SMBus [0c05]: nVidia Corporation MCP61 SMBus [10de:03eb] (rev a2)

00:01.2 RAM memory [0500]: nVidia Corporation MCP61 Memory Controller [10de:03f5] (rev a2)

00:02.0 USB Controller [0c03]: nVidia Corporation MCP61 USB Controller [10de:03f1] (rev a3)

00:02.1 USB Controller [0c03]: nVidia Corporation MCP61 USB Controller [10de:03f2] (rev a3)

00:04.0 PCI bridge [0604]: nVidia Corporation MCP61 PCI bridge [10de:03f3] (rev a1)

00:05.0 Audio device [0403]: nVidia Corporation MCP61 High Definition Audio [10de:03f0] (rev a2)

00:06.0 IDE interface [0101]: nVidia Corporation MCP61 IDE [10de:03ec] (rev a2)

00:07.0 Bridge [0680]: nVidia Corporation MCP61 Ethernet [10de:03ef] (rev a2)

00:08.0 IDE interface [0101]: nVidia Corporation MCP61 SATA Controller [10de:03f6] (rev a2)

00:08.1 IDE interface [0101]: nVidia Corporation MCP61 SATA Controller [10de:03f6] (rev a2)

00:09.0 PCI bridge [0604]: nVidia Corporation MCP61 PCI Express bridge [10de:03e8] (rev a2)

00:0b.0 PCI bridge [0604]: nVidia Corporation MCP61 PCI Express bridge [10de:03e9] (rev a2)

01:09.0 USB Controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 62)

01:09.1 USB Controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 62)

01:09.2 USB Controller [0c03]: VIA Technologies, Inc. USB 2.0 [1106:3104] (rev 65)

01:09.3 RAID bus controller [0104]: VIA Technologies, Inc. VT6421 IDE RAID Controller [1106:3249] (rev 50)

02:00.0 VGA compatible controller [0300]: nVidia Corporation G84 [GeForce 8600 GT] [10de:0402] (rev a1)





Share this post


Link to post
Share on other sites

When we have enough successful builds posted here, i'll update the first post with a compatibility chart for AMD systems. Keep posting!



Thank you!



Mm'kay, I'll post my 2nd system too:



CPU: AMD Athlon 64 4000+

Motherboard: Asus K8V-VM SE

GPU: It was NVidia GeForce 6600 256MB with graphicsenabler, now ATI Radeon HD4670, works OOB

RAM: 1.5GB DDR

HDD: 4x80GB IDE

Audio: Realtek ALC660

LAN: Realtek RTL8201CL

Sound: All ports working

PS2: Mouse and keyboard working



Snow Leopard installed with myHack retail usb 10.6.0 and updated to 10.6.8.

Works with Nawcom legacy kernel and Anv kernel, no visible difference between kernels.

Share this post


Link to post
Share on other sites

AMD 955 Phenom Black Edition

Gigabyte GA-MA-770 UD3

ATI 5770 Batmobile



all injected via DSDT

cparmAnVs Bootloader



:wink2:



TutorialLink ->Signature

Share this post


Link to post
Share on other sites

CPU: AMD Phenom II X6 1100T working fine
Motherboard: Gigabyte GA-990FXA-UD3
Chipset: North Bridge: AMD 990FX / South Bridge: AMD SB950
GPU: NVIDIA Geforce GTX 550 TI 3072 MB working fine with QE/CI
RAM: 16 GB Corsair DDR3 1600 C9
HDD: Segate 2TB, WD 320GB, WD 500GB and other, 2 external 100GB + 320GB USB-IDE for Testing OSX
Audio: Realtek ALC889 is not working Sound is working with --->Digidesign Mbox 2 USB  MBox 2 driver etc... and VoodooHDA 2.8.4 from Slice (08.06.2013) Edi: 25.12.2013 working fine
LAN: Realtek RTL8111E (10/100/1000 Mbit) working fine
PS2: Mouse and keyboard working fine
USB: working fine
DSDT: all injected via DSDT
Bootloader: Chameleon-2.2svn-r2232.pkg with cparm-AnVs modules

.                                                                                                                                                                                                                                                                                                                                    .

.                                                                                                                                                                                                                                                                                                                                    .





22.12.2013



These data are intended only as illustrative material Respectively than help, tailored to my system. That can not be according to all systems so.

if you should install data, then they do before start of their hackintosh repair the permissions with Kext Wizard or Kext Utility!



what is there to report:

installation on 10.9 mavericks was a difficult hurdle I had to take very many failures. Unfortunately, I was sometimes too focused on other things. and have not paid to observance in the kernel panics important information. a Defective RAM made ​​me very to create, Well mavericks is now installed.

Procedure:
There are two methods that may lead to success.
Either you have an original Mac OSX or via Windows, both variants for manufacturing of USB sticks or external SATA HDD are possible.
Who does not have a Mac OSX, should look into his circle of acquaintances.
Via Windows :
here is a good tutorials to create an USB stick from Windows for people who do not have OSX. http://www.insanelym...y/#entry1918563 all thanks goes to Ratul and neelakantanr



to create USB-Stick / external SATA HDD via Mac OSX or hackintosh, see various video tutorials here  http://www.insanelymac.com/forum/topic/291993-amd-all-video-and-tutorials-for-installing-to-help-other-user/  the best methods are via Disk Utility or with the current version Myhack



I upload the same from my /System/Library/Extensions folder (once Extensions from Mavericks 10.9 and the other Extensions from Mavericks 10.9.2)

then my extra folder as well as my root data



what you should note is her:



this file 10de_1244.rom based on my graphics card -> GTX 550 TI because you have to create your own !
An appropriate DSDT.aml for my system!  you have to create your own!
Add to lean on my Chameleon.boot.plist you thought about your can adjust the boot flags that are suitable for your system! Furthermore, an EFI string for your graphics card provided it is not immediately recognized.

Furthermore, I have gained with the Extra/modules/ I have good experiences copied to the folder .
as next I have an SMBIOS for iMac14, 2  , I have adapted my AGPM in System/Library/Extensions and correspondingly the video drivers for Nvidia in the Extensions folder.







PS:

Ubdate Mavericks 10.9 to  Mavericks 10.9.2 ( easy way to Update)

start Mavericks update only with mavericksseedconfigurationutility.pkg, then you can make the modification in S / L / E



rename amd kernel on root and modify chameleon.boot.plist since the update overwrites the mach_kernel, after by starting with mavericksseedconfigurationutility the download of the OSXUpdCombo10.9.2.pkg, install with the installation program by double click, then replace these files:

copy --->> System.kext, AppleMatch.kext, Sandbox.kext from 10.9 to System/Library/Extensions then repair permissions and then restart your System



24.11.2013:



Mavericks 10.9 is running now with last kernel from Andy and from Bronzovka


until I am very satisfied with the current result and I will once I have time again to make further adjustments and write down the details here.
Here again a big thanks to: Sinetek, Andy and Bronzovka and Gils and all involved!!

http://www.insanelymac.com/forum/topic/285760-help-topic-further-help-in-chatosx86hulegacykernel-irc/page-88?do=findComment&comment=1971236













Mountain LION 10.8.2 is running with last amd_kernel from Andy

Snow Leopard 10.6.6 (here, Post 13) with nawcom Mod CD after installation to patch the binaries with akimoa' tutorials than update to Snow Leopard 10.6.8 via comboupdate


Edit:

Kernel + Kexts for Mountain Lion 10.8.2:


Edit: Install Test 26/27.04.2013

here is my current installation for Mountain Lion 10.8.2 on GA990FXA-UD3 with Nvidia GTX 550 TI 3GB
The system runs very well, so far I only had a problem with the installation of CS6 with kernel panic, CS6 problem was Fixed issue starts, the graphics card is fully recognized,

_______________________________________________________________________________________________________________________________________________________________________________


Edit: last Test with working QE/CI -->31.03.2013

HOW-TO

BIOS settings note!
AHCI enabled
Boot-order should note that if their NTFs-HDD and HFS+-HDDs used (first the HFS +-HDD than the NTFs-HDD, also make sure that their HDD connects to the right connector, first HFS +-HDD than NTFS-HDD.
If you have an IDE- HDD then of course you enable IDE in the BIOS, if you use SATA HDD then enable SATA.


1. as the very first thing you formatted the HDD with GUID / Mac OS X Extended ( journaled) !!! Not Mac OS (Case-sensitive), and Mac OS (Case-sensitive, Journaled) otherwise there may be problems with Adobe programs !!!!!

2. then takes an executable Hackintosh or a real Mac and open the Disk Utility which *ml2.dmg

Guys! I have purchased an official Mountain Lion 10.8.2 version from Applestore !!!, unfortunately, I had limited success with the installation.

3. I have installed *ml2.dmg on my Intel-based Hackintosh with Leopard 10.5 (Yes, this is possible with *ml2.dmg!  selects all the drivers for your AMD Hackintosh and let's start the installation!

in my case, I selected the following settings:

Bootloader Options:
-> GraphicsEnabler -> yes
-> kernel Cache -> yes
-> Built-in Ethernet -> yes
-> PCI-Root-1 -> yes
-> USB-Fix -> yes

Graphics Mode:
-> in my case -> 1600x1200x32

Patches:
-> FakeSMC -> yes
-> Disabler -> yes
-> EvOreboot -> yes
-> RTC -> yes
-> SleepEnabler -> yes

Mac Model:
in my case -> imac12,1 ( was then manually modified in imac13, 2 )

Drivers:
->SATA/IDE -> in my case all yes
->SOUND->yes
->USB3,0 -> none
->Hardware Sensors -> in my case all yes
->PS/2 -> yes
->Laptop-> none

VGA:
->Nvidia 10,8.2 drivers ->yes
->OpenCL RAM 2 GB+patch ->yes
->C92 core HDMI->yes
->Network->yes

I hope it will help you further :king:




activate QE/CI in Terminal

first, many thanks to Wayang-NT (Tonyxxxxx)

there's an easiest way to know is QE/CI enabled or no ... do with Terminal .... check it out ....

1. Open Terminal and type

sudo -s
fill password
then type:


defaults read /Library/Preferences/com.apple.windowserver GLCompositor

2. If you have QE/CI enabled, there will be like this:

{ tileHeight = 256; tileWidth = 256; }

but if don't maybe QE/CI not yet enabled

3. Do this to enabling QE/CI


defaults write /Library/Preferences/com.apple.windowserver GLCompositor -dict tileHeight -int 256 tileWidth -int 256

4. Restart machine and do some tests to check QE/CI

enjoy it ....


..................................................................................................................................................................................................................................


Edited by spakk

Share this post


Link to post
Share on other sites

Mm'kay, I'll post my 2nd system too:



CPU: AMD Athlon 64 4000+

Motherboard: Asus K8V-VM SE

GPU: It was NVidia GeForce 6600 256MB with graphicsenabler, now ATI Radeon HD4670, works OOB

RAM: 1.5GB DDR

HDD: 4x80GB IDE

Audio: Realtek ALC660

LAN: Realtek RTL8201CL

Sound: All ports working

PS2: Mouse and keyboard working



Snow Leopard installed with myHack retail usb 10.6.0 and updated to 10.6.8.

Works with Nawcom legacy kernel and Anv kernel, no visible difference between kernels.



Same setup as above, now booting with Sinetek's kernel 10.6.8 FULL 64-bit kernel & extensions, patched dyld. Extremely stable, 8 hours uptime now.

Share this post


Link to post
Share on other sites

Another setup.



CPU: AMD Phenom II 965 @ 3.4Ghz

Motherboard: Asus M4A785TD-V EVO

SB/NB: SB:710 & NB:785G

RAM: 8GB DDR3 1333Mhz

SATA: Tested with 2 HDDs, 80GB and 1Tb, both worked. DVD drive worked too, also burning.

IDE: No idea.

USB 2.0: All ports work.

USB 3.0: I don't have any ports or devices.

Firewire: Boots when enabled, not tested if works

GPU: AMD Radeon HD 5870, works OOB, GraphicsEnabler. QE/CI (graphics glitches, goes away within time)

LAN: Realtek RTL8112L onboard / Realtek RTL8169 (Lnx2Mac)

Sound: VIA VT1708S -> no support, but modified VoodooHDA works.

PS2: Not tested, and I fried my keyboard port by plugging a faulty keyboard in.



Bootloader: Chameleon 2.1 R2069



OS X 10.8.2, installed with myHack. Boots with Sinetek's and AnV's kernels, mach_sse42_only & latest amd_kernel working best.

Custom corecrypto needed with Sinetek's kernel, AnV's latest amd_kernel can't run 32-bit.

Share this post


Link to post
Share on other sites

CPU: AMD Phenom II X4 965 Overclocked to 3.8GHz (and counting)

Motherboard: ASRock 960GM/U3S3 FX

Chipset: AMD 760G

Graphics: ATI Radeon HD 6570. OOB 10.6.8 to 10.7.5, requires ATI6000Controller permissions fix in 10.8 and above, minor lag in 10.8 and above

SATA: SATA and SATA2 both working OOB when set to AHCI

PS/2: Unusable. Not detected OOB, and with ApplePS2 random characters spewing out everywhere

USB: 2.0 working. My 3.0 ports appear to be dead, if they start working I'll edit this post

Audio: Realtek ALC662. Untested as I use a USB headset Update: Not working OOB. Untested with kexts

Ethernet: Realtek 8111E. Untested, but set up as functional in Network Preferences for App Store



Kernel: mach_sse42_only

Bootloader: Latest SVN build of Chameleon

Flags: npci=0x3000

OS: OS X 10.8.2

Share this post


Link to post
Share on other sites

Edit:



drivers to resolve the problem with waiting for root device see upload Still_waiting_for_root_device.zip



Kexts for Mountain Lion 10.8.2:



Nvidia GTX 550 TI Kext for Mountain LION 10.8.2



Im interested in that last bit, I have my working system, you can see my specs in my signiture.



Now Spakk, I have the GTX 550 TI. My system recognizes it just fine, however there are the known issues with AMD and Nvidia on 10.8.2. Are you saying you can boot without -x with that kext you linked to before?





Edit: Spakk, I tried those kexts...no go on my system, Its still recognized....however where before in Safeboot I would have native 1080p resolution, now in safeboot I have 1024x768 :(



EDIT 2: actually, I went through and re-did permissions and it is recognized just fine and native resolution again with the new kexts...im going to do some further tests with these kexts.



EDIT 3: It seems these kexts and frameworks are worse than the "stock" ones. My HDMI output on the card worked fine with the stock ones, it seemed to be a bit faster with stock also i.g. clicking launchpad with the stock ones would actually load(albeit slow) with these ones it froze on me and I had to restart. Back to the originals. But thank you Spakk for linking these for me to test. As always, YMMV

Share this post


Link to post
Share on other sites

CPU: Phenom II 965 BE (corrupt, was slightly overheated once)



Motherboard: Asus M4A785TD-M EVO

Chipset: AMD 785G/SB710

LAN: RTL8112L

SATA: 2x WD 500GB, AHCI Mode

IDE: Samsung 120GB, DVD-RW (both work alone, haven't tried them together)

USB: 2.0, all ports working

RAM: 4GB DDR3-1333

PS/2: not tested

Onboard sound: not tested

Onboard VGA: not tested



Sound: PCI, EMU0404 PCI

GPU: 1GB Radeon 5670 (from Sapphire i think), both VGA and DVI out work. Sometimes the DVI screen turns black at login screen. Plug out and back it in again and it should work.



SL 10.6.8:

Fully working, followed this guide, thanks akimoa. German only, please ask if you need a translation.



ML 10.8.2:

How i did it:



1. Setup bootable usb/hard drive/dvd with myhack.



2. Downloaded the latest kernel from here and replaced the one from the ML myhack device with it. Also downloaded System.kext, AppleATIATA-7 from here (without i got the „Still waiting for root device“ error) and deleted the „Don't Steal Mac OS X“ kext (thanks to unimatrix725 for this hint). Don't forget to repair the permissions on the kext's (chown -R root:wheel /path/to/kext and chmod -R 755 /path/to/kext). I don't know if you have to change the permissions and ownership from the kernel, too.



3. Booted with the following command line: -v npci=0x2000 GraphicsEnabler=No



4. Installation went through to about 96%. Then myhack asked few things about deleting some critical kext's. After that the installation aborted. Reboot failed with boot0: error.



Solutions:

1. Boot ML from your ML myhack device.

2. Install boot loader like Chameleon or Chimera (i took Chimera and installed it from within SL. You could try

to install Chameleon from the ml myhack boot device, but that didn't work for me). You could also

boot ML with the myhack boot device and install the a bootloader.



5. Replace the kernel and install kext's (see Step 2)



6. Boot ML with: -v npci=0x2000 GraphicsEnabler=No (-v just if you want too see the kernel messages ;) )



7. Install Lnx2mac's Realtek drivers.



8. For the EMU0404, i took the kxdriver. Thanks Eugene.



Everythings works so far except for the (for now) usual graphic failures. I you have questions just ask.



Thank you.



Special thanks for all the involved developers who made this possible.



Edit (2013-09-01):

1. Changed a few things and added some more explanation.



2. Seems that the -f kernel command doesn't work anymore in ML. I tried, and my system booted without. So i must have changed something else but don't remember anymore. See here for the explanation and a list of boot flags. Another list with more kernel boot parameters is in this thread.



3. If you play with the UseKernelCache command line, there might be a chance, that your ncpi changes. For example i need to boot with npci=0x2000. When i turn off KernelCache, then i have to boot with npci=0x3000.



Edit (2013-09-09):

1. Changed a few things. Thank you fantomas for pointing that out and sorry.

Edited by nanjuah
InsanelyMac doesn't support the tonymac tools. If you would like to talk about, pls do it on its site. Thnks

Share this post


Link to post
Share on other sites

Here are my working Builds.



CPU: AMD FX 8350 @ 4.0Ghz

Motherboard: Asus CrossHair V Formula-Z

SB/NB: SB:950 & NB:990FX

RAM: 16GB DDR3 1600Mhz

SATA: Tested with 6 HDDs, 60Gb SSD windows 7, 200GB SL, Lion & ML , & others . Blu-Ray drive worked too.

IDE: No.

USB 2.0: All ports work.

USB 3.0: Unknown.

Firewire: Disabled always

GPU: AMD Radeon HD 5970, works after editing 2 kexts, GraphicsEnabler. QE/CI

LAN: Intel 82583V Gigabit

Sound: ALC899 -> no support, but latest VoodooHDA 2.8.0 works on all SL, Lion & ML.

PS2: Not used.



Bootloader: Chameleon 2.1 R2069



Snow Leopard: Installed 10.6 from Nawcom Modcd and then updated to 10.6.8 through software update. After install everything worked correctly with appropriate kexts. Using AnV legacy 10.6.8 V8 R2 kernel in 64-bit UserLand.



Lion: Works in 32-bit with theconnactics 10.7.5 kernel, some fixes were needed (IOPCIFamily.kext etc.) basic stuff. Dodgy Graphics will sometimes not work.



Mountain Lion: Booted Installer, manually created install image and replaced AppleACPIPlatform.kext, IOPCIFamily.kext & IOUSBFamily.kext from acpirollback package by andy. No graphics QE/CI, still working on it. Sinetek "AMD Test Kernel 1" will let me install Mountain Lion and create user. But on next boot only shows a light grey screen that is slowly flashing dim then bright.

Edited by MadMungo

Share this post


Link to post
Share on other sites

Finally able to post here :)



CPU: AMD FX 8120 @ 3.1Ghz

Motherboard: Asrock 970 exreme 4

RAM: 16GB DDR3 1600Mhz

SATA: 1 HDD , 500GB Running win 7

IDE: No.

USB 2.0: All ports work, the USB harddisk running ML is connected to a usb 2.0 port.

USB 3.0: All ports work

Firewire: Disabled always

GPU: AMD Radeon HD 6770 Full QE/CI

LAN: Realtek RTL8111E

Sound: Using my Hercules DJ instinct controller, which has build in soundcard. It worked on ML OOB

PS2: Not used.



Bootloader: Chameleon 2.1 R???

Kernel : http://www.insanelym...ng-amd-kernels/ post:14



Thanks to everybody for helping me!

Share this post


Link to post
Share on other sites

Hi! This is my working AMD Build.



CPU: AMD Phenom II x4 955

Motherboard: Asus m4a89td pro/USB3 (Chipset 890FX/SB850)

RAM: 4gB DDR3 1600Mhz

SATA: All working.

IDE: Don't know.

USB 2.0: Working.

USB 3.0: Working perfectly since my mouse is always there.

Firewire: Don't know.

GPU: AMD Radeon HD5770... Artifacts, graphical issues and that stuff (GraphicsEnabler=No) Waiting for a patch.

LAN: Realtek RTL8111E

Sound: Not working, but i haven't tried to install it yet.



Chameleon 2.1&AnV's latest kernel.

Share this post


Link to post
Share on other sites

My turn, I think:



CPU: AMD Athlon II x2 250 @ 3k

Motherboard: Asus M4A78 (the first one with no extra designations)

Ram: 2G 533 DDR2 Kingston memory

1 SATA drive: 80.03 GB (Snow Leopard boot disc)(GPT)

1 USB2 external drive: 80.03 GB (misc Mac apps and Android apps/os (4.2.2 on my 'Droid device - a B&N NOOK Tablet 16GB (this is a HackDroid))

1 USB2 external DVD r/w drive. (only a 4x speed, but that is all I need)

1 ATAIDE drive: 40.06 GB IDE harddrive (this is my Windoze7Ultimate boot drive)

1 ATAIDE drive: 163.93 GB IDE harddrive (misc OSX, Windoze and Anddroid appls (plus installation software for each) Also my music for Itunes and videos and movies. This stuff is all accessable by both Windoze and OSX OS's.

IDE drives enabled by inserting AppleATIATA.kext ver. 1.0.3 in /S/L/E with KextWizard.

Audio: On-board enabled by VoodooHDA 2.7.3 plus HDAEnabler888b.kext: full range sound in stereo. (some things do quadraphonic.)

Video: ATI Radeon HD 4350 enabled by GraphicsEnabler and ATI4350.Fix.kexts Fully operational QE/CI and drives 3 monitors. HDMI, DVI, and VGA outputs all work.

Lan: RTL8168 enabled by RealtekRTL81xx.kext



OS: Mac OS-X 10.6.8

Chameleon 2.2svn r2168 (1-18-2013)

FakeSMC.kext ver. 4.2.0

Kernel: legacy_kernel_V8 with boot args: -v cpus=1 busratio=15 arch=i386 -force64 GraphicsEnabler=Yes PCIRootUID=1

Original install iATKOS S3 v2 with chocolate_kernel. Updated by downloading 10.6.8 combo update dmg and installing that then installing legacy_kernel_V8 before restart.



Been operating this setup since Jan of 2012 with no hickups



(I am attempting to install the new 64bit kernel for AMD at this time.)

Share this post


Link to post
Share on other sites

Ok my running builds are :

OsX 10.6.8

running pretty well on Fx 6100, Radeon HD 6850, Asus M4A89GTD Pro , Samsung HDD 200





OsX 10.7.5

runs on the same gig only on a Samsung 640 Gb HDD



OsX 10.8.2



idem but on a 200Gb Samsung HDD



10.8.2 GraphicsCard is recognised but keeps , the same as everybody else , glitches ( Thx to Sinetek , AnV , theconnactic , Gils83 and last but not least Bitcore





My first real mac had a 603 proc ! 1Gb of HDD and it ran at 100Mhz ! My last decent one was a powerbook G4 .....Thinkin about to buy a real one again

Share this post


Link to post
Share on other sites

10.8.2 (AMD Kernel from the first post of the mountain lion development thread)

AMD Phenom II X6 1090t

8GB Mushkin DDR3 Ram

MSI Twin Forzr II Unlocked Shaders AMD Radeon HD 6950 2GB (Graphical corruption and artifiacts still, but QE/CI Works on 3 monitors. You have to use the 10.8.2 6970 package from netkas.org and boot using IGP then switch over to 6950).

OCZ 120GB SSD (Forgot what the model is something 3)

ASUS cheap motherboard

2x maxtor 160GB



Overall, it runs quite fast other than the graphical issues. 9372 geek bench score

Share this post


Link to post
Share on other sites

MIne is :- { Snow Leopard 10.6.8 (with legacy kernel) and LION (bronzovka AMD kernel ) }



CPU : AMD Athlon LE-1640 2.7GHZ

MOBO :Assus M2N8-AM SE2

GPU :Nvidia Geforce 9400GT 1GB

SSD :250 GB

Ram :8 GB

IDE :NforceAta ( i haven't try but may be work )



Working

1:-Sound voodoohda 2.7.4

2:-Ethernet NLAN

3:-sleep

4:-Graphics card Nvidia Geforce 9400GT 1GB

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
