Matgen84 Posted October 2, 2018 Share Posted October 2, 2018 Hi I don't understand well commit r4692: VirtualSMC support: checkout and compilation (XCODE5 only ATM) I don't have virtualsmc-64.efi when I use my build script with Xcode 10. Tell me why, please. Sorry if this comment is off-topic Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638329 Share on other sites More sharing options...
pkdesign Posted October 2, 2018 Share Posted October 2, 2018 Just an FYI, i installed 4674 on my legacy rig and I could not boot. Just got a (non-blinking) cursor in the upper left hand corner. I had to go back to 4658 in order to boot. I also have a question about BIOS boot systems. There are four kexts, that I do not believe have anything to do with FileVault, listed in the "BIOS Drivers" section. But do they need to be installed? My system runs fine without them but not sure if I need them anyway: FSInject SMCHelper ApfsDriver laoder AppleEfiFat Also, there are always some UEFI drivers that have check marks next to them even though I am insatlling on a BIOS based system. I always have to uncheck these. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638381 Share on other sites More sharing options...
telepati Posted October 2, 2018 Share Posted October 2, 2018 10 hours ago, ccphuc2016 said: where download new Clover ? Thank My Clover 4674 sourceforge.net You can download from here. He releases immediately every new update; https://github.com/Dids/clover-builder/releases 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638388 Share on other sites More sharing options...
vonmolk Posted October 2, 2018 Share Posted October 2, 2018 I remember back when fusion drives first came out that clover would not install to the efi partition. This seems to have returned with the apfs fusion drives. It installs to the root partition. It does not mount the efi partition to install. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638405 Share on other sites More sharing options...
D-an-W Posted October 2, 2018 Share Posted October 2, 2018 11 hours ago, Slice said: Highlighted drivers are not needed. As well as AppleImageLoader. Hi Slice, I was under the impression that both ApfsDriverLoader-64.efi and AppleImageLoader-64.efI were required if not using APFS.efi? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638410 Share on other sites More sharing options...
Slice Posted October 2, 2018 Share Posted October 2, 2018 13 minutes ago, D-an-W said: Hi Slice, I was under the impression that both ApfsDriverLoader-64.efi and AppleImageLoader-64.efI were required if not using APFS.efi? Both not required. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638411 Share on other sites More sharing options...
D-an-W Posted October 2, 2018 Share Posted October 2, 2018 Even when usIng APFS on Mojave and no APFS.efi? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638426 Share on other sites More sharing options...
vector sigma Posted October 2, 2018 Share Posted October 2, 2018 15 minutes ago, D-an-W said: Even when usIng APFS on Mojave and no APFS.efi? APFSDriverLoader works also booting 10.13 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638430 Share on other sites More sharing options...

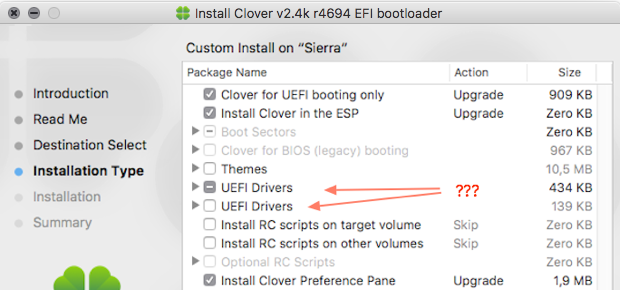

LAbyOne Posted October 2, 2018 Share Posted October 2, 2018 (edited) Sorry guys, but wasn't that suggested for clearing doubts about which drivers choose during installation? FV-UEFI Drivers was the intent.. i guess anyway thx for doing it Edited October 2, 2018 by LAbyOne Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638434 Share on other sites More sharing options...
LockDown Posted October 3, 2018 Share Posted October 3, 2018 17 hours ago, Slice said: Highlighted drivers are not needed. As well as AppleImageLoader. @Slice What is AppleImageLoader for if its not mandatory? Is it part of FV too? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638443 Share on other sites More sharing options...
Sherlocks Posted October 3, 2018 Share Posted October 3, 2018 [mention=112217]Slice[/mention] What is AppleImageLoader for if its not mandatory? Is it part of FV too?read herehttps://github.com/acidanthera/AppleSupportPkg/blob/master/README.md나의 LG-F800S 의 Tapatalk에서 보냄 Sorry guys, but wasn't that suggested for clearing doubts about which drivers choose during installation? FV-UEFI Drivers was the intent.. i guess anyway thx for doing iti found it. i will change it나의 LG-F800S 의 Tapatalk에서 보냄 3 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638444 Share on other sites More sharing options...

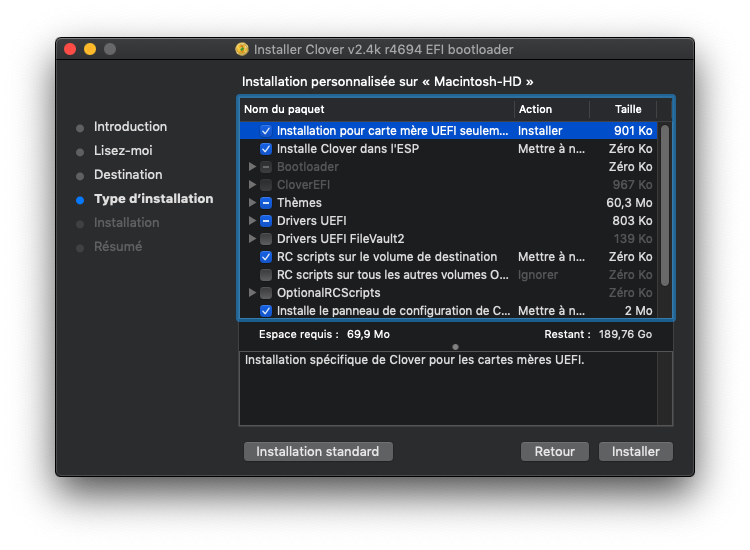

chris1111 Posted October 3, 2018 Share Posted October 3, 2018 No issue about description choice here 2 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638445 Share on other sites More sharing options...
LockDown Posted October 3, 2018 Share Posted October 3, 2018 16 minutes ago, Sherlocks said: read herehttps://github.com/acidanthera/AppleSupportPkg/blob/master/README.md I have read that. but still, is it part of FV or partner of ApfsDriverLoder that they must exist together? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638450 Share on other sites More sharing options...
Sherlocks Posted October 3, 2018 Share Posted October 3, 2018 (edited) 52 minutes ago, ellaosx said: I have read that. but still, is it part of FV or partner of ApfsDriverLoder that they must exist together? i saw that AppleImageLoader -> osxfatbinary driver replacement AppleUISupport(AIO) -> Old FV2 drivers replacement ApfsDriverLoader -> loading original apfs driver without manually adding and checking latest apfs file when update macOS anyone who check package in english? Edited October 3, 2018 by Sherlocks 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638457 Share on other sites More sharing options...
LockDown Posted October 3, 2018 Share Posted October 3, 2018 (edited) 19 minutes ago, Sherlocks said: AppleImageLoader -> osxfatbinary driver replacement Ahh, i didn't know this. Because the last time i asked, it was still under developement. So its ok to replace osxfatbinary with appleimageloader now? Thanks! Edited October 3, 2018 by ellaosx Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638458 Share on other sites More sharing options...
Sherlocks Posted October 3, 2018 Share Posted October 3, 2018 Ahh, i didn't know this. Because the last time i asked, it was still under developement. So its ok to replace osxfatbinary with appleimageloader now? Thanks! not yet. appleimageloader need more development to replace osxfatbinary. i checked this result. i recommend you use appleimageloader and osxfatbinary until complete appleimageloader. hope wait and appreciate to savvass for hard work나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638461 Share on other sites More sharing options...
LockDown Posted October 3, 2018 Share Posted October 3, 2018 6 minutes ago, Sherlocks said: i recommend you use appleimageloader and osxfatbinary until complete appleimageloader. Are you saying I will use both? Ok. i will use both for a test Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638464 Share on other sites More sharing options...
telepati Posted October 3, 2018 Share Posted October 3, 2018 44 minutes ago, Sherlocks said: AppleUISupport(AIO) -> Old FV2 drivers replacement are we still need AppleUISupport if we don't use FV2? I think it is in the release notes AppleImageLoader and AppleUISupport must be used together is that right? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638465 Share on other sites More sharing options...
Sherlocks Posted October 3, 2018 Share Posted October 3, 2018 are we still need AppleUISupport if we don't use FV2? I think it is in the release notes AppleImageLoader and AppleUISupport must be used together is that right?actually no need both for boot if you don't need FV2. if you use FV2, not sure that must be use both. because i can't test FV2 by myself. anyway in readme, AppleImageloader doesn't have FileVault word. mentioned only Fat word. i think AppleUISupport is only for FV2 나의 LG-F800S 의 Tapatalk에서 보냄 1 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638466 Share on other sites More sharing options...
Matgen84 Posted October 3, 2018 Share Posted October 3, 2018 (edited) 24 minutes ago, Sherlocks said: actually no need both for boot if you don't need FV2. if you use FV2, not sure that must be use both. because i can't test FV2 by myself. anyway in readme, AppleImageloader doesn't have FileVault word. mentioned only Fat word. i think AppleUISupport is only for FV2 나의 LG-F800S 의 Tapatalk에서 보냄 You're right about AppleUiSupport. It implements FileVault support and replaces AppleKeyMapAggregator.efi, AppleEvent.efi, AppleUiTheme.efi, FirmwareVolume.efi, AppleImageCodec.efi. (Readme.md from repo AppleSupportPkg) Edited October 3, 2018 by Matgen84 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638470 Share on other sites More sharing options...
Matgen84 Posted October 3, 2018 Share Posted October 3, 2018 Hi I don't understand well commit r4692: VirtualSMC support: checkout and compilation (XCODE5 only ATM) I don't have virtualsmc-64.efi when I use my build script with Xcode 10. Tell me why, please. Sorry if this comment is off-topic Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638472 Share on other sites More sharing options...
D-an-W Posted October 3, 2018 Share Posted October 3, 2018 (edited) Thanks folks, This is what I have now and both Sierra (10.12.6) and Mojave (10.41.1) boot just fine... Now I just need to verify if I need SMCHelper-64.efi after checking my Kexts but I am almost certain I use the Kozlek one built with HWMonitor. EDIT: Using either FakeSMC.kext (Slice or Kozlek) and with SMCHelper-64.efi present I get this is my Config.plst... Removing SMCHelper-64.efi and with the Kozlek FakeSMC.kext I get this... So it would appear SMCHelper-64.efi is having an effect with that version of FakeSMC.kext loaded? Edited October 3, 2018 by D-an-W 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638481 Share on other sites More sharing options...
Faradis Posted October 3, 2018 Share Posted October 3, 2018 @Slice i install osx ubuntu and windows on same disk in uefi mode but after installing ubuntu my clover bootloader entries from bios also force boot to grub bootloader how to fix this. No matter what entry i choose from boot menu it always boot to grub and from them i can only boot to windows or ubuntu but cant find clover. how to fix this issue?? pls help me Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638619 Share on other sites More sharing options...
joevt Posted October 3, 2018 Share Posted October 3, 2018 1 hour ago, Faradis said: @Slice i install osx ubuntu and windows on same disk in uefi mode but after installing ubuntu my clover bootloader entries from bios also force boot to grub bootloader how to fix this. No matter what entry i choose from boot menu it always boot to grub and from them i can only boot to windows or ubuntu but cant find clover. how to fix this issue?? pls help me Boot into Windows. Download EasyUEFI, and create new boot entries for Clover and Windows. Choose the EFI boot loader for each OS located in their folder in the EFI folder of the EFI partition. The BootX64.efi is the default loader. Compare it (file size) with the Ubuntu or other loaders to see which one it is. You can replace it with the Clover or Windows efi boot loader. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638633 Share on other sites More sharing options...
mhaeuser Posted October 4, 2018 Share Posted October 4, 2018 21 hours ago, Sherlocks said: AppleImageLoader -> osxfatbinary driver replacement that + APFS.efi signature verification via ApfsDriverLoader. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/718/#findComment-2638637 Share on other sites More sharing options...
