Andrey1970 Posted October 13, 2018 Share Posted October 13, 2018 On 10/10/2018 at 4:37 PM, Dr. Hurt said: SetIntelMaxBacklight=True broke after updating clover!! I confirm a bug. On 4695 works well. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640493 Share on other sites More sharing options...
Dr. Hurt Posted October 13, 2018 Share Posted October 13, 2018 16 minutes ago, Andrey1970 said: I confirm a bug. On 4695 works well. Make sure SetIntelBacklight is also set to true. This seems like a rather annoying new requirement. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640495 Share on other sites More sharing options...
Andrey1970 Posted October 13, 2018 Share Posted October 13, 2018 47 minutes ago, Dr. Hurt said: Make sure SetIntelBacklight is also set to true. This seems like a rather annoying new requirement. This is fixed https://sourceforge.net/p/cloverefiboot/code/4705/ 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640500 Share on other sites More sharing options...
arimuras Posted October 13, 2018 Share Posted October 13, 2018 ApfsDriverLoader.efi APFS Format Fusion Drive Support ? Clover Scan Entries stuck Not boot Manualy add apfs.efi Boot Ok --- Mojave 10.14.0 Clover 4705 ApfsDriverLoader AppleSupport v2.0.4 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640559 Share on other sites More sharing options...
Slice Posted October 14, 2018 Share Posted October 14, 2018 15 hours ago, arimuras said: ApfsDriverLoader.efi APFS Format Fusion Drive Support ? Clover Scan Entries stuck Not boot Manualy add apfs.efi Boot Ok --- Mojave 10.14.0 Clover 4705 ApfsDriverLoader AppleSupport v2.0.4 What if you choose ApfsDriverLoader and other efi drivers from Clover release 4700 package? Exclude outer drivers like AppleSupport. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640710 Share on other sites More sharing options...

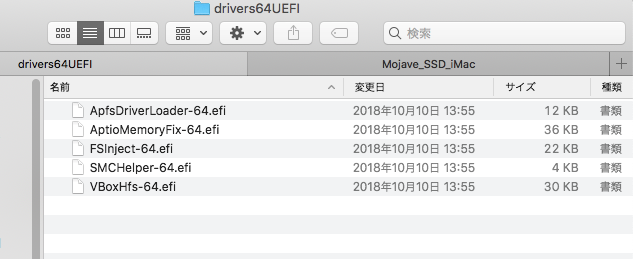

arimuras Posted October 14, 2018 Share Posted October 14, 2018 13 minutes ago, Slice said: What if you choose ApfsDriverLoader and other efi drivers from Clover release 4700 package? Exclude outer drivers like AppleSupport. Clover release 4700 package Same problem Clover Scan Entries stuck attach, efi driver sorry for my bad english. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640713 Share on other sites More sharing options...
Matgen84 Posted October 14, 2018 Share Posted October 14, 2018 51 minutes ago, arimuras said: Clover release 4700 package Same problem Clover Scan Entries stuck attach, efi driver sorry for my bad english. Did ApfsDriverLoader.efi work before? For compatibility with Fusion, I think you have to ask @savvas Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640716 Share on other sites More sharing options...
Andres ZeroCross Posted October 14, 2018 Share Posted October 14, 2018 1 hour ago, arimuras said: Clover release 4700 package Same problem Clover Scan Entries stuck attach, efi driver sorry for my bad english. Try to add "AppleImageLoader-64.efi" to avioid stuck. just use ApfsDriverLoader-6.efi instead APFS.efi Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640719 Share on other sites More sharing options...

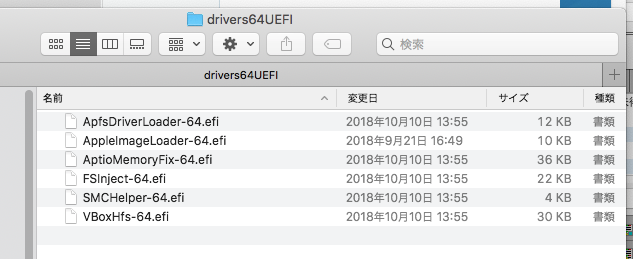

arimuras Posted October 14, 2018 Share Posted October 14, 2018 2 hours ago, Andres ZeroCross said: Try to add "AppleImageLoader-64.efi" to avioid stuck. just use ApfsDriverLoader-6.efi instead APFS.efi Thank you for your reply Clover release 4700 package Try to add AppleImageLoader-64.efi Same, Clover Scan Entries stuck Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640737 Share on other sites More sharing options...
Andres ZeroCross Posted October 14, 2018 Share Posted October 14, 2018 5 minutes ago, arimuras said: Thank you for your reply Clover release 4700 package Try to add AppleImageLoader-64.efi Same, Clover Scan Entries stuck What of your boot mode?? Legacy or UEFI? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640738 Share on other sites More sharing options...
arimuras Posted October 14, 2018 Share Posted October 14, 2018 4 minutes ago, Andres ZeroCross said: What of your boot mode?? Legacy or UEFI? Boot mode "UEFI" Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640739 Share on other sites More sharing options...
Andres ZeroCross Posted October 14, 2018 Share Posted October 14, 2018 Boot mode "UEFI" This is mine, maybe you can try it. Same filesSent from my Mi Note 2 using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640741 Share on other sites More sharing options...

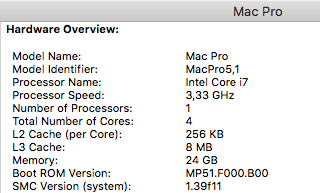

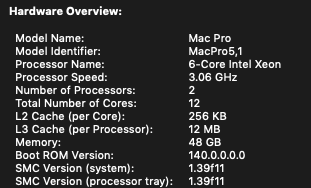

Moorre Posted October 14, 2018 Share Posted October 14, 2018 On 10/11/2018 at 12:49 PM, Sherlocks said: I updated biosversion from mojave 10.14.1 beta3. the most of updated models support mojave. Hi! I've managed the new thing. When I manually update BootROM version to the "latest", I have an error. My Hardware Overview has the wrong Boot ROM Version (MP51.F000.B00) which now should be 140.0.0.0 like here. That is why I cant update my "MacPro5,1" to Mojave with metal-compatible card HD7770. @slice, I think we now have to add this case for Mojave- compatible machines, like "EFI Version" BootROM version (EFI Version: 140.0.0.0.0) into Platformdata.c typedef struct: $IBIOSI$ MP51.88Z.F000.B00.1809191555 Apple ROM Version Model: MP51 EFI Version: 140.0.0.0.0 Date: Wed Sep 19 15:49:52 2018 Build Type: Release Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640918 Share on other sites More sharing options...

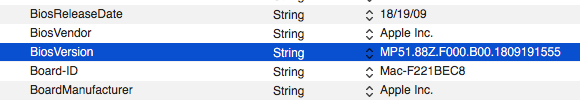

Sherlocks Posted October 14, 2018 Share Posted October 14, 2018 Hi! I've managed the new thing. When I manually update BootROM version to the "latest", I have an error. My Hardware Overview has the wrong Boot ROM Version (MP51.F000.B00) which now should be 140.0.0.0 like here. That is why I cant update my "MacPro5,1" to Mojave with metal-compatible card HD7770. [mention=112217]slice[/mention], I think we now have to add this case for Mojave- compatible machines, like "EFI Version" BootROM version (EFI Version: 140.0.0.0.0) into Platformdata.c typedef struct:$IBIOSI$ MP51.88Z.F000.B00.1809191555Apple ROM Version Model: MP51 EFI Version: 140.0.0.0.0 Date: Wed Sep 19 15:49:52 2018 Build Type: Release i also checked some models(MBP15,x/MP5,1/etc) changed biosversion part(?) or added EFI version part(?). probably seems changed it in 10.14.1 beta or 10.14 release. i think need DMI dump from realmac for clear between Boot Version and EFI version. EDIT1EFI version and BootROM version same? so no need BootROM? when you first reported, your biosversion is BootROM version. hmm. 나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640920 Share on other sites More sharing options...
Moorre Posted October 14, 2018 Share Posted October 14, 2018 27 minutes ago, Sherlocks said: i also checked some models(MBP15,x/MP5,1/etc) changed biosversion part(?) or added EFI version part(?). probably seems changed it in 10.14.1 beta or 10.14 release. i think need DMI dump from realmac for clear between Boot Version and EFI version. From PB6 it has changed. Click. Quote 20180813: BootROM 138.0.0.0.0New BootROM 138.0.0.0.0 for Mac Pro 5,1 with updated microcodes (0x106A5 29 and 0x206C2 31), support for 5GT/s link speed on macOS/Windows without R17 mod, enabled HDMI audio on RX480 and new/improved firmware flasher on Mojave DP7/PB6 (18A365a) full installer. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640927 Share on other sites More sharing options...
Sherlocks Posted October 14, 2018 Share Posted October 14, 2018 thanks. new BootROM format can install HS?or do we have to consider it for only mojave?나의 LG-F800S 의 Tapatalk에서 보냄 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640928 Share on other sites More sharing options...

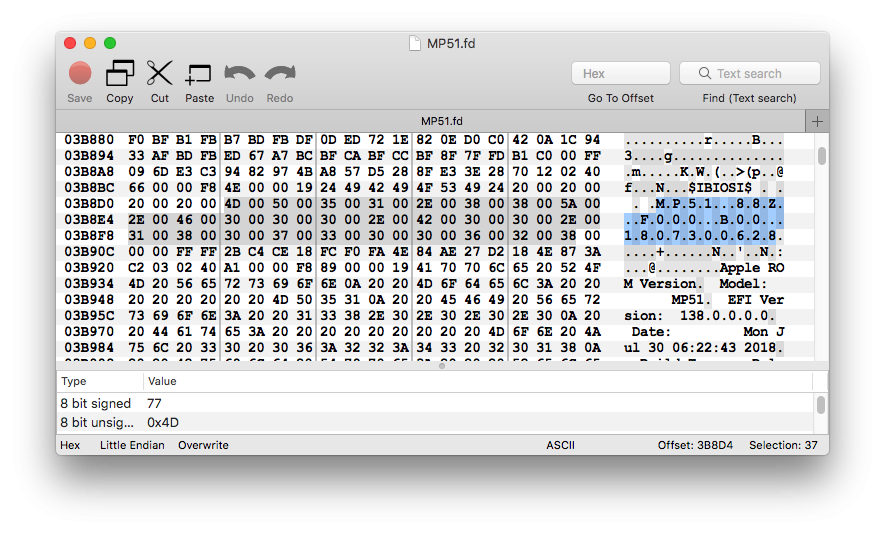

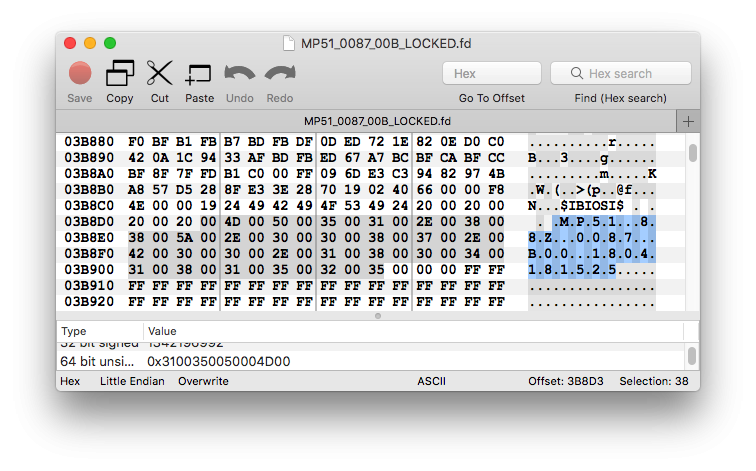

Moorre Posted October 14, 2018 Share Posted October 14, 2018 1 minute ago, Sherlocks said: thanks. new BootROM format can install HS? or do we have to consider it for only mojave? Maybe it can. Click. Quote 13[8,9].0.0.0.0 don't change the ability of booting previous macOS versions. Can you see at my screenshots $IBIOSI$ click and no EFI Version. 0089 is the same. But from EFI Version 138.0.0.0.0 a BIOS has more lines click: Quote $IBIOSI$ Apple ROM Version Model EFI Version Date I attached ver 138.0.0.0.0 if you want to search with UEFITool. Try plz. MP51.fd.zip Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640930 Share on other sites More sharing options...
Badruzeus Posted October 15, 2018 Share Posted October 15, 2018 (edited) Anyway, what does mean with this bootlog? (not sure since which Clover rev, but on my case is using r4706) 56:850 0:395 w=xxx, h=yyy 56:851 0:000 draw on background Is this for debugging purpose related to GUI or..? Fyi, I got these long logs on diff. 3 locations hmmb.. Spoiler 0:100 0:000 Starting Clover revision: 4706 on American Megatrends EFI 0:100 0:000 Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/badruzeus/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.11.6 | XCODE: 8.2.1] ..... ..... ... 0:929 0:000 === [ LoadDrivers ] ======================================= 0:933 0:003 Loading AppleImageLoader-64.efi status=Success 0:937 0:004 Loading AptioMemoryFix-64.efi status=Success 0:938 0:000 Loading CsmVideoDxe-64.efi status=Success 0:940 0:001 - driver needs connecting 0:940 0:000 Loading DataHubDxe-64.efi status=Success 0:944 0:004 Loading EnglishDxe-64.efi status=Success 0:945 0:000 Loading FSInject-64.efi status=Success 0:946 0:000 Loading VBoxHfs-64.efi status=Success 0:946 0:000 - driver needs connecting 0:946 0:000 2 drivers needs connecting ... 0:946 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 0:946 0:000 Video driver loaded: disconnect Success 1:017 0:070 Searching for invalid DiskIo BY_DRIVER connects: 1:017 0:000 - Handle 2169118 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: 1703618, Disconnect: Success 1:017 0:000 - Handle 217ED98 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: 1703618, Disconnect: Success 1:032 0:015 CsmVideoDriverBindingStart 1:032 0:000 mixed support=40010 1:032 0:000 Controller is [030000] 1:032 0:000 Check for VBE 1:232 0:199 0 640x480 attr=3BF - ok, 640x480, working, highest, pref=0 1:234 0:001 1 800x600 attr=3BF - ok, 800x600, working, highest, pref=1 1:235 0:001 2 1024x768 attr=3BF - ok, 1024x768, working, highest, pref=2 1:245 0:010 3 1360x768 attr=3BF - ok 1:245 0:000 CsmVideo: New mode: 2 1024x768 - set 1:467 0:221 - SetMode pref 2 (2) = Success 1:467 0:000 CsmVideoCheckForVbe - Success 1:467 0:000 CsmVideoDriverBindingStart end Success 1:468 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch 1:836 0:367 === [ InitScreen ] ======================================== 1:836 0:000 SetScreenResolution: 1360x768 - setting Mode 3 1:836 0:000 CsmVideo: New mode: 3 1360x768 - set 2:136 0:300 Video mode change to mode #3: Success 2:136 0:000 Console modes reported: 3, available modes: 2:136 0:000 - [01]: 80x25 (current mode) 2:136 0:000 - [03]: 100x31 2:136 0:000 SetScreenResolution: 1360x768 - already set ..... ..... ... 56:455 0:000 === [ FindStartupDiskVolume ] ============================= 56:455 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,FC06ABAF-DEA8-446D-A678-61E403314E40,0x4EDF2B8,0xB7A0E70) 56:455 0:000 - searching for that partition 56:455 0:000 - found entry 1. 'OS X El Capitan', Volume 'Macintosh HD' 56:455 0:000 Boot redirected to Entry 1. 'OS X El Capitan' 56:455 0:000 DefaultIndex=1 and MainMenu.EntryCount=12 56:850 0:395 w=320, h=160 56:851 0:000 draw on background 56:861 0:009 w=180, h=180 56:861 0:000 draw on background 56:864 0:003 w=180, h=180 56:864 0:000 draw on background 56:867 0:002 w=180, h=180 56:867 0:000 draw on background 56:870 0:002 w=180, h=180 56:870 0:000 draw on background 56:873 0:002 w=180, h=180 56:874 0:000 draw on background 56:876 0:002 w=180, h=180 56:877 0:000 draw on background 56:879 0:002 w=72, h=72 56:879 0:000 draw on background 56:880 0:000 w=72, h=72 56:880 0:000 draw on background 56:880 0:000 w=72, h=72 56:880 0:000 draw on background 56:881 0:000 w=72, h=72 56:881 0:000 draw on background 56:881 0:000 w=72, h=72 56:881 0:000 draw on background 56:882 0:000 w=72, h=72 56:882 0:000 draw on background 56:882 0:000 w=165, h=22 56:882 0:000 draw on background 56:883 0:000 w=1354, h=22 56:883 0:000 draw on background 56:885 0:002 w=44, h=22 56:885 0:000 draw on background 58:868 1:982 w=320, h=160 58:868 0:000 draw on background 58:872 0:003 w=297, h=22 58:872 0:000 draw on background 58:873 0:000 w=160, h=160 58:873 0:000 draw on background 58:875 0:002 w=1018, h=22 58:875 0:000 draw on background 58:877 0:001 w=1018, h=22 58:877 0:000 draw on background 58:879 0:001 w=1018, h=22 58:879 0:000 draw on background 58:881 0:001 w=1018, h=22 58:881 0:000 draw on background 58:883 0:001 w=1018, h=22 58:883 0:000 draw on background 58:891 0:008 w=1018, h=22 58:892 0:000 draw on background 58:893 0:001 w=1018, h=22 58:894 0:000 draw on background 58:895 0:001 w=1018, h=22 58:895 0:000 draw on background 58:897 0:001 w=1018, h=22 58:897 0:000 draw on background 58:899 0:001 w=1018, h=22 58:899 0:000 draw on background 58:901 0:001 w=1018, h=22 58:901 0:000 draw on background 58:903 0:001 w=1018, h=22 58:903 0:000 draw on background 58:905 0:001 w=15, h=15 58:905 0:000 draw on background 58:905 0:000 w=1018, h=22 58:905 0:000 draw on background 58:907 0:001 w=1018, h=22 58:907 0:000 draw on background 58:908 0:001 w=15, h=15 58:908 0:000 draw on background 58:908 0:000 w=1018, h=22 58:909 0:000 draw on background 58:910 0:001 w=1018, h=22 58:910 0:000 draw on background 58:912 0:001 w=15, h=15 58:912 0:000 draw on background 58:912 0:000 w=1018, h=22 58:912 0:000 draw on background 58:914 0:001 w=1018, h=22 58:914 0:000 draw on background 58:916 0:001 w=15, h=15 58:916 0:000 draw on background 58:916 0:000 w=1018, h=22 58:916 0:000 draw on background 58:918 0:001 w=1018, h=22 58:918 0:000 draw on background 58:920 0:001 w=15, h=15 58:920 0:000 draw on background 58:920 0:000 w=1018, h=22 58:920 0:000 draw on background 58:921 0:001 w=1018, h=22 58:922 0:000 draw on background 58:923 0:001 w=15, h=15 58:923 0:000 draw on background 58:923 0:000 w=1018, h=22 58:923 0:000 draw on background 58:925 0:001 w=1018, h=22 58:925 0:000 draw on background 58:927 0:001 w=15, h=15 58:927 0:000 draw on background 58:927 0:000 w=1018, h=22 58:927 0:000 draw on background 58:929 0:001 w=1018, h=22 58:929 0:000 draw on background 58:931 0:001 w=15, h=15 58:931 0:000 draw on background 58:931 0:000 w=1018, h=22 58:931 0:000 draw on background 58:933 0:001 w=1018, h=22 58:933 0:000 draw on background 58:934 0:001 w=15, h=15 58:934 0:000 draw on background 58:935 0:000 w=16, h=308 58:935 0:000 draw on background 59:154 0:218 w=1018, h=22 59:154 0:000 draw on background 59:155 0:001 w=1018, h=22 59:156 0:000 draw on background 59:157 0:001 w=16, h=308 59:158 0:000 draw on background 59:326 0:168 w=1018, h=22 59:326 0:000 draw on background 59:328 0:001 w=1018, h=22 59:328 0:000 draw on background 59:330 0:001 w=16, h=308 59:330 0:000 draw on background 59:470 0:140 w=1018, h=22 59:470 0:000 draw on background 59:472 0:001 w=1018, h=22 59:472 0:000 draw on background 59:474 0:001 w=16, h=308 59:474 0:000 draw on background 59:615 0:140 w=1018, h=22 59:615 0:000 draw on background 59:616 0:001 w=1018, h=22 59:617 0:000 draw on background 59:619 0:001 w=16, h=308 59:619 0:000 draw on background 59:755 0:136 w=1018, h=22 59:755 0:000 draw on background 59:757 0:001 w=1018, h=22 59:757 0:000 draw on background 59:759 0:001 w=15, h=15 59:759 0:000 draw on background 59:759 0:000 w=16, h=308 59:759 0:000 draw on background 60:191 0:432 w=1018, h=22 60:191 0:000 draw on background 60:193 0:001 w=1018, h=22 60:193 0:000 draw on background 60:195 0:001 w=15, h=15 60:195 0:000 draw on background 60:195 0:000 w=16, h=308 60:195 0:000 draw on background 60:620 0:424 w=1018, h=22 60:620 0:000 draw on background 60:622 0:001 w=15, h=15 60:622 0:000 draw on background 60:622 0:000 w=1018, h=22 60:622 0:000 draw on background 60:624 0:001 w=15, h=15 60:624 0:000 draw on background 60:624 0:000 w=16, h=308 60:624 0:000 draw on background 60:786 0:162 w=1018, h=22 60:786 0:000 draw on background 60:788 0:001 w=15, h=15 60:788 0:000 draw on background 60:788 0:000 w=1018, h=22 60:789 0:000 draw on background 60:790 0:001 w=15, h=15 60:790 0:000 draw on background 60:790 0:000 w=16, h=308 60:790 0:000 draw on background 60:937 0:146 w=1018, h=22 60:937 0:000 draw on background 60:939 0:001 w=15, h=15 60:939 0:000 draw on background 60:939 0:000 w=1018, h=22 60:939 0:000 draw on background 60:941 0:001 w=15, h=15 60:941 0:000 draw on background 60:941 0:000 w=16, h=308 60:941 0:000 draw on background 61:066 0:125 w=1018, h=22 61:066 0:000 draw on background 61:068 0:001 w=15, h=15 61:068 0:000 draw on background 61:068 0:000 w=1018, h=22 61:069 0:000 draw on background 61:070 0:001 w=15, h=15 61:070 0:000 draw on background 61:070 0:000 w=16, h=308 61:070 0:000 draw on background 61:200 0:130 w=1018, h=22 61:201 0:000 draw on background 61:202 0:001 w=15, h=15 61:202 0:000 draw on background 61:202 0:000 w=1018, h=22 61:203 0:000 draw on background 61:204 0:001 w=15, h=15 61:204 0:000 draw on background 61:204 0:000 w=16, h=308 61:204 0:000 draw on background 61:602 0:397 w=1018, h=22 61:602 0:000 draw on background 61:603 0:001 w=15, h=15 61:603 0:000 draw on background 61:604 0:000 w=1018, h=22 61:604 0:000 draw on background 61:605 0:001 w=15, h=15 61:606 0:000 draw on background 61:606 0:000 w=16, h=308 61:606 0:000 draw on background 62:291 0:685 w=1018, h=22 62:291 0:000 draw on background 62:293 0:001 w=15, h=15 62:293 0:000 draw on background 62:293 0:000 w=1018, h=22 62:293 0:000 draw on background 62:295 0:001 w=15, h=15 62:295 0:000 draw on background 62:295 0:000 w=16, h=308 62:295 0:000 draw on background 62:460 0:164 w=1018, h=22 62:460 0:000 draw on background 62:462 0:001 w=15, h=15 62:462 0:000 draw on background 62:462 0:000 w=1018, h=22 62:462 0:000 draw on background 62:464 0:001 w=15, h=15 62:464 0:000 draw on background 62:464 0:000 w=16, h=308 62:464 0:000 draw on background 62:608 0:144 w=1018, h=22 62:608 0:000 draw on background 62:610 0:001 w=15, h=15 62:610 0:000 draw on background 62:610 0:000 w=1018, h=22 62:610 0:000 draw on background 62:612 0:001 w=15, h=15 62:612 0:000 draw on background 62:612 0:000 w=16, h=308 62:612 0:000 draw on background 62:763 0:151 w=1018, h=22 62:763 0:000 draw on background 62:765 0:001 w=15, h=15 62:765 0:000 draw on background 62:765 0:000 w=1018, h=22 62:765 0:000 draw on background 62:767 0:001 w=15, h=15 62:767 0:000 draw on background 62:767 0:000 w=16, h=308 62:767 0:000 draw on background 62:899 0:131 w=1018, h=22 62:899 0:000 draw on background 62:900 0:001 w=15, h=15 62:901 0:000 draw on background 62:901 0:000 w=1018, h=22 62:901 0:000 draw on background 62:903 0:001 w=15, h=15 62:903 0:000 draw on background 62:903 0:000 w=16, h=308 62:903 0:000 draw on background 63:051 0:148 w=1018, h=22 63:051 0:000 draw on background 63:053 0:001 w=15, h=15 63:053 0:000 draw on background 63:053 0:000 w=1018, h=22 63:053 0:000 draw on background 63:055 0:001 w=16, h=308 63:055 0:000 draw on background 63:194 0:138 w=1018, h=22 63:194 0:000 draw on background 63:196 0:001 w=1018, h=22 63:196 0:000 draw on background 63:198 0:001 w=16, h=308 63:198 0:000 draw on background 63:355 0:157 w=1018, h=22 63:355 0:000 draw on background 63:357 0:001 w=1018, h=22 63:358 0:000 draw on background 63:359 0:001 w=16, h=308 63:359 0:000 draw on background 63:513 0:153 w=1018, h=22 63:513 0:000 draw on background 63:515 0:001 w=1018, h=22 63:515 0:000 draw on background 63:517 0:001 w=16, h=308 63:517 0:000 draw on background 63:977 0:460 boot with args: slide=128 darkwake=0 -v nvda_drv=1 63:977 0:000 ParseBootOption: invalid input params 63:977 0:000 BootVariable of the entry is empty 63:977 0:000 === [ StartLoader ] ======================================= 63:977 0:000 Finally: ExternalClock=25MHz BusSpeed=99774kHz CPUFreq=2195MHz PIS: hw.busfrequency=100000000Hz 63:977 0:000 Loading boot.efi status=Success 64:472 0:494 GetOSVersion: 10.11.6 (15G22010) ...... ..... ... 64:500 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 64:500 0:000 Extra kext: EFI\CLOVER\kexts\Other\CalDigitFastIO.kext (v.2.6.1) 64:528 0:027 Extra kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext (v.4.6.8) 64:640 0:112 |-- PlugIn kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Controller.kext (v.4.6.8) 64:666 0:026 |-- PlugIn kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Keyboard.kext (v.4.6.8) 64:694 0:027 Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext (v.2.2.2) 64:730 0:036 Extra kext: EFI\CLOVER\kexts\Other\AsusFnKeys.kext (v.1.0.6) 64:760 0:030 Extra kext: EFI\CLOVER\kexts\Other\AsusACPIBackLightPanel.kext (v.1.7) 64:786 0:026 Extra kext: EFI\CLOVER\kexts\Other\CodecCommander.kext (v.2.7.1) 64:867 0:080 Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.3) 66:721 1:854 Extra kext: EFI\CLOVER\kexts\Other\CalDigitUSBxHCI.kext (v.1.3.8a2) 66:782 0:061 Extra kext: EFI\CLOVER\kexts\Other\IOath3kfrmwr.kext (v.1.2.1) 66:864 0:082 Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.2.7) 66:909 0:045 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11 66:909 0:000 Extra kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext (v.1.0.1) 67:092 0:182 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCProcessor.kext (v.1.0.1) 67:129 0:036 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCLightSensor.kext (v.1.0.0d1) 67:160 0:031 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCBatteryManager.kext (v.1.0.0d1) 67:199 0:038 SetStartupDiskVolume: 67:199 0:000 * Volume: 'Macintosh HD' ...... ..... ... Edited October 15, 2018 by Badruzeus Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640986 Share on other sites More sharing options...
Matgen84 Posted October 15, 2018 Share Posted October 15, 2018 20 minutes ago, Badruzeus said: Anyway, what does mean with this bootlog? (not sure since which Clover rev, but on my case is using r4706) 56:850 0:395 w=xxx, h=yyy 56:851 0:000 draw on background Is this for debugging purpose related to GUI or..? Fyi, I got these long logs on diff. 3 locations hmmb.. Reveal hidden contents 0:100 0:000 Starting Clover revision: 4706 on American Megatrends EFI 0:100 0:000 Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/badruzeus/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.11.6 | XCODE: 8.2.1] ..... ..... ... 0:929 0:000 === [ LoadDrivers ] ======================================= 0:933 0:003 Loading AppleImageLoader-64.efi status=Success 0:937 0:004 Loading AptioMemoryFix-64.efi status=Success 0:938 0:000 Loading CsmVideoDxe-64.efi status=Success 0:940 0:001 - driver needs connecting 0:940 0:000 Loading DataHubDxe-64.efi status=Success 0:944 0:004 Loading EnglishDxe-64.efi status=Success 0:945 0:000 Loading FSInject-64.efi status=Success 0:946 0:000 Loading VBoxHfs-64.efi status=Success 0:946 0:000 - driver needs connecting 0:946 0:000 2 drivers needs connecting ... 0:946 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success 0:946 0:000 Video driver loaded: disconnect Success 1:017 0:070 Searching for invalid DiskIo BY_DRIVER connects: 1:017 0:000 - Handle 2169118 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: 1703618, Disconnect: Success 1:017 0:000 - Handle 217ED98 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: 1703618, Disconnect: Success 1:032 0:015 CsmVideoDriverBindingStart 1:032 0:000 mixed support=40010 1:032 0:000 Controller is [030000] 1:032 0:000 Check for VBE 1:232 0:199 0 640x480 attr=3BF - ok, 640x480, working, highest, pref=0 1:234 0:001 1 800x600 attr=3BF - ok, 800x600, working, highest, pref=1 1:235 0:001 2 1024x768 attr=3BF - ok, 1024x768, working, highest, pref=2 1:245 0:010 3 1360x768 attr=3BF - ok 1:245 0:000 CsmVideo: New mode: 2 1024x768 - set 1:467 0:221 - SetMode pref 2 (2) = Success 1:467 0:000 CsmVideoCheckForVbe - Success 1:467 0:000 CsmVideoDriverBindingStart end Success 1:468 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch 1:836 0:367 === [ InitScreen ] ======================================== 1:836 0:000 SetScreenResolution: 1360x768 - setting Mode 3 1:836 0:000 CsmVideo: New mode: 3 1360x768 - set 2:136 0:300 Video mode change to mode #3: Success 2:136 0:000 Console modes reported: 3, available modes: 2:136 0:000 - [01]: 80x25 (current mode) 2:136 0:000 - [03]: 100x31 2:136 0:000 SetScreenResolution: 1360x768 - already set ..... ..... ... 56:455 0:000 === [ FindStartupDiskVolume ] ============================= 56:455 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,FC06ABAF-DEA8-446D-A678-61E403314E40,0x4EDF2B8,0xB7A0E70) 56:455 0:000 - searching for that partition 56:455 0:000 - found entry 1. 'OS X El Capitan', Volume 'Macintosh HD' 56:455 0:000 Boot redirected to Entry 1. 'OS X El Capitan' 56:455 0:000 DefaultIndex=1 and MainMenu.EntryCount=12 56:850 0:395 w=320, h=160 56:851 0:000 draw on background 56:861 0:009 w=180, h=180 56:861 0:000 draw on background 56:864 0:003 w=180, h=180 56:864 0:000 draw on background 56:867 0:002 w=180, h=180 56:867 0:000 draw on background 56:870 0:002 w=180, h=180 56:870 0:000 draw on background 56:873 0:002 w=180, h=180 56:874 0:000 draw on background 56:876 0:002 w=180, h=180 56:877 0:000 draw on background 56:879 0:002 w=72, h=72 56:879 0:000 draw on background 56:880 0:000 w=72, h=72 56:880 0:000 draw on background 56:880 0:000 w=72, h=72 56:880 0:000 draw on background 56:881 0:000 w=72, h=72 56:881 0:000 draw on background 56:881 0:000 w=72, h=72 56:881 0:000 draw on background 56:882 0:000 w=72, h=72 56:882 0:000 draw on background 56:882 0:000 w=165, h=22 56:882 0:000 draw on background 56:883 0:000 w=1354, h=22 56:883 0:000 draw on background 56:885 0:002 w=44, h=22 56:885 0:000 draw on background 58:868 1:982 w=320, h=160 58:868 0:000 draw on background 58:872 0:003 w=297, h=22 58:872 0:000 draw on background 58:873 0:000 w=160, h=160 58:873 0:000 draw on background 58:875 0:002 w=1018, h=22 58:875 0:000 draw on background 58:877 0:001 w=1018, h=22 58:877 0:000 draw on background 58:879 0:001 w=1018, h=22 58:879 0:000 draw on background 58:881 0:001 w=1018, h=22 58:881 0:000 draw on background 58:883 0:001 w=1018, h=22 58:883 0:000 draw on background 58:891 0:008 w=1018, h=22 58:892 0:000 draw on background 58:893 0:001 w=1018, h=22 58:894 0:000 draw on background 58:895 0:001 w=1018, h=22 58:895 0:000 draw on background 58:897 0:001 w=1018, h=22 58:897 0:000 draw on background 58:899 0:001 w=1018, h=22 58:899 0:000 draw on background 58:901 0:001 w=1018, h=22 58:901 0:000 draw on background 58:903 0:001 w=1018, h=22 58:903 0:000 draw on background 58:905 0:001 w=15, h=15 58:905 0:000 draw on background 58:905 0:000 w=1018, h=22 58:905 0:000 draw on background 58:907 0:001 w=1018, h=22 58:907 0:000 draw on background 58:908 0:001 w=15, h=15 58:908 0:000 draw on background 58:908 0:000 w=1018, h=22 58:909 0:000 draw on background 58:910 0:001 w=1018, h=22 58:910 0:000 draw on background 58:912 0:001 w=15, h=15 58:912 0:000 draw on background 58:912 0:000 w=1018, h=22 58:912 0:000 draw on background 58:914 0:001 w=1018, h=22 58:914 0:000 draw on background 58:916 0:001 w=15, h=15 58:916 0:000 draw on background 58:916 0:000 w=1018, h=22 58:916 0:000 draw on background 58:918 0:001 w=1018, h=22 58:918 0:000 draw on background 58:920 0:001 w=15, h=15 58:920 0:000 draw on background 58:920 0:000 w=1018, h=22 58:920 0:000 draw on background 58:921 0:001 w=1018, h=22 58:922 0:000 draw on background 58:923 0:001 w=15, h=15 58:923 0:000 draw on background 58:923 0:000 w=1018, h=22 58:923 0:000 draw on background 58:925 0:001 w=1018, h=22 58:925 0:000 draw on background 58:927 0:001 w=15, h=15 58:927 0:000 draw on background 58:927 0:000 w=1018, h=22 58:927 0:000 draw on background 58:929 0:001 w=1018, h=22 58:929 0:000 draw on background 58:931 0:001 w=15, h=15 58:931 0:000 draw on background 58:931 0:000 w=1018, h=22 58:931 0:000 draw on background 58:933 0:001 w=1018, h=22 58:933 0:000 draw on background 58:934 0:001 w=15, h=15 58:934 0:000 draw on background 58:935 0:000 w=16, h=308 58:935 0:000 draw on background 59:154 0:218 w=1018, h=22 59:154 0:000 draw on background 59:155 0:001 w=1018, h=22 59:156 0:000 draw on background 59:157 0:001 w=16, h=308 59:158 0:000 draw on background 59:326 0:168 w=1018, h=22 59:326 0:000 draw on background 59:328 0:001 w=1018, h=22 59:328 0:000 draw on background 59:330 0:001 w=16, h=308 59:330 0:000 draw on background 59:470 0:140 w=1018, h=22 59:470 0:000 draw on background 59:472 0:001 w=1018, h=22 59:472 0:000 draw on background 59:474 0:001 w=16, h=308 59:474 0:000 draw on background 59:615 0:140 w=1018, h=22 59:615 0:000 draw on background 59:616 0:001 w=1018, h=22 59:617 0:000 draw on background 59:619 0:001 w=16, h=308 59:619 0:000 draw on background 59:755 0:136 w=1018, h=22 59:755 0:000 draw on background 59:757 0:001 w=1018, h=22 59:757 0:000 draw on background 59:759 0:001 w=15, h=15 59:759 0:000 draw on background 59:759 0:000 w=16, h=308 59:759 0:000 draw on background 60:191 0:432 w=1018, h=22 60:191 0:000 draw on background 60:193 0:001 w=1018, h=22 60:193 0:000 draw on background 60:195 0:001 w=15, h=15 60:195 0:000 draw on background 60:195 0:000 w=16, h=308 60:195 0:000 draw on background 60:620 0:424 w=1018, h=22 60:620 0:000 draw on background 60:622 0:001 w=15, h=15 60:622 0:000 draw on background 60:622 0:000 w=1018, h=22 60:622 0:000 draw on background 60:624 0:001 w=15, h=15 60:624 0:000 draw on background 60:624 0:000 w=16, h=308 60:624 0:000 draw on background 60:786 0:162 w=1018, h=22 60:786 0:000 draw on background 60:788 0:001 w=15, h=15 60:788 0:000 draw on background 60:788 0:000 w=1018, h=22 60:789 0:000 draw on background 60:790 0:001 w=15, h=15 60:790 0:000 draw on background 60:790 0:000 w=16, h=308 60:790 0:000 draw on background 60:937 0:146 w=1018, h=22 60:937 0:000 draw on background 60:939 0:001 w=15, h=15 60:939 0:000 draw on background 60:939 0:000 w=1018, h=22 60:939 0:000 draw on background 60:941 0:001 w=15, h=15 60:941 0:000 draw on background 60:941 0:000 w=16, h=308 60:941 0:000 draw on background 61:066 0:125 w=1018, h=22 61:066 0:000 draw on background 61:068 0:001 w=15, h=15 61:068 0:000 draw on background 61:068 0:000 w=1018, h=22 61:069 0:000 draw on background 61:070 0:001 w=15, h=15 61:070 0:000 draw on background 61:070 0:000 w=16, h=308 61:070 0:000 draw on background 61:200 0:130 w=1018, h=22 61:201 0:000 draw on background 61:202 0:001 w=15, h=15 61:202 0:000 draw on background 61:202 0:000 w=1018, h=22 61:203 0:000 draw on background 61:204 0:001 w=15, h=15 61:204 0:000 draw on background 61:204 0:000 w=16, h=308 61:204 0:000 draw on background 61:602 0:397 w=1018, h=22 61:602 0:000 draw on background 61:603 0:001 w=15, h=15 61:603 0:000 draw on background 61:604 0:000 w=1018, h=22 61:604 0:000 draw on background 61:605 0:001 w=15, h=15 61:606 0:000 draw on background 61:606 0:000 w=16, h=308 61:606 0:000 draw on background 62:291 0:685 w=1018, h=22 62:291 0:000 draw on background 62:293 0:001 w=15, h=15 62:293 0:000 draw on background 62:293 0:000 w=1018, h=22 62:293 0:000 draw on background 62:295 0:001 w=15, h=15 62:295 0:000 draw on background 62:295 0:000 w=16, h=308 62:295 0:000 draw on background 62:460 0:164 w=1018, h=22 62:460 0:000 draw on background 62:462 0:001 w=15, h=15 62:462 0:000 draw on background 62:462 0:000 w=1018, h=22 62:462 0:000 draw on background 62:464 0:001 w=15, h=15 62:464 0:000 draw on background 62:464 0:000 w=16, h=308 62:464 0:000 draw on background 62:608 0:144 w=1018, h=22 62:608 0:000 draw on background 62:610 0:001 w=15, h=15 62:610 0:000 draw on background 62:610 0:000 w=1018, h=22 62:610 0:000 draw on background 62:612 0:001 w=15, h=15 62:612 0:000 draw on background 62:612 0:000 w=16, h=308 62:612 0:000 draw on background 62:763 0:151 w=1018, h=22 62:763 0:000 draw on background 62:765 0:001 w=15, h=15 62:765 0:000 draw on background 62:765 0:000 w=1018, h=22 62:765 0:000 draw on background 62:767 0:001 w=15, h=15 62:767 0:000 draw on background 62:767 0:000 w=16, h=308 62:767 0:000 draw on background 62:899 0:131 w=1018, h=22 62:899 0:000 draw on background 62:900 0:001 w=15, h=15 62:901 0:000 draw on background 62:901 0:000 w=1018, h=22 62:901 0:000 draw on background 62:903 0:001 w=15, h=15 62:903 0:000 draw on background 62:903 0:000 w=16, h=308 62:903 0:000 draw on background 63:051 0:148 w=1018, h=22 63:051 0:000 draw on background 63:053 0:001 w=15, h=15 63:053 0:000 draw on background 63:053 0:000 w=1018, h=22 63:053 0:000 draw on background 63:055 0:001 w=16, h=308 63:055 0:000 draw on background 63:194 0:138 w=1018, h=22 63:194 0:000 draw on background 63:196 0:001 w=1018, h=22 63:196 0:000 draw on background 63:198 0:001 w=16, h=308 63:198 0:000 draw on background 63:355 0:157 w=1018, h=22 63:355 0:000 draw on background 63:357 0:001 w=1018, h=22 63:358 0:000 draw on background 63:359 0:001 w=16, h=308 63:359 0:000 draw on background 63:513 0:153 w=1018, h=22 63:513 0:000 draw on background 63:515 0:001 w=1018, h=22 63:515 0:000 draw on background 63:517 0:001 w=16, h=308 63:517 0:000 draw on background 63:977 0:460 boot with args: slide=128 darkwake=0 -v nvda_drv=1 63:977 0:000 ParseBootOption: invalid input params 63:977 0:000 BootVariable of the entry is empty 63:977 0:000 === [ StartLoader ] ======================================= 63:977 0:000 Finally: ExternalClock=25MHz BusSpeed=99774kHz CPUFreq=2195MHz PIS: hw.busfrequency=100000000Hz 63:977 0:000 Loading boot.efi status=Success 64:472 0:494 GetOSVersion: 10.11.6 (15G22010) ...... ..... ... 64:500 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other 64:500 0:000 Extra kext: EFI\CLOVER\kexts\Other\CalDigitFastIO.kext (v.2.6.1) 64:528 0:027 Extra kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext (v.4.6.8) 64:640 0:112 |-- PlugIn kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Controller.kext (v.4.6.8) 64:666 0:026 |-- PlugIn kext: EFI\CLOVER\kexts\Other\ApplePS2SmartTouchPad.kext\Contents\PlugIns\ApplePS2Keyboard.kext (v.4.6.8) 64:694 0:027 Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext (v.2.2.2) 64:730 0:036 Extra kext: EFI\CLOVER\kexts\Other\AsusFnKeys.kext (v.1.0.6) 64:760 0:030 Extra kext: EFI\CLOVER\kexts\Other\AsusACPIBackLightPanel.kext (v.1.7) 64:786 0:026 Extra kext: EFI\CLOVER\kexts\Other\CodecCommander.kext (v.2.7.1) 64:867 0:080 Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.3) 66:721 1:854 Extra kext: EFI\CLOVER\kexts\Other\CalDigitUSBxHCI.kext (v.1.3.8a2) 66:782 0:061 Extra kext: EFI\CLOVER\kexts\Other\IOath3kfrmwr.kext (v.1.2.1) 66:864 0:082 Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.2.7) 66:909 0:045 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11 66:909 0:000 Extra kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext (v.1.0.1) 67:092 0:182 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCProcessor.kext (v.1.0.1) 67:129 0:036 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCLightSensor.kext (v.1.0.0d1) 67:160 0:031 |-- PlugIn kext: EFI\CLOVER\kexts\10.11\VirtualSMC.kext\Contents\PlugIns\SMCBatteryManager.kext (v.1.0.0d1) 67:199 0:038 SetStartupDiskVolume: 67:199 0:000 * Volume: 'Macintosh HD' ...... ..... ... I think you're right: is for debugging purpose related to GUI with Vector themes. @Slice will confirm it. Look at the screen file in the last commit. https://sourceforge.net/p/cloverefiboot/code/4706/tree//rEFIt_UEFI/refit/screen.c?diff=504c3833fd48f873331ebd05:4705 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640989 Share on other sites More sharing options...
Badruzeus Posted October 15, 2018 Share Posted October 15, 2018 2 minutes ago, Matgen84 said: I think you're right: is for debugging purpose related to GUI with Vector themes. @Slice will confirm it. Look at the screen file in the last commit. https://sourceforge.net/p/cloverefiboot/code/4706/tree//rEFIt_UEFI/refit/screen.c?diff=504c3833fd48f873331ebd05:4705 OK, not a problem actually.. it doesn't decrease GUI performance at all, yeah.. getting it on VM as well. Nevermind, not a big deal LoL 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640990 Share on other sites More sharing options...
PMheart Posted October 15, 2018 Share Posted October 15, 2018 Hello, For a start, I want to say sorry if I have interrupted any discussion above that is not relevant to mine. Please also forgive my bad English. Not playing with Hackintosh for a long while, today I took a glance at the current status of kernel patching under KernelAndKextPatches which Clover can handle at the moment, with all due respect, I somehow felt it an utter mess, therefore I think it's time to do some revolutionary changes, well, frankly speaking, now I am probably no more familiar with Clover code structure, or rather not at all, plus I do not have a copy of Clover source code nearby, I wish someone with great skills would help me deal with it, I am going to elaborate my point of view below: AppleIntelCPUPM and KernelPm should be merged, all the difference they have is just the destination, one is to AppleIntelCPUPowerManagement.kext and the other is to the kernel. Obviously no one is using both and only one of them will be effective. No side effect, no conflict either. So I believe it would be better to merge them. (Just as our automatic detection does, please see here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/Settings.c#l904, and the declaration of NeedPMFix is here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/cpu.c#l497) We should take the patch applied to _xcpm_idle into account, which has not been integrated to Clover and left missing, ever since we made some progress on XCPM and particularly HWP aspect. (Add this right to funtion KernelPatchPm in rEFIt_UEFI/Platform/kernel_patcher.c) KernelCPU has already been history and should be obsolete now, after FakeCPUID came out. P.S. For 1, I'd like to call the new key MSRE2Patch, as the name shows what it does. For backward compatibility, it will be turned on as long as either of the two good old keys is. For 2, I do not have any device with HWP support (Skylake+), at least for now, further discussion required. For 3, to be honest, I am not pretty sure. Anyway, from what I have seen, it is just faking CPUID as Penryn (0x17), see here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/kernel_patcher.c#l191, further discurrsion required as well. PMheart 9 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2640992 Share on other sites More sharing options...
savvas Posted October 15, 2018 Share Posted October 15, 2018 Sup guys. Apfs unsupported on 3tb and larger fusion drives by apfs design 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2641012 Share on other sites More sharing options...
Moorre Posted October 15, 2018 Share Posted October 15, 2018 1 hour ago, savvas said: Apfs unsupported on 3tb and larger fusion drives by apfs design Yep. 640K ought to be enough for anybody. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2641022 Share on other sites More sharing options...
Slice Posted October 15, 2018 Share Posted October 15, 2018 6 hours ago, PMheart said: Hello, For a start, I want to say sorry if I have interrupted any discussion above that is not relevant to mine. Please also forgive my bad English. Not playing with Hackintosh for a long while, today I took a glance at the current status of kernel patching under KernelAndKextPatches which Clover can handle at the moment, with all due respect, I somehow felt it an utter mess, therefore I think it's time to do some revolutionary changes, well, frankly speaking, now I am probably no more familiar with Clover code structure, or rather not at all, plus I do not have a copy of Clover source code nearby, I wish someone with great skills would help me deal with it, I am going to elaborate my point of view below: AppleIntelCPUPM and KernelPm should be merged, all the difference they have is just the destination, one is to AppleIntelCPUPowerManagement.kext and the other is to the kernel. Obviously no one is using both and only one of them will be effective. No side effect, no conflict either. So I believe it would be better to merge them. (Just as our automatic detection does, please see here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/Settings.c#l904, and the declaration of NeedPMFix is here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/cpu.c#l497) We should take the patch applied to _xcpm_idle into account, which has not been integrated to Clover and left missing, ever since we made some progress on XCPM and particularly HWP aspect. (Add this right to funtion KernelPatchPm in rEFIt_UEFI/Platform/kernel_patcher.c) KernelCPU has already been history and should be obsolete now, after FakeCPUID came out. P.S. For 1, I'd like to call the new key MSRE2Patch, as the name shows what it does. For backward compatibility, it will be turned on as long as either of the two good old keys is. For 2, I do not have any device with HWP support (Skylake+), at least for now, further discussion required. For 3, to be honest, I am not pretty sure. Anyway, from what I have seen, it is just faking CPUID as Penryn (0x17), see here: https://sourceforge.net/p/cloverefiboot/code/4706/tree/rEFIt_UEFI/Platform/kernel_patcher.c#l191, further discurrsion required as well. PMheart 1. Agree 2. I have Skylake but I live without HWP. I found no interest. Usual IES is enough for me. 3. Penryn doesn't support SSE4,2 so it is not good always faking to it. More universal will be faking to IvyBridge for systems 10.11 and up. People living with older system should decide what they doing and for a what. My computer #3 is obsolete. It lives without any changes, just exists. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2641033 Share on other sites More sharing options...
PMheart Posted October 15, 2018 Share Posted October 15, 2018 (edited) 2 hours ago, Slice said: 1. Agree 2. I have Skylake but I live without HWP. I found no interest. Usual IES is enough for me. 3. Penryn doesn't support SSE4,2 so it is not good always faking to it. More universal will be faking to IvyBridge for systems 10.11 and up. People living with older system should decide what they doing and for a what. My computer #3 is obsolete. It lives without any changes, just exists. Hi, Glad to see you after months, Slice. Well, as for 2, we are not talking about whether HWP is good or not, consider what is KenelPm for - for those who does not have MSR 0xE2 unlocked. It's actually the fact that we have been missing the patch to _xcpm_idle, which should also be a part of 0xE2 patches. That's the point. Just as claimed, attach it to KernelPatchPm. As for 3, my opinion is to rewrite the whole KernelCPU function to simply several lines: Fake as Penryn on older systems (e.g 10.7 and below) and else as Ivy. (Do this via the good new FakeCPUID) Edited October 15, 2018 by PMheart 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/721/#findComment-2641068 Share on other sites More sharing options...
