MorenoAv Posted July 1, 2018 Share Posted July 1, 2018 (edited) hi all, I don't know if this question was answered before, but here it goes... what drivers from the list in clover that are essential for most of the users? I ask because sometimes I feel myself confused with so many information. Thanks in Advance PS: by the way I have another question, today I lost the ability to boot in my hack, in all my 3 disks, 2 ssd and one hdd, because all my usb installs are lost and now the only thing that appear at the beginning of boot are this... I already tried to re install clover in the usb, erase the EFI, how do I solve this? The last usb installers are made in my real Mac, but don't work too... Sorry for the long rant... Thanks Edited July 1, 2018 by MorenoAv Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2623767 Share on other sites More sharing options...
LockDown Posted July 2, 2018 Share Posted July 2, 2018 @MorenoAV you have been confsuing yourself with those multiple HDD/SSD plugged n your computer. Plug only what's needed untill you're done installing to make life easier for you. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2623778 Share on other sites More sharing options...
Slice Posted July 2, 2018 Share Posted July 2, 2018 5 hours ago, MorenoAv said: hi all, I don't know if this question was answered before, but here it goes... what drivers from the list in clover that are essential for most of the users? Again. All drivers are essential. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2623787 Share on other sites More sharing options...

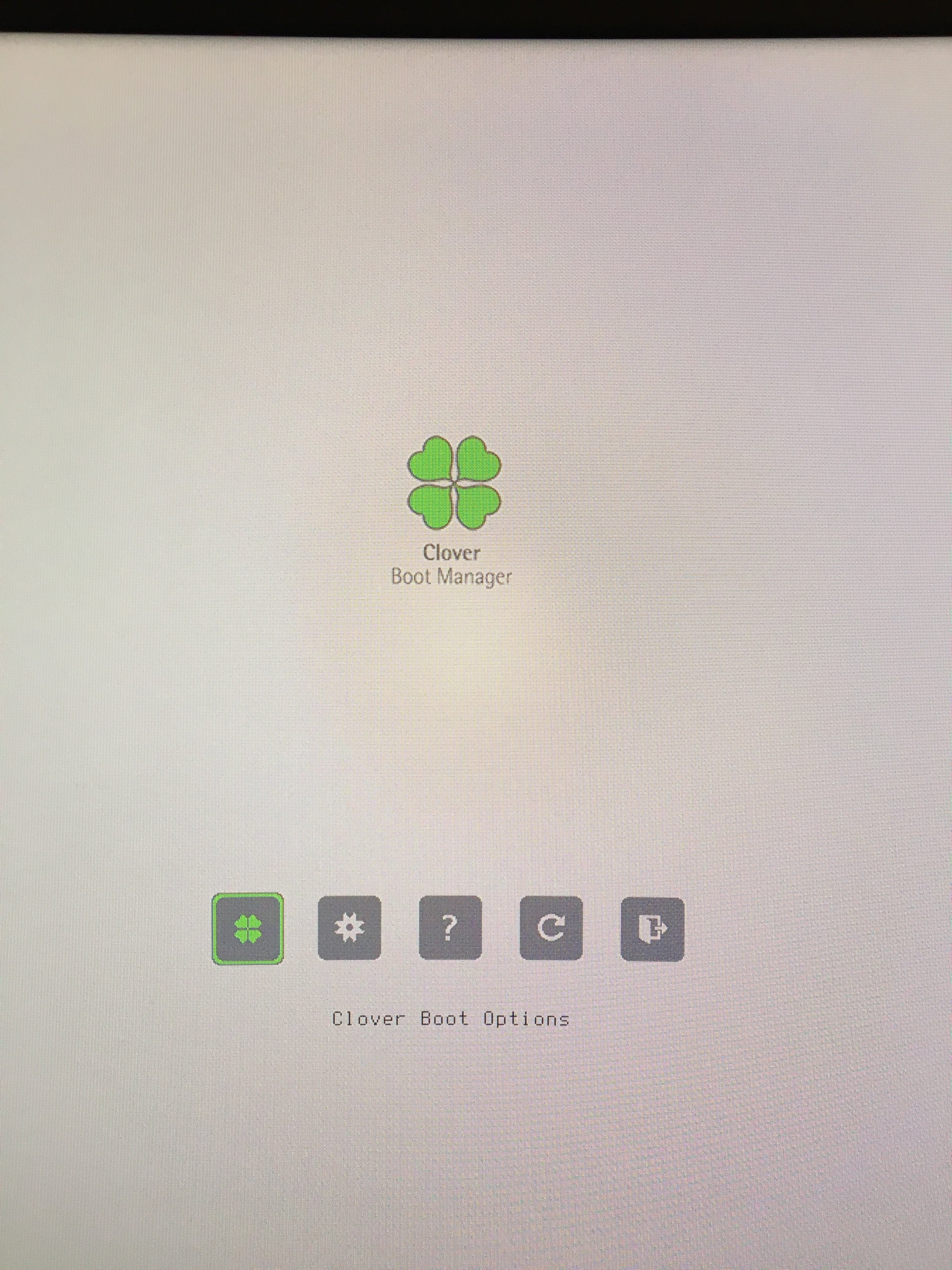

MorenoAv Posted July 2, 2018 Share Posted July 2, 2018 (edited) Hi @ellaosx, @Slice, Thanks for you advice, and you are right, I'm confused with all my drives... and I'm going to follow your suggestion as soon as I can boot again in one of them... all are in a no bootable state, including all my usb installs. This time I {censored}ed the thing really bad, and no matter what I do, I can't make new usb installers even in my real Mac. The result is shown in the photo I uploaded... And @Slice i am completely clear now... Edited July 2, 2018 by MorenoAv Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2623821 Share on other sites More sharing options...
pinarek Posted July 5, 2018 Share Posted July 5, 2018 can anyone help me please for this Problem "Hide WindowsHDD" ? in my old Clover 4449 work this: <string>WindowsHDD</string> <string>HD(2,MBR,0x5777E8C8,0xC738800,0xEA60000)</string> <string>HD(3,MBR,0x5777E8C8,0x1B198800,0x20848800)</string> <string>HD(1,MBR,0x000460C8,0x800,0x11170000)</string> in the new 4577 work this not. What is the error ? Thank you for help please Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624438 Share on other sites More sharing options...
Twa Posted July 6, 2018 Share Posted July 6, 2018 Hi guys, why lastest clover update just removed my OsxAptioFixDrv64.efi from driver folder? Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624454 Share on other sites More sharing options...
MaLd0n Posted July 6, 2018 Share Posted July 6, 2018 1 minute ago, Twa said: Hi guys, why lastest clover update just removed my OsxAptioFixDrv64.efi from driver folder? use a new driver AptioMemoryFix-64.efi drivers64UEFI.zip 2 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624455 Share on other sites More sharing options...
Babiloe Posted July 6, 2018 Share Posted July 6, 2018 I had newer kabylake refresh that can boot uefi with clover and extract dsdt and several ssdt there when booting clover. question: my old sandy bridge u36sd support Mbr and partial uefi (no csm option). I want to extract dsdt and ssdt using clover. I had install clover ESP on USB GUID flash disk with Mbr boot0af wrote in USB. but I can't find the f2 f4 menu to extract dsdt . AIDA64 extract dsdt and several ssdt that I need to compare. aipcdump and old iasl -g can't dump ssdt. I had newer kabylake refresh that can boot uefi with clover and extract dsdt and several ssdt there when booting clover. question: my old sandy bridge u36sd support Mbr and partial uefi (no csm option). I want to extract dsdt and ssdt using clover. I had install clover ESP on USB GUID flash disk with Mbr boot0af wrote in USB. but I can't find the f2 f4 menu to extract dsdt/ssdt. AIDA64 extract dsdt and several ssdt that I need to compare. aipcdump and old iasl -g can't dump ssdt. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624514 Share on other sites More sharing options...
Slice Posted July 6, 2018 Share Posted July 6, 2018 f2 and f4 is not menu. They are keyboard buttons. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624524 Share on other sites More sharing options...
Maniac10 Posted July 7, 2018 Share Posted July 7, 2018 On 7/5/2018 at 9:32 PM, MaLd0n said: use a new driver AptioMemoryFix-64.efi drivers64UEFI.zip I'll test the newer version (tried it a while ago) but AptioMemoryFix is the only driver capable of booting my system. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624773 Share on other sites More sharing options...
apianti Posted July 8, 2018 Share Posted July 8, 2018 6 hours ago, Maniac10 said: I'll test the newer version (tried it a while ago) but AptioMemoryFix is the only driver capable of booting my system. He is talking about AptioMemoryFix, the installer apparently does not correctly select the driver when upgrading or something as some previous options were removed, I think. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624796 Share on other sites More sharing options...
vector sigma Posted July 8, 2018 Share Posted July 8, 2018 9 hours ago, apianti said: He is talking about AptioMemoryFix, the installer apparently does not correctly select the driver when upgrading or something as some previous options were removed, I think. Can be true. From a certain commit I've added a suffix for them and the identifier can be different. If that is the case, next time will be fine. 2 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2624827 Share on other sites More sharing options...

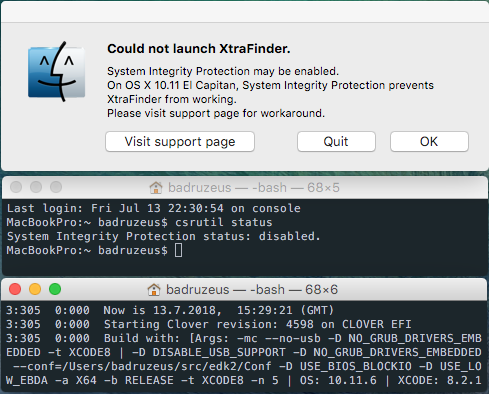

Badruzeus Posted July 13, 2018 Share Posted July 13, 2018 (edited) I'm just curious about this, so... <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> ^ does it fully disable SIP, or not? Thanks. Edited July 13, 2018 by Badruzeus Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2625696 Share on other sites More sharing options...
Cyberdevs Posted July 13, 2018 Share Posted July 13, 2018 (edited) 30 minutes ago, Badruzeus said: I'm just curious about this, so... <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> ^ does it fully disable SIP, or not? Thanks. As far as I know 0x67 disables SIP but it won't allow for untrusted kexts to be loaded, if you run "csrutil status" in terminal you can see which part of SIP is disabled, I guess with 0x3e7 SIP will be totally disabled and it will expose macOS even more. Addition: Take a look at this for more info Edited July 13, 2018 by Cyberdevs 1 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2625699 Share on other sites More sharing options...
kjp4756 Posted July 14, 2018 Share Posted July 14, 2018 So I just downloaded the 10.13.6 installer from the app store so I can update my usb stick and after the installer downloaded it opened and it said "To install mac os high sierra a firmware update is required." I'm not wanting to go through the installation or anything, I'm just curious on this message. My clover boot log shows: 2:912 0:000 Using ProductName from config: MacPro5,1 2:912 0:000 BiosVersion: not set, Using BiosVersion from clover 2:912 0:000 BiosVersion: MP51.88Z.0087.B00.1804181525 2:912 0:000 BiosReleaseDate: 04/18/18 2:912 0:000 Using FirmwareFeatures from clover: 0xE80FE137 2:912 0:000 Using FirmwareFeaturesMask from clover: 0xFF1FFF3F 2:912 0:000 PlatformFeature will not set in SMBIOS Is this bios version correct? I'm using the clover autogenerated one. Clover 4586 is what I am on. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2625853 Share on other sites More sharing options...
Sherlocks Posted July 14, 2018 Share Posted July 14, 2018 On 7/14/2018 at 1:11 AM, Badruzeus said: I'm just curious about this, so... <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> ^ does it fully disable SIP, or not? Thanks. how about 0x77? 3 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2625869 Share on other sites More sharing options...
Alpha22 Posted July 15, 2018 Share Posted July 15, 2018 hello, when I install Clover, this happens even with different versions of Clover advice Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2625980 Share on other sites More sharing options...
arsradu Posted July 15, 2018 Share Posted July 15, 2018 3 hours ago, Alpha22 said: hello, when I install Clover, this happens even with different versions of Clover advice yes, disable SIP. 1 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626005 Share on other sites More sharing options...
Alpha22 Posted July 15, 2018 Share Posted July 15, 2018 1 hour ago, arsradu said: yes, disable SIP. Thanks, resolved I installed Clover on the hard drive but when I restart my black screen boot only from usb advice Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626012 Share on other sites More sharing options...
arsradu Posted July 15, 2018 Share Posted July 15, 2018 (edited) 7 minutes ago, Alpha22 said: Thanks, resolved I installed Clover on the hard drive but when I restart my black screen boot only from usb advice Unknown. Add your complete hardware information to your signature. Upload the EFI folder from your EFI partition of the Hard Drive (remove any serial numbers from SMBIOS and RTvariables from config beforehand) Compare with the EFI folder on the USB drive. If you can boot with the USB but not from the Hard Drive, something is most likely different either in the installation method (UEFI vs Legacy mode), drivers, or config. Edited July 15, 2018 by arsradu Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626013 Share on other sites More sharing options...
Alpha22 Posted July 15, 2018 Share Posted July 15, 2018 (edited) 18 minutes ago, arsradu said: Unknown. Add your complete hardware information to your signature. Upload the EFI folder from your EFI partition of the Hard Drive (remove any serial numbers from SMBIOS and RTvariables from config beforehand) Compare with the EFI folder on the USB drive. If you can boot with the USB but not from the Hard Drive, something is most likely different either in the installation method (UEFI vs Legacy mode), drivers, or config. hardware: Asus P5Q Deluxe Intel Q9550 Video GT240 installation in legasy the EFI folder of the usb is the same as the EFI folder on the hard disk Edited July 15, 2018 by Alpha22 Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626015 Share on other sites More sharing options...
arsradu Posted July 15, 2018 Share Posted July 15, 2018 10 minutes ago, Alpha22 said: hardware: Asus P5Q Deluxe Intel Q9550 Video GT240 installation in legasy Waiting for the second part. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626017 Share on other sites More sharing options...
Alpha22 Posted July 15, 2018 Share Posted July 15, 2018 1 minute ago, arsradu said: Compare with the EFI folder on the USB drive. If you can boot with the USB but not from the Hard Drive, something is most likely different either in the installation method (UEFI vs Legacy mode), drivers, or config. Waiting for the second part. the EFI folder of the usb is the same as the EFI folder on the hard disk Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626018 Share on other sites More sharing options...
arsradu Posted July 15, 2018 Share Posted July 15, 2018 1 minute ago, Alpha22 said: the EFI folder of the usb is the same as the EFI folder on the hard disk I would double check that first. Something has to be different. Just to be sure, I would try to replace the EFI folder of the Hard Drive with the one from the USB drive and see if it makes any difference. Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626020 Share on other sites More sharing options...
Alpha22 Posted July 15, 2018 Share Posted July 15, 2018 13 minutes ago, arsradu said: I would double check that first. Something has to be different. Just to be sure, I would try to replace the EFI folder of the Hard Drive with the one from the USB drive and see if it makes any difference. I copied the EFI folder of usb to the hard disk version of Clover 4558 the problem remains not booting from hard disk Link to comment https://www.insanelymac.com/forum/topic/284656-clover-general-discussion/page/704/#findComment-2626023 Share on other sites More sharing options...
