jamesgrenard
jamesgrenard
Posted
Posted

Somebody PLEASE HELP!



Just got iAtkos Mac OSX installed.



This is my first time using Mac and I'm trying to get AirPort and my wireless to work.



I'm not sure which drivers I need or how to install them..I believe its the Broadcom.



I have a HP G60 458-DX



Here's HP's website of my Network drivers on my laptop.



Please help!



http://i29.photobucket.com/albums/c287/jam...ng?t=1269153309







Also, heres another screen shot w/ more information about the Broadcom





http://i29.photobucket.com/albums/c287/jam...ng?t=1269153503

Link to comment
Share on other sites
PoJIuK
PoJIuK
Posted
Posted

hello) i cen not instal my wifi help my please)



may card is broadcom 4310



info:





ID продукта: 0x231d

ID производителя: 0x03f0 (Hewlett Packard)

Версия: 1.65

Скорость: До 12 Мб/с

Производитель: Broadcom Corp

ID размещения: 0x1d170000

Действительный ток (мА): 500

Требуемый ток (мА): 0





spasibo))))

Link to comment
Share on other sites
e5m1r
e5m1r
Posted
Posted

If anyone could help me get this 4311 working please

here is the log if it helps

please help me with editing plis and or kext so i get it working

as it is now i cant se card in macos at all, it works just fine in windows



and since i posted log it would be nice if someone could help me to get the audio working on the built in speekers

right now only headphone output is working





00:00.0 Host bridge [0600]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express Memory Controller Hub [8086:27a0] (rev 03)

00:01.0 PCI bridge [0604]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express PCI Express Root Port [8086:27a1] (rev 03)

00:1b.0 Audio device [0403]: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller [8086:27d8] (rev 02)

00:1c.0 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 [8086:27d0] (rev 02)

00:1c.2 PCI bridge [0604]: Intel Corporation 82801G (ICH7 Family) PCI Express Port 3 [8086:27d4] (rev 02)

00:1d.0 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 [8086:27c8] (rev 02)

00:1d.1 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 [8086:27c9] (rev 02)

00:1d.2 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 [8086:27ca] (rev 02)

00:1d.3 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 [8086:27cb] (rev 02)

00:1d.7 USB Controller [0c03]: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller [8086:27cc] (rev 02)

00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev e2)

00:1f.0 ISA bridge [0601]: Intel Corporation 82801GBM (ICH7-M) LPC Interface Bridge [8086:27b9] (rev 02)

00:1f.1 IDE interface [0101]: Intel Corporation 82801G (ICH7 Family) IDE Controller [8086:27df] (rev 02)

00:1f.2 SATA controller [0106]: Intel Corporation 82801GBM/GHM (ICH7 Family) SATA AHCI Controller [8086:27c5] (rev 02)

00:1f.3 SMBus [0c05]: Intel Corporation 82801G (ICH7 Family) SMBus Controller [8086:27da] (rev 02)

01:00.0 VGA compatible controller [0300]: ATI Technologies Inc Radeon Mobility X1400 [1002:7145]

04:00.0 Network controller [0280]: Broadcom Corporation BCM4311 802.11b/g WLAN [14e4:4311] (rev 02)

05:04.0 FireWire (IEEE 1394) [0c00]: Texas Instruments TSB43AB22/A IEEE-1394a-2000 Controller (PHY/Link) [104c:8023]

05:05.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL-8169 Gigabit Ethernet [10ec:8169] (rev 10)

Link to comment
Share on other sites
  • 2 weeks later...
lexje
lexje
Posted
Posted

Hi everybody,



I'm fairly new to this all so please bear with me :-)

I have succesfully installed Snow Leopard on my mini-311c. (ION Atom based netbook)

I have some doubts as to what video resolution this machine can achieve.



On a similar system (Acer Revo 3600) I run 1080p HD movies without a problem. (Linux Ubuntu with vdpau)

I would expect this to be possible with SL too.

It does not work however.



How can I double check my system is using the correct nvidia drivers?

Is there anything such as lspci (in linux)?

Is there anything like nvidia-settings or an alternative to check settings and drivers?



Thanks you!





Erwin

Link to comment
Share on other sites
WhiteMeat2002
WhiteMeat2002
Posted
Posted

If you have purchased a Net-gear WN311B BCM4321 in hopes to get Airport up and running. Hope this helps any Newbs like myself get it going =)



Thanks to our German Friend this script works great. This is the method that worked for me in 10.6.2 & 10.6.3

:P

Download the script then download 4311.kext (google) it.



take the kext you downloaded off google, drop it on top of (app called Kextutilty) -google that too. it will install your 4311.kext to your extra folder and your HD extensions folder for you and fixes permissions as well.



Once you've done this restart your computer to make sure it will take affect. Run the script by putting it in this location /HD/user then open Terminal and type the fallowing.



sudo ./bcm43xx_enabler.sh



it will ask you is this the right location you press (enter)

it will ask you, do you want to back this folder up. Just fallow the instructions the script does all the hard work for you.



Once its completed I recommend repairing your disk permissions run off your USB or purchased SnoW Leo.



Hope i helped anyone who was having issues. . .



Thank you MACSMART for the script helped me set the ID's without typing all that {censored}.

Link to comment
Share on other sites
e5m1r
e5m1r
Posted
Posted

I am going crazzyyy

Please someone help!!!!



I have Fujitsu Siemens Amilo Pi 1536 it originally comes with intel w-lan pci card, i have swaped that with broadcom 4311 card, and it works perfectly in windows but not in mac os i have tried diferent versions, scripts kexts activators but no luck

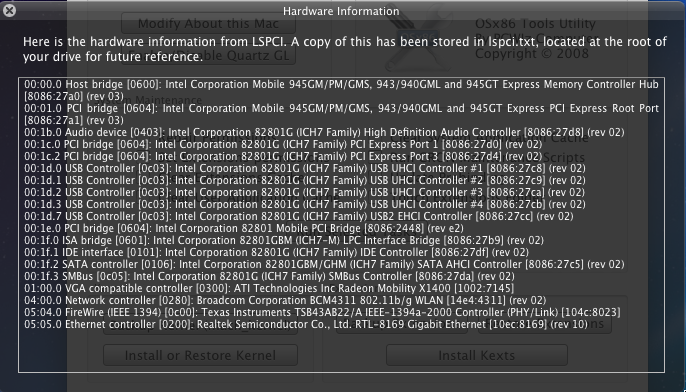

I have atached a pic from osx86tools showing the card



Clearly the card is there, but i cant se it anywhere else?

i have somehow menaged to get this in NetworkInterfaces.plist

<key>BSD Name</key>
		<string>en1</string>
		<key>IOBuiltin</key>
		<true/>
		<key>IOInterfaceType</key>
		<integer>6</integer>
		<key>IOInterfaceUnit</key>
		<integer>1</integer>
		<key>IOMACAddress</key>
		<data>
		ABRR3BE5
		</data>
		<key>IOPathMatch</key>
		<string>IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P3@1C,2/IOPCI2PCIBridge/ethernet@0/AirPort_Athr5424ab/AtherosM35abInterface</string>
		<key>SCNetworkInterfaceType</key>
		<string>IEEE80211</string>



But this is clearly wrong so i edited it to what it should be

<string>IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P3@1C,2/IOPCI2PCIBridge/pci14e4,4311@0/AirPort_Brcm43xx/IO80211Interface</string>



and still no card visible in mac os



Can someone please bare with me and try to help me figure this out.

I have menaged to figure the rest

Graphics,

Battery,

Sound,

so this is the only part missing (and sleep) but i dont care that mutch about that one



I am running Chameleon 2 with vanilla kernel and OS X 10.5.8 (updated from Iatkos V7)


Link to comment
Share on other sites
e5m1r
e5m1r
Posted
Posted

I have done some progres but the damn card wont show up in the network part

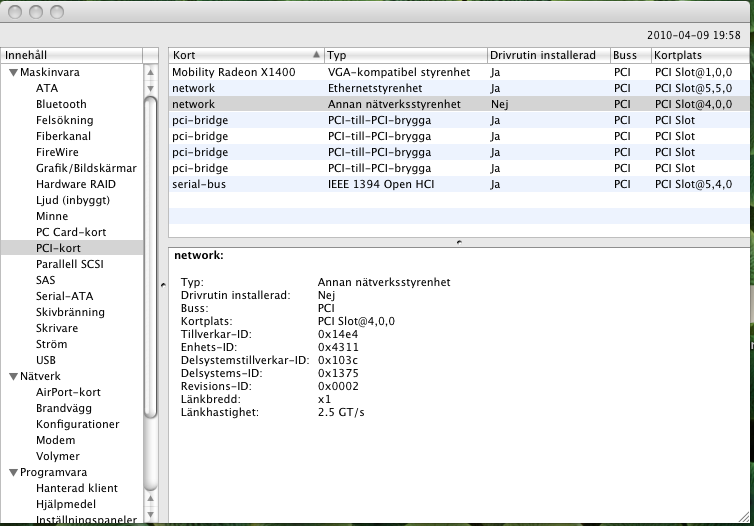

I can se it in pci section (see attached picture) but it does not load any drivers for it ?

could it be the vender information that is making the device not to load ?

please help


Link to comment
Share on other sites
e5m1r
e5m1r
Posted
Posted

some more progres from my side

i successfully rebranded the card to Apple Airport but i can still not se it in networks ??

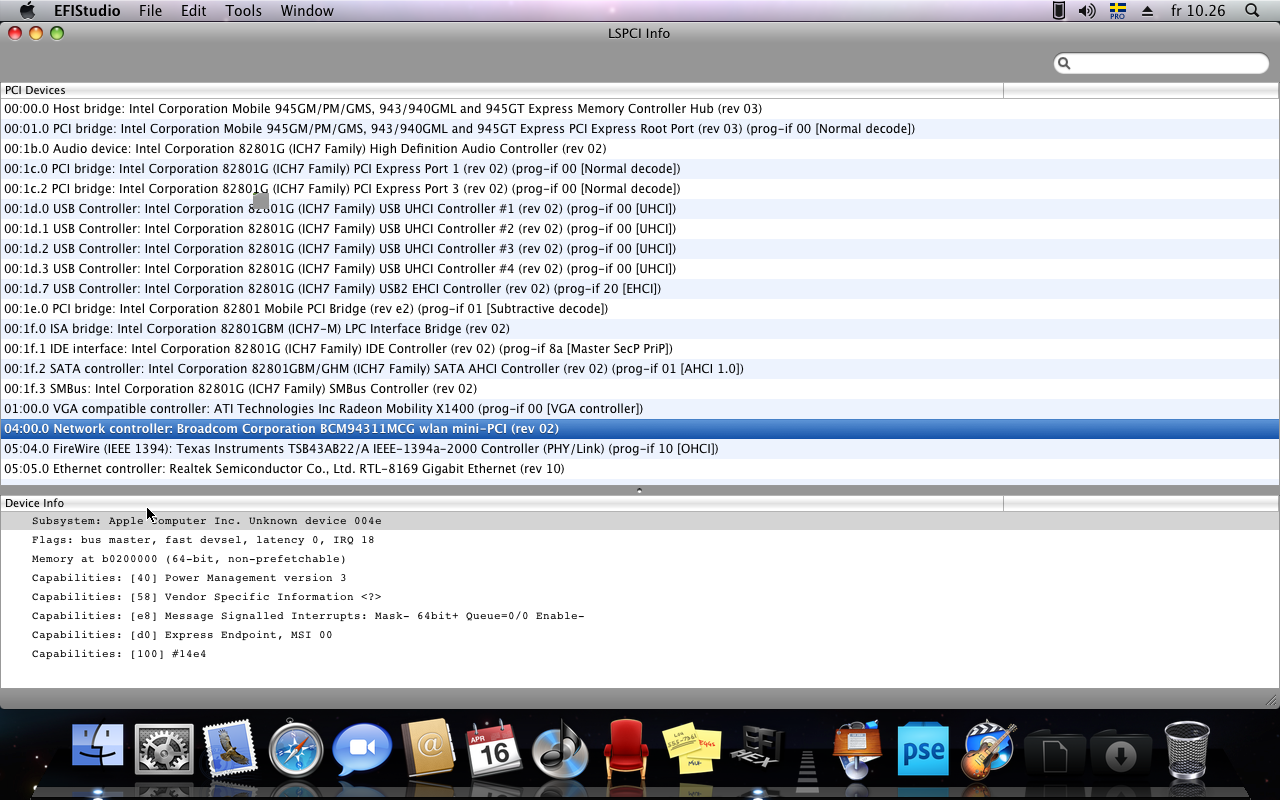

i am attaching a snapshot from effi studio



Anyones help solwing this would be apprishiated



I have 2 of this hp cards, i am offering the card as a reward for anyone that can solve get this card to work on my amilo li 1536 this cards originaly come in HP/Compaq Presario laptops



Card is working just fine in Windows (having some issues with driver for the rebranded one)



i also have a intel 3495 RTL 8187B, and RT2571WF


Link to comment
Share on other sites
jorgep83
jorgep83
Posted
Posted

HI EVERYBODY!!!!

i have a prob, i first had an atheros ar5007eg card, and i never made it work, now i bought a BCM4311KFGB and it doesn't work properly, my system recognizes as an airport card, i see the fan in the system bar, and it shows me the avaible networks, but i can't join to any network, it asks me for the password but instantly when i hit the enter button tells me that i can join network.... what could i do.???????

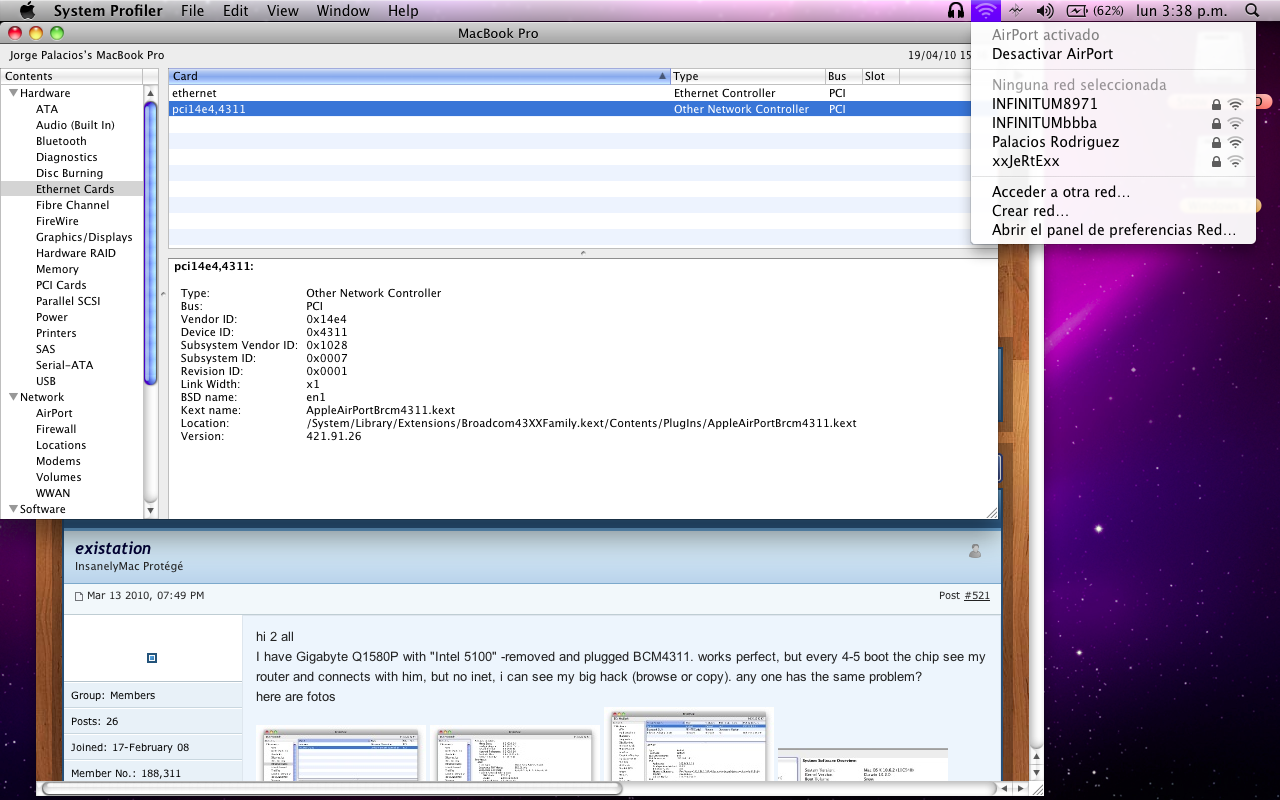

in the system profiler under the ethernet card it displays as Type: Other Network Device could it be this the prob??? :)



Console Log Reports

19/04/10 16:37:40	kernel	AirPort: Link Down on en1. Reason 1 (Unspecified).

19/04/10 16:39:23	airportd[423]	Error: process_command_dict() failed





Toshiba L45SP4016

SnowLeo DVD 10.6.3

Intel T2080 Core Duo 2.2 Ghz

1.5 GB Ram

20 Gb Partition

Dual Boot Windows 7



Link to comment
Share on other sites
tsench
tsench
Posted
Posted

dell 1490 broadcom 4311 work fine update from apple now im gonna try HP broadcom 4321 a/b/g/n card

btw my spec

sony vgn-fz140e

everything work running snow leopard 10.6.2

UPDATE 04/29/10

try 4321 work fine in mac speed 140mbps it detect as airport extreme working out of the box but damn i cant get it to work with windows 7 wont enable

Link to comment
Share on other sites
opossum3e
opossum3e
Posted
Posted

Update: 2009-04-29 4:39PM



Since it seems to be sort of difficult for new users to edit kext-files, I've written a small script which automatically adds the PCI IDs of all Broadcom wireless cards, which are AirPort compatible.



And this is where I need your feedback: Please post your Broadcom device IDs in this topic, if you have simply added them to the AppleAirPortBrcm4311.kext. Then I can add them to my script so new users can simply download the script and get their Broadcom wireless card to work.

So please post the PCI ID and maybe a little description (at least if the card is 802.11a, b or g).



Note: Only post the PCI ID if you simply have to add the ID to AppleAirPortBrcm4311.kext in order to get it working!



If interest i upload here WiFi kext for 10.6 on HP 550 (with ID replacement 4315)



http://www.2shared.com/file/12843271/3a6b6...now_HP_550.html



bye

Link to comment
Share on other sites
justlearning
justlearning
Posted
Posted
And this is where I need your feedback: Please post your Broadcom device IDs in this topic, if you have simply added them to the AppleAirPortBrcm4311.kext. Then I can add them to my script so new users can simply download the script and get their Broadcom wireless card to work.

So please post the PCI ID and maybe a little description (at least if the card is 802.11a, b or g).



I think its also important to provide your Motherboard Model as well as system version.



I'm GA-P35-DS3R in Snow Leopard 10.6.3



Broadcom 4320

Link to comment
Share on other sites
drho2004
drho2004
Posted
Posted

Hello!



So i have this HP Mini 110 and i have iAtkos 10.5.5 installed in it. Everythi9ng works except the damn wifi, it came with an Atheros half size mini PCI and after much research i found out that that chipset is a dead end in the hackintosh world. Some more research and I found out hat the Broadcom 4312 would work, specifically ones pulled from a dell, and the osx will see it as a native airport card. So i found one one ebay, bought it, popped open the mini (not that hard BTW) and booted and..... BOOOOO!! I get a bios error on boot!! 104 system error unrecognized wireless card system halted!! what gives!! any way around this? If i have to flash the BIOS....I really do not want to have to install Windows for it...any help would be greatly appreciated!!

Link to comment
Share on other sites
unvaluablespace
unvaluablespace
Posted
Posted

hey i was wondering if there was any way to get my BCM4313 wireless N card working? ive tried your script but to no avail (maybe i did it wrong?) although terminal said it was succesful & i rebooted. no luck so i tried adding in the device & vendor ids myself, but no luck with that either (maybe i did that wrong too lol, but snow leopard booted up fine without no erros lol) lastly, i tried the whole rebranding trick with ubuntu but my card wasnt listed. are there any other hacks or tricks i could try?



another user on this forum, Vampirehunter_D seems to know some hacking and such, and even has a forum where he managed to get the ethernet card working via a modified kext, but so far no luck with wifi. crossing my fingers for him and myself lol.



by the way, im using an S10-3T lenovo laptop. thanks alot. :)

Link to comment
Share on other sites
uketernity
uketernity
Posted
Posted

Hi All



Im trying (anf failing) to get wifi working on a fujitsu siemens amilo li 1818. Ive replaced the original wifi card with a Dell 1505 BCM4321 which shows up if i run lspci from terminal, but never shows up in system prefs, or network prefs. It also shows up if I use DPCIManager as a broadcom card but the model is unknown.



I feel so close to getting this working, ive tried so may different posts now and different kexts. Surely if it shows up as being connected then there must be a way to get it working. Ive tested it in windows and know it works.



Can anyone help?



p.s had to do the pin 20 trick to get the card to turn on as the switch didnt work.



Oli

Link to comment
Share on other sites
