GLASGOOD'S



MOJAVE HACKINTOSH GUIDE



For latest EFI for macOS Catalina and discussions, visit @AudioGod's ==> Aorus Pro Z390 Patched DSDT mini guide








GIGABYTE AORUS PRO Z390






CREDITS & THANKS



@MaLd0n

His help with EFI configuration and DSDT



CLOVER  TEAM

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, rehabman, Download-Fritz, Zenit432, cecekpawon Et al



APPLEALC

Acidanthera, vit9696



VOODOOHDA

autumnrain, slice2009, zenith432



ESP PRO MOUNTER

@Micky1979



HACKINTOOL

@headkaze



CLOVER CONFIGURATOR

:thumbsup_anim:Mackie100



THEME ENGINE

Alex Zielenski



INSANELYMAC

OLARILA



Hackintool Tutorial

daliansky



Hackintosh Vanilla Desktop Guide

/r/Hackintosh - corpnewt





MONITORCONTROL

JoniVR & theOneyouseek







------------------------------------------------------------------------------------------------------------------------------------------------------------



UPDATES

Spoiler



17/07/2019



Reverted back to the non DSDT EFI folder within guide as an EFI fit for all, it seems that a DSDT extracted from one specific setup does not greatly transfer to majority Aorus Pro Z390 configs.

For those looking for DSDT fix it's best to extract your own ACPI files and source your own patched DSDT @MaLd0n can possible assist with DSDT Patch.









02/07/2019



@MaLd0n has kindly helped to transform the EFI, now with native NVRAM and DSDT. Have a look through the new EFI. Everything working great. EFI is perfect and minimum.

Uses Whatevergreen.kext version 1.3.0 and is very stable, all  port connectors on back of my RX 580 working, however if updating to Whatevergreen version1.3.1 then

 one of the display ports will not function.  Have not tested this out with SMBIOS for iMac 19,1.  OsxAptioFix3Drv.efi  driver now replaced with AptioMemoryFix.

Whatevergreen should detect your graphics card, see my guide on how to easily change framebuffer.



:thumbsup_anim::thumbsup_anim: MASSIVE THANK YOU TO @MaLd0n  :thumbsup_anim::thumbsup_anim:





01/07/2019



POST-INSTALL Aorus Pro Z390 EFI - RX580 is now renamed as  Aorus Pro Z390 EFI - RX580 in guide and is now used

for both pre and post install. Successfully tested macOS Mojave 10.14.6  Install with Clover v2.5k r5018 and OsxAptioFix3Drv.efi





OsxAptioFix2Drv-free2000 is now replaced with OsxAptioFix3Drv.efi as lately Clover developer Apianti

announced  that OsxAptioFix2Drv-free2000 was unsafe to use. At present, OsxAptioFix3Drv.efi or OsxAptioFixDrv

is unusable when using SMBIOS for iMac 19,1 on Aorus Z390 motherboard with Initial Display Output - PCIe SlotInternal Graphics enabled.



Therefore POST-INSTALL Aorus Pro Z390 EFI is now updated with SMBIOS for iMac Pro  1,1 and OsxAptioFix3Drv.efi

Internal Graphics should now be disable when using SMBIOS for iMac Pro 1,1.  Also, USBPorts.kext has been recreated for iMac Pro 1,1

as USBPorts.kext created for iMac 19,1 will not function properly when used with SMBIOS for iMac Pro 1,1.



Thanks to @soniferous_fox and his post regarding the OsxAptioFix2Drv-free2000 free solution.

also thanks to @AudioGod @larabee for confirming  OsxAptioFix3Drv.efi as a working solution for the Aorus Z390.



And thanks to @hackinbot for resolving the display wake from sleep issue when RX580 is used with SMBIOS for iMac Pro 1,1











14/06/2019



Have attached to guide, an experimental EFI ( for those who like experiment :)). The EFI uses OpenCore and is looking like it could possibly be a future replacement for Clover

The attached OpenCore EFI is working with my Aorus Pro, as far as I know, OpenCore is still in early Alpha stage of development.



Don't ask me for support on this!



 if it interests you, then approach the forum for OpenCore here at ==>> InsanleyMac  or ==> Discord



When making edits to OpenCore config.plist use xcode plist editor or PlistEdit Pro or OpenCore Configurator from @notiflux ==> OpenCore-Configurator_alpha18.zip

I don't recommend  the alternative OpenCore Configurator by mackie100projects as it can corrupt PCI import from Hackintool.



DOCUMENTATION

https://github.com/acidanthera/OpenCorePkg/blob/master/Docs/Configuration.pdf



GETTING STARTED



https://github.com/khronokernel/Getting-Started-With-OpenCore









08/06/2019



POST-INSTALL Aorus Pro Z390 EFI - RX580



Updated to Clover v 4945





07/06/2019



UPDATED POST-INSTALL Aorus Pro Z390 EFI - RX580



Removed following patches:



HDAS to HDEF ( Rename is now done through AppleALC and Lilu )

GFX to GFX0 ( Rename is now done with Whatevergreen.kext )

PEG0 to GFX0 ( Rename is now done with Whatevergreen.kext )

HECI to IMEI ( Rename is now done with Whatevergreen.kext )

Removed Legacy Audio Inject , this is now injected through properties.

Removed Ports Limit Patches, Ports are fixed using SSDT and USBInjectAll.kext

Made some small changes to Acpi fixes.

Changed from using FakeSMC to VirtualSMC, ( Why ? , sleep seems to works better on Aorus Z390 )





06/06/2019



Hackintosh wake with mouse or keyboard updated in POST-INSTALL Aorus Pro Z390 EFI - RX580







04/06/2019



 @Madane reported using Audio ID layout 7 resolved no audio on wake issue, so had a look at AppleALC and found a layout ID 16 specified in AppleALC Info.plist for Gigabyte Z390.

Changing to layout ID 16 resolves no audio on wake. CodecCommander.kext and SSDT-ALC1220.aml are no longer needed. EFI's updated.



03/06/2019



Adding hot patch instructions at end of guide for renaming PXSX to ARPT. As far as I know, Wifi cards in Mac's are listed under ARPT not PXSX. It's not essential that you should need to rename PXSX to ARPT for working WiFi, but in this instance it may be helpful if you experience WiFi lag.

Testing this at moment and it seems that downloads finish slightly quicker.



Noticed that immediate sleep would work correctly when going to menu bar and choosing the 'Sleep" option, but there was a problem with sleep when using Energy Saver option

in the System Preferences where the Display would sleep and computer would stay awake. Resolved this, by enabling Platform Power Managment in BIOS.

Upon wake there was no sound, so fixed sound by using CodecCommander.kext and SSDT-ALC1220.aml. Have updated Post-Install EFI folders with fix.





24/05/2019



Aorus Pro Z390 Hackintoshers can update to Clover r4934  and  WhateverGreen.kext v1.2.9 ( NoVPA.Jpeg.kext no longer required with the latest version of WhatEverGreen )



22/05/2019



It seems that there are no "Couldn't allocate runtime area" boot errors when continuing to use EMUVariableUefi-64.efi since updating to macOS Mojave 10.14.5, using Clover version r4920 and with updated BIOS F9.



20/05/2019 @ 20:15



Late update, completed a fresh install of macOS Mojave on a test drive. Tested sleep and sound.

Sound is fully working after wake from sleep, so no need to use  CodecCommander.kext and SSDT-ALC1220.





20/05/2019



Updated my system from BIOS version F5 to F9, on testing awake from sleep I discovered that sleep was broken.

Added CodecCommander.kext and SSDT-ALC1220 and issue seems resolved.





19/05/2019



Default SSDT inside Aorus Pro Z390 EFI folder now has Front USB-C enabled, thanks to @AudioGod for providing this.



15/05/2019





Updated Config.plist





REMOVED FROM config.plist Graphics



ig-platform-id 0x3E920003





REMOVED FROM config.plist Devices / Properties



AAPL,ig-platform-id  07009B3E  (0x3E9B007)



REPLACED WITH



AAPL,ig-platform-id  0300923E  (0x3E92003)





15/05/2019



Aorus Pro Z390 EFI - Intel UHD630



Update version 4871 to 4920



PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630  now Clover v 4920

POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630  now Clover v 4920









14/05/2019



Updated Clover from Version 4871 to 4920



Updated SMBIOS to iMac 19,1 for POST-INSTALL Aorus Pro Z390 EFI - RX580



Successfully updated from macOS Mojave Version 10.14.4 to 10.14.5



21/04/2019



Noticed, that Wi-Fi Country code was set to default US. Guide updated with instructions on how to change Country Code.

You only need to change country if your Country code is wrong.  See guide for "Set Wi-Fi Country Code"





18/04/2019



Added Frame-buffer Patching



New Aorus Pro Z390 EFI folder for Intel UHD 630 graphics ( no PCIe graphics card needed)



Fixed HDMI port black screen / no display

Working HDMI audio, working HDMI port on Aorus Z390 Pro



Fixed instant wake from sleep using Rehabman's SSDT-GPRW and patch. ( Use power button to resume from sleep )



Added PCI info to System Information inside config.plist for device information

 Removed DSDT, all fixes in config.plist so BIOS can now be easily updated, guide unified for users with different BIOS versions.













------------------------------------------------------------------------------------------------------------------------------------------------------------





PART LIST



Intel I7 8700

Gigabyte Z390 AORUS PRO

Gigabyte AORUS RADEON RX 580 8GB ( connected to monitor with DisplayPort )



Corsair Vengeance LPX 16GB ( 2 x 8GB ) 2666MHz – CMK16GX4M2A2666C16  In this build, both memory modules are installed in memory slots DDR4_A1  and DDR4_B1

Spoiler




Corsair RM650x 80 Plus Gold Power Supply Unit

Corsair H100i V2 AIO Hydro/Water RGB LED CPU Cooler

Samsung EVO 500GB SSD (2.5) macOS Mojave

Samsung EVO 250 GB SSD (2.5) Windows 10 Pro

NZXT H500 Mid Tower ATX Case



 1st RECOMMENDED WIFI CARD →  ABWB BCM943602CS 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E)

OR

 2nd RECOMMENDED WIFI CARD → WIFI and Bluetooth with BCM94331CD with PCI-e adapter (but will require AirportBrcmFixup.kext for AirDrop.. )









WORKING



Sound

Ethernet Port

WiFi

SSD Trim

USB 3.0 & 2.0

AirDrop

iCloud

Hardware Acceleration AMD RX 580 / AMD Vega

iMessages

Facetime

Handoff

Netflix on Safari browser

Continuity


























PREAMBLE - BEFORE YOU START



Here detailed, is all the  steps towards building a successful and stable Aorus Pro Z390 Hackintosh, if you are a first time Hackintosher, this guide will have you quickly up and running with the Aorus Pro Z390 Hackintosh. To rule out potential problems from the go,

only have the disc that you plan to install macOS Mojave connected to the Aorus Pro, disconnect any other Windows / Linux or data drives, external drives from your Aorus Pro. Windows / Linux and data drives can be connected after successful installation of macOS Mojave

If you have more than 16 GB of memory, then install macOS Mojave with just 16GB or RAM installed, you can later add any additional memory. Install memory modules in slots DDR4_A1  and DDR4_B1.



This build has a recommended Wi-Fi combo PCI-e card installed in slot PCIEX1_3 with its 9 pin USB cable attached to motherboard header F_USB2.  ( ensure WiFi card is seated properly in PCIe slot and cable is firmly attached to WiFi card and motherboard header F_USB2 )



If using the Corsair H100i v2 AIO cooler with USB cable connected to motherboard header F_USB1, you will need to enable hot-patch ( explained in guide ) in config.plist for working sleep, wake from sleep will only work by pressing Power Button.



Install macOS Mojave on its own physical drive, so do not try and install macOS Mojave onto a free partition on a disc that contains Windows.

Remove any Thunderbolt cards, Thunderbolt card can be reinserted after installation.  Double check your BIOS settings are the same as this guide.







Following are unsupported / problematic



• Intel Optane ( if you have this, remove it before installation of macOS Mojave )



• Samsung EVO Plus drives ( ensure you update Plus drive to latest firmware to avoid problems )



XFX Radeon RX 580



• NVIDIA GTX / RTX not supported in macOS Mojave







Q - WILL THIS GUIDE WORK WITH MY NON AORUS Z390 PRO MOTHERBOARD ?

A - Possibly, though you may have to create your own USBPorts fix.



Q - I notice you have the Aorus Pro Z390 version, will this guide work with Aorus Pro Z390 WiFi version ?

A - Possibly, but onboard Intel / Intel CNVi WIFII /Bluetooth will not work with macOS and you will have to disable HS14 for Bluetooth to function properly.



Q - Can I use my AMD Vega Card ?

A - Yes, AMD Vega card's  will work with this guide, but If you plan to use a Sapphire Pulse Vega 56 then please read @AudioGod ==>post  regarding the Sapphire Pulse 56.









PART 1 - DOWNLOAD





Update BIOS to version F10



CLOVER



•  Aorus Pro Z390 EFI.zip



• Aorus PRo Z390 EFI - THE OC VERSION.zip  <== OC VERSION



ESP MOUNTER PRO v1.9



macOS MOJAVE



CLOVER CONFIGURATOR



Hackintool





OPTIONAL DOWNLOADS



Native Display Brightness with MonitorControl


ThemeEngine



Assets.car





// Not really needed but IF no sound on Wake from Sleep then use SSDT-ALC1220 and CodecCommander

•   ( Resolves Audio Sound on Wake, place in Clover / ACPI / Patched )



•  ( Resolves Audio Sound on Wake, place in Clover / Kexts / Other )









PART 2 - BIOS SETTINGS (Version F10 )





Here is a list of the BIOS settings that I use ( Screenshots in spoiler below )



Enter BIOS Press F12 Enter Setup

Save & Exit Load Optimized Defaults



BIOS Windows 8/10 Features Other OS

BIOS CSM Support Enabled  ( Optionally, can be enabled after macOS is installed, your choice )



Peripherals Initial Display Output PCIe 1 Slot

Peripherals Trusted Computing Security Device Support   Disable

Peripherals Intel(R)Bios Guard Intel BIOS Guard Support   Disable

Peripherals USB Configuration Legacy USB Support   Enabled

Peripherals USB Configuration XHCI Hand-off   Enabled

Peripherals Network Stack Configuration Network Stack   Disabled

Peripherals SATA And RST Configuration SATA Mode Selection   AHCI



Chipset Vt-d Enabled ( can be enabled or disabled, your choice!)

Chipset Internal Graphics Disabled

Chipset Audio Controller Enabled

Chipset Above 4G Decoding Disabled



Power Platform Power Management  Disabled ( Optionally, can be enabled after macOS is installed )

Power → CEC 2019 Ready → Disabled

Power ErP Disabled  (can be enabled or disabled, your choice !)

Power RC6 (Render Standby) Disabled





 MIT → Advanced Memory Settings  → Extreme Memory Profile (X.M.P) → Disabled ( Optionally, can be enabled after macOS is installed, your choice )

// IF USING  CORSAIR H100i V2 AIO CPU WATER COOLER

MIT Smart Fan 5 Settings CPU Fan Control mode PWM



Save & Exit Save & Exit Setup



SCREEN DUMP SPOILERS



Spoiler





Change to Classic (F2) View



BIOS VERSION F10













































































































PART 3 – CREATE A MOJAVE USB FLASH INSTALLER



Prepare USB Installer for Mojave ( Video below )



Insert USB drive

Launch /Applications/Utilities/Disk Utility

Disk Utility View Show All Devices

On Left-hand panel External (Identify your USB device in left hand panel)

Click and highlight your USB device in the left-hand panel.

Click erase button.

Name: USB

Format: Mac OS Extended (Journaled )

Scheme: GUID Partition Map

Click Erase button.



Place the downloaded MacOS Mojave app into Applications folder.

Open Terminal copy and paste:



sudo /Applications/Install\ macOS\ Mojave.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --nointeraction && say Mojave Drive Created

  Enter























PART 4 – INSTALL CLOVER ON THE MOJAVE USB INSTALLER



Make Mojave USB flash drive installer bootable.( Video below )



Launch Clover application, double click.

Click Continue Continue Continue

Click Change Install Location button.

Click Install macOSMojave USB installer Continue

Click Customise button

Choose:

  • Clover for UEFI booting only
  • Install Clover in the ESP
  • Themes
  • UEFI Drivers

Click Install button

Installation Complete!



Video:













PART 5 – CUSTOMIZE MOJAVE USB INSTALLER FOR AORUS Z390 PRO



Replace Clover EFI folder with PRE-INSTALL Aorus Pro Z390 EFI - RX580.zip  Aorus Pro Z390 EFI.zip   ( Video below )



Install ESP Mounter Pro v1.9

Using ESP Mounter Pro, Mount ESP on disk2s1 ( Your disk name may be different )













Open mounted EFI partition found on desktop

Copy all the contents from Aorus 390 Pro EFI folder

Replace USB EFI folder with all the contents inside the Aorus 390 Pro EFI folder.




















PART 6 – INSTALL MAC OS MOJAVE ON INTERNAL DRIVE



INSTALL NOTE



ENSURE BIOS: Above 4G Decoding is set to Disabled

if Above 4G decoding is set to enabled then macOS Mojave install will freeze at 2 mins remaining and will not shut down properly!!!!



Please be patient during install, so when install gets to 2 or 3 mins remaining then it may take extra time. Be ready to boot from UEFI USB installer by pressing F12 when install initiates restarts.


INSERT USB INSTALLER INTO THE USB 2.0 PORT





 Here is a walkthrough of the full process using the macOS Mojave USB Installer on the Aorus Z390 Pro.







Spoiler










Power on PC and press F12 Choose bootable USB drive from boot menu.



Spoiler










Install macOS Mojave to internal solid state or hard drive.







When system returns to the Clover boot menu choose:



Boot macOS Install from Macintosh



Spoiler






At next restart, press F12 and boot from external UEFI USB device and choose:



Boot macOS Install from Macintosh



Spoiler








Proceed with macOS Mojave install

Spoiler













 CHOOSE FORMAT: APFS

























AT THE 3 MINS REMAINING SCREEN, BE PATIENT!... it takes slightly longer than the 3 mins.





















DO NOT LOG INTO ICLOUD AT THIS TIME - CHOOSE SETUP LATER!!!!

































macOS Mojave is now installed, but it can only boot at this moment thanks to FakeSMC and Clover on the Mojave USB flash drive installer.
















PART 7 – MAKE AORUS Z390 PRO INTERNAL DRIVE BOOTABLE



Make internal drive bootable ( Video below )



So far, the Aorus Pro can only boot the internal system drive with the aid of the Mojave USB Installer.

To boot from the internal system drive without the installer:



  • Download and install Clover with RC Scripts on target volume.



  • Copy the EFI folder from inside Aorus Pro Z390 EFI.zip  folder and paste it inside the the System Drive EFI partition.












Remove USB Mojave installer and shut down and restart.



Aorus Hackintosh should now be able to boot to macOS Mojave, Done, well almost !











PART 8 – ENABLE IMESSAGES & FACETIME





// UPDATE 21st MAY 2019



Possibly Clover Configurator now automatically populates correct values for working iMessages when you select an SMBIOS.





1450569214_Screenshot2019-08-01at10_23_36.thumb.png.75e4985553e858b20f2e9343c77b32bc.png





After selecting SMBIOS, example iMac19,1 for Aorus Pro with RX580 ( image above ) then go to Apple and ensure you have the "serial number is not valid " message. Done!



If you still have problems connecting to iMessage, test and ensure that AirDrop is working, then follow instructions inside spoiler.




Spoiler



Configure Config.plist for iMessages. ( Video below )



SMBIOS = iMac 19,1  or if using Intel only then choose iMac 18,1

Rt Variables —> ROM —> is your MAC address (delete colons from Mac address)

MLB field =  Enter serial number generated and append 5 random characters

SmUUID = in Terminal run command “uuidgen” and copy it to SmUUID field

Board Serial is same as MLB field.

 Clover Configurator —>  Save



Video:





























PART 9 – ENABLE TRIM for Solid State Flash Drives



Open Terminal and enter the following command:

sudo trimforce enable
Spoiler




Confirm TRIM




















PART 10 FRAMEBUFFERS  FOR RADEON AMD RX580, VEGA CARD's


Spoiler





The default Framebuffer used after installing macOS is the ATY,AMD,RadeonFramebuffer.

A slight improvement in performance can be had by specifying the framebuffer used by your AMD Graphics card see benchmarks below.





In the EFI folders attached to guide, I have included SSDT's for AMD RX580 and AMD Vega 56 to enable Orinoco and  Kamarang Framebuffers.

However the framebuffer can be done changed without SSDT, the framebuffer can also be changed in config.plist using Clover Configurator below.





FRAMEBUFFERS



RX 580 = Orinoco

Vega 56 = Kamarang or Iriri

Vega 64 = Kamarang or Iriri





EXAMPLE



Changing from ATY,AMD,Radeon Framebuffer to Orinoco framebuffer for AMD RX 580.





1050315334_Screenshot2019-08-02at08_15_07.thumb.png.39668790183fb5ac4793383fd7a76db4.png









Benchmark result using ATY,AMD,RadeonFramebuffer










Benchmark result using Orinoco Framebuffer

































DEFAULT USB FIX –  USB PORTS CONFIGURATION











If you have USBC on Computer Chassis / Case, then SS01 and SS02 is mapped to that USB C port
















------------    GUIDE FINISHED YOU SHOULD NOW HAVE WORKING AORUS Z390 PRO HACKINTOSH  WITH SSDT USB FIX   ------------





















OPTIONAL: Set Wi-Fi Country Code



Spoiler



Broadcom WIFI and Bluetooth BCM94331CD with PCI-e adapter card requires the use of  AirportBrcmFixup.kext.zip for working AirDrop, iMessages etc.. Possibly AirportBrcmFixup.kext defaults to Wi-Fi Country Code for US





  • To change US Country code, add one of the following Boot Argument to Config.plist --> Boot using Clover Configurator .




// Where XX is your Country Code
brcmfx-country=XX

// #a is used to ignore country code for Wi-Fi and is helpfull for 5GHz
brcmfx-country=#a








1207707937_Screenshot2019-04-21at18_57_45.thumb.png.ed0040d95729d37e6aec8c93f258d30e.png























OPTIONAL: System Information - PCI



Spoiler

































External USB Storage:  Fix "disk did not eject properly" message upon wake from sleep



Spoiler









To fix "disk did not eject properly" message use fixUSB.sh   ( Credit to Bernhard Baehr & syscl )  install open terminal:



1- Copy and paste :

// command will download the latest fixUSB.sh ( if link does not work, then follow alternative instructions at bottom)


git clone https://github.com/syscl/Fix-usb-sleep

Enter





2- Copy and paste:


chmod +x ~/Fix-usb-sleep/fixUSB.sh

Enter



3- Copy and paste:


cd ./Fix-usb-sleep
./fixusb.sh



Enter








Then press Ok, shutdown and restart and test. External storage will be still be mounted on wake from sleep.









Script can be installed using:




curl -o ./fixUSB.sh https://raw.githubusercontent.com/syscl/Fix-usb-sleep/master/fixUSB.sh




chmod +x ./fixUSB.sh




./fixusb.sh



































OPTIONAL:  Native Display Brightness - with MonitorControl




Spoiler



MonitorControl.png.d974a1ab5d86c48fea586022b7a47547.pngDCC-CI.png.97d312dce3281c7517ca22ae8077538e.pngMonitorControlSettings.png.fe3837eeb8e29abd82c40cbf1480b5cb.png





Requires a monitor with DDC/CI support  for this app to work. Also make sure your monitor has DDC/CI enabled.





























OPTIONAL:  Dual Boot macOS Mojave & Windows 10


Spoiler



























OPTIONAL:  Replace the default "About This Mac" Apple Logo with RED AORUS APPLE



Spoiler









Open Terminal, then copy and paste command below. ( Video below )


open . /Applications/Utilities/System\ Information.app/Contents/Resources/



  • Copy and Paste original Assets.car to desktop ( save original as a backup )
  • Replace Assets.car within Resources with downloaded Assets.car  ( enter password ).
  • Alternatively you can create your own with your favourite photo editing software, then use ThemeEngine to create Assets.car file.



























OPTIONAL USB PORTS FIX  – Create your own SSDT or USBPorts.kext



Spoiler







GLASGOOD'S SSDT PORTS PATCHING GUIDE USING HACKINTOOL





















FRAMEBUFFER PATCHING  – For working Intel UHD 630 Graphics, working HDMI Port, working HDMI Audio on Aorus Z390 Pro  NOT REQUIRED AS GUIDE IS USING SMBIOS FOR IMAC PRO 1,1







Spoiler

This also resolves black screen / no display when HDMI cable is attached to HDMI port on the Aorus Z390 Pro



Patch already been implemented so no need to change anything, I'm simply placing the patching here for reference.



For those using a AMD RX580,  you can disconnect the Display Port cable from AMD RX 580 card and attach HDMI cable to HDMI Port on the Aorus Z390 Pro and display will instantly swap over.



Config.plist SMBIOS can optionally be changed to iMac 18,1 and BIOS -->Initial Display Output can be changed from PCIe 1 Slot to --> IGFX for those without a dedicated graphics card such as RX580.



Credit to CorpNewt for tip on his Hackintosh guide for fixing the Pink/Purple Tint


<key>Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>AAPL,ig-platform-id</key>
				<data>
				BwCbPg==
				</data>
				<key>AAPL,model</key>
				<string>Intel UHD 630</string>
				<key>AAPL,slot-name</key>
				<string>Internal</string>
				<key>device-id</key>
				<data>
				kj4AAA==
				</data>
				<key>device_type</key>
				<string>Graphics Processor</string>
				<key>enable-hdmi20</key>
				<data>
				AQAAAA==
				</data>
				<key>framebuffer-con0-enable</key>
				<data>
				AQAAAA==
				</data>
				<key>framebuffer-con0-pipe</key>
				<data>
				EgAAAA==
				</data>
				<key>framebuffer-con1-busid</key>
				<data>
				BgAAAA==
				</data>
				<key>framebuffer-con1-enable</key>
				<data>
				AQAAAA==
				</data>
				<key>framebuffer-con1-pipe</key>
				<data>
				EgAAAA==
				</data>
				<key>framebuffer-con2-busid</key>
				<data>
				BAAAAA==
				</data>
				<key>framebuffer-con2-enable</key>
				<data>
				AQAAAA==
				</data>
				<key>framebuffer-con2-pipe</key>
				<data>
				EgAAAA==
				</data>
				<key>framebuffer-con2-type</key>
				<data>
				AAgAAA==
				</data>
				<key>framebuffer-patch-enable</key>
				<data>
				AQAAAA==
				</data>
				<key>framebuffer-unifiedmem</key>
				<data>
				AAAAgA==
				</data>
			</dict>
		</dict>





















FINAL CUT PRO  – Configuration for AMD RX5xx  NOT REQUIRED AS GUIDE IS USING SMBIOS FOR IMAC PRO 1,1



Spoiler



1- Ensure you have the following BIOS settings:



Peripherals Initial Display Output PCIe 1 Slot

• Chipset Internal Graphics Enabled ( after selecting Internal Graphics, you may have to save BIOS options then reboot and enter BIOS  again to see the DVMT options below )

Chipset DVMT Pre-Allocated 256M

Chipset DVMT Total Gfx Mem MAX





2 - Add proper device id and ig-platform-id for your CPU





Example, my system has a i7-8700. So my Device / Properties are:



153162994_Screenshot2019-06-11at12_56_32.thumb.png.bfe4b0ada57999ce3dceac361f995213.png





For working Final Cut Pro with i7-8700, I have ig-platform-id 0300923E and device-id 923E000 as can be seen in image above.





Add your ig-platform-id and your device-id :





If CPU is i7-8700 / i7-8700K or i5-8600K / i5-8400 or i5-9600



Add:

device-id 923E0000



Add:

AAPL,ig-platform-id 0300923E







If CPU is i9-9900i9-9900K or i7-9700 / i7-9700K or i5-9600K



Add:

device-id 983E0000



Add:

AAPL,ig-platform-id 0300983E


















982740315_Screenshot2019-05-29at14_12_13.thumb.png.a5bb137bce23a7060616f954fc0860ff.png











Example of Final Cut Pro using RX580 and CPU





987568166_Screenshot2019-06-10at16_20_02.thumb.png.37f506d3f0cd7e9e517fecb1c2aaf1b8.png



























AORUS PRO Z390 WIFI version with Intel CNVi  – Disable Bluetooth on HS14



Resolve bluetooth issue  reported by @eSaF


Spoiler



Add Boot Argument using Clover Configurator: uia_exclude=HS14



116944226_Screenshot2019-05-24at11_22_32.thumb.png.99cfacf7869b927f606052f746aa25f7.png





















CLOVER  – Updating / Upgrade Clover boot loader  (If hack is stable, don't update unless you have problems)


Spoiler



If your Aorus Pro Z390 Hackintosh is working then it is not really necessary to update Clover boot loader. However, may be a necessary if updating to a future / latest version of macOS Mojave.



Installing and updating Clover, and tidying Clover folder ( removing unnecessary folders )  after upgrade has completed.























SLEEP  – Sleep and Automatic Sleep




Spoiler



Initially automatic sleep was working on a test drive that I swapped into machine, but was not working on my non test drive. I managed to fix automatic sleep doing the following.



Deleting Sleep Image and restarting machine ( new sleep image is made on restart ).



Deleted com.apple.PowerManagement.4FBE3726-F5AA-51A5-8030-8FA210BA6117.plist  ( default is recreated  on restart )

Deleted com.apple.PowerManagement.plist ( default is recreated  on restart )



After restarting machine:


pmset -g

Output:








Hackintool:










Changed Energy Save to 1 min to test automatic sleep:










HOW TO DELETE SLEEP IMAGE



Open terminal and run following command:




sudo rm /private/var/vm/sleepimage

Shutdown, Power on







RESET ENERGY SAVER PREFERENCES



Open terminal and run following command:




open . /Library/Preferences



Change to list view:



Make backup, copy and paste onto desktop.



Delete:

com.apple.PowerManagement.4FBE3726-F5AA-51A5-8030-8FA210BA6117.plist ( unique number may differ )



Delete:



com.apple.PowerManagement.plist



1446748049_Screenshot2019-06-07at12_37_57.thumb.png.ed8dd92885be986496fa22b03b39e9fd.png





Shutdown, Power on











































SLEEP  – Resolving Instant Wake ( Corsair H100i v2 AIO )





Spoiler



Resolve Instant Wake From Sleep caused by the Corsair H100i V2 AIO Cooler



To enable wake using mouse and keyboard the Corsair H100i v2 USB cable must be disconnected from motherboard header F_USB1





If you want to keep the Corsair H100i v2 USB cable connected then enable the patch in config.plist, instruction below.

Hackintosh will then sleep, but can only wake using power button.



IF USING CORSAIR H100i v2, OR IF YOU HAVE INSTANT WAKE FROM SLEEP PROBLEM

THEN

ENABLE PATCH --> XPRW change Method(GPRW...

and download --> SSDT-GPRW.aml and place inside EFI/Clover/ACPI/Patched




1788948731_Screenshot2019-06-06at20_20_16.thumb.png.92d91aa7162c8904abc762098b16e3f6.png



Credit: Patch by Rehabman

































WIFI  – Clover Hotpatch PXSX to ARPT





Spoiler



Hot patch config.plist.



Wifi cards are listed under ARPT in macOS and not PXSX. It's not essential that you should need to rename PXSX to ARPT for working WiFi, but in this instance it may be helpful if you experience WiFi lag .





So here are the steps:

  • Identify the address, bellow PXSX may be rooted under RP08






  • Using Clover configurator apply the following Hot Patch :
  • Find Device: _SB.PCI0.RP08.PXSX                               ( if PXSX is attached to a different root, then use that root address. So here my root for PXSX is RP08
  • Rename: ARPT



774610656_Screenshot2019-06-03at18_14_48.thumb.png.d8bc6d383350ebab622877b6bf83c1e0.png





  • Save Clover Configurator
  • Shutdown / and start Hackintosh ( may cause a kernel panic on restart, if it does just restart Hackintosh )
  • Check that rename has taken effect ( So, _SB.PCI0.RP08.PXSX   is now  _SB.PCI0.RP08.ARPT )









834976368_Screenshot2019-06-03at19_20_44.thumb.png.cf2b76e3a73cfbc069848053bc9439bb.png
































RECOMMENDED READING  – Excellent Hackintosh Vanilla guide created by CorpNewt with in depth tutorial on Clover.



https://hackintosh.gitbook.io/-r-hackintosh-vanilla-desktop-guide/config.plist-per-hardware/coffee-lake


















































































































EFI NON DSDT SMBIOS iMac Pro 1,1 Clover v2.5k r5018

Aorus Pro Z390 EFI - RX580.zip   OR  Aorus Pro Z390 EFI - Vega-56.zip



EFI FOR SMBIOS iMac 19,1 for use with GPU & IGPU enabled in BIOS

PRE-INSTALL Aorus Pro Z390 EFI - RX580.zip

POST-INSTALL Aorus Pro Z390 EFI - RX580.zip ( Has OsxAptioFix2Drv-free2000.efi ==> recommended reading before use )



EFI FOR INTEL UHD 630 SMBIOS iMAC 18,1

 Aorus Pro Z390 EFI - Intel UHD630.zip( Has OsxAptioFix2Drv-free2000.efi ==> recommended reading before use )





Edited by glasgood
CLOVER EFI ( non DSDT )

Share this post


Link to post
Share on other sites
Advertisement
30 minutes ago, Allan said:

Amazing! That's a real guide :thumbsup_anim:



Cheers, guide intended for Hackintosh newcomer. :)

Share this post


Link to post
Share on other sites

Great guide, I'm planning an upgrade but will be using the using the Z390 Aorus Master instead so a greater part of your guide will be utilised which will save me a lot of pain in the process. Thanks for sharing :thumbsup_anim:

Share this post


Link to post
Share on other sites

One more thing is there any particular reason you chose Mac Mini oppose to e.g iMac 18.3 - This is so that I can fully understand what Mac model choice is suitable for the build.

Share this post


Link to post
Share on other sites
6 hours ago, eSaF said:

One more thing is there any particular reason you chose Mac Mini oppose to e.g iMac 18.3 - This is so that I can fully understand what Mac model choice is suitable for the build.



I Initially started with iMac 18.3, and also tested out iMac Pro 1.1 but could not find any difference between those. Tested and settled with Mac Mini, as the i7-8700 in my build is almost identical CPU i7-8700B as found in the 2018 Mac Mini.



Good choice of board, the Aorus Master ! My EFI folder should get you smoothly up and running and of to a good start, thought you will have to remove DSDT and SSDT from inside Clover folder. Keep us posted on your build! :thumbsup_anim:



Share this post


Link to post
Share on other sites

Thanks for the shout back very much appreciated - I've already downloaded your EFI folder and removed the DSDT and SSDT files in preparation. I have the parts on order but have to do it bit by bit as the wife tends to frown upon the amount I spend on my builds considering this will be my third :lol:. The EX58 being my first followed by the GA-Z87X both still rock solid. I will keep you inform about my progress, thanks again.

Share this post


Link to post
Share on other sites
23 minutes ago, eSaF said:

the wife tends to frown upon the amount I spend on my builds considering



So does my wife, I lost count of the number past builds and laptops owned :lol:

Share this post


Link to post
Share on other sites
3 hours ago, glasgood said:

My EFI folder should get you smoothly up and running and of to a good start, thought you will have to remove DSDT and SSDT from inside Clover folder. Keep us posted on your build! :thumbsup_anim:



Might be an idea to remove the Apple folder from the download and save a LOT of space...

Share this post


Link to post
Share on other sites
4 minutes ago, STLVNUB said:

Might be an idea to remove the Apple folder from the download and save a LOT of space...

Thanks for the tip! Hopefully I won't have to shout HELP too much during this build although I tend to quietly beg borrow and steal from others :whistle:

Share this post


Link to post
Share on other sites
1 minute ago, eSaF said:

Thanks for the tip! Hopefully I won't have to shout HELP too much during this build although I tend to quietly beg borrow and steal from others :whistle:

You're Welcome..But..

I was referring to Aorus Z390 Pro EFI download, Apple Folder should have never been there, its massive.

Share this post


Link to post
Share on other sites
56 minutes ago, STLVNUB said:

You're Welcome..But..

I was referring to Aorus Z390 Pro EFI download, Apple Folder should have never been there, its massive.

Oh ok I understand.

Share this post


Link to post
Share on other sites
1 hour ago, STLVNUB said:

Might be an idea to remove the Apple folder from the download and save a LOT of space...



THanks @STLVNUB I removed the Apple folder :thumbsup_anim:

Share this post


Link to post
Share on other sites

I'd bought a gigabyte aorus z390 pro wifi two month ago and from all this time I've been without shutdown and sleep properlly but with this guide my Hackintosh is now working correctly.



Very very thanks!!!.

Share this post


Link to post
Share on other sites

Hiya,



I have found one issue, my computer wakes immediately after sleep? Does sleep on your computer work??

EDIT: Is it because I have USBInjectAll?



Thanks



Screen Shot 2019-03-23 at 3.50.57 pm.png

Edited by Cameron Nicholson

Share this post


Link to post
Share on other sites
1 hour ago, Cameron Nicholson said:

Hiya,



I have found one issue, my computer wakes immediately after sleep? Does sleep on your computer work??

EDIT: Is it because I have USBInjectAll?



Thanks



Screen Shot 2019-03-23 at 3.50.57 pm.png



Hi Cameron,



Sleep seems to be working on my hack, I just tested it and no immediate wake. What USB devices do you have plugged into your machine and are using same hardware as listed in guide. What BIOS version is your motherboard ?



Share this post


Link to post
Share on other sites
1 hour ago, Cameron Nicholson said:

Hiya,



I have found one issue, my computer wakes immediately after sleep? Does sleep on your computer work??

EDIT: Is it because I have USBInjectAll?



Thanks





Try replacing SSDT with attached below, place both SSDT-UIAC and SSDT-USBX inside CLOVER ACPI patched.



>> USB SSDT.zip <<



.

Edited by glasgood

Share this post


Link to post
Share on other sites
1 hour ago, Cameron Nicholson said:

Hiya,



EDIT: Is it because I have USBInjectAll?









If SSDT-UIAC and SSDT-USBX  did not resolve problem, then remove SSDT-UIAC and SSDT-USBX. Then delete USBInjectAll.kext and use USBPorts.kext ( attached below )



USBPorts.kext.zip

Share this post


Link to post
Share on other sites
53 minutes ago, glasgood said:



If SSDT-UIAC and SSDT-USBX  did not resolve problem, then remove SSDT-UIAC and SSDT-USBX. Then delete USBInjectAll.kext and use USBPorts.kext ( attached below )



USBPorts.kext.zip

Thanks,



Unfortunately neither solution worked.



Removing USBInjectAll for USBPorts.kext disables all USB's.



This image is with the ssdt's and usbinjectall.



Thanks

Screen Shot 2019-03-23 at 7.08.47 pm.png

Share this post


Link to post
Share on other sites
45 minutes ago, Cameron Nicholson said:

Thanks,



Unfortunately neither solution worked.



Removing USBInjectAll for USBPorts.kext disables all USB's.







USBInjectAll  USBPorts.kext is working on my system, no ports disabled. Have a look at screenshots below. You are using Aorus Z390 Pro with BIOS version F5 ?










Edited by glasgood

Share this post


Link to post
Share on other sites
27 minutes ago, Cameron Nicholson said:







And with  SSDT-UIAC and SSDT-USBX and USBInjectAll.kext




Share this post


Link to post
Share on other sites
7 hours ago, glasgood said:



And with  SSDT-UIAC and SSDT-USBX and USBInjectAll.kext




Thanks man, someone fixed my DSDT by " HS11 and HS13 is built-in now,, but you still get problem with PRW method. I removed PRW method in your DSDT,", not sure quite what they did but it all works





Share this post


Link to post
Share on other sites
On 3/23/2019 at 3:56 PM, Cameron Nicholson said:

Thanks man, someone fixed my DSDT by " HS11 and HS13 is built-in now,, but you still get problem with PRW method. I removed PRW method in your DSDT,", not sure quite what they did but it all works





No worries, good you got DSDT fixed.

Share this post


Link to post
Share on other sites

Hello everyone, I'm new to the forum and new to Mac OS. first of all congratulations for this comprehensive guide. I come to the point: I followed this guide step by step, but without the desired result. I can't even install mac os. everything crashes as soon as the white apple appears ...... I'm sure I created the bootable usb well with mojave v.10.14.4 (from mojave 10.14.2 on vmware) .... I kindly ask for your help


hardware:
gigabyte aorus z390 pro wifi
intel core i7 8700k
Sapphire Pulse Radeon RX 580 8gb
16gb corsair vengance lpx (2x8)
SSD Samsung 970 Evo Plus M.2 500 GB (windows 10 pro)
ssd samsung 840 pro 120gb (for mac os)

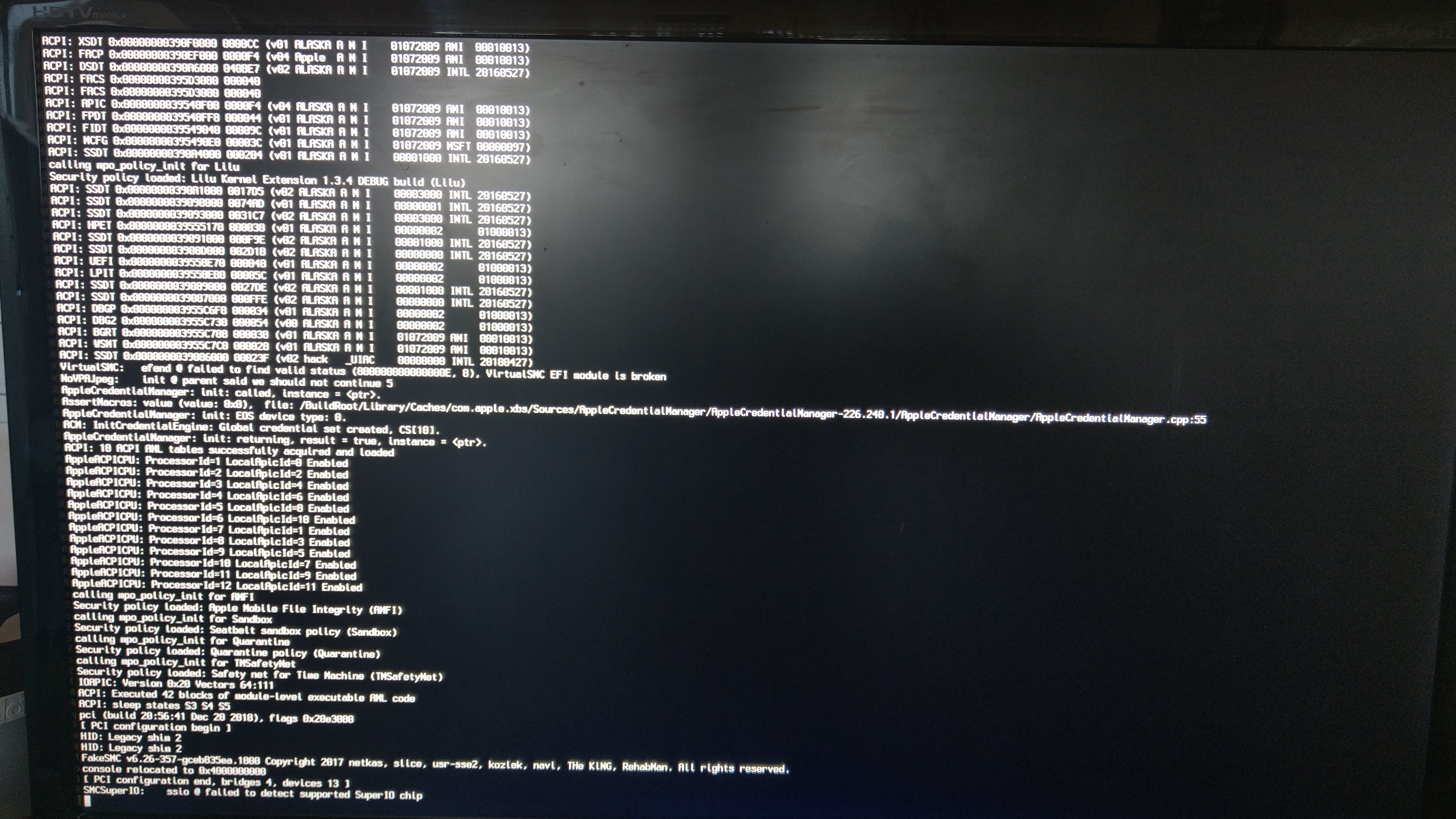

I started also in verbose mode, I attach photos, if you need anything else, tell me. I repeat, I don't know mac os, please help me ..... maybe even with simple explanations .....
Thanks in advance


Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

Announcements

  • Similar Content

    • By tonyx86
      **********************************************************************************
      In this thread, I have fully documented the installation of macOS Catalina on my HP EliteDesk 800 G4 Mini. It is a PERFECT HackMini8,1 and is running very well for me without any issues. I hope this documentation helps you to install macOS on your hack. Please leave feedback if you think there is anything I can improve and let me know if you have any questions.
      **********************************************************************************

      Background
      This is my first "modern" hack supporting UEFI and my first hack using Clover "on-the-fly" patches.  My previous hacks
      Laptop: Thinkpad T61 / Nvidia NVS 140m Laptop: Dell Latitude E6410 / Nvidia G3100m Desktop: Gigabyte G31 / GeForce 9600 Desktop: Biostar TH55HD / Sapphire Pulse RX580 (Google "Catalina Biostar TH55HD" and look for user name deeveedee)
      are all perfectly running Catalina and I patched them all "manually" - all DSDT patches applied with MaciSL with virtually no Clover on-the-fly patching and all booted Legacy Clover.  This UEFI hack was MUCH easier and took about 20 hours vs. a combined hundreds of hours for the old hacks.  I wanted a hack that was a little more future proof and I think this is it.  I hope you enjoy this as much as I am enjoying it.  It is a perfect MacMini8,1.



      My system specs
      HP EliteDesk 800 G4 Mini (I7-8700T / UHD 630 / Q370 Chipset / 32GB DDR4 RAM) 3 x DP Ports (connected to monitors using DP -> DVI adapters) 6 x USB 3.1 1 x USB Type-C 3.1 2 x NVMe SSD (M.2 PCIe x4 2280/2230 combo ports) 1 x SATA6 SSD 1 x Intel Ethernet RJ-45 Conexant CX20632 Audio Codec Unsupported M.2 PCIe x1 2230 Intel Wi-Fi (currently disabled in BIOS).  I may replace this with Brcm, but am using only Ethernet (IntelMausi) for now.
      macOS Installation
      See macOS installation steps here See Known Issues here for additional installation steps that may not yet be included in my attached config files See CLOVER (UEFI) installation later in this first post
      See BIOS configuration in attached BIOS configuration PDF document
      See EFI and /L/E kexts in attached EliteDesk.zip archive See how I developed my installation methodology here See references here See instructions here for installing two M.2 2280 NVMe SSDs and one SATA HD / SSD
      What is not working
      Wi-Fi / Bluetooth (intentional since I have not yet replaced my Intel card).
      What is not tested
      USB c 3.1 port (I have partially tested the USB 3 functionality of the port and it seems to be working fine with the SSDT-UIAC.aml here) Microphone port
      What is working
      Everything not mentioned above Sleep / Wake Multiple displays with IGPU graphics acceleration, hot pluggable display ports and DP->DVI adapters USB 3.1 ports Audio (internal speaker and headphone jack) Ethernet Auto-sensing headphone jack automatically switches to internal speaker when headphones removed
      Known Issues and their solutions - see here

      BIOS Version / Configuration
      Version: 02.11.01 Rev.A See attached BIOS configuration in PDF document "HP EliteDesk 800 G4 Mini BIOS Configuration.pdf" Intel ME must be enabled for proper sleep / wake of UHD 630

      Clover Configuration
      Clover for UEFI booting only Install Clover in the ESP UEFI Drivers Recommended drivers DataHubDxe FSInject SMCHelper File System drivers ApfsDriverLoader VBoxHfs Memory fix drivers AptioMemoryFix Additional drivers NvmExpressDxe Install RC scripts on target volume Themes Choose your desired theme Install Clover Preference Pane (option not available when installing on USB thumb drive)
      UHD 630 Framebuffer Patching
      See here and here
      Current Versions
      Catalina 10.15.5.02 Clover (UEFI) r5119 Lilu.kext 1.4.5 WhateverGreen.kext 1.4.0 AppleALC.kext 1.5.0 IntelMausi 1.0.3 (Not IntelMausiEthernet)
      Credits To be provided

      ScreenShots


      HP EliteDesk 800 G4 Mini BIOS Configuration.pdf
      EliteDesk800 G4 Mini - Rev 0.91.zip
    • By MaLd0n
      -EFI OpenCore Folder Desktop 10th Intel Processors
      Paste this EFI folder in EFI partition in your USB STICK
      https://tinyurl.com/ybwr9kq3

      -Tutorial
      https://tinyurl.com/re2c9sz

      -Post Installation
      Paste EFI folder into EFI Partition in your SSD, reboot and extract one full dump with this app and post here!
      https://tinyurl.com/ybwr9kq3
      RunMe.app
      https://tinyurl.com/y9562hz7

      --DSDT PATCHES--

      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE ID -DMAC -REMOVE LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS -XHCI -PLUGIN TYPE -HDEF -ARTC -IPIC -TIMR -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -kUSBCompanionIndex -io-device-location -IMEI -EC -PNLF -ARPT -GFX0 -NVME -ACPI-WAKE-GPE -DTGP -ACQUIRE MUT0 0XFFFF -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES
      --SCREENSHOTS--












































      Big Thanks to XLR and your Badass Motherboard, Ultrafast CPU, Coolest Heatsink, Huge Graphics Card, Tonnes of RAM,
      Gigantic Hard Drive, Lightspeed Disk Burner, Professional Sound Card, Massive LCD Display.


      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, headkaze, onemanosx, erroruser, Jenny David, Sampath007, Facebook Hackintosh community, Facebook Olarila community, SchmockLord, daliansky and many, many, many others!

      We're all here to have fun and learn from each other!
    • By MaLd0n
      ---USB---
      https://pikeralpha.wordpress.com/2016/07/13/simple-skylake-usb-fix-no-kexts-required/

      ---CLOVER FOLDER---
      https://www.olarila.com/topic/5676-clover-folder-for-all-chipsets/


      --MOBO
      GigaByte Z390 M Gaming



      --PROCESSOR
      Intel Core i9-9900K


      --COOLER
      CoolerMaster MasterLiquid ML120R RGB


      --MEMORY
      Corsair Dominator Platinum 16GB (2 x 8GB)


      --GPU
      Sapphiretech Radeon RX 590 8 GB GDDR5



      --SSD
      Samsung 970 EVO NVMe M2 Flash Drive


      --POWER SUPPLY
      EVGA 750 N1, 750W


      --WIRELESS
      TP-Link Archer T9E


      --BLUETOOTH
      Orico BTA-403


      --CASE
      Thermaltake View 21 Tempered Glass Edition


      --DSDT Patches--
      -FIX ERRORS AND WARNINGS -FIX ACPI ERRORS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA SERIE 10 ID -DMAC -REMOVE 22K LINES, PROBLEMATIC and UNUSED -FIX K.P in REBOOT -NVRAM -REAL TIME CLOCK -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -MIKEY -BUS1 -MCHC -ALS0 -SHUTDOWN -UAR1 -LAN -FWHD -USBX -PMCR -PPMC -XSPI -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -OPERATION REGION GPIO -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES
      --SCREENSHOTS--





























      --BruceX--

      --USB-C-- test with SanDisk Ultra USB-STICK 128gb



      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
    • By ITzTravelInTime
      Hi guys, this thread is to show you a new and open source app, created by me, that I called TINU:

      The name means: TINU Is Not #####, the U refers to a popular software that is used to create macOS hackintosh installers (that for good reasons is banned on this forum), but the aim of the name is to explain that this app is a totally different thing from that software and works in a totally different way.

      This app basically is a graphical interface for the createinstallmedia executable that is inside the macOS and Mac OS X installer apps, it is capable to create a bootable installer completely vanilla like what you do using the command line method, and also this method is recommended by apple itself. In addition to this, this app provvides you simplicity and flexybility, and lets you to avoid most of the tedious steps or problems of other simlar apps.

      TINU allows you to create easily a bootable macOS installer without messing around with command line stuff and without using disk utility, all you need to do is use the app and then install your bootloader of choiche on the usb (or just leave it as is if you want to use it on a real Mac).

      Features:
      - Simple-to-use UI that allows you to easily start the bootable macOS installer creation process.
      - It can work with every macOS installer app that has the createinstallmedia executable inside its resources folder (including also beta and newly released installers).
      - You can use any erasable volume that is at least 7 GB of size (if the volume's drive is not in GUID format, TINU will re-format it accordingly).
      - Can work with the Mac OS recovery system, so you can create a bootable macOS installer from the macOS installer itself or from the macOS recovery partition, and you can use TINU to install macOS, too.
      - 100% clean: The bootable macOS installers created with this tool are vanilla, just as if you created them using the command line "createinstallmedia" method in Terminal.
      - Open Source: You can verify what this program does on your computer and you can create your own version by downloading and playing with the source code.
      - Does not require any special preparations. Just open the program, make sure you have a USB drive plugged in and have a macOS installer app on your disk.
      - No need to use Disk Utility. TINU can format your drive or partition for you.
      - Integrated EFI partition mounter tool.
      - Works using the latest versions of macOS and will also support newer Mac installers out of the box without requiring an update.
      - Offers advanced features to customize your bootable macOS installer.

      Features that are planned for future versions:
      - Support for other languages, at least Italian.

       (To sugegst a new feature please contact me on github)

      Requirements:
      - A computer that runs Mac OS X Yosemite or a more recent version (Mac OS X El Capitan is required to use TINU in a macOS recovery or installer).
      - A drive or a free partition (on a drive which already supports GUID) of least 7 GB that you want to turn into a macOS/Mac OS X installer.
      - A copy of a macOS/Mac OS X installer app (Maveriks or newer versions are supported) in the /Applications folder or in the root of any storage drive on your machine (excepted the drive or volume you want to turn into your macOS install media).

      Download:
      https://github.com/ITzTravelInTime/TINU/releases

      Frequently asked questions:
      https://github.com/ITzTravelInTime/TINU/wiki/FAQs

      Useful links:
      Thread (english) on insanelymac.com:
      - http://www.insanelymac.com/forum/topic/326959-tinu-the-macos-installer-creator-app-mac-app/
      Thread (italian) on insanelymac.com:
      - https://www.insanelymac.com/forum/topic/333261-tinu-app-per-creare-chiavette-di-installazione-di-macos-thread-in-italiano/
      Thread (english-german) on hackintosh-forum.de:
      - https://www.hackintosh-forum.de/index.php/Thread/33630-TINU/
      Post on Reddit:
      - https://www.reddit.com/r/hackintosh/comments/a1h61d/tinu_vanilla_bootable_macos_installer_creation/
      Facebook hackintosh help and beta testing (Italian only):
      - https://www.facebook.com/groups/Italia.hackintosh/?fref=ts
      Contact me (project creator):
      - Insanelymac.com profile: http://www.insanelymac.com/forum/user/1390153-itztravelintime/
      - email: piecaruso97@gmail.com

      Note that:
      - This software is under GNU GPL v3 license so any new branch/mod/third party release must be open source and under the same license.
      - We (the project creator and othe people involved with active developmment) assume no responsibility for any use of this app and this source code, and also for any kind of hardware and software damage to any computer and any device or peripheral that may come from this app or source code during it's use and outside it's usage
      - We do not guarantee support to you, this is only an open source project, not a product released by a company!
      - This project is born only for educational and demonstrative purposes, it's not intended to be used for commercial purposes and it will never be.
      - This is a no-profit project, born only to let people to create macOS install medias in a more simple way and also to learn how to create this kind of apps.

      Credits:
      - Apple for macos and installer apps and scripts
      - People that helped me a lot:
      Francesco Perchiazzi, Nicola Tomarelli, Roberto Sciortino, Raffaele Sonnessa, Ermanno Nicoletti, Tommaso Dimatore, Michele Vitiello Bonaventura, Massimiliano Faralli, Davide Dessì, Giorgio Dall'Aglio, Peter Paul Chato.
      - Special thanks to Italian Hackintosh group!! for help (https://www.facebook.com/groups/Italia.hackintosh/?fref=ts)
      - Thomas Tempelmann for help with the UI
      - Pietro Caruso (ITzTravelInTime) for creating, maintaing and developing this project

      Here are also some screenshots inside this spoiler tab




    • By AudioGod
      I have put together this simple little guide for anybody wanting to use a Patched DSDT EFI with the same configuration as me.
      This is also a thread to discuss everything Z390 Pro and try and help where we can and maybe make things a little better for you.

      A huge massive thank you to @glasgood @MaLd0n @larabee These three guys have helped me and talked me so much and are as helpful as you could ever get, Without them I wouldn't have a perfect working build like I do or be putting up this Guide & Discussion Thread sharing the hard work and countless hours that we have all put in to this.


      This EFI and Patched DSDT have been created to work with a Gigabyte Aorus Z390 Pro, 9900k with a Vega 56 but has also been tested and verified fully working with the following Hardware using Catalina 10.15.4

      CPU's
      8600K, 8700, 8700K, 9400K, 9600K, 9700K, 9900K, 9900KS (All KF Models work but use SMBios iMacPro1,1 instead)

      GPU's
      RX 560, 570, 580, 590, Vega 56, Vega 64, Radion VII, RX 5500, 5500 XT, 5600, 5600 XT, 5700, 5700 XT
      (If you have success with any different CPU or GPU's then please do let me know)


       @glasgood Has kindly put together a new simple Catalina install guide so Just Follow He's Guide For a Perfect Install.


      HARDWARE USED
      • Intel I9 9900k
      • Gigabyte AORUS Z390 PRO
      • Sapphire Nitro+ SE Vega56 (connected to monitor with DisplayPort)
      • Corsair Vengeance Pro RGB 16GB @3200mhz (2 x 8GB)
      • Corsair RM850x 80 Plus Gold Power Supply Unit.
      • CoolerMaster MASTERLIQUID ML360R RGB CPU Cooler
      • Samsung 970 EVO 1TB NVMe SSD macOS Catalina 10.15.3
      • Samsung 860 EVO 1TB SSD (2.5) Windows 10 Pro
      • ABWB BCM94360CS2 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E)
      • Lian Li PC-O11DW Dynamic ATX Case










      WORKING
      • Sound
      • Ethernet Port
      • WiFi
      • SSD Trim
      • USB 3.0 & 2.0 (All ports Open Natively)
      • AirDrop
      • iCloud
      • Hardware Acceleration
      • iMessages
      • Facetime
      • Sleep & Wake
      • Sleep and Shutdown via the Power Button
      • Handoff
      • Netflix on Safari browser
      • Continuity
      • Sidecar


      CLOVER & OPENCORE EFIs
      Current EFIs Updated 01/06/2020


      Clover EFI Update - 01/06/2020 - Use with Bios revision F12d Only or Replace with the older F11 DSDT if you don't want to update the bios

      Clover Z390 Pro Navi Vega EFI 010620.zip  - Vega, Navi (5700, 5700XT etc), Radeon VII DSDT EFI
      Clover Z390 Pro Polaris EFI 010620.zip - RX500 Polaris Series (RX590, 580, 570 etc) DSDT EFI

      Please Note - I have now set KernelPM to No as standard so if you don’t have a unlocked MSR or not using my MSR Unlocked Bios Profile then go into the Clover Config.plist and set KernelPM to Yes or you won’t be able to boot up. An even better fix would be to unlock your MSR using my profile method.

      Note - If your not using a 5700 XT or any other Navi GPU then remove agdpmod=pikera from the boot arguments.


      OpenCore EFI Update - 01/06/2020
      Myself and @texem have now created a OpenCore EFI done the way the OpenCore Devs intended it to be made, There is no DSDT in use so you can use this EFI on any supported GPU and the SSDTs have been made so they will not be used in any other Operating System apart from MacOS.

      OpenCore 059 Z390 Pro 19,1 010620.zip - OpenCore v0.5.9, SMBios iMac19,1
      OpenCore 059 Z390 Pro 1,1 010620.zip - OpenCore v0.5.9, SMBios iMacPro1,1 (IGPU Disabled)

      Note - If your not using a 5700 XT or any other Navi GPU then remove agdpmod=pikera from the boot arguments.
      Note 2 - Do not try to carry across your old OpenCore Config.plist to the new EFI as to many changes have occurred in 0.5.9. Use the new Config.plist instead.

      PlistEdit Pro.zip - PlistEdit Pro (use to edit OpenCore)

      For OpenCore Using PlistEdit Pro add your details by modifying the following


      PLEASE NOTE - These EFIs are setup to be used with your msr Unlocked so make sure you use the F11c Unlocked Profile but if for any reason you can not unlock MSR then just modify following in the OpenCore config.plist :



        Default USB Setup For All OpenCore EFIs








      PLEASE NOTE - Please flash your motherboard bios to revision F12d to use my current Clover EFI. It’s a major rework of the bios and vital changes have been made to the layout and power tables. New DSDTs have been created and installed into the new EFI’s but will not work correctly with any other bios revision.

      Latest Gigabyte Z390 PRO BIOS (F12d)
      mb_bios_z390-aorus-pro_f12d.zip


      CFG Unlock (MSR) F12d (F12c Pro WIFI) BIOS Profile - The Easy Way
      Highly recommended if your using a Vega 56/64, Radeon VII or Navi GPU


      DSDT's FOR CLOVER ONLY (A big thanks to @MaLd0n for compiling these DSDT's)


      To Create Your Own Patched DSDT Message @MaLd0n using the link bellow
      https://www.olarila.com/forum/17-dsdt-patch-requests/
      (If you want a perfect setup then getting your own patched DSDT made would be the best thing to do, Mine will work perfectly fine but different hardware no matter how small a change it is can tend to have some sort of effect on the DSDT and your setup)


      If Your Not Using File Vault Then Please Disable Hibernate
      disablehibernate.command


      ADDITONAL DOWNLOADS
      Clover
      Clover Configurator
      Kext Updater


      OPTIONAL DOWNLOADS
      BroadcomFix.zip   (Use these kexts if your Broadcom bluetooth/Wifi isn't working properly)
      FakeSMC    (Can be used instead of VirtualSMC)
      Hackintool
      IORegistryExplorer
      Native Display Brightness with MonitorControl


      BIOS SETTINGS (Bios Revision F12d)
      • Enter BIOS → Press F12 → Enter Setup
      • Save & Exit → Load Optimized Defaults

      • Boot -> Windows 8/10 Features -> Win 8/10WHQL
      • Boot -> CSM Support -> Disabled (Can be set to Enabled if need be but try to have it set to Disabled first)
      • Favourites -> Extreme Memory Profile (X.M.P.) -> Profile1
      • Favourites -> VT-d -> Disabled (Can be set to Enabled or Disabled, Your choice)
      • Settings -> IO Ports -> Internal Display Output -> PCIe 1 Slot
      • Settings -> IO Ports -> Internal Graphics -> Enabled (Set to Disabled if using SMBios iMacPro1,1)
      • Settings -> IO Ports -> DVMT Pre-Allocated -> 64M
      • Settings -> IO Ports -> DVMT Total GFX0-Allocated -> 256M
      • Settings -> IO Ports -> Aperture Size -> 256MB
      • Settings -> IO Ports -> Audio Controller -> Enabled
      • Settings -> IO Ports -> Above 4G Decoding -> Enabled
      • Settings -> IO Ports -> USB Configuration -> Legacy USB Support -> Auto
      • Settings -> IO Ports -> USB Configuration ->  XHCI Hand-off -> Enabled
      • Settings -> Miscellaneous -> Software Guard Extensions (SGX) -> Disabled
      • Settings -> Platform Power -> Platform Power Management -> Enabled
      • Settings -> Platform Power -> ErP -> Enabled
      • Settings -> Platform Power -> RC6(Render Standby) -> Enabled

      • Save & Exit → Save & Exit Setup


      SCREENSHOTS





















×
