How to build your own iMac Pro [Successful Build/Extended Guide]

iMacPro Build/Guide Feedback

26 members have voted

This poll is closed to new votes
  1. 1. Does this guide help you in your endeavour?

    • yes
      21
    • no
      5

658 posts in this topic

Recommended Posts

Advertisement

@KGP-X99

Here I can write this

delete this because it is not correct at all:



Note however, that currently it seems to be still impossible to format an APFS-disk with HFS+ by means of Apple's disk utility.

Share this post


Link to post
Share on other sites

@KGP-X99

Here I can write this

delete this because it is not correct al all:



Note however, that currently it seems to be still impossible to format an APFS-disk with HFS+ by means of Apple's disk utility.



Why? If a system disk is once in APFS, you cannot reconvert it to HFS+ by means of Apple's disk utility.. Isn't it?



If you know an OSX workaround, please detail below and I will implement it asap.



Do you think they can change now my "InsanelyMac Geek" classification in my profile?  :wink_anim:



Hope the new guide implementation here works more or less. Please advice in case of broken or wrong links or other errors.

Share this post


Link to post
Share on other sites

Why? If a system disk is once in APFS, you cannot reconvert it to HFS+ by means of Apple's disk utility.. Isn't it?



If you know an OSX workaround, please detail below and I will implement it asap.



Do you think they can change now my "InsanelyMac Geek" classification in my profile?  :wink_anim:



Hope the new guide implementation here works more or less. Please advice in case of broken or wrong links or other errors.

Hi KGP-X99,



Thanks for the detailed guide and congrats on your new iMac Pro hackintosh.



@Fabiosun: I took the liberty to provide the answer to his question, I hope you don't mind.



There is no way to convert APFS back to HFS but you can easily reformat an APFS formatted disk to HFS using disk utility app or using diskutil command, all you need to do is to unmount the APFS volume with disk utility and then select the APFS formatted disk and erase it.



According to Apple's Developer site regarding the converting APFS to HFS this what they say in their documentation:



" If I convert a volume to APFS, can I later revert to HFS+?

You can use Disk Utility to erase an APFS-formatted volume and reformat as HFS+. However, your data will not be preserved when you reformat the volume as HFS+"

Here is the link



Cheers

Share this post


Link to post
Share on other sites

Hi KGP-X99,



Thanks for the detailed guide and congrats on your new iMac Pro hackintosh.



@Fabiosun: I took the liberty to provide the answer to his question, I hope you don't mind.



There is no way to convert APFS back to HFS but you can easily reformat an APFS formatted disk to HFS using disk utility app or using diskutil command, all you need to do is to unmount the APFS volume with disk utility and then select the APFS formatted disk and erase it.



According to Apple's Developer site regarding the converting APFS to HFS this what they say in their documentation:



" If I convert a volume to APFS, can I later revert to HFS+?

You can use Disk Utility to erase an APFS-formatted volume and reformat as HFS+. However, your data will not be preserved when you reformat the volume as HFS+"

Here is the link



Cheers





Many thanks for the details, @cyberdevs!  Guide fixed..

Share this post


Link to post
Share on other sites

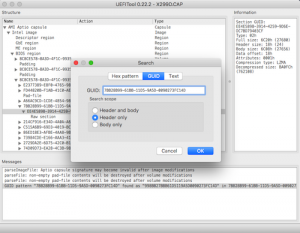

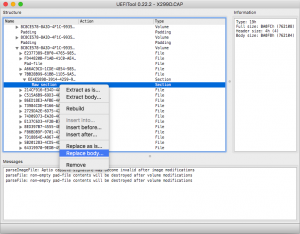

Monster build indeed! Would you like to share your compiled UEFITool for Mac please? Currently currious with their new UEFIReplace :)



Unfortunately, you need to compile the UEFIPatch source on your rig with BREW and QT5 installed. Otherwise, it won't work.

Share this post


Link to post
Share on other sites

Unfortunately, you need to compile the UEFIPatch source on your rig with BREW and QT5 installed. Otherwise, it won't work.



Argh, I thought (refer to your post) you already have one for me  :P Thanks man, will up this post once again!

Share this post


Link to post
Share on other sites

Argh, I thought (refer to your post) you already have one for me  :P Thanks man, will up this post once again!

Here you go... but as I say I guess it won't work.. You have to install BREW and QT5 and compile the UEFIPatch Source..

UEFIPatch.zip

Share this post


Link to post
Share on other sites

Guide Update - 17.01.2018



EFI-Folder related changes:

  • Implementation of Clover Boot Loader Clover_v2.4k_r4382
  • AptioMemoryFix.efi replaced by OsxAptioFix3Drv-64.efi of Clover_v2.4k_r4382

Note that new EFI-Folder EFI-X299-10.13.2-Release-iMacPro1,1-170118  has been linked within the originating post/guide and is once more linked here.



Guide-related modifications:

  • Corresponding modifications of Section C.1
OsxAptioFix3Drv-64.efi maintains native NVRAM implementation for our iMac Pro Skylake-X/X299 Systems under macOS High Sierra 10.13.2 (17C2120) and 10.13.2 SA (17C2205), thus EmuVariableUefi-64.efi has been also omitted in the /EFI/Clover/drivers64UEFI/ directory contained in newly distributed EFI-Folder.

Further note that for native NVRAM implementation, Clover's RC Scripts have to be omitted during the clover boot loader installation. If already previously installed, remove Clover's RC Scripts from the /etc directory of your macOS USB Flash Drive Installer or System Disk as described in Section C.1) oaf my guide.

OsxAptioFix3Drv-64.efi works absolutely flawless on my system, without any memory allocation errors or slide issues even with the "slide" boot flag disabled.

Thanks for the hard work of @apianti et al. (Clover Team)!

Enjoy and have fun,


Share this post


Link to post
Share on other sites

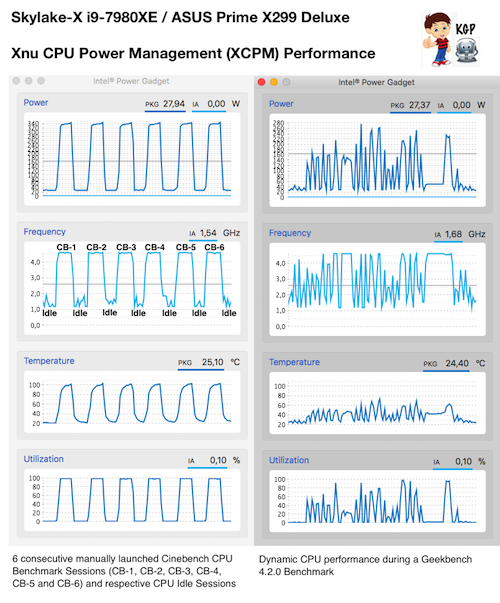

Any improvements with respect to native Skylake-X implementation?



Any improvements with respect to 10.13.3 beta 4?

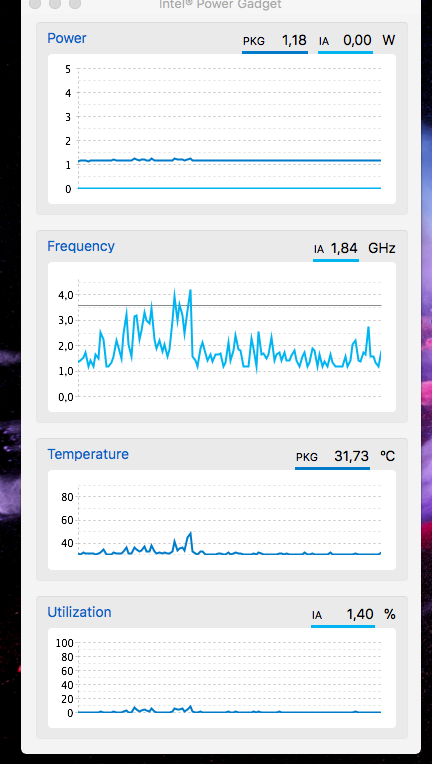

TrackPad working smooth and don't hanging. Better power management for cpu I thing. post-916820-0-55464400-1516225037_thumb.png



But sleep and wake still don't work in me case.
