OpenCanopy Icons

[Anto65]

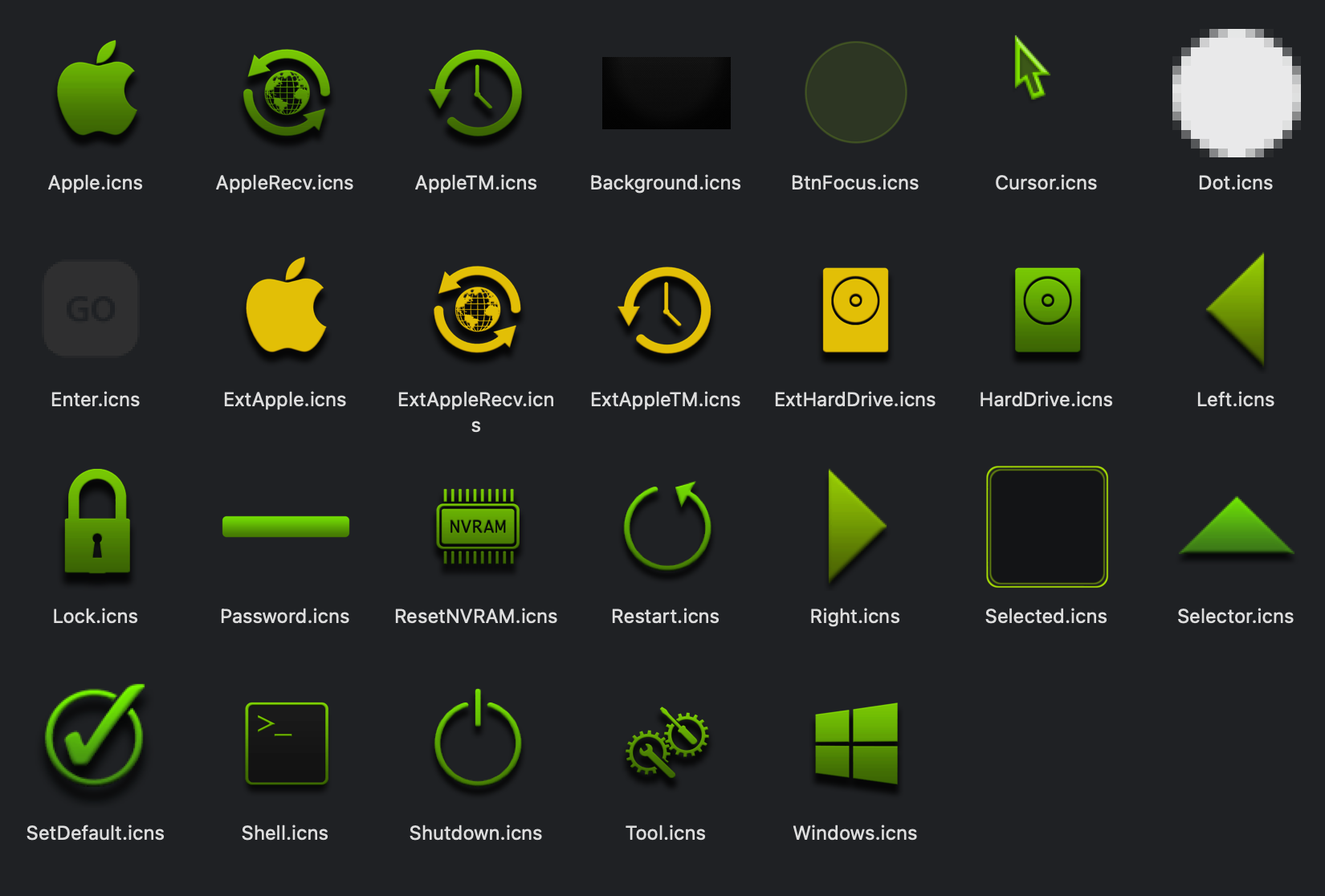

I re-downloaded OpenCanopyIcons-master thanks @blackosx  for the wonderful job done, you simplified the icon titles, put aside the extra icons especially in the Set4b set clean , great . Unfortunately I wanted to put on the GreenGlow set but the gui is not active, I tried to swap Selector.icns and SetDefault.icns apparently seemed strange to me, but nothing





the set to the left of the shoot goes

Edited April 10, 2021 by antuneddu

[blackosx]

Strange.

I've just tried and it's fine.



Run SetBuilder

===========================
OpenCanopyIconsSetBuilder
Version 0.1.9
===========================

Would you like to build a custom icon set or choose an LE Glow Set?
---------------------------------------------------
1) Custom
2) GlowPack
3) Quit
Pick an option: 2

Which icon colour would you like?
- BlueGlow has backgrounds for ASUS, GIGABYTE, MSI and HP
- GreenGlow has backgrounds for ACER and ASROCK
- LightBlueGlow has backgrounds for DELL
- OrangeGlow has backgrounds for AORUS
- RedGlow has backgrounds for LENOVO, ROG and MSI GAMING
---------------------------------------------------
1) BlueGlow	  3) LightBlueGlow  5) RedGlow
2) GreenGlow	  4) OrangeGlow	    6) Quit
Pick an option: 2

Which background logo would you like?
---------------------------------------------------
1) ACER
2) ASROCK
3) Quit
Pick an option: 1


Choose a background size...
---------------------------------------------------
1) 1024x768     4) 1600x1200   7) 1920x1080  10) 1680x1050
2) 1280x960     5) 1366x768    8) 1280x800   11) 1920x1200
3) 1440x1080    6) 1600x900    9) 1400x900   12) Quit
Pick an option: 7
Downloading Icons:
========================================
Cursor.icns
Selector.icns
Selected.icns
Left.icns
Right.icns
Shell.icns
Tool.icns
Apple.icns
HardDrive.icns
AppleRecv.icns
Windows.icns
AppleTM.icns
ExtApple.icns
ExtAppleRecv.icns
ExtHardDrive.icns
ExtAppleTM.icns
ResetNVRAM.icns
Restart.icns
Shutdown.icns
BtnFocus.icns
Dot.icns
Enter.icns
Lock.icns
Password.icns
SetDefault.icns
Background.icns
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

It downloads the icons



I copy the files to Qemu OC installation



Boot





Edited April 10, 2021 by blackosx
Fix spelling

[Anto65]

44 minutes ago, blackosx said:

Strange.

I've just tried and it's fine.



Run SetBuilder

===========================
OpenCanopyIconsSetBuilder
Version 0.1.9
===========================

Would you like to build a custom icon set or choose an LE Glow Set?
---------------------------------------------------
1) Custom
2) GlowPack
3) Quit
Pick an option: 2

Which icon colour would you like?
- BlueGlow has backgrounds for ASUS, GIGABYTE, MSI and HP
- GreenGlow has backgrounds for ACER and ASROCK
- LightBlueGlow has backgrounds for DELL
- OrangeGlow has backgrounds for AORUS
- RedGlow has backgrounds for LENOVO, ROG and MSI GAMING
---------------------------------------------------
1) BlueGlow	  3) LightBlueGlow  5) RedGlow
2) GreenGlow	  4) OrangeGlow	    6) Quit
Pick an option: 2

Which background logo would you like?
---------------------------------------------------
1) ACER
2) ASROCK
3) Quit
Pick an option: 1


Choose a background size...
---------------------------------------------------
1) 1024x768     4) 1600x1200   7) 1920x1080  10) 1680x1050
2) 1280x960     5) 1366x768    8) 1280x800   11) 1920x1200
3) 1440x1080    6) 1600x900    9) 1400x900   12) Quit
Pick an option: 7
Downloading Icons:
========================================
Cursor.icns
Selector.icns
Selected.icns
Left.icns
Right.icns
Shell.icns
Tool.icns
Apple.icns
HardDrive.icns
AppleRecv.icns
Windows.icns
AppleTM.icns
ExtApple.icns
ExtAppleRecv.icns
ExtHardDrive.icns
ExtAppleTM.icns
ResetNVRAM.icns
Restart.icns
Shutdown.icns
BtnFocus.icns
Dot.icns
Enter.icns
Lock.icns
Password.icns
SetDefault.icns
Background.icns
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

It downloads the icons



I copy the files to Qemu OC installation



Boot





I used the script to re-download them nothing , put on the yellow icon set and it works boooo

Edited April 10, 2021 by antuneddu

[miliuco]

6 minutes ago, antuneddu said:

I used the script to re-download them nothing , put on the yellow icon set and it works boooo ...



I find no apparent fault in that Green theme that does not work. Could it be that some icon has the wrong dimensions? I'm going to test it.

[blackosx]

@antuneddu There should be no issue other than maybe a corruption when downloading an icon from the repo. But in this case, I wouldn’t have thought the Finder would show and icon for the image.

Please share your image dir so I can test it here.



[miliuco]

3 minutes ago, blackosx said:

@antuneddu There should be no issue other than maybe a corruption when downloading an icon from the repo. But in this case, I wouldn’t have thought the Finder would show and icon for the image.

Please share your image dir so I can test it here.

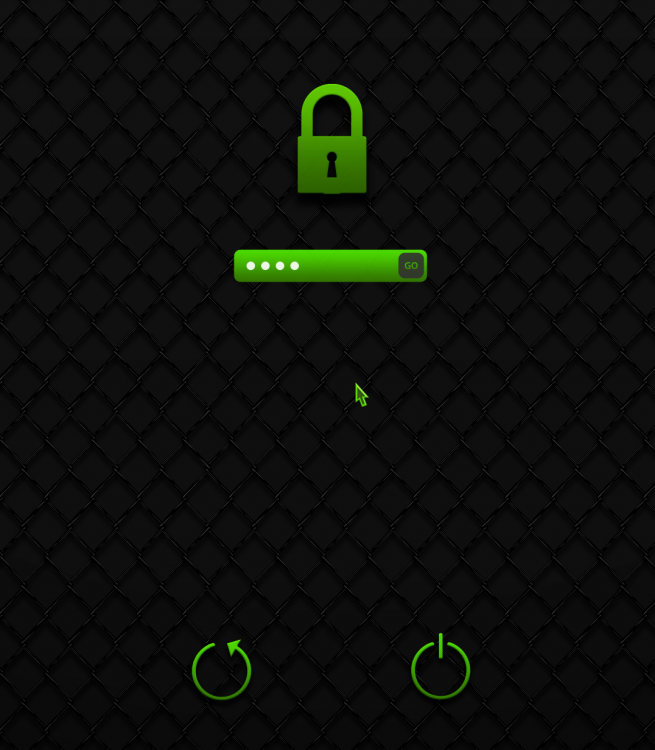

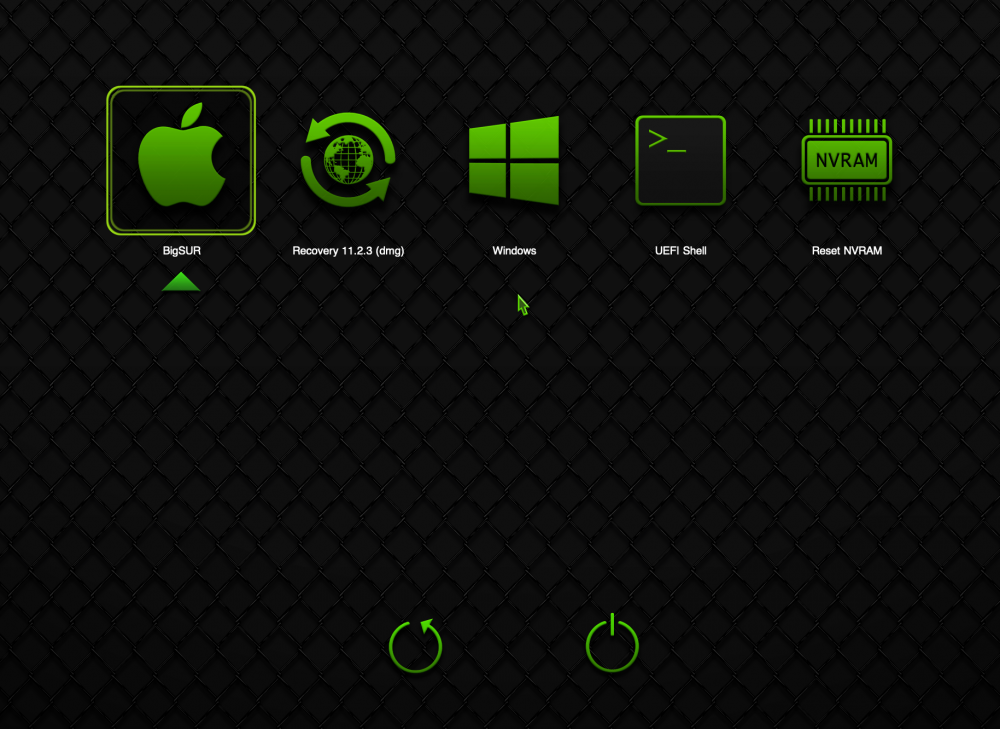

@antuneddu it works in my PC





(cropped image)



Edited April 10, 2021 by miliuco

[blackosx]

Thanks for testing @miliuco
But no background?

[blackosx]

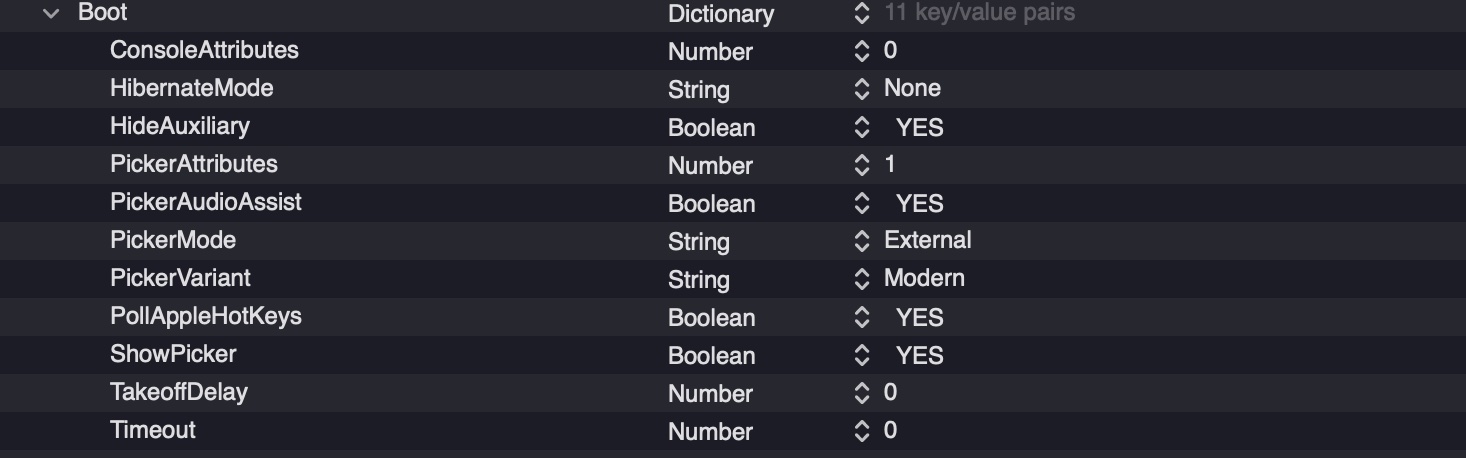

@antuneddu Check your PickerVariant

[Anto65]

13 minutes ago, blackosx said:

@antuneddu Check your PickerVariant

Auto ,  also because the other sets have always worked as well as @chris1111 without problems



I re-downloaded again via the script, this time I did not take the icons and copied, but the whole folder and then renamed to "image" in the EFI and it worked . Could this have been the problem?
Are there any icons for Linux to use? Thank you

Edited April 10, 2021 by antuneddu

[blackosx]

Good to hear you have it working. I was sure you had the correct PickerVariant as you know what you’re doing but I had to ask anyway.



I can’t see an issue between copying the whole dir and renaming it vs copying its contents. And without seeing your image dir that didn’t work I won’t know.

No. There are currently no Linux icons for the Glow sets. But I could add them....

Edited April 10, 2021 by blackosx

[Anto65]

4 minutes ago, blackosx said:

Good to hear you have it working. I was sure you had the correct PickerVariant as you know what you’re doing but I had to ask anyway.



I can’t see an issue between copying the whole dir and renaming it vs copying its contents. And without seeing your image dir that didn’t work I won’t know.

No. There are currently no Linux icons for the Glow sets. But I could add them....

work in progress let's see what comes out , no I'm sorry but I trashed everything, it remains a mystery however now it works thanks

[blackosx]

Okay. No problem.

The Linux icon looks a good start

I’ll generate a suite of them as soon as I can. Are there any Linux distro’s you’re using that I don’t currently create icons for in set3?


For ref, if anyone encounters an issue where the icons downloaded from the repo using the script causes a failed boot then please post that dir here.





[Anto65]

16 minutes ago, blackosx said:

Okay. No problem.

The Linux icon looks a good start

I’ll generate a suite of them as soon as I can. Are there any Linux distro’s you’re using that I don’t currently create icons for in set3?


For ref, if anyone encounters an issue where the icons downloaded from the repo using the script causes a failed boot then please post that dir here.





I think a generic one with the penguin is enough if you have to make one for each distro and for each set you don't get out more   ... thanks

[blackosx]

Penguin it is.

[miliuco]

1 hour ago, blackosx said:

Thanks for testing @miliuco
But no background?

I tried with and without background. Both ok.

[blackosx]

Thanks. I only asked because at the time we were trying to work out what in his Images dir could possibly be causing a failed boot. As I didn’t see a background image in your screenshot it made me think your test didn’t include all icons.

[Anto65]

blackosxremixed



of course I have more to do with the gui than with the hack system

[blackosx]

Heh. That’s good!



But more importantly, this was the whole point of this topic which was to provide a range of icons which users could use to build themselves their own styled UI. The options will only grow in time.....



Edit.

Thinking ahead... Imagine some program that could take an SVG icon, adjust the colours to whatever colour you wish, generate the correctly sized PNG for 1x and 2x scale and convert to ICNS....

Edited April 10, 2021 by blackosx

[Anto65]

41 minutes ago, blackosx said:

Heh. That’s good!



But more importantly, this was the whole point of this topic which was to provide a range of icons which users could use to build themselves their own styled UI. The options will only grow in time.....



Edit.

Thinking ahead... Imagine some program that could take an SVG icon, adjust the colours to whatever colour you wish, generate the correctly sized PNG for 1x and 2x scale and convert to ICNS....

I think you did it very well thanks to you and @chris1111 there is so much of that material now there is a lot of choice, even if someone can turn up their nose for staying in line with real macs but I believe that customization is various and subjective on the other hand in every system, smatphone etc. that you use try to customize it this does not mean discrediting the system itself. Cute would also introduce the random theme option without undoing the image folder every time ... Who knows.... Thanks again

[miliuco]

17 hours ago, blackosx said:

Thanks for testing @miliuco
But no background?

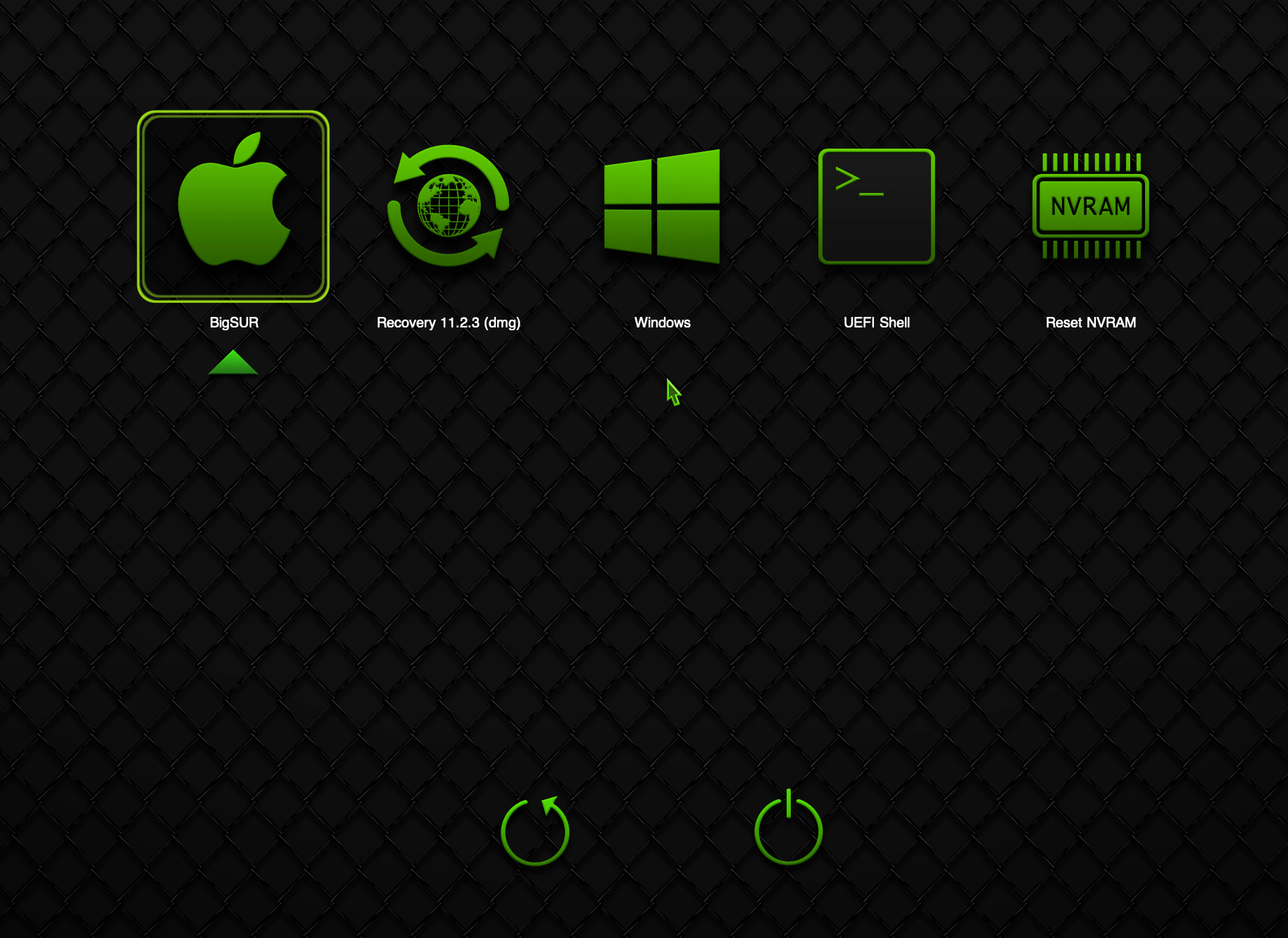

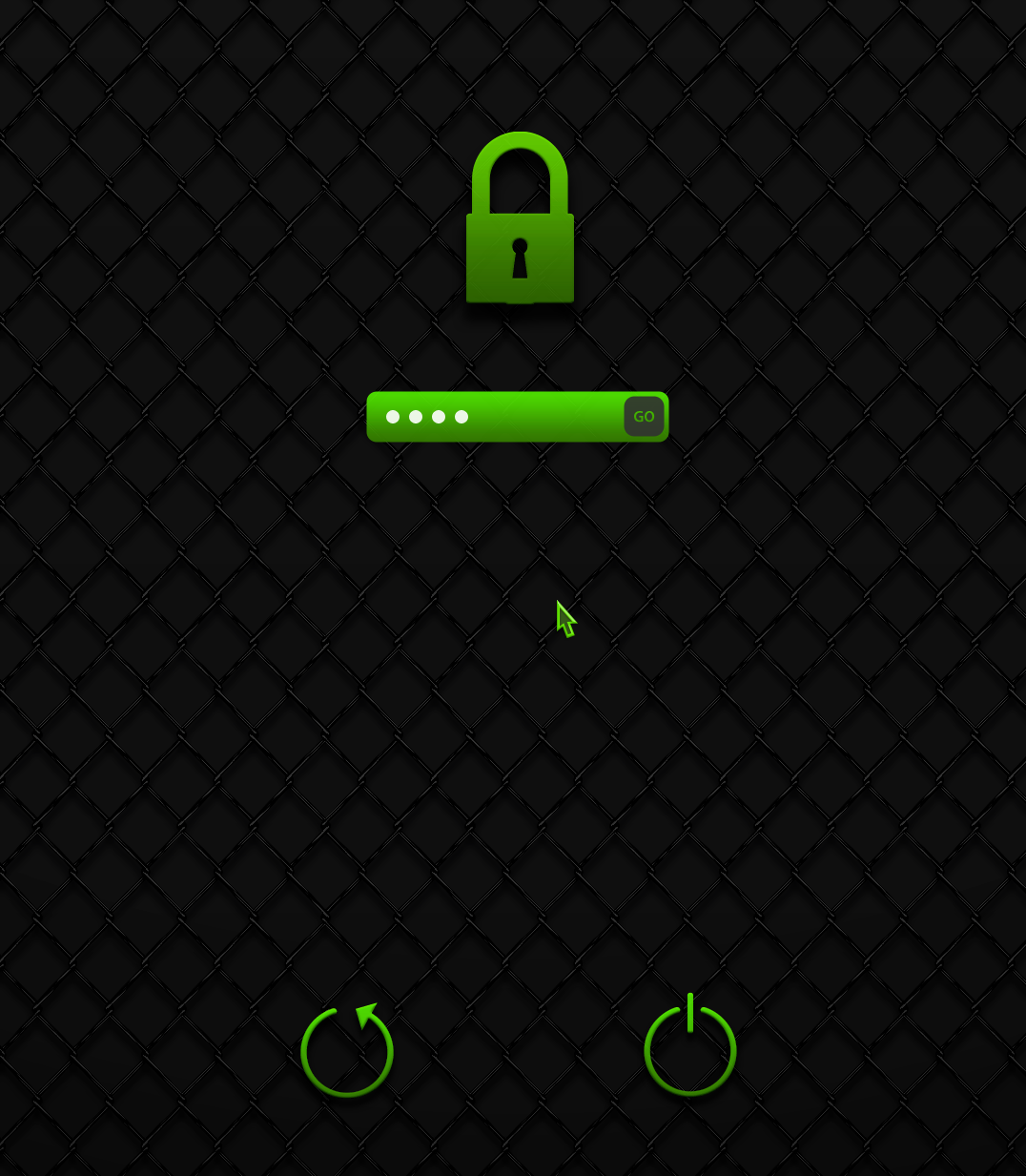

Here you see the theme with background, how beautiful and elegant, icons are of great quality. Congrats for your work!!!
Note: if I don't add icons for external devices (at least ExtAppleRecv and ExtAppleTM) the picker is in text mode, but this is the expected behavior in OpenCanopy.









Edited April 11, 2021 by miliuco

[Anto65]

hi yes in fact as @miliuco says wanted to report the absence of ExtAppleRecv and ExtAppleTM without those no gui, last night I had copied the missing icons from other sets, i downloaded everything from here https://github.com/blackosx/OpenCanopyIcons in the Set4b / Light set I found another selector badly named, not I would like to be boring but I think it is right to point this out to you

Edited April 11, 2021 by antuneddu

[blackosx]

Thanks @antuneddu

Fixed

[Anto65]

wow faster than light, thanks

[blackosx]

26 minutes ago, miliuco said:

Here you see the theme with background, how beautiful and elegant, icons are of great quality. Congrats for your work!!!

Thanks. Nice to hear they're being appreciated.

I plan to improve some of the other icons as and when I get time.

1 minute ago, antuneddu said:

wow faster than light, thanks

[chokia]

I have multiboot setup with HiveOS, LibreElec, Android and HomeAssistantOS in their own partition that Opencore pickup but show as HDD icons along with Big Sur and Windows



How to get Opencanopy to display their own icon assuming i have created each OS with its dedicated icon :-



ModernHiveOS.icns

ModernLibreElec.icns

ModernAndroid.icns

ModernHomeAssistantOS.icns



I kinda lost reading the guide in Dortania github. can someone simplify?
