OpenCanopy Icons

[chris1111]

45 minutes ago, chris1111 said:

Yes it can be  wait 10 minutes

Here the file test let me know if is ok

EDIT. WAIT I am going to test the file

FILE.zip

EDIT file attach looks good for me





Edited March 7, 2021 by chris1111

[miliuco]

3 hours ago, chris1111 said:

Here the file test let me know if is ok

EDIT. WAIT I am going to test the file

FILE.zip 291.97 kB · 2 downloads

EDIT file attach looks good for me





@chris1111

I see that the bottom edge of the icons is a little up, right? And if Selector (Continue word) is placed over the icons, so as not to interfere with the image of the robot?

@antuneddu

Where can I download the background to try Chris icons?



Edited March 7, 2021 by miliuco

[miliuco]

@carlo_67

Nice theme!!! Mi piace!!!

[Anto65]

3 hours ago, chris1111 said:

Here the file test let me know if is ok

EDIT. WAIT I am going to test the file

FILE.zip 291.97 kB · 5 downloads

EDIT file attach looks good for me





sure that with these themes it has become a playground  I like it , thanks @ criss1111 I tried the icons have risen but the writings remain low, do nothing here or shrunk the little man

Just now, antuneddu said:

sure that with these themes it has become a playground  I like it , thanks @ criss1111 I tried the icons have risen but the writings remain low, do nothing here or shrunk the little man

ops don t replace resetnvram icon

[Anto65]

1 hour ago, miliuco said:

@chris1111

I see that the bottom edge of the icons is a little up, right? And if Selector (Continue word) is placed over the icons, so as not to interfere with the image of the robot?

@antuneddu

Where can I download the background to try Chris icons?





eset.zip

[chris1111]

38 minutes ago, antuneddu said:



eset.zip 598.71 kB · 0 downloads

maybe I am not have the same Icons ? Its work good non my background test

[miliuco]

9 hours ago, chris1111 said:

maybe I am not have the same Icons ? Its work good non my background test

Thanks!

[Matgen84]

@blackosx

What PickerAttributes values do you recommend? This morning, I build latest Opencore commit ba8eb0e with Embedded Restart and Shutdown icons. Using explanations from Dortania guide for my Z390 config, I select PickerAttributes=1 (Default setting in sample.plist). So I don't have pointer, left and right icons.

Can you help me please !  I don't understand the explanations in OC Configurations.pdf

Thanks.


[blackosx]

Yes, good to see the inclusion of Restart and Shutdown icons in the OpenCanopy UI now. I'm in the process of updating my repo and will update the OpenCanopyIconsSetBuilder script once done.



PickerAttributes have no affect on the UI left/right icons. For these to appear, make sure you have the icns files in your Resources/Image dir and the preceding name (if any) matches your PickerVariant.



PickerAttributes are for setting what you want to appear for example:

To allow custom volume icons to be read from .volumeIcons.icns file on volumes, set Misc->Boot->PickerAttributes to 1 (0x01)

To allow custom volume icons to be read from .volumeIcons.icns file on volumes AND custom disk labels to be read from .contentDetails on Volumes, set Misc->Boot->PickerAttributes to 3 (0x03)

To allow custom volume icons to be read from .volumeIcons.icns file on volumes AND custom disk labels to be read from .contentDetails on Volumes AND the pointer, set Misc->Boot->PickerAttributes to 19 (0x13)



You can mix and match them as per the documentation.



I'm currently using 17 (0x11).



[Matgen84]

10 minutes ago, blackosx said:

Yes, good to see the inclusion of Restart and Shutdown icons in the OpenCanopy UI now. I'm in the process of updating my repo and will update the OpenCanopyIconsSetBuilder script once done.



PickerAttributes have no affect on the UI left/right icons. For these to appear, make sure you have the icns files in your Resources/Image dir and the preceding name (if any) matches your PickerVariant.



PickerAttributes are for setting what you want to appear for example:

To allow custom volume icons to be read from .volumeIcons.icns file on volumes, set Misc->Boot->PickerAttributes to 1 (0x01)

To allow custom volume icons to be read from .volumeIcons.icns file on volumes AND custom disk labels to be read from .contentDetails on Volumes, set Misc->Boot->PickerAttributes to 3 (0x03)

To allow custom volume icons to be read from .volumeIcons.icns file on volumes AND custom disk labels to be read from .contentDetails on Volumes AND the pointer, set Misc->Boot->PickerAttributes to 19 (0x13)



You can mix and match them as per the documentation.



I'm currently using 17 (0x11).





Thanks for these explanations.

The Modern UI left/right icons are present in Resources/Image folder. The ModernBackground.icns appears correctly.

[blackosx]

So is all working for you? or are you still missing left and right icons?

I'm sure you know this, but you will only see the left/right icons if you have more devices than can be displayed at the current resolution and UI scale.



[Matgen84]

3 minutes ago, blackosx said:

So is all working for you? or are you still missing left and right icons?





Thanks. Left and right icons are still missing.



5 minutes ago, blackosx said:

I'm sure you know this, but you will only see the left/right icons if you have more devices than can be displayed at the current resolution and UI scale.





I don't know that. I've two devices (Big Sur HDD + Windows HDD) and one external USB (for test) and my current resolution is 1920*1080 (monitor 27")

My UIScale setting

<key>UIScale</key>
<data>AQ==</data>



[blackosx]

I've updated Set3 icons with Restart and Shutdown icons to support the latest changes to OpenCanopy.

My OpenCanopyIconsSetBuilder script has also been updated to v0.1.8 to include these new icons (link in first post).





[blackosx]

2 hours ago, Matgen84 said:

Thanks. Left and right icons are still missing.
...

I don't know that. I've two devices (Big Sur HDD + Windows HDD) and one external USB (for test) and my current resolution is 1920*1080 (monitor 27")



If you only have two devices then you won't see the left and right scroll arrows.



EDIT:

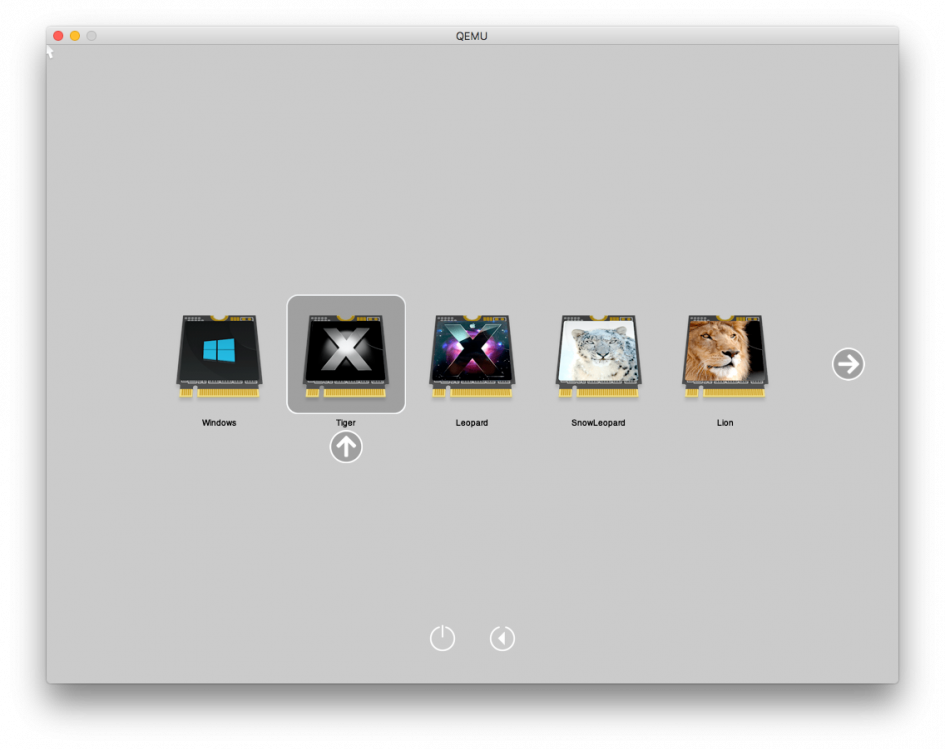

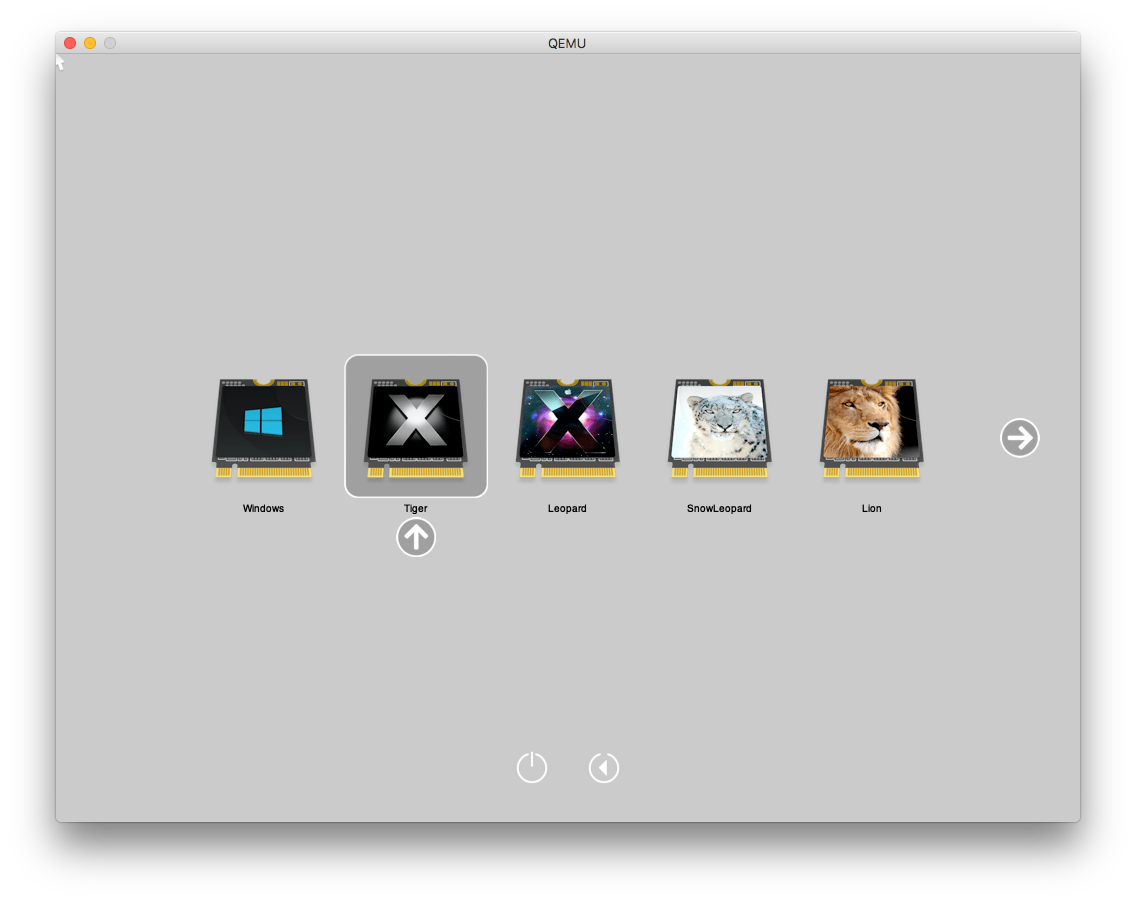

For example, on a 1024x768 resolution display you will need more than five devices to show the scroll arrows.



Edited March 9, 2021 by blackosx

[wiliplasen]

This new icons are for the Shutdown.efi, or this file is no longer necesary??



Thanks

[Matgen84]

14 minutes ago, wiliplasen said:

This new icons are for the Shutdown.efi, or this file is no longer necesary??



Thanks

This function is embedded in Opencore 0.6.8 Beta latest commit. So the driver is not necessary only for this version of Opencore and newer.

[crusher]

Let's do one of these topics




@blackosx


[blackosx]

After @chris1111 onslaught of theme ideas  (that boy has so much time)...

I thought I'd at least try to come up with an idea for a theme. Here's a quick mockup of an idea...





I may work on creating it if the general idea is liked..



EDIT: The idea is a transparent device area that can be overlaid on any OC default background colour or other image. So the kernel panic image and combined reflected person image could easily be swapped for any other image.

Edited March 10, 2021 by blackosx

[chris1111]

1 hour ago, blackosx said:

After @chris1111 onslaught of theme ideas  (that boy has so much time)...

I thought I'd at least try to come up with an idea for a theme. Here's a quick mockup of an idea...





I may work on creating it if the general idea is liked..



EDIT: The idea is a transparent device area that can be overlaid on any OC default background colour or other image. So the kernel panic image and combined reflected person image could easily be swapped for any other image.

I love it ! Brillant!

[pkdesign]

I like it. So is that where OC will be putting the Shutdown and Restart images? They are a part of OC now or can we still make custom icons?

[Matgen84]

4 hours ago, pkdesign said:

I like it. So is that where OC will be putting the Shutdown and Restart images? They are a part of OC now or can we still make custom icons?



Right. With latest Opencore 0.6.8 Beta, the Shutdown and Restart icons are included in OcBinarydata Resources/Image folder. Of course, you can make your custom icons (Modern or not, or both)

[miliuco]

On 3/10/2021 at 10:44 PM, blackosx said:

After @chris1111 onslaught of theme ideas  (that boy has so much time)...

I thought I'd at least try to come up with an idea for a theme. Here's a quick mockup of an idea...





I may work on creating it if the general idea is liked..



EDIT: The idea is a transparent device area that can be overlaid on any OC default background colour or other image. So the kernel panic image and combined reflected person image could easily be swapped for any other image.

Lovely theme! Very very nice. High quality design. Do not leave it unfinished and offer it to the community that I really like it.

[Anto65]

I agree since the care you have in creating icons can only come out of a masterpiece

[miliuco]

On 3/10/2021 at 10:44 PM, blackosx said:

After @chris1111 onslaught of theme ideas  (that boy has so much time)...

I thought I'd at least try to come up with an idea for a theme. Here's a quick mockup of an idea...

I may work on creating it if the general idea is liked..

Hey @blackosx Have you already named this beautiful theme? I'm waiting for you to finish it to test it with 0.6.8

[blackosx]

Not yet. I've been flat out with work this week. It is in progress though, so hopefully I'll get time this weekend to get it done.
