Lucy183 Posted June 29, 2017 Share Posted June 29, 2017 For this update we need to replace too? Yeah, tried with originals and same problem, also sleep not working for me, did you found a solution? @LuCyr04 can you share your config.plist Attached, you can Inject ati, I don't have it injected because I have it injected in DSDT. config.plist.zip 1 Link to comment Share on other sites More sharing options...
Pavo Posted June 29, 2017 Share Posted June 29, 2017 Without any changes in acpi/efistr prop ? Yeah this is for a real MP 5,1 though. Normally the PCI Information would say it couldn't read the PCI Information when using non flashed gfx cards Link to comment Share on other sites More sharing options...
Wppley2 Posted June 29, 2017 Share Posted June 29, 2017 To sleep not yet, only the graphical acceleration found, for now. I think they're adjusting the power control settings for the newer machines and ours will be left behind. I think it's time to start saving money to upgrade the same hardware. 1 Link to comment Share on other sites More sharing options...
PMheart Posted June 29, 2017 Share Posted June 29, 2017 Yeah this is for a real MP 5,1 though. Normally the PCI Information would say it couldn't read the PCI Information when using non flashed gfx cards I see. Thanks for the information! Sorry I've reached my quota of positive votes for the day... Link to comment Share on other sites More sharing options...
Allan Posted June 29, 2017 Share Posted June 29, 2017 all good Off-topic: Hey Chris, did you got a good performance with HS in Intel HD 4000? Link to comment Share on other sites More sharing options...
Lucy183 Posted June 29, 2017 Share Posted June 29, 2017 To sleep not yet, only the graphical acceleration found, for now. I think they're adjusting the power control settings for the newer machines and ours will be left behind. I think it's time to start saving money to upgrade the same hardware.Or stay with Sierra, isn't old yet..And maybe in the next betas or final release will work for us too. Sent from my HTC One M9 using Tapatalk Link to comment Share on other sites More sharing options...
Wppley2 Posted June 29, 2017 Share Posted June 29, 2017 I hope so! Getting outdated is not cool! Link to comment Share on other sites More sharing options...

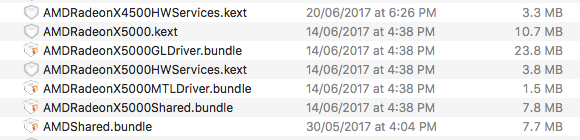

surfinchina Posted June 29, 2017 Share Posted June 29, 2017 I can't update to beta 2 update 1 for some odd reason. An error in the store for me. Can someone look at the 4500 kexts for me please? The last betas had a few missing. There should be a few X4500 kexts - similar to the 5000 series I've attached... Thanks Link to comment Share on other sites More sharing options...
chris1111 Posted June 29, 2017 Share Posted June 29, 2017 Off-topic: Hey Chris, did you got a good performance with HS in Intel HD 4000? Verry good same thing like Sierra 10.12 I do not see any difference 2 Link to comment Share on other sites More sharing options...
Needy Posted June 29, 2017 Share Posted June 29, 2017 I can't update to beta 2 update 1 for some odd reason. An error in the store for me. Can someone look at the 4500 kexts for me please? The last betas had a few missing. There should be a few X4500 kexts - similar to the 5000 series I've attached... Thanks Screenshot 2017-06-26 10.57.18.png Try this. http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/?p=2453801 Link to comment Share on other sites More sharing options...
Neo.aka.Darkman Posted June 29, 2017 Share Posted June 29, 2017 Developer Beta 2 Update 1: BCM94352 patches without changes! 1 Link to comment Share on other sites More sharing options...
Allan Posted June 29, 2017 Share Posted June 29, 2017 Verry good same thing like Sierra 10.12 I do not see any difference Thank you. I was hoping better performance with Metal 2, but as I've saw, these good news is for the new hardware, VR Lens and etc... Regards Link to comment Share on other sites More sharing options...

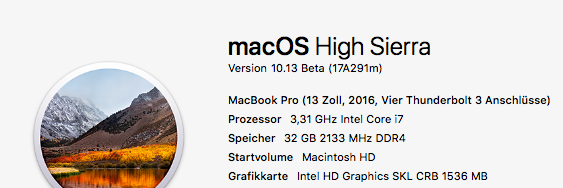

Rocky12 Posted June 29, 2017 Share Posted June 29, 2017 hp Z800 10.13 Beta (17A291m) 1 Link to comment Share on other sites More sharing options...
surfinchina Posted June 29, 2017 Share Posted June 29, 2017 Try this. http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/?p=2453801 I just want to see if the X4500 series kexts have been completed so my Nano can get accelerated. It is 73001002 and not 67df. Link to comment Share on other sites More sharing options...
Pavo Posted June 29, 2017 Share Posted June 29, 2017 I just want to see if the X4500 series kexts have been completed so my Nano can get accelerated. It is 73001002 and not 67d Yes the AMDRadeonX4500HWServices.kext has you device id in it Link to comment Share on other sites More sharing options...
surfinchina Posted June 29, 2017 Share Posted June 29, 2017 Yes the AMDRadeonX4500HWServices.kext has you device id in it Thanks pavo As at beta 2 rev0 It's broken though. It's trying to find other kexts that don't yet exist. If you look at the kexts in S/L/E for the vega (X5000 kexts) there are a lot more, including the X5000HW services kext. I'm pretty sure they've finished the vega set, but not yet bothered with finishing the fury/nano set because it's not as exciting for the developers as trying out brand new video cards. All I wanted was for someone to tell me how many X4500 kexts there are in the update 1 beta S/L/E. Link to comment Share on other sites More sharing options...
Pavo Posted June 29, 2017 Share Posted June 29, 2017 Thanks pavo As at beta 2 rev0 It's broken though. It's trying to find other kexts that don't yet exist. If you look at the kexts in S/L/E for the vega (X5000 kexts) there are a lot more, including the X5000HW services kext. I'm pretty sure they've finished the vega set, but not yet bothered with finishing the fury/nano set because it's not as exciting for the developers as trying out brand new video cards. All I wanted was for someone to tell me how many X4500 kexts there are in the update 1 beta S/L/E. AMD Framebuffer outputs 10.13 beta 2 update 1 ------------------------AMD10000Controller.kext------------------------- Exmoor (6) @ 0x108370 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Kamarang (4) @ 0x1087b0 DP, DP, DP, HDMI 000400000403000000010101000000002205020200000000 000400000403000000010201000000001204010100000000 000400000403000000010300000000001000050500000000 000800000402000000010400000000002001060600000000 Japura (6) @ 0x109e50 LVDS, LVDS, DP, DP, DP, DP 020000000001000008010151000000002205020200000000 020000000001000008010261000000001204010100000000 000400000403000000010313000000002001050600000000 000400000403000000010423000000001000060500000000 000400000403000000010543000000001102030300000000 000400000403000000010633000000002103040400000000 Iriri (4) @ 0x111650 DP, DP, DP, HDMI 000400000403000000010101000000002205020200000000 000400000403000000010201000000001204010100000000 000400000403000000010300000000001000050500000000 000800000402000000010400000000002001060600000000 Baladi (6) @ 0x111c20 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD2400Controller.kext------------------------- Iago (2) @ 0x108df0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 -------------------------AMD2600Controller.kext------------------------- Hypoprion (2) @ 0x108dc0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 Lamna (2) @ 0x108df0 SDVI, DDVI 000200001400000080000000000000000001021100000000 040000001600000080000000000000000010011200000000 -------------------------AMD3800Controller.kext------------------------- Megalodon (3) @ 0x109da0 SDVI, DDVI, SVIDEO 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 800000000200000004000000000000000010000000000000 Triakis (2) @ 0x109df0 SDVI, DDVI 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 -------------------------AMD4600Controller.kext------------------------- Flicker (3) @ 0x106d20 DP, DP, SDVI 000400000004000000010000000000000201030500000000 000400000004000000010000000000000100020200000000 000200001402000000010000000000000010010400000000 Gliff (3) @ 0x106d70 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000406000000010000000000001000010100000000 Shrike (3) @ 0x106dc0 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000403000000010000000000001000010100000000 -------------------------AMD4800Controller.kext------------------------- Cardinal (2) @ 0x105d50 SDVI, DDVI 000200001402000000010000000000000101010400000000 040000001402000000010000000000000010020300000000 MotMot (2) @ 0x105d80 DP, DDVI 000400000401000000010000000000001000020300000000 040000001402000000010000000000000111010400000000 Quail (3) @ 0x105db0 LVDS, LVDS, DP 020000004000000019010000000000002201000700000000 020000000001000019010000000000002001030400000000 000400000403000000010000000000001000020300000000 -------------------------AMD5000Controller.kext------------------------- Douc (2) @ 0xc7680 LVDS, DP 020000000005000019030000000000002103020200000000 000400000402000000030000000000001102010100000000 Langur (3) @ 0xc76b0 DP, DP, DDVI 000400000406000000010000000000002103040200000000 000400000406000000010000000000001102010100000000 040000001402000000010000000000000204050300000000 Uakari (4) @ 0xc7700 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040100000000 040000001400000000710000000000000112010300000000 000200001400000000710000000000000000060500000000 000800000002000000710000000000002205050400000000 Zonalis (6) @ 0xc7760 DP, DP, DP, DP, DP, DP 000400000406000000710000000000002001060600000000 000400000406000000710000000000001000050500000000 000400000406000000710000000000002103020400000000 000400000406000000710000000000001102010300000000 000400000406000000710000000000002205040200000000 000400000406000000710000000000001204030100000000 Alouatta (4) @ 0xc77f0 LVDS, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000406000000710000000000001102010100000000 000400000406000000710000000000002103020200000000 000400000406000000710000000000002205040400000000 Hoolock (3) @ 0xc7850 DP, DP, DDVI 000400000406000000010000000000002103050100000000 000400000406000000010000000000001102040200000000 040000001402000000010000000000000204010300000000 Vervet (4) @ 0xc78a0 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040200000000 040000001400000000710000000000000112010400000000 000200001400000000710000000000000000060300000000 000800000002000000710000000000002205050100000000 Baboon (3) @ 0xc7900 DDVI, HDMI, VGA 040000001400000000010000000000000102010300000000 000800000002000000710000000000002205020100000000 100000001000000000010000000000000010000200000000 Eulemur (3) @ 0xc7950 DDVI, HDMI, VGA 040000001400000000010000000000000102010400000000 000800000002000000710000000000001204040200000000 100000001000000000000000000000000010000100000000 Galago (2) @ 0xc79b0 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Colobus (2) @ 0xc79f0 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Mangabey (2) @ 0xc7a30 LVDS, DP 020000004000000019010000000000000000000300000000 000400000406000000730000000000001102010100000000 Nomascus (4) @ 0xc7a70 LVDS, LVDS, DP, DP 020000004000000019010000000000000000000500000000 020000000001000019030000000000001204030300000000 000400000406000000730000000000001102010100000000 000400000407000000730000000000002103020200000000 Orangutan (2) @ 0xc7ae0 LVDS, DP 020000004000000019010000000000000000000500000000 000400000406000000730000000000001102010100000000 -------------------------AMD6000Controller.kext------------------------- Pithecia (2) @ 0xe66a0 DP, DDVI 000400000403000000010000000000002103020400000000 040000001402000000010000000000000000040300000000 Bulrushes (6) @ 0xe66d0 DP, DP, DP, DP, DP, DP 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 000400000403000000010000000000001204030300000000 000400000403000000010000000000002205040400000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000002001060600000000 Cattail (4) @ 0xe6760 LVDS, DP, DP, DP 020000004000000039050000000000000000000500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Hydrilla (5) @ 0xe67c0 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205050400000000 000400000403000000010000000000001000040500000000 Duckweed (4) @ 0xe6840 DP, DP, HDMI, SDVI 000400000403000000010000000000001204040100000000 000400000403000000010000000000002205050200000000 000800000402000000010000000000001102030400000000 000200001402000000010000000000000000060500000000 Fanwort (4) @ 0xe68a0 LVDS, DP, DP, DP 020000004000000039050000000000000000000400000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Elodea (5) @ 0xe6900 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205040400000000 Kudzu (2) @ 0xe6980 DP, HDMI 000400000403000000010000000000001204030300000000 000800000402000000010000000000001102010100000000 Gibba (5) @ 0xe69b0 DP, DP, HDMI, SDVI, DDVI 000400000403000000010000000000001204050100000000 000400000403000000010000000000002205040200000000 000800000402000000010000000000001102060400000000 000200001402000000010000000000000000030500000000 040000000402000000010000000000001102010300000000 Lotus (3) @ 0xe6a30 DP, HDMI, DP 000400000403000000010000000000001102010100000000 000800000402000000010000000000002205040400000000 000400000001000000010000000000002103020200000000 Ipomoea (3) @ 0xe6a80 DP, HDMI, VGA 000400000403000000010000000000001204010500000000 000800000402000000010000000000001102040300000000 100000001000000000010000000000000000000200000000 Muskgrass (4) @ 0xe6ad0 DP, DP, DP, HDMI 000400000403000000010100000000001102010100000000 000400000001000000091200000000002103020200000000 000400000001000000091300000000002205040400000000 000800000402000000010400000000001204030300000000 Juncus (4) @ 0xe6b30 DP, DP, DP, DP 000400000403000000010000000000001204030300000000 000400000403000000010000000000001000040500000000 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 Osmunda (4) @ 0xe6b90 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Pondweed (3) @ 0xe6bf0 LVDS, DP, DP 020000000001000019010100000000001000050500000000 000400000403000000010200000000001102010100000000 000400000403000000010300000000002103020200000000 Spikerush (4) @ 0xe6c40 LVDS, DP, DP, DP 020000004000000039050100000000000000000500000000 000400000403000000010200000000001102010100000000 000400000001000000090200000000002103020200000000 000400000001000000090300000000001204030300000000 Typha (5) @ 0xe6ca0 DP, DP, DP, DP, DDVI 000400000403000000010100000000001102040100000000 000400000403000000010200000000002103050200000000 000400000001000000090300000000001000020500000000 000400000001000000090400000000002001030600000000 040000001402000000010500000000000204010300000000 -------------------------AMD7000Controller.kext------------------------- Ramen (6) @ 0xe97b0 LVDS, HDMI, DP, DP, DP, DP 020000000001000039050108000000002001050600000000 000800000402000000010200000000001000030500000000 000400000403000000010343000000001102010100000000 000400000001000000010431000000002103040300000000 000400000403000000010563000000001204020200000000 000400000001000000010651000000002205040300000000 Tako (6) @ 0xe98b0 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Namako (4) @ 0xe9940 LVDS, LVDS, DP, DP 020000000001000000010151000000002205020200000000 020000000001000000010261010000001204010100000000 000400000403000000010343000000001102030300000000 000400000403000000010433000000002103040400000000 Aji (4) @ 0xe9a20 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 Buri (4) @ 0xe9a80 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Chutoro (5) @ 0xe9ae0 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Dashimaki (4) @ 0xe9b60 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010200000000002205030500000000 040000001402000000010301000000000000040400000000 000800000402000000010400000000001102010100000000 Ebi (5) @ 0xe9bd0 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090301000000002103020200000000 000400000001000000090401000000002205040400000000 000400000403000000010501000000001000050500000000 Gari (5) @ 0xe9c50 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Futomaki (4) @ 0xe9cd0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204040100000000 000400000403000000010201000000002205050200000000 040000001402000000010300000000000000060600000000 000800000402000000010400000000001102010300000000 Hamachi (4) @ 0xe9d30 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 OPM (6) @ 0xe9dd0 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001102010100000000 000400000403000000010001000000002103020200000000 000400000403000000010001000000001204030300000000 000400000403000000010001000000002205040400000000 000400000403000000010001000000001000050500000000 000400001403000000010001000000002001060600000000 Ikura (1) @ 0xe9e60 HDMI 000800000402000000010100000000001204030100000000 IkuraS (6) @ 0xe9e80 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 Junsai (6) @ 0xe9f10 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001204030100000000 000400000403000000010001000000002205040200000000 000400000403000000010001000000001102010300000000 000400000403000000010001000000002103020400000000 000400000403000000010001000000001000050500000000 000400000403000000010001000000002001060600000000 Kani (1) @ 0xe9fa0 HDMI 000800000402000000010100000000001204030100000000 KaniS (6) @ 0xe9fc0 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 DashimakiS (4) @ 0xea050 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010201000000002205030500000000 040000001402000000010300000000000000040400000000 000800000402000000010400000000001102010100000000 Maguro (1) @ 0xea0b0 HDMI 000800000402000000010100000000001204030100000000 MaguroS (6) @ 0xea0d0 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 -------------------------AMD8000Controller.kext------------------------- Exmoor (6) @ 0xf0210 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Baladi (6) @ 0xf03b0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9000Controller.kext------------------------- Exmoor (6) @ 0x138da0 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 OPM (6) @ 0x138e30 DP, DP, DP, DP, DP, DP 000400000403000000000001000000001000010100000000 000400000403000000000001000000002001020200000000 000400000403000000000001000000001102030300000000 000400000403000000000001000000002103040400000000 000400000403000000000001000000001204050500000000 000400000403000000000001000000002205060600000000 MalteseS (1) @ 0x138ee0 HDMI 000800000402000000010100000000001204030100000000 Lagotto (4) @ 0x138f00 DP, HDMI, DDVI, DDVI 000400000403000000010100000000001102040100000000 000800000402000000010200000000002103050300000000 040000000402000000010300000000000000010500000000 040000000402000000010400000000000204060600000000 GreyhoundS (1) @ 0x138f60 HDMI 000800000402000000010100000000001204030100000000 Maltese (6) @ 0x138ff0 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Labrador (6) @ 0x1390b0 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010131000000002103020400000000 020000000001000000010241010000001102010300000000 000400000403000000010323000000001000030100000000 000400000001000000010411000000002001050500000000 000400000403000000010563000000001204040200000000 000400000001000000010651000000002205050500000000 Basset (4) @ 0x139140 LVDS, LVDS, DP, DP 020000000001000000010131000000002103020200000000 020000000001000000010241010000001102010100000000 000400000403000000010323000000001000030300000000 000400000403000000010413000000002001040400000000 Greyhound (6) @ 0x139200 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Baladi (6) @ 0x139290 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9300Controller.kext------------------------- Exmoor (6) @ 0x151020 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 OPM (6) @ 0x1510b0 DP, DP, DP, DP, DP, DP 000400000403000000000001000000001000010100000000 000400000403000000000001000000002001020200000000 000400000403000000000001000000001102030300000000 000400000403000000000001000000002103040400000000 000400000403000000000001000000001204050500000000 000400000403000000000001000000002205060600000000 MalteseS (1) @ 0x151150 HDMI 000800000402000000010100000000001204030100000000 FleuveSWIP (4) @ 0x151170 DP, DP, DP, HDMI 000400000403000000010141000000001102050100000000 000400000403000000010231000000002103040200000000 000400000403000000010311000000002001030300000000 000800000402000000010400000000001204020600000000 Lagotto (4) @ 0x1511d0 DP, HDMI, DDVI, DDVI 000400000403000000010100000000001102040100000000 000800000402000000010200000000002103050300000000 040000000402000000010300000000000000010500000000 040000000402000000010400000000000204060600000000 GreyhoundS (1) @ 0x151240 HDMI 000800000402000000010100000000001204030100000000 Maltese (6) @ 0x151330 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Labrador (6) @ 0x1513c0 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010131000000002103020400000000 020000000001000000010241010000001102010300000000 000400000403000000010323000000001000030100000000 000400000001000000010411000000002001050500000000 000400000403000000010563000000001204040200000000 000400000001000000010651000000002205050500000000 Basset (4) @ 0x151450 LVDS, LVDS, DP, DP 020000000001000000010131000000002103020200000000 020000000001000000010241010000001102010100000000 000400000403000000010323000000001000030300000000 000400000403000000010413000000002001040400000000 Greyhound (6) @ 0x151510 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Baladi (6) @ 0x1515a0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9500Controller.kext------------------------- Orinoco (5) @ 0x120ab0 DP, DP, HDMI, HDMI, DDVI 000400000403000000010101000000001204060100000000 000400000403000000010201000000002205040300000000 000800000402000000010300000000001102010200000000 000800000402000000010400000000002103050400000000 040000000400000000010500000000000000030600000000 Exmoor (6) @ 0x120b30 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Acre (3) @ 0x120ca0 DP, HDMI, DDVI 000400000403000000010101000000001102020100000000 000800000402000000010200000000002103050400000000 040000000402000000010300000000000000030500000000 Huallaga (3) @ 0x120cf0 DP, DP, HDMI 000400000403000000010101000000001204040300000000 000400000403000000010201000000001102010200000000 000800000402000000010300000000002103050400000000 Guariba (6) @ 0x120db0 DP, DP, DP, HDMI, DDVI, DP 000400000403000000010101000000001204060100000000 000400000403000000010201000000002205040300000000 000400000403000000010301000000001102010200000000 000800000402000000010400000000002103050400000000 040000000402000000010500000000000000030600000000 000400000001000000010601000000002001020500000000 Dayman (6) @ 0x120e40 DP, DP, DP, HDMI, DDVI, DP 000400000403000000010101000000001204060100000000 000400000403000000010201000000002205040300000000 000400000403000000010301000000001102010200000000 000800000402000000010400000000002103050400000000 040000000402000000010500000000000000030600000000 000400000001000000010601000000002001020500000000 Baladi (6) @ 0x120ed0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 OPM (5) @ 0x120f60 DP, DP, DP, DP, DP 000400000403000000000001000000001102020200000000 000400000403000000000001000000002103030300000000 000400000403000000000001000000001204010100000000 000400000403000000000001000000001000040400000000 000400000403000000000001000000002001050500000000 -------------------------AMD9510Controller.kext------------------------- Exmoor (6) @ 0x103910 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Berbice (5) @ 0x1039a0 LVDS, DP, DP, DP, DP 020000000001000039050108000000002001010100000000 000400000001000000010243000000001000020200000000 000400000403000000010313000000002103030300000000 000400000403000000010453000000001102040400000000 000400000403000000010533000000001204050500000000 Baladi (6) @ 0x103ba0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9515Controller.kext------------------------- Exmoor (6) @ 0x103920 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Mazaruni (5) @ 0x1039b0 LVDS, DP, DP, DP, DP 020000000001000039050108000000002001010100000000 000400000001000000010243000000001000020200000000 000400000403000000010313000000002103030300000000 000400000403000000010453000000001102040400000000 000400000403000000010533000000001204050500000000 Longavi (5) @ 0x103b20 LVDS, DP, DP, DP, DP 020000000001000039050108000000002001010100000000 000400000001000000010243000000001000020200000000 000400000403000000010313000000002103030300000000 000400000403000000010453000000001102040400000000 000400000403000000010533000000001204050500000000 Baladi (6) @ 0x103c20 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9520Controller.kext------------------------- Exmoor (6) @ 0x104900 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Elqui (5) @ 0x104990 LVDS, LVDS, DP, DP, DP 020000000001000000010141000000001102020400000000 020000000001000000010231010000002103010300000000 000400000403000000010313000000002001030100000000 000400000403000000010413000000001204040200000000 000400000403000000010501000000001000050500000000 Caroni (5) @ 0x104b00 LVDS, LVDS, DP, DP, DP 020000000001000000010141000000001102020400000000 020000000001000000010231010000002103010300000000 000400000403000000010313000000002001030100000000 000400000403000000010413000000001204040200000000 000400000403000000010501000000001000050500000000 Florin (6) @ 0x104bf0 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010141000000001102020400000000 020000000001000000010231010000002103010300000000 000400000403000000010313000000002001030100000000 000400000403000000010421000000001000050500000000 000400000403000000010553000000002205040200000000 000400000403000000010661000000001204060600000000 Baladi (6) @ 0x104c80 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 1 Link to comment Share on other sites More sharing options...
surfinchina Posted June 29, 2017 Share Posted June 29, 2017 AMD Framebuffer outputs 10.13 beta 2 update 1 Thanks! They haven't got it working yet. Plus doing the old changes to 4100 and 9500 kexts no longer work. Just confuses the hell out of it because 73001002 now has a kext all to itself. Even if I delete X4500.kext it doesn't help. Fake ID in the 67xx series for the nano doesn't help. I'm not good enough to find out what other kexts are pointing to 73001002 Link to comment Share on other sites More sharing options...

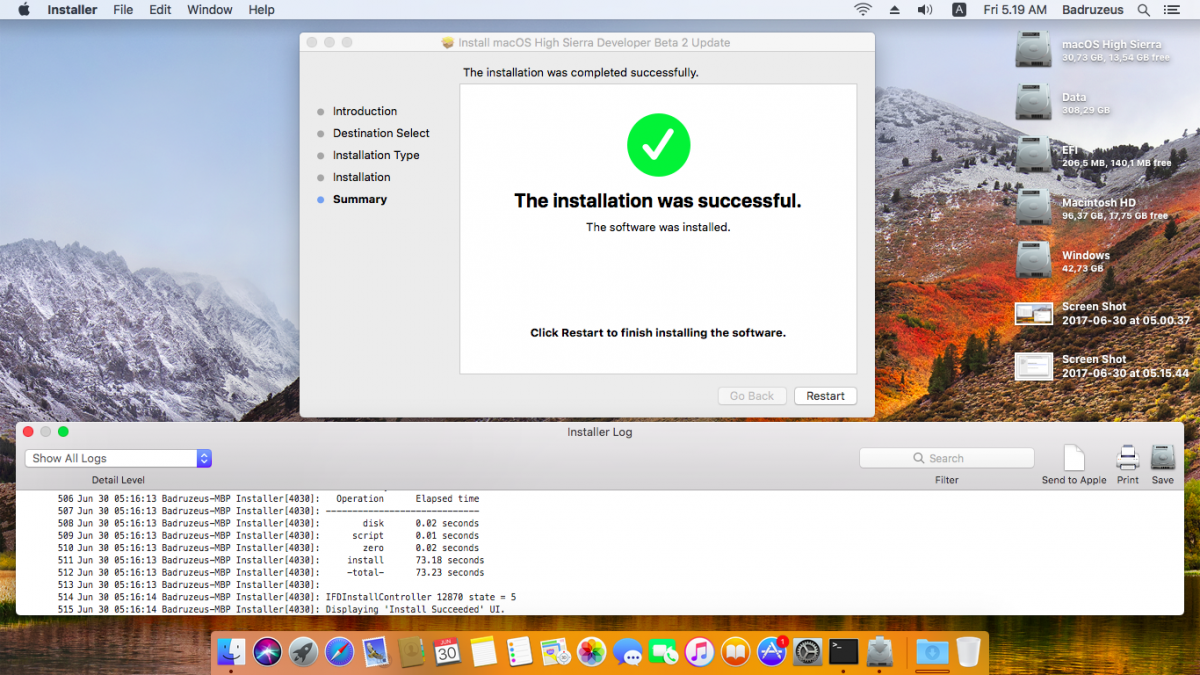

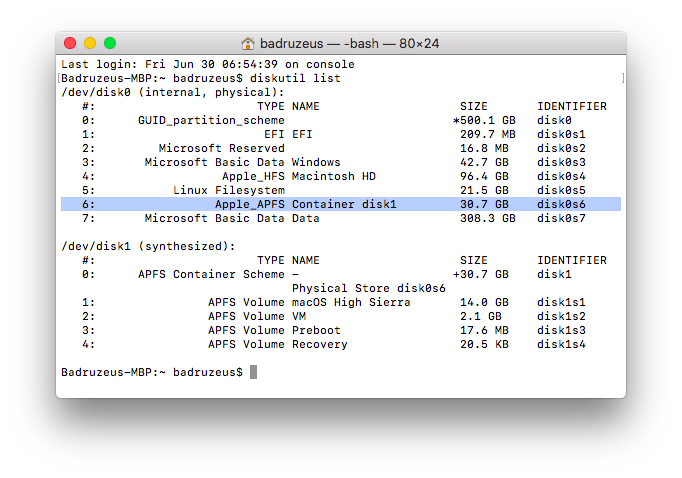

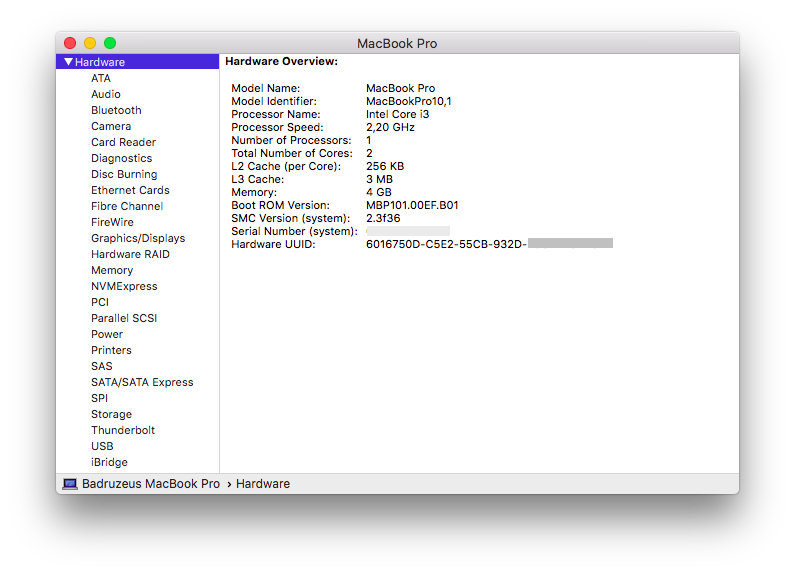

Badruzeus Posted June 29, 2017 Share Posted June 29, 2017 Show off time LoL Link to comment Share on other sites More sharing options...
azlvda Posted June 29, 2017 Share Posted June 29, 2017 using latest lilu & applealc with -lilubeta & -alcbeta arg applehda load but still no output device found any idea? Link to comment Share on other sites More sharing options...
Badruzeus Posted June 30, 2017 Share Posted June 30, 2017 For your platformdata update @Sherlocks: EFIPayloads: - IM101.88Z.00CD.B01.1706261549 - IM111.88Z.0035.B01.1706261406 - IM112.88Z.0058.B01.1706261628 - IM121.88Z.004A.B01.1706261231 - IM131.88Z.010C.B01.1706261419 - IM141.88Z.0119.B01.1706261354 - IM142.88Z.0119.B01.1706261827 - IM143.88Z.0119.B01.1706261217 - IM144.88Z.0180.B01.1706261218 - IM151.88Z.0208.B01.1706261354 - MB61.88Z.00C9.B01.1706261518 - MB71.88Z.003A.B01.1706261443 - MBA31.88Z.0064.B01.1706261714 - MBA41.88Z.0078.B01.1706261217 - MBA51.88Z.00F1.B01.1706261433 - MBA61.88Z.0100.B01.1706261827 - MBP101.88Z.00EF.B01.1706261418 - MBP102.88Z.0107.B01.1706261827 - MBP111.88Z.0139.B01.1706261010 - MBP112.88Z.0139.B01.1706261355 - MBP61.88Z.0058.B01.1706261104 - MBP71.88Z.003A.B01.1706261020 - MBP81.88Z.0049.B01.1706261922 - MBP91.88Z.00D4.B01.1706261216 - MM41.88Z.0043.B01.1706261836 - MM51.88Z.0078.B01.1706261437 - MM61.88Z.0107.B01.1706261217 - MM71.88Z.0221.B02.1706261516 - MP61.88Z.0117.B01.1706261354 - IM161.88Z.0209.B02.1706261516 - IM162.88Z.0209.B02.1706261516 - IM171.88Z.0106.B01.1706260138 - IM181.88Z.0147.B01.1706251744 - IM183.88Z.0147.B01.1706251744 - MB101.88Z.0150.B01.1706260154 - MB81.88Z.0165.B01.1706261516 - MB91.88Z.0155.B01.1706260138 - MBA71.88Z.0167.B01.1706261032 - MBP114.88Z.0173.B01.1706261516 - MBP121.88Z.0168.B01.1706261516 - MBP131.88Z.0206.B01.1706260154 - MBP132.88Z.0227.B01.1706260154 - MBP133.88Z.0227.B01.1706260154 - MBP141.88Z.0161.B01.1706251744 - MBP142.88Z.0161.B01.1706251744 - MBP143.88Z.0161.B01.1706252330 SMCJSONs: - Mac-031B6874CF7F642A: 2.14f24 - Mac-189A3D4F975D5FFC: 2.16f68 - Mac-27ADBB7B4CEE8E61: 2.15f7 - Mac-2BD1B31983FE1663: 2.19f12 - Mac-35C1E88140C3E6CF: 2.12f143 - Mac-35C5E08120C7EEAF: 2.24f32 - Mac-3CBD00234E554E41: 2.18f15 - Mac-42FD25EABCABB274: 2.22f16 - Mac-473D31EABEB93F9B: 2.36f97 - Mac-65CE76090165799A: 2.33f10 - Mac-66E35819EE2D0D05: 2.37f20 - Mac-77EB7D7DAF985301: 2.17f7 - Mac-7DF21CB3ED6977E5: 2.13f15 - Mac-81E3E92DD6088272: 2.21f92 - Mac-937CB26E2E02BB01: 2.27f2 - Mac-9AE82516C7C6B903: 2.35f105 - Mac-9F18E312C5C2BF0B: 2.26f2 - Mac-A369DDC4E67F1C45: 2.31f36 - Mac-A5C67F76ED83108C: 2.38f7 - Mac-B809C3757DA9BB8D: 2.34f2 - Mac-BE0E8AC46FE800CC: 2.25f87 - Mac-DB15BD556843C820: 2.33f10 - Mac-E43C1C25D4880AD6: 2.28f7 - Mac-F60DEB81FF30ACF6: 2.20f18 - Mac-FA842E06C61E91C5: 2.23f11 - Mac-FFE5EF870D7BA81A: 2.32f20 FirmwareFeatures(Mask): - IM131.88Z.010C.B01.1706261419: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe005e137 - IM141.88Z.0119.B01.1706261354: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe007e137 - IM142.88Z.0119.B01.1706261827: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe007e137 - IM143.88Z.0119.B01.1706261217: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe007e137 - IM144.88Z.0180.B01.1706261218: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xf007e137 - IM151.88Z.0208.B01.1706261354: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xf807e137 - MBA41.88Z.0078.B01.1706261217: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xd005e137 - MBA51.88Z.00F1.B01.1706261433: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe005e137 - MBA61.88Z.0100.B01.1706261827: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe007e137 - MBP101.88Z.00EF.B01.1706261418: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe005e137 - MBP102.88Z.0107.B01.1706261827: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe005e137 - MBP111.88Z.0139.B01.1706261010: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe807e137 - MBP112.88Z.0139.B01.1706261355: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe807e137 - MBP91.88Z.00D4.B01.1706261216: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xc005e137 - MM51.88Z.0078.B01.1706261437: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xd005e137 - MM61.88Z.0107.B01.1706261217: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe005e137 - MP61.88Z.0117.B01.1706261354: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xe807e136 - IM171.88Z.0106.B01.1706260138: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - IM181.88Z.0147.B01.1706251744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - IM183.88Z.0147.B01.1706251744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - MB101.88Z.0150.B01.1706260154: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e13e - MB91.88Z.0155.B01.1706260138: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e13e - MBP131.88Z.0206.B01.1706260154: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - MBP132.88Z.0227.B01.1706260154: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - MBP133.88Z.0227.B01.1706260154: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e13e - MBP141.88Z.0161.B01.1706251744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - MBP142.88Z.0161.B01.1706251744: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e136 - MBP143.88Z.0161.B01.1706252330: FirmwareFeaturesMask=0xff1fff3f | FirmwareFeatures=0xfc07e13e What the hack, using new MBP10,1 Platform Data above, my 10.13 Beta (17A291m) on APFS becomes faster (except boot time), even on 5400rpm SATA Disk... still won't Shutdown normally though.. #NP Link to comment Share on other sites More sharing options...
xtddd Posted June 30, 2017 Share Posted June 30, 2017 17A291m is a BIOS/Firmware/SMC update. In other words, update your SMBIOS data. New data, thanks to @cecekpawon. http://www.insanelymac.com/forum/topic/324194-pre-release-macos-high-sierra/?p=2453714 -1- In addition, Safari is updated and we get a new widget. Best regards. what is bios release date? thx Link to comment Share on other sites More sharing options...
Badruzeus Posted June 30, 2017 Share Posted June 30, 2017 what is bios release date? thx 06/26/17 isn't it? ... from this pattern: EFIPayloads: - IM101.88Z.00CD.B01.1706261549 Link to comment Share on other sites More sharing options...
xtddd Posted June 30, 2017 Share Posted June 30, 2017 06/26/17 isn't it? ... from this pattern: EFIPayloads: - IM101.88Z.00CD.B01.1706261549 ok. still need ffm and ff? Link to comment Share on other sites More sharing options...
Badruzeus Posted June 30, 2017 Share Posted June 30, 2017 ok. still need ffm and ff? I think it's better waiting for Clover devs. updating it's Platform Datas within bootloader.. 2 Link to comment Share on other sites More sharing options...
