[RYZEN] macOS 10.12.x (Sierra) Kernel Research&Development Thread


Sinetek
 Share

774 posts in this topic

Recommended Posts

I've had another attempt at Ryzen support. Please test on a test drive/partition in case it doesn't work.

Thanks for this new test kernel which works very well at 10.12.6 in my FX-6300 hackintosh.

I'll test it in Ryzen 1700X hackintosh later.

[Edit]

Unfortunately it got immediate reboot in Ryzen 1700X hackintosh.

FX-6300.txt

Edited by jsl
Link to comment
Share on other sites

Try patched kernel .

1) Fixed mtrr.c ...

2) Fixed tsc.c and works for FX if in BIOS use auto multiplier .

3) Fixed cpuid ...

4) Fixed boot chameleon for FX and Kabini(need test) and can use auto multiplier in bios ...



Download  kernel :

For El_Captain 10.11.6: attachicon.gifkernel_10.11.6_Ryzen.zip



For Sierra 10.12.4 : attachicon.gifkernel_10.2.4_fix.zip



Boot_chameleon: attachicon.gifboot_chameleon_fix.zip



Hi Community, I'd like to publish my test results. The Hardware configuration is listed in my signature.





Booted with Clover UEFI.



Kernel dated around 17th August by Bronya boots fast, some issues with ACPI listed in verbose, idk why just worth to mention. Applications that use Wine doesn't work, they usually crash at "sigkill missing instruction"



Kernel dated 25th August by Bronya boots even faster, verbose is very clear there are no kernel related errors. Every tested Application runs perfect, no single crash. It's stable for daily use on a Ryzen.



Great Job Bronya , Thanks

  • Like 1
Link to comment
Share on other sites

I've tested on Threadripper and found that it doesn't work. I've used the AMD_V5 build from AMD-OSX and using Shanee's kernel from the post above. Shanee's kernel gives me a kernel panic, and the kernel with AMD_V5 freezes on IOConsoleUsers: gIOScreenLockState 3 after failing to load com.apple.driver.pmtelemetry.



Is there anything else I can test to get this to boot on my Threadripper system?



EDIT: Seems like this may be a GPU issue.. Using a GTX 1080Ti. Going to research in other threads so I don't tie up this kernel dev thread, but I'm open to suggestions!

Link to comment
Share on other sites

I've tested on Threadripper and found that it doesn't work. I've used the AMD_V5 build from AMD-OSX and using Shanee's kernel from the post above. Shanee's kernel gives me a kernel panic, and the kernel with AMD_V5 freezes on IOConsoleUsers: gIOScreenLockState 3 after failing to load com.apple.driver.pmtelemetry.



Is there anything else I can test to get this to boot on my Threadripper system?



EDIT: Seems like this may be a GPU issue.. Using a GTX 1080Ti. Going to research in other threads so I don't tie up this kernel dev thread, but I'm open to suggestions!

For testing a cheap Nvidia gt210 $30'US works OOB on native drivers, use inject Nvidia =true.



If you've made it to gioscreenlockstate your at the front door. Almost there. Try Bronya kernel 10,2.

kernel_10 2.zip

Link to comment
Share on other sites

Ryzen 1600 / Gtx 1070

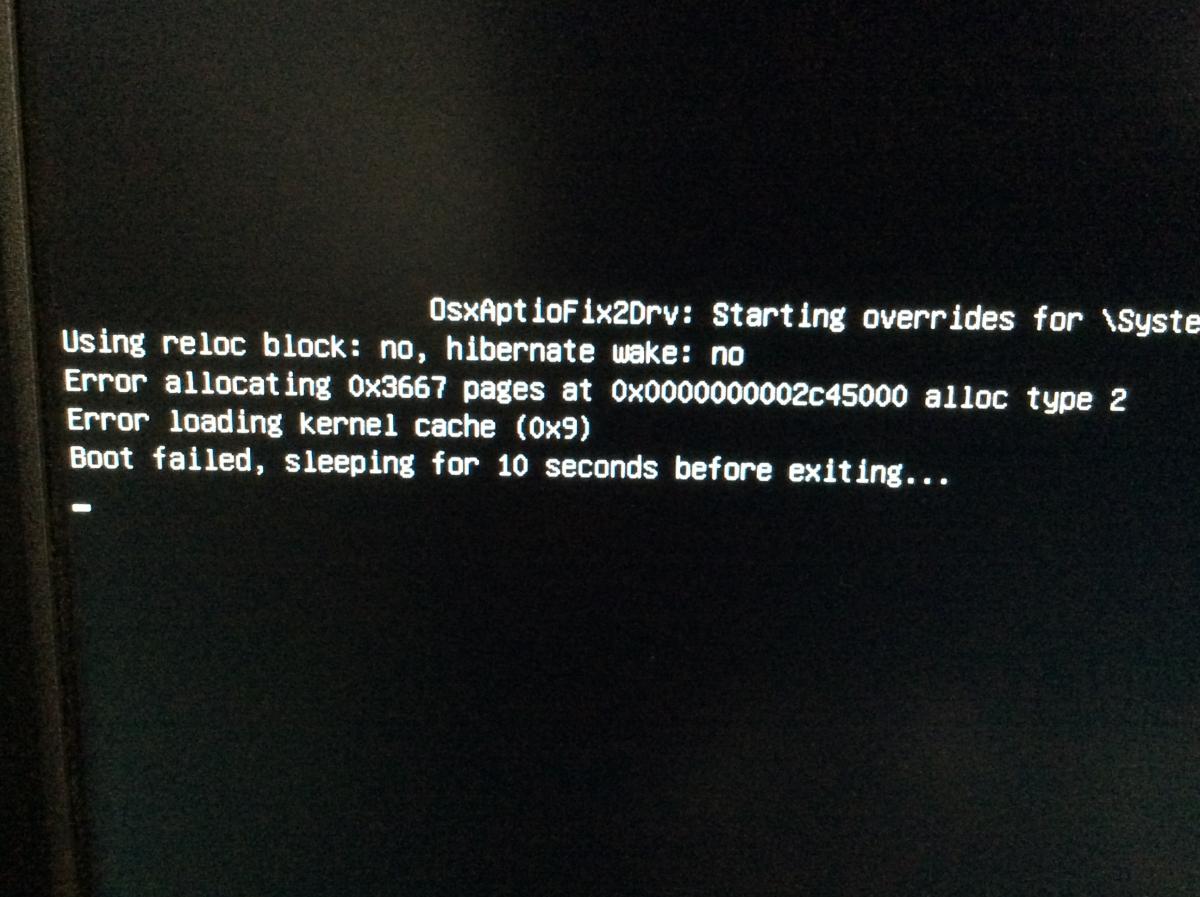

Reboots on Aptiofix (++++++++++++, reboots)

Latest kernel from bronya works, restored.



Thanks for your effort guys, please keep on working on it we need a working 10.12.6 kernel!

Link to comment
Share on other sites

Hi guys, i have a runing Sierra 10.12.5 with Ryzen 5 1500X and Radeon RX 560. Here i share details about software, hardware and settings i use



Hardware:

Board       : ASRock AB350 Pro4

CPU         : AMD Ryzen 5 1500X 4C/8T @3.5GHz

GPU         : Sapphire Radeon RX 560 4GB OC

Memory      : Corsair LPX Vengeance 2x4GB DDR4 2666MHz

Display     : Dell 1909Wb 1440x900@60Hz

HDD         : WDC Blue 1TB + Seagate Barracuda 1TB

Standard USB mouse and keyboard



Software:

OS Image    : SierraAMD v4 (10.12.5)

Bootloader  : Clover_v2.4k_r4152



Configurations:

BIOS :

  • SMT             : Enable
  • Super I/O       : Disable
  • XMP             : Enable
  • Virtualization  : Enable

Clover : config.plist



Kexts:

  • Lilu.kext           -> EFI/CLOVER/kexts/Other
  • WhateverGreen.kext  -> EFI/CLOVER/kexts/Other



Modified kext:

  • /S/L/E/AMD9510Controller.kext//Contents/Info.plist

from:

<key>IOPCIMatch</key>
<string>0x67EF1002</string>

to:

<key>IOPCIMatch</key>
<string>0x67FF1002</string>

Benchmark:

- Cinebench R15

attachicon.gifScreen Shot 2017-08-14 at 11.26.19 AM.png



- Geekbench 4

CPU .   : https://browser.geekbench.com/v4/cpu/3697268

Compute : https://browser.geekbench.com/v4/compute/1015156

Hey Question I have the Same MB AsRock AB350 Pro4 When I run the installer I losse all USB fuctions Can you help me?

Link to comment
Share on other sites

hello to all of you and thanks for the great work.



ive successfully installed osx sierra on a msi pc mate b350 using a ryzen 1600, but sadly the most important program (cubase) cannot be run.





better said its elicenser software refuses to run and gives errors. ive tried all the kernels here and none of them work :(

on windows its a .net app if i remember right, so maybe this helps?



https://www.steinberg.net/index.php?id=12892

soft can be free downloaded so maybe you can give it a try.

any chance to get this thing running?



regards

Link to comment
Share on other sites

No luck for me, can't get past ************************************ reboot.

Thanks for the first try, Gigamaxx

  • Like 1
