Badruzeus
Badruzeus
Posted
Posted
36 minutes ago, Slice said:

I tested with GCC and it didn't see the mistake. Committed the fix.

@Slice I may propose a small thing on 'loader.cpp' for MX-Linux 19.1? Or if you have batter idea how can Clover detect any MX-Linux release since the devs change it's EFI Entry name on every major release (MX18, MX19, etc)..? Or if you have enough time building it for me to test, then please.



Thanks (plz move to appropriate thread, sorry I no longer remember where to ask about this).

MX-Linux-19.1.patch.zip

  • Like 1
Slice
Slice
Posted
Posted
23 minutes ago, Badruzeus said:

@Slice I may propose a small thing on 'loader.cpp' for MX-Linux 19.1? Or if you have batter idea how can Clover detect any MX-Linux release since the devs change it's EFI Entry name on every major release (MX18, MX19, etc)..? Or if you have enough time building it for me to test, then please.



Thanks (plz move to appropriate thread, sorry I no longer remember where to ask about this).

MX-Linux-19.1.patch.zip

No problem. I did this next update.

It is not good idea to enumerate all linux tastes. It will be better if someone make an algo to find all /EFI/*/grubx64.efi and call the linux as it named here. For example some company created XYZ Linux and a bootloader

/EFI/XYZ/grubx64.efi

We should not rebuild Clover for this version. We should use common solution.

  • Like 2
  • Thanks 1
Badruzeus
Badruzeus
Posted
Posted (edited)

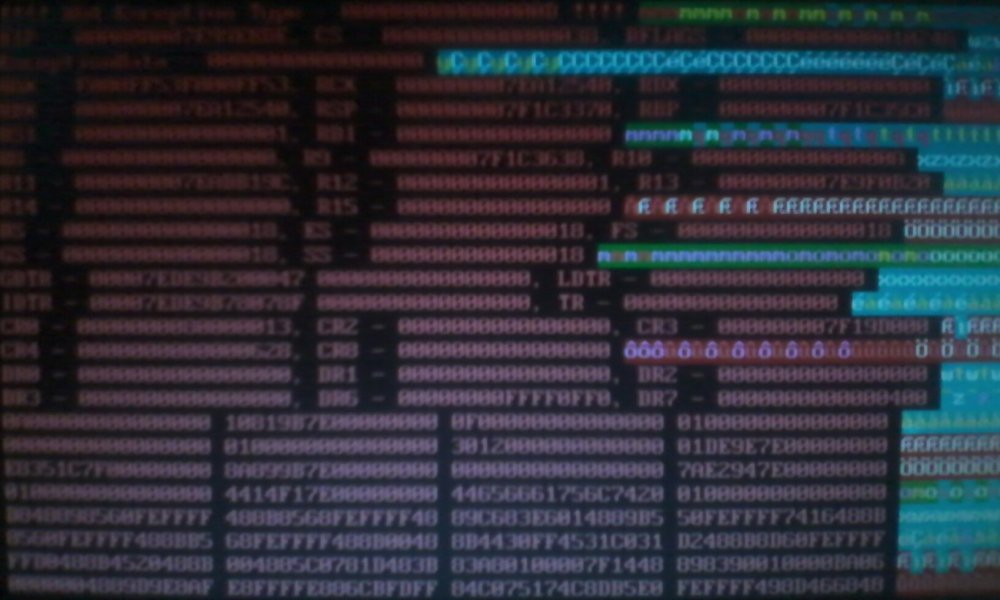

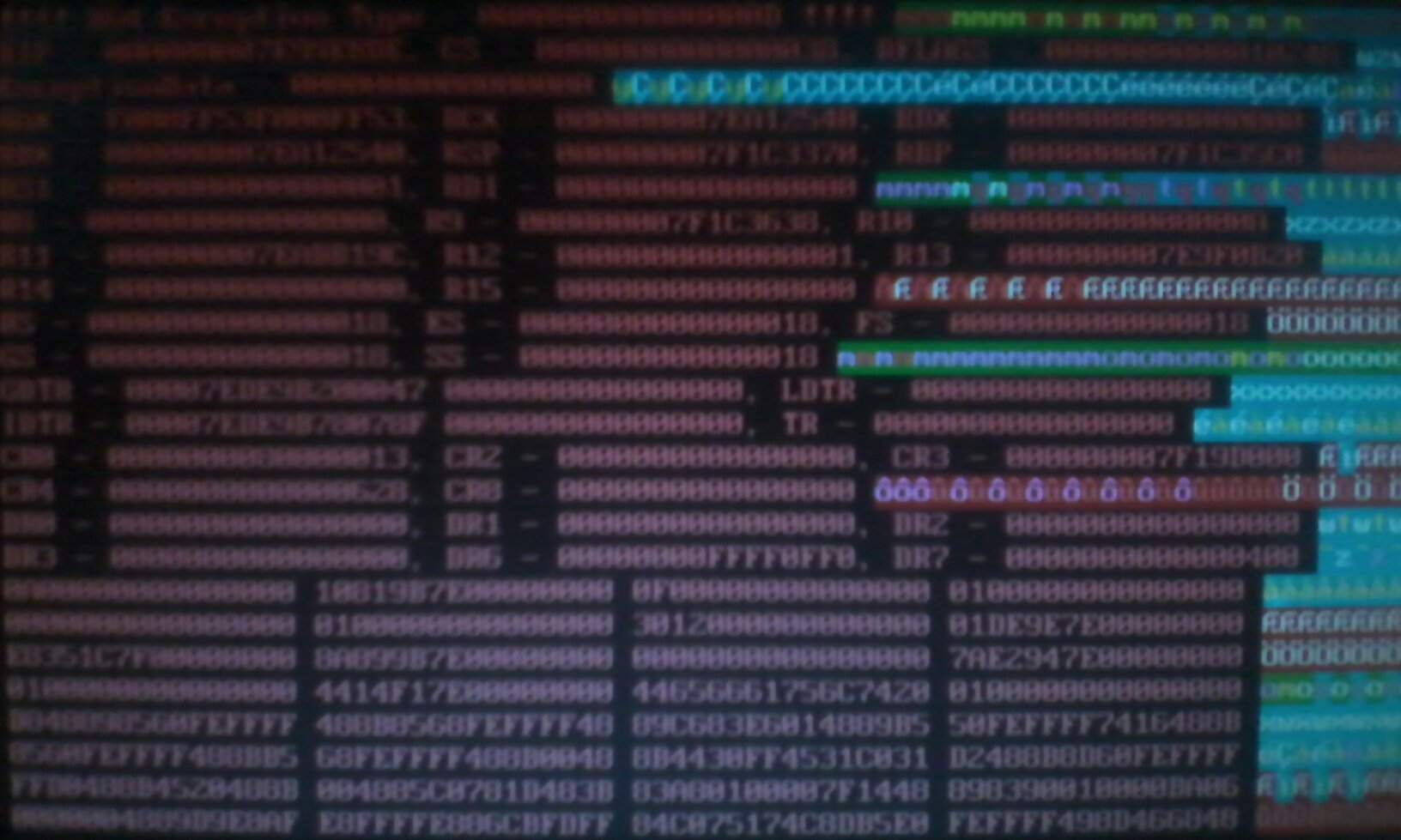

Still having this RSOD issue even with recent commit, perhaps on Legacy only? Or just buggy compiler on my Ubuntu 20.04 Beta.. Hmmb, but using Stable Debian 10 I got similar result.



What strange is, sometimes loading *.efi file from Clover Boot Manager firmware leads me to RSOD, but manually chainload it via EFI Shell (eg. fs0:\efi\boot\bootx64.efi) works just fine. Is there any special dependency for c++ compared to c, or something else?


Edited by Badruzeus
Slice
Slice
Posted
Posted

Legacy boot depends on boot file which can be boot6 or boot7. May be the file broken or not compatible with your hardware.

Take old one which was working for you.

New Clover is the one file Cloverx64.efi. All other files can be from older version.

  • Like 1
chris1111
chris1111
Posted
Posted

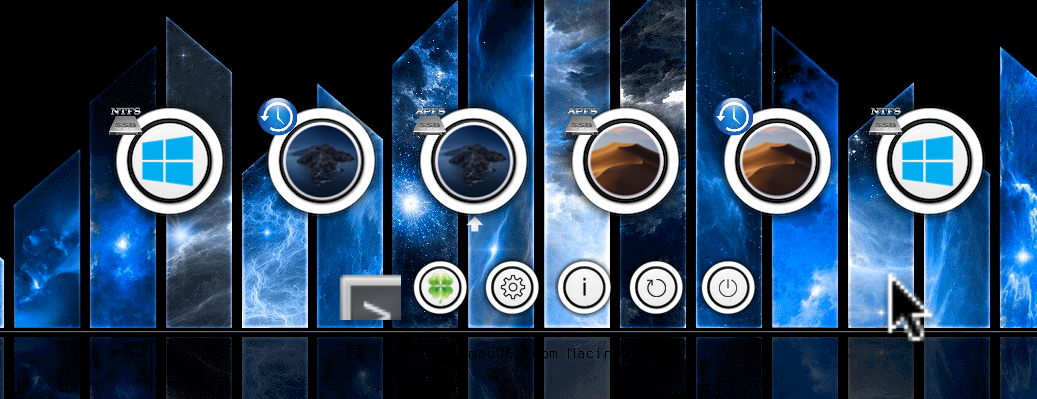

@Slice release 5109 not good I compel the source and this is the theme looks like

The drive suppose to be below and the mousse is to bib also some glitch in the below left corner

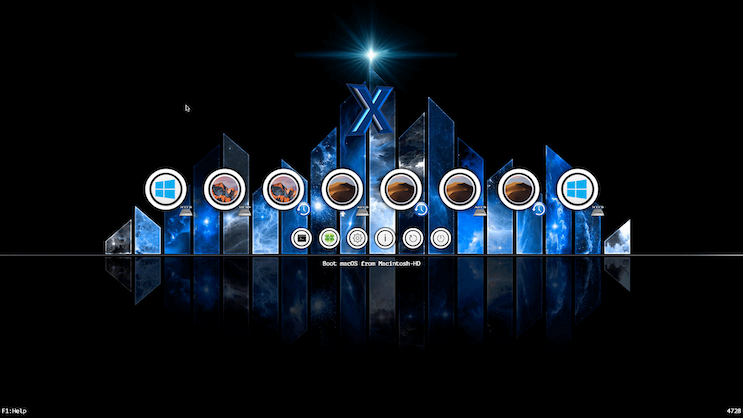

this is the origin




Slice
Slice
Posted
Posted

Missing icons means they are in wrong format. Use Clover.app to optimize your theme.



3 hours ago, chris1111 said:

@Slice release 5109 not good I compel the source and this is the theme looks like

The drive suppose to be below and the mousse is to bib also some glitch in the below left corner




this is the origin





About badges it is the mistake, I will look.

Check the icons tool_shell.icns and pointer.png.



New theme engine assumes using only png files and they will be names *.png. But for old compatibility they can be names *.icns but remains PNG as it was before.

It is not good to keep PNG files named to .icns. New Clover requires all files to be pure .png.

  • Like 2
Matgen84
Matgen84
Posted
Posted (edited)

Hi @Slice

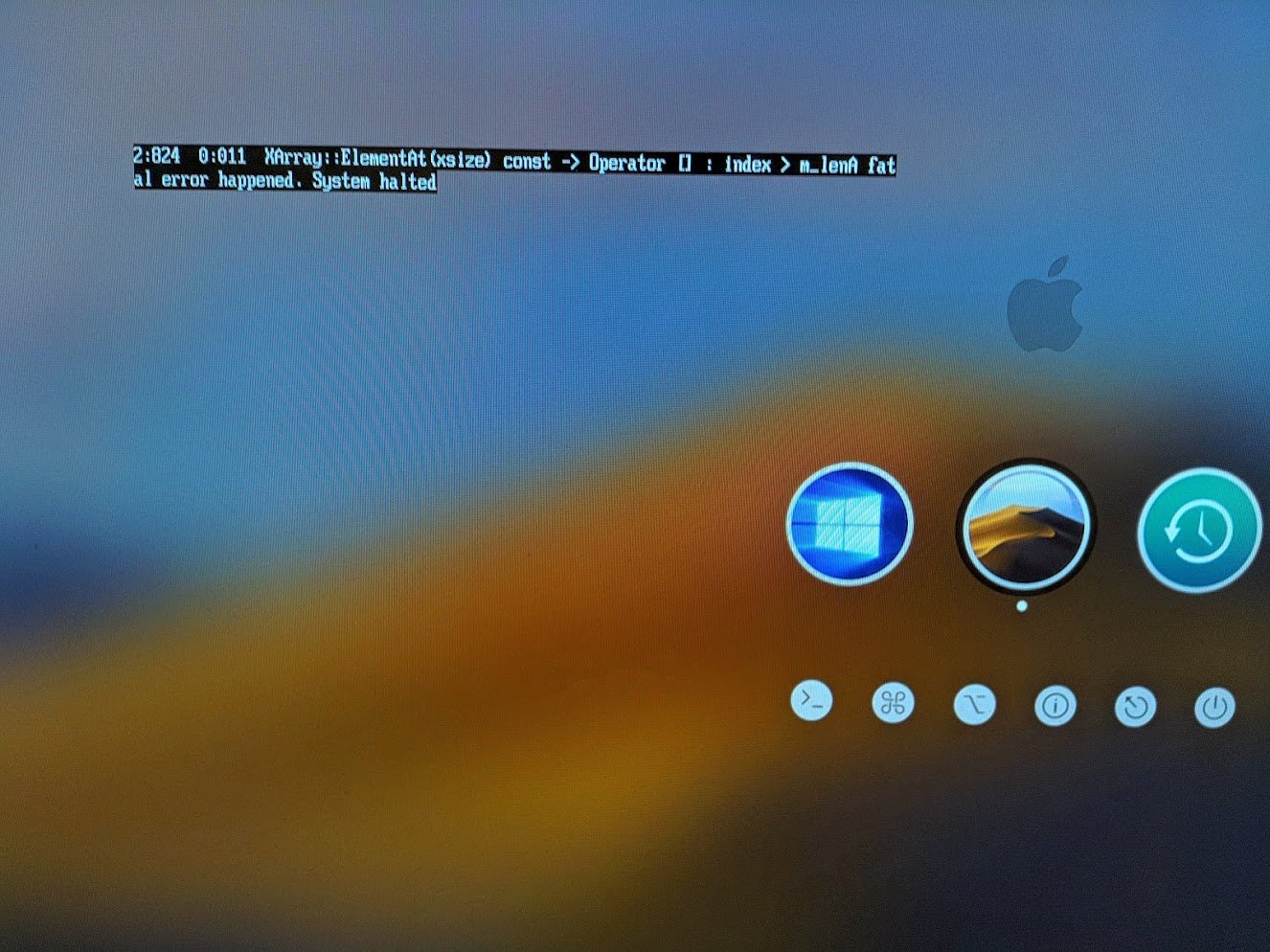

r5108 (0a3f4c357): I get stuck at Clover GUI with a error message at top left corner: "XArray... System halted" something like that, the system stop: no keyboard, no mouse. I rollback to previous version. :cry: (Mojave, IvyBridge config).



I try to build r5109 Release same issue (Mojave/ XCode). The theme is already optimize since few week with Clover.app

EDIT: any one got this issue !!!




Edited by Matgen84
Badruzeus
Badruzeus
Posted
Posted (edited)
4 hours ago, Slice said:

Missing icons means they are in wrong format. Use Clover.app to optimize your theme.



About badges it is the mistake, I will look.

Check the icons tool_shell.icns and pointer.png.



New theme engine assumes using only png files and they will be names *.png. But for old compatibility they can be names *.icns but remains PNG as it was before.

It is not good to keep PNG files named to .icns. New Clover requires all files to be pure .png.

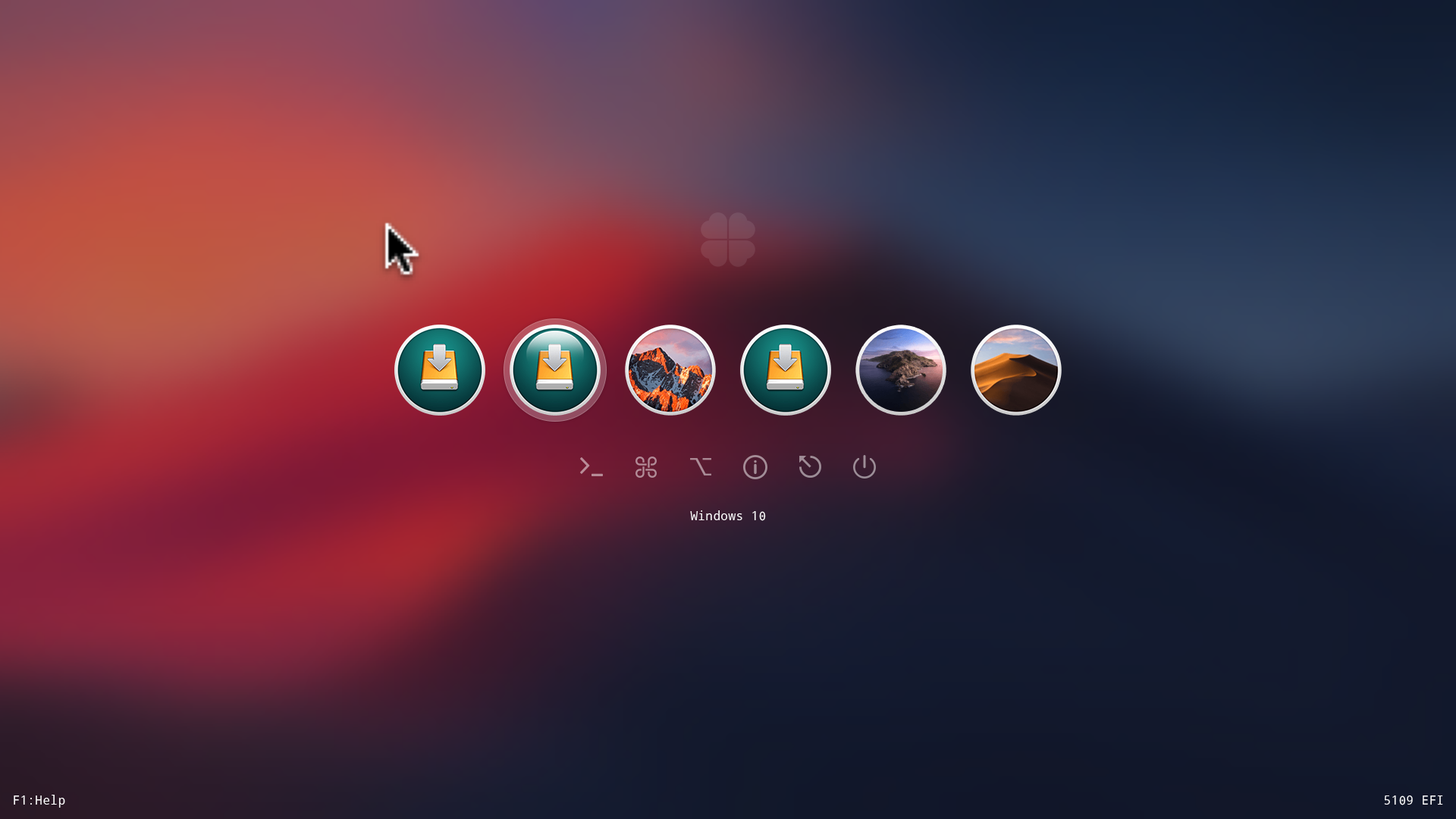

I'm not sure what 'Clover.app - Optimize' actually does with the images. They were exported to 8-bit PNG using Photoshop, then already Optimized (or Compressed for smallest possible size) using PngQuant as @blackosx did with his theme's resource too. Also used it with rEFInd and found no issue.



Except, some files got corrupted when migrating from SourceForge to GitHub (or another causes). All my installed themes were still from old SF server last year. Thanks.

Edited by Badruzeus
  • Like 1
Slice
Slice
Posted
Posted
3 hours ago, Matgen84 said:

Hi @Slice



r5108 (0a3f4c357): I get stuck at Clover GUI with a error message at top left corner: "XArray... System halted" something like that, the system stop: no keyboard, no mouse. I rollback to previous version. :cry: (Mojave, IvyBridge config).



I try to build r5109 Release same issue (Mojave/ XCode). The theme is already optimize since few week with Clover.app

EDIT: any one got this issue !!!





As you see the picture then debug.log can be created.

Matgen84
Matgen84
Posted
Posted
22 minutes ago, Slice said:

As you see the picture then debug.log can be created.



I found these lines in debug.log but I don't know why there is a issue: XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted



I post debug.log


0:107  0:000  === [ GetListOfThemes ] =========================
0:495  0:004  Default theme: Mojave
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
Spoiler

0:100  0:100  MemLog inited, TSC freq: 3500026711
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 07.04.2020,  08:39:45 (GMT)
0:100  0:000  Starting Clover revision: 5109 (master, commit 5a8588318) on American Megatrends EFI
0:100  0:000  Build with: [Args: --conf=/Users/mathieu/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000) @89D55298
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  Clover : Image base = 0x745DF000
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'System Product Name' with board 'P8Z77-V PRO'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E008402
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00081010_81010F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 101 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 37/38/39/39
0:100  0:000  Features: 0x779AE3BFBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3510 MHz
0:100  0:000  TSC: 3510 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Ctrl(0x0)/AcpiAdr(0x80010340)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 0FC1 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Gigabyte GeForce GT 640 family E7 (Kepler)
0:100  0:000  PCI (00|01:00.01) : 10DE 0E1B class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=5348Broadcom
0:100  0:000  PCI (00|00:1C.02) : 8086 1E14 class=060400
0:100  0:000  PCI (00|04:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.03) : 8086 1E16 class=060400
0:100  0:000  PCI (00|05:00.00) : 1B21 0612 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 244E class=060401
0:100  0:000  PCI (00|06:00.00) : 1B21 1080 class=060401
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  Clover load options size = 0 bytes
0:106  0:005  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name--00-00-00-00-00-00. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO\UEFI. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name-3510. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO-3510. Dir not exists
0:106  0:000  set OEMPath by default: EFI\CLOVER
0:107  0:000  EFI\CLOVER\config.plist loaded: Success
0:107  0:000  === [ GetListOfThemes ] =========================
0:116  0:009  - [00]: MacProv2
0:132  0:015  - [01]: Catalina
0:144  0:012  - [02]: Imac
0:151  0:006  - [03]: Mojave
0:156  0:004  - [04]: Mojave2
0:168  0:011  - [05]: Clovy
0:175  0:007  - [06]: DEV
0:178  0:002  - [07]: RANDOM
0:190  0:012  - [07]: EMBEDDED
0:191  0:001  === [ Found config plists ] =====================
0:194  0:002  - config_old.plist
0:194  0:000  - config.plist
0:201  0:006  === [ GetEarlyUserSettings ] ====================
0:201  0:000  timeout set to 8
0:201  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:243  0:042  KextsToPatch: 10 requested
0:245  0:001   - [00]: AppleAHCIPort (ICH10 hotplug for 10.4.x) :: MatchOS: 10.14.x :: BinPatch :: data len: 14
0:252  0:007   - [01]: com.apple.driver.AppleAHCIPort (External icons patch) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 8
0:261  0:008   - [02]: com.apple.driver.AppleAHCIPort (patch AppleAHCIPort for ICH * by vit9696) :: BinPatch :: data len: 4
0:268  0:007   - patch disabled at config
0:270  0:001   - [03]: com.apple.driver.AppleMikeyDriver (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:364  0:093   - [04]: com.apple.driver.AppleHDA (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:373  0:009   - [05]: com.apple.driver.AppleGraphicsDevicePolicy (Prevent AGDP from loading) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 5
0:381  0:008   - [06]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #1 10.14.x modify by DalianSky(credit ydeng)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:428  0:046   - [07]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #2 10.14.x modify by DalianSky(credit PMHeart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:436  0:007   - [08]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #3 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:444  0:008   - [09]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #4 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:488  0:043  KernelToPatch: 1 requested
0:490  0:001   - [00]: activating speedstepping for IvyBridge  :: data len: 25
0:495  0:004  Default theme: Mojave
0:496  0:001  Hiding entries with string Windows
0:498  0:001  Hiding entries with string BOOTX64.EFI
0:500  0:002  Hiding entries with string Preboot
0:502  0:001  === [ LoadDrivers ] =============================
0:521  0:019  Loading HFSPlus-64.efi  status=Success
0:543  0:022   - driver needs connecting
0:575  0:032  Loading FSInject.efi  status=Success
0:581  0:005  Loading SMCHelper.efi  status=Success
0:586  0:005  Loading CsmVideoDxe.efi  status=Success
0:593  0:006   - driver needs connecting
0:594  0:001  Loading Fat.efi  status=Success
0:601  0:006   - driver needs connecting
0:602  0:001  Loading AptioInputFix-64.efi  status=Success
0:709  0:106  Loading AptioMemoryFix-64.efi  status=Success
0:815  0:106  Loading DataHubDxe.efi  status=Success
0:851  0:035  Loading PartitionDxe.efi  status=Success
0:864  0:012   - driver needs connecting
0:865  0:001  Loading ApfsDriverLoader.efi  status=Success
0:870  0:005   - driver needs connecting
0:872  0:001  5 drivers needs connecting ...
0:874  0:001  PlatformDriverOverrideProtocol not found. Installing ... Success
0:877  0:003  Partition driver loaded:
0:880  0:003  HFS+ driver loaded
0:881  0:001  APFS driver loaded
0:883  0:001  Video driver loaded: disconnect Successdisconnect Success
0:894  0:010  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:703  0:809  === [ InitScreen ] ==============================
1:704  0:001  Console modes reported: 3, available modes:
1:706  0:001   - [01]: 80x25 (current mode)
1:707  0:001   - [02]: 80x50
1:709  0:001   - [03]: 100x31
1:710  0:001  SetScreenResolution: 1920x1080 - already set
1:714  0:003  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
1:716  0:001  new SelfHandle=89D55298
1:760  0:044  Using embedded font: Success
1:764  0:003  === [ GetMacAddress ] ===========================
1:766  0:001  MAC address of LAN #0= C8:60:00:BC:2D:8E:
1:779  0:012  === [ ScanSPD ] =================================
1:782  0:002  Scanning SMBus [8086:1E22], mmio: 0xF7E35004, ioport: 0xF040, hostc: 0x1
1:802  0:020  Slot: 0 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:822  0:020  Slot: 1 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:894  0:072  Slot: 2 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:915  0:020  Slot: 3 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:917  0:002  === [ GetAcpiTablesList ] =======================
1:919  0:001  Get Acpi Tables List from RSDT:
1:922  0:003   - [00]: FACP  A M I len=132
1:924  0:002   - [01]: APIC  A M I len=146
1:926  0:001   - [02]: FPDT  A M I len=68
1:927  0:001   - [03]: MCFG  A M I len=60
1:967  0:039   - [04]: HPET  A M I len=56
1:969  0:001   - [05]: SSDT  SataTabl len=877
1:970  0:001   - [06]: BGRT  A M I len=56
1:972  0:001   - [07]: SSDT  Cpu0Ist len=2474
1:973  0:001   - [08]: SSDT  CpuPm len=2706
1:975  0:001  Calibrated TSC Frequency = 3500026711 = 3500MHz
1:979  0:003  === [ GetUserSettings ] =========================
1:980  0:001  USB FixOwnership: yes
1:982  0:001  Dropping 3 tables:
1:984  0:002   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (  74734930757043)
2:049  0:065           - set table: 54445353,   74734930757043 to drop: yes
2:053  0:003   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (      6D50757043)
2:079  0:026           - set table: 54445353,       6d50757043 to drop: yes
2:084  0:004   - [02]: Drop table  signature="DMAR" (52414D44)
2:098  0:014           - set table: 52414D44,                0 to drop: no
2:101  0:003   - final DSDT Fix mask=50404000
2:103  0:001  PatchesDSDT: 5 requested
2:142  0:039   - [00]: (change EHC1 to EH01) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:150  0:007   - [01]: (change EHC2 to EH02) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:158  0:007   - [02]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:167  0:009   - [03]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:176  0:008   - [04]: (change SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:185  0:008  EnableC7: no
2:186  0:001  EnableC6: no
2:226  0:039  Using ProductName from config: iMac13,2
2:227  0:001  Found same BiosVersion in clover and config
2:229  0:001  BiosVersion: IM131.88Z.F000.B00.2002052050
2:230  0:001  BiosReleaseDate: 02/05/2019
2:232  0:001  Using EfiVersion from clover: 290.0.0.0.0
2:233  0:001  Using FirmwareFeatures from config: 0xE00DE137
2:235  0:001  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
2:236  0:001  Board-ID set from config as Mac-FC02E91DDD3FA6A4
2:238  0:001  BoardType: 0xA
2:243  0:005  ChassisType: 0xD
2:255  0:011  === [ Found DSDT tables ] =======================
2:258  0:002  - DSDT.AML
2:377  0:119  === [ ScanVolumes ] =============================
2:384  0:006  Found 19 volumes with blockIO
2:385  0:001  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:433  0:048  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(1,GPT,09B68B84-A844-4982-8412-9B2702C57FA8,0x28,0x64000)
2:437  0:003          Result of bootcode detection: bootable unknown (legacy)
2:533  0:095  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(2,GPT,C9046D26-6FC1-4657-9E10-0A8C6C397A45,0x64028,0x746527B0)
2:569  0:035  - [03]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)
2:573  0:004  - [04]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(1,GPT,CBB58B49-132D-4A43-940B-7385483D4680,0x28,0x64000)
2:577  0:004          Result of bootcode detection: bootable unknown (legacy)
2:634  0:057  - [05]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(2,GPT,875DB2D9-6751-46A8-B013-50184E1486A9,0x64028,0x3927FB0)
2:639  0:004  - [06]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:642  0:003  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:646  0:003  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:658  0:011  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,1975239E-6CC2-416E-357D-9E893FFA233B,0x800,0xA8800)
2:710  0:051          Result of bootcode detection: bootable Windows (vista,win)
2:720  0:010  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,D57B65B6-35BC-4719-F8F7-EF5A8DBF222F,0xA9000,0x8000)
2:724  0:003  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,6375F8EC-8C56-478D-C39C-E7B6ED0C3E31,0xB1000,0xE8C5FB5A)
2:728  0:004          Result of bootcode detection: bootable Windows (vista,win)
2:768  0:039  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,CD009A64-D915-4DA9-8F9D-255B16014114,0xE8D11000,0xF6800)
2:772  0:003          Result of bootcode detection: bootable Windows (vista,win)
2:773  0:001  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
2:783  0:009          Result of bootcode detection: bootable unknown (legacy)
2:827  0:044          This is SelfVolume !!
2:829  0:001  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)
2:862  0:032          Result of bootcode detection: bootable unknown (legacy)
2:863  0:001  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A89E4F236FC6CD4488F7BC49942A30BA)
2:866  0:003          hiding this volume
2:868  0:001  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)
2:901  0:033  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0773AD116F373948888BBE132DF1AF9A)
2:904  0:003  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7BEBCDC28780954FBCA720CAB84C92F8)
2:943  0:038  No AudioIoProtocols, status=Not Found
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
2:965  0:002  OS main and drive as badge
2:966  0:001  Warning! Character width 11 should be even!
3:777  0:810  file sound read: sound_night.wav Not Found
3:785  0:008  file sound read: sound.wav Not Found
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
3:896  0:001  after NVRAM boot-args=dart=0 debug=0x100 -v shikigva=16 shiki-id=Mac-FC02E91DDD3FA6A4
3:898  0:001  === [ Dump SMC keys from NVRAM ] ================
3:900  0:001  found AppleSMC protocol
3:931  0:031  Registered 16 SMC keys
3:934  0:002  === [ ScanLoader ] ==============================
3:935  0:001  - [01]: 'EFI'
4:049  0:113          AddLoaderEntry for Volume Name=EFI
4:051  0:001          skipped because entry is hidden
4:052  0:001  - [02]: 'Install macOS Catalina'
4:076  0:023          AddLoaderEntry for Volume Name=Install macOS Catalina
4:100  0:024  - [04]: 'EFI'
4:108  0:008          AddLoaderEntry for Volume Name=EFI
4:110  0:001          skipped because entry is hidden
4:112  0:001  - [05]: 'Install macOS Mojave'
4:117  0:005          AddLoaderEntry for Volume Name=Install macOS Mojave
4:124  0:006  - [09]: 'EFI'
4:162  0:037          AddLoaderEntry for Volume Name=EFI
4:165  0:003          AddLoaderEntry for Volume Name=EFI
4:167  0:001          skipped because entry is hidden
4:168  0:001  - [13]: 'EFI'
4:181  0:012          AddLoaderEntry for Volume Name=EFI
4:182  0:001          skipped because entry is hidden
4:184  0:001  - [15]: 'Preboot', hidden
4:187  0:003  - [16]: 'Mojave'
4:510  0:322          AddLoaderEntry for Volume Name=Mojave
4:548  0:037      hibernated: set as never
4:594  0:046  - [17]: 'Recovery'
4:608  0:013          AddLoaderEntry for Volume Name=Recovery
4:635  0:027  - [18]: 'VM'
4:638  0:003  === [ AddCustomTool ] ===========================
4:662  0:024  found tool \EFI\CLOVER\tools\Shell64U.efi
4:664  0:002  Checking EFI partition Volume 1 for Clover
4:668  0:003  Checking EFI partition Volume 4 for Clover
4:693  0:025   Found Clover
4:696  0:002  === [ GetEfiBootDeviceFromNvram ] ===============
4:698  0:001   - found entry 3. 'Boot macOS from Mojave', Volume 'Mojave', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)\System\Library\CoreServices\boot.efi'
4:749  0:051  XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted




artur_pt
artur_pt
Posted
Posted
41 minutes ago, iCanaro said:

Clover 5109

in the GUI it does not load windows icon of the NEON theme.

Do not start in verbose with -v in boot arguments.

Clover updated by manually replacing bootx64.efi and cloverx64.efi

 hello  Slice



something with Clovy



regards



vector sigma
vector sigma
Posted
Posted
3 hours ago, Badruzeus said:

I'm not sure what 'Clover.app - Optimize' actually does with the images.

It convert real icns images to png as too may themes wrongly contains real icns instead of png. Also convert all non png-8 to png-8. PngQuant fix png images but can't do nothing for icns.



3 hours ago, Badruzeus said:

Except, some files got corrupted when migrating from SourceForge to GitHub (or another causes).

It is just a copy, images are fine on github. There is a bug downloading themes I fixed locally, available in minutes.

  • Thanks 1
vector sigma
vector sigma
Posted
Posted (edited)

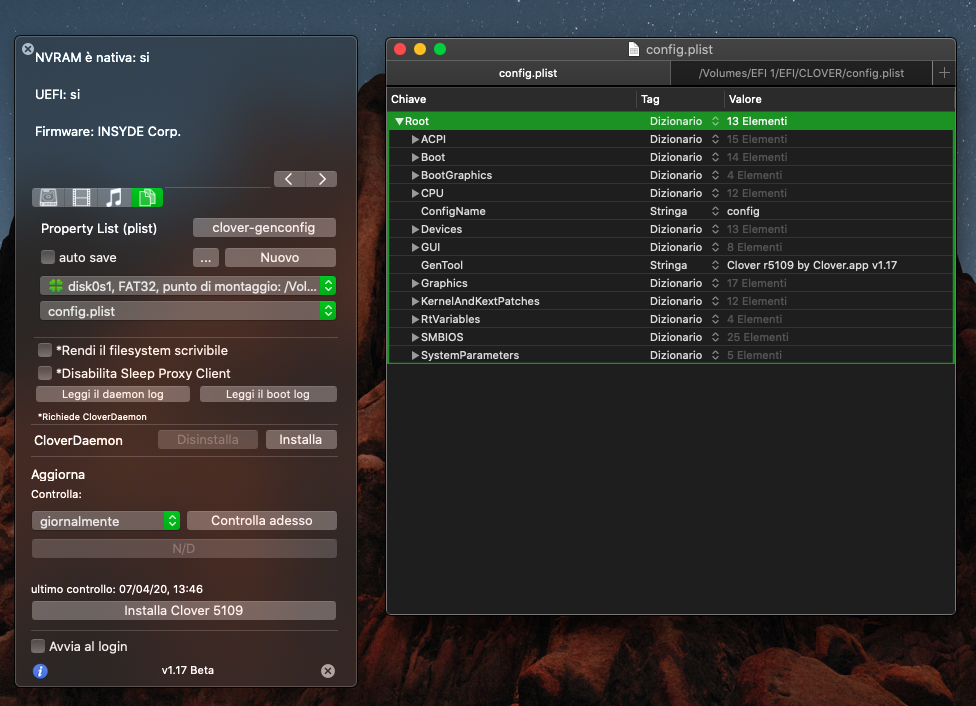

new Clover.app v1.17 with a real Plist Editor:





Introduced a real Property List Editor available on 10.11+.

Fixed Theme manager engine.

Other minor fixes



The Theme manager engine is heavily modified to fix timeout errors. The Optimize function do that:

  1. Convert all icns (or non png images) to png if the author mistakenly has put them inside the "theme"/icons directory to fix the lost of the images in Clover's GUI.
  2. Auto resize of very big images following the Clover's source code (pointer/func_* and tool_* 32x32 pixels, Banner 128x128 pixels, Selection_big 144x144 pixels, Selection_small 64x64 pixels, logo, os_* 128x128 pixels, radio_button/radio_button_selected/checkbox, checkbox_checked to 15x15 pixels. That to fix images that looks "out of bounds".
  3. All images converted to png-8 to fix errors loading them in Clover's GUI (for newer and older Clover).
  4. The "optimize" option is not automatic and you have to do it voluntarily. No need if the theme is already good.
  5. The "optimize" option works only for png themes and does nothing (not allowed) for svg ones.



EDIT

the plist editor can be tranlsated in any language

Clover.app_v1.17.pkg

Edited by vector sigma
  • Like 2
  • Thanks 4
Matgen84
Matgen84
Posted
Posted
3 hours ago, Matgen84 said:



I found these lines in debug.log but I don't know why there is a issue: XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted



I post debug.log



0:107  0:000  === [ GetListOfThemes ] =========================
0:495  0:004  Default theme: Mojave
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
  Reveal hidden contents

0:100  0:100  MemLog inited, TSC freq: 3500026711
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 07.04.2020,  08:39:45 (GMT)
0:100  0:000  Starting Clover revision: 5109 (master, commit 5a8588318) on American Megatrends EFI
0:100  0:000  Build with: [Args: --conf=/Users/mathieu/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000) @89D55298
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  Clover : Image base = 0x745DF000
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'System Product Name' with board 'P8Z77-V PRO'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E008402
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00081010_81010F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 101 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 37/38/39/39
0:100  0:000  Features: 0x779AE3BFBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3510 MHz
0:100  0:000  TSC: 3510 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Ctrl(0x0)/AcpiAdr(0x80010340)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 0FC1 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Gigabyte GeForce GT 640 family E7 (Kepler)
0:100  0:000  PCI (00|01:00.01) : 10DE 0E1B class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=5348Broadcom
0:100  0:000  PCI (00|00:1C.02) : 8086 1E14 class=060400
0:100  0:000  PCI (00|04:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.03) : 8086 1E16 class=060400
0:100  0:000  PCI (00|05:00.00) : 1B21 0612 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 244E class=060401
0:100  0:000  PCI (00|06:00.00) : 1B21 1080 class=060401
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  Clover load options size = 0 bytes
0:106  0:005  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name--00-00-00-00-00-00. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO\UEFI. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name-3510. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO-3510. Dir not exists
0:106  0:000  set OEMPath by default: EFI\CLOVER
0:107  0:000  EFI\CLOVER\config.plist loaded: Success
0:107  0:000  === [ GetListOfThemes ] =========================
0:116  0:009  - [00]: MacProv2
0:132  0:015  - [01]: Catalina
0:144  0:012  - [02]: Imac
0:151  0:006  - [03]: Mojave
0:156  0:004  - [04]: Mojave2
0:168  0:011  - [05]: Clovy
0:175  0:007  - [06]: DEV
0:178  0:002  - [07]: RANDOM
0:190  0:012  - [07]: EMBEDDED
0:191  0:001  === [ Found config plists ] =====================
0:194  0:002  - config_old.plist
0:194  0:000  - config.plist
0:201  0:006  === [ GetEarlyUserSettings ] ====================
0:201  0:000  timeout set to 8
0:201  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:243  0:042  KextsToPatch: 10 requested
0:245  0:001   - [00]: AppleAHCIPort (ICH10 hotplug for 10.4.x) :: MatchOS: 10.14.x :: BinPatch :: data len: 14
0:252  0:007   - [01]: com.apple.driver.AppleAHCIPort (External icons patch) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 8
0:261  0:008   - [02]: com.apple.driver.AppleAHCIPort (patch AppleAHCIPort for ICH * by vit9696) :: BinPatch :: data len: 4
0:268  0:007   - patch disabled at config
0:270  0:001   - [03]: com.apple.driver.AppleMikeyDriver (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:364  0:093   - [04]: com.apple.driver.AppleHDA (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:373  0:009   - [05]: com.apple.driver.AppleGraphicsDevicePolicy (Prevent AGDP from loading) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 5
0:381  0:008   - [06]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #1 10.14.x modify by DalianSky(credit ydeng)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:428  0:046   - [07]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #2 10.14.x modify by DalianSky(credit PMHeart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:436  0:007   - [08]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #3 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:444  0:008   - [09]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #4 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:488  0:043  KernelToPatch: 1 requested
0:490  0:001   - [00]: activating speedstepping for IvyBridge  :: data len: 25
0:495  0:004  Default theme: Mojave
0:496  0:001  Hiding entries with string Windows
0:498  0:001  Hiding entries with string BOOTX64.EFI
0:500  0:002  Hiding entries with string Preboot
0:502  0:001  === [ LoadDrivers ] =============================
0:521  0:019  Loading HFSPlus-64.efi  status=Success
0:543  0:022   - driver needs connecting
0:575  0:032  Loading FSInject.efi  status=Success
0:581  0:005  Loading SMCHelper.efi  status=Success
0:586  0:005  Loading CsmVideoDxe.efi  status=Success
0:593  0:006   - driver needs connecting
0:594  0:001  Loading Fat.efi  status=Success
0:601  0:006   - driver needs connecting
0:602  0:001  Loading AptioInputFix-64.efi  status=Success
0:709  0:106  Loading AptioMemoryFix-64.efi  status=Success
0:815  0:106  Loading DataHubDxe.efi  status=Success
0:851  0:035  Loading PartitionDxe.efi  status=Success
0:864  0:012   - driver needs connecting
0:865  0:001  Loading ApfsDriverLoader.efi  status=Success
0:870  0:005   - driver needs connecting
0:872  0:001  5 drivers needs connecting ...
0:874  0:001  PlatformDriverOverrideProtocol not found. Installing ... Success
0:877  0:003  Partition driver loaded:
0:880  0:003  HFS+ driver loaded
0:881  0:001  APFS driver loaded
0:883  0:001  Video driver loaded: disconnect Successdisconnect Success
0:894  0:010  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:703  0:809  === [ InitScreen ] ==============================
1:704  0:001  Console modes reported: 3, available modes:
1:706  0:001   - [01]: 80x25 (current mode)
1:707  0:001   - [02]: 80x50
1:709  0:001   - [03]: 100x31
1:710  0:001  SetScreenResolution: 1920x1080 - already set
1:714  0:003  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
1:716  0:001  new SelfHandle=89D55298
1:760  0:044  Using embedded font: Success
1:764  0:003  === [ GetMacAddress ] ===========================
1:766  0:001  MAC address of LAN #0= C8:60:00:BC:2D:8E:
1:779  0:012  === [ ScanSPD ] =================================
1:782  0:002  Scanning SMBus [8086:1E22], mmio: 0xF7E35004, ioport: 0xF040, hostc: 0x1
1:802  0:020  Slot: 0 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:822  0:020  Slot: 1 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:894  0:072  Slot: 2 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:915  0:020  Slot: 3 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:917  0:002  === [ GetAcpiTablesList ] =======================
1:919  0:001  Get Acpi Tables List from RSDT:
1:922  0:003   - [00]: FACP  A M I len=132
1:924  0:002   - [01]: APIC  A M I len=146
1:926  0:001   - [02]: FPDT  A M I len=68
1:927  0:001   - [03]: MCFG  A M I len=60
1:967  0:039   - [04]: HPET  A M I len=56
1:969  0:001   - [05]: SSDT  SataTabl len=877
1:970  0:001   - [06]: BGRT  A M I len=56
1:972  0:001   - [07]: SSDT  Cpu0Ist len=2474
1:973  0:001   - [08]: SSDT  CpuPm len=2706
1:975  0:001  Calibrated TSC Frequency = 3500026711 = 3500MHz
1:979  0:003  === [ GetUserSettings ] =========================
1:980  0:001  USB FixOwnership: yes
1:982  0:001  Dropping 3 tables:
1:984  0:002   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (  74734930757043)
2:049  0:065           - set table: 54445353,   74734930757043 to drop: yes
2:053  0:003   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (      6D50757043)
2:079  0:026           - set table: 54445353,       6d50757043 to drop: yes
2:084  0:004   - [02]: Drop table  signature="DMAR" (52414D44)
2:098  0:014           - set table: 52414D44,                0 to drop: no
2:101  0:003   - final DSDT Fix mask=50404000
2:103  0:001  PatchesDSDT: 5 requested
2:142  0:039   - [00]: (change EHC1 to EH01) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:150  0:007   - [01]: (change EHC2 to EH02) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:158  0:007   - [02]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:167  0:009   - [03]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:176  0:008   - [04]: (change SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:185  0:008  EnableC7: no
2:186  0:001  EnableC6: no
2:226  0:039  Using ProductName from config: iMac13,2
2:227  0:001  Found same BiosVersion in clover and config
2:229  0:001  BiosVersion: IM131.88Z.F000.B00.2002052050
2:230  0:001  BiosReleaseDate: 02/05/2019
2:232  0:001  Using EfiVersion from clover: 290.0.0.0.0
2:233  0:001  Using FirmwareFeatures from config: 0xE00DE137
2:235  0:001  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
2:236  0:001  Board-ID set from config as Mac-FC02E91DDD3FA6A4
2:238  0:001  BoardType: 0xA
2:243  0:005  ChassisType: 0xD
2:255  0:011  === [ Found DSDT tables ] =======================
2:258  0:002  - DSDT.AML
2:377  0:119  === [ ScanVolumes ] =============================
2:384  0:006  Found 19 volumes with blockIO
2:385  0:001  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:433  0:048  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(1,GPT,09B68B84-A844-4982-8412-9B2702C57FA8,0x28,0x64000)
2:437  0:003          Result of bootcode detection: bootable unknown (legacy)
2:533  0:095  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(2,GPT,C9046D26-6FC1-4657-9E10-0A8C6C397A45,0x64028,0x746527B0)
2:569  0:035  - [03]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)
2:573  0:004  - [04]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(1,GPT,CBB58B49-132D-4A43-940B-7385483D4680,0x28,0x64000)
2:577  0:004          Result of bootcode detection: bootable unknown (legacy)
2:634  0:057  - [05]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(2,GPT,875DB2D9-6751-46A8-B013-50184E1486A9,0x64028,0x3927FB0)
2:639  0:004  - [06]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:642  0:003  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:646  0:003  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:658  0:011  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,1975239E-6CC2-416E-357D-9E893FFA233B,0x800,0xA8800)
2:710  0:051          Result of bootcode detection: bootable Windows (vista,win)
2:720  0:010  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,D57B65B6-35BC-4719-F8F7-EF5A8DBF222F,0xA9000,0x8000)
2:724  0:003  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,6375F8EC-8C56-478D-C39C-E7B6ED0C3E31,0xB1000,0xE8C5FB5A)
2:728  0:004          Result of bootcode detection: bootable Windows (vista,win)
2:768  0:039  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,CD009A64-D915-4DA9-8F9D-255B16014114,0xE8D11000,0xF6800)
2:772  0:003          Result of bootcode detection: bootable Windows (vista,win)
2:773  0:001  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
2:783  0:009          Result of bootcode detection: bootable unknown (legacy)
2:827  0:044          This is SelfVolume !!
2:829  0:001  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)
2:862  0:032          Result of bootcode detection: bootable unknown (legacy)
2:863  0:001  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A89E4F236FC6CD4488F7BC49942A30BA)
2:866  0:003          hiding this volume
2:868  0:001  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)
2:901  0:033  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0773AD116F373948888BBE132DF1AF9A)
2:904  0:003  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7BEBCDC28780954FBCA720CAB84C92F8)
2:943  0:038  No AudioIoProtocols, status=Not Found
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
2:965  0:002  OS main and drive as badge
2:966  0:001  Warning! Character width 11 should be even!
3:777  0:810  file sound read: sound_night.wav Not Found
3:785  0:008  file sound read: sound.wav Not Found
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
3:896  0:001  after NVRAM boot-args=dart=0 debug=0x100 -v shikigva=16 shiki-id=Mac-FC02E91DDD3FA6A4
3:898  0:001  === [ Dump SMC keys from NVRAM ] ================
3:900  0:001  found AppleSMC protocol
3:931  0:031  Registered 16 SMC keys
3:934  0:002  === [ ScanLoader ] ==============================
3:935  0:001  - [01]: 'EFI'
4:049  0:113          AddLoaderEntry for Volume Name=EFI
4:051  0:001          skipped because entry is hidden
4:052  0:001  - [02]: 'Install macOS Catalina'
4:076  0:023          AddLoaderEntry for Volume Name=Install macOS Catalina
4:100  0:024  - [04]: 'EFI'
4:108  0:008          AddLoaderEntry for Volume Name=EFI
4:110  0:001          skipped because entry is hidden
4:112  0:001  - [05]: 'Install macOS Mojave'
4:117  0:005          AddLoaderEntry for Volume Name=Install macOS Mojave
4:124  0:006  - [09]: 'EFI'
4:162  0:037          AddLoaderEntry for Volume Name=EFI
4:165  0:003          AddLoaderEntry for Volume Name=EFI
4:167  0:001          skipped because entry is hidden
4:168  0:001  - [13]: 'EFI'
4:181  0:012          AddLoaderEntry for Volume Name=EFI
4:182  0:001          skipped because entry is hidden
4:184  0:001  - [15]: 'Preboot', hidden
4:187  0:003  - [16]: 'Mojave'
4:510  0:322          AddLoaderEntry for Volume Name=Mojave
4:548  0:037      hibernated: set as never
4:594  0:046  - [17]: 'Recovery'
4:608  0:013          AddLoaderEntry for Volume Name=Recovery
4:635  0:027  - [18]: 'VM'
4:638  0:003  === [ AddCustomTool ] ===========================
4:662  0:024  found tool \EFI\CLOVER\tools\Shell64U.efi
4:664  0:002  Checking EFI partition Volume 1 for Clover
4:668  0:003  Checking EFI partition Volume 4 for Clover
4:693  0:025   Found Clover
4:696  0:002  === [ GetEfiBootDeviceFromNvram ] ===============
4:698  0:001   - found entry 3. 'Boot macOS from Mojave', Volume 'Mojave', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)\System\Library\CoreServices\boot.efi'
4:749  0:051  XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted






@Slice

Like @chris111 and @Badruzeus


I've got some problems with already optimized theme on r5109 Release: I use switch function to test these theme.


  • The clovy theme does not appear at startup, even if it is declared in the config.plist. Clover replaces it with embedded. Note: Clovy don't accept 1920*1080 resolution!!
  • Mojave and Catalina themes already optimized and re-optimized via Clover.app don't work: with the first, Clover GUI stuck.
What happens! I don't understand.

Clover version + EFI come back at the bottom right ???
Matgen84
Matgen84
Posted
Posted (edited)
9 minutes ago, vector sigma said:

@Matgen84:


2:966  0:001  Warning! Character width 11 should be even!

..but is odd. Mojave theme's characters are invalid I guess, or at least is what the new Xtheme engine says.



Thanks :) What about Clovy (standalone theme, not embedded) or Catalina issues: what do you think!

Edited by Matgen84
Matgen84
Matgen84
Posted
Posted
9 minutes ago, vector sigma said:

Not sure. BTW the Mojave CharWidth is 10. Did you modify it?



For Mojave, I rollback to char width 10. What about the two order theme (screenshot posted in Clover theme topic)!

Matgen84
Matgen84
Posted
Posted
9 minutes ago, vector sigma said:

Sorry fo the stupid question, but did you modify them?



No modification to them. Latest working commit: r5108 (2971779dd).



Is it possible that Clover install log print SHA1!

vector sigma
vector sigma
Posted
Posted (edited)
10 minutes ago, Matgen84 said:



No modification to them. Latest working commit: r5108 (2971779dd).

Forgot 5108, 5109 has a new technology. That must be fixed if a need be, but until now i can see only users errors :angel:

What if you provide preboot.log(s) with those theme so that developers can see something without image the problem?:)

Edited by vector sigma
  • Like 1
Matgen84
Matgen84
Posted
Posted
19 minutes ago, vector sigma said:

Forgot 5108, 5109 has a new technology. That must be fixed if a need be, but until now i can see only users errors :angel:



There are also problems with badges on the themes of Catalina and Mojave. Clovy is barely operational. How to do then while waiting! :angel_not:

 Share
Go to topic listing
×
×
  • Create New...
