Clover General discussion

[pico joe]

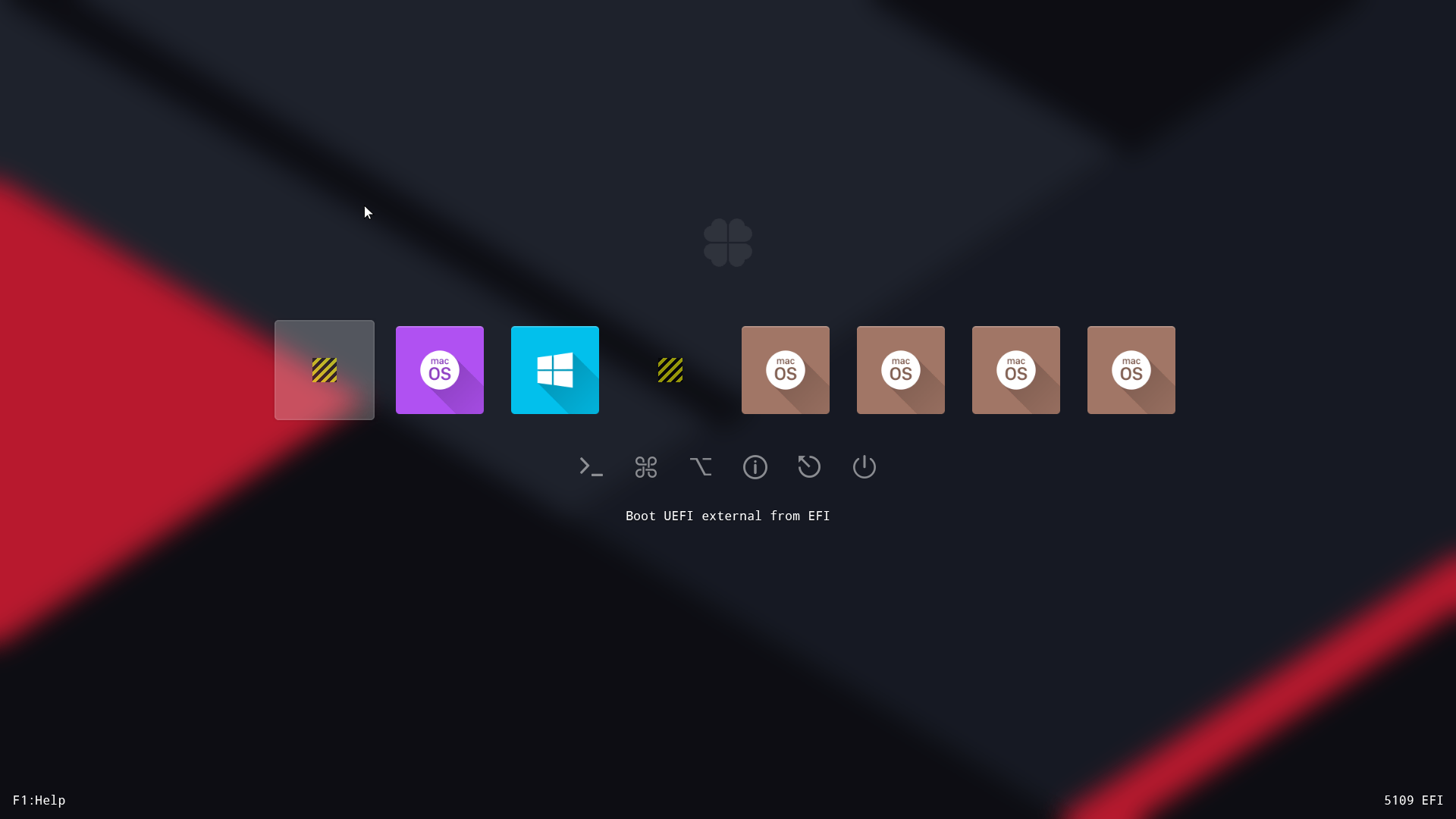

missing icons in release 5109



[Slice]

Missing icons means they are in wrong format. Use Clover.app to optimize your theme.



3 hours ago, chris1111 said:

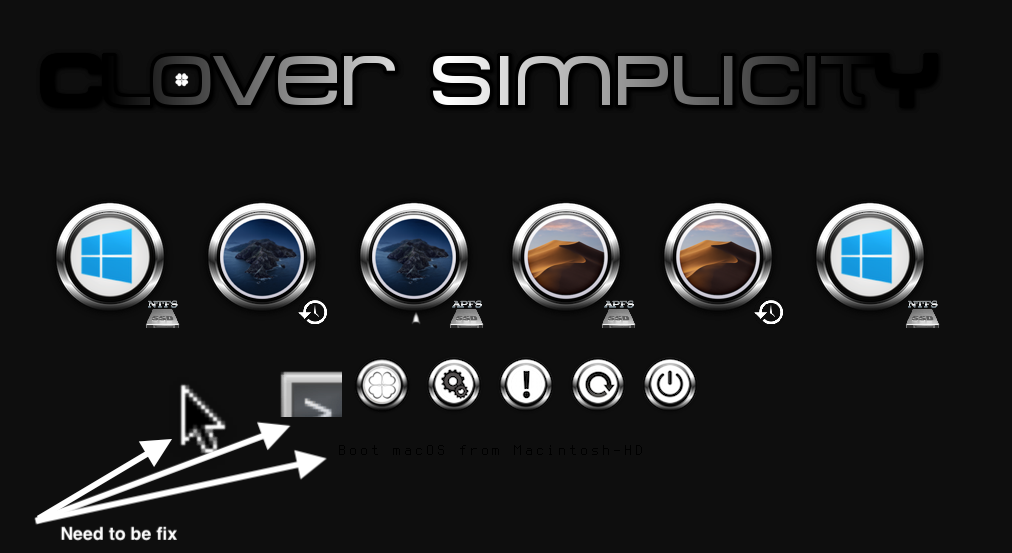

@Slice release 5109 not good I compel the source and this is the theme looks like

The drive suppose to be below and the mousse is to bib also some glitch in the below left corner

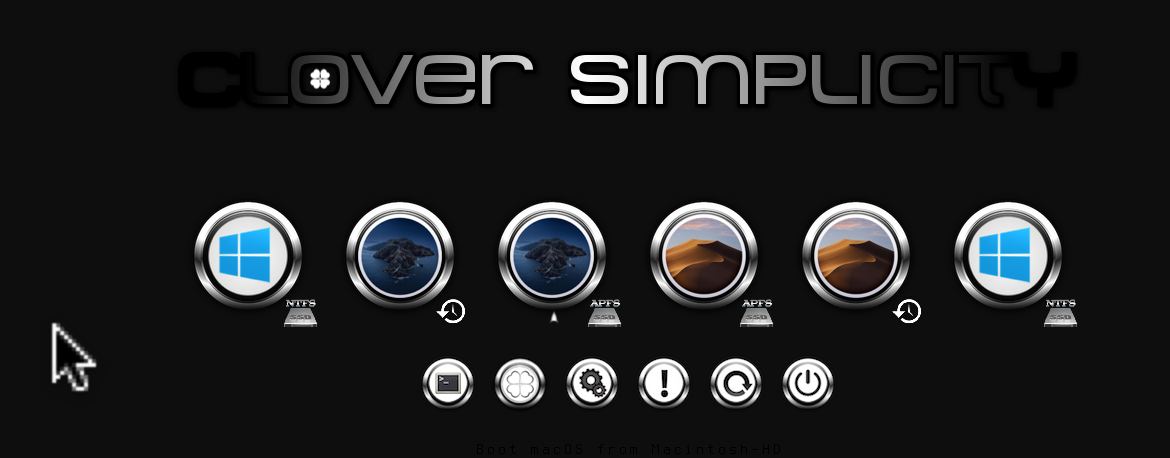

this is the origin





About badges it is the mistake, I will look.

Check the icons tool_shell.icns and pointer.png.



New theme engine assumes using only png files and they will be names *.png. But for old compatibility they can be names *.icns but remains PNG as it was before.

It is not good to keep PNG files named to .icns. New Clover requires all files to be pure .png.

[Matgen84]

Hi @Slice

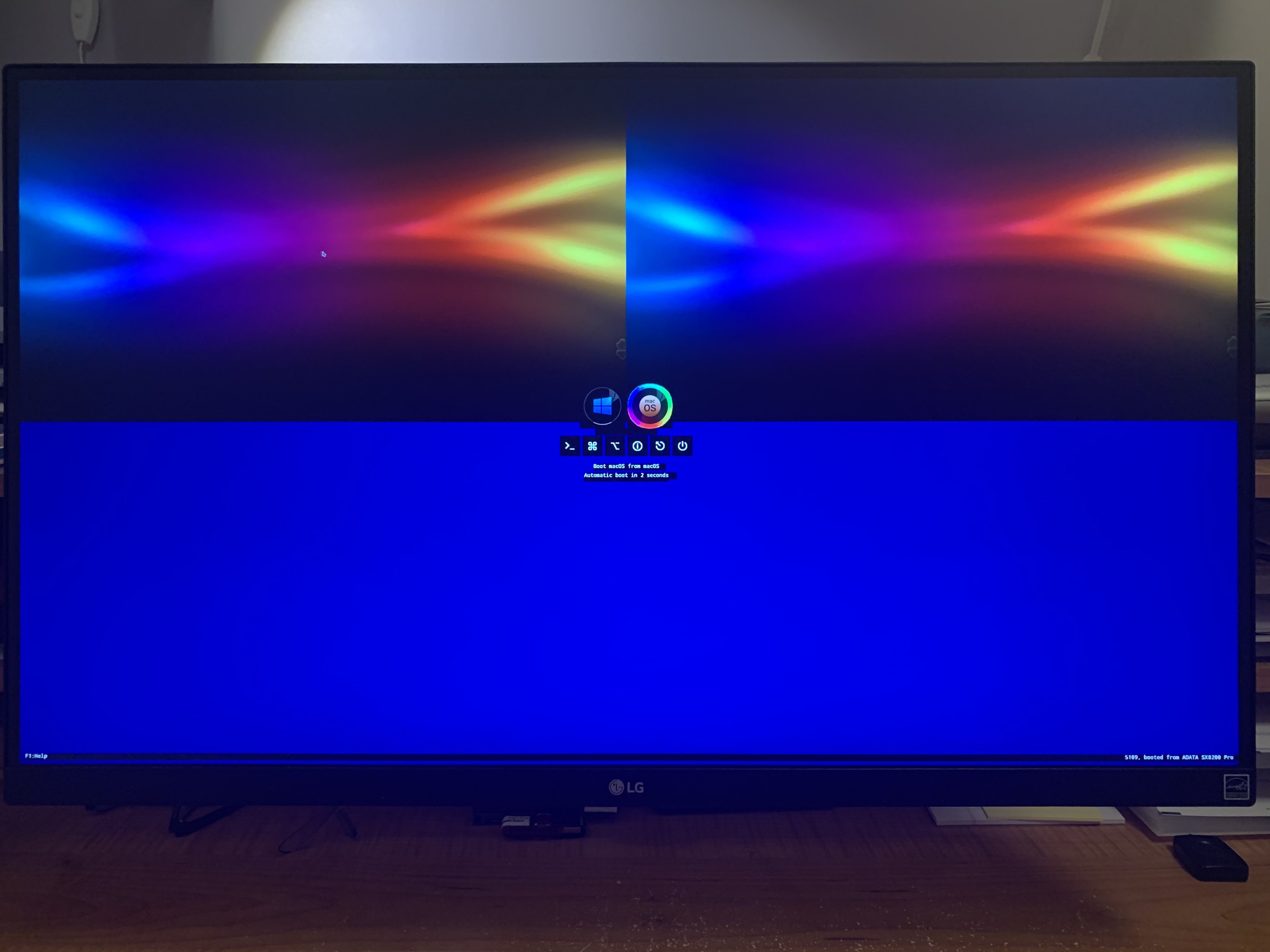

r5108 (0a3f4c357): I get stuck at Clover GUI with a error message at top left corner: "XArray... System halted" something like that, the system stop: no keyboard, no mouse. I rollback to previous version.  (Mojave, IvyBridge config).



I try to build r5109 Release same issue (Mojave/ XCode). The theme is already optimize since few week with Clover.app

EDIT: any one got this issue !!!



Edited April 7, 2020 by Matgen84

[Badruzeus]

4 hours ago, Slice said:

Missing icons means they are in wrong format. Use Clover.app to optimize your theme.



About badges it is the mistake, I will look.

Check the icons tool_shell.icns and pointer.png.



New theme engine assumes using only png files and they will be names *.png. But for old compatibility they can be names *.icns but remains PNG as it was before.

It is not good to keep PNG files named to .icns. New Clover requires all files to be pure .png.



I'm not sure what 'Clover.app - Optimize' actually does with the images. They were exported to 8-bit PNG using Photoshop, then already Optimized (or Compressed for smallest possible size) using PngQuant as @blackosx did with his theme's resource too. Also used it with rEFInd and found no issue.



Except, some files got corrupted when migrating from SourceForge to GitHub (or another causes). All my installed themes were still from old SF server last year. Thanks.

Edited April 7, 2020 by Badruzeus

[Slice]

3 hours ago, Matgen84 said:

Hi @Slice



r5108 (0a3f4c357): I get stuck at Clover GUI with a error message at top left corner: "XArray... System halted" something like that, the system stop: no keyboard, no mouse. I rollback to previous version.  (Mojave, IvyBridge config).



I try to build r5109 Release same issue (Mojave/ XCode). The theme is already optimize since few week with Clover.app

EDIT: any one got this issue !!!





As you see the picture then debug.log can be created.

[Matgen84]

22 minutes ago, Slice said:

As you see the picture then debug.log can be created.



I found these lines in debug.log but I don't know why there is a issue: XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted



I post debug.log


0:107  0:000  === [ GetListOfThemes ] =========================
0:495  0:004  Default theme: Mojave
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave

Spoiler

0:100  0:100  MemLog inited, TSC freq: 3500026711
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 07.04.2020,  08:39:45 (GMT)
0:100  0:000  Starting Clover revision: 5109 (master, commit 5a8588318) on American Megatrends EFI
0:100  0:000  Build with: [Args: --conf=/Users/mathieu/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000) @89D55298
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  Clover : Image base = 0x745DF000
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'System Product Name' with board 'P8Z77-V PRO'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E008402
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00081010_81010F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 101 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 37/38/39/39
0:100  0:000  Features: 0x779AE3BFBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3510 MHz
0:100  0:000  TSC: 3510 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Ctrl(0x0)/AcpiAdr(0x80010340)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 0FC1 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Gigabyte GeForce GT 640 family E7 (Kepler)
0:100  0:000  PCI (00|01:00.01) : 10DE 0E1B class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=5348Broadcom
0:100  0:000  PCI (00|00:1C.02) : 8086 1E14 class=060400
0:100  0:000  PCI (00|04:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.03) : 8086 1E16 class=060400
0:100  0:000  PCI (00|05:00.00) : 1B21 0612 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 244E class=060401
0:100  0:000  PCI (00|06:00.00) : 1B21 1080 class=060401
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  Clover load options size = 0 bytes
0:106  0:005  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name--00-00-00-00-00-00. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO\UEFI. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name-3510. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO-3510. Dir not exists
0:106  0:000  set OEMPath by default: EFI\CLOVER
0:107  0:000  EFI\CLOVER\config.plist loaded: Success
0:107  0:000  === [ GetListOfThemes ] =========================
0:116  0:009  - [00]: MacProv2
0:132  0:015  - [01]: Catalina
0:144  0:012  - [02]: Imac
0:151  0:006  - [03]: Mojave
0:156  0:004  - [04]: Mojave2
0:168  0:011  - [05]: Clovy
0:175  0:007  - [06]: DEV
0:178  0:002  - [07]: RANDOM
0:190  0:012  - [07]: EMBEDDED
0:191  0:001  === [ Found config plists ] =====================
0:194  0:002  - config_old.plist
0:194  0:000  - config.plist
0:201  0:006  === [ GetEarlyUserSettings ] ====================
0:201  0:000  timeout set to 8
0:201  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:243  0:042  KextsToPatch: 10 requested
0:245  0:001   - [00]: AppleAHCIPort (ICH10 hotplug for 10.4.x) :: MatchOS: 10.14.x :: BinPatch :: data len: 14
0:252  0:007   - [01]: com.apple.driver.AppleAHCIPort (External icons patch) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 8
0:261  0:008   - [02]: com.apple.driver.AppleAHCIPort (patch AppleAHCIPort for ICH * by vit9696) :: BinPatch :: data len: 4
0:268  0:007   - patch disabled at config
0:270  0:001   - [03]: com.apple.driver.AppleMikeyDriver (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:364  0:093   - [04]: com.apple.driver.AppleHDA (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:373  0:009   - [05]: com.apple.driver.AppleGraphicsDevicePolicy (Prevent AGDP from loading) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 5
0:381  0:008   - [06]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #1 10.14.x modify by DalianSky(credit ydeng)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:428  0:046   - [07]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #2 10.14.x modify by DalianSky(credit PMHeart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:436  0:007   - [08]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #3 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:444  0:008   - [09]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #4 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:488  0:043  KernelToPatch: 1 requested
0:490  0:001   - [00]: activating speedstepping for IvyBridge  :: data len: 25
0:495  0:004  Default theme: Mojave
0:496  0:001  Hiding entries with string Windows
0:498  0:001  Hiding entries with string BOOTX64.EFI
0:500  0:002  Hiding entries with string Preboot
0:502  0:001  === [ LoadDrivers ] =============================
0:521  0:019  Loading HFSPlus-64.efi  status=Success
0:543  0:022   - driver needs connecting
0:575  0:032  Loading FSInject.efi  status=Success
0:581  0:005  Loading SMCHelper.efi  status=Success
0:586  0:005  Loading CsmVideoDxe.efi  status=Success
0:593  0:006   - driver needs connecting
0:594  0:001  Loading Fat.efi  status=Success
0:601  0:006   - driver needs connecting
0:602  0:001  Loading AptioInputFix-64.efi  status=Success
0:709  0:106  Loading AptioMemoryFix-64.efi  status=Success
0:815  0:106  Loading DataHubDxe.efi  status=Success
0:851  0:035  Loading PartitionDxe.efi  status=Success
0:864  0:012   - driver needs connecting
0:865  0:001  Loading ApfsDriverLoader.efi  status=Success
0:870  0:005   - driver needs connecting
0:872  0:001  5 drivers needs connecting ...
0:874  0:001  PlatformDriverOverrideProtocol not found. Installing ... Success
0:877  0:003  Partition driver loaded:
0:880  0:003  HFS+ driver loaded
0:881  0:001  APFS driver loaded
0:883  0:001  Video driver loaded: disconnect Successdisconnect Success
0:894  0:010  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:703  0:809  === [ InitScreen ] ==============================
1:704  0:001  Console modes reported: 3, available modes:
1:706  0:001   - [01]: 80x25 (current mode)
1:707  0:001   - [02]: 80x50
1:709  0:001   - [03]: 100x31
1:710  0:001  SetScreenResolution: 1920x1080 - already set
1:714  0:003  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
1:716  0:001  new SelfHandle=89D55298
1:760  0:044  Using embedded font: Success
1:764  0:003  === [ GetMacAddress ] ===========================
1:766  0:001  MAC address of LAN #0= C8:60:00:BC:2D:8E:
1:779  0:012  === [ ScanSPD ] =================================
1:782  0:002  Scanning SMBus [8086:1E22], mmio: 0xF7E35004, ioport: 0xF040, hostc: 0x1
1:802  0:020  Slot: 0 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:822  0:020  Slot: 1 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:894  0:072  Slot: 2 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:915  0:020  Slot: 3 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:917  0:002  === [ GetAcpiTablesList ] =======================
1:919  0:001  Get Acpi Tables List from RSDT:
1:922  0:003   - [00]: FACP  A M I len=132
1:924  0:002   - [01]: APIC  A M I len=146
1:926  0:001   - [02]: FPDT  A M I len=68
1:927  0:001   - [03]: MCFG  A M I len=60
1:967  0:039   - [04]: HPET  A M I len=56
1:969  0:001   - [05]: SSDT  SataTabl len=877
1:970  0:001   - [06]: BGRT  A M I len=56
1:972  0:001   - [07]: SSDT  Cpu0Ist len=2474
1:973  0:001   - [08]: SSDT  CpuPm len=2706
1:975  0:001  Calibrated TSC Frequency = 3500026711 = 3500MHz
1:979  0:003  === [ GetUserSettings ] =========================
1:980  0:001  USB FixOwnership: yes
1:982  0:001  Dropping 3 tables:
1:984  0:002   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (  74734930757043)
2:049  0:065           - set table: 54445353,   74734930757043 to drop: yes
2:053  0:003   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (      6D50757043)
2:079  0:026           - set table: 54445353,       6d50757043 to drop: yes
2:084  0:004   - [02]: Drop table  signature="DMAR" (52414D44)
2:098  0:014           - set table: 52414D44,                0 to drop: no
2:101  0:003   - final DSDT Fix mask=50404000
2:103  0:001  PatchesDSDT: 5 requested
2:142  0:039   - [00]: (change EHC1 to EH01) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:150  0:007   - [01]: (change EHC2 to EH02) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:158  0:007   - [02]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:167  0:009   - [03]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:176  0:008   - [04]: (change SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:185  0:008  EnableC7: no
2:186  0:001  EnableC6: no
2:226  0:039  Using ProductName from config: iMac13,2
2:227  0:001  Found same BiosVersion in clover and config
2:229  0:001  BiosVersion: IM131.88Z.F000.B00.2002052050
2:230  0:001  BiosReleaseDate: 02/05/2019
2:232  0:001  Using EfiVersion from clover: 290.0.0.0.0
2:233  0:001  Using FirmwareFeatures from config: 0xE00DE137
2:235  0:001  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
2:236  0:001  Board-ID set from config as Mac-FC02E91DDD3FA6A4
2:238  0:001  BoardType: 0xA
2:243  0:005  ChassisType: 0xD
2:255  0:011  === [ Found DSDT tables ] =======================
2:258  0:002  - DSDT.AML
2:377  0:119  === [ ScanVolumes ] =============================
2:384  0:006  Found 19 volumes with blockIO
2:385  0:001  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:433  0:048  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(1,GPT,09B68B84-A844-4982-8412-9B2702C57FA8,0x28,0x64000)
2:437  0:003          Result of bootcode detection: bootable unknown (legacy)
2:533  0:095  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(2,GPT,C9046D26-6FC1-4657-9E10-0A8C6C397A45,0x64028,0x746527B0)
2:569  0:035  - [03]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)
2:573  0:004  - [04]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(1,GPT,CBB58B49-132D-4A43-940B-7385483D4680,0x28,0x64000)
2:577  0:004          Result of bootcode detection: bootable unknown (legacy)
2:634  0:057  - [05]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(2,GPT,875DB2D9-6751-46A8-B013-50184E1486A9,0x64028,0x3927FB0)
2:639  0:004  - [06]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:642  0:003  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:646  0:003  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:658  0:011  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,1975239E-6CC2-416E-357D-9E893FFA233B,0x800,0xA8800)
2:710  0:051          Result of bootcode detection: bootable Windows (vista,win)
2:720  0:010  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,D57B65B6-35BC-4719-F8F7-EF5A8DBF222F,0xA9000,0x8000)
2:724  0:003  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,6375F8EC-8C56-478D-C39C-E7B6ED0C3E31,0xB1000,0xE8C5FB5A)
2:728  0:004          Result of bootcode detection: bootable Windows (vista,win)
2:768  0:039  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,CD009A64-D915-4DA9-8F9D-255B16014114,0xE8D11000,0xF6800)
2:772  0:003          Result of bootcode detection: bootable Windows (vista,win)
2:773  0:001  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
2:783  0:009          Result of bootcode detection: bootable unknown (legacy)
2:827  0:044          This is SelfVolume !!
2:829  0:001  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)
2:862  0:032          Result of bootcode detection: bootable unknown (legacy)
2:863  0:001  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A89E4F236FC6CD4488F7BC49942A30BA)
2:866  0:003          hiding this volume
2:868  0:001  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)
2:901  0:033  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0773AD116F373948888BBE132DF1AF9A)
2:904  0:003  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7BEBCDC28780954FBCA720CAB84C92F8)
2:943  0:038  No AudioIoProtocols, status=Not Found
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
2:965  0:002  OS main and drive as badge
2:966  0:001  Warning! Character width 11 should be even!
3:777  0:810  file sound read: sound_night.wav Not Found
3:785  0:008  file sound read: sound.wav Not Found
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
3:896  0:001  after NVRAM boot-args=dart=0 debug=0x100 -v shikigva=16 shiki-id=Mac-FC02E91DDD3FA6A4
3:898  0:001  === [ Dump SMC keys from NVRAM ] ================
3:900  0:001  found AppleSMC protocol
3:931  0:031  Registered 16 SMC keys
3:934  0:002  === [ ScanLoader ] ==============================
3:935  0:001  - [01]: 'EFI'
4:049  0:113          AddLoaderEntry for Volume Name=EFI
4:051  0:001          skipped because entry is hidden
4:052  0:001  - [02]: 'Install macOS Catalina'
4:076  0:023          AddLoaderEntry for Volume Name=Install macOS Catalina
4:100  0:024  - [04]: 'EFI'
4:108  0:008          AddLoaderEntry for Volume Name=EFI
4:110  0:001          skipped because entry is hidden
4:112  0:001  - [05]: 'Install macOS Mojave'
4:117  0:005          AddLoaderEntry for Volume Name=Install macOS Mojave
4:124  0:006  - [09]: 'EFI'
4:162  0:037          AddLoaderEntry for Volume Name=EFI
4:165  0:003          AddLoaderEntry for Volume Name=EFI
4:167  0:001          skipped because entry is hidden
4:168  0:001  - [13]: 'EFI'
4:181  0:012          AddLoaderEntry for Volume Name=EFI
4:182  0:001          skipped because entry is hidden
4:184  0:001  - [15]: 'Preboot', hidden
4:187  0:003  - [16]: 'Mojave'
4:510  0:322          AddLoaderEntry for Volume Name=Mojave
4:548  0:037      hibernated: set as never
4:594  0:046  - [17]: 'Recovery'
4:608  0:013          AddLoaderEntry for Volume Name=Recovery
4:635  0:027  - [18]: 'VM'
4:638  0:003  === [ AddCustomTool ] ===========================
4:662  0:024  found tool \EFI\CLOVER\tools\Shell64U.efi
4:664  0:002  Checking EFI partition Volume 1 for Clover
4:668  0:003  Checking EFI partition Volume 4 for Clover
4:693  0:025   Found Clover
4:696  0:002  === [ GetEfiBootDeviceFromNvram ] ===============
4:698  0:001   - found entry 3. 'Boot macOS from Mojave', Volume 'Mojave', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)\System\Library\CoreServices\boot.efi'
4:749  0:051  XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted




[iCanaro]

Clover 5109

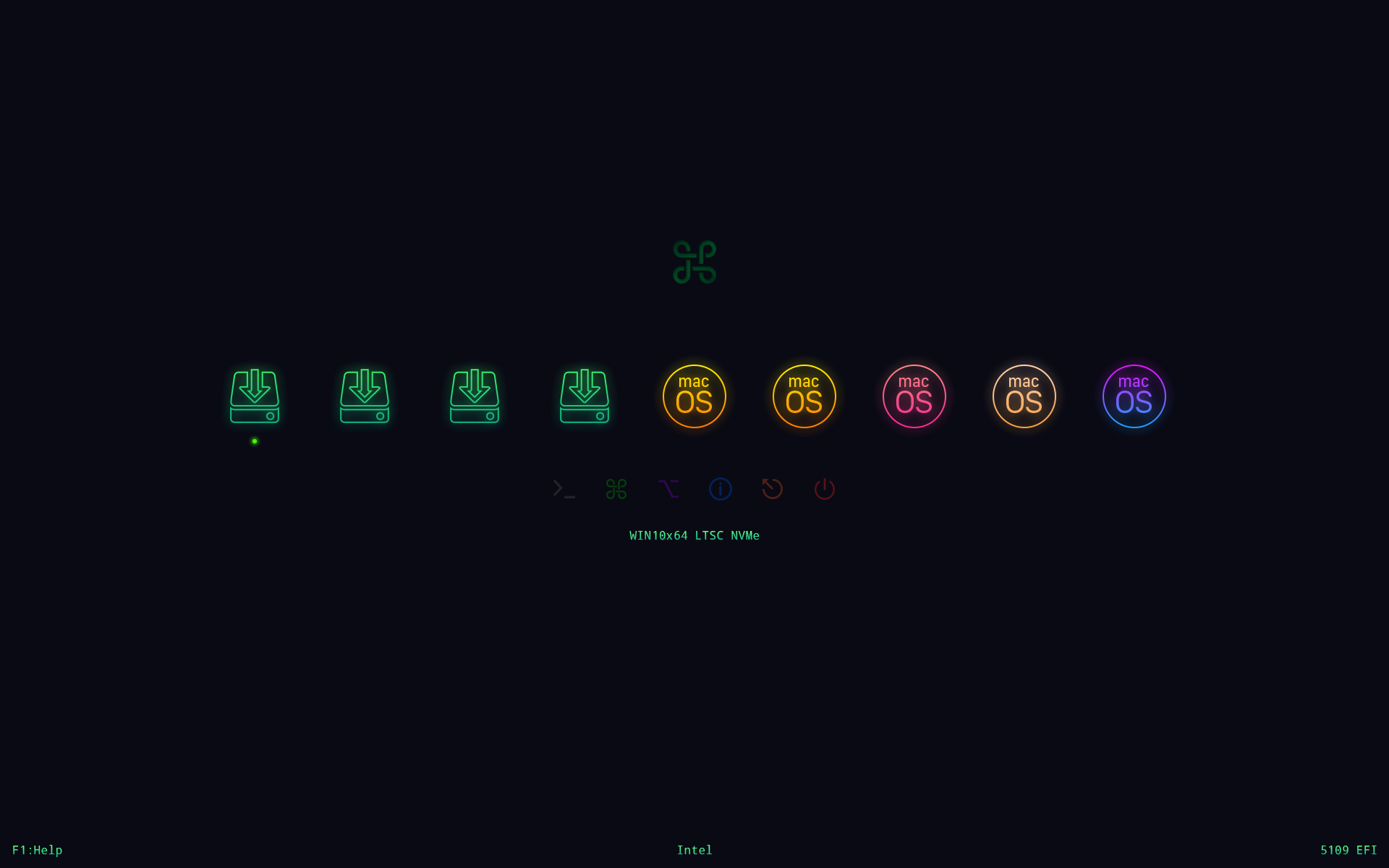

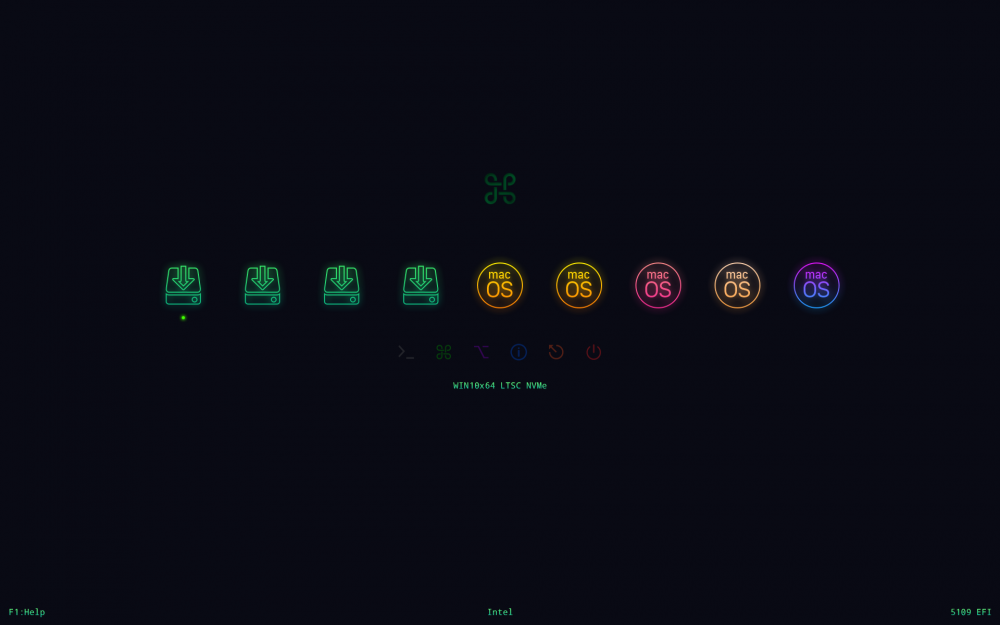

in the GUI it does not load windows icon of the NEON theme.

Do not start in verbose with -v in boot arguments.

Clover updated by manually replacing bootx64.efi and cloverx64.efi

[artur_pt]

41 minutes ago, iCanaro said:

Clover 5109

in the GUI it does not load windows icon of the NEON theme.

Do not start in verbose with -v in boot arguments.

Clover updated by manually replacing bootx64.efi and cloverx64.efi

 hello  Slice



something with Clovy



regards



[vector sigma]

3 hours ago, Badruzeus said:

I'm not sure what 'Clover.app - Optimize' actually does with the images.

It convert real icns images to png as too may themes wrongly contains real icns instead of png. Also convert all non png-8 to png-8. PngQuant fix png images but can't do nothing for icns.



3 hours ago, Badruzeus said:

Except, some files got corrupted when migrating from SourceForge to GitHub (or another causes).

It is just a copy, images are fine on github. There is a bug downloading themes I fixed locally, available in minutes.

[vector sigma]

new Clover.app v1.17 with a real Plist Editor:



Introduced a real Property List Editor available on 10.11+.

Fixed Theme manager engine.

Other minor fixes



The Theme manager engine is heavily modified to fix timeout errors. The Optimize function do that:

1. Convert all icns (or non png images) to png if the author mistakenly has put them inside the "theme"/icons directory to fix the lost of the images in Clover's GUI.
2. Auto resize of very big images following the Clover's source code (pointer/func_* and tool_* 32x32 pixels, Banner 128x128 pixels, Selection_big 144x144 pixels, Selection_small 64x64 pixels, logo, os_* 128x128 pixels, radio_button/radio_button_selected/checkbox, checkbox_checked to 15x15 pixels. That to fix images that looks "out of bounds".
3. All images converted to png-8 to fix errors loading them in Clover's GUI (for newer and older Clover).
4. The "optimize" option is not automatic and you have to do it voluntarily. No need if the theme is already good.
5. The "optimize" option works only for png themes and does nothing (not allowed) for svg ones.



EDIT

the plist editor can be tranlsated in any language

Clover.app_v1.17.pkg

Edited April 7, 2020 by vector sigma

[Matgen84]

3 hours ago, Matgen84 said:



I found these lines in debug.log but I don't know why there is a issue: XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted



I post debug.log


0:107  0:000  === [ GetListOfThemes ] =========================
0:495  0:004  Default theme: Mojave
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave

  Reveal hidden contents

0:100  0:100  MemLog inited, TSC freq: 3500026711
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 07.04.2020,  08:39:45 (GMT)
0:100  0:000  Starting Clover revision: 5109 (master, commit 5a8588318) on American Megatrends EFI
0:100  0:000  Build with: [Args: --conf=/Users/mathieu/src/CloverBootloader/Conf -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000) @89D55298
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  Clover : Image base = 0x745DF000
0:100  0:000  SimpleTextEx Status=Success
0:100  0:000  === [ Get Smbios ] ==============================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/1, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 2
0:100  0:000  Table has error information, checking
0:100  0:000  Found memory information in table 18/2, type=0x3, operation=0x2 syndrome=0x0
0:100  0:000  ...memory OK
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1867MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 029E
0:100  0:000  SmbiosTable.Type17->SerialNumber = 00000000
0:100  0:000  SmbiosTable.Type17->PartNumber = CMZ8GX3M2A1866C9
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'System Product Name' with board 'P8Z77-V PRO'
0:100  0:000  === [ GetCPUProperties ] ========================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E008402
0:100  0:000  MSR 0xE2 is locked, PM patches will be turned on
0:100  0:000  MSR 0xCE              00081010_81010F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 101 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 37/38/39/39
0:100  0:000  Features: 0x779AE3BFBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3510 MHz
0:100  0:000  TSC: 3510 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ==============================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Ctrl(0x0)/AcpiAdr(0x80010340)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0151 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 0FC1 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Gigabyte GeForce GT 640 family E7 (Kepler)
0:100  0:000  PCI (00|01:00.01) : 10DE 0E1B class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=5348Broadcom
0:100  0:000  PCI (00|00:1C.02) : 8086 1E14 class=060400
0:100  0:000  PCI (00|04:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1C.03) : 8086 1E16 class=060400
0:100  0:000  PCI (00|05:00.00) : 1B21 0612 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 244E class=060401
0:100  0:000  PCI (00|06:00.00) : 1B21 1080 class=060401
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|08:00.00) : 1B21 1042 class=0C0330
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ======================
0:100  0:000  Clover load options size = 0 bytes
0:106  0:005  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name--00-00-00-00-00-00. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO\UEFI. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\System Product Name-3510. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO. Dir not exists
0:106  0:000  CheckOEMPathExists tried EFI\CLOVER\OEM\P8Z77-V PRO-3510. Dir not exists
0:106  0:000  set OEMPath by default: EFI\CLOVER
0:107  0:000  EFI\CLOVER\config.plist loaded: Success
0:107  0:000  === [ GetListOfThemes ] =========================
0:116  0:009  - [00]: MacProv2
0:132  0:015  - [01]: Catalina
0:144  0:012  - [02]: Imac
0:151  0:006  - [03]: Mojave
0:156  0:004  - [04]: Mojave2
0:168  0:011  - [05]: Clovy
0:175  0:007  - [06]: DEV
0:178  0:002  - [07]: RANDOM
0:190  0:012  - [07]: EMBEDDED
0:191  0:001  === [ Found config plists ] =====================
0:194  0:002  - config_old.plist
0:194  0:000  - config.plist
0:201  0:006  === [ GetEarlyUserSettings ] ====================
0:201  0:000  timeout set to 8
0:201  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:243  0:042  KextsToPatch: 10 requested
0:245  0:001   - [00]: AppleAHCIPort (ICH10 hotplug for 10.4.x) :: MatchOS: 10.14.x :: BinPatch :: data len: 14
0:252  0:007   - [01]: com.apple.driver.AppleAHCIPort (External icons patch) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 8
0:261  0:008   - [02]: com.apple.driver.AppleAHCIPort (patch AppleAHCIPort for ICH * by vit9696) :: BinPatch :: data len: 4
0:268  0:007   - patch disabled at config
0:270  0:001   - [03]: com.apple.driver.AppleMikeyDriver (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:364  0:093   - [04]: com.apple.driver.AppleHDA (Patch Assertions) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 16
0:373  0:009   - [05]: com.apple.driver.AppleGraphicsDevicePolicy (Prevent AGDP from loading) :: MatchOS: 10.13.x,10.14.x :: BinPatch :: data len: 5
0:381  0:008   - [06]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #1 10.14.x modify by DalianSky(credit ydeng)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:428  0:046   - [07]: com.apple.iokit.IOUSBHostFamily (USB port limit patch #2 10.14.x modify by DalianSky(credit PMHeart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:436  0:007   - [08]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #3 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:444  0:008   - [09]: com.apple.driver.usb.AppleUSBXHCI (USB Port limit patch #4 10.14.x modify by DalianSky(credits PMheart)) :: MatchOS: 10.14.x :: BinPatch :: data len: 4
0:488  0:043  KernelToPatch: 1 requested
0:490  0:001   - [00]: activating speedstepping for IvyBridge  :: data len: 25
0:495  0:004  Default theme: Mojave
0:496  0:001  Hiding entries with string Windows
0:498  0:001  Hiding entries with string BOOTX64.EFI
0:500  0:002  Hiding entries with string Preboot
0:502  0:001  === [ LoadDrivers ] =============================
0:521  0:019  Loading HFSPlus-64.efi  status=Success
0:543  0:022   - driver needs connecting
0:575  0:032  Loading FSInject.efi  status=Success
0:581  0:005  Loading SMCHelper.efi  status=Success
0:586  0:005  Loading CsmVideoDxe.efi  status=Success
0:593  0:006   - driver needs connecting
0:594  0:001  Loading Fat.efi  status=Success
0:601  0:006   - driver needs connecting
0:602  0:001  Loading AptioInputFix-64.efi  status=Success
0:709  0:106  Loading AptioMemoryFix-64.efi  status=Success
0:815  0:106  Loading DataHubDxe.efi  status=Success
0:851  0:035  Loading PartitionDxe.efi  status=Success
0:864  0:012   - driver needs connecting
0:865  0:001  Loading ApfsDriverLoader.efi  status=Success
0:870  0:005   - driver needs connecting
0:872  0:001  5 drivers needs connecting ...
0:874  0:001  PlatformDriverOverrideProtocol not found. Installing ... Success
0:877  0:003  Partition driver loaded:
0:880  0:003  HFS+ driver loaded
0:881  0:001  APFS driver loaded
0:883  0:001  Video driver loaded: disconnect Successdisconnect Success
0:894  0:010  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:703  0:809  === [ InitScreen ] ==============================
1:704  0:001  Console modes reported: 3, available modes:
1:706  0:001   - [01]: 80x25 (current mode)
1:707  0:001   - [02]: 80x50
1:709  0:001   - [03]: 100x31
1:710  0:001  SetScreenResolution: 1920x1080 - already set
1:714  0:003  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
1:716  0:001  new SelfHandle=89D55298
1:760  0:044  Using embedded font: Success
1:764  0:003  === [ GetMacAddress ] ===========================
1:766  0:001  MAC address of LAN #0= C8:60:00:BC:2D:8E:
1:779  0:012  === [ ScanSPD ] =================================
1:782  0:002  Scanning SMBus [8086:1E22], mmio: 0xF7E35004, ioport: 0xF040, hostc: 0x1
1:802  0:020  Slot: 0 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:822  0:020  Slot: 1 Type 24 4096MB 1777MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:894  0:072  Slot: 2 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:915  0:020  Slot: 3 Type 24 4096MB 1866MHz Vendor=Corsair PartNo=CMZ8GX3M2A1866C9 SerialNo= 0 0 0 0 0 0 0 0
1:917  0:002  === [ GetAcpiTablesList ] =======================
1:919  0:001  Get Acpi Tables List from RSDT:
1:922  0:003   - [00]: FACP  A M I len=132
1:924  0:002   - [01]: APIC  A M I len=146
1:926  0:001   - [02]: FPDT  A M I len=68
1:927  0:001   - [03]: MCFG  A M I len=60
1:967  0:039   - [04]: HPET  A M I len=56
1:969  0:001   - [05]: SSDT  SataTabl len=877
1:970  0:001   - [06]: BGRT  A M I len=56
1:972  0:001   - [07]: SSDT  Cpu0Ist len=2474
1:973  0:001   - [08]: SSDT  CpuPm len=2706
1:975  0:001  Calibrated TSC Frequency = 3500026711 = 3500MHz
1:979  0:003  === [ GetUserSettings ] =========================
1:980  0:001  USB FixOwnership: yes
1:982  0:001  Dropping 3 tables:
1:984  0:002   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (  74734930757043)
2:049  0:065           - set table: 54445353,   74734930757043 to drop: yes
2:053  0:003   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (      6D50757043)
2:079  0:026           - set table: 54445353,       6d50757043 to drop: yes
2:084  0:004   - [02]: Drop table  signature="DMAR" (52414D44)
2:098  0:014           - set table: 52414D44,                0 to drop: no
2:101  0:003   - final DSDT Fix mask=50404000
2:103  0:001  PatchesDSDT: 5 requested
2:142  0:039   - [00]: (change EHC1 to EH01) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:150  0:007   - [01]: (change EHC2 to EH02) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:158  0:007   - [02]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:167  0:009   - [03]: (change HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:176  0:008   - [04]: (change SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge:
2:185  0:008  EnableC7: no
2:186  0:001  EnableC6: no
2:226  0:039  Using ProductName from config: iMac13,2
2:227  0:001  Found same BiosVersion in clover and config
2:229  0:001  BiosVersion: IM131.88Z.F000.B00.2002052050
2:230  0:001  BiosReleaseDate: 02/05/2019
2:232  0:001  Using EfiVersion from clover: 290.0.0.0.0
2:233  0:001  Using FirmwareFeatures from config: 0xE00DE137
2:235  0:001  Using FirmwareFeaturesMask from config: 0xFF1FFF3F
2:236  0:001  Board-ID set from config as Mac-FC02E91DDD3FA6A4
2:238  0:001  BoardType: 0xA
2:243  0:005  ChassisType: 0xD
2:255  0:011  === [ Found DSDT tables ] =======================
2:258  0:002  - DSDT.AML
2:377  0:119  === [ ScanVolumes ] =============================
2:384  0:006  Found 19 volumes with blockIO
2:385  0:001  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:433  0:048  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(1,GPT,09B68B84-A844-4982-8412-9B2702C57FA8,0x28,0x64000)
2:437  0:003          Result of bootcode detection: bootable unknown (legacy)
2:533  0:095  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(2,GPT,C9046D26-6FC1-4657-9E10-0A8C6C397A45,0x64028,0x746527B0)
2:569  0:035  - [03]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)
2:573  0:004  - [04]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(1,GPT,CBB58B49-132D-4A43-940B-7385483D4680,0x28,0x64000)
2:577  0:004          Result of bootcode detection: bootable unknown (legacy)
2:634  0:057  - [05]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x2,0x0)\HD(2,GPT,875DB2D9-6751-46A8-B013-50184E1486A9,0x64028,0x3927FB0)
2:639  0:004  - [06]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x7,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:642  0:003  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:646  0:003  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:658  0:011  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,1975239E-6CC2-416E-357D-9E893FFA233B,0x800,0xA8800)
2:710  0:051          Result of bootcode detection: bootable Windows (vista,win)
2:720  0:010  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,D57B65B6-35BC-4719-F8F7-EF5A8DBF222F,0xA9000,0x8000)
2:724  0:003  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,6375F8EC-8C56-478D-C39C-E7B6ED0C3E31,0xB1000,0xE8C5FB5A)
2:728  0:004          Result of bootcode detection: bootable Windows (vista,win)
2:768  0:039  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,CD009A64-D915-4DA9-8F9D-255B16014114,0xE8D11000,0xF6800)
2:772  0:003          Result of bootcode detection: bootable Windows (vista,win)
2:773  0:001  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,7044A270-43C5-478A-B091-DFDD99A39DBF,0x28,0x64000)
2:783  0:009          Result of bootcode detection: bootable unknown (legacy)
2:827  0:044          This is SelfVolume !!
2:829  0:001  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)
2:862  0:032          Result of bootcode detection: bootable unknown (legacy)
2:863  0:001  - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A89E4F236FC6CD4488F7BC49942A30BA)
2:866  0:003          hiding this volume
2:868  0:001  - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)
2:901  0:033  - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0773AD116F373948888BBE132DF1AF9A)
2:904  0:003  - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7BEBCDC28780954FBCA720CAB84C92F8)
2:943  0:038  No AudioIoProtocols, status=Not Found
2:944  0:001  === [ InitXTheme ] ==============================
2:946  0:001  use night theme
2:961  0:015  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
2:963  0:001  chosen theme Mojave
2:965  0:002  OS main and drive as badge
2:966  0:001  Warning! Character width 11 should be even!
3:777  0:810  file sound read: sound_night.wav Not Found
3:785  0:008  file sound read: sound.wav Not Found
3:794  0:009  Loading font from ThemeDir: Success
3:893  0:098  theme inited
3:895  0:001  Chosen theme Mojave
3:896  0:001  after NVRAM boot-args=dart=0 debug=0x100 -v shikigva=16 shiki-id=Mac-FC02E91DDD3FA6A4
3:898  0:001  === [ Dump SMC keys from NVRAM ] ================
3:900  0:001  found AppleSMC protocol
3:931  0:031  Registered 16 SMC keys
3:934  0:002  === [ ScanLoader ] ==============================
3:935  0:001  - [01]: 'EFI'
4:049  0:113          AddLoaderEntry for Volume Name=EFI
4:051  0:001          skipped because entry is hidden
4:052  0:001  - [02]: 'Install macOS Catalina'
4:076  0:023          AddLoaderEntry for Volume Name=Install macOS Catalina
4:100  0:024  - [04]: 'EFI'
4:108  0:008          AddLoaderEntry for Volume Name=EFI
4:110  0:001          skipped because entry is hidden
4:112  0:001  - [05]: 'Install macOS Mojave'
4:117  0:005          AddLoaderEntry for Volume Name=Install macOS Mojave
4:124  0:006  - [09]: 'EFI'
4:162  0:037          AddLoaderEntry for Volume Name=EFI
4:165  0:003          AddLoaderEntry for Volume Name=EFI
4:167  0:001          skipped because entry is hidden
4:168  0:001  - [13]: 'EFI'
4:181  0:012          AddLoaderEntry for Volume Name=EFI
4:182  0:001          skipped because entry is hidden
4:184  0:001  - [15]: 'Preboot', hidden
4:187  0:003  - [16]: 'Mojave'
4:510  0:322          AddLoaderEntry for Volume Name=Mojave
4:548  0:037      hibernated: set as never
4:594  0:046  - [17]: 'Recovery'
4:608  0:013          AddLoaderEntry for Volume Name=Recovery
4:635  0:027  - [18]: 'VM'
4:638  0:003  === [ AddCustomTool ] ===========================
4:662  0:024  found tool \EFI\CLOVER\tools\Shell64U.efi
4:664  0:002  Checking EFI partition Volume 1 for Clover
4:668  0:003  Checking EFI partition Volume 4 for Clover
4:693  0:025   Found Clover
4:696  0:002  === [ GetEfiBootDeviceFromNvram ] ===============
4:698  0:001   - found entry 3. 'Boot macOS from Mojave', Volume 'Mojave', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,EA5CAF4F-CD6B-4FBE-ACE7-D4DC55135322,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E49FB298310EB438995AD789EC5C7A79)\System\Library\CoreServices\boot.efi'
4:749  0:051  XArray::ElementAt(xsize) const -> Operator [] : index > m_lenA fatal error happened. System halted






@Slice

Like @chris111 and @Badruzeus


I've got some problems with already optimized theme on r5109 Release: I use switch function to test these theme.


• The clovy theme does not appear at startup, even if it is declared in the config.plist. Clover replaces it with embedded. Note: Clovy don't accept 1920*1080 resolution!!
• Mojave and Catalina themes already optimized and re-optimized via Clover.app don't work: with the first, Clover GUI stuck.

What happens! I don't understand.

Clover version + EFI come back at the bottom right ???

[vector sigma]

@Matgen84:

2:966  0:001  Warning! Character width 11 should be even!

..but is odd. Mojave theme's characters are invalid I guess, or at least is what the new Xtheme engine says.



Edited April 7, 2020 by vector sigma

[Matgen84]

9 minutes ago, vector sigma said:

@Matgen84:

2:966  0:001  Warning! Character width 11 should be even!

..but is odd. Mojave theme's characters are invalid I guess, or at least is what the new Xtheme engine says.



Thanks  What about Clovy (standalone theme, not embedded) or Catalina issues: what do you think!

Edited April 7, 2020 by Matgen84

[vector sigma]

1 minute ago, Matgen84 said:



Thanks  What about Clovy or Catalina issues: what do you think!

Not sure. BTW in the Mojave theme CharWidth is 10. Did you modify it?

Edited April 7, 2020 by vector sigma

[Matgen84]

9 minutes ago, vector sigma said:

Not sure. BTW the Mojave CharWidth is 10. Did you modify it?



For Mojave, I rollback to char width 10. What about the two order theme (screenshot posted in Clover theme topic)!

[vector sigma]

Just now, Matgen84 said:



For Mojave, I rollback to char width 10. What about the two order theme (screenshot posted in Clover theme topic)!

Sorry fo the stupid question, but did you modify them?

[Matgen84]

9 minutes ago, vector sigma said:

Sorry fo the stupid question, but did you modify them?



No modification to them. Latest working commit: r5108 (2971779dd).



Is it possible that Clover install log print SHA1!

[vector sigma]

10 minutes ago, Matgen84 said:



No modification to them. Latest working commit: r5108 (2971779dd).

Forgot 5108, 5109 has a new technology. That must be fixed if a need be, but until now i can see only users errors

What if you provide preboot.log(s) with those theme so that developers can see something without image the problem?

Edited April 7, 2020 by vector sigma

[Matgen84]

19 minutes ago, vector sigma said:

Forgot 5108, 5109 has a new technology. That must be fixed if a need be, but until now i can see only users errors



There are also problems with badges on the themes of Catalina and Mojave. Clovy is barely operational. How to do then while waiting!

[vector sigma]

18 minutes ago, Matgen84 said:

How to do then while waiting!

provide a preboot.log?

[Matgen84]

1 hour ago, vector sigma said:

provide a preboot.log?



Ok. How to do that? I don't remember.



With MaterialBox Theme: I don't remember there are icon for EFi before r5109





debug.log

USB2 problem de Terminal





Edited April 7, 2020 by Matgen84

[Matgen84]

@vector sigma



I apologize for my awkwardness because I did not want to upset. For the past few days, I have had very strong migraines. Here is the preboot.log



Thanks for your effort



Note: I have resolved the AppleUSB message problem





preboot.log

[vector sigma]

1 hour ago, Matgen84 said:

I apologize for my awkwardness because I did not want to upset. For the past few days, I have had very strong migraines. Here is the preboot.log

I can't talk for all developers so I talk for me only, and I am a direct person: Clover is under refactoring and it is normal that new bugs comes out. The theme engine is totally new, but is it also clear that many themes ignored the basic guideline of not using real icns images and "worked before" doesn't change any thing.  "Worked" before is not a good statement as I saw tens and tens of posts (new or very old) claiming errors (even if for some worked due to different conditions) when the error is elsewhere e.g. in the theme. I saw peoples with 60 and more themes in the ESP, claiming Clover is slow or crash due to this, modified themes not working while the original does. I'm not the person who made this new engine, but I worked hard to find a solution to make existing theme compatible with new Clover but also old ones. That taken a lot of time to help peoples and the project to solve some cases. Now I know that i have to parse the theme.plist and fix CharWidth to be even instead of odd to solve a possible crash, for example.

But honestly I will not be at the mercy of who think something it's due when this is far from the true, whatever the reason. Now I'll be glad to do whatever I can to find a solution, if I can, as I see you clarify your position.



thanks for the collaboration



Edited April 7, 2020 by vector sigma

[iCanaro]

@vector sigma

I optimized the NEON theme with the clover app, but the windows icons are not loaded, the GUI uses the generic one.

Here is the preboot.log my Z97 hack

preboot.log_Z97_5109.zip

[vector sigma]

9 minutes ago, iCanaro said:

I optimized the NEON theme with the clover app, but the windows icons are not loaded, the GUI uses the generic one.

Did you mean it show icons from the embedded theme or is always the same icon?
