Clover General discussion

Mr. Xtreme · October 24, 2014

How do I set up auto-boot?

Slice · October 25, 2014

What virtual drive? There is no actual RAID scheme, just controller in RAID mode The log was generated on laptop with legacy bios. There is an Intel SATA in the chipset configured in RAID mode, and there is a SATA hard disk connected to it as an ordinary drive.

AFAIK, when Intel controller is in RAID mode, it is upward compaible from AHCI mode - which mean operating it as an AHCI mode - chip would work. In fact, I patch (via DSDT) the PCI device ID to indicate AHCI mode for Apple's AHCI driver - while the chip is in RAID mode - and it works.

The drive is of course accessible using Int 13 bios function as bios device number. This is how Chameleon boots, and how Windows boots.

I don't know if there are special Int 13 functions for RAID mode - but they shouldn't be needed for simple boot.

I will try using boot7 (bios block io) instead of boot6 and see what happens.

Edit: With boot7, no SATA or USB devices are recognized. No debug.log is generated (due to USB device not recognized), and the boot reverts back to the default Windows boot via some unknown mechanism.

PS, I'm still puzzled by why boot1f32 works with one bios and hangs with another, working on that too...

For USB detected by boot7 you should set in BIOS Legacy USB=Enable

I found an incompatibility:

EFI_STATUS
EFIAPI
EnumerateAttachedDevice (
  IN  ATA_ATAPI_PASS_THRU_INSTANCE      *Instance
  )
{
  EFI_STATUS                   Status;
  PCI_TYPE00                   PciData;
  UINT8                        ClassCode;

  Status = EFI_SUCCESS;

  Status = Instance->PciIo->Pci.Read (
                                  Instance->PciIo,
                                  EfiPciIoWidthUint8,
                                  PCI_CLASSCODE_OFFSET,
                                  sizeof (PciData.Hdr.ClassCode),
                                  PciData.Hdr.ClassCode
                                  );
  ASSERT_EFI_ERROR (Status);

  ClassCode = PciData.Hdr.ClassCode[1];

  switch (ClassCode) {
    case PCI_CLASS_MASS_STORAGE_IDE :
      //
      // The ATA controller is working at IDE mode
      //
      Instance->Mode = EfiAtaIdeMode;

      Status = IdeModeInitialization (Instance);
      if (EFI_ERROR (Status)) {
        Status = EFI_DEVICE_ERROR;
        goto Done;
      }
      break;
    case PCI_CLASS_MASS_STORAGE_SATADPA :
      //
      // The ATA controller is working at AHCI mode
      //
      Instance->Mode = EfiAtaAhciMode;

      Status = AhciModeInitialization (Instance);

      if (EFI_ERROR (Status)) {
        Status = EFI_DEVICE_ERROR;
        goto Done;
      }

      break;
    default :
      Status = EFI_UNSUPPORTED;
  }

Done:
  return Status;
}

Test , please, the same with RAID added

boot6.zip

teeodor · October 25, 2014

Hi,i install clover on my mac partition,now my disk is this

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *500.1 GB disk0

1: Apple_HFS Mac 99.5 GB disk0s1

2: Apple_Boot Recovery HD 650.0 MB disk0s2

3: Apple_HFS Dati 399.6 GB disk0s3

I have asus k53sc notebook with uefi boot,if i install clover on a fat32 usb stick i see it in the bios option boot,but in the disk i don't see the uefi boot

Slice · October 25, 2014

Hi,i install clover on my mac partition,now my disk is this

/dev/disk0

   #: TYPE NAME SIZE IDENTIFIER

   0: GUID_partition_scheme *500.1 GB disk0

   1: Apple_HFS Mac 99.5 GB disk0s1

   2: Apple_Boot Recovery HD 650.0 MB disk0s2

   3: Apple_HFS Dati 399.6 GB disk0s3

I have asus k53sc notebook with uefi boot,if i install clover on a fat32 usb stick i see it in the bios option boot,but in the disk i don't see the uefi boot

Yes, UEFI boot requires EFI partition that you have no.

My case

 slice$ diskutil list
/dev/disk0
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *500.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                  Apple_HFS MacHD                   270.5 GB   disk0s2
   3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3
   4:                  Apple_HFS LionHD                  118.9 GB   disk0s4
   5:       Microsoft Basic Data Data                    109.7 GB   disk0s5

Riley Freeman · October 25, 2014

I just tried updating my X79 from r2953 to r2976. After post I got a black screen with a thin grey line at the top (corrupted bootscreen I guess) and then it rebooted. Couldn't call up the Clover boot menu as it seemed to be rebooting before I could get that far.

Something changed with gfx I guess (I use DSDT injection here). Reverted to r2953 and it's working again.

I know that's not a lot of info. Not sure if I can get any kind of a log this early in.

Ingwar77 · October 25, 2014

I just tried updating my X79 from r2953 to r2976. After post I got a black screen with a thin grey line at the top ... Reverted to r2953 and it's working again...

+1

iMessage and FaceTime are not active, same codes. Call Apple support again?

teeodor · October 25, 2014

Yes, UEFI boot requires EFI partition that you have no.

My case

 slice$ diskutil list
/dev/disk0
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *500.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                  Apple_HFS MacHD                   270.5 GB   disk0s2
   3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3
   4:                  Apple_HFS LionHD                  118.9 GB   disk0s4
   5:       Microsoft Basic Data Data                    109.7 GB   disk0s5

What i have to do for have efi partition?

crusher · October 25, 2014

This is my case in UEFI diskutil list!!!

Ibragics-iMac:~ ibragicelvir$ diskutil list
/dev/disk0
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *120.0 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                  Apple_HFS Mavericks SSD           119.7 GB   disk0s2
/dev/disk1
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *250.1 GB   disk1
   1:                        EFI EFI                     209.7 MB   disk1s1
   2:                  Apple_HFS Macintosh SSD           249.2 GB   disk1s2
   3:                 Apple_Boot Recovery HD             650.0 MB   disk1s3
/dev/disk2
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:     FDisk_partition_scheme                        *240.1 GB   disk2
   1:               Windows_NTFS System Reserved         367.0 MB   disk2s1
   2:               Windows_NTFS Wundows 8.1 SSD         239.7 GB   disk2s2
/dev/disk3
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *500.1 GB   disk3
   1:                        EFI EFI                     209.7 MB   disk3s1
   2:                  Apple_HFS Data                    200.0 GB   disk3s2
   3:       Microsoft Basic Data Storage                 299.8 GB   disk3s3

Zenith432 · October 25, 2014

Tested - that fixed it. It now sees all SATA volumes. Thanks!

Legacy USB was on - otherwise bios would not be able to boot stick (or use keyboard...)

For USB detected by boot7 you should set in BIOS Legacy USB=Enable

Test , please, the same with RAID added

Here's the log now

0:100 0:100 MemLog inited, TSC freq: 2693885317
0:100 0:000 LegacyRegion2: Chipset/proc: 0x01048086
0:100 0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100 0:000   Test PAM1=(0x41=90, 0x5a=00, 0x81=11, 0x91=00) at chipset 01048086
0:100 0:000 , Install = Success
0:123 0:023 BiosVideoDriverBindingStart!
0:123 0:000 BiosVideoCheckForVbe
0:123 0:000 EdidOverride not found
0:135 0:012   Edid1+
0:135 0:000   found Detail Timing 1280x800
0:135 0:000   found Detail Timing 1280x800
0:147 0:012   Edid0+
0:147 0:000   found Detail Timing 1280x800
0:147 0:000 ... already present
0:147 0:000   found Detail Timing 1280x800
0:147 0:000 ... already present
0:148 0:000     0 1024x768 attr=9B - ok, edid-, 1024x768, working, highest, pref=0
0:148 0:000     1 640x480 attr=9B - ok, edid-, 640x480, working
0:148 0:000     2 800x600 attr=9B - ok, edid-, 800x600, working
0:148 0:000 BV new mode: 0 1024x768
0:261 0:113   SetMode pref 0 (0) = Success
2:718 2:456
2:718 0:000 Now is 25.10.2014, 13:2:15 (GMT+2047)
2:718 0:000 Starting Clover rev 2953 on CLOVER EFI
2:718 0:000 SelfDevicePath=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000) @BB872698
2:718 0:000 SelfDirPath = \EFI\CLOVER
2:718 0:000 Total Memory Slots Count = 2
2:718 0:000 Type 17 Index = 0
2:718 0:000 SmbiosTable.Type17->Speed = 1333
2:718 0:000 SmbiosTable.Type17->Size = 4096
2:718 0:000 Type 17 Index = 1
2:718 0:000 SmbiosTable.Type17->Speed = 1333
2:718 0:000 SmbiosTable.Type17->Size = 4096
2:718 0:000 Boot status=0
2:718 0:000 Clover revision: 2953 running on HP EliteBook 2760p
2:718 0:000 ... with board 162A
2:718 0:000 Clover load options size = 0 bytes
2:734 0:016 Using OEM config.plist at path: EFI\CLOVER\config.plist
2:735 0:000 EFI\CLOVER\config.plist loaded: Success
2:750 0:014 Loading early settings
2:750 0:000 timeout set to 5
2:750 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
3:219 0:468 KextsToPatch: 1 requested
3:826 0:607 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
4:415 0:589 Default theme: metal
4:547 0:132 Hiding entries with string Windows
4:767 0:219 Hiding entries with string BOOTX64.EFI
4:886 0:118 LoadDrivers() start
5:032 0:145 Loading FSInject-64.efi
5:251 0:219 LoadDrivers() end
5:370 0:119 Console modes reported: 4, available modes:
5:502 0:132    Mode 1: 80x25
5:721 0:219    Mode 3: 100x31
5:893 0:171    Mode 4: 128x40 (current mode)
6:025 0:132 SetScreenResolution: 1024x768 - already set
6:364 0:338 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
6:496 0:131 new SelfHandle=BB872698
6:715 0:219 CPU Vendor = 756E6547 Model=206A7
6:834 0:119 The CPU supported turbo
6:966 0:131 BrandString = Intel® Core i7-2620M CPU @ 2.70GHz
7:186 0:220 MSR 0xE2 before patch 1E008404
7:305 0:119 MSR 0xE2 is locked, PM patches will be turned on
7:803 0:497 MSR 0xE4              00020414
8:021 0:217 MSR 0xCE              00000800_60011B00
8:138 0:117 non-usable FLEX_RATIO = 10000
8:269 0:130 corrected FLEX_RATIO = 0
8:487 0:217 MSR 0x1B0             00000000
8:604 0:117 FSBFrequency=100MHz DMIvalue=100000kHz
8:735 0:130 Corrected FSBFrequency=100MHz
8:952 0:217 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7
9:070 0:117 Family/ExtFamily: 0x6/0x0
9:200 0:130 MaxDiv/MinDiv: 27.0/8
9:418 0:217 Turbo: 32/32/32/34
9:536 0:117 Features: 0xBFEBFBFF
9:666 0:130 Threads: 4
9:884 0:217 Cores: 2
10:002 0:117 FSB: 100 MHz
10:132 0:130 CPU: 2700 MHz
10:350 0:217 TSC: 2700 MHz
10:468 0:117 PIS: 400 MHz
10:598 0:130 PCI (00|00:00.00) : 8086 0104 class=060000
10:816 0:217 PCI (00|00:02.00) : 8086 0126 class=030000
10:934 0:117 Found GFX model=Intel HD Graphics 3000
11:064 0:130 PCI (00|00:16.00) : 8086 1C3A class=078000
11:282 0:217 PCI (00|00:19.00) : 8086 1502 class=020000
11:400 0:117 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
11:868 0:468 PCI (00|00:1B.00) : 8086 1C20 class=040300
12:086 0:217 PCI (00|00:1C.00) : 8086 1C10 class=060400
12:203 0:117 PCI (00|00:1C.01) : 8086 1C12 class=060400
12:334 0:130 PCI (00|00:1C.02) : 8086 1C14 class=060400
12:552 0:217 PCI (00|23:00.00) : 197B 2380 class=0C0010
12:669 0:117 PCI (00|23:00.01) : 197B 2392 class=088000
12:800 0:130 PCI (00|23:00.02) : 197B 2391 class=080501
13:018 0:217 PCI (00|00:1C.03) : 8086 1C16 class=060400
13:136 0:117 PCI (00|24:00.00) : 14E4 4727 class=028000
13:266 0:130 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
13:484 0:217 PCI (00|00:1F.00) : 8086 1C4F class=060100
13:602 0:117 PCI (00|00:1F.02) : 8086 282A class=010400
13:757 0:155 ScanSPD() start
13:975 0:218 ScanSPD() end
14:146 0:171 Get Acpi Tables List from RSDT:
14:496 0:349   Found table: FACP 162A     len=244
14:613 0:117   Found table: HPET 162A     len=56
14:744 0:130   Found table: APIC 162A     len=188
14:962 0:217   Found table: MCFG 162A     len=60
15:418 0:456   Found table: TCPA 162A     len=50
15:549 0:130   Found table: SSDT SataAhci len=643
15:767 0:217   Found table: SSDT PtidDevc len=1162
15:884 0:117   Found table: SLIC SLIC-MPC len=374
16:015 0:130   Found table: SSDT Cpu0Ist len=2130
16:232 0:217   Found table: SSDT CpuPm len=2481
16:350 0:117   Found table: ASF! 162A     len=165
16:481 0:130 Calibrated TSC frequency =2693885317 =2693MHz
16:698 0:217 Loading main settings
16:816 0:117 USB FixOwnership: true
16:946 0:130 Dropping 3 tables
17:164 0:217 Drop table 0 signature="DMAR" (52414D44)
18:343 1:179 set table: 52414D44,                0 to drop:

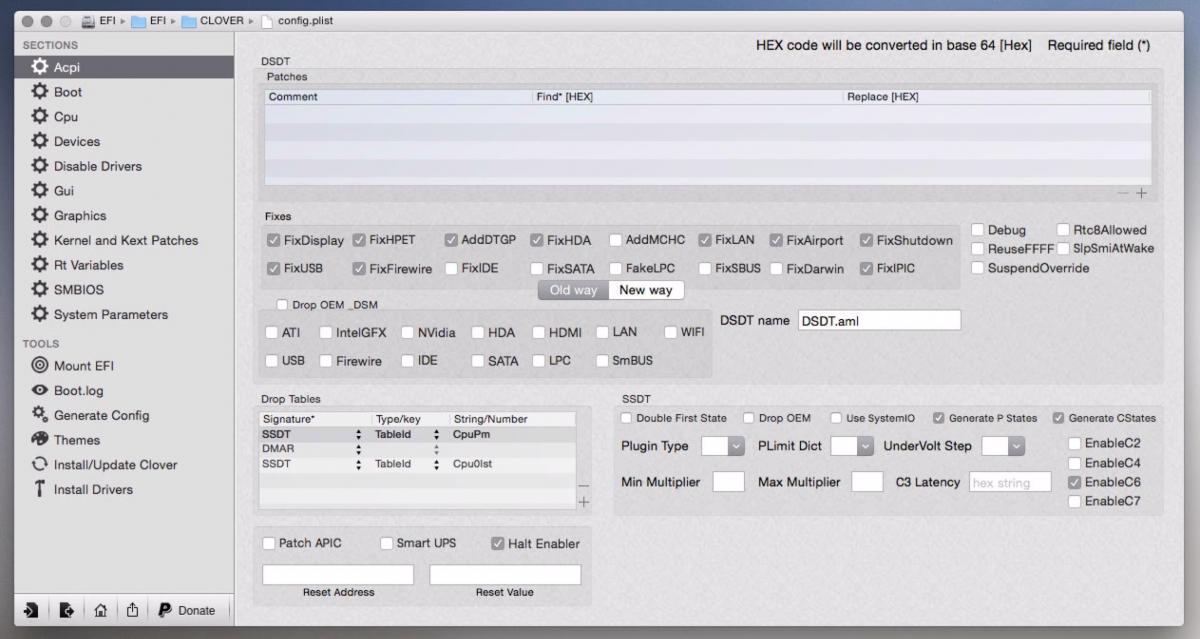

18:679 0:335 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
21:008 2:328 set table: 54445353,       6D50757043 to drop: true
21:356 0:348
21:496 0:140 Drop table 2 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
24:228 2:732 set table: 54445353,   74734930757043 to drop: true
24:815 0:586
25:033 0:217 Config set Fixes will override FixMask mask!
25:150 0:117     final mask=9FEEE955
25:281 0:130 Config set EnableC7: -
25:499 0:217 Config set EnableC6: +
25:616 0:117 Config set EnableC4: -
25:747 0:130 Config set EnableC2: -
25:965 0:218 ** Warning: ignoring RtVariable MountEFI set in config.plist: deprecated !
26:082 0:117 ** Warning: ignoring RtVariable LogLineCount set in config.plist: deprecated !
26:213 0:130 ** Warning: ignoring RtVariable LogEveryBoot set in config.plist: deprecated !
26:430 0:217 Error in Second part of settings0: Not Found
26:548 0:117 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist
26:678 0:130 smbios.plist not found, not overriding config.plist
26:896 0:217 found 7 volumes with blockIO
27:014 0:117   0. Volume:
27:144 0:130    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
27:365 0:221    Result of bootcode detection: bootable <null string> (<null string>)
27:483 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
27:952 0:468   1. Volume:
28:170 0:217    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
28:299 0:129    Result of bootcode detection: bootable Clover (clover)
28:429 0:130    USB volume
28:647 0:217    USB volume
28:764 0:117    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
28:895 0:130   2. Volume:
29:112 0:217    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
29:241 0:128    Result of bootcode detection: bootable Clover (clover)
29:372 0:130    USB volume
29:590 0:217    USB volume
29:708 0:117    Volume 'CT', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
29:838 0:130    This is SelfVolume !!
30:080 0:241   3. Volume:
30:198 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xD01DAACC,0x800,0x96000)
30:383 0:185    Result of bootcode detection: bootable Windows (vista,win)
30:601 0:217    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
31:057 0:456   4. Volume:
31:188 0:130    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xD01DAACC,0x96800,0x22ACA800)
31:409 0:221    Result of bootcode detection: bootable Windows (vista,win)
31:527 0:117    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
31:657 0:130   5. Volume:
31:875 0:217    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xD01DAACC,0x22B61000,0x1ECF800)
31:996 0:121    Result of bootcode detection: bootable Windows (vista,win)
32:127 0:130    Volume 'Legacy HD3', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
32:344 0:217   6. Volume:
32:462 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,MBR,0xD01DAACC,0x24A30800,0x9FDAB0)
32:596 0:133    Result of bootcode detection: bootable Windows (vista,win)
33:355 0:758    Volume 'HP_TOOLS', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
34:707 1:352 Searching volumes for latest nvram.plist ...
35:052 0:345    2. Volume 'CT', GUID = <null guid> - not GPT - no nvram.plist - skipping!
35:511 0:458    6. Volume 'HP_TOOLS', GUID = <null guid> - not GPT - no nvram.plist - skipping!
35:970 0:458   nvram.plist not found!
36:085 0:115 PutNvramPlistToRtVars: nvram.plist not found
36:213 0:128 Invalidating BuiltinIcons...
36:429 0:215 no themes available, using embedded
36:544 0:115 Font 0 prepared WxH=7x12 CharWidth=7
36:672 0:128 Choosing theme <null string>
36:888 0:215 Custom entries start
37:003 0:115 Custom entries finish
37:131 0:127 Scanning loaders...
37:347 0:215   0: 'Whole Disc Boot' no file system
37:590 0:243   1: 'Whole Disc Boot' no file system
37:921 0:330   2: 'CT'
38:265 0:343    hiding entry: \EFI\BOOT\BOOTX64.efi
38:380 0:115   3: 'Legacy HD1' no file system
38:724 0:343   4: 'Legacy HD2' no file system
38:967 0:243   5: 'Legacy HD3' no file system
39:297 0:330   6: 'HP_TOOLS'
39:982 0:684 Custom legacy start
40:097 0:115 Custom legacy end
40:225 0:128 Scanning legacy ...
40:440 0:215   0: 'Whole Disc Boot' (legacy) not legacy
40:684 0:243   1: 'Whole Disc Boot' (clover) hidden
41:015 0:330   2: 'CT' (clover) add legacy
41:362 0:346   added 'Boot Clover from CT' OSType=3 Icon=clover
41:477 0:115   3: 'Legacy HD1' (vista,win) add legacy
41:824 0:346   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
41:939 0:115   4: 'Legacy HD2' (vista,win) add legacy
42:307 0:367   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
42:422 0:115   5: 'Legacy HD3' (vista,win) add legacy
42:766 0:343   added 'Boot Windows from Legacy HD3' OSType=2 Icon=vista,win
42:882 0:115   6: 'HP_TOOLS' (vista,win) add legacy
43:225 0:343   added 'Boot Windows from HP_TOOLS' OSType=2 Icon=vista,win
43:341 0:115 Custom tool start
43:469 0:128 Custom tool end
43:698 0:229 found tool \EFI\CLOVER\tools\Shell64.efi
43:815 0:116 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
44:498 0:683 EfiBootVolume not found
44:613 0:115 Default boot entry not found
44:741 0:127 DefaultIndex=-1 and MainMenu.EntryCount=10
45:044 0:302 Found Mouse device:
45:162 0:117 GUI ready
65:076 19:914 Loading Shell64.efi
111:750 46:673 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
111:868 0:118 new SelfHandle=BB872698
111:996 0:128 found 7 volumes with blockIO
112:212 0:215   0. Volume:
112:327 0:115    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
112:459 0:131    Result of bootcode detection: bootable <null string> (<null string>)
112:674 0:215    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
112:789 0:115   1. Volume:
112:918 0:128    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
113:145 0:226    Result of bootcode detection: bootable Clover (clover)
113:260 0:115    USB volume
113:388 0:128    USB volume
113:943 0:554    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
114:058 0:115   2. Volume:
114:186 0:128    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
114:413 0:226    Result of bootcode detection: bootable Clover (clover)
114:529 0:115    USB volume
114:657 0:128    USB volume
114:872 0:215    Volume 'CT', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
114:988 0:115    This is SelfVolume !!
115:116 0:128   3. Volume:
115:331 0:215    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xD01DAACC,0x800,0x96000)
115:450 0:118    Result of bootcode detection: bootable Windows (vista,win)
115:578 0:128    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
115:794 0:215   4. Volume:
115:909 0:115    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xD01DAACC,0x96800,0x22ACA800)
116:040 0:131    Result of bootcode detection: bootable Windows (vista,win)
116:595 0:554    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
116:711 0:115   5. Volume:
116:839 0:127    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xD01DAACC,0x22B61000,0x1ECF800)
117:057 0:218    Result of bootcode detection: bootable Windows (vista,win)
117:173 0:115    Volume 'Legacy HD3', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
117:301 0:128   6. Volume:
117:516 0:215    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,MBR,0xD01DAACC,0x24A30800,0x9FDAB0)
117:635 0:118    Result of bootcode detection: bootable Windows (vista,win)
117:763 0:128    Volume 'HP_TOOLS', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
117:979 0:215 Choosing theme <null string>
118:094 0:115 Custom entries start
118:222 0:128 Custom entries finish
118:438 0:215 Scanning loaders...
118:553 0:115   0: 'Whole Disc Boot' no file system
118:896 0:343   1: 'Whole Disc Boot' no file system
119:479 0:582   2: 'CT'
119:810 0:331    hiding entry: \EFI\BOOT\BOOTX64.efi
119:938 0:128   3: 'Legacy HD1' no file system
120:292 0:354   4: 'Legacy HD2' no file system
120:636 0:343   5: 'Legacy HD3' no file system
120:879 0:243   6: 'HP_TOOLS'
121:210 0:330 Custom legacy start
121:339 0:128 Custom legacy end
121:554 0:215 Scanning legacy ...
121:669 0:115   0: 'Whole Disc Boot' (legacy) not legacy
122:013 0:343   1: 'Whole Disc Boot' (clover) hidden
122:256 0:243   2: 'CT' (clover) add legacy
122:587 0:331   added 'Boot Clover from CT' OSType=3 Icon=clover
122:715 0:128   3: 'Legacy HD1' (vista,win) add legacy
123:046 0:331   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
123:175 0:128   4: 'Legacy HD2' (vista,win) add legacy
123:505 0:330   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
123:634 0:128   5: 'Legacy HD3' (vista,win) add legacy
123:965 0:331   added 'Boot Windows from Legacy HD3' OSType=2 Icon=vista,win
124:093 0:127   6: 'HP_TOOLS' (vista,win) add legacy
124:763 0:670   added 'Boot Windows from HP_TOOLS' OSType=2 Icon=vista,win
124:891 0:128 Custom tool start
125:106 0:215 Custom tool end
125:222 0:115 found tool \EFI\CLOVER\tools\Shell64.efi
125:350 0:128 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
125:680 0:330 EfiBootVolume not found
125:808 0:128 Default boot entry not found
126:024 0:215 DefaultIndex=-1 and MainMenu.EntryCount=10
126:139 0:115 SetScreenResolution: 1024x768 - already set
128:578 2:438 BootOption of the entry is empty
128:696 0:118 RemoveStartupDiskVolume:
128:824 0:128    * efi-boot-device = Not Found
129:040 0:215    * efi-boot-device-data = Not Found
129:155 0:115    * BootCampHD = Not Found
0:100 0:100 MemLog inited, TSC freq: 2693881202
0:100 0:000 LegacyRegion2: Chipset/proc: 0x01048086
0:100 0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100 0:000   Test PAM1=(0x41=90, 0x5a=00, 0x81=11, 0x91=00) at chipset 01048086
0:100 0:000 , Install = Success
0:123 0:023 BiosVideoDriverBindingStart!
0:123 0:000 BiosVideoCheckForVbe
0:123 0:000 EdidOverride not found
0:135 0:012   Edid1+
0:135 0:000   found Detail Timing 1280x800
0:135 0:000   found Detail Timing 1280x800
0:147 0:012   Edid0+
0:147 0:000   found Detail Timing 1280x800
0:147 0:000 ... already present
0:147 0:000   found Detail Timing 1280x800
0:147 0:000 ... already present
0:148 0:000     0 1024x768 attr=9B - ok, edid-, 1024x768, working, highest, pref=0
0:148 0:000     1 640x480 attr=9B - ok, edid-, 640x480, working
0:148 0:000     2 800x600 attr=9B - ok, edid-, 800x600, working
0:148 0:000 BV new mode: 0 1024x768
0:261 0:112   SetMode pref 0 (0) = Success
2:462 2:201
2:462 0:000 Now is 25.10.2014, 13:4:46 (GMT+2047)
2:462 0:000 Starting Clover rev 2953 on CLOVER EFI
2:462 0:000 SelfDevicePath=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000) @BB872698
2:462 0:000 SelfDirPath = \EFI\CLOVER
2:462 0:000 Total Memory Slots Count = 2
2:462 0:000 Type 17 Index = 0
2:462 0:000 SmbiosTable.Type17->Speed = 1333
2:462 0:000 SmbiosTable.Type17->Size = 4096
2:462 0:000 Type 17 Index = 1
2:463 0:000 SmbiosTable.Type17->Speed = 1333
2:463 0:000 SmbiosTable.Type17->Size = 4096
2:463 0:000 Boot status=0
2:463 0:000 Clover revision: 2953 running on HP EliteBook 2760p
2:463 0:000 ... with board 162A
2:463 0:000 Clover load options size = 0 bytes
2:476 0:013 Using OEM config.plist at path: EFI\CLOVER\config.plist
2:477 0:000 EFI\CLOVER\config.plist loaded: Success
2:490 0:013 Loading early settings
2:490 0:000 timeout set to 5
2:490 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

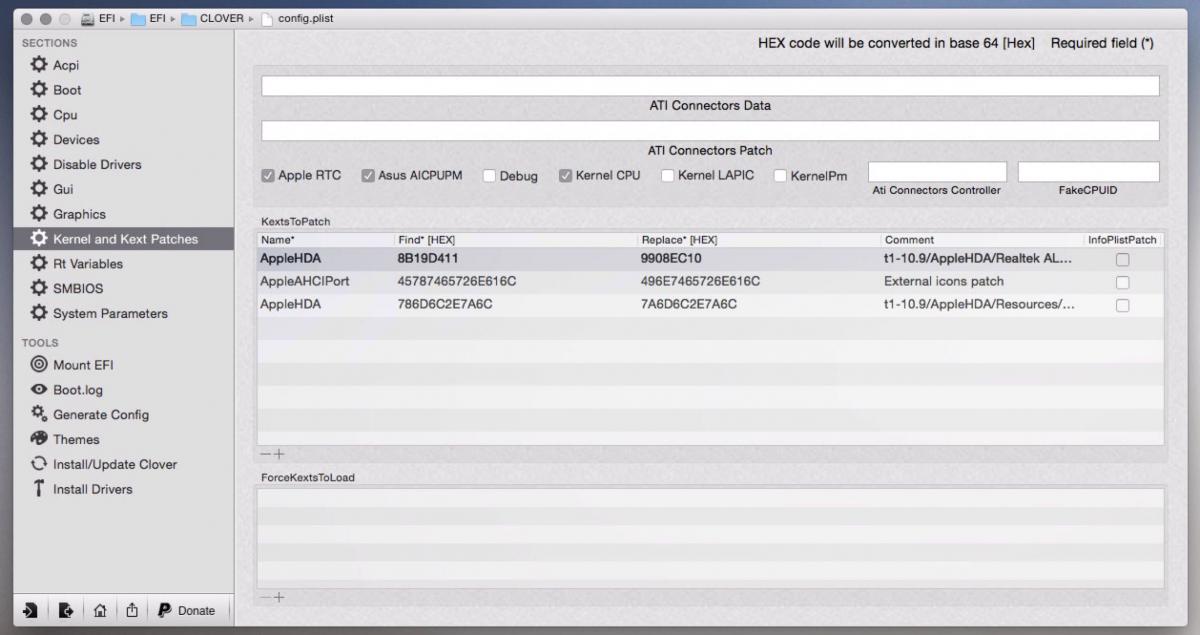

3:075 0:584 KextsToPatch: 1 requested
3:190 0:115 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
3:777 0:587 Default theme: metal

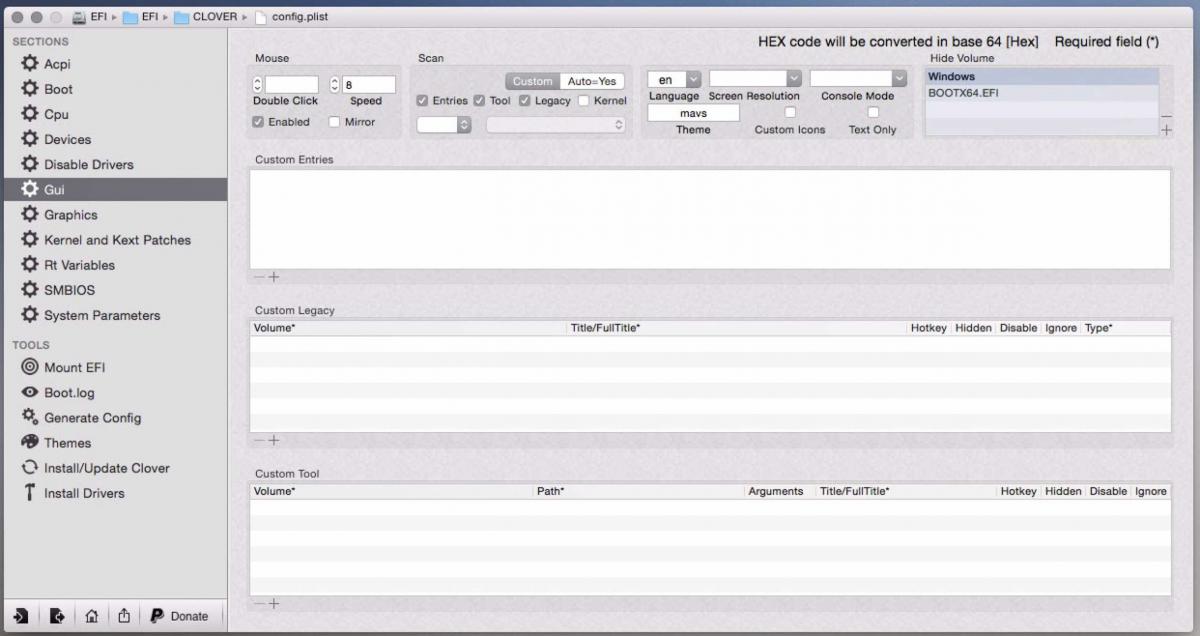

3:993 0:215 Hiding entries with string Windows
4:108 0:115 Hiding entries with string BOOTX64.EFI
4:236 0:127 LoadDrivers() start
4:804 0:567 Loading FSInject-64.efi
4:919 0:115 LoadDrivers() end
5:047 0:128 Console modes reported: 4, available modes:
5:263 0:215    Mode 1: 80x25
5:378 0:115    Mode 3: 100x31
5:506 0:128    Mode 4: 128x40 (current mode)
5:722 0:215 SetScreenResolution: 1024x768 - already set
5:965 0:243 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
6:181 0:215 new SelfHandle=BB872698
6:296 0:115 CPU Vendor = 756E6547 Model=206A7
6:424 0:128 The CPU supported turbo
6:639 0:215 BrandString = Intel® Core i7-2620M CPU @ 2.70GHz
6:754 0:115 MSR 0xE2 before patch 1E008404
6:883 0:128 MSR 0xE2 is locked, PM patches will be turned on
7:098 0:215 MSR 0xE4              00020414
7:214 0:115 MSR 0xCE              00000800_60011B00
7:342 0:128 non-usable FLEX_RATIO = 10000
7:557 0:215 corrected FLEX_RATIO = 0
7:673 0:115 MSR 0x1B0             00000000
7:801 0:128 FSBFrequency=100MHz DMIvalue=100000kHz
8:355 0:554 Corrected FSBFrequency=100MHz
8:470 0:115 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7
8:599 0:128 Family/ExtFamily: 0x6/0x0
8:814 0:215 MaxDiv/MinDiv: 27.0/8
8:929 0:115 Turbo: 32/32/32/34
9:057 0:128 Features: 0xBFEBFBFF
9:273 0:215 Threads: 4
9:388 0:115 Cores: 2
9:516 0:128 FSB: 100 MHz
9:731 0:215 CPU: 2700 MHz
9:847 0:115 TSC: 2700 MHz
9:975 0:128 PIS: 400 MHz
10:190 0:215 PCI (00|00:00.00) : 8086 0104 class=060000
10:306 0:115 PCI (00|00:02.00) : 8086 0126 class=030000
10:434 0:128 Found GFX model=Intel HD Graphics 3000
10:649 0:215 PCI (00|00:16.00) : 8086 1C3A class=078000
10:764 0:115 PCI (00|00:19.00) : 8086 1502 class=020000
10:916 0:151 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
11:131 0:215 PCI (00|00:1B.00) : 8086 1C20 class=040300
11:247 0:115 PCI (00|00:1C.00) : 8086 1C10 class=060400
11:375 0:128 PCI (00|00:1C.01) : 8086 1C12 class=060400
11:590 0:215 PCI (00|00:1C.02) : 8086 1C14 class=060400
12:046 0:455 PCI (00|23:00.00) : 197B 2380 class=0C0010
12:174 0:128 PCI (00|23:00.01) : 197B 2392 class=088000
12:390 0:215 PCI (00|23:00.02) : 197B 2391 class=080501
12:505 0:115 PCI (00|00:1C.03) : 8086 1C16 class=060400
12:633 0:128 PCI (00|24:00.00) : 14E4 4727 class=028000
12:849 0:215 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
12:964 0:115 PCI (00|00:1F.00) : 8086 1C4F class=060100
13:092 0:128 PCI (00|00:1F.02) : 8086 282A class=010400
13:308 0:215 ScanSPD() start
13:423 0:115 ScanSPD() end
13:551 0:128 Get Acpi Tables List from RSDT:
13:882 0:330   Found table: FACP 162A     len=244
14:010 0:128   Found table: HPET 162A     len=56
14:226 0:215   Found table: APIC 162A     len=188
14:341 0:115   Found table: MCFG 162A     len=60
14:469 0:128   Found table: TCPA 162A     len=50
14:685 0:215   Found table: SSDT SataAhci len=643
14:800 0:115   Found table: SSDT PtidDevc len=1162
14:928 0:128   Found table: SLIC SLIC-MPC len=374
15:144 0:215   Found table: SSDT Cpu0Ist len=2130
15:598 0:454   Found table: SSDT CpuPm len=2481
15:726 0:127   Found table: ASF! 162A     len=165
15:941 0:215 Calibrated TSC frequency =2693881202 =2693MHz
16:056 0:115 Loading main settings
16:184 0:128 USB FixOwnership: true
16:400 0:215 Dropping 3 tables
16:515 0:115 Drop table 0 signature="DMAR" (52414D44)
17:776 1:261 set table: 52414D44,                0 to drop:
18:020 0:243 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
20:338 2:317 set table: 54445353,       6D50757043 to drop: true
20:668 0:330
20:796 0:128 Drop table 2 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
23:421 2:625 set table: 54445353,   74734930757043 to drop: true
23:765 0:343
23:880 0:115 Config set Fixes will override FixMask mask!
24:008 0:127     final mask=9FEEE955
24:224 0:215 Config set EnableC7: -
24:339 0:115 Config set EnableC6: +
24:467 0:128 Config set EnableC4: -
24:682 0:215 Config set EnableC2: -
25:194 0:511 ** Warning: ignoring RtVariable MountEFI set in config.plist: deprecated !
25:322 0:128 ** Warning: ignoring RtVariable LogLineCount set in config.plist: deprecated !
25:537 0:215 ** Warning: ignoring RtVariable LogEveryBoot set in config.plist: deprecated !
25:653 0:115 Error in Second part of settings0: Not Found
25:781 0:128 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist
25:996 0:215 smbios.plist not found, not overriding config.plist
26:111 0:115 found 7 volumes with blockIO
26:240 0:128   0. Volume:
26:455 0:215    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
26:574 0:118    Result of bootcode detection: bootable <null string> (<null string>)
26:702 0:128    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
26:917 0:215   1. Volume:
27:033 0:115    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
27:172 0:139    Result of bootcode detection: bootable Clover (clover)
27:388 0:215    USB volume
27:842 0:454    USB volume
27:970 0:128    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
28:185 0:215   2. Volume:
28:301 0:115    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
28:440 0:139    Result of bootcode detection: bootable Clover (clover)
28:656 0:215    USB volume
28:771 0:115    USB volume
28:899 0:128    Volume 'CT', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
29:115 0:215    This is SelfVolume !!
29:230 0:115   3. Volume:
29:358 0:128    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xD01DAACC,0x800,0x96000)
29:577 0:218    Result of bootcode detection: bootable Windows (vista,win)
29:693 0:115    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
29:821 0:128   4. Volume:
30:036 0:215    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xD01DAACC,0x96800,0x22ACA800)
30:155 0:118    Result of bootcode detection: bootable Windows (vista,win)
30:623 0:467    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
30:838 0:215   5. Volume:
30:953 0:115    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xD01DAACC,0x22B61000,0x1ECF800)
31:085 0:131    Result of bootcode detection: bootable Windows (vista,win)
31:300 0:215    Volume 'Legacy HD3', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
31:416 0:115   6. Volume:
31:544 0:128    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,MBR,0xD01DAACC,0x24A30800,0x9FDAB0)
31:763 0:218    Result of bootcode detection: bootable Windows (vista,win)
32:405 0:642    Volume 'HP_TOOLS', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
33:418 1:013 Searching volumes for latest nvram.plist ...
33:749 0:330    2. Volume 'CT', GUID = <null guid> - not GPT - no nvram.plist - skipping!
34:208 0:458    6. Volume 'HP_TOOLS', GUID = <null guid> - not GPT - no nvram.plist - skipping!
35:007 0:799   nvram.plist not found!
35:135 0:128 PutNvramPlistToRtVars: nvram.plist not found
35:351 0:215 Invalidating BuiltinIcons...
35:466 0:115 no themes available, using embedded
35:594 0:128 Font 0 prepared WxH=7x12 CharWidth=7
35:810 0:215 Choosing theme <null string>
35:925 0:115 Custom entries start
36:053 0:128 Custom entries finish
36:269 0:215 Scanning loaders...
36:384 0:115   0: 'Whole Disc Boot' no file system
36:728 0:343   1: 'Whole Disc Boot' no file system
36:971 0:243   2: 'CT'
37:302 0:331    hiding entry: \EFI\BOOT\BOOTX64.efi
37:431 0:128   3: 'Legacy HD1' no file system
37:761 0:330   4: 'Legacy HD2' no file system
38:105 0:343   5: 'Legacy HD3' no file system
38:371 0:266   6: 'HP_TOOLS'
38:702 0:331 Custom legacy start
38:830 0:128 Custom legacy end
39:046 0:215 Scanning legacy ...
39:161 0:115   0: 'Whole Disc Boot' (legacy) not legacy
39:505 0:343   1: 'Whole Disc Boot' (clover) hidden
39:748 0:243   2: 'CT' (clover) add legacy
40:423 0:674   added 'Boot Clover from CT' OSType=3 Icon=clover
40:551 0:128   3: 'Legacy HD1' (vista,win) add legacy
40:885 0:334   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
41:013 0:128   4: 'Legacy HD2' (vista,win) add legacy
41:345 0:331   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
41:473 0:128   5: 'Legacy HD3' (vista,win) add legacy
41:804 0:330   added 'Boot Windows from Legacy HD3' OSType=2 Icon=vista,win
41:932 0:128   6: 'HP_TOOLS' (vista,win) add legacy
42:263 0:330   added 'Boot Windows from HP_TOOLS' OSType=2 Icon=vista,win
42:391 0:128 Custom tool start
42:606 0:215 Custom tool end
42:735 0:128 found tool \EFI\CLOVER\tools\Shell64.efi
42:865 0:129 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
43:217 0:352 EfiBootVolume not found
43:347 0:129 Default boot entry not found
43:563 0:216 DefaultIndex=-1 and MainMenu.EntryCount=10
43:767 0:203 Found Mouse device:
43:896 0:129 GUI ready
53:746 9:850 BootOption of the entry is empty
54:205 0:458 RemoveStartupDiskVolume:
54:333 0:128    * efi-boot-device = Not Found
54:549 0:215    * efi-boot-device-data = Not Found
54:664 0:115    * BootCampHD = Not Found
0:100 0:100 MemLog inited, TSC freq: 3192747860
0:100 0:000 LegacyRegion2: Chipset/proc: 0x01508086
0:100 0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100 0:000   Test PAM1=(0x41=90, 0x5a=90, 0x81=11, 0x91=00) at chipset 01508086
0:100 0:000 , Install = Success
0:121 0:021 BiosVideoDriverBindingStart!
0:121 0:000 BiosVideoCheckForVbe
0:121 0:000 EdidOverride not found
0:133 0:012   Edid1+
0:133 0:000   found Detail Timing 1440x900
0:145 0:012   Edid0+
0:145 0:000   found Detail Timing 1440x900
0:145 0:000 ... already present
0:158 0:012     0 1280x1024 attr=9B - ok, edid+, working, highest, pref=0
0:158 0:000     1 1024x768 attr=9B - ok, edid+, 1024x768, working
0:158 0:000     2 640x480 attr=9B - ok, edid+, 640x480, working
0:158 0:000     3 800x600 attr=9B - ok, edid+, 800x600, working
0:170 0:011     4 1440x900 attr=9B - ok, edid+, working
0:170 0:000 BV new mode: 0 1280x1024
0:301 0:130   SetMode pref 0 (0) = Success
3:492 3:191
3:492 0:000 Now is 25.10.2014, 10:45:28 (GMT+2047)
3:492 0:000 Starting Clover rev 2953 on CLOVER EFI
3:492 0:000 SelfDevicePath=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000) @1F45D018
3:492 0:000 SelfDirPath = \EFI\CLOVER
3:492 0:000 Total Memory Slots Count = 4
3:492 0:000 Type 17 Index = 0
3:492 0:000 Ignoring insane frequency value 0MHz
3:492 0:000 SmbiosTable.Type17->Speed = 0
3:492 0:000 SmbiosTable.Type17->Size = 0
3:492 0:000 Type 17 Index = 1
3:492 0:000 SmbiosTable.Type17->Speed = 1333
3:492 0:000 SmbiosTable.Type17->Size = 4096
3:492 0:000 Type 17 Index = 2
3:492 0:000 Ignoring insane frequency value 0MHz
3:492 0:000 SmbiosTable.Type17->Speed = 0
3:492 0:000 SmbiosTable.Type17->Size = 0
3:492 0:000 Type 17 Index = 3
3:492 0:000 SmbiosTable.Type17->Speed = 1333
3:492 0:000 SmbiosTable.Type17->Size = 4096
3:492 0:000 Boot status=0
3:492 0:000 Clover revision: 2953 running on
3:492 0:000 ... with board DH67BL
3:492 0:000 Clover load options size = 0 bytes
3:507 0:014 Using OEM config.plist at path: EFI\CLOVER\config.plist
3:508 0:000 EFI\CLOVER\config.plist loaded: Success
3:521 0:013 Loading early settings
3:521 0:000 timeout set to 5
3:521 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
3:839 0:318 KextsToPatch: 1 requested
3:964 0:124 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
4:461 0:497 Default theme: metal
4:586 0:124 Hiding entries with string Windows
4:710 0:124 Hiding entries with string BOOTX64.EFI
4:835 0:124 LoadDrivers() start
5:025 0:190 Loading FSInject-64.efi
5:150 0:124 LoadDrivers() end
5:274 0:124 Console modes reported: 4, available modes:
5:398 0:124    Mode 1: 80x25
5:522 0:124    Mode 2: 80x50
5:988 0:465    Mode 3: 100x31
6:107 0:119    Mode 4: 160x53 (current mode)
6:227 0:119 SetScreenResolution: 1280x1024 - already set
6:466 0:239 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
6:585 0:119 new SelfHandle=1F45D018
6:705 0:119 CPU Vendor = 756E6547 Model=306A9
6:824 0:119 The CPU not supported turbo
6:944 0:119 BrandString = Intel® Core i5-3470 CPU @ 3.20GHz
7:063 0:119 MSR 0xE2 before patch 1E008407
7:183 0:119 MSR 0xE2 is locked, PM patches will be turned on
7:302 0:119 MSR 0xE4              00010414
7:422 0:119 MSR 0xCE              00081010_E0012000
7:541 0:119 non-usable FLEX_RATIO = 90000
7:661 0:119 corrected FLEX_RATIO = 80000
7:780 0:119 FSBFrequency=100MHz DMIvalue=100000kHz
7:899 0:119 Corrected FSBFrequency=100MHz
8:019 0:119 Vendor/Model/Stepping: 0x756E6547/0x3A/0x9
8:138 0:119 Family/ExtFamily: 0x6/0x0
8:258 0:119 MaxDiv/MinDiv: 32.0/16
8:377 0:119 Turbo: 34/35/36/36
8:861 0:484 Features: 0xBFEBFBFF
8:979 0:117 Threads: 4
9:096 0:117 Cores: 4
9:214 0:117 FSB: 100 MHz
9:332 0:117 CPU: 3200 MHz
9:511 0:178 TSC: 3200 MHz
9:630 0:119 PIS: 400 MHz
9:748 0:118 PCI (00|00:00.00) : 8086 0150 class=060000
9:866 0:117 PCI (00|00:02.00) : 8086 0152 class=030000
9:983 0:117 Found GFX model=Intel HD Graphics 4000
10:101 0:117 PCI (00|00:16.00) : 8086 1C3A class=078000
10:219 0:117 PCI (00|00:19.00) : 8086 1503 class=020000
10:336 0:117 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
10:454 0:117 PCI (00|00:1B.00) : 8086 1C20 class=040300
10:572 0:117 PCI (00|00:1C.00) : 8086 1C10 class=060400
10:689 0:117 PCI (00|01:00.00) : 1283 8892 class=060401
10:807 0:117 PCI (00|00:1C.03) : 8086 1C16 class=060400
10:925 0:117 PCI (00|03:00.00) : 1033 0194 class=0C0330
11:042 0:117 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
11:160 0:117 PCI (00|00:1F.00) : 8086 1C4A class=060100
11:328 0:168 PCI (00|00:1F.02) : 8086 2822 class=010400
11:786 0:458 PCI (00|00:1F.03) : 8086 1C22 class=0C0500
11:904 0:117 ScanSPD() start
12:022 0:117 SMBus CmdReg: 0x3
12:139 0:117 Scanning SMBus [8086:1C22], mmio: 0xFE524004, ioport: 0xF040, hostc: 0x1
12:277 0:137 SPD[1]: Type 11 @0x51
12:403 0:126 DDR speed 1333MHz
12:521 0:117 Slot: 1 Type 24 4096MB 1333MHz Vendor=Transcend Information PartNo=JM1333KLN-4G SerialNo=000000090803090A
12:659 0:137 SPD[3]: Type 11 @0x53
12:785 0:126 DDR speed 1333MHz
12:903 0:117 Slot: 3 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-020.A00LF SerialNo=080A030407020C0A
13:141 0:238 ScanSPD() end
13:244 0:103 Get Acpi Tables List from RSDT:
13:480 0:235   Found table: FACP DH67BL   len=132
13:598 0:117   Found table: APIC DH67BL   len=114
13:715 0:117   Found table: SSDT DH67BL   len=258
13:833 0:117   Found table: MCFG DH67BL   len=60
13:951 0:117   Found table: HPET DH67BL   len=56
14:068 0:117 Calibrated TSC frequency =3192747860 =3192MHz
14:186 0:117 Loading main settings
14:641 0:455 USB FixOwnership: true
14:759 0:117 Dropping 3 tables
14:877 0:117 Drop table 0 signature="DMAR" (52414D44)
15:840 0:963 set table: 52414D44,                0 to drop:
16:077 0:236 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
17:893 1:816 set table: 54445353,       6D50757043 to drop:
18:128 0:235 Drop table 2 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
20:128 1:999 set table: 54445353,   74734930757043 to drop:
20:363 0:235 Config set Fixes will override FixMask mask!
20:481 0:117     final mask=9FEEE955
20:598 0:117 Config set EnableC7: -
20:716 0:117 Config set EnableC6: +
20:834 0:117 Config set EnableC4: -
20:951 0:117 Config set EnableC2: -
21:069 0:117 ** Warning: ignoring RtVariable MountEFI set in config.plist: deprecated !
21:187 0:117 ** Warning: ignoring RtVariable LogLineCount set in config.plist: deprecated !
21:304 0:117 ** Warning: ignoring RtVariable LogEveryBoot set in config.plist: deprecated !
21:761 0:456 Error in Second part of settings0: Not Found
21:901 0:140 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist
22:020 0:119 smbios.plist not found, not overriding config.plist
22:138 0:117 found 15 volumes with blockIO
22:256 0:117   0. Volume:
22:373 0:117    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
22:503 0:129    Result of bootcode detection: bootable <null string> (<null string>)
22:620 0:117    USB volume
22:738 0:117    USB volume
22:856 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
22:974 0:117   1. Volume:
23:091 0:117    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x8D745D15,0x438,0x752BC8)
23:221 0:129    Result of bootcode detection: bootable Windows (vista,win)
23:338 0:117    USB volume
23:456 0:117    USB volume
23:574 0:117    Volume 'DISPOSABLE', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
24:078 0:504   2. Volume:
24:198 0:120    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)
24:327 0:129    Result of bootcode detection: bootable Clover (clover)
24:445 0:117    USB volume
24:563 0:117    USB volume
24:680 0:117    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
24:798 0:117   3. Volume:
24:915 0:117    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
25:045 0:129    Result of bootcode detection: bootable Clover (clover)
25:162 0:117    USB volume
25:280 0:117    USB volume
25:397 0:117    Volume 'CTF', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
25:515 0:117    This is SelfVolume !!
25:633 0:117   4. Volume:
25:750 0:117    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(2,MBR,0x00000000,0x40800,0x40000)
25:880 0:130    Result of bootcode detection: bootable <null string> (<null string>)
25:997 0:117    USB volume
26:115 0:117    USB volume
26:572 0:456    Volume 'CTH', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
26:689 0:117   5. Volume:
26:807 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
26:942 0:134    Result of bootcode detection: bootable <null string> (<null string>)
27:060 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
27:177 0:117   6. Volume:
27:295 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
27:415 0:120    Result of bootcode detection: bootable <null string> (<null string>)
27:533 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
27:651 0:117   7. Volume:
27:768 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
27:886 0:117    found optical drive
28:003 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
28:121 0:117   8. Volume:
28:260 0:139    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xC46DD96E,0x3F,0xEA68685)
28:382 0:122    Result of bootcode detection: bootable Windows (vista,win)
28:838 0:455    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
28:956 0:117   9. Volume:
29:074 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xC46DD96E,0xEA686C4,0x142B3987)
29:214 0:140    Result of bootcode detection: bootable Windows (vista,win)
29:331 0:117    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
29:449 0:117 10. Volume:
29:567 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xC46DD96E,0x25429800,0x52B0)
29:705 0:138    Result of bootcode detection: bootable <null string> (<null string>)
29:823 0:117    Volume 'Boot', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
29:941 0:117 11. Volume:
30:059 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,CE5DBF9E-29BB-411F-9BF7-57DCD3227557,0x22,0x40000)
30:179 0:120    Volume 'Legacy HD1', LegacyOS '', LegacyIcon(s) 'legacy', GUID = CE5DBF9E-29BB-411F-9BF7-57DCD3227557
30:688 0:509 12. Volume:
30:806 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,CBFE1605-F670-4F77-8034-08BA86754D0C,0x40800,0xC738000)
30:926 0:119    Result of bootcode detection: bootable Windows (vista,win)
31:043 0:117    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = CBFE1605-F670-4F77-8034-08BA86754D0C
31:161 0:117 13. Volume:
31:279 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)
31:399 0:119    Volume 'Yosemite', LegacyOS '', LegacyIcon(s) '<null string>', GUID = B7CBEE20-7435-4811-BDE3-9EE4815BA73D
31:516 0:117 14. Volume:
31:634 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(4,GPT,17CEA2D1-E7D7-4E07-876C-F82E902E9AF7,0x25800000,0x14B86000)
31:754 0:120    Result of bootcode detection: bootable Windows (vista,win)
31:872 0:117    Volume 'Legacy HD4', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 17CEA2D1-E7D7-4E07-876C-F82E902E9AF7
32:327 0:455 Searching volumes for latest nvram.plist ...
32:563 0:235    1. Volume 'DISPOSABLE', GUID = <null guid> - not GPT - no nvram.plist - skipping!
32:916 0:352    3. Volume 'CTF', GUID = <null guid> - not GPT - no nvram.plist - skipping!
33:269 0:352    4. Volume 'CTH', GUID = <null guid> - not GPT - no nvram.plist - skipping!
33:622 0:352   10. Volume 'Boot', GUID = <null guid> - not GPT - no nvram.plist - skipping!
33:975 0:353   13. Volume 'Yosemite', GUID = B7CBEE20-7435-4811-BDE3-9EE4815BA73D - no nvram.plist - skipping!
34:210 0:235   nvram.plist not found!
34:328 0:117 PutNvramPlistToRtVars: nvram.plist not found
34:446 0:117 Invalidating BuiltinIcons...
34:563 0:117 no themes available, using embedded
34:703 0:139 Font 0 prepared WxH=7x12 CharWidth=7
34:822 0:119 Choosing theme <null string>
34:940 0:117 Custom entries start
35:057 0:117 Custom entries finish
35:175 0:117 Scanning loaders...
35:293 0:117   0: 'Whole Disc Boot' no file system
35:867 0:573   1: 'DISPOSABLE'
36:102 0:235   2: 'Whole Disc Boot' no file system
36:337 0:235   3: 'CTF'
36:573 0:235    hiding entry: \EFI\BOOT\BOOTX64.efi
36:690 0:117   4: 'CTH'
36:991 0:300    hiding entry: \EFI\BOOT\BOOTX64.efi
37:108 0:117   5: 'Whole Disc Boot' no file system
37:343 0:235   6: 'Whole Disc Boot' no file system
37:578 0:235   7: 'Whole Disc Boot' no file system
37:813 0:235   8: 'Legacy HD1' no file system
38:048 0:235   9: 'Legacy HD2' no file system
38:283 0:235 10: 'Boot'
38:520 0:236 11: 'Legacy HD1' no file system
38:755 0:235 12: 'Legacy HD2' no file system
38:991 0:235 13: 'Yosemite'
39:301 0:310 Check if volume Is Hibernated:
39:419 0:117 Check sleep image 'by signature':
39:599 0:180 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
39:717 0:117 SleepImage name from pref: ImageVolume = 'Yosemite', ImageName = '\private\var\vm\sleepimage'
39:864 0:147   sleepimage not found -> Not Found
40:321 0:456   hibernated: no - sign
40:477 0:156      Loader entry created for 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)\System\Library\CoreServices\boot.efi'
40:598 0:121 14: 'Legacy HD4' no file system
40:833 0:235 Custom legacy start
40:951 0:117 Custom legacy end
41:069 0:117 Scanning legacy ...
41:208 0:139   0: 'Whole Disc Boot' (legacy) not legacy
41:445 0:236   1: 'DISPOSABLE' (vista,win) add legacy
41:683 0:237   added 'Boot Windows from DISPOSABLE' OSType=2 Icon=vista,win
41:801 0:117   2: 'Whole Disc Boot' (clover) hidden
42:036 0:235   3: 'CTF' (clover) add legacy
42:272 0:235   added 'Boot Clover from CTF' OSType=3 Icon=clover
42:389 0:117   4: 'CTH' (<null string>) not legacy
42:625 0:235   5: 'Whole Disc Boot' (legacy) not legacy
42:860 0:235   6: 'Whole Disc Boot' (legacy) not legacy
43:095 0:235   7: 'Whole Disc Boot' (legacy) not legacy
43:380 0:284   8: 'Legacy HD1' (vista,win) add legacy
43:958 0:578   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
44:076 0:117   9: 'Legacy HD2' (vista,win) add legacy
44:311 0:235   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
44:429 0:117 10: 'Boot' (<null string>) not legacy
44:664 0:235 11: 'Legacy HD1' (legacy) not legacy
44:900 0:235 12: 'Legacy HD2' (vista,win) add legacy
45:135 0:235   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
45:253 0:117 13: 'Yosemite' (<null string>) not legacy
45:488 0:235 14: 'Legacy HD4' (vista,win) add legacy
45:723 0:235   added 'Boot Windows from Legacy HD4' OSType=2 Icon=vista,win
45:841 0:117 Custom tool start
45:959 0:117 Custom tool end
46:090 0:131 found tool \EFI\CLOVER\tools\Shell64.efi
46:209 0:118 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
46:444 0:235 EfiBootVolume not found
46:562 0:117 Default boot entry not found
46:680 0:117 DefaultIndex=-1 and MainMenu.EntryCount=12
47:250 0:569 Found Mouse device:
47:345 0:095 GUI ready
60:244 12:899 Loading Shell64.efi
125:520 65:276 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
125:606 0:085 new SelfHandle=1F45D018
125:692 0:085 found 15 volumes with blockIO
125:778 0:085   0. Volume:
125:863 0:085    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
125:961 0:097    Result of bootcode detection: bootable <null string> (<null string>)
126:046 0:085    USB volume
126:132 0:085    USB volume
126:218 0:085    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
126:303 0:085    This is SelfVolume !!
126:389 0:085   1. Volume:
126:475 0:085    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x8D745D15,0x438,0x752BC8)
126:572 0:097    Result of bootcode detection: bootable Windows (vista,win)
126:658 0:085    USB volume
126:743 0:085    USB volume
126:829 0:085    Volume 'DISPOSABLE', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
127:272 0:443   2. Volume:
127:390 0:117    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)
127:519 0:129    Result of bootcode detection: bootable Clover (clover)
127:637 0:117    USB volume
127:754 0:117    USB volume
127:872 0:117    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
127:990 0:117   3. Volume:
128:107 0:117    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
128:236 0:129    Result of bootcode detection: bootable Clover (clover)
128:354 0:117    USB volume
128:472 0:117    USB volume
128:589 0:117    Volume 'CTF', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
128:707 0:117    This is SelfVolume !!
128:825 0:117   4. Volume:
128:942 0:117    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(2,MBR,0x00000000,0x40800,0x40000)
129:072 0:129    Result of bootcode detection: bootable <null string> (<null string>)
129:528 0:456    USB volume
129:646 0:117    USB volume
129:763 0:117    Volume 'CTH', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
129:881 0:117   5. Volume:
129:998 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
130:131 0:132    Result of bootcode detection: bootable <null string> (<null string>)
130:249 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
130:367 0:117   6. Volume:
130:484 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
130:604 0:120    Result of bootcode detection: bootable <null string> (<null string>)
130:722 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
130:840 0:117   7. Volume:
130:957 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xC46DD96E,0x3F,0xEA68685)
131:077 0:120    Result of bootcode detection: bootable Windows (vista,win)
131:195 0:117    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
131:676 0:481   8. Volume:
131:794 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xC46DD96E,0xEA686C4,0x142B3987)
131:928 0:134    Result of bootcode detection: bootable Windows (vista,win)
132:046 0:117    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
132:163 0:117   9. Volume:
132:281 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xC46DD96E,0x25429800,0x52B0)
132:420 0:139    Result of bootcode detection: bootable <null string> (<null string>)
132:538 0:117    Volume 'Boot', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
132:655 0:117 10. Volume:
132:773 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,CE5DBF9E-29BB-411F-9BF7-57DCD3227557,0x22,0x40000)
132:893 0:120    Volume 'Legacy HD1', LegacyOS '', LegacyIcon(s) 'legacy', GUID = CE5DBF9E-29BB-411F-9BF7-57DCD3227557
133:011 0:117 11. Volume:
133:128 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,CBFE1605-F670-4F77-8034-08BA86754D0C,0x40800,0xC738000)
133:659 0:530    Result of bootcode detection: bootable Windows (vista,win)
133:777 0:117    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = CBFE1605-F670-4F77-8034-08BA86754D0C
133:895 0:117 12. Volume:
134:012 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)
134:149 0:137    Volume 'Yosemite', LegacyOS '', LegacyIcon(s) '<null string>', GUID = B7CBEE20-7435-4811-BDE3-9EE4815BA73D
134:267 0:117 13. Volume:
134:385 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(4,GPT,17CEA2D1-E7D7-4E07-876C-F82E902E9AF7,0x25800000,0x14B86000)
134:515 0:130    Result of bootcode detection: bootable Windows (vista,win)
134:632 0:117    Volume 'Legacy HD4', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 17CEA2D1-E7D7-4E07-876C-F82E902E9AF7
134:750 0:117 14. Volume:
134:868 0:117    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
135:324 0:455    found optical drive
135:441 0:117    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
135:559 0:117 Choosing theme <null string>
135:677 0:117 Custom entries start
135:795 0:117 Custom entries finish
135:912 0:117 Scanning loaders...
136:030 0:117   0: 'Whole Disc Boot' no file system
136:265 0:235   1: 'DISPOSABLE'
136:501 0:235   2: 'Whole Disc Boot' no file system
136:736 0:235   3: 'CTF'
136:972 0:235    hiding entry: \EFI\BOOT\BOOTX64.efi
137:089 0:117   4: 'CTH'
137:327 0:237    hiding entry: \EFI\BOOT\BOOTX64.efi
137:444 0:117   5: 'Whole Disc Boot' no file system
137:702 0:257   6: 'Whole Disc Boot' no file system
137:940 0:237   7: 'Legacy HD1' no file system
138:175 0:235   8: 'Legacy HD2' no file system
138:410 0:235   9: 'Boot'
138:647 0:236 10: 'Legacy HD1' no file system
138:882 0:235 11: 'Legacy HD2' no file system
139:118 0:235 12: 'Yosemite'
139:355 0:237 Check if volume Is Hibernated:
139:867 0:512 Check sleep image 'by signature':
139:986 0:118 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
140:103 0:117 SleepImage name from pref: ImageVolume = 'Yosemite', ImageName = '\private\var\vm\sleepimage'
140:221 0:118   sleepimage not found -> Not Found
140:339 0:117   hibernated: no - sign
140:458 0:118      Loader entry created for 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)\System\Library\CoreServices\boot.efi'
140:579 0:121 13: 'Legacy HD4' no file system
140:814 0:235 14: 'Whole Disc Boot' no file system
141:049 0:235 Custom legacy start
141:167 0:117 Custom legacy end
141:285 0:117 Scanning legacy ...
141:402 0:117   0: 'Whole Disc Boot' (legacy) not legacy
141:638 0:235   1: 'DISPOSABLE' (vista,win) add legacy
141:873 0:235   added 'Boot Windows from DISPOSABLE' OSType=2 Icon=vista,win
141:991 0:117   2: 'Whole Disc Boot' (clover) hidden
142:564 0:573   3: 'CTF' (clover) add legacy
142:800 0:235   added 'Boot Clover from CTF' OSType=3 Icon=clover
142:917 0:117   4: 'CTH' (<null string>) not legacy
143:153 0:235   5: 'Whole Disc Boot' (legacy) not legacy
143:388 0:235   6: 'Whole Disc Boot' (legacy) not legacy
143:623 0:235   7: 'Legacy HD1' (vista,win) add legacy
143:880 0:257   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
143:999 0:118   8: 'Legacy HD2' (vista,win) add legacy
144:236 0:237   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
144:353 0:117   9: 'Boot' (<null string>) not legacy
144:588 0:235 10: 'Legacy HD1' (legacy) not legacy
144:824 0:235 11: 'Legacy HD2' (vista,win) add legacy
145:059 0:235   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
145:177 0:117 12: 'Yosemite' (<null string>) not legacy
145:412 0:235 13: 'Legacy HD4' (vista,win) add legacy
145:647 0:235   added 'Boot Windows from Legacy HD4' OSType=2 Icon=vista,win
146:161 0:513 14: 'Whole Disc Boot' (legacy) not legacy
146:396 0:235 Custom tool start
146:514 0:117 Custom tool end
146:631 0:117 found tool \EFI\CLOVER\tools\Shell64.efi
146:749 0:117 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
146:984 0:235 EfiBootVolume not found
147:102 0:117 Default boot entry not found
147:220 0:117 DefaultIndex=-1 and MainMenu.EntryCount=12
147:337 0:117 SetScreenResolution: 1280x1024 - already set
151:429 4:091 adding to menu HPET (54455048) DH67BL   (20204C4237364844) L=56(0x38)
151:517 0:088 adding to menu MCFG (4746434D) DH67BL   (20204C4237364844) L=60(0x3C)
151:603 0:085 adding to menu SSDT (54445353) DH67BL   (20204C4237364844) L=258(0x102)
151:688 0:085 adding to menu APIC (43495041) DH67BL   (20204C4237364844) L=114(0x72)
151:774 0:085 adding to menu FACP (50434146) DH67BL   (20204C4237364844) L=132(0x84)
158:109 6:334 BootOption of the entry is empty
158:195 0:085 StartLoader() start
158:280 0:085 Finally: Bus=99773kHz CPU=3192MHz
158:670 0:389 Kernel and Kext Patches:
158:787 0:117     Allowed: y
158:905 0:117     Debug: n
159:023 0:117     KernelCpu: n
159:140 0:117     Lapic: n
159:258 0:117     AICPUPM: y
159:376 0:117     AppleRTC: y
159:493 0:117     KernelPm: n
159:611 0:117     FakeCPUID: 0x0
159:728 0:117     ATIController: <null string>
159:846 0:117     ATIDataLength: 0
159:987 0:141     0 Kexts to load
160:106 0:119     1 Kexts to patch
160:224 0:117        KextPatch[0]: 8 bytes, AppleAHCIPort
160:342 0:117 Loading boot.efi
160:599 0:257 insert table 9 for dev 19:0
160:686 0:086 Trusting SMBIOS...
160:819 0:132 Channels: 2
160:952 0:132 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
164:452 3:500 SMBIOS Type 17 Index = 0 => 0 0:
164:585 0:132 BANK0 DIMM0 EMPTY
164:718 0:132 SMBIOS Type 17 Index = 1 => 2 2:
164:850 0:132 BANK1 DIMM0 EMPTY
164:983 0:132   partNum=JM1333KLN-4G
165:115 0:132 SMBIOS Type 17 Index = 2 => 1 1:
165:248 0:132 BANK0 DIMM1 1333MHz 4096MB
165:726 0:477 mTotalSystemMemory = 4096
165:843 0:117   partNum=99U5471-020.A00LF
165:961 0:117 SMBIOS Type 17 Index = 3 => 3 3:
166:079 0:117 BANK1 DIMM1 1333MHz 4096MB
166:196 0:117 mTotalSystemMemory = 8192
166:314 0:117 NumberOfMemoryDevices = 4
166:432 0:117 Type20[0]->End = 0x3FFFFF, Type17[2] = 0x1000
166:549 0:117 Type20[1]->End = 0x7FFFFF, Type17[3] = 0x3000
166:690 0:140 RSDT 0xDA8A4028
166:809 0:119 FADT from RSDT: 0xDA8A40B8
166:927 0:117 XSDT 0xDA8A4068
167:045 0:117 FADT from XSDT: 0xDA8AB430
167:163 0:117 Xsdt reallocation done
167:280 0:117 old FADT length=F4
167:398 0:117 Found OperationRegion(NBNV, SystemMemory, DABDDC18, ...)
167:516 0:117 Found OperationRegion(SSDT, SystemMemory, DABDE918, ...)
167:633 0:117 Found OperationRegion(CSDT, SystemMemory, DABDDD98, ...)
167:751 0:117 Found OperationRegion(HCNT, SystemMemory, FED1F404, ...)
167:869 0:117 Found OperationRegion(IGDM, SystemMemory, 0, ...)
168:001 0:132 DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
168:458 0:457 page is allocated, write DSDT into
168:576 0:117 Apply DsdtFixMask=0x9FEEE955 new way
168:693 0:117     drop _DSM mask=0xFFFF
168:860 0:166 ========= Auto patch DSDT Starting ========
168:979 0:119 VideoCard devID=0x1528086
169:096 0:117 DisplayADR1[0] = 0x20000, DisplayADR2[0] = 0xFFFE
169:214 0:117 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
169:332 0:117 USBADR[1] = 0x1C0003 and PCIe = 0x0
169:449 0:117 USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
169:567 0:117
within the score:
169:685 0:117 Found PCIROOTUID = 0
169:802 0:117 Start RTC Fix
169:920 0:117 found RTC had IRQNoFlag will move -3 bytes
170:037 0:117 ...len=6BE4
170:155 0:117 new size written to 266A shift=0 len=6BE4
170:273 0:117 len after correct outers 6BE4
170:390 0:117 Start TMR Fix
170:508 0:117 Start PIC Fix
170:626 0:117 PIC size=2B at 25C6
170:743 0:117 found PIC had IRQNoFlag will move -3 bytes
171:205 0:462 Fix Device PIC size -3
171:323 0:117 Start HPET Fix
171:441 0:117 Start NetWork Fix
171:559 0:117 NetworkADR1=190000 NetworkADR2=FFFE
171:677 0:117 network DSM created, size=80
171:794 0:117 patch HDEF in DSDT
171:912 0:117 Start HDA Fix
172:030 0:117 found HDA device NAME(_ADR,0x001B0000) And Name is HDEF
172:147 0:117 NewName HDEF already present, renaming impossibble
172:265 0:117 _DSM in HDA already exists, dropped
172:383 0:117 device (IMEI) found at 43A9, don't add!
172:501 0:117 Start _WAK Return Fix
172:618 0:117 _WAK Method find return data, don't need to patch.
172:736 0:117 return len=6C2A
172:854 0:117   deleting device CRT_
172:995 0:141   deleting device DVI_
173:114 0:119   deleting device SPKR
173:231 0:117   deleting device ECP_
173:349 0:117   deleting device LPT_
173:467 0:117   deleting device FDC0
173:585 0:117   deleting device ECP1
173:703 0:117   deleting device LPT1
173:821 0:117 Name APSS present at 0x54F0, renaming to OPSS
174:277 0:456 Start PNLF Fix
174:395 0:117 found PWRB at 4FB0
174:513 0:117 Start _S3D Fix
174:630 0:117 OperationRegion (NBNV...) corrected to addr=0xDABDDC18
174:748 0:117 OperationRegion (SSDT...) corrected to addr=0xDABDE918
174:866 0:117 OperationRegion (CSDT...) corrected to addr=0xDABDDD98
174:983 0:117 OperationRegion (IGDM...) corrected to addr=0x0
175:150 0:166 Start ADP1 fix
175:269 0:119 no device(AC) exists
175:387 0:117 Start SHUTDOWN Fix len=6C35
175:504 0:117 ========= Auto patch DSDT Finished ========
175:622 0:117 Patch table: SSDT DH67BL
175:739 0:117   SSDT len = 0x102
175:857 0:117 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
175:974 0:117   Xsdt has tables count=5
176:092 0:117 corrected XSDT length=76
176:210 0:118   CPUBase=0 and ApicCPUBase=0 ApicCPUNum=4
176:328 0:117 Maximum control=0x20
176:445 0:117 P-States: min 0x7, max 0x20
176:563 0:117 SSDT with CPU P-States generated successfully
176:681 0:117 SSDT with CPU C-States generated successfully
177:143 0:462 EdidDiscovered size=128
177:261 0:117 Intel Intel HD Graphics 4000 [8086:0152] :: PcieRoot(0x0)\Pci(0x2,0x0)
177:378 0:117 Intel GFX revision =0x9
177:496 0:117 USB Controller [8086:1C2D] :: PcieRoot(0x0)\Pci(0x1A,0x0)
177:614 0:117 USB Controller [1033:0194] :: PcieRoot(0x0)\Pci(0x1C,0x3)\Pci(0x0,0x0)
177:731 0:117 USB Controller [8086:1C26] :: PcieRoot(0x0)\Pci(0x1D,0x0)
177:849 0:117 stringlength = 2410
177:967 0:117 CurrentMode: Width=1280 Height=1024
178:084 0:117 FSInjection: using kexts path: 'EFI\CLOVER\kexts\Other'
178:438 0:353 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
178:556 0:117 RemoveStartupDiskVolume:
178:673 0:117    * efi-boot-device = Not Found
178:791 0:117    * efi-boot-device-data = Not Found
178:909 0:117    * BootCampHD = Not Found
179:026 0:117 Custom boot is disabled
179:144 0:117 Closing log
0:100 0:100 MemLog inited, TSC freq: 3192744580
0:100 0:000 LegacyRegion2: Chipset/proc: 0x01508086
0:100 0:000   Next Generation Core processors (PAM 0x80-0x86)
0:100 0:000   Test PAM1=(0x41=90, 0x5a=90, 0x81=11, 0x91=00) at chipset 01508086
0:100 0:000 , Install = Success
0:121 0:021 BiosVideoDriverBindingStart!
0:121 0:000 BiosVideoCheckForVbe
0:121 0:000 EdidOverride not found
0:133 0:012   Edid1+
0:133 0:000   found Detail Timing 1440x900
0:145 0:012   Edid0+
0:145 0:000   found Detail Timing 1440x900
0:145 0:000 ... already present
0:158 0:012     0 1280x1024 attr=9B - ok, edid+, working, highest, pref=0
0:158 0:000     1 1024x768 attr=9B - ok, edid+, 1024x768, working
0:158 0:000     2 640x480 attr=9B - ok, edid+, 640x480, working
0:158 0:000     3 800x600 attr=9B - ok, edid+, 800x600, working
0:170 0:011     4 1440x900 attr=9B - ok, edid+, working
0:170 0:000 BV new mode: 0 1280x1024
0:300 0:130   SetMode pref 0 (0) = Success
3:501 3:200
3:501 0:000 Now is 25.10.2014, 11:0:54 (GMT+2047)
3:501 0:000 Starting Clover rev 2953 on CLOVER EFI
3:501 0:000 SelfDevicePath=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000) @1F45D018
3:501 0:000 SelfDirPath = \EFI\CLOVER
3:501 0:000 Total Memory Slots Count = 4
3:501 0:000 Type 17 Index = 0
3:501 0:000 Ignoring insane frequency value 0MHz
3:501 0:000 SmbiosTable.Type17->Speed = 0
3:501 0:000 SmbiosTable.Type17->Size = 0
3:501 0:000 Type 17 Index = 1
3:501 0:000 SmbiosTable.Type17->Speed = 1333
3:501 0:000 SmbiosTable.Type17->Size = 4096
3:501 0:000 Type 17 Index = 2
3:501 0:000 Ignoring insane frequency value 0MHz
3:501 0:000 SmbiosTable.Type17->Speed = 0
3:501 0:000 SmbiosTable.Type17->Size = 0
3:501 0:000 Type 17 Index = 3
3:501 0:000 SmbiosTable.Type17->Speed = 1333
3:501 0:000 SmbiosTable.Type17->Size = 4096
3:501 0:000 Boot status=0
3:501 0:000 Clover revision: 2953 running on
3:501 0:000 ... with board DH67BL
3:501 0:000 Clover load options size = 0 bytes
3:514 0:013 Using OEM config.plist at path: EFI\CLOVER\config.plist
3:515 0:000 EFI\CLOVER\config.plist loaded: Success
3:528 0:013 Loading early settings
3:528 0:000 timeout set to 5
3:528 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
3:836 0:307 KextsToPatch: 1 requested
3:957 0:121 KextToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
4:441 0:484 Default theme: metal
4:562 0:121 Hiding entries with string Windows
4:683 0:121 Hiding entries with string BOOTX64.EFI
4:804 0:121 LoadDrivers() start
4:939 0:134 Loading FSInject-64.efi
5:060 0:121 LoadDrivers() end
5:181 0:120 Console modes reported: 4, available modes:
5:302 0:120    Mode 1: 80x25
5:423 0:121    Mode 2: 80x50
5:544 0:121    Mode 3: 100x31
5:665 0:121    Mode 4: 160x53 (current mode)
5:786 0:121 SetScreenResolution: 1280x1024 - already set
6:028 0:242 reinit: self device path=PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
6:517 0:488 new SelfHandle=1F45D018
6:686 0:168 CPU Vendor = 756E6547 Model=306A9
6:924 0:238 The CPU not supported turbo
7:151 0:227 BrandString = Intel® Core i5-3470 CPU @ 3.20GHz
7:379 0:227 MSR 0xE2 before patch 1E008407
7:606 0:227 MSR 0xE2 is locked, PM patches will be turned on
7:833 0:227 MSR 0xE4              00010414
8:060 0:227 MSR 0xCE              00081010_E0012000
8:287 0:227 non-usable FLEX_RATIO = 90000
8:514 0:227 corrected FLEX_RATIO = 80000
8:741 0:227 FSBFrequency=100MHz DMIvalue=100000kHz
8:968 0:226 Corrected FSBFrequency=100MHz
9:195 0:226 Vendor/Model/Stepping: 0x756E6547/0x3A/0x9
9:422 0:227 Family/ExtFamily: 0x6/0x0
9:649 0:227 MaxDiv/MinDiv: 32.0/16
9:876 0:227 Turbo: 34/35/36/36
10:104 0:227 Features: 0xBFEBFBFF
10:331 0:226 Threads: 4
10:558 0:226 Cores: 4
10:785 0:227 FSB: 100 MHz
11:012 0:226 CPU: 3200 MHz
11:239 0:227 TSC: 3200 MHz
11:466 0:227 PIS: 400 MHz
11:693 0:227 PCI (00|00:00.00) : 8086 0150 class=060000
12:260 0:566 PCI (00|00:02.00) : 8086 0152 class=030000
12:487 0:227 Found GFX model=Intel HD Graphics 4000
12:714 0:227 PCI (00|00:16.00) : 8086 1C3A class=078000
12:941 0:227 PCI (00|00:19.00) : 8086 1503 class=020000
13:168 0:227 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
13:395 0:227 PCI (00|00:1B.00) : 8086 1C20 class=040300
13:622 0:227 PCI (00|00:1C.00) : 8086 1C10 class=060400
13:849 0:227 PCI (00|01:00.00) : 1283 8892 class=060401
14:076 0:227 PCI (00|00:1C.03) : 8086 1C16 class=060400
14:303 0:227 PCI (00|03:00.00) : 1033 0194 class=0C0330
14:530 0:227 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
14:758 0:227 PCI (00|00:1F.00) : 8086 1C4A class=060100
14:985 0:226 PCI (00|00:1F.02) : 8086 2822 class=010400
15:212 0:227 PCI (00|00:1F.03) : 8086 1C22 class=0C0500
15:439 0:226 ScanSPD() start
15:666 0:227 SMBus CmdReg: 0x3
15:893 0:227 Scanning SMBus [8086:1C22], mmio: 0xFE524004, ioport: 0xF040, hostc: 0x1
16:140 0:247 SPD[1]: Type 11 @0x51
16:715 0:574 DDR speed 1333MHz
16:942 0:227 Slot: 1 Type 24 4096MB 1333MHz Vendor=Transcend Information PartNo=JM1333KLN-4G SerialNo=000000090803090A
17:214 0:271 SPD[3]: Type 11 @0x53
17:449 0:235 DDR speed 1333MHz
17:676 0:227 Slot: 3 Type 24 4096MB 1333MHz Vendor=Kingston PartNo=99U5471-020.A00LF SerialNo=080A030407020C0A
18:024 0:347 ScanSPD() end
18:231 0:206 Get Acpi Tables List from RSDT:
18:685 0:454   Found table: FACP DH67BL   len=132
18:912 0:227   Found table: APIC DH67BL   len=114
19:139 0:227   Found table: SSDT DH67BL   len=258
19:367 0:227   Found table: MCFG DH67BL   len=60
19:594 0:227   Found table: HPET DH67BL   len=56
19:821 0:227 Calibrated TSC frequency =3192744580 =3192MHz
20:048 0:227 Loading main settings
20:275 0:227 USB FixOwnership: true
20:502 0:227 Dropping 3 tables
20:729 0:226 Drop table 0 signature="DMAR" (52414D44)
22:545 1:816 set table: 52414D44,                0 to drop:
23:000 0:454 Drop table 1 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
26:746 3:746 set table: 54445353,       6D50757043 to drop:
27:200 0:454 Drop table 2 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
31:086 3:885 set table: 54445353,   74734930757043 to drop:
31:540 0:454 Config set Fixes will override FixMask mask!
31:767 0:227     final mask=9FEEE955
31:994 0:227 Config set EnableC7: -
32:221 0:227 Config set EnableC6: +
32:448 0:227 Config set EnableC4: -
32:675 0:226 Config set EnableC2: -
32:902 0:226 ** Warning: ignoring RtVariable MountEFI set in config.plist: deprecated !
33:129 0:227 ** Warning: ignoring RtVariable LogLineCount set in config.plist: deprecated !
33:356 0:226 ** Warning: ignoring RtVariable LogEveryBoot set in config.plist: deprecated !
33:583 0:227 Error in Second part of settings0: Not Found
33:811 0:227 Oem smbios.plist not found at path: EFI\CLOVER\smbios.plist
34:038 0:227 smbios.plist not found, not overriding config.plist
34:265 0:227 found 15 volumes with blockIO
34:832 0:567   0. Volume:
35:059 0:227    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)
35:298 0:238    Result of bootcode detection: bootable <null string> (<null string>)
35:525 0:227    USB volume
35:752 0:227    USB volume
35:979 0:227    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
36:206 0:226   1. Volume:
36:433 0:227    PcieRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x1,0x0)\HD(1,MBR,0x8D745D15,0x438,0x752BC8)
36:672 0:238    Result of bootcode detection: bootable Windows (vista,win)
36:899 0:227    USB volume
37:126 0:227    USB volume
37:353 0:227    Volume 'DISPOSABLE', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
37:580 0:227   2. Volume:
37:807 0:226    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)
38:067 0:260    Result of bootcode detection: bootable Clover (clover)
38:295 0:227    USB volume
38:522 0:227    USB volume
38:749 0:227    Volume 'Whole Disc Boot', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
39:316 0:567   3. Volume:
39:543 0:227    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(1,MBR,0x00000000,0x800,0x40000)
39:782 0:238    Result of bootcode detection: bootable Clover (clover)
40:009 0:227    USB volume
40:236 0:227    USB volume
40:463 0:226    Volume 'CTF', LegacyOS 'Clover', LegacyIcon(s) 'clover', GUID = <null guid>
40:690 0:227    This is SelfVolume !!
40:917 0:227   4. Volume:
41:144 0:227    PcieRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\HD(2,MBR,0x00000000,0x40800,0x40000)
41:383 0:238    Result of bootcode detection: bootable <null string> (<null string>)
41:610 0:227    USB volume
41:837 0:226    USB volume
42:064 0:227    Volume 'CTH', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
42:291 0:227   5. Volume:
42:518 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
42:766 0:247    Result of bootcode detection: bootable <null string> (<null string>)
43:332 0:566    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
43:559 0:227   6. Volume:
43:786 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
44:016 0:229    Result of bootcode detection: bootable <null string> (<null string>)
44:243 0:227    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
44:470 0:227   7. Volume:
44:697 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
44:924 0:227    found optical drive
45:151 0:226    Volume 'Whole Disc Boot', LegacyOS '', LegacyIcon(s) 'legacy', GUID = <null guid>
45:378 0:227   8. Volume:
45:605 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0xC46DD96E,0x3F,0xEA68685)
45:849 0:243    Result of bootcode detection: bootable Windows (vista,win)
46:076 0:227    Volume 'Legacy HD1', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
46:303 0:227   9. Volume:
46:530 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0xC46DD96E,0xEA686C4,0x142B3987)
47:146 0:615    Result of bootcode detection: bootable Windows (vista,win)
47:367 0:221    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = <null guid>
47:594 0:227 10. Volume:
47:821 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,MBR,0xC46DD96E,0x25429800,0x52B0)
48:071 0:250    Result of bootcode detection: bootable <null string> (<null string>)
48:298 0:227    Volume 'Boot', LegacyOS '', LegacyIcon(s) '<null string>', GUID = <null guid>
48:549 0:251 11. Volume:
48:776 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,CE5DBF9E-29BB-411F-9BF7-57DCD3227557,0x22,0x40000)
49:006 0:229    Volume 'Legacy HD1', LegacyOS '', LegacyIcon(s) 'legacy', GUID = CE5DBF9E-29BB-411F-9BF7-57DCD3227557
49:233 0:227 12. Volume:
49:460 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,CBFE1605-F670-4F77-8034-08BA86754D0C,0x40800,0xC738000)
49:690 0:229    Result of bootcode detection: bootable Windows (vista,win)
50:257 0:567    Volume 'Legacy HD2', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = CBFE1605-F670-4F77-8034-08BA86754D0C
50:484 0:227 13. Volume:
50:711 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)
50:941 0:229    Volume 'Yosemite', LegacyOS '', LegacyIcon(s) '<null string>', GUID = B7CBEE20-7435-4811-BDE3-9EE4815BA73D
51:168 0:227 14. Volume:
51:395 0:227    PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(4,GPT,17CEA2D1-E7D7-4E07-876C-F82E902E9AF7,0x25800000,0x14B86000)
51:625 0:229    Result of bootcode detection: bootable Windows (vista,win)
51:852 0:227    Volume 'Legacy HD4', LegacyOS 'Windows', LegacyIcon(s) 'vista,win', GUID = 17CEA2D1-E7D7-4E07-876C-F82E902E9AF7
52:079 0:227 Searching volumes for latest nvram.plist ...
52:533 0:454    1. Volume 'DISPOSABLE', GUID = <null guid> - not GPT - no nvram.plist - skipping!
53:214 0:681    3. Volume 'CTF', GUID = <null guid> - not GPT - no nvram.plist - skipping!
54:235 1:020    4. Volume 'CTH', GUID = <null guid> - not GPT - no nvram.plist - skipping!
54:916 0:681   10. Volume 'Boot', GUID = <null guid> - not GPT - no nvram.plist - skipping!
55:597 0:681   13. Volume 'Yosemite', GUID = B7CBEE20-7435-4811-BDE3-9EE4815BA73D - no nvram.plist - skipping!
56:051 0:454   nvram.plist not found!
56:278 0:226 PutNvramPlistToRtVars: nvram.plist not found
56:505 0:227 Invalidating BuiltinIcons...
56:733 0:227 no themes available, using embedded
56:960 0:227 Font 0 prepared WxH=7x12 CharWidth=7
57:187 0:227 Choosing theme <null string>
57:414 0:227 Custom entries start
57:641 0:227 Custom entries finish
57:868 0:227 Scanning loaders...
58:095 0:227   0: 'Whole Disc Boot' no file system
58:549 0:454   1: 'DISPOSABLE'
59:028 0:478   2: 'Whole Disc Boot' no file system
59:482 0:454   3: 'CTF'
59:937 0:454    hiding entry: \EFI\BOOT\BOOTX64.efi
60:164 0:227   4: 'CTH'
60:631 0:467    hiding entry: \EFI\BOOT\BOOTX64.efi
61:199 0:567   5: 'Whole Disc Boot' no file system
61:653 0:454   6: 'Whole Disc Boot' no file system
62:107 0:454   7: 'Whole Disc Boot' no file system
62:561 0:454   8: 'Legacy HD1' no file system
63:016 0:454   9: 'Legacy HD2' no file system
63:470 0:454 10: 'Boot'
63:925 0:455 11: 'Legacy HD1' no file system
64:379 0:454 12: 'Legacy HD2' no file system
64:833 0:454 13: 'Yosemite'
65:346 0:512 Check if volume Is Hibernated:
65:573 0:226 Check sleep image 'by signature':
65:861 0:287 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
66:088 0:227 SleepImage name from pref: ImageVolume = 'Yosemite', ImageName = '\private\var\vm\sleepimage'
66:334 0:246   sleepimage not found -> Not Found
66:561 0:227   hibernated: no - sign
66:831 0:269      Loader entry created for 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,B7CBEE20-7435-4811-BDE3-9EE4815BA73D,0x230F07B0,0x270F850)\System\Library\CoreServices\boot.efi'
67:400 0:569 14: 'Legacy HD4' no file system
67:855 0:454 Custom legacy start
68:082 0:227 Custom legacy end
68:309 0:227 Scanning legacy ...
68:536 0:227   0: 'Whole Disc Boot' (legacy) not legacy
68:990 0:454   1: 'DISPOSABLE' (vista,win) add legacy
69:471 0:480   added 'Boot Windows from DISPOSABLE' OSType=2 Icon=vista,win
69:698 0:227   2: 'Whole Disc Boot' (clover) hidden
70:152 0:454   3: 'CTF' (clover) add legacy
70:607 0:454   added 'Boot Clover from CTF' OSType=3 Icon=clover
70:834 0:227   4: 'CTH' (<null string>) not legacy
71:288 0:454   5: 'Whole Disc Boot' (legacy) not legacy
71:742 0:454   6: 'Whole Disc Boot' (legacy) not legacy
72:196 0:454   7: 'Whole Disc Boot' (legacy) not legacy
72:650 0:454   8: 'Legacy HD1' (vista,win) add legacy
73:107 0:456   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
73:334 0:227   9: 'Legacy HD2' (vista,win) add legacy
73:789 0:454   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
74:016 0:227 10: 'Boot' (<null string>) not legacy
74:810 0:794 11: 'Legacy HD1' (legacy) not legacy
75:265 0:454 12: 'Legacy HD2' (vista,win) add legacy
75:719 0:454   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
75:946 0:227 13: 'Yosemite' (<null string>) not legacy
76:400 0:454 14: 'Legacy HD4' (vista,win) add legacy
76:855 0:454   added 'Boot Windows from Legacy HD4' OSType=2 Icon=vista,win
77:082 0:227 Custom tool start
77:309 0:227 Custom tool end
77:550 0:240 found tool \EFI\CLOVER\tools\Shell64.efi
77:778 0:228 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
78:232 0:454 EfiBootVolume not found
78:459 0:227 Default boot entry not found
78:686 0:226 DefaultIndex=-1 and MainMenu.EntryCount=12
79:028 0:341 Found Mouse device:
79:234 0:206 GUI ready
88:268 9:034 BootOption of the entry is empty
88:466 0:198 RemoveStartupDiskVolume:
88:662 0:195    * efi-boot-device = Not Found
88:857 0:195    * efi-boot-device-data = Not Found
89:052 0:195    * BootCampHD = Not Found

PS: The problem with boot1f32 on one of the bioses is that the BOOT file is too big. When it gets to address 0x92000 (466432 bytes loaded), it returns an error. However, curiously, boot1h on an HFS volume (with same bios) does work, even though BOOT is the same size. :wacko:

Edited October 25, 2014 by Zenith432

liujianwei · October 25, 2014

Tested - that fixed it. It now sees all SATA volumes. Thanks!

Legacy USB was on - otherwise bios would not be able to boot stick (or use keyboard...)

Here's the log now

When my Legacy USB is on I random get my DFI mobo usb error in clover and windows like this topic http://www.insanelymac.com/forum/topic/22937-dfi-lanparty-usb-does-not-start-on-boot-why/

UEFI BIOS: UEFI->CLOVERX64.EFI-> ... system

By the way a stupid question,how UEFI boot clover Yosemite USB installer pen drive works?How UEFI can find CLOVERX64.EFI on HFS+ Yosemite USB installer cause UEFI only support FAT32?

stuppy_ · October 25, 2014

Will be interested to hear how others, other than Riley Freeman have got on with r2976. I will hold off updating just for now.

Riley: You say iMessages went inactive; has it come back since you downgraded or is it still giving you the 'call Apple Support' spiel?

davidcmc · October 25, 2014

I've updated from r2953 to r2976, and now Clover boot menu doesn't read my OS X partition name.

Instead of saying "Boot Mac OS X on OS X", it says "Boot Mac OS X on ?" now.

I've reinstalled r2953 and the bug is gone. It's showing "Boot Mac OS X on OS X" again.

My motherboard is a Gigabyte H67MA-USB3-B3. Award BIOS version F8, not patched.

SATA in AHCI mode.

Riley Freeman · October 25, 2014

Riley: You say iMessages went inactive; has it come back since you downgraded or is it still giving you the 'call Apple Support' spiel?

That was Ingwar77, not me. iMessages doesn't work on 10.6

stuppy_ · October 25, 2014

That was Ingwar77, not me. iMessages doesn't work on 10.6

Oops My bad!

AsusFreak · October 25, 2014

I've updated from r2953 to r2976, and now Clover boot menu doesn't read my OS X partition name.

Instead of saying "Boot Mac OS X on OS X", it says "Boot Mac OS X on ?" now.

I've reinstalled r2953 and the bug is gone. It's showing "Boot Mac OS X on OS X" again.

My motherboard is a Gigabyte H67MA-USB3-B3. Award BIOS version F8, not patched.

SATA in AHCI mode.

What is the name of your OS X boot drive? I should say "Boot Mac OS X on "YourDriveName"".

davidcmc · October 25, 2014

What is the name of your OS X boot drive? I should say "Boot Mac OS X on "YourDriveName"".

My boot drive is called "OCZ VERTEX-TURBO Media".

My Yosemite boot partition is called "OS X".

With r2953, Clover boot menu shows "Boot Mac OS X on OS X", referring to the partition named "OS X", where Yosemite's installed.

With r2976, Clover boot menu shows "Boot Mac OS X on ?", referring to the partition named "OS X", where Yosemite's installed.

I've just ran the r2976 installer and upgraded the same files as I've installed r2953, nothing more.

config.plist remained the same, nothing's changed.

Then, this new bug has started.

I've reinstalled r2953 (on top of r2976) and the bug is gone. Clover boot menu is showing "Boot Mac OS X on OS X" again.

fusion71au · October 25, 2014

iMessage and FaceTime are not active, same codes. Call Apple support again?

Seems OK here, checked that MLB/ROM/system-id/system serial were persistent from r2916 with imessage_debug....booting CloverEFI via legacy pathway and all the relevant parts of my config.plist filled in ie ROM, MLB, Custom UUID + inject system ID to true, System Serial in SMBIOS etc.

I've updated from r2953 to r2976, and now Clover boot menu doesn't read my OS X partition name.

Instead of saying "Boot Mac OS X on OS X", it says "Boot Mac OS X on ?" now.

I've reinstalled r2953 and the bug is gone. It's showing "Boot Mac OS X on OS X" again.

My motherboard is a Gigabyte H67MA-USB3-B3. Award BIOS version F8, not patched.

SATA in AHCI mode.

OK here...it shows "Boot Mac OS X" from my partition name...

Note I still use Apple's HFSPlus.efi in drivers64/drivers64UEFI. There have been recent changes made to VboxHFS.efi that might explain what you are seeing.

davidcmc · October 26, 2014

Seems OK here, checked that MLB/ROM/system-id/system serial were persistent from r2916 with imessage_debug....booting CloverEFI via legacy pathway and all the relevant parts of my config.plist filled in ie ROM, MLB, Custom UUID + inject system ID to true, System Serial in SMBIOS etc.

OK here...it shows "Boot Mac OS X" from my partition name...

Clover r2976_0.png

Clover 2976_1.png

Does your laptop use BIOS or UEFI?

stuppy_ · October 26, 2014

Seems OK here, checked that MLB/ROM/system-id/system serial were persistent from r2916 with imessage_debug....booting CloverEFI via legacy pathway and all the relevant parts of my config.plist filled in ie ROM, MLB, Custom UUID + inject system ID to true, System Serial in SMBIOS etc.

OK here...it shows "Boot Mac OS X" from my partition name...

Clover r2976_0.png

Clover 2976_1.png

Hi Fusion,

This is a question to yourself and any others who can offer advice.

I upgraded from Chameleon to Clover in order to get iMessages working, and after a call to Apple support with my customer code, it worked again. As you can see from the attached screen shots of my Clover Configurator settings, I have not set any settings either manually or by using the 'auto config' tool in Rt Variables, SMBios etc.

I am concerned that as Clover is generating this information each time the computer boots, some of the values that are currently allowing iMessages to function will change and cause iMessages to fall over again.

Do I need to be entering data manually into any of the fields that are currently empty in my config to ensure iMessages will continue to function?

Any advice welcomed.

fusion71au · October 26, 2014

@davidcmc,

My laptop has legacy BIOS (specs in my signature). Clover installed in FAT32 EFI System Partition on GUID hard drive.

@stuppy_

I think it is safer to specify values for MLB/ROM/Custom UUID/System Serial/SmUUID in your config.plist rather than leave blank, especially if you plan on updating your bootloader regularly. I have seen imessages break a few times on certain Clover revisions when the default values or behaviour have been changed (either deliberately or due to a buggy Clover release).

Also by leaving all the values blank, you are running the risk that the values are non-unique ---> Apple may block them for your AppleID if too many people use the same serials to login to imessage at the same time.

In your current situation, use imessage_debug v2 to save your working serials to a text file and fill in the relevant spaces in Rt Variables/System Parameters/SMBIOS of your config.plist. At the very least, record the MLB & ROM values somewhere safe...

teeodor · October 26, 2014

Hi,i install clover on my mac partition,now my disk is this

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *500.1 GB disk0

1: Apple_HFS Mac 99.5 GB disk0s1

2: Apple_Boot Recovery HD 650.0 MB disk0s2

3: Apple_HFS Dati 399.6 GB disk0s3

What i have to do for create a efi partition?

The installare make efi folder in mac partition

liujianwei · October 26, 2014

~~When I delete config.plist,the camera doesn't work,when I use config.plist,the shutdown doesn't work,config.plist should be a problem.~~

~~Anyway I figured it out myself.~~

Here is what I had to do. Change the Key AddDTGP_0001 to false to solve shutdown problem.

<key>AddDTGP_0001</key>

<false/>

There is a similar case

in wiki said this is switch for all fixes.

in my case FixShutdown_0004 should be set to false to shut down to let  reboot Problem vanished

<key>Fixes</key>

<dict>

        <key>FixShutdown_0004</key>

        <false/>

</dict>

Change the Key FixOwnership to false to solve camera problem.

<key>FixOwnership</key>

<true/>

But I in wiki I don't find what FixOwnership stand for.

Very strange,my computer changed it's behavior,now whatever I change FixShutdown_0004 doesn't effect,But if I use FixOwnership set to true or false,my shutdown doesn't works,restart instead.I delete FixOwnership to let my computer shutdown works.Recently I only disable JMB363 in BIOS,but I enable it doesn't effect my USB.

tluck · October 26, 2014

@fusion71au - i agree with you on this topic. consistency is very important.

I am concerned and interested in learning how to properly specify MLB and ROM (if the RtVariable method is going away?) in the config.plist. Currently I use RtVariables to inject these 2 vars - but I have read that this is a deprecated method. So is there a best practice or method to keep the same value set?

That is, how to convert from RtVariables MLB and ROM method to SMBIOS variables? which SMBIOS are required?

SmUUID - this seems to be the key to contain the ROM value in last 12 chars?

BoardSerialNumber - i believe this should be set to the MLB value?

@teeodor

very unusual that your GPT/GUID disk does not have an ESP (EFI system partition). I would use gpt to add one:

Note: you probably need to boot from another disk to make changes to the partition table.

this command will add an EFI type partition (if there is space). unmount every partition and run:

sudo gpt add -s 409600 -t C12A7328-F81F-11D2-BA4B-00A0C93EC93B disk0

this is a dual boot GUID disk example. your EFI will not be 1st partition but thats ok.

$ diskutil list disk0

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *750.2 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS OSX- 697.7 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data C 51.5 GB disk0s4

$ sudo gpt -r show disk0

start size index contents

0 1 PMBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 1362786480 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

1363196120 1269544 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

1364465664 100681728 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1465147392 1743

1465149135 32 Sec GPT table

1465149167 1 Sec GPT header

TimeWalker75a · October 26, 2014

Does anyone have any insight about USB ports working slower than general USB2.0 speeds on a MCP79 or any other platform?

Machine under question is Asus EEE 1201N, based on MCP79 chipset.

Currently on Yosemite GM3 using Clover rev2977, boot7 (built as x64-mcp) with ION-64.efi driver (IDE operation mode for SATA set in BIOS), which activates AHCI mode on SATA controller through Apple's EFI driver. I have not used this machine extensively to transfer any data from/from USB media devices, but what I have noticed when plugging in a wireless 2.4GHz radio mouse is that it doesn't work at all, the cursor just drags really slowly across the screen and is unusable. Same mouse work on my DELL no problem. When plugging in a classic USB mouse from Logitech to that very same USB port it works flawlessly on 1201N. I have tried to copy files to USB media and it seems that transfer speeds only go as high as USB 1.1 spec - roughly 2-5 Mb/s. Which explains why clean OSX installation from USB media took around 7 hours to begin with.

I have tried playing around with Devices->USB->Inject and FixOwnership flags to no avail. I have also tried building regular x64 boot, but it doesn't work for my controller by default. As per @Pene's suggestion from a couple month back I've tried replacing Clover's AHCI drivers with Apple's AHCI driver and building x64 just with it, removing ION-64 and setting SATA mode to AHCI in BIOS. Which yields to same problem as with BIOS BlockIO version, unfortunately.

boot-r2977-2014-10-26-16.10.02.log.zip

Another thing I was wondering about. After I have tinkered with the code for SPDScan for MCP chipset (submitted rev2771) I find that Memory tab is missing from About This Mac window, while the memory information is correctly displayed in System Profiles > Memory section. What may be the culprit? Not that this is something crucial, but I would still prefer for it to be there

JUN Ho · October 26, 2014

Does anyone know how do I hide this 'Clover Boot Options' icons from Clover GUI ?

It shows from clover r2947.

I had no this icons in GUI using same theme.plist before clover r2947.

Clover General discussion

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
