MacKonsti Posted May 8, 2021 Share Posted May 8, 2021 Hi everyone, @Jief_Machak and @Slice I have a bug to report for r5134 that is not there in r5133 unless the structure of config.plist changed. No I am getting the mouse pointer in the bootloader UI main screen in r5134 despite having it disabled (setting is respected in r5133): <key>GUI</key> <dict> <key>EmbeddedThemeType</key> <string>Dark</string> <key>Hide</key> <array> <string>Preboot</string> <string>Recovery</string> </array> <key>Mouse</key> <dict> <key>Enabled</key> <false/> </dict> <key>ProvideConsoleGop</key> <true/> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <false/> <key>Tool</key> <true/> </dict> <key>Theme</key> <string>bootcamp</string> </dict> Please advise? Has the setting changed in structure? I do not get an error with CloverConfigValidator. Thank you! 1 Link to comment Share on other sites More sharing options...

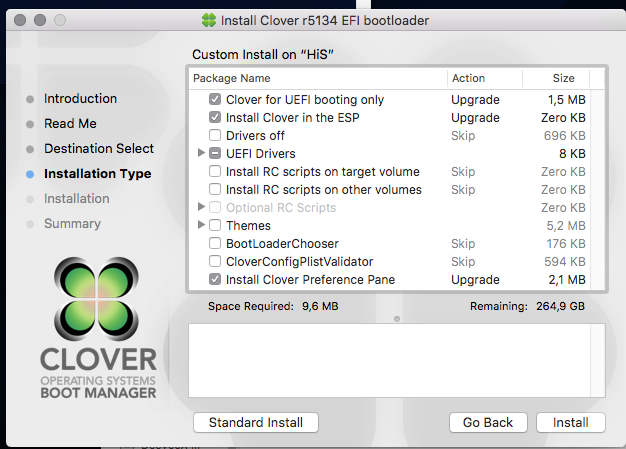

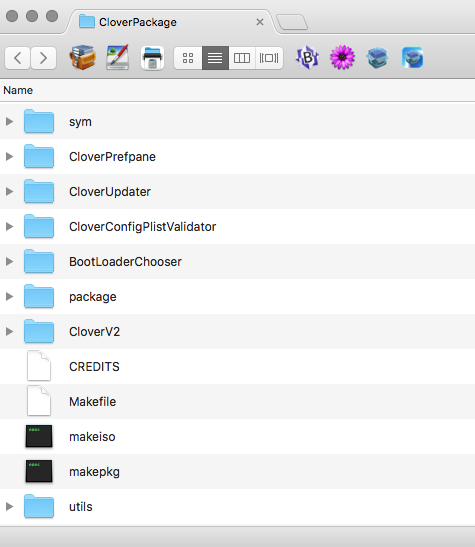

LAbyOne Posted May 8, 2021 Share Posted May 8, 2021 39 minutes ago, Jief_Machak said: Not sure what you mean here. The xcodebuild command can you -target and -configuration therefore not use the scheme at all. scheme referred to the one into buildpkg to integrate ccpv, not when building CloverConfigPlistValidator itself... Oh yes, forgot to mention as requested ccpv, will be named after the actual clover build. this one will generate CloverConfigPlistValidator_5134 45 minutes ago, Jief_Machak said: What about /usr/local/bin of the EFI partition where Clover already install things. /usr/local/bin? This could be the best solution, and the easiest way to use the tool from terminal even for beginners. Proposition: if we agree to this solution, what about renaming the tool (only the one installed in /usr/local/bin) ccpv (obviously i will also add all informations into the installer location and shortened name), otherwise writing CloverConfigPlistValidator_rXXXX any time may be annoying, would that be ok? 55 minutes ago, Matgen84 said: @Jief_Machak Advanced users can compile it manually quite easily: with instructions in a readme.file, if they wish. Advanced users will just have to choose it from buildme menu. @Jief_Machak i was wondering, if there's the intention to implement the menu "Clover Utilities", i may have an idea on how to populate it, i could eventually show you some pics of a tool I already made, to get the idea. 2 Link to comment Share on other sites More sharing options...

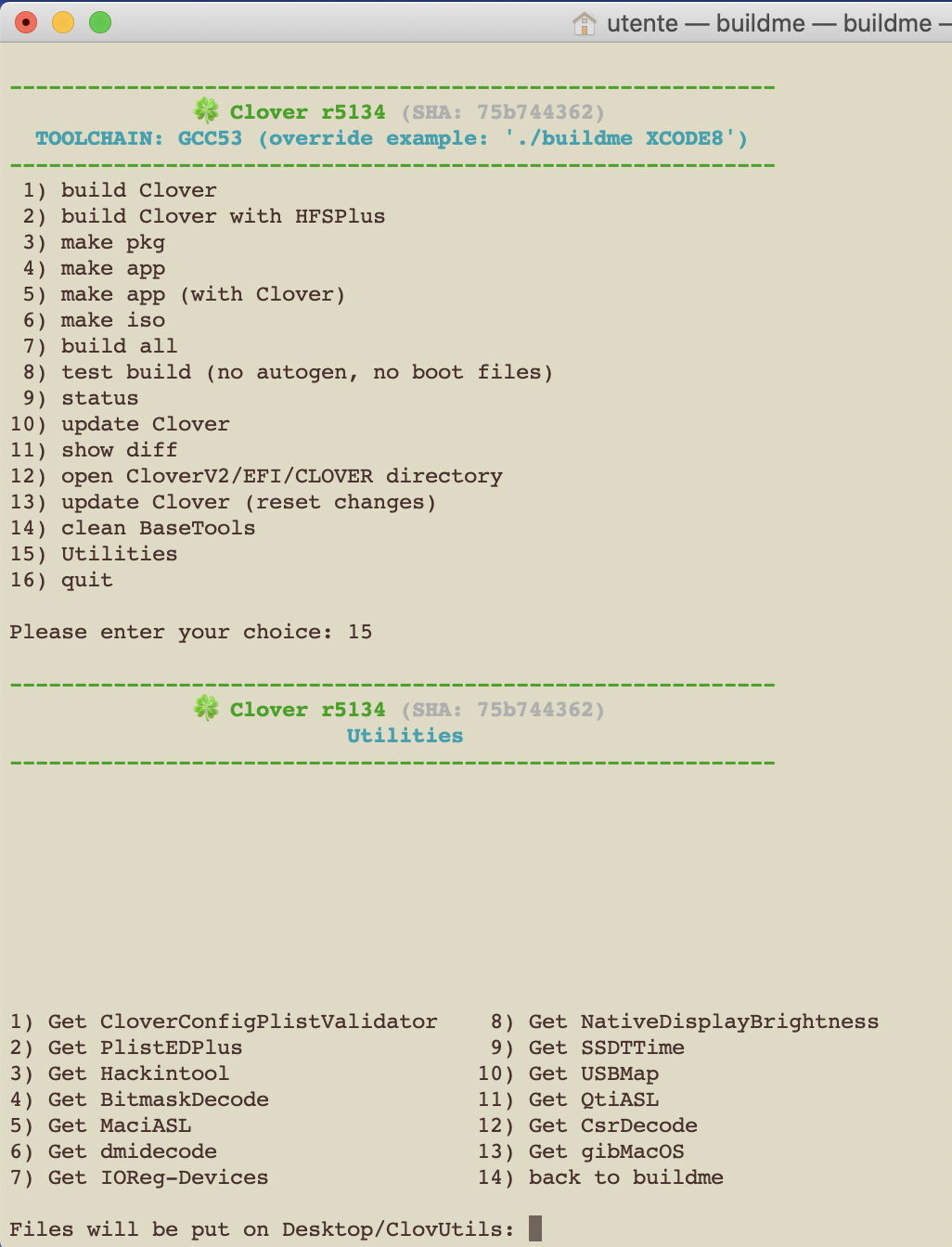

Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 25 minutes ago, LAbyOne said: CloverConfigPlistValidator_5134 Good. 26 minutes ago, LAbyOne said: ccpv When typing into console, you have completion. So for me a long name isn't a problem. But I like ccpv too. I don't we'll ever confuse with "Club Canin du Périgord Vert" , so it's ok by me. Does everyone prefer ccpv ? 30 minutes ago, LAbyOne said: the intention to implement the menu "Clover Utilities" Sure, yes. 1 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 2 minutes ago, MifJpn said: the name of r_xxxx will be piled up Yes, that's true. But now it's possible to keep many Clover folder with any name, and inside each folder many clover efi file with any name, that means a user might need to keep different validator versions. So installing it by default in a small efi partition might not be a so good idea. Well spotted @MifJpn. How do we resolve that ? Is it possible that installer ask where to put it, like a save panel ? 1 Link to comment Share on other sites More sharing options...
LAbyOne Posted May 8, 2021 Share Posted May 8, 2021 (edited) 56 minutes ago, MifJpn said: Thank you for the wonderful discussion. If it is installed in the location where the command path passes (/ usr / local / bin), the name of r_xxxx will be piled up. I think "ccpv" is a good idea. It would be great if ccpv itself displayed its release number at startup. Thank you. it does, in fact, if that was your question... Edited May 8, 2021 by LAbyOne 1 Link to comment Share on other sites More sharing options...
rramon Posted May 8, 2021 Share Posted May 8, 2021 (edited) Hi guys, updated to r5134 and get the attached error messages which I would like to fix. Read the last 15 pages of this thread so got some hints for a couple of them but still don’t know how to fix the following: - /ACPI/DSDT/DropOEM_DSM:12 - /GUI/Mouse/DoubleClick:266 /KernelAndKextPatches/KernelCPU:322 Could anyone provide some information on how to fix this? Thanks a lot for the help! Edited May 8, 2021 by rramon Link to comment Share on other sites More sharing options...
Xanny Posted May 8, 2021 Share Posted May 8, 2021 10 minutes ago, rramon said: Hi guys, updated to r5134 and get the attached error messages which I would like to fix. Read the last 15 pages of this thread so got some hints for a couple of them but still don’t know how to fix the following: - /ACPI/DSDT/DropOEM_DSM:12 - /GUI/Mouse/DoubleClick:266 /KernelAndKextPatches/KernelCPU:322 Could anyone provide some information on how to fix this? Thanks a lot for the help! Open your config.plist with an editor and: - /ACPI/DSDT/DropOEM_DSM:12 delete it - /GUI/Mouse/DoubleClick:266 delete it - /KernelAndKextPatches/KernelCPU:322 delete it They are ignored now, some of them are from old config.plist or probably added in a wrong way by Clover Configurator app. 1 Link to comment Share on other sites More sharing options...
rramon Posted May 8, 2021 Share Posted May 8, 2021 (edited) @MifJpn Already in the process of doing that. I‘m down to unknown keys in custom entries - checking that right now. Edit: seemed to be the „Ignore“ key that was ignored. How ignorant^^ Edited May 8, 2021 by rramon 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 23 minutes ago, Xanny said: Clover Configurator app If this app is still alive, I could work with the guy so his app integrate the source code of the validator in Clover Configurator app. That'll ensure that the generated XML is 100% correct. Do you know if the app is still alive and who make this app ? 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted May 8, 2021 Share Posted May 8, 2021 (edited) 17 minutes ago, Jief_Machak said: If this app is still alive, I could work with the guy so his app integrate the source code of the validator in Clover Configurator app. That'll ensure that the generated XML is 100% correct. Do you know if the app is still alive and who make this app ? The latest release Clover Configurator app = 20/03/2021. I don't know who make it, you can sent a message on mackie100 projects web site Spoiler Edited May 8, 2021 by Matgen84 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 47 minutes ago, Xanny said: - /GUI/Mouse/DoubleClick:266 delete it Since 2 minutes (yes 2 minutes , see the last commit), it's now possible again to configure the DoubleClick interval. But it's called DoubleClickTime. 1 3 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 13 minutes ago, Matgen84 said: mackie100 projects web site done. 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted May 8, 2021 Share Posted May 8, 2021 19 minutes ago, Jief_Machak said: Since 2 minutes (yes 2 minutes , see the last commit), it's now possible again to configure the DoubleClick interval. But it's called DoubleClickTime. Thanks I see the commit with default value '500'. What do you mean by "configure" DoubleClick interval again ! I don't understand well. Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 You can set the max time between 2 clicks to be recognised as a double click. It was forced to 500. Now it's default to 500 and you can change with DoubleClickTime key in config.plist 2 Link to comment Share on other sites More sharing options...
Matgen84 Posted May 8, 2021 Share Posted May 8, 2021 4 minutes ago, Jief_Machak said: You can set the max time between 2 clicks to be recognised as a double click. It was forced to 500. Now it's default to 500 and you can change with DoubleClickTime key in config.plist Ok, I understand now. You mean the config-sample.plist is going to be updated as well as CloverConfigPlistValidator. ASAP 1 Link to comment Share on other sites More sharing options...
chris1111 Posted May 8, 2021 Share Posted May 8, 2021 Fix Visual Studio compilation broken CloverConfigPlistValidator macOS Build 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 4 minutes ago, chris1111 said: Fix Visual Studio compilation broken CloverConfigPlistValidator macOS Build Oups, forgot to check that. On my way... 12 minutes ago, Matgen84 said: config-sample.plist is going to be updated DoubleClickTime is not in config-sample.plist, but Clover and the validator is aware of it. 4 Link to comment Share on other sites More sharing options...
matxpa Posted May 8, 2021 Share Posted May 8, 2021 4 hours ago, Jief_Machak said: Good. When typing into console, you have completion. So for me a long name isn't a problem. But I like ccpv too. I don't we'll ever confuse with "Club Canin du Périgord Vert" , so it's ok by me. Does everyone prefer ccpv ? Sure, yes. 2 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 45 minutes ago, matxpa said: Yes ! ccpv really exists !! Link to comment Share on other sites More sharing options...
Jief_Machak Posted May 8, 2021 Share Posted May 8, 2021 1 hour ago, chris1111 said: Fix Visual Studio compilation broken CloverConfigPlistValidator macOS Build It was just that I deleted that need to be removed from the project... I'm surprised thought about open the project with xcode and try to compile... Link to comment Share on other sites More sharing options...
matxpa Posted May 8, 2021 Share Posted May 8, 2021 Hi all. Compilation Pbm with "Club Canin du Périgord Vert" meunier@MACBOOKPRO CloverConfigPlistValidator % xcodebuild -target CloverConfigPlistValidator Command line invocation: /Applications/Xcode.app/Contents/Developer/usr/bin/xcodebuild -target CloverConfigPlistValidator User defaults from command line: IDEPackageSupportUseBuiltinSCM = YES note: Using new build system note: Planning build note: Analyzing workspace note: Constructing build description note: Build preparation complete CreateBuildDirectory /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/build cd /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/CloverConfigPlistValidator.xcodeproj builtin-create-build-directory /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/build ... error: Build input file cannot be found: '/Users/meunier/CloverBootloader/rEFIt_UEFI/Settings/ConfigPlist/Config_ACPI.cpp' (in target 'CloverConfigPlistValidator' from project 'CloverConfigPlistValidator') ** BUILD FAILED ** The following build commands failed: CompileC /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/build/CloverConfigPlistValidator.build/Release/CloverConfigPlistValidator.build/Objects-normal/x86_64/Config_ACPI.o /Users/meunier/CloverBootloader/rEFIt_UEFI/Settings/ConfigPlist/Config_ACPI.cpp normal x86_64 c++ com.apple.compilers.llvm.clang.1_0.compiler (1 failure) Greetings Link to comment Share on other sites More sharing options...
chris1111 Posted May 8, 2021 Share Posted May 8, 2021 (edited) 51 minutes ago, Jief_Machak said: It was just that I deleted that need to be removed from the project... I'm surprised thought about open the project with xcode and try to compile... Build failed from command line Xcode 12.5 (12E262) Edited May 8, 2021 by chris1111 Link to comment Share on other sites More sharing options...
matxpa Posted May 8, 2021 Share Posted May 8, 2021 With 2eb35b70 meunier@MACBOOKPRO CloverConfigPlistValidator % xcodebuild -target CloverConfigPlistValidator Command line invocation: /Applications/Xcode.app/Contents/Developer/usr/bin/xcodebuild -target CloverConfigPlistValidator ... RegisterExecutionPolicyException /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/build/Release/CloverConfigPlistValidator (in target 'CloverConfigPlistValidator' from project 'CloverConfigPlistValidator') cd /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator builtin-RegisterExecutionPolicyException /Users/meunier/CloverBootloader/Xcode/CloverConfigPlistValidator/build/Release/CloverConfigPlistValidator ** BUILD SUCCEEDED ** 2 Link to comment Share on other sites More sharing options...
LAbyOne Posted May 8, 2021 Share Posted May 8, 2021 here too the build has no problems... 2 Link to comment Share on other sites More sharing options...
matxpa Posted May 8, 2021 Share Posted May 8, 2021 1 minute ago, LAbyOne said: here too the build has no problems... Yes with 2eb35b70 (just commited) 1 Link to comment Share on other sites More sharing options...
