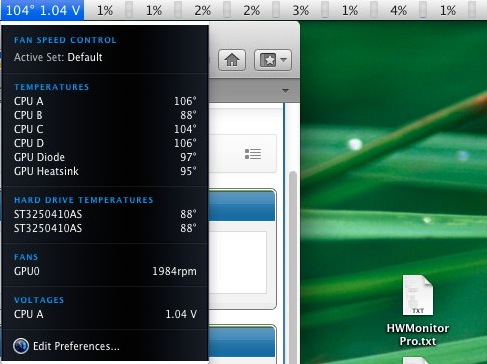

kozlek Posted February 4, 2012 Author Share Posted February 4, 2012 Hi Mozodojo, I installed IntelThermal and ACPISensors. On Lenovo G470 i5-2410M here I got: Did I install wrong plug-ins? Thanx.. ACPISensors only for advanced users and programmers. Check topics on projectosx.com. Link to comment Share on other sites More sharing options...
sacaman1 Posted February 4, 2012 Share Posted February 4, 2012 hello mozodojo i get this in log 10:48 imac kernel[0]: F718x: [Warning] found unsupported chip ID=0x10 REVISION=0x7 Feb 4 19:10:48 imac kernel[0]: W836x: [Warning] found unsupported chip ID=0x10 REVISION=0x7 Feb 4 19:10:48 imac kernel[0]: RadeonMonitor: found 6759 Radeon chip Feb 4 19:10:48 imac kernel[0]: IT87x: [Warning] invalid super I/O chip ID=0xffff Feb 4 19:10:48 imac kernel[0]: RadeonMonitor: Unknown DeviceID! how i can solve this issue Link to comment Share on other sites More sharing options...

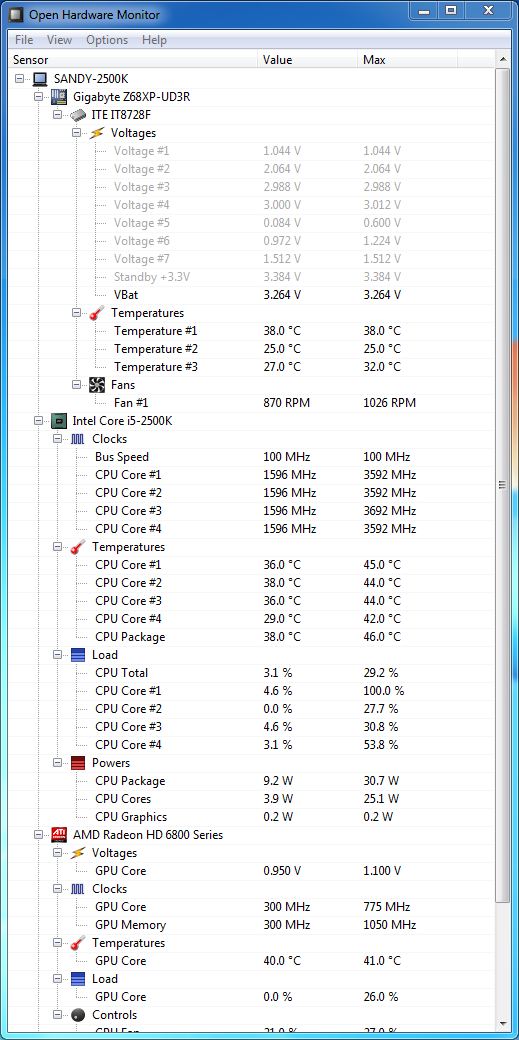

VCH888 Posted February 4, 2012 Share Posted February 4, 2012 Thanks mozodojo. my screenshot: Z68XP-UD3R & 2500K Link to comment Share on other sites More sharing options...
kozlek Posted February 4, 2012 Author Share Posted February 4, 2012 Thanks mozodojo. my screenshot: Z68XP-UD3R & 2500K So TMPIN0 is System and TMPIN2 is Processor for IT8728F. Will fix it later. Link to comment Share on other sites More sharing options...
hockey9999 Posted February 4, 2012 Share Posted February 4, 2012 Would either of these files be helpful for me to enable better monitoring support? This is using the regular build of FakeSMC. I wasnt getting voltage reading using this one, but did get CPU multipier. hwmpro_smbus.txt HWMonitorPro.txt Thanks! Link to comment Share on other sites More sharing options...
mitch_de Posted February 5, 2012 Share Posted February 5, 2012 Wreid: I lost speedstepping using that FAKESMC + IntelThermal plugin. Always multi 10. I cheked with MSRDumper but same. Then i guess it was by new AppleIntelCPU.kext 10.7.3 and reinstalled that kext from 10.7.2 . NO help. Then i installed "old"/ other FakeSMC 3.1.0 without Intelthermal (but IntelCPUMonitor) and now stepping worked again. Also MSRDumper shows now multi 6...10, depend on cpu loads. Perhaps other can check if multi stays fixed (highest multi) with that new set of FakeSMC + IntelThermal ? Link to comment Share on other sites More sharing options...
Slice Posted February 5, 2012 Share Posted February 5, 2012 hello mozodojo i get this in log 10:48 imac kernel[0]: F718x: [Warning] found unsupported chip ID=0x10 REVISION=0x7 Feb 4 19:10:48 imac kernel[0]: W836x: [Warning] found unsupported chip ID=0x10 REVISION=0x7 Feb 4 19:10:48 imac kernel[0]: RadeonMonitor: found 6759 Radeon chip Feb 4 19:10:48 imac kernel[0]: IT87x: [Warning] invalid super I/O chip ID=0xffff Feb 4 19:10:48 imac kernel[0]: RadeonMonitor: Unknown DeviceID! how i can solve this issue No problem. New Radeon.kext rev509 at project. Mozo, we should synchronize the projects. 1 Link to comment Share on other sites More sharing options...

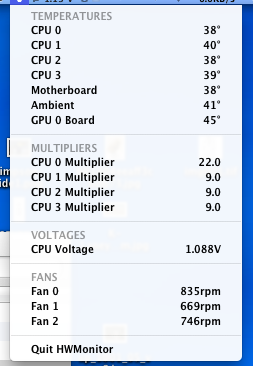

npwski Posted February 5, 2012 Share Posted February 5, 2012 Mozo, thank you. Now my Winbond detected correctly: Kernel.log: W836x: found Winbond W83667HG-B All looks fine except number of fans: How I can increase number of fans to 4? Now I changed value "FANINLIMIT" to 4, but no success. Спасибо ). Link to comment Share on other sites More sharing options...
westwaerts Posted February 5, 2012 Share Posted February 5, 2012 @Slice i am totally with you, PLEASE SYNCHRONIZE YOUR PROJECTS. @mozodojo we all want to use monitoring, we all rely on values posted, but dealing such a sensitive case with various versions, compatible and incompatible ones, older, newer, makes it difficult. and even god made a mistake with inventing humans. Link to comment Share on other sites More sharing options...
Larx Posted February 5, 2012 Share Posted February 5, 2012 Not working for me. No CPU multipier, no fan speed, no GPU... Anyway, Thanks Mozodojo ! Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted February 5, 2012 Share Posted February 5, 2012 thanks Mozodojo my notebook is dell inspiron n5110 here is kernel log Feb 5 17:39:29 localhost kernel[0]: PC8739x: NSC: Found supported chip ID=0xfc REVISION=0x1b Feb 5 17:39:29 localhost kernel[0]: PC8739x: slice (C) 2011 Feb 5 17:39:29 localhost kernel[0]: FakeSMC: opensource SMC device emulator by netkas (C) 2009 Feb 5 17:39:29 localhost kernel[0]: FakeSMC: plugins & plugins support modifications by mozodojo, usr-sse2, slice (C) 2010 Feb 5 17:39:29 localhost kernel[0]: FakeSMCDevice: 17 preconfigured key(s) added Feb 5 17:39:29 localhost kernel[0]: FakeSMCDevice: successfully initialized Feb 5 17:39:29 localhost kernel[0]: PXSX cannot assert wake from D3cold Feb 5 17:39:29 localhost kernel[0]: NVClockX: [Warning] no nVidia graphics adapters found Feb 5 17:39:29 localhost kernel[0]: NVClockX: [Warning] 0>/y������a Feb 5 17:39:29 localhost kernel[0]: PC8739x: found NSC PC8739xx, revision 0x1b Feb 5 17:39:29 localhost kernel[0]: IntelThermal: CPU family 0x6, model 0x2a, stepping 0x7, cores 2, threads 4, TJmax 100 Feb 5 17:39:29 localhost kernel[0]: AppleIntelCPUPowerManagement: (built 18:56:37 Jan 12 2012) initialization complete Feb 5 17:39:29 localhost kernel[0]: NVClockX: Card: 0, Vendor ID: 10de, Device ID: df5, Architecture: 1000000, GF100 [GeForce GT 525M] Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize xHC addressing capability 64 bit register Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize HCSParams2 = 0x11 Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize MAX SCRATCH PAD = 0 Feb 5 17:39:29 localhost kernel[0]: NVClockX: Error reading BIOS Feb 5 17:39:29 localhost kernel[0]: NVClockX: Adding temperature sensors Feb 5 17:39:29 localhost kernel[0]: NVClockX: Adding frequency sensor Feb 5 17:39:29 localhost kernel[0]: NVClockX: Overclocking... and here is the result fan wrong & fixed no multipler no volt no chipset temp Link to comment Share on other sites More sharing options...
THe KiNG Posted February 5, 2012 Share Posted February 5, 2012 Hi mozo Most new Asus boards have Nuvoton IO chips, owned by Winbond. Do you have any plans to add support for these? Data sheets are on the net, the open source Hw monitor code does contain support for them. I'd be happy to help with testing, thanks for all your work so far Why not? Will add it later. Hi, I already did it but forgot to release it In attached zip you will find all the stuff I made. Also for those who like to play with ACPI http://www.projectosx.com/forum/index.php?showtopic=1593&view=findpost&p=16787 Enjoy! NCT677x.zip Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 Hi, I already did it but forgot to release it In attached zip you will find all the stuff I made. Also for those who like to play with ACPI http://www.projectosx.com/forum/index.php?showtopic=1593&view=findpost&p=16787 Enjoy! NCT677x.zip Cool stuff! I also implemented it yesterday, but not tested. I'll merge our plugins, you have things I want to add to another plugins - like more voltage keys.. Link to comment Share on other sites More sharing options...
sacaman1 Posted February 6, 2012 Share Posted February 6, 2012 No problem. New Radeon.kext rev509 at project. Mozo, we should synchronize the projects. Thanks Slice but i don't get any value on the Istate program Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 No problem. New Radeon.kext rev509 at project. Mozo, we should synchronize the projects. Hi, slice! Yes, but only on GitHub. it has cool mac app... I don't want to get back to SVN. thanks Mozodojo my notebook is dell inspiron n5110 here is kernel log Feb 5 17:39:29 localhost kernel[0]: PC8739x: NSC: Found supported chip ID=0xfc REVISION=0x1b Feb 5 17:39:29 localhost kernel[0]: PC8739x: slice (C) 2011 Feb 5 17:39:29 localhost kernel[0]: FakeSMC: opensource SMC device emulator by netkas (C) 2009 Feb 5 17:39:29 localhost kernel[0]: FakeSMC: plugins & plugins support modifications by mozodojo, usr-sse2, slice (C) 2010 Feb 5 17:39:29 localhost kernel[0]: FakeSMCDevice: 17 preconfigured key(s) added Feb 5 17:39:29 localhost kernel[0]: FakeSMCDevice: successfully initialized Feb 5 17:39:29 localhost kernel[0]: PXSX cannot assert wake from D3cold Feb 5 17:39:29 localhost kernel[0]: NVClockX: [Warning] no nVidia graphics adapters found Feb 5 17:39:29 localhost kernel[0]: NVClockX: [Warning] 0>/y������a Feb 5 17:39:29 localhost kernel[0]: PC8739x: found NSC PC8739xx, revision 0x1b Feb 5 17:39:29 localhost kernel[0]: IntelThermal: CPU family 0x6, model 0x2a, stepping 0x7, cores 2, threads 4, TJmax 100 Feb 5 17:39:29 localhost kernel[0]: AppleIntelCPUPowerManagement: (built 18:56:37 Jan 12 2012) initialization complete Feb 5 17:39:29 localhost kernel[0]: NVClockX: Card: 0, Vendor ID: 10de, Device ID: df5, Architecture: 1000000, GF100 [GeForce GT 525M] Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize xHC addressing capability 64 bit register Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize HCSParams2 = 0x11 Feb 5 17:39:29 localhost kernel[0]: PXHCD 0xffffff807ee85000:UIMInitialize MAX SCRATCH PAD = 0 Feb 5 17:39:29 localhost kernel[0]: NVClockX: Error reading BIOS Feb 5 17:39:29 localhost kernel[0]: NVClockX: Adding temperature sensors Feb 5 17:39:29 localhost kernel[0]: NVClockX: Adding frequency sensor Feb 5 17:39:29 localhost kernel[0]: NVClockX: Overclocking... and here is the result fan wrong & fixed no multipler no volt no chipset temp No multiplier, what the CPU you have? This plugin is totally made by slice, I really don't know how to fix it. Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted February 6, 2012 Share Posted February 6, 2012 Hi, slice! Yes, but only on GitHub. it has cool mac app... I don't want to get back to SVN. No multiplier, what the CPU you have? This plugin is totally made by slice, I really don't know how to fix it. sandybridge core i5 2410 hope slice fix it thanks Link to comment Share on other sites More sharing options...
HFW Posted February 6, 2012 Share Posted February 6, 2012 Probably just cos its unfinished or I grabbed it too early? But I got a KP using the Nuvoton kext. Not sure if it'll help but I took a pic in case there's something useful there: link Github rev: cf90527 SuperIO chip: Nuvoton NCT6776F My specs are in my sig VV Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 sandybridge core i5 2410 hope slice fix it thanks So the latest IntelThermal still not showing multipliers for you? Probably just cos its unfinished or I grabbed it too early? But I got a KP using the Nuvoton kext. Not sure if it'll help but I took a pic in case there's something useful there: link Github rev: cf90527 SuperIO chip: Nuvoton NCT6776F My specs are in my sig VV Something wrong with configuration reading from plist. Will check it later. Do you have CPU multipliers showing correctly? Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted February 6, 2012 Share Posted February 6, 2012 yes i use latest intel thermal Link to comment Share on other sites More sharing options...
HFW Posted February 6, 2012 Share Posted February 6, 2012 Something wrong with configuration reading from plist. Will check it later. ok thanks. Do you have CPU multipliers showing correctly? You mean with HWMonitor? No Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 Could you run for me, please, this debug version of IntelThermal.kext and show me kernel log after? IntelThermal.kext.zip Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted February 6, 2012 Share Posted February 6, 2012 ok Feb 6 21:27:37 localhost kernel[0]: IntelThermal: CPU family 0x6, model 0x2a, stepping 0x7, cores 2, threads 4, TJmax 100 Feb 6 21:28:02 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Feb 6 21:28:05 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Feb 6 21:28:07 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 Ok, thanks. And this one should work and show multipliers in HWMonitor, I rely on... It is still debug version and I need kernel log also. IntelThermal.kext.zip Link to comment Share on other sites More sharing options...
HFW Posted February 6, 2012 Share Posted February 6, 2012 Latest Nuvoton kext didn't KP. Seems to be misreading though... iStat HWMonitor Could you run for me, please, this debug version of IntelThermal.kext and show me kernel log after? ok Feb 6 21:27:37 localhost kernel[0]: IntelThermal: CPU family 0x6, model 0x2a, stepping 0x7, cores 2, threads 4, TJmax 100 Feb 6 21:28:02 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Feb 6 21:28:05 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Feb 6 21:28:07 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00IntelThermal: MSR_IA32_PERF_CONTROL 0x1D00 Odd... Didn't get anything extra in my kernel.log when I used the debug version :/ Installed with Kext Wizard, tried manually installing it too. Link to comment Share on other sites More sharing options...
kozlek Posted February 6, 2012 Author Share Posted February 6, 2012 Latest Nuvoton kext didn't KP. Seems to be misreading though... Nuvoton fixed now (on github), it was copy/past bug. Should work now. Link to comment Share on other sites More sharing options...
