HFW
HFW
Posted
Posted

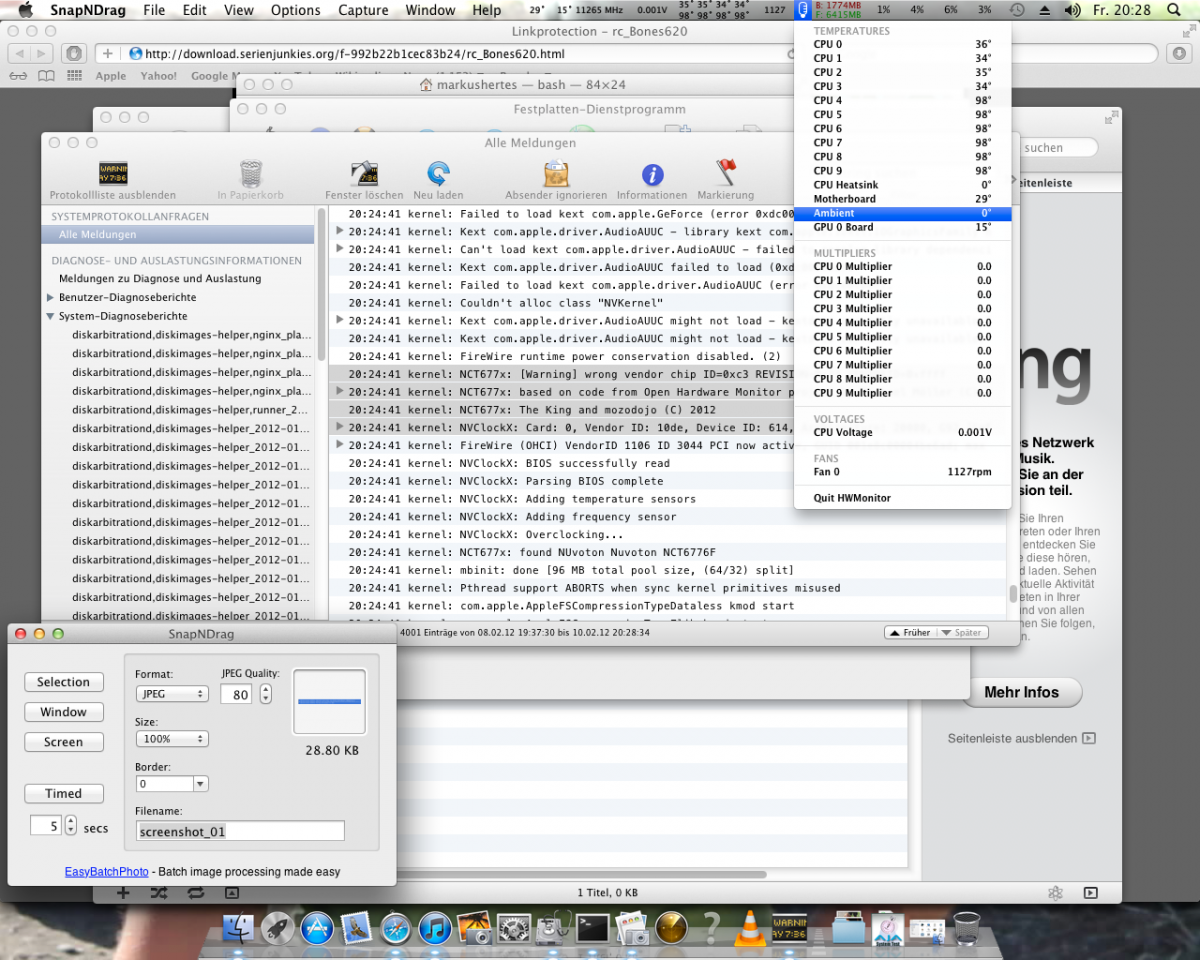

Yup, seems to work (mostly)

http://dl.dropbox.co...%2019.52.38.png



Not too bothered about voltages myself though, it was fan speeds/temps I was interested in.



Thanks. :)



Edit: And multiplier now shows up in HWMonitor for me: http://dl.dropbox.co...%2019.57.31.png



Doesn't seem to change though.

Mohamed Khairy
Mohamed Khairy
Posted
Posted

Feb  6 21:53:38 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:53:45: --- last message repeated 15 times ---
Feb  6 21:53:45 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:53:45: --- last message repeated 3 times ---
Feb  6 21:53:45 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:53:47: --- last message repeated 3 times ---
Feb  6 21:53:47 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:53:47: --- last message repeated 3 times ---
Feb  6 21:53:47 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:54:17: --- last message repeated 35 times ---
Feb  6 21:54:30 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:54:35: --- last message repeated 23 times ---
Feb  6 21:54:35 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:54:35: --- last message repeated 3 times ---
Feb  6 21:54:35 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00






and here result !!

Mohamed Khairy
Mohamed Khairy
Posted
Posted

Try latest IntelThermal from github (from nuvoton fix rev.), should show correct multipliers

ok

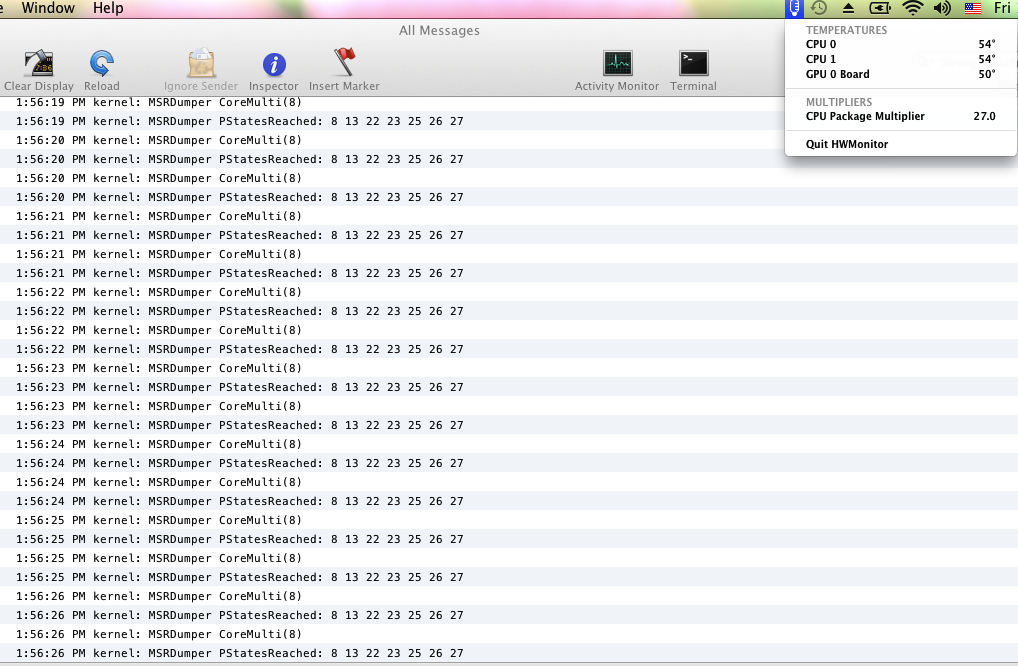

Untitled.tiff



only change between 18 or 23 only

some times 14 appear



i think that the msrdumper is the correct

but sensor read this incorrect

as the multiplier used is 8 but it is readed as 18 !!

THe KiNG
THe KiNG
Posted
Posted

Feb  6 21:53:38 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:53:45: --- last message repeated 15 times ---
Feb  6 21:53:45 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:53:45: --- last message repeated 3 times ---
Feb  6 21:53:45 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:53:47: --- last message repeated 3 times ---
Feb  6 21:53:47 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:53:47: --- last message repeated 3 times ---
Feb  6 21:53:47 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:54:17: --- last message repeated 35 times ---
Feb  6 21:54:30 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00
Feb  6 21:54:35: --- last message repeated 23 times ---
Feb  6 21:54:35 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x24D400001900
Feb  6 21:54:35: --- last message repeated 3 times ---
Feb  6 21:54:35 The-Kings-MacBook-Pro kernel[0]: IntelThermal: MSR_IA32_PERF_STATUS 0x25CA00001B00






and here result !!

O_O Didn't know I have a clone!

Slice
Slice
Posted
Posted

Hi, slice!



Yes, but only on GitHub. it has cool mac app... I don't want to get back to SVN.

I reformat partition when I had secret code to access GIT. Will try register again.

This plugin is totally made by slice, I really don't know how to fix it.

If you mean PC8739x then it is wrong plugin and will not work for anybody except me because it is using some OEM hack.

It will be better for me as well as for other Dell laptops users to create new plugin using SMI access. The method is known but I have no time and wishes to do this.

O_O Didn't know I have a clone!

:boxing:

Mohamed Khairy
Mohamed Khairy
Posted
Posted

O_O Didn't know I have a clone!



LOL :D:thumbsup_anim:



i use user name as $The-King$ :king:





If you mean PC8739x then it is wrong plugin and will not work for anybody except me because it is using some OEM hack.

It will be better for me as well as for other Dell laptops users to create new plugin using SMI access. The method is known but I have no time and wishes to do this.





hope any one do it :)

mitch_de
mitch_de
Posted
Posted

I only want to remember to check real stepping after using new fakesmc + intelthermal by msrdumper.

For me it was not only an cosmetic problem - showing an fixed 10* multiplier , it was real fixed multiplier problem. Stepping stopped working.

For me, IntelThermal shows fixed multiplier 10* and that was real - no stepping shown also in msr dumper. Went back to older fakesmc + InteCPUMonitor = stepping works again with same OSX and same dsdt.

Dont know if maybe bit newer builds or other C2D cpus like mine (E7400) dont have that effect but i would cross check stepping with msrdumper.

my first thinking: could it be that IntelThermal MSR reads can block the native AppleIntelCPU.kext in changing the MSR stepping tasks by timing problems / interrupt problems in the msr read code (maybe depends on CPU type also if problem happens) ?

Mohamed Khairy
Mohamed Khairy
Posted
Posted

Sorry, I have no SandyBridge system, can't debug and test it. I'll try to find some documentation or open source projects.



thanks very much mozodojo for your work

i can give you continuous feedback if you want



http://www.insanelymac.com/forum/index.php?showtopic=258612

kozlek
kozlek
Posted
  • Author
Posted

I only want to remember to check real stepping after using new fakesmc + intelthermal by msrdumper.

For me it was not only an cosmetic problem - showing an fixed 10* multiplier , it was real fixed multiplier problem. Stepping stopped working.

For me, IntelThermal shows fixed multiplier 10* and that was real - no stepping shown also in msr dumper. Went back to older fakesmc + InteCPUMonitor = stepping works again with same OSX and same dsdt.

Dont know if maybe bit newer builds or other C2D cpus like mine (E7400) dont have that effect but i would cross check stepping with msrdumper.

my first thinking: could it be that IntelThermal MSR reads can block the native AppleIntelCPU.kext in changing the MSR stepping tasks by timing problems / interrupt problems in the msr read code (maybe depends on CPU type also if problem happens) ?

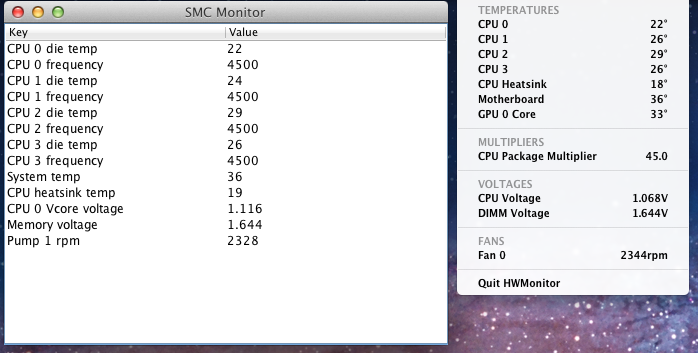

SpeedStep working for me






If I use stepper data from macbookpro (SP11) in CustomProfile.kext when multiplier comes down to 11 on idle and comes up to 15-18-22 on CPU load. If I use stepper data from iMac (SP10) when multiplier always stays on maximum 22.

mitch_de
mitch_de
Posted
Posted

"If I use stepper data from macbookpro (SP11) in CustomProfile.kext when multiplier comes down to 11 on idle and comes up to 15-18-22 on CPU load. If I use stepper data from iMac (SP10) when multiplier always stays on maximum 22. "

Yep, but how can it be in may case, that without changing anything the usage of IntelThermal blocks stepping (fxed max multi on C2D, in the past, i dont reused an newer version).

kozlek
kozlek
Posted
  • Author
Posted

"If I use stepper data from macbookpro (SP11) in CustomProfile.kext when multiplier comes down to 11 on idle and comes up to 15-18-22 on CPU load. If I use stepper data from iMac (SP10) when multiplier always stays on maximum 22. "

Yep, but how can it be in may case, that without changing anything the usage of IntelThermal blocks stepping (fxed max multi on C2D, in the past, i dont reused an newer version).



I don't know, need more investigation
