AudioGod's Aorus Z390 Pro Patched DSDT Mini Guide and Discussion

AudioGod

By AudioGod,
in Installation Guides

 Share
5539 posts in this topic

Recommended Posts

Ziadantosh
Ziadantosh
Posted
Posted

First thanks to @eSaF @pkdesign for their suggestions and help 🥰

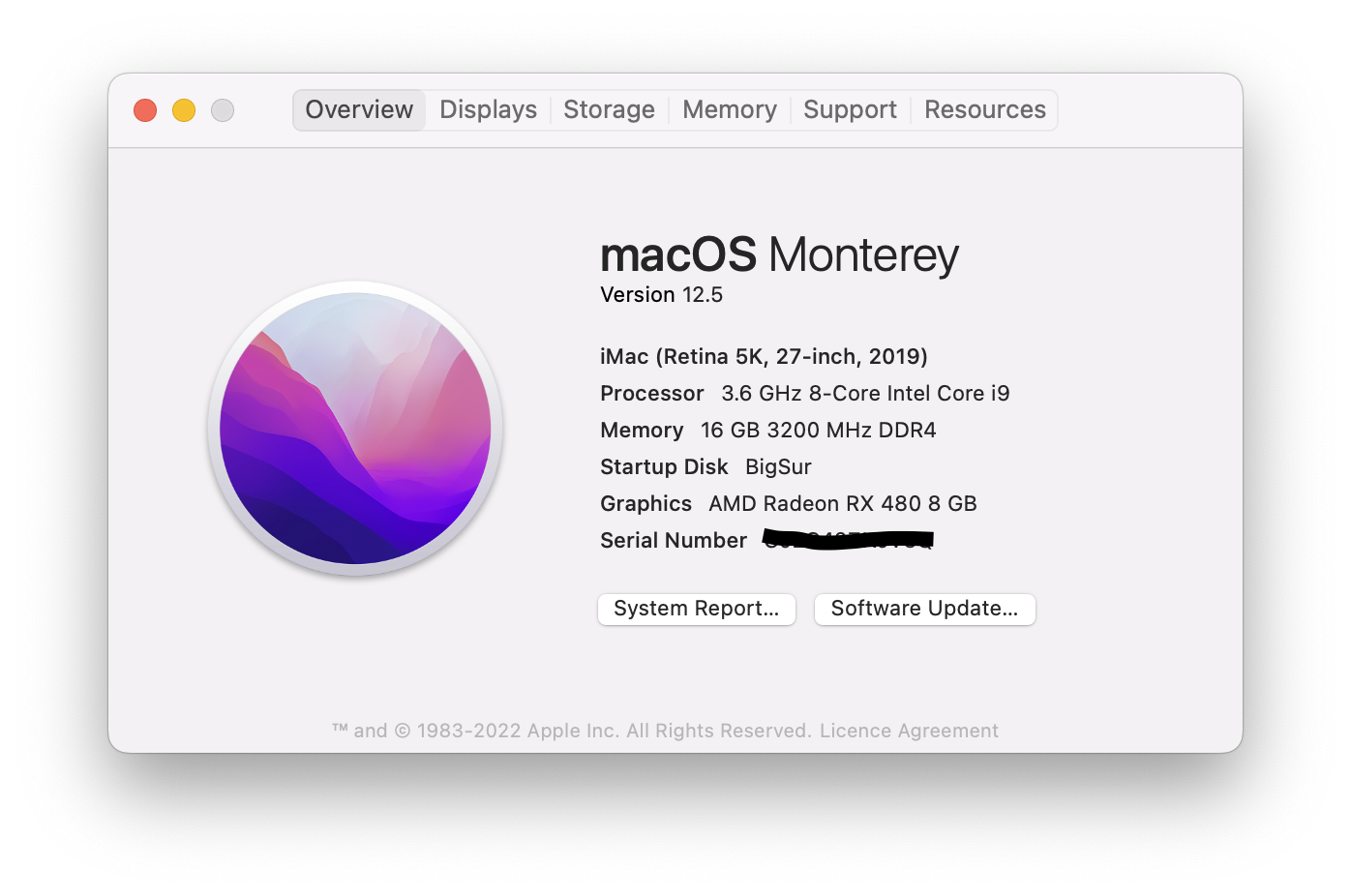

So, I managed to brick my EFI couple of times before I successfully update it from 0.6.3 to 0.8.3 - then upgraded macOS from Big Sur beta to Monterey 12.5 and it worked 🕺😍



And finally I have Premiere Pro and Final Cut Pro working

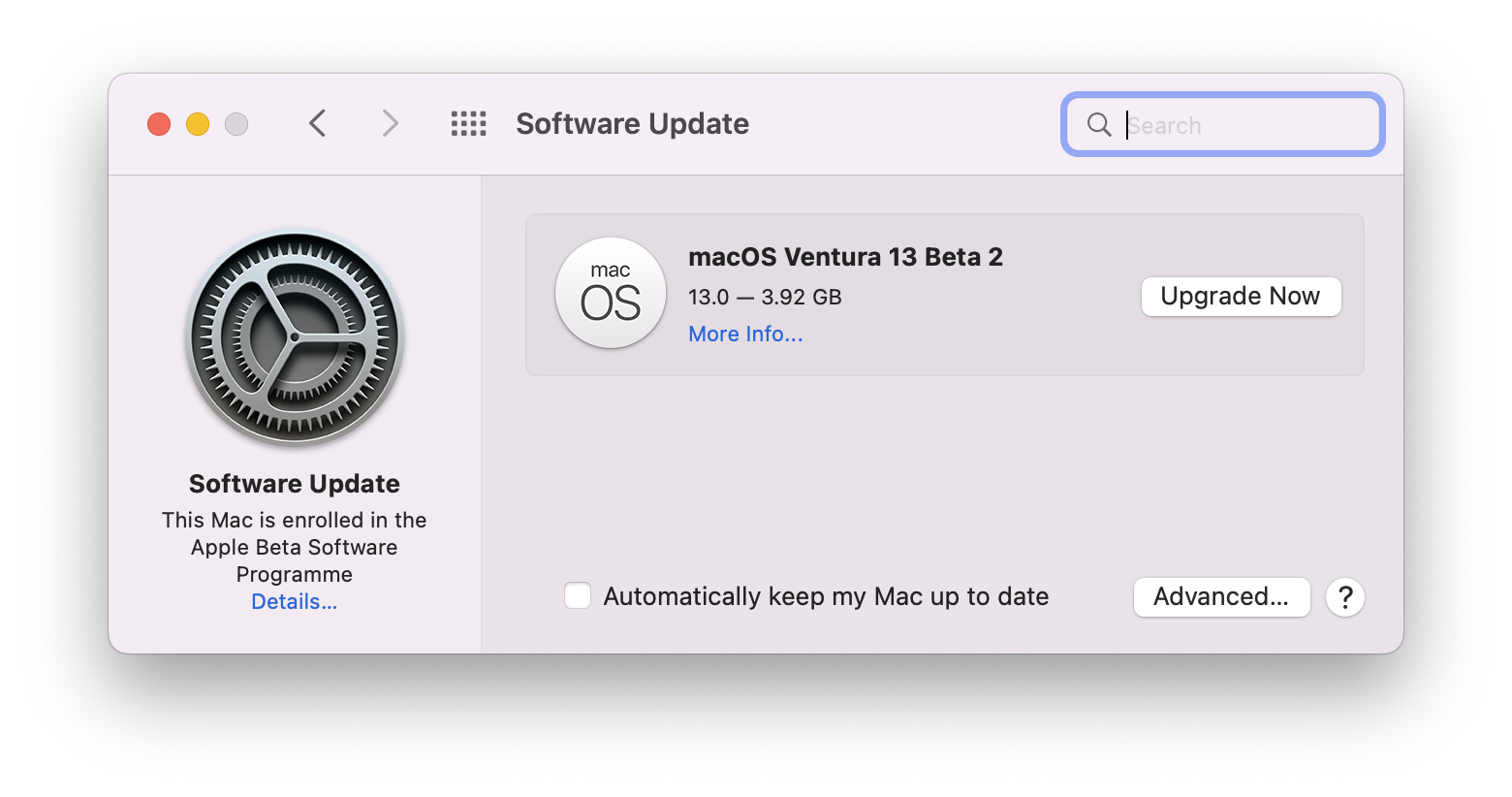

Anyone updated to 13 beta 2 yet and how is it?



Thanks again

Screenshot 2022-08-05 at 10.53.05.png

Screenshot 2022-08-05 at 12.12.20.png

Oh I forgot!

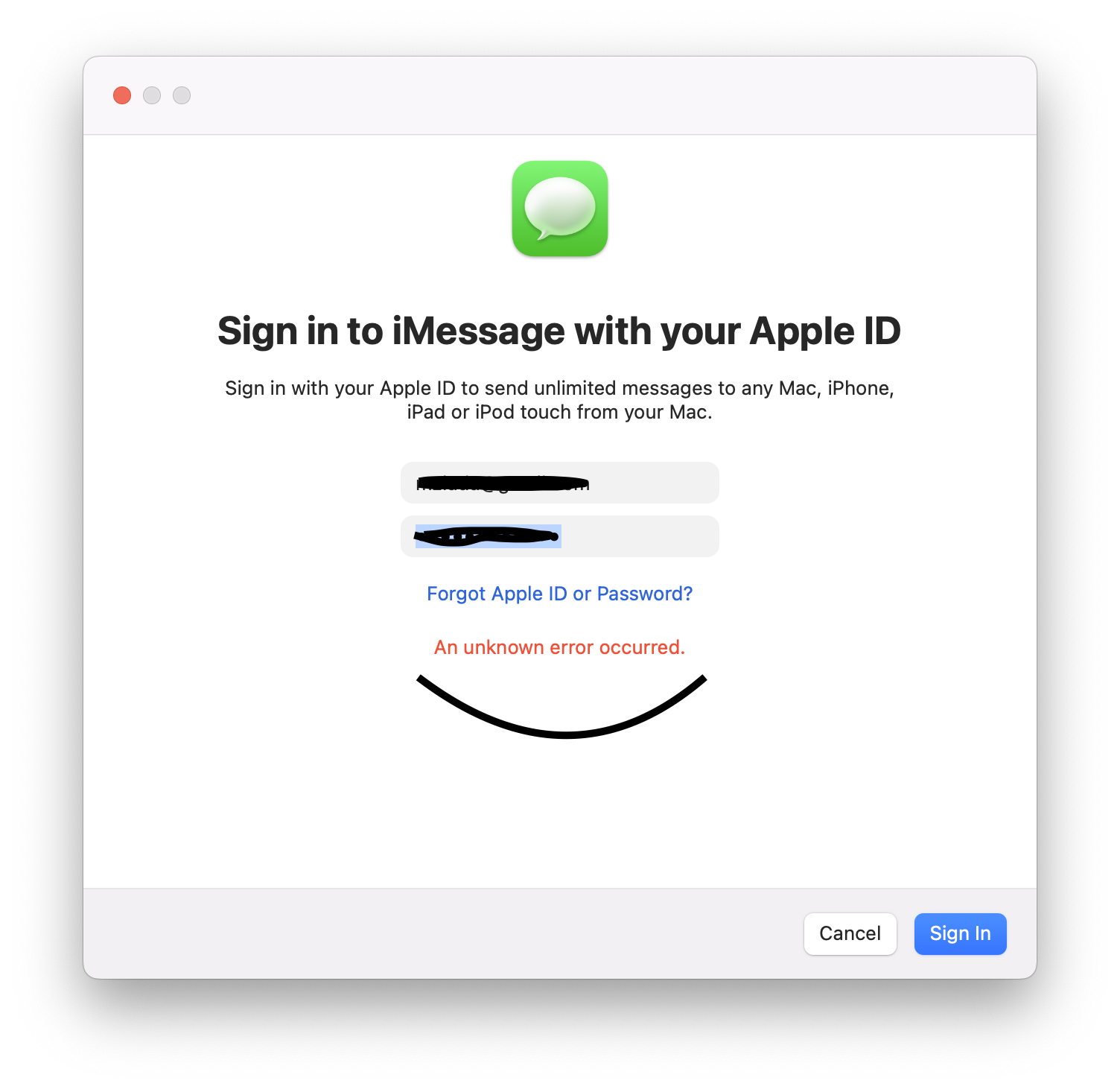

How can I get iServices working? as when I launch it and login with my fruity ID it shows ⬇️

Screenshot 2022-08-05 at 12.22.13.png

  • Like 2
deeveedee
deeveedee
Posted
Posted
13 hours ago, panosru said:

Updated to OC v0.8.4 [DEV], works fine. It requires the "LoadEarly" property under UEFI -> Drivers to be set to false for all efis except OpenRuntime.efi



What happens when you set OpenRuntime.efi > LoadEarly = False?

Ziadantosh
Ziadantosh
Posted
Posted (edited)



On 8/5/2022 at 3:50 PM, eSaF said:

@Ziadantosh - An unknown error occurred' - I haven't seen that since back in the day when iMessage was first introduced. All I can say is make sure your data i.e S/N, ROM SmUUID etc entries are correct and in the right format, you can also run iMessageDebug (attached) and look at the output, it should not say Null or Void on any of the lines and should look like my example (I've blocked out my info).

  Reveal hidden contents

iMessageDebug 19.78 kB · 4 downloads 630316806_Screenshot2022-08-05at15_46_17.png.650e8383453598735d10459a70f2b163.png





The output is lines and lines and loads of wtf :S but I copied a line here:

Quote

-xDo you want to save to iMessageDebug.txt? (y/n) %s/iMessageDebug.txtwSmUUID: failedBoard-id: failedbyteslengthstringWithFormat:stringByAppendingString:datasetLength:UTF8StringallocinitWithData:encoding:mainBundlebundlePathÏ44¡(4

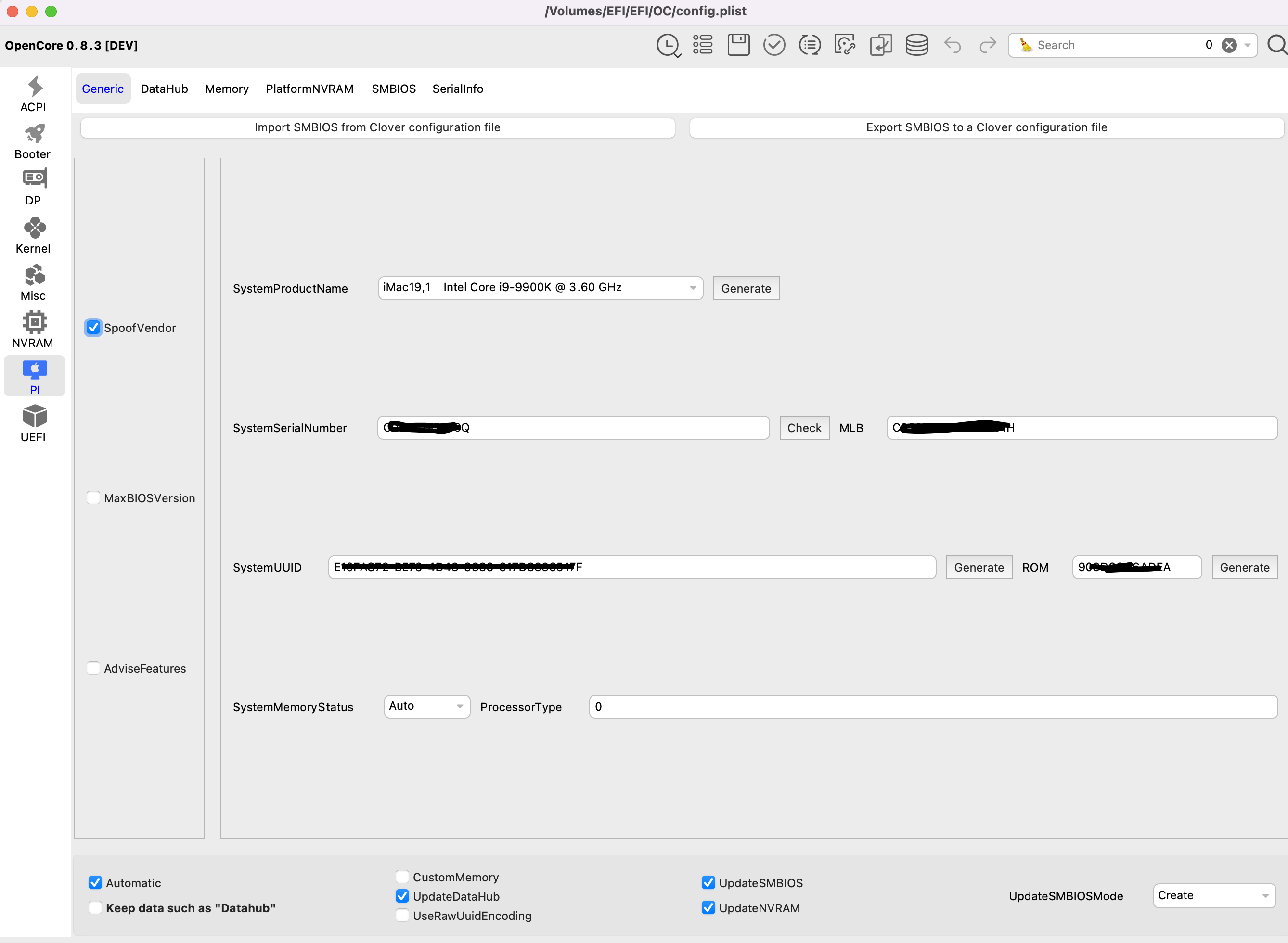

Doesn't seem to have a good info like it should, I am certain the SN and other info are fine, as I open config file with OCAT and clicked on check which went to the 🍏 website and said valid



Anything else I can do?



Screenshot 2022-08-09 at 18.21.52.png

Screenshot 2022-08-09 at 18.20.48.png

Screenshot 2022-08-09 at 18.21.52.png

Screenshot 2022-08-09 at 18.20.48.png

Edited by Ziadantosh
Cipha
Cipha
Posted
Posted

guys, I'm running Dual Boot and updated to win 11. now I have to activate Secure Boot to be able to run some customer software needed.



Is there anything I need to change in the EFI to keep OC alive?

Slice
Slice
Posted
Posted
1 hour ago, eSaF said:

Ok - So in the BIOS the setting should be 'Other OS' or am I on the wrong track?

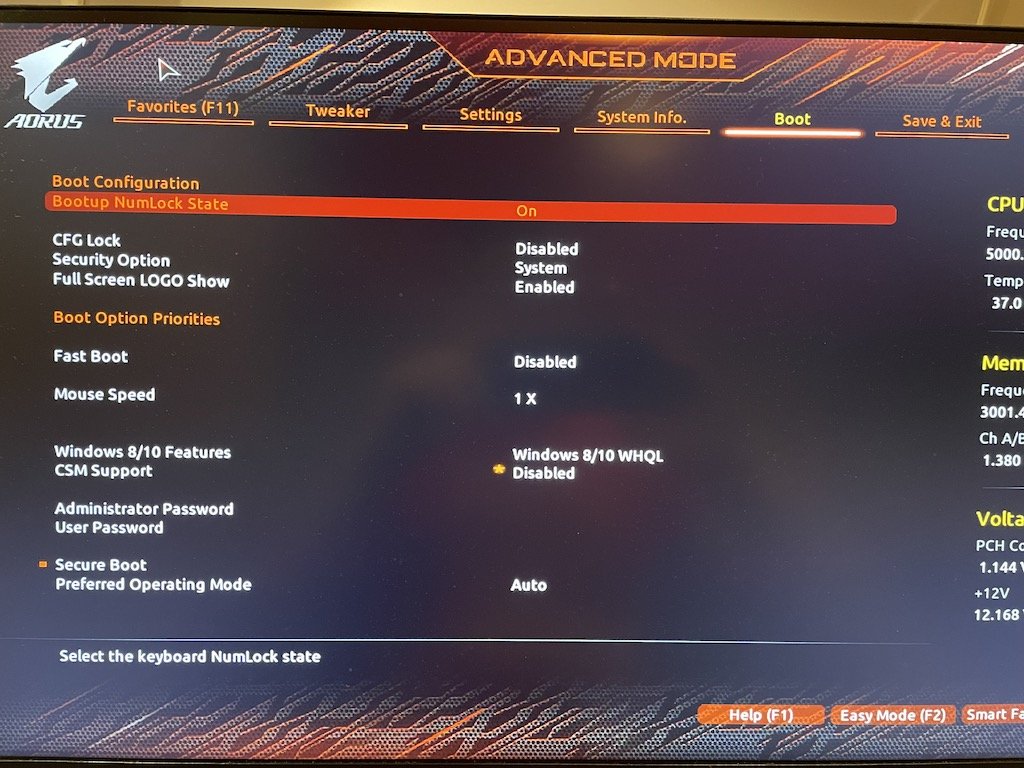

Not concerning the current thread i prefer to set in BIOS "Windows 10 WHQL" and then disable CSM.

Secure Mode set as enabled but without certificates it does nothing.

As well if you enable Apple Secure Boot in opencore then are you going to provide your own keys? Else what is the secure?

pkdesign
pkdesign
Posted
Posted

I have my SecureBootModel set to Disabled. Otherwise I can not boot. But that may be for some other reason.



I also dual boot Win 11 and had to make a change on order for Win 11 to install and run.

AslashA
AslashA
Posted
Posted

@eSaF

Do you have an apple combo module in the kit? It's not in your signature. I have a question. The absence of a combo module does not cause any problems in monterey? In Monterey, in the console without a combo module, crash reports constantly appeared.

AslashA
AslashA
Posted
Posted
7 hours ago, eSaF said:

Apart from my iPhone, the wife's iPhone, her AirPods and her Apple Watch, that's it. If that's is what you're referring to, if it is not please explain.

No. I mean wiifi/bluetooth cards for the computer. For example bcm94360cs2, etc.

Ziadantosh
Ziadantosh
Posted
Posted
On 8/9/2022 at 8:59 PM, eSaF said:

@Ziadantosh - Ok let me explain, despite what you've read or was told about a S/N should be valid but not registered, please ignore and do not use your current S/N unless it is from a genuine Mac that belongs to you and registered in your name. Your current S/N tells me it is already registered by Apple in their data base as one of theirs possibly out in the wild. Your machine sporting the same S/N is like you having the same license plate as your neighbour's car.



The problem with you using that S/N is throwing up a security flag on the Apple Servers, hence the reason you cannot log into some services for security reasons. You need to log out of all Apple Services i.e iCloud, App Store etc etc, delete that S/N, MLB and generate another that throws up the not valid message when checked which will mean it is unique to your machine and not already registered by Apple as one of theirs.

While you're at it, also generate a new SmUUID number as well, enter the new data. Reboot the machine with the new info, clean the NvRAM, on reaching the Desktop log into your Apple Account and try all the Services, you may have to wait a few moments for the Servers to accept this new machine also before I forget, you need to remove the previous machine from your account containing the previous (genuine) S/N. Good luck.

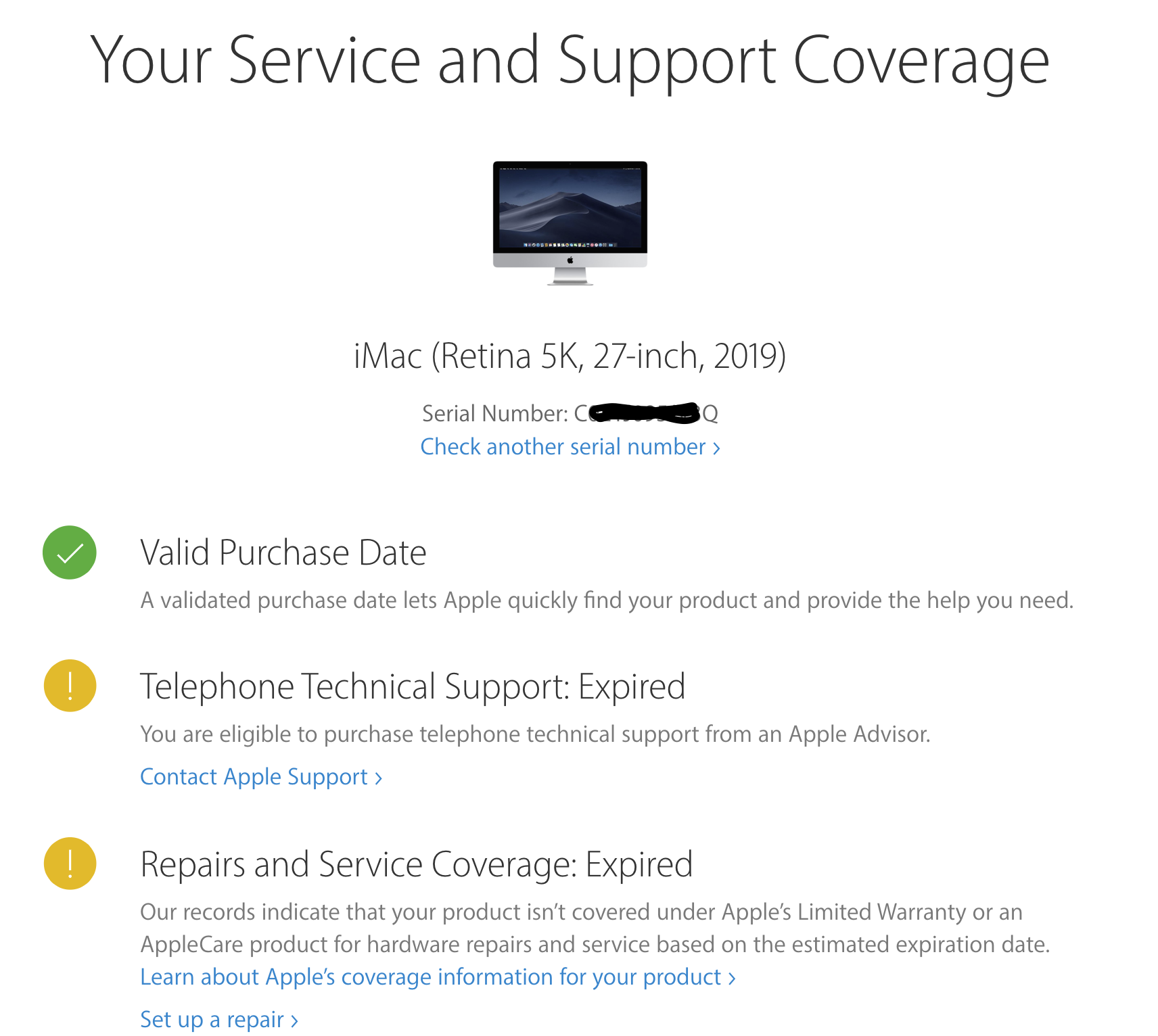

PS - See attached, this is the message you should get when checking.

  Reveal hidden contents






This MUST be pinned for people like me!



Absolutely works like a charm now!



Thank you so much @eSaF you are a legend!



dredhorse
dredhorse
Posted
Posted

Oh my... just noticed that I'm really running a very old build MacOs Catalina 10.15.7 with OpenCore 0.6.9 EFI Update (Big Sur 11.4 Ready), 3rd May 2021  from AudioGod.

Does somebody has some pointers on how to upgrade this old version of OpenCore to the latest and then upgrade MacOs?



dredhorse
dredhorse
Posted
Posted
1 hour ago, eSaF said:

Download and install OCAT, it will not only update your OC to latest released version but also all your kext files.

Done, already updated my "backup EFI" and creating a backup of the macos drive, will test tomorrow. Thanks!

pkdesign
pkdesign
Posted
Posted (edited)

I just saw a post on Reddit and thought people could weigh in.



Apparently SSDT-PLUG is no longer needed for Monterey 12.3+ and since our rigs include it I though this was interesting. I tuned it off in config.plist and my machine boots just fine and doesn't seem to have any issues so far. Perhaps we should no longer include in in our EFI's. Not sure how else to test it.



https://github.com/acidanthera/bugtracker/issues/2013

Edited by pkdesign
dredhorse
dredhorse
Posted
Posted
On 8/19/2022 at 10:35 PM, pkdesign said:

Yes...this

works like a charm... kinda... 😞



I have 3 boot drives

1. EVO970 with the original efi and macos

2. A Windows Install

3. EVO950 with a backup of the efi and a backup of macos.



I updated Disk 3 with new OC and booted.

Works.

I updated Disk 3 with MacOs Montery

Works.

BUT... I'm missing now the option to boot into DIsk 1



Copied EFI from Disk3 to DIsk1... Disk 1 is still missing in Picker

Copied back a backup to Disk1, updated that to latest, Disk 1 is still misisng in Picker.



Any where to look at?



IIRC there was something vaguely about NVRAM stored in the EFI partition and needing to change that, but can't remember anymoe.

Cipha
Cipha
Posted
Posted
On 8/11/2022 at 2:19 PM, eSaF said:

Ok - So in the BIOS the setting should be 'Other OS' or am I on the wrong track?



Ater some research I finally got it running. To be able to fully use UEFI Secure Boot we need to sign all Open Core EFIs in BIOS.

This is super easy since gigabyte has implemented a tool in BIOS. The functionis called "Enroll EFI image"-
I enrolled these efis

BOOT/Bootx64.efi

OC/OpenCore.efi

OC/Drivers/OpenRuntime.efi



No files were changed during signing (hashcode remains the same).

After this OC boots as usual.



Important: This has to be done after every OC update.



  • Like 1
Cipha
Cipha
Posted
Posted
7 minutes ago, eSaF said:

You do realise the BOOT/Bootx64.efi Folder is now redundant after naming the boot Drive Opencore in the BIOS and can be safely deleted from the EFI Folder since new OC releases. The only time it is needed is inside the EFI Folder when building a USB OS X installer.



I didn't know. thanks for the heads up

pkdesign
pkdesign
Posted
Posted (edited)
15 hours ago, D3v1L said:

what about resetting nvram?...

You need to add ResetNvramEntry.efi to your Drivers folder and add the appropriate entry into config.plist. That is the current way of implementing resetting nvram. Check this :



Edited by pkdesign
  • Like 1
D3v1L
D3v1L
Posted
Posted (edited)

I know it....i use 0.8.4 and not the EFI on this thread 'couse It contain dsdt that is not compiled well and suitable for my rig (i use my own efi with ssdt compiled by me) btw ...my question is: if i remove boot folder on EFI , what happen if i reset nvram?...

Edited by D3v1L
pkdesign
pkdesign
Posted
Posted

I think I am missing something. I did the above steps (I think!) but I can not boot from the internal drive, only from my USB thumbdrive.



You say "clean nvram," I am using the ResetNVRAM command on the USB drive. Is that right? Also you mention "name the drive OpenCore." Not sure how to do that.



If i do not boot from my USB thumbdrive, none of my drives show up here:
