Hey guys, I'm preparing the switch from Clover to OC (at last).



In clover I used CPU type 0x0705 to make macOS show the i9700k CPU.

Should I add this again to Generic -> ProcessorType or leave it to 0 (auto)?



EDIT 1:

I just tried to install but I ran into some issues.



First i couldnt update Bios to F12k. it freezes everytime I start the update procedure.

But I was able to update to F13L. Is that ok too?



When I tried to install Big Sur it froze around 16 mins left.

Tried 3 or 4 times...



Any ideas?

Bios settings are the same as mentioned in the first post.

hard drive is a Samsung 970 evo plus





EDIT 2:

Installation froze because of the SSD. Found out that it was still on the first, faulty firmware.

After updating to v2 everything worked perfectly.



Again: Thanks a thousand times to @audiogod for making this so much fun



EDIT 3:



Now since I have Big Sur running on my test disk. what would you recommend?

Installing it again on my old (bigger) SSD or using CCC to clone it?













Edited October 14, 2021 by Cipha

[rob1980]

On 10/14/2021 at 11:58 AM, Cipha said:

Hey guys, I'm preparing the switch from Clover to OC (at last).



In clover I used CPU type 0x0705 to make macOS show the i9700k CPU.

Should I add this again to Generic -> ProcessorType or leave it to 0 (auto)?



EDIT 1:

I just tried to install but I ran into some issues.



First i couldnt update Bios to F12k. it freezes everytime I start the update procedure.

But I was able to update to F13L. Is that ok too?



When I tried to install Big Sur it froze around 16 mins left.

Tried 3 or 4 times...



Any ideas?

Bios settings are the same as mentioned in the first post.

hard drive is a Samsung 970 evo plus





EDIT 2:

Installation froze because of the SSD. Found out that it was still on the first, faulty firmware.

After updating to v2 everything worked perfectly.



Again: Thanks a thousand times to @audiogod for making this so much fun



EDIT 3:



Now since I have Big Sur running on my test disk. what would you recommend?

Installing it again on my old (bigger) SSD or using CCC to clone it?

















I’ve not used CCC, but the install process is so simple I can’t see a reason not to, also good practice as you’ll possibly end up doing it again.



using the install USB you previously used with your working EFI just start again, should be painless as no settings need changing.




[Project 2501]

On 10/13/2021 at 3:58 PM, Cipha said:

Now since I have Big Sur running on my test disk. what would you recommend?

Installing it again on my old (bigger) SSD or using CCC to clone it?



If you only installed the Big Sur on the test disc and nothing else, you won't save much or any time using CCC. Plus, CCC can't clone the partition that has Oc on it, so you would have to install Oc again.

[Cipha]

Thanks for your input. I'm going to reinstall then.

I installed a few apps already but I can use timemachine to restore them anyway.



I just realized some USB ports on the back aren't working. I had the same issue with clover and used hackintool to create my own map.

Is there any way to transfer the mapping from clover to opencore or do I have to map them from scratch?









Edited October 15, 2021 by Cipha

[saCULar]

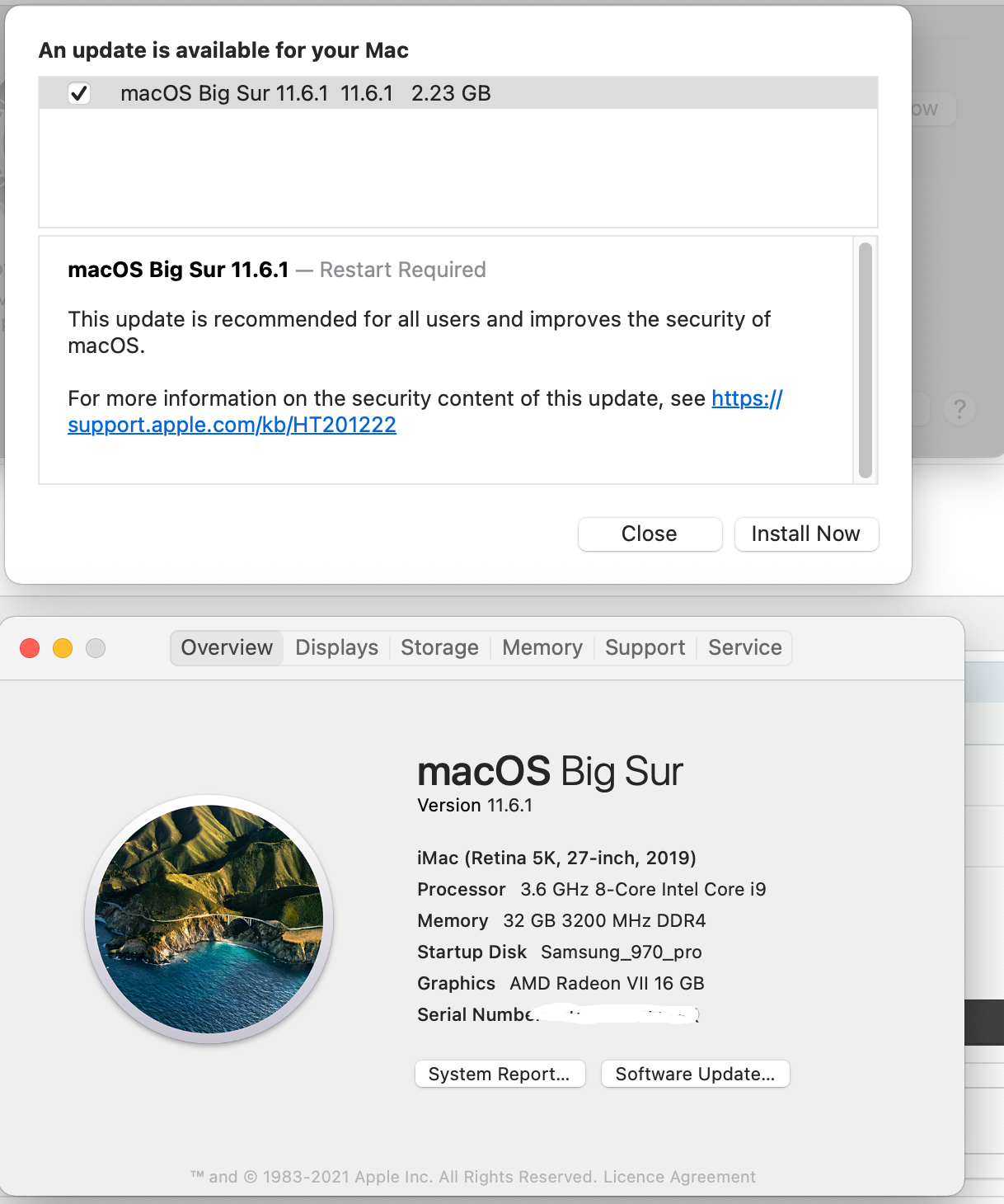

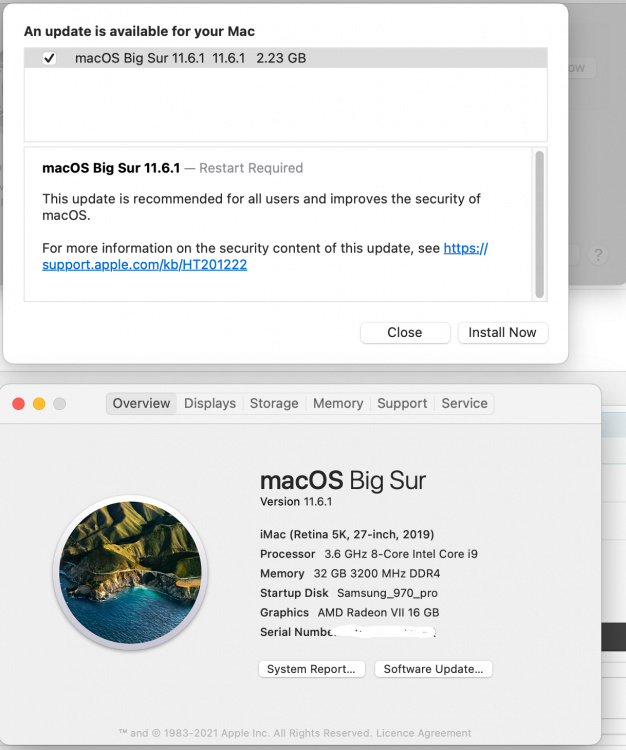

Interesting I am still getting an update notfication for 11.6.1 after already updating to 11.6.1...



[rob1980]

11 hours ago, Cipha said:

Thanks for your input. I'm going to reinstall then.

I installed a few apps already but I can use timemachine to restore them anyway.



I just realized some USB ports on the back aren't working. I had the same issue with clover and used hackintool to create my own map.

Is there any way to transfer the mapping from clover to opencore or do I have to map them from scratch?









You can use your working UsbMap.kext if you have one, the one provided by AudioGod here or create a new one in hackingtool

[rob1980]

Has anybody replaced the Intel CNVI wifi / bluetooth with a BCM94360NG?



If so, what parts did you purchase?



Thanks

[AudioGod]

30 minutes ago, rob1980 said:

Has anybody replaced the Intel CNVI wifi / bluetooth with a BCM94360NG?



If so, what parts did you purchase?



Thanks

I have in my X570-E and it works a charm.

All you need is the card and nothing else. to do the swap is easy just remove the IO shroud, Remove the Intel WLAN card from the board then remove it from its housing and replace it with the BCM94360NG,  Put it all back together and away you go.

Edited October 15, 2021 by AudioGod

[rob1980]

44 minutes ago, AudioGod said:

I have in my X570-E and it works a charm.

All you need is the card and nothing else. to do the swap is easy just remove the IO shroud, Remove the Intel WLAN card from the board then remove it from its housing and replace it with the BCM94360NG,  Put it all back together and away you go.

Ive read  that the CNVI on this board is locked and will only accept intel or something? ( I could be completely off here) I'm hoping Im wrong and the card will work without issue..

[AudioGod]

Just now, rob1980 said:

Ive read  that the CNVI on this board is locked and will only accept intel or something? ( I could be completely off here) I'm hoping Im wrong and the card will work without issue..

I’ve never heard or come across that before, The Z390 Master worked with a BCM94360NG inside it so I don’t see why it would be any different on the pro but I guess you never know…lol

[rob1980]

13 minutes ago, AudioGod said:

I’ve never heard or come across that before, The Z390 Master worked with a BCM94360NG inside it so I don’t see why it would be any different on the pro but I guess you never know…lol

Ah ok, we’ll I guess I’ll grab one and give it a go, cheers mate 👍

[saCULar]

3 hours ago, rob1980 said:

Ah ok, we’ll I guess I’ll grab one and give it a go, cheers mate 👍

I have chosen to go down that path also, rob1980.  I think Monterey will require a "Mac" wireless/bluetooth solution to work properly.



[rob1980]

4 hours ago, saCULar said:

I have chosen to go down that path also, rob1980.  I think Monterey will require a "Mac" wireless/bluetooth solution to work properly.



Mine works fine as is with a pci adaptor, I do on a very few occasions get the usb dropout which I believe is related to certain adaptors, maybe once a week.


this solution is mainly to tidy things up and as a bonus hopefully stop the usb crash by not using that for Bluetooth.



I’ll report back once it’s all installed

[Cipha]

Hey guys, I'm struggling with creating the usb mapping.



I added usbinjectall.kext and activated the port limit patch. So far so good.





The problem is neither USBMap nor Hackintool recognizing any of my usb 2.0 devices on the front USB ports.

USB 3.0 is detected fine.

The 2.0 devices are showing up in macOS anyway, they are just not recognized / highlighted in the tools.



Any ideas how to fix that?



EDIT:

There also the lower USB 3.0 Ports (SS7, SS8 ?) not recognized.



Could there be any other setting blocking usbinjectall ?



EDIT 2: Solution:

I didn't delete SSDT-EC.USBXaml

All the guides online don't assume you start with somebody else's EFI and don't mention this step.



After exporting my mapping from Hackintool, seeing all the generated files it was clear.



Now everything works like a charm.













Edited October 16, 2021 by Cipha

[texem]

Another way ( but not click and go  ) is not using any USBPorts kext etc for mapping anymore.



I modified SSDT-6 from ACPI to enable / disable and description of ports for use or not by OpenCore ( max 15 are enabled for "Darwin" )

OC ACPI -> delete orig SSDT-6

OC ACPI -> add modified  SSDT-6



"usbinjectall" or other port-mapping tools and kext's are obsolete .



btw: dump ACPI via IASL to find HSXX and SSXX port definitions in SSDT-6 on z390pro .





Edited October 18, 2021 by texem

[AudioGod]

@texem @Cipha https://github.com/USBToolBox  (Clever Mapping Via windows, Works a charm)

[texem]

Hi,



aware of USBToolBox. Good so far.

Goal for me was to make any tool obsolete by defining the ports correctly via ACPI 😉













Edited October 19, 2021 by texem

[AudioGod]

7 hours ago, texem said:

Hi,



aware of USBToolBox. Good so far.

Goal for me was to make any tool obsolete by defining the ports correctly via ACPI 😉













For you that’s great but for your average user on here that’s not an option.

Edited October 19, 2021 by AudioGod

[DoYouBelieveInMiracles]

If I were to update my current Big Sur installation to Monterey would I require to download the Monterrey RC Image for USB installation or can I just update using the "Software Update" option?

[saCULar]

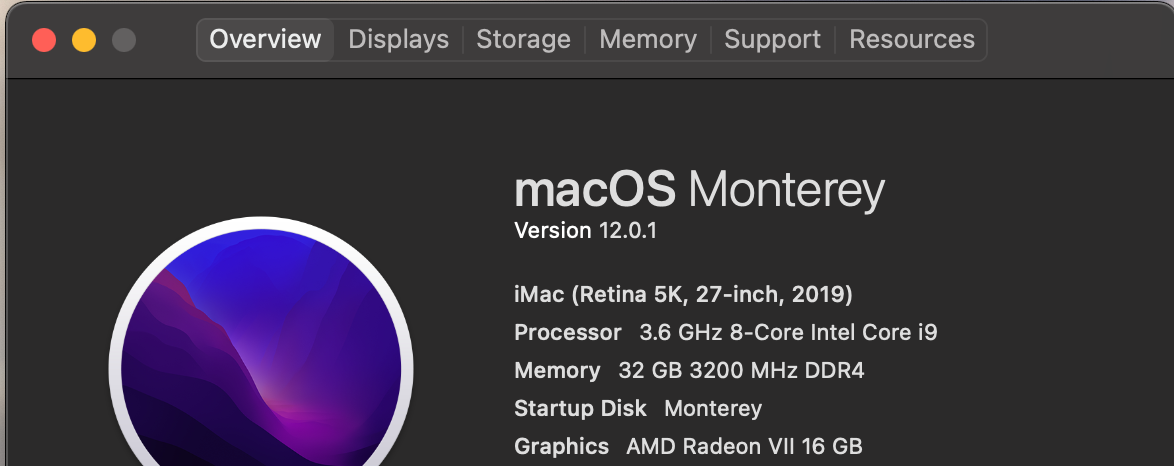

Installed the RC - slower to boot than Big Sur but very snappy once running.  Bluetooth is now working with my USB dongle.



[pkdesign]

19 hours ago, texem said:

Another way ( but not click and go  ) is not using any USBPorts kext etc for mapping anymore.



I modified SSDT-6 from ACPI to enable / disable and description of ports for use or not by OpenCore ( max 15 are enabled for "Darwin" )

OC ACPI -> delete orig SSDT-6

OC ACPI -> add modified  SSDT-6



"usbinjectall" or other port-mapping tools and kext's are obsolete .



btw: dump ACPI via IASL to find HSXX and SSXX port definitions in SSDT-6 on z390pro .





Oh man this is cool. Are there instructions to do this somewhere? I have the SSDT-6 from a previous dump. Or is this as simple as deleting unneeded entries?

[DoYouBelieveInMiracles]

1 hour ago, saCULar said:

Installed the RC - slower to boot than Big Sur but very snappy once running.  Bluetooth is now working with my USB dongle.





Did you update using USB or just used the Developer profile and updated using Software Update on Big Sur?

[Anto65]

1 hour ago, pkdesign said:

Oh man this is cool. Are there instructions to do this somewhere? I have the SSDT-6 from a previous dump. Or is this as simple as deleting unneeded entries?

I applied this patch (in MaciAsl) Thanks to @gengik84 https://www.macos86.it/topic/9-mappatura-porte-usb/   UsbConnectorTypePatch.txt.zip

In practice, after having mapped the usb via IORegistryExplorer or Hackintool, you go to activate the usb and define the connectors in the extracted oem ssdt relative to the usb (in your case SSDT-6)



example for usb2 original                                                                                                                        example for usb2  patched



                                                                                           apply this to all usb2s you want to apply :  Return (GENG (One, 0x00))



example for usb3 original                                                                                                                       example for usb3 patched



                                                                                           apply this to all usb3s you want to apply :  Return (GENG (One, 0x03))





For internal (255) apply                       Return (GENG (One, 0xFF))



For connector type usb3 type C         Return (GENG (One, 0x0A))



Once everything is defined, making sure not to exceed the limit of 15 ports, save the ssdt and brand ourselves the Table Lengt





Which we are going to insert in Acpi / Delete/ TableLength , consequently also the Drop OEM ( your ssdt) in Comment







We can eliminate any generated usbport.kext and go only with the ssdt, never had usb problems of any kind those are and those remain 🙂



[saCULar]

7 hours ago, unknownharris said:



Did you update using USB or just used the Developer profile and updated using Software Update on Big Sur?

I had just updated from Big Sur to Beta 9 using software update to another drive, and since then software updated to beta 10 and then to RC
