Pene Posted June 4, 2019 Share Posted June 4, 2019 (edited) 8 hours ago, PMheart said: --- orig-kernel_patcher.c 2019-06-04 05:26:39.000000000 +0800 +++ patched.c 2019-06-04 05:24:43.000000000 +0800 @@ -483,6 +483,18 @@ STATIC UINT8 HSieMojSearchModel[] = {0x89, 0xc1, 0xc0, 0xe9, 0x04}; // Need to use YosECSieSearchExt, LionReplaceModel +// Catalina +/* + This patch searches + mov eax, r12 || mov eax, r12 + shr al, 0x4 || shr eax, 0x10 + and replaces to + mov eax, FakeModel || mov eax, FakeExt + nop || nop +*/ +STATIC UINT8 CataSearchModel[] = {0x44, 0x89, 0xE0, 0xC0, 0xE8, 0x04}; +STATIC UINT8 CataSearchExt[] = {0x44, 0x89, 0xE0, 0xC1, 0xE8, 0x10}; +STATIC UINT8 CataReplaceMovEax[] = {0xB8, 0x00, 0x00, 0x00, 0x00, 0x90}; // mov eax, val || nop BOOLEAN PatchCPUID(UINT8* bytes, UINT8* Location, INT32 LenLoc, UINT8* Search4, UINT8* Search10, UINT8* ReplaceModel, @@ -552,14 +564,22 @@ return; } // High Sierra/Mojave patterns -// Sherlocks: 10.13/10.14.DP1 +// Sherlocks: 10.13/10.14 DBG_RT(Entry, "CPUID: try High Sierra/Mojave patch...\n"); - if (PatchCPUID(kernelData, &StrMsr8b[0], sizeof(StrMsr8b), &HSieMojSearchModel[0], + if (PatchCPUID(kernelData, &StrMsr8b[0], sizeof(StrMsr8b), &CataSearchModel[0], &YosECSieSearchExt[0], &LionReplaceModel[0], &LionReplaceModel[0], sizeof(HSieMojSearchModel), Entry)) { DBG_RT(Entry, "...done!\n"); return; } +// Catalina patterns +// PMheart: 10.15.DP1 + DBG_RT(Entry, "CPUID: try Catalina patch...\n"); + if (PatchCPUID(kernelData, &StrMsr8b[0], sizeof(StrMsr8b), &HSieMojSearchModel[0], + &CataSearchExt[0], &CataReplaceMovEax[0], &CataReplaceMovEax[0], + sizeof(CataSearchModel), Entry)) { + return; + } } // new way by RehabMan 2017-08-13 Hi @PMHeart This CPUID patch, when used, seems to hang the kernel. Edited June 4, 2019 by Pene Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 4 minutes ago, Pene said: Hi @PMHeart This CPUID patch, when used, seems to hang the kernel. Hi, indeed, I made a very stupid typo... Sorry! Please see: Or... Do you mean that it is even broken with my corrections?! Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 7 hours ago, PMheart said: As for Kernel Lapic patch, the code looks very different, I haven't come up with an idea how to patch it, sorry, it has been too late here, I feel like taking a nap now... Sorry, PMheart News on Kernel Lapic: Looks like the method we used to patch Lapic panic is kind of complex nowadays, and the data in 10.15 kernel really looks brand-new. For now I only want to post the patch (NOT guaranteed to work), and wait for the next Beta to check further. Please try this kernel patch for 10.15 Beta 1: 9E 00 00 74 0E 8B -> 9E 00 00 EB 22 8B 1 Link to comment Share on other sites More sharing options...
mnfesq Posted June 4, 2019 Share Posted June 4, 2019 I have Catalina up and running but cannot get video kexts loaded. I'm hoping it's just a matter of waiting for Lilu and WEG to be updated for 10.15. Also, my Broadcom Wifi card caused a KP when using AirportBrcmFixup.kext. When I reverted to FakePCIID.kext and FakePCIID_Broadcom_WiFi.kext, wifi worked fine. If anyone has any tips for loading intel IGPU kexts, let me know. Link to comment Share on other sites More sharing options...
Pene Posted June 4, 2019 Share Posted June 4, 2019 (edited) 33 minutes ago, PMheart said: Or... Do you mean that it is even broken with my corrections?! No, didn't notice that post. Committed as r4940, now need to test and see. Edited June 4, 2019 by Pene Link to comment Share on other sites More sharing options...
pcsolutions122 Posted June 4, 2019 Share Posted June 4, 2019 (edited) can anyone please share their efi Edited June 4, 2019 by pcsolutions122 Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 6 minutes ago, Pene said: No, didn't notice that post. Committed as r4940, now need to test and see. Thanks! Could you please try it? (i.e pass a value that would not trigger a panic, if you should be using your Z390 as shown in your signature, you could try 0x0306C3 (or 0x3C as how Clover/XNU parses it), which is Haswell) And then run something like sysctl machdep.cpu.model See if the result is 60. (0x3C in hex) Link to comment Share on other sites More sharing options...
PPCnostalgic Posted June 4, 2019 Share Posted June 4, 2019 7 hours ago, chris1111 said: Yes native gt710 without any modify Chris1111 Can you post your Clover config.plist please? Link to comment Share on other sites More sharing options...
Cyberdevs Posted June 4, 2019 Share Posted June 4, 2019 On 6/4/2019 at 10:21 AM, fantomas1 said: Pls post latest Clover compiled pkg for 10.15 - Thanks. Here it is Clover_v2.4k_r4945.zip 2 1 Link to comment Share on other sites More sharing options...

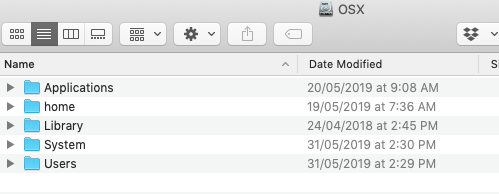

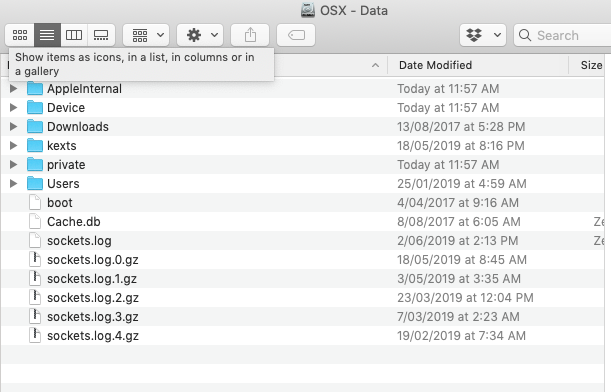

surfinchina Posted June 4, 2019 Share Posted June 4, 2019 Here's a weird thing. Not that I've got it going (ACPI stall, then get to the apple logo then blank screen) but what it has done is split my volume up into the OS and data. But the data has some other stuff in it - screenshot: No sign of the apps that were installed previous. So just to be clear, I had a few volumes - OSX, OSXbac and OSXHS now I have four - OSX and OSX data, OSXbak and OSXHS. I'll try a clean install now This is on my Zenbook Link to comment Share on other sites More sharing options...
thunder72fr Posted June 4, 2019 Share Posted June 4, 2019 1 Link to comment Share on other sites More sharing options...
macwanabe Posted June 4, 2019 Share Posted June 4, 2019 6 hours ago, foxlet said: R9 270x acceleration still works under Catalina. Does this mean OpenGL still works? Have you tried OpenGL only apps. 1 Link to comment Share on other sites More sharing options...
Pene Posted June 4, 2019 Share Posted June 4, 2019 52 minutes ago, PMheart said: Thanks! Could you please try it? (i.e pass a value that would not trigger a panic, if you should be using your Z390 as shown in your signature, you could try 0x0306C3 (or 0x3C as how Clover/XNU parses it), which is Haswell) And then run something like sysctl machdep.cpu.model See if the result is 60. (0x3C in hex) Sure. Yes, it seems to be working fine, 1 Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 2 minutes ago, Pene said: Sure. Yes, it seems to be working fine, Great! Thanks a lot! 21 minutes ago, Cyberdevs said: Here it is Clover_v2.4k_r4939.pkg.zip Hi, Just want to get everyone's forgiveness. FakeCPUID is totally broken under Clover r4939, and r4940 is fine as confirmed by @Pene If possible, please remove it and re-upload r4940! Thanks, PMheart 4 Link to comment Share on other sites More sharing options...
Ricky1994 Posted June 4, 2019 Share Posted June 4, 2019 28 minutes ago, PMheart said: Great! Thanks a lot! Hi, Just want to get everyone's forgiveness. FakeCPUID is totally broken under Clover r4939, and r4940 is fine as confirmed by @Pene If possible, please remove it and re-upload r4940! Thanks, PMheart you are a hero! So what's the dvmt and Usb port limit patch in 10.15 db1 please Link to comment Share on other sites More sharing options...
gengik84 Posted June 4, 2019 Share Posted June 4, 2019 48 minutes ago, PMheart said: If possible, please remove it and re-upload r4940! Available here: https://github.com/Dids/clover-builder/releases 2 1 Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 (edited) 2 hours ago, Ricky1994 said: you are a hero! So what's the dvmt and Usb port limit patch in 10.15 db1 please As for DVMT - I doubt it works with a raw patch, please wait for the update of WhateverGreen. If you still need it, OK, please tell me which exact FB kext you'd like to patch? (Or rather all?! ) Regarding USB patches, I am not sure either, just made these patches based off what we have done under 10.14.5: EDIT: Please see And do NOT use the ones below! IOUSBHostFamily #1 Find: 83FB0F0F87 Repl: 83FB3F0F87 IOUSBHostFamily #2 Find: 83E30FD3E34109DF Repl: 83E33FD3E34109DF AppleUSBXHCI #1 Find: 0F0F83 Repl: 3F0F83 Edited June 4, 2019 by PMheart 6 Link to comment Share on other sites More sharing options...
daliansky Posted June 4, 2019 Share Posted June 4, 2019 try it: #1: com.apple.driver.usb.AppleUSBXHCI find: 83E40F0F replace: 83E43F0F #2: com.apple.driver.usb.AppleUSBXHCI find: 83F90F0F replace: 83F93F0F 2 Link to comment Share on other sites More sharing options...
Helipilot2 Posted June 4, 2019 Share Posted June 4, 2019 Can anyone compile the new whatever green with 10.15 support? thanks in advance! (-lilubetaall doesn't work here) Link to comment Share on other sites More sharing options...
gengik84 Posted June 4, 2019 Share Posted June 4, 2019 Lilu_plugins.zip 6 3 Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 (edited) 27 minutes ago, daliansky said: try it: #1: com.apple.driver.usb.AppleUSBXHCI find: 83E40F0F replace: 83E43F0F #2: com.apple.driver.usb.AppleUSBXHCI find: 83F90F0F replace: 83F93F0F Hi, I doubt #1 is really fine, are you even patching that bitmask?! Correct my mistake if any, though. Edited June 4, 2019 by PMheart 1 Link to comment Share on other sites More sharing options...
daliansky Posted June 4, 2019 Share Posted June 4, 2019 (edited) 19 minutes ago, PMheart said: Hi, I doubt #1 is really fine, are you even patching that bitmask?! Correct my mistake if any, though. hi, @PMheart I have confirmed, remove the #1 patch, just add the #2 patch. It works just like your patch. Edited June 4, 2019 by daliansky 2 Link to comment Share on other sites More sharing options...
PMheart Posted June 4, 2019 Share Posted June 4, 2019 (edited) 4 minutes ago, daliansky said: hi, @PMheart I have confirmed, remove the #1 patch, just add the #2 patch. It works just like your patch. Yes, your #2 is identical to mine. By the way, do we need to patch IOUSBHostFamily as used to? Edited June 4, 2019 by PMheart Link to comment Share on other sites More sharing options...
ITzTravelInTime Posted June 4, 2019 Share Posted June 4, 2019 9 hours ago, Max.1974 said: How are you fix the audio? tks!!! using the latest versions of lilu and it's plugins and using those boot args: -lilubetaall -lilubeta -alcbeta Link to comment Share on other sites More sharing options...
chris1111 Posted June 4, 2019 Share Posted June 4, 2019 2 hours ago, PPCnostalgic said: Chris1111 Can you post your Clover config.plist please? Here you go, without serial number config.plist.zip Link to comment Share on other sites More sharing options...
