WhatEverGreen Support Topic

MattsCreative

By MattsCreative,
in WhatEverGreen

 Share
1,501 posts in this topic

Recommended Posts

Recommended

Posted by vit9696,

IntelGraphicsFixup, NvidiaGraphicsFixup, and Shiki are now officially dead and are part of WhateverGreen. Using them together is not supported and will lead to undefined behaviour. New WhateverGreen features should improve the maintainability, compatibility and performance of the overall solution, as well as simplify the installation. For the time being the latest versions of Lilu, AppleALC, and WhateverGreen are only available in source and are recommended for trying.   Inte

Huge change - Very useful.

Recommended by Allan

  • Like

12 reactions

Go to this post
Nanorise
Nanorise
Posted
Posted

You need to add -disablegfxfirmware in config.plist, have you done it? No need for Intel FakeID plugin.

I did, didn't help.

can you share your config.plist?



you have all those kexts in like i do?



EDIT: Inject Intel was off, now its on and it works! thanks

Link to comment
Share on other sites
toleda
toleda
Posted
Posted

Sapphire HD 7750 Low Profile, worked perfectly until 10.13 with HD4600 as primary.



10.13 boot freezes after usb, airport and before any graphics messages with card installed, no 10.13 boot problems with card removed. Installed current Lilu.kext and WhatEverGreen.kext and boot freeze remains. Tried with Dashimaki and without, CSM enabled and disabled, native and custom connectors; no difference.



What boot flags do I need for WhatEverGreen.kext? Suggestions?

Link to comment
Share on other sites
Picasso
Picasso
Posted
Posted

@toleda

Boot argumentsAdd -raddbg to enable debug printing (available in DEBUG binaries).Add -radvesa to disable ATI/AMD video acceleration completely.Add -radoff to disable WhateverGreen.Add -radbeta to enable WhateverGreen on unsupported os versions (10.13 and below are enabled by default).Add -rad24 to enforce 24-bit display mode.Add -radlogo to patch boot logo distortion.Add -raddvi to enable DVI transmitter correction (required for 290X, 370, etc.)Add radpg=15 to disable several power-gating modes (see FAQ, required for 7xxx GPUs).

Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

Sapphire HD 7750 Low Profile, worked perfectly until 10.13 with HD4600 as primary.



10.13 boot freezes after usb, airport and before any graphics messages with card installed, no 10.13 boot problems with card removed. Installed current Lilu.kext and WhatEverGreen.kext and boot freeze remains. Tried with Dashimaki and without, CSM enabled and disabled, native and custom connectors; no difference.



What boot flags do I need for WhatEverGreen.kext? Suggestions?



I think its also recommended to NOT use any clover graphics settings like EDID, Fake ID or Inject ATi = true.     Leave everything blank for graphics configuration.    Some use a fake ID only 0x12345678 to trick Whatevergreen into assigning an ID or frame buffer that fits the card.    -radbeta -lilubeta may help.

Link to comment
Share on other sites
bbmatias3
bbmatias3
Posted
Posted

it does not work with two GPUs

with a Gpu running with Sierra and with High Sierra, if I insert the second GPU restart

2x AMD r9 270x



Good with a single GPU HDMI, DVI, Dvi, DP work, stop / wake up OK, Good HSierra replace kext :yes:



with two GPUs nothing, restart :(





try changing your smbios to 6,1

here is my efi just in case.. dual gpu worked for me



https://drive.google.com/file/d/0B-v6U5cirK6TS2lyeVJNclVSSFU/view?usp=sharing

  • Like 1
Link to comment
Share on other sites
carlo_67
carlo_67
Posted
Posted



try changing your smbios to 6,1

here is my efi just in case.. dual gpu worked for me



https://drive.google.com/file/d/0B-v6U5cirK6TS2lyeVJNclVSSFU/view?usp=sharing





already use macpro6.1



resolved so



Resolved soual Gpu R9 270+ R9 270X works

Sierra and High Sierra, Pitcairn. rom in rom Clover + fake ID 0x68101002

WatherGreen.kext + lilu in S /

Dual GPU R9 270+R9 270x works SIERRA and High Sierra

Pitcairn.Rom in Rom Clover+ FakeID 0x68101002

Whatevergreen+ Lilu in S/L/E

:thumbsup_anim:  :thumbsup_anim:



The only thing that remains to us AMD users is the audio that using flag npci = 0xxx does not work

we are forced to use VoodooHDA

even though it is great

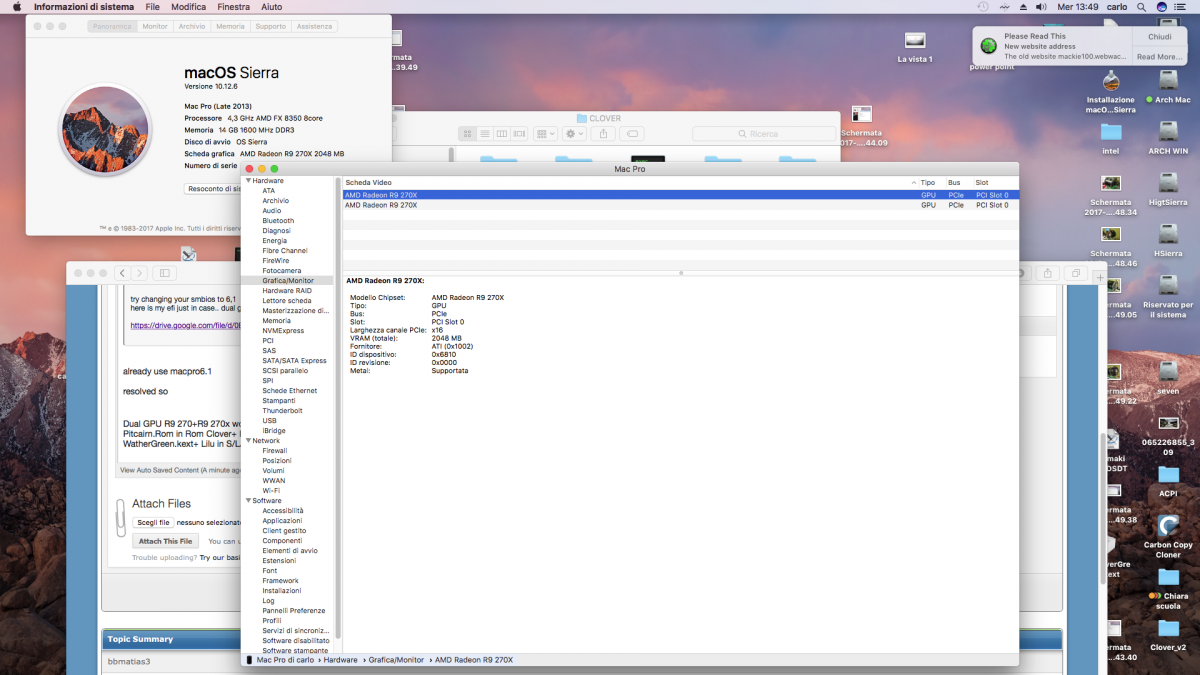

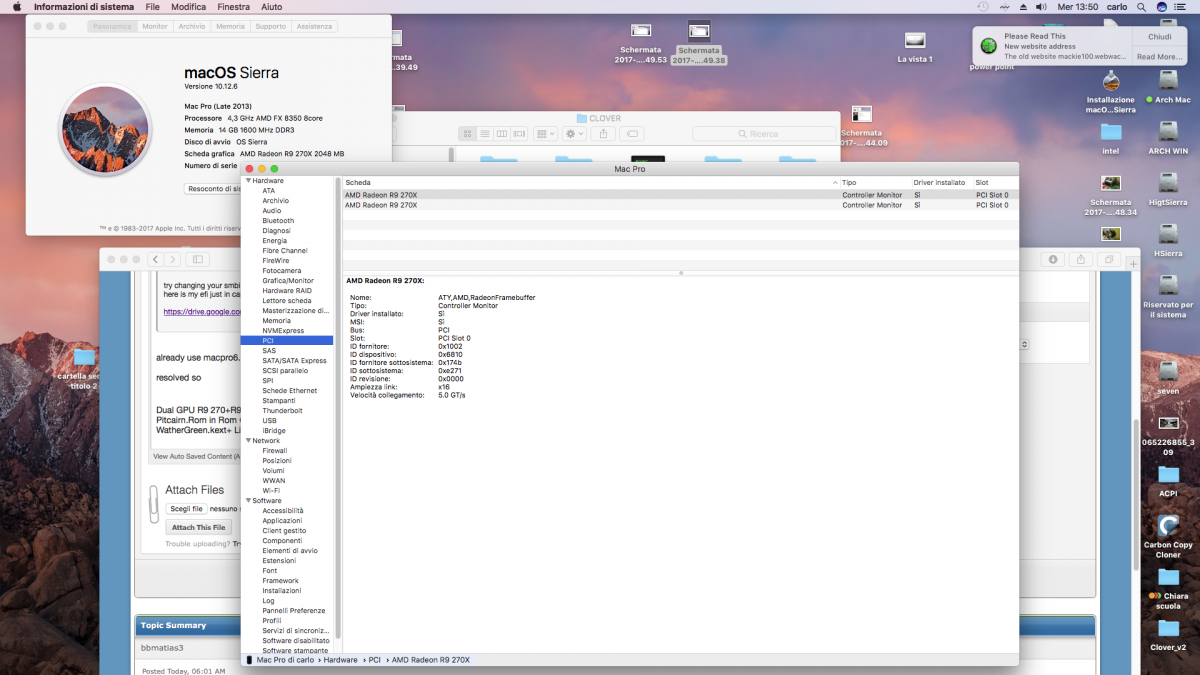

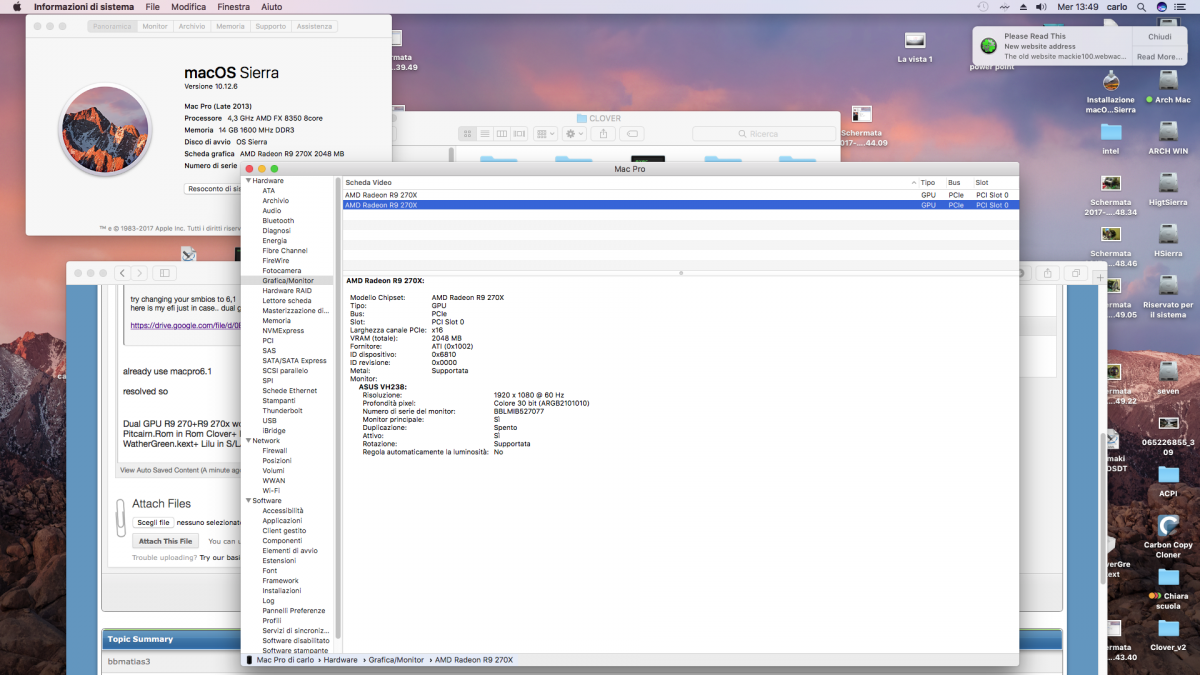

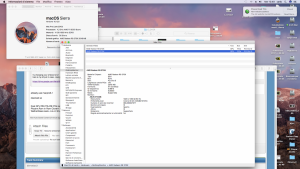

Schermata 2017-11-01 alle 13.49.38.png

Schermata 2017-11-01 alle 13.49.53.png

Schermata 2017-11-01 alle 13.50.30.png

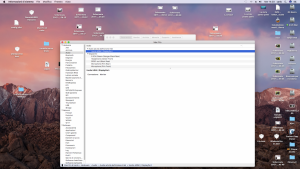

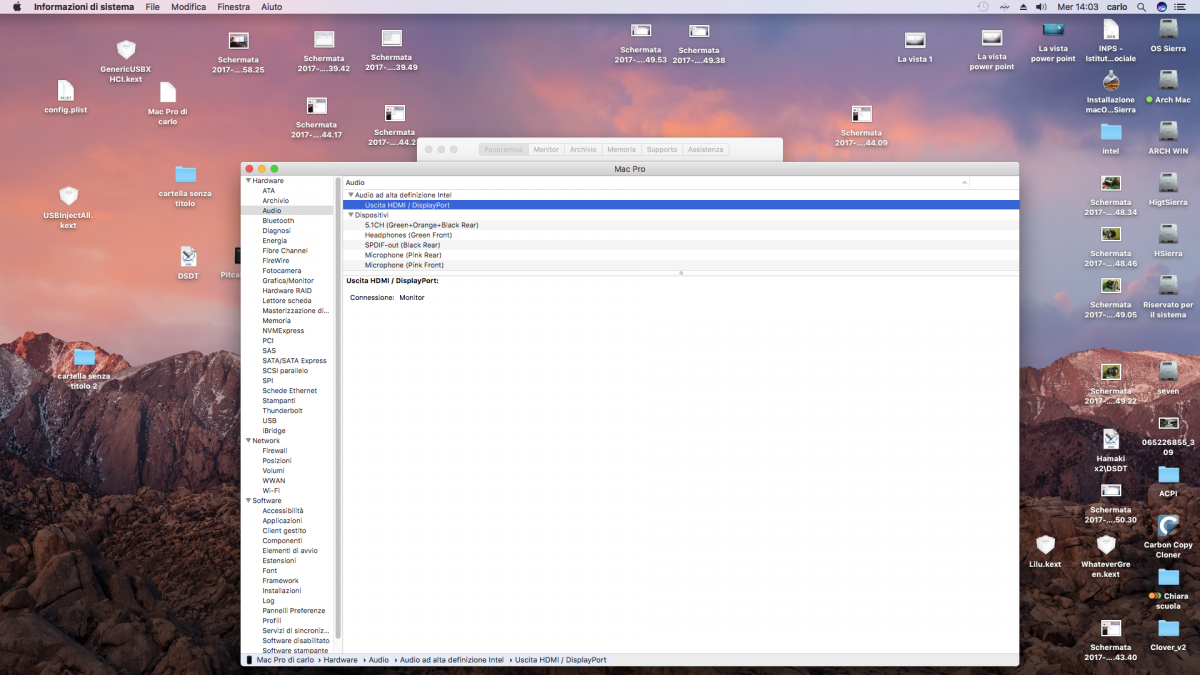

Schermata 2017-11-01 alle 14.03.23.png

  • Like 1
Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

Does anyone know how to fix dual rx 480?

I can boot but it seems like only one is being utilized

Mac Sierra high 10.13

Mac OS doesn’t support crossfire like windows so only one card gets used for most apps. This also lowers your working card to 8 lanes so there is a slight performance drop. Some open Cl apps will utilize both cards like Luxmark and maybe some renedering apps but crossfire performance in open GL is not going to happen with apple software. It sucks but for some apps you can benefit from two cards but in general it is a waste of electricity, IMO.



There’s a thread with a user on a Z270 6700k with 4 Nvidia TitanXp cards. He can run 3 but with the 4th one it crashes the system. Not enough PCIE Lanes available. 1 card 16 lanes 2 cards 8 lanes 3 cards 4? Lanes 4 cards 2 lanes (unsupportable). He needs a threadripper with 64 lanes.

Link to comment
Share on other sites
xtddd
xtddd
Posted
Posted

It should be like that

attachicon.gifСнимок экрана 2017-10-12 в 02.07.05.png



Just copy it

		<key>Arbitrary</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Inject AMD Graphics properties</string>
				<key>CustomProperties</key>
				<array>
					<dict>
						<key>Key</key>
						<string>device-id</string>
						<key>Value</key>
						<data>
						sGcAAA==
						</data>
					</dict>
				</array>
				<key>PciAddr</key>
				<string>01:00.00</string>
			</dict>
		</array>

About choosing correct PciAddr look here http://www.insanelymac.com/forum/topic/325987-whatevergreen-support-topic/?p=2489296



And obligatorily disable clover ATI injection!!!

hi,how to display rx580 name.through this config.plist method

Link to comment
Share on other sites
zxv
zxv
Posted
Posted

Any way of regulating default fan speeds via WhateverGreen? Mine intermittently spin up every few seconds under no load—it's very annoying. Seems like macOS never initializes the fan table correctly.



I've tried editing vBIOS fan table (e.g., setting fans to 20% @ 32°C), but it's to no avail.



I notice some entries in AMD9000Controller such as "_Tonga_FanCtrl_SetDefaultMode" but am unsure how to get at them.

Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

Any way of regulating default fan speeds via WhateverGreen? Mine intermittently spin up every few seconds under no load—it's very annoying. Seems like macOS never initializes the fan table correctly.I've tried editing vBIOS fan table (e.g., setting fans to 20% @ 32°C), but it's to no avail.I notice some entries in AMD9000Controller such as "_Tonga_FanCtrl_SetDefaultMode" but am unsure how to get at them.

Look for “AutoWattMan” Settings. Are you in HS 13.2 by any chance? I notice 13.2 has my vega card fan spinning pretty fast under no load, but my RX 480 seems normal.

  • Like 1
Link to comment
Share on other sites
jsl
jsl
Posted
Posted

@Gigamaxx, hey, does sleep work on 13.2 with rx480 for you with whatevergreen? I suddenly got sleep issues and have no clue whats causing them after installing the beta...

You may try to put Lilu.kext & WhateverGreen.kext in /Library/Extensions instead of /EFI/CLOVER/kexts/Other.

It fix my hackintosh at 10.13.2 (17C60c).

  • Like 1
Link to comment
Share on other sites
zxv
zxv
Posted
Posted

Look for “AutoWattMan” Settings. Are you in HS 13.2 by any chance? I notice 13.2 has my vega card fan spinning pretty fast under no load, but my RX 480 seems normal.

10.3.2, yes. Been like this since early 10.3.1 though.



AutoWattMan looks to be for power management. Not really what I need.

  • Like 1
Link to comment
Share on other sites
Nightf4ll
Nightf4ll
Posted
Posted

You may try to put Lilu.kext & WhateverGreen.kext in /Library/Extensions instead of /EFI/CLOVER/kexts/Other.

It fix my hackintosh at 10.13.2 (17C60c).



nope, no difference.. still reboot after sleep. downloading the beta2 now, maybe it will fix this issue.

Link to comment
Share on other sites
nms
nms
Posted
Posted



You may try to put Lilu.kext & WhateverGreen.kext in /Library/Extensions instead of /EFI/CLOVER/kexts/Other.

It fix my hackintosh at 10.13.2 (17C60c).

Then one need LiluFriend.kext too.

Link to comment
