sekmet64 Posted September 25, 2014 Share Posted September 25, 2014 Hi, I followed the instructions using the clover method and I managed to get the sound working but unfortunately the microphone port is not showing up. Anyone has that working? Or has an idea what I should try doing? I have a 6 port on board ALC889 audio on my motherboard, of which 3 outputs and 1 line in shows up, but no microphone and no 4th output, but I don't mind that atm since I only need one out and at least the microphone. My MB is ASUS Maximus Gene Z IV with Z68 chipset and Sandy Bridge Core i5 2500K CPU. When installing the script I choose Audio ID 1. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2063901 Share on other sites More sharing options...
toleda Posted September 25, 2014 Author Share Posted September 25, 2014 I have a 6 port on board ALC889 audio on my motherboard, of which 3 outputs and 1 line in shows up, but no microphone and no 4th output, 4th output (grey) requires an edit to AppleHDA (must remove an existing output), see M-Realtek_ALC_AppleHDA_Customization.pdf.zip Audio ID: 2 has only Line In. See Post #1, Problem Reporting, reply with requested files. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2063954 Share on other sites More sharing options...
ComicsNight Posted September 26, 2014 Share Posted September 26, 2014 Hey I got a quo computer motherboard with i3 3240 3.4GHz 2 cores and ALC892 and can't find any driver to work with Yosemite 10.10 DP8 can you help me? Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2064002 Share on other sites More sharing options...
toleda Posted September 26, 2014 Author Share Posted September 26, 2014 Hey I got a quo computer motherboard with i3 3240 3.4GHz 2 cores and ALC892 and can't find any driver to work with Yosemite 10.10 DP8 can you help me? See Post #1, all methods work in 10.10/dp8. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2064017 Share on other sites More sharing options...
WinstonAce Posted September 30, 2014 Share Posted September 30, 2014 Hi What is the proper way to use this guide with osmosis (layout-id=1 by dsdt) and series 9? I tried every combination from https://github.com/toleda/audio_RealtekALC 1.only "audio_realtekALC-90_v2.command" 2.only "audio_alc_9series-hda-93_patch.command" 3.1+2 4.1+manual hex patch (of course i restored vanilla AppleHDA between trials) can't seem to get it to work any help will be appreciated Thanks Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065143 Share on other sites More sharing options...
toleda Posted September 30, 2014 Author Share Posted September 30, 2014 Hi What is the proper way to use this guide with osmosis (layout-id=1 by dsdt) and series 9? 3.1+2 Must use boot argument: kext-dev-mode=1 3. is correct. See Post #1, Problem Reporting Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065191 Share on other sites More sharing options...
WinstonAce Posted September 30, 2014 Share Posted September 30, 2014 Thank you very much just tried it again and this time it worked don't have a clue what changed but as long as it's working i'm happy Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065195 Share on other sites More sharing options...
Stefan Milev Posted October 1, 2014 Share Posted October 1, 2014 Strangely after update to GM Candidate 1 after sleep I had no sound. Anyone else with this? I will look more the issue more because it happened now, after restart it works so I need to put the computer to sleep and after at least un hour test again. I use clover to patch vanilla AppleHDA. After update from DP6 to DP7 and DP8 I didn't have this. Edit: I confirm no sound after sleep. Files after sleep attached. Also can someone post his vanilla AppleHDA.kext for me to try the script again? iMac12,2.zip Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065303 Share on other sites More sharing options...
toleda Posted October 1, 2014 Author Share Posted October 1, 2014 Strangely after update to GM Candidate 1 after sleep I had no sound. Anyone else with this? No audio issues with GMC1. Attached files indicate sound is configured properly and working. Are audio devices showing in System Preferences/Sound after wake? Issue is not script. cloverALC adds zml files to AppleHDA.kext; remove those files and you are back to native. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065375 Share on other sites More sharing options...
T a D Posted October 3, 2014 Share Posted October 3, 2014 Toleda, thanks once again for your audio patch scripts. ALC892 working a treat with Yosemite Public Beta 4. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065788 Share on other sites More sharing options...
Stefan Milev Posted October 3, 2014 Share Posted October 3, 2014 My problem was solved easy with simple run of Kext Utility and permission repair. Thanks Toleda for your help. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065838 Share on other sites More sharing options...

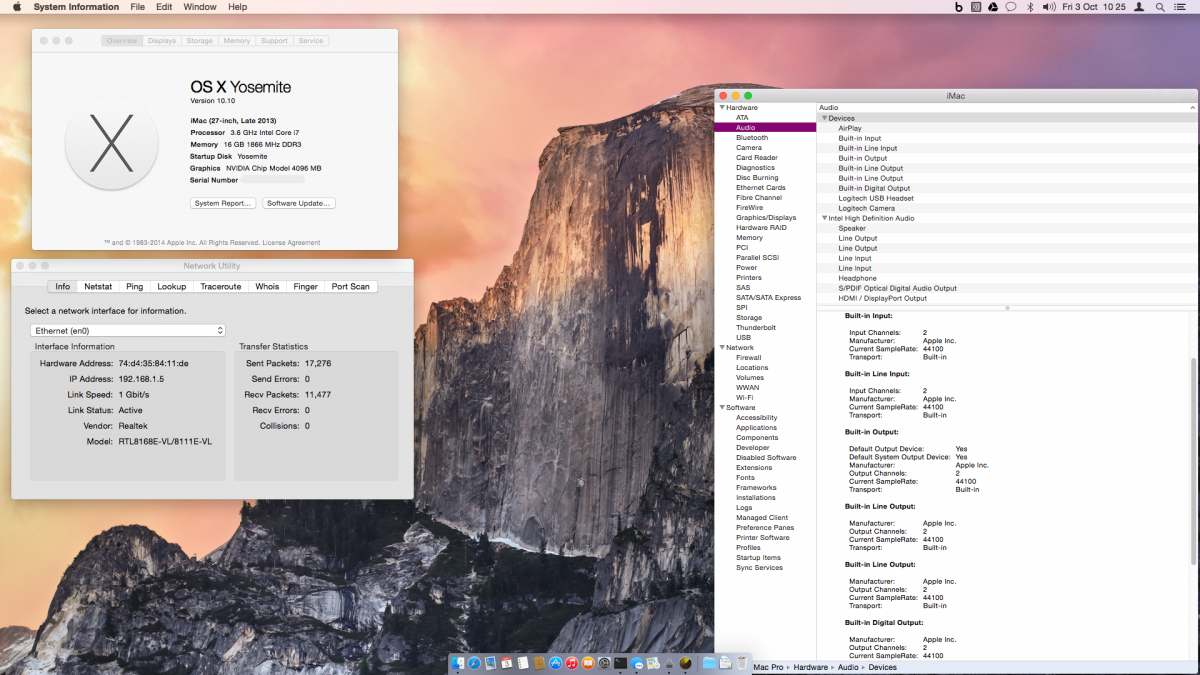

ReB87 Posted October 3, 2014 Share Posted October 3, 2014 Toleda, thanks once again for your audio patch scripts. ALC892 working a treat with Yosemite Public Beta 4. Screen Shot 2014-10-03 at 10.25.44 am.png What script did you use? I'm using Yosemite GM1, on a GA-z87HD3 board and "audio_cloverALC-90_v2.command" runs correctly. However, after reboot, I don't have sound. :'( Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065950 Share on other sites More sharing options...
toleda Posted October 3, 2014 Author Share Posted October 3, 2014 I don't have sound. Post #1, Problem Reporting. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2065989 Share on other sites More sharing options...
uglyJoe Posted October 3, 2014 Share Posted October 3, 2014 toleda, thanks for sharing this script. ALC892 with hdmi works for me in Mavericks. With Yosemite GM (14A379b) sound works too but hdmi does not. AppleHDAController patching fails. After changing your script to sudo /usr/bin/perl -pi -e 's|3d0c0c00000f8520010000|3d0c0c0000744b90909090|g' /tmp/AppleHDAController.txt hdmi works again. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2066077 Share on other sites More sharing options...
toleda Posted October 3, 2014 Author Share Posted October 3, 2014 After changing your script to Fixed: audio_realtekALC-90_v2.command_v2.0.3, committed a month ago for dp5 and newer Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2066084 Share on other sites More sharing options...
uglyJoe Posted October 3, 2014 Share Posted October 3, 2014 Fixed: audio_realtekALC-90_v2.command_v2.0.3, committed a month ago for dp5 and newer please take a closer look sudo /usr/bin/perl -pi -e 's|3d0c0c00000f8520010000|3d0c0c0000744b90909090|g' /tmp/AppleHDAController.txt # gm (14A379b) # sudo /usr/bin/perl -pi -e 's|3d0c0a00000f8520010000|3d0c0c0000744b90909090|g' /tmp/AppleHDAController.txt # dp5 # sudo /usr/bin/perl -pi -e 's|3d0c0c00000f8496000000|3d0c0c0000744b90909090|g' /tmp/AppleHDAController.txt # dp1/dp2/dp3/dp4 Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2066087 Share on other sites More sharing options...
ReB87 Posted October 4, 2014 Share Posted October 4, 2014 Post #1, Problem Reporting. Solved. Deleted kext files that might have caused the problem. After that executed the script again. Sound is working perfectly now. Thanks! Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2066228 Share on other sites More sharing options...
toleda Posted October 4, 2014 Author Share Posted October 4, 2014 please take a closer look You are correct, audio_realtekALC-90_v2.0.4.command committed. Thanks. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2066241 Share on other sites More sharing options...
scy0846 Posted October 9, 2014 Share Posted October 9, 2014 It's not working for me I keep getting\ Agreement The audio_realtekALC-90_v2 script is for personal use only. Do not distribute the patch, any or all of the files or the resulting patched AppleHDA.kext for any reason without permission. The audio_realtekALC-90_v2 script is provided as is and without any kind of warranty. File: audio_realtekALC-90_v2.command_v2.0.4 Password: Print: Entry, ":CFBundleShortVersionString", Does Not Exist Error occurred, no S/L/E/AppleHDA.kext installed No system files were changed To save a Copy to this Terminal session: Terminal/Shell/Export Text As ... [Process completed] any idea how to fix that? Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2067619 Share on other sites More sharing options...
toleda Posted October 9, 2014 Author Share Posted October 9, 2014 any idea how to fix that? Install the native AppleHDA.kext. Combo Update does not restore native. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2067623 Share on other sites More sharing options...
hackformore Posted October 9, 2014 Share Posted October 9, 2014 @toleda, I don't have sound, I use 10.10 Beta 4, Chameleon. Method: realtekALC/patch in place ALC889 3 port. It show device in System Information>Audio>Device But not work (don't have sound icon on bar) No_Sound.zip My system: Gigabyte P61-USB3-B3 , F11 Corei3 2100 Nvidia 8800 No_Sound.zip Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2067680 Share on other sites More sharing options...
toleda Posted October 10, 2014 Author Share Posted October 10, 2014 I don't have sound, Audio is working. Audio ID: 1 is s selected; for Audio ID: 2 (3 motherboard audio ports) edit dsdt/HDEF/layout-id to 0x02, 0x00, 0x00, 0x00. What color motherboard audio port are the speakers connected to? What audio device is sslected in System Preferences/Sound/Output? Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2068198 Share on other sites More sharing options...
chummdoggin Posted October 11, 2014 Share Posted October 11, 2014 Trying to get r9 290s audio established, dcpimanager shows no info codec id, revision and codec name for it. ran that nifty clover script on the alc888b but audio dies after wake. running pb 5 of XX. Is that equivalent of gm latest? Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2068280 Share on other sites More sharing options...
toleda Posted October 11, 2014 Author Share Posted October 11, 2014 Trying to get r9 290s audio established but audio dies after wake No audio after wake is an AppleHDA.kext problem. A 10.9 or 10.9.1 AppleHDA.kext works in Mavericks. Otherwise, search the Apple Forums for the scripts to kill coreaudiod or reload AppleHDA.kext. AMD HDMI audio, off topic; see Yosemite AppleHDA HDMI Audio Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2068292 Share on other sites More sharing options...
chummdoggin Posted October 12, 2014 Share Posted October 12, 2014 No audio after wake is an AppleHDA.kext problem. A 10.9 or 10.9.1 AppleHDA.kext works in Mavericks. Otherwise, search the Apple Forums for the scripts to kill coreaudiod or reload AppleHDA.kext. AMD HDMI audio, off topic; see Yosemite AppleHDA HDMI Audio Not sure what did it, maybe clover reset hda/afglowpowerstate? fixed sound on wake.... update: maybe not, worked the first minute update: killall does not work... tried kextunload the realtecalc, library kernel not found. You probably know, hda wont reload.. Link to comment https://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/page/9/#findComment-2068620 Share on other sites More sharing options...
