[AMD] Working Builds!

Meowthra · December 12, 2014

My build:

    CPU: AMD Athlon II X2 270 3.4GHz (BIOS Settings 10x200=2GHz)
    Motherboard: ASrock N68-VS3 FX (geforce7025/nForce630a)
    RAM: Transcend 2GBx2=4GB DDR3
    Video: ASUS GeForce 210 1024MB
    Audio: VIA VT1705

OS X 10.10.1 Yosemite

OS X 10.9.5 Mavericks

OS X 10.7.5 Lion

Kernel Based on AnV SSEPlus Ver.

    Drivers/Kexts:
      AppleNForceATA.kext
      nForceLAN.kext
      VoodooHDA.kext (for VT1705 ver)

    Bootloader : Chameleon 2.3 2468

10.10 flags:

<dict>
    <key>GraphicsEnabler</key>
    <string>Yes</string>
    <key>Kernel</key>
    <string>/System/Library/Kernels/kernel</string>
    <key>Kernel Flags</key>
    <string>-v kext-dev-mode=1 npci=0x2000</string>
    <key>USBLegacyOff</key>
    <string>Yes</string>
</dict>

gils83 · December 12, 2014

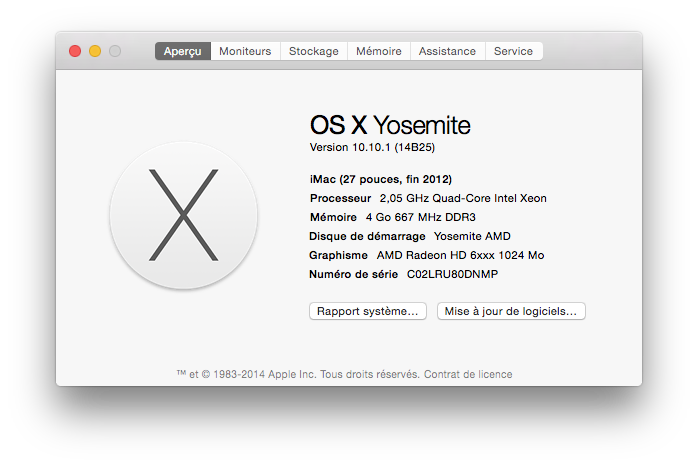

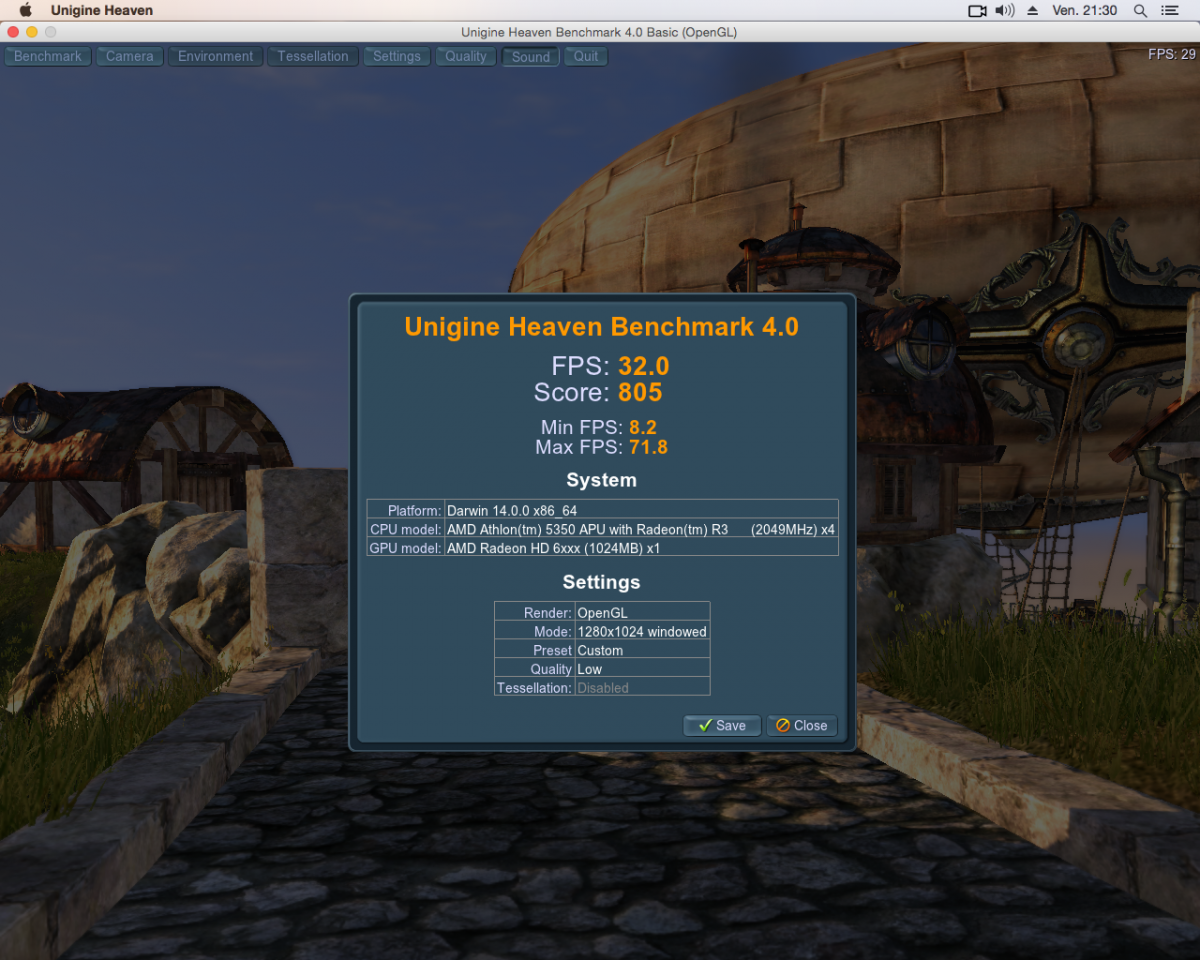

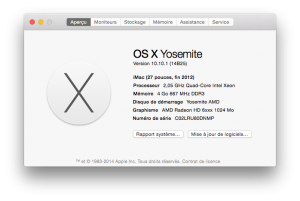

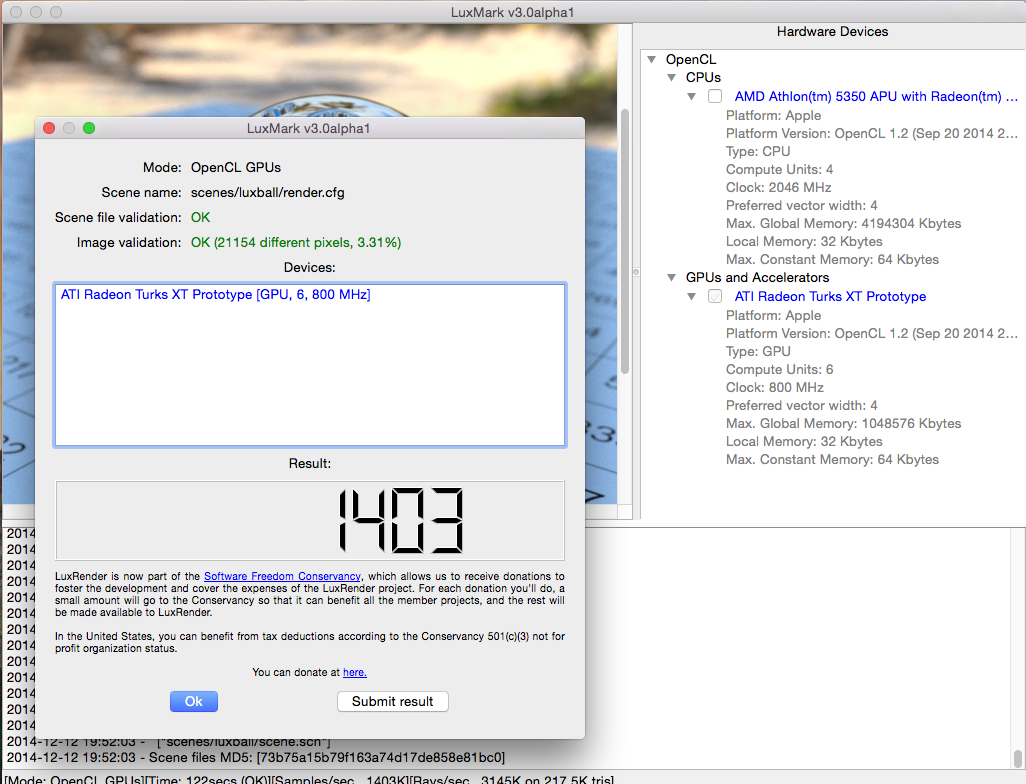

My build

-MSI AM1I (AM1 PCIE x4)

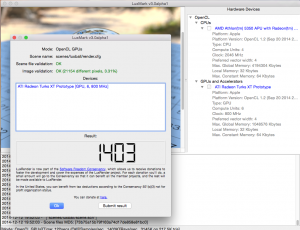

-APU Athlon 5350 with R3 (R3 no works CI/QE)

-Kingston DDR3 4 G0 1600 (667)

-HD 6670 1024 low profile

-SSD SanDisk 128 GO

-Lan RTL 8111

-Audio ? (voodooHDA 2.8.4)

-kext :

FakeSMC (V 2009)

IOPCIFamily M 10.9 13A603

AppleACPIPlatform M 10.9 13A603

IOUSBFamily M 10.9 13A603

IOUSBMassStorageClass M 10.9 13A603

RealtekRTL8111

VoodooHDA 2.8.4

No use NullCPUPowerManagement

No use DSDT

No use SSDT

use chameleon 2437

use kernel bronya rc2 v1 opemu bronya (14.0.0 Darwin Kernel Version 14.0.0: пятница, 14 ноября 2014 г. 00:59:36 (MSK); root:xnu-2782.1.97/BUILD/obj/RELEASE_X86_64 x86_64)

Sleep no works

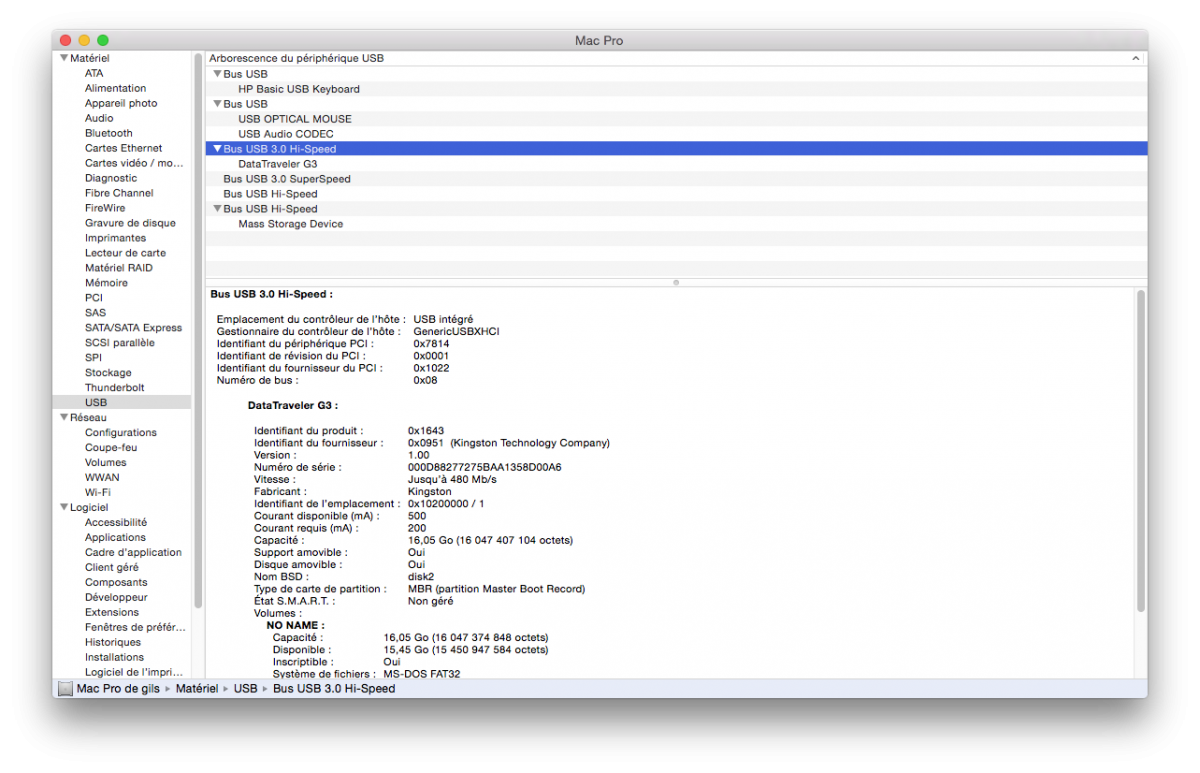

USB3 ~~no works~~ works !! :thumbsup_anim:

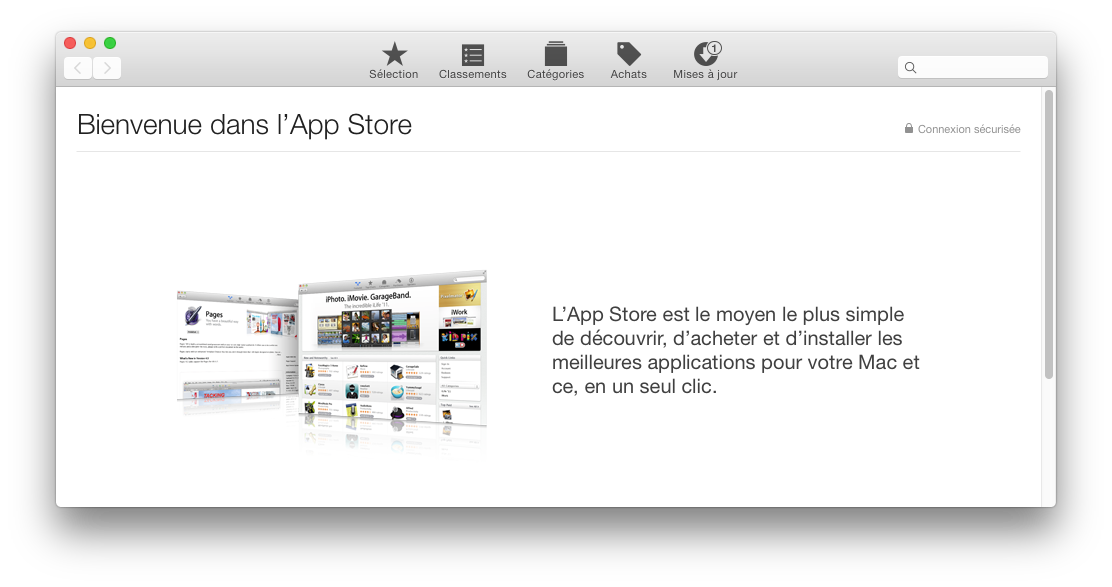

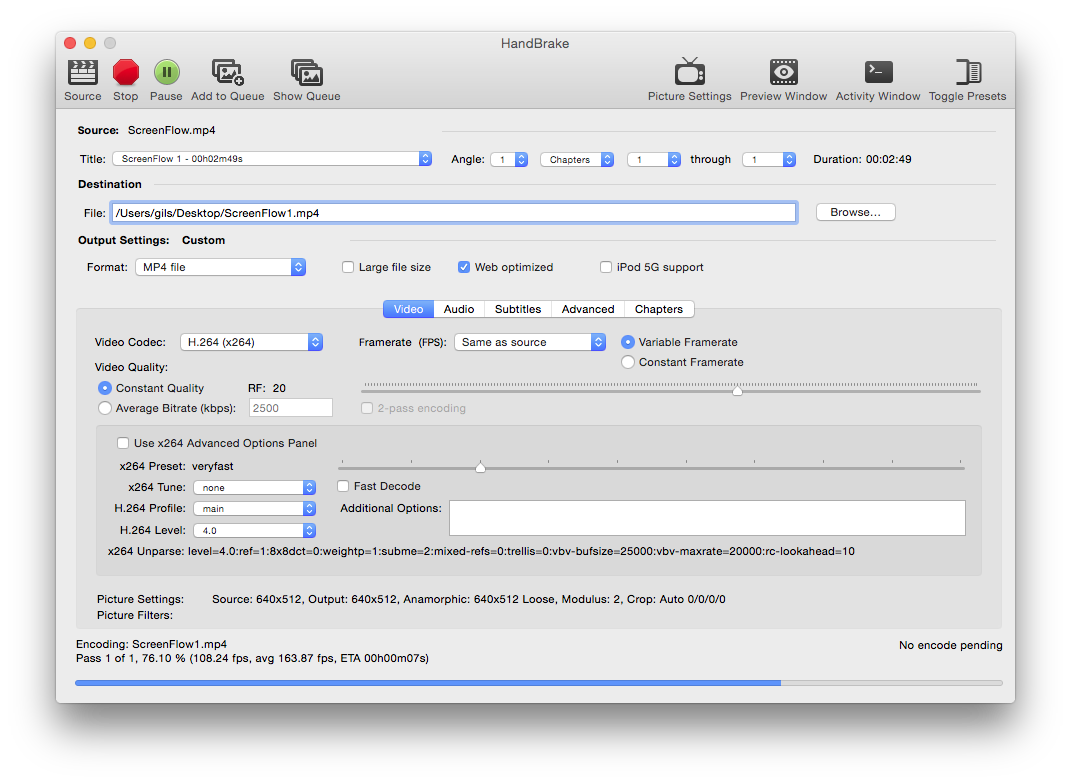

Software : All works sauf iCoud . (inutile)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
        <key>EthernetBuiltIn</key>
	<string>Yes</string>
        <key>AtiConfig</key>
	<string>Lotus</string>
	<key>AtiPorts</key>
	<string>2</string>
	<key>Kernel Flags</key>
	<string>npci=0x2000 dart=0 -f</string>
</dict>
</plist>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>SMbiosdate</key>
	<string>10/12/2012</string>
	<key>SMbiosvendor</key>
	<string>Apple Inc.</string>
	<key>SMbiosversion</key>
	<string>IM131.88Z.010A.B05.1210121459</string>
	<key>SMboardproduct</key>
	<string>Mac-FC02E91DDD3FA6A4</string>
	<key>SMfamily</key>
	<string>iMac</string>
	<key>SMmanufacturer</key>
	<string>Apple Inc.</string>
	<key>SMproductname</key>
	<string>iMac13,2</string>
	<key>SMserial</key>
	<string>C02LRU80DNMP</string>
	<key>SMsystemversion</key>
	<string>1.0</string>
</dict>
</plist>

machdep.user_idle_level: 0
machdep.cpu.max_basic: 13
machdep.cpu.max_ext: 2147483678
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD Athlon(tm) 5350 APU with Radeon(tm) R3
machdep.cpu.family: 22
machdep.cpu.model: 0
machdep.cpu.extmodel: 0
machdep.cpu.extfamily: 7
machdep.cpu.stepping: 1
machdep.cpu.feature_bits: 4528406856356068351
machdep.cpu.extfeature_bits: 1531285442464578559
machdep.cpu.signature: 7343873
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 HTT SSE3 PCLMULQDQ MON SSSE3 CX16 SSE4.1 SSE4.2 MOVBE POPCNT AES XSAVE OSXSAVE AVX1.0 F16C
machdep.cpu.extfeatures: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI
machdep.cpu.logical_per_package: 4
machdep.cpu.cores_per_package: 4
machdep.cpu.microcode_version: 21
machdep.cpu.processor_flag: 1
machdep.cpu.mwait.linesize_min: 64
machdep.cpu.mwait.linesize_max: 64
machdep.cpu.mwait.extensions: 3
machdep.cpu.mwait.sub_Cstates: 0
machdep.cpu.thermal.sensor: 0
machdep.cpu.thermal.dynamic_acceleration: 0
machdep.cpu.thermal.invariant_APIC_timer: 0
machdep.cpu.thermal.thresholds: 0
machdep.cpu.thermal.ACNT_MCNT: 1
machdep.cpu.thermal.core_power_limits: 0
machdep.cpu.thermal.fine_grain_clock_mod: 0
machdep.cpu.thermal.package_thermal_intr: 0
machdep.cpu.thermal.hardware_feedback: 0
machdep.cpu.thermal.energy_policy: 0
machdep.cpu.xsave.extended_state: 7 832 832 0
machdep.cpu.arch_perf.version: 0
machdep.cpu.arch_perf.number: 0
machdep.cpu.arch_perf.width: 0
machdep.cpu.arch_perf.events_number: 0
machdep.cpu.arch_perf.events: 0
machdep.cpu.arch_perf.fixed_number: 0
machdep.cpu.arch_perf.fixed_width: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 2048
machdep.cpu.tlb.inst.small: 32
machdep.cpu.tlb.inst.large: 8
machdep.cpu.tlb.data.small: 40
machdep.cpu.tlb.data.small_level1: 512
machdep.cpu.tlb.data.large: 8
machdep.cpu.tlb.data.large_level1: 256
machdep.cpu.address_bits.physical: 40
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 4
machdep.cpu.thread_count: 4
machdep.vectors.timer: 221
machdep.vectors.IPI: 222
machdep.pmap.hashwalks: 1685760
machdep.pmap.hashcnts: 3409483
machdep.pmap.hashmax: 39
machdep.pmap.kernel_text_ps: 2097152
machdep.pmap.kern_pv_reserve: 4000
machdep.memmap.Conventional: 4238385152
machdep.memmap.RuntimeServices: 0
machdep.memmap.ACPIReclaim: 0
machdep.memmap.ACPINVS: 798720
machdep.memmap.PalCode: 0
machdep.memmap.Reserved: 38842368
machdep.memmap.Unusable: 0
machdep.memmap.Other: 0
machdep.tsc.frequency: 2049999300
machdep.tsc.deep_idle_rebase: 1
machdep.tsc.nanotime.tsc_base: 60199215827
machdep.tsc.nanotime.ns_base: 0
machdep.tsc.nanotime.scale: 2095106713
machdep.tsc.nanotime.shift: 0
machdep.tsc.nanotime.generation: 2
machdep.misc.panic_restart_timeout: 1266874889
machdep.misc.interrupt_latency_max: 0x0 0xde 0x71ae1
machdep.misc.machine_check_panic:
machdep.misc.timer_queue_trace:
machdep.misc.nmis: 0
machdep.eager_timer_evaluations: 885
machdep.eager_timer_evaluation_max: 522033
iMac-de-gils:~ gils$

kext AM1I.zip

Edited January 18, 2015 by gils83

tatomi92 · January 8, 2015

My fully working Hackintosh:

What's working:

Sapphire Radeon HD7850 OC 2GB with full QE/CI, no glitches at all

Realtek 8111C ethernet

ALC888 with VooDooHDA

restart, shutdown and sleep

all USB Ports

IDE DVD Drive with AppleATIATA.kext (reading and writing as well)

SAMSUNG EVO 840 128GB with Trim Enabled

What's not:

Memory speed not showing properly (8GB???)

ralf. · January 10, 2015

One of my passive cooled Hackintosh’s

- MSI K9VGM-V

- AMD Athlon 64 X2 3800+ 35Watts + Scythe Ninja

- Samsung MP0402H – 40GB IDE HDD

- LG DVD Burner SATA

- 2 GB RAM

- PS2 Mouse, Keyboard

- Asus 8400GS – Monitor on VGA

Install Software

Snow Leopard Retail DVD

I tried Chameleon and Chimera and a lot of Boot-Flags

Booting works with Nawcom-CD

SATA is not working

Resolution 1024x768 at VGA

Resolution 1024x768 with a black frame at DVI

Resolution 1024x768 at VGA at the Mainboard without graphic card

Update

I changed the mainboard used SSD

ECS EliteGroup Geforce 6100 SM-M2

Its working perfect!

Software:

Nawcom-USB-Snow Leopard

10.6.8 Comboupdate

Nawcom legacy_kernel-10.6.8.v2.pkg

nForceLAN_0.64.6 insanelymac.com/forum/topic/125569-nforce-lan-driver

Natit

VoodooHDA 0.2.1

ralf. · January 10, 2015

My 2. passive cooled build

- Asrock N68-S3 UCC
- AMD Athlon II X4 605e, 4x 2.30GHz
- 2x2GB Ram
- USB Mouse Fujitsu / Keyboard MS wired 200
- Graphics 8400GS
- Intel SSD 320 Series 40GB
- Tranced USB3 card TS-PDU3
- Monitor on DVI-Port
Disconnected every USB-Cable and the Lan-cable

Bios:

First: Load Bios Default
Disabled Cool and quiet
Primary Graphics Adapter: PCIe
Disabled IDE
Disabled Floppy
Disabled I/O

Boot with: NawcomModCD
Snow-Leopard-Retail-DVD
I installed a Dual-Boot System with Win7 on first partition

DVD don’t works

Booting works oob
Graphics works oob 1920x1080
Sound works oob
Lan: nforce lan RTL82xx from matze (thanks)
http://hackintosh-forum.de/index.php?page=Thread&threadID=5729
So, LAN works
USB 3.0 NEC/Renesas KEXT installed
So USB2/USB3 works
PS2 Kext installed.
Customized as MacMini

gils83 · January 20, 2015

-MSI MS 7369 (K9Nneov3) bios beta 30R /Phenom II x2 555 / 2x2 GO DDR2 / Yosemite but bug

chipset NV 560 ootb / sata 2 ok / ahci ok / PCIE ok

audio ok

lan ok

open/halt/restart ok

sleep ?

-MSI MS 7255 ( MSI P4M890M-L) /Pentium D 915 / 2x1 GO DDR2 / Yosemite but bug

chipset VIA ok / sata 1 ok / PCIE ok

audio ?

lan ?

open/halt/restart ok

sleep ?

Thank Bronya and Andy :thumbsup_anim:

BIOS MS 7369.zip

MS 7255.zip

Xenhat · January 30, 2015

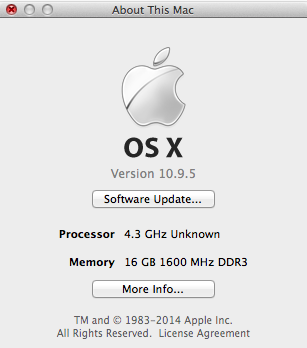

CPU: AMD FX-8350 4.0Ghz ( OC @ 4.6GHz)
Motherboard: ASUS Crosshair V Formula-Z (ASUS BIOS rev. 2011)
Chipset: 990FX

Southbridge: SB950
Network: Intel® 82583V Gigabit Network Adapter
SATA: ASMedia® ASM1061 (two ports, unused)
USB3: ASMedia® USB 3.0 controller

Memory: 16GB Crucial Ballistix Tactical high profile

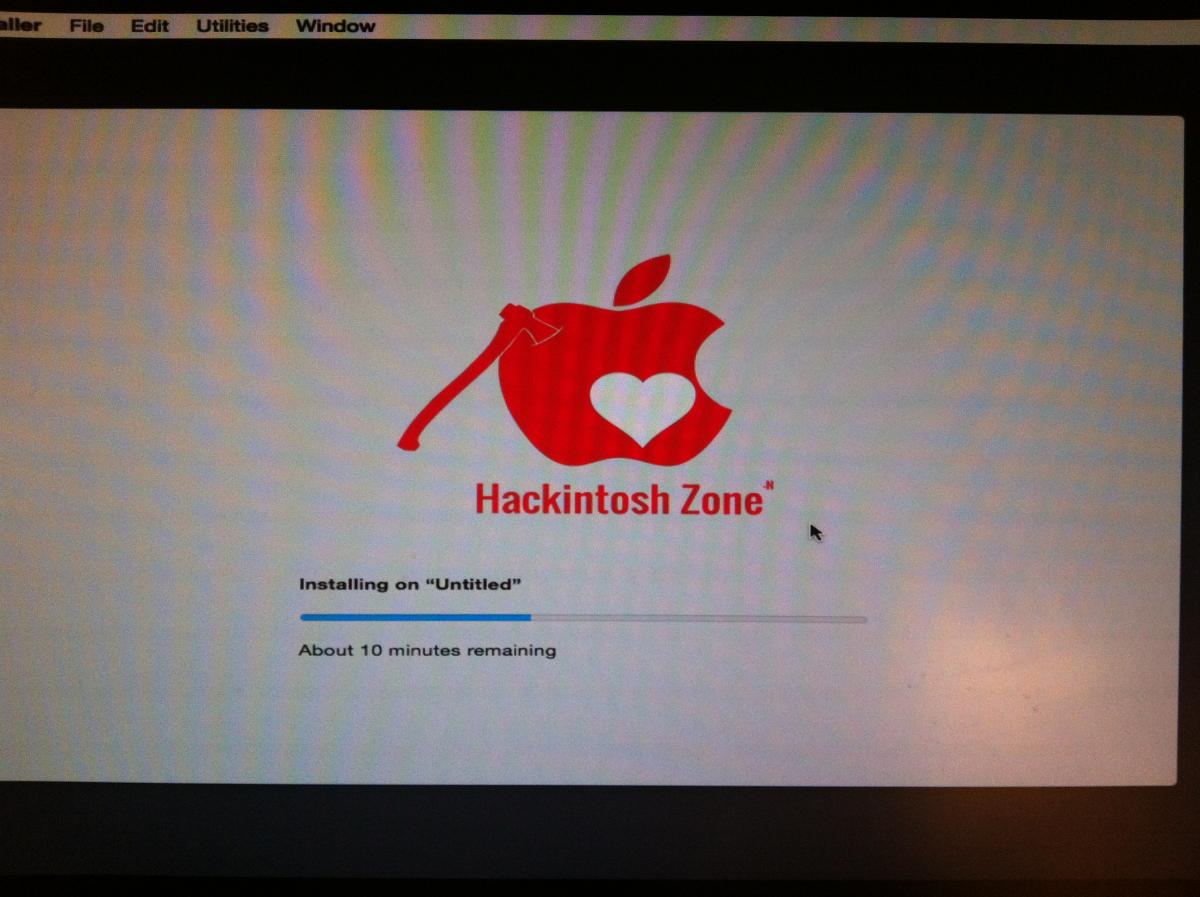

Version: OS X 10.9 Mavericks - Niresh distribution Updated to 10.9.5
Graphics: ~~ASUS GTX 560 1GB~~ GTX 970 4GB [2D Only] nv_disable=1 GraphicsEnabler=No
System Drive: ~~Samsung 840 series 120GB~~ an old 80GB Seagate HDD from 2004 until I figure this OS out.
Audio:

Creative SoundBlaster SB-Z (PCI-Express) Doesn't work.
SupremeFX III^TM (Realtek) Working!
Nvidia HDMI Audio chipset: I have no idea. I am using DVI and I can't find my HDMI cable.

Mouse: Logitech G400S, seems to be working all right
Keyboard: Logitech G710+

Volume control: Works!
Mute: Works!
Previous song: Works!
Next song: Works!
Pause: Works!
Stop: Does not work in iTunes
G keys and M profiles: Probably requires software

Xbox 360 game controller

OS X Installer: Ring of Light flashes
Installed system: RoL Lights up once then turns off after a second

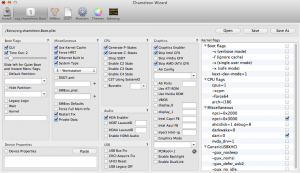

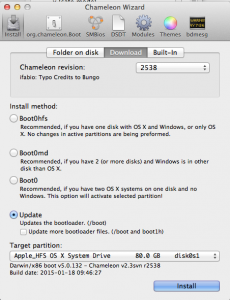

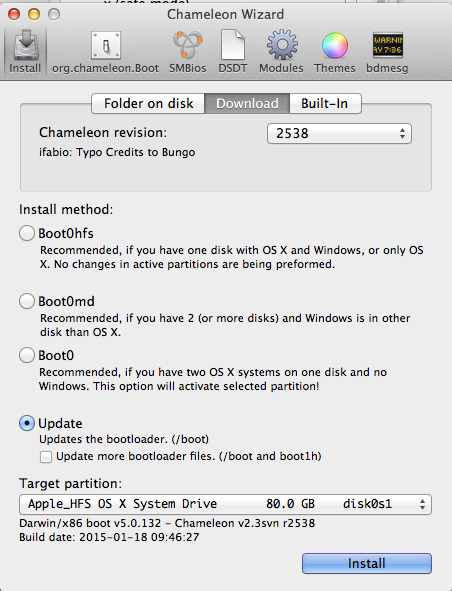

Bootloader: Chameleon 2538

Problems:
Network:

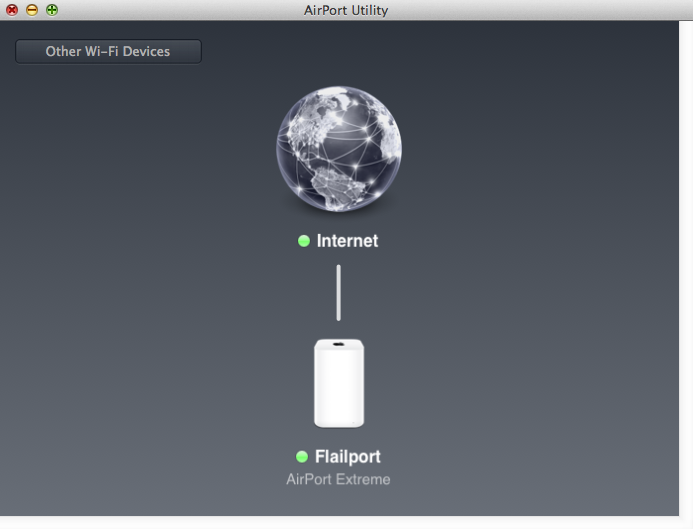

Intel® 82583V Gigabit Network Adapter drops connectivity with Airport Extreme under load* but appears "connected".
Unusable until reboot. Logging the account out and back in has no effect.
*: My educated guess is that it breaks if the number of HTTP connections gets too high.
This makes online gaming and downloading Xcode/Updates impossible.
Disabling UEFI Network Stack in the bios does not seem to help

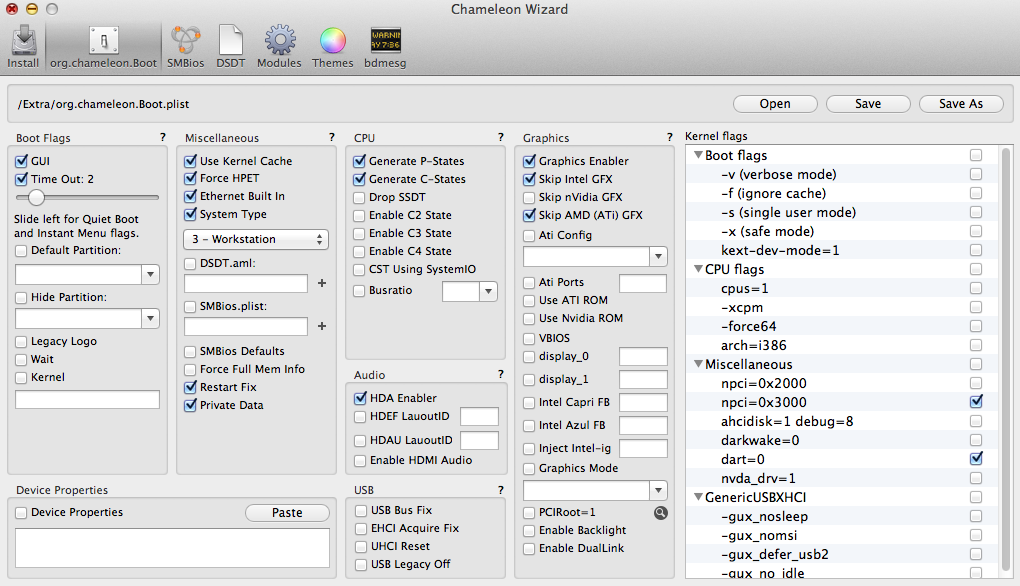

Update 2/11/2015: Setting "Ethernet Built In" in Chameleon seems to fix it. I have successfully downloaded Xcode.
Working state:

Video:

Nvidia Maxwell works in the installer. Causes kernel panic when trying to boot the installed system. (help?)
Will however boot and still have usable 2D performance using nv_disable=1.
Nvidia Kepler causes Kernel Panic at the "gray screen" (after the loading spinner) Update 2/10/2015: Needs to be tested with the new install

Bottom line:
The setup "Works".

Todo: Test for network stability during online games/else. This requires working 3D.
I could always copy Xcode and Sublime Text with a USB key or my other drives but that's going to be annoying.

Yosemite 10.10 on same hardware: Not working yet.

Early notes: I appear to have messed up my KEXT selection. USB 3.0 is not a good idea for keyboard and mouse.
Status: ~~Fixing blank screen~~ nv_disable=1 required for initial setup with both GTX560 and GTX970
~~installing patched nvidia driver~~
~~attempting boot with nvda_drv=1~~
Contemplating grey screen
Scary white on black text mentioning Nvidia Fault
~~Empty screen with a white cursor~~
~~Attempting nvda_drv=1 GraphicsEnabler=Yes~~
~~Attempting boot with no extra flags~~
Booting with nv_disable=1 and attempting another driver
==== Reinstallation ====
Booting installer with /amd npci=0x2000

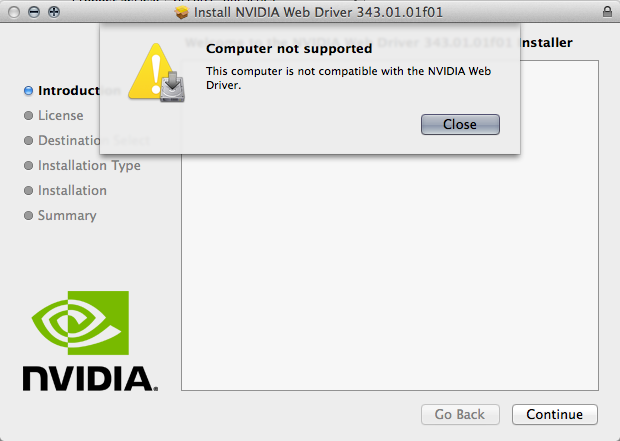

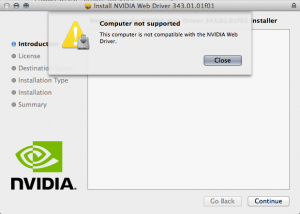

After several hours, I managed to sucessfully boot with the Nvidia web driver. it however crashed within minutes with "Apple.webkit caught using excessive wakeups".

Updating to 10.0.2 killed the cat. Giving up on Yosemite for now.

Edited February 11, 2015 by Xenhat

rictec · March 25, 2015

Hello

my Hackintosh is well working

Motherboard is a Asus M3N78-VM

CPU= AMD Phenom 9950 Black Edition

VGA= ASUS EN9800GT 512M

Audio=Audio Adapter: Creative SB0350 Audigy ZS

Network=Intel Gigabit CT Desktop Adapter

instaled neresh 10.10.1 upgrading 10.9.2

only problem is USB ports keep terminating ..but i manage to play StarTrek online

love it

Tornadozx · April 15, 2015

My working builds.

MB AsRock fm2a85x extreme4-m

CPU AMD A8-5600k

GPU Sapphire R9 270x (HDMI Audio does not seem to work) (needs patched kexts + Clover)

Audio PCM2704 DAC + Optic SPDIF Received + Internal ALC892 Voodoo HDA (headphones work great, other was not tested)

Clover bootloader (latest) for proper USB support, sound, full graphics support.

Niresh 10.10.1 (10.9.5)

MB AsRock e350m1

CPU E350

GPU Asus 6670HD (works out of box under clover)

Audio Internal Audio (headphones work great, other was not tested)

Clover bootloader (latest) for proper USB support, sound, full graphics support.

Niresh 10.10.1 (10.9.0)

the CPU is not a speeddemon, but it works =) like an atom cpu maybe, also USB port's don't work after sleep.

diontoradan · May 28, 2015

AMD FX6300
MSI 970a-g43
Shappire ATI HD5670 1gb ddr3
Frescologic PCIE USB3 card
TPLINK TG3468 (RTL-8168) Pcie gigabit (internal lan broken)

Sound : External BCD3000 (internal not tested)

Install Method : Yosemitezone 10.10.1
 
Bios settings :
 
Turn off UEFI boot only so it can accept legacy bios / mbr boot
- Windows 8 Function off
- MSI Fastboot & Fastboot off
- Save & Boot
 
Installation Steps:
 
1. Make bootable USB Yosemitezone 10.10.1 in mac
2. Boot > Press f11 > Select USB Drive
3. Boot flag : /amd64 -v npci=0x2000 GraphicsEnabler=No
4. Format mac drive with GPT
5. Install with Chameleon boot loader
6. Finish install
7. Boot to new mac install with -x (safemode), it won't boot normally as it would stuck in grey screen + beachball
8. Go through initial setup, no network right now, realtek chip not detected.
9. Boot again in safemode to install FIX and Kext
 
FIX:
you will need to connect your mac with another method, as the lan not detected yet, i use usb disk with HFS formatted to download everything i need from another computer.
 
10. For the grey screen + beachball fix follow this guide :
http://www.insanelymac.com/forum/topic/304513-fixguide-amd-stuck-at-greywhite-screen-with-spinning-beachball/
 11. Realtek Lan : http://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/ and then use kext-dev-mode=1 or it would not work. Also use npci=0x2000 not 3000, more stable with network adapters.

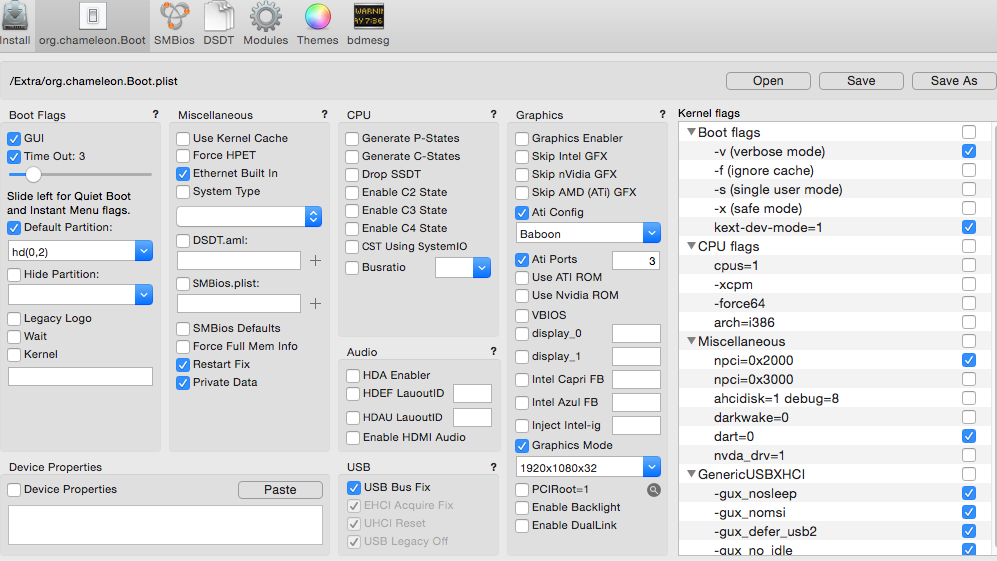

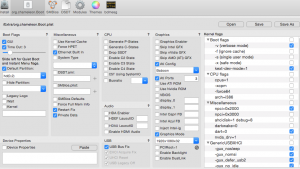

12. HD5670 resolution fix : open chameleon wizard add GraphicsEnabler=No, Ati Config = Baboon, Ati Ports 3 and Graphic Mode 1920x1080x32 (Full QE/CI, Dual monitor OK)

Working out of box :

- USB3 (internal & external card) 1 port only , mouse, keyboard, external sound

- Shutdown, restart

- Appstore (minor fix)

Not working:

- Sleep

- Icloud & Imessage (need serial number)

On clover everything works except only in safe mode, when i boot normally got hanging beachball.

Konner · June 17, 2015

MB: Asus OEM PC Essentio CM1730

CPU: AMD Athlon 2 220

RAM: 12GB DDR3

Wifi: AR9227 (Mavericks works with kext)

GPU: NVidia Geforce GT 740 4GB (works OOB in Mavericks with GraphicsEnabler=No) And Nvidia web driver works flawless

SSD: 120GB Mushkin

HDD: 500GB Samsung Data drive

Bootloader: Clover EFI on MBR

Kernel: Latest Bronya 10.9.5 kernel

OS X Version: Mavericks 10.9.5, fully updated.

App store, iMessage, and iCloud of course does not work.

tragediana150 · June 23, 2015

Mavericks 10.9.0 - 10.9.5

Everything is Retail version of OSX

Motherboard: Asus M5A78L-M LX3

Chipset: 760G

CPU: AMD 6-Cores FX-6300 3.5 Ghz

Graphics: nVidia GeForce GTX 650 Ti 2048 MB DDR5 (working with full HD resolution on dual display with GE=No - works OOB)

Memory: GoodRAM 8GB 1333 MHz DDR3 (2x4GB)

Internet: Qualcomm Atheros 8161/8171 LAN Ethernet (ALXEthernet.kext)

OSX: Mavericks 10.9.0-10.9.5

Kernel: every BSA_kernel (now I am using BSA_RC1_kernel from Bronya)

Boot flags: -f npci=0x3000

Bootloader: Newest Chameleon

This is very stable and powreful build.

Cheers!! :thumbsup_anim:

Mr. Xtreme · July 3, 2015

Mavericks 10.9.0 - 10.9.5

Everything is Retail version of OSX

Motherboard: Asus M5A78L-M LX3

Chipset: 760G

CPU: AMD 6-Cores FX-6300 3.5 Ghz

Graphics: nVidia GeForce GTX 650 Ti 2048 MB DDR5 (working with full HD resolution on dual display with GE=No - works OOB)

Memory: GoodRAM 8GB 1333 MHz DDR3 (2x4GB)

Internet: Qualcomm Atheros 8161/8171 LAN Ethernet (ALXEthernet.kext)

OSX: Mavericks 10.9.0-10.9.5

Kernel: every BSA_kernel (now I am using BSA_RC1_kernel from Bronya)

Boot flags: -f npci=0x3000

Bootloader: Newest Chameleon

This is very stable and powreful build.

Cheers!! :thumbsup_anim:

Mind posting a how to on install yosemite yosemite on that build as I have the M5A78L-M\USB3 which is similar and a AMD FX 6300 Black Edition and a Geforce GTS 450 1GB VRam DDR3. Check my sig for my full specs.

Moosehead1 · July 9, 2015

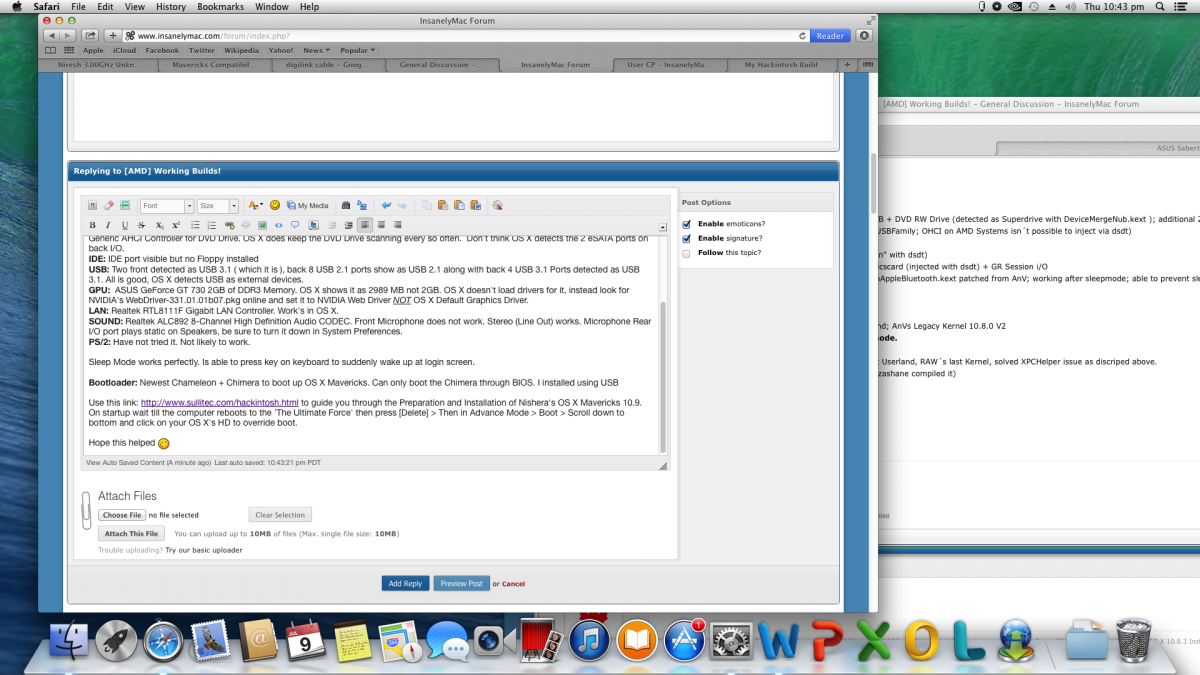

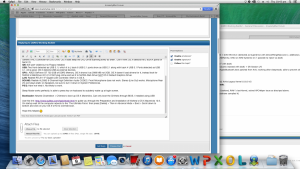

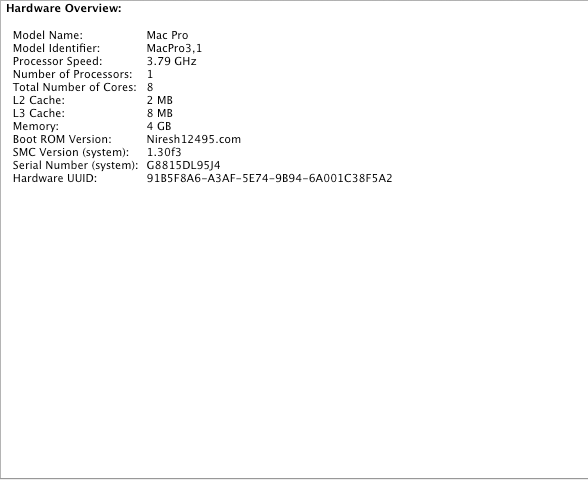

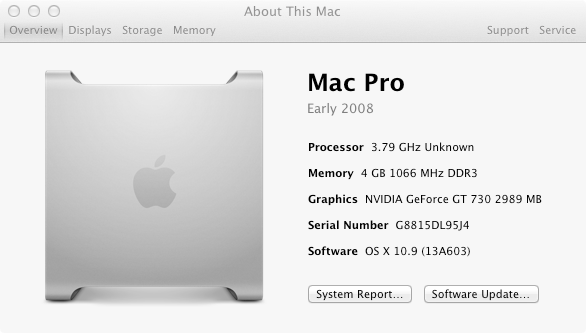

Here's my Successful Hackintosh on Nishera's OS X Mavericks 10.9

CPU: AMD FX-8320 8-Core 3.79GHz. OS X shows it as 3.79GHz Unknown.

MB: ASUS Sabertooth 990FX R2.0

RAM: 4 GB 1066MHz DDR3 (2 x 4 GB)

CHIPSET: AMD 990FX/SB950

SATA: OS X HD (320 GB) plugged into top first SATA port with Windows HD (500 GB) on Bottom First SATA Port with DVD Drive on Top Second SATA port, these show up under ASMedia ASM1061. DVD detected as the Correct Brand Name along with its Model number. OS X uses Generic AHCI Controller for DVD Drive. OS X does keep the DVD Drive scanning every so often. Don't think OS X detects the 2 eSATA ports on back I/O.

IDE: IDE port visible but no Floppy installed

USB: Two front detected as USB 3.1 ( which it is ), back 8 USB 2.1 ports show as USB 2.1 along with back 4 USB 3.1 Ports detected as USB 3.1. All is good, OS X detects USB as external devices.

GPU: ASUS GeForce GT 730 2GB of DDR3 Memory. OS X shows it as 2989 MB not 2GB. OS X doesn't load drivers for it, instead look for NVIDIA's WebDriver-331.01.01b07.pkg online and set it to NVIDIA Web Driver NOT OS X Default Graphics Driver.

LAN: Realtek RTL8111F Gigabit LAN Controller. Work's in OS X.

SOUND: Realtek ALC892 8-Channel High Definition Audio CODEC. Front Microphone does not work. Stereo (Line Out) works. Line Out with Speakers play static, most likely something to do with VoodooHDA kext.

PS/2: Have not tried it. Not likely to work.

Sleep Mode works perfectly. Is able to press key on keyboard to suddenly wake up at login screen.

Bootloader: Newest Chameleon + Chimera to boot up OS X Mavericks. Can only boot the Chimera through BIOS. I installed using USB

Use this link: http://www.sullitec.com/hackintosh.html to guide you through the Preparation and Installation of Nishera's OS X Mavericks 10.9.

On startup wait till the computer reboots to the 'The Ultimate Force' then press [Delete] > Then in Advance Mode > Boot > Scroll down to bottom and click on your OS X's HD to override boot.

Hope this helped

superclo · July 28, 2015

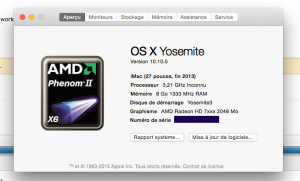

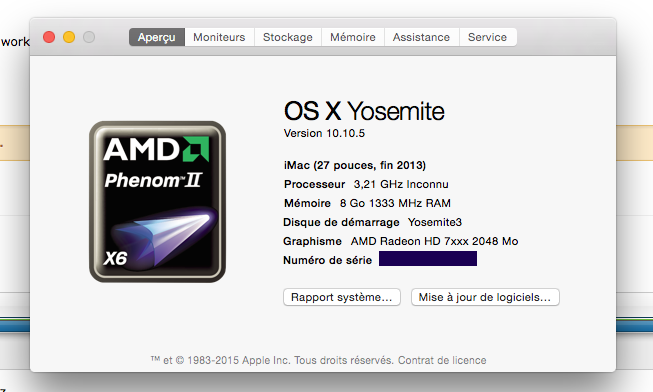

Yosemite 10.10.5
Kernel: y2k4u - 10.10.5R1
Bootloader: Chameleon Enoch rev 2737
Motherboard: Asus M4A88TD-V evo/usb3 880G
CPU: AMD Phenom ll X6 1090T BE
Memory: GSKILL Ripjaws series 8GB 1333MHz (2x4GB)
Video: AMD Radeon H7870 2GB
Lan: Realtek 8168e/8111e (RealtekRTL8111.kext)
Sound: Realtek ALC892 (Voodoohda v2.8.4)

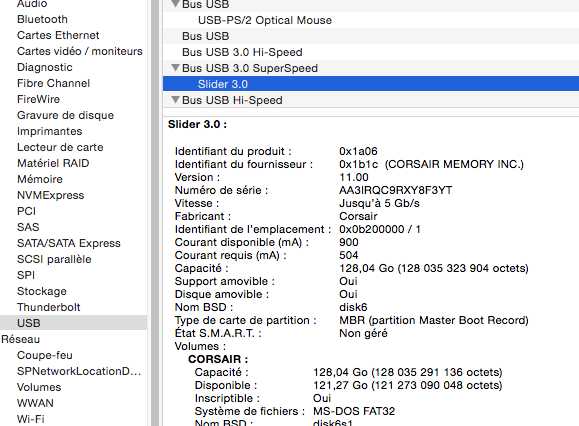

USB 3 : Works with patched AppleUSBXHCI v710.4.11 (10.10.5) ( http://www.insanelymac.com/forum/files/file/150-patched-appleusbxhci/ )

Appstore works

Imessage, Icloud and Facetime do not work

:thumbsup_anim:

Edited November 1, 2015 by superclo

Shaneee · August 4, 2015

CPU: AMD Athlon II X2 215 @ 2.71GHz
Motherboard: Pegatron M2N68-LA
Chipset:NVIDIA GeForce 6150SE nForce 430 ( AppleNForceATA )
RAM: 6GB 800MHz
HDD: 1x 2TB Seagate 1x 640GB WDC
USB : 2.0 All working front and rear with USBLegacyOff=Yes
GPU: PNY GeForce GT430 1GB ( Works OOB )
LAN: Realtek RTL8201N ( NForceLAN )
Sound: Realtek ALC662 ( Patched AppleHDA )

Bluetooth: USB Bluetooth stick ( Works OOB )
Sleep: PC Sleeps but Windows HDDs dont wake causing a force dismount ( not good for them )

Notes: System 99.9% Functional

Installed OS': Windows 10 Pro - El Capitan

Bootloader: Enoch

Installation Method: Retail USB

Edited January 17, 2016 by Shaneee
Updated Post

francescophp · September 7, 2015

OS: Mac OS X 10.10
Mobo: Asrock 970 Extreme 3 R2.0
Sound: ALC892
GPU: Sapphire AMD R9 280x
CPU: FX 6300

Method of installation: Basesystem to USB, clean install. Chameleon with FakeSMC and NullCPU + Kernel RSA R2
Post Install: IOPCIFamily.kext + AppleACPIPlattform.kext patched from Duran

Update 08/09/15 - Update to 10.10.3
Kext: System
Kernel: SSEPlus_V2 (Taken from Downloads)

Update 08/09/15 - Update to 10.10.4
Kexts & Kernel : Used 10.10.4 Package (From spakk)

What Works?

GPU with full QE/CI (Don't know if i have all bandwidth/performance, i'll try)

What doesn't Work?

Sound (HDMI and Sound Card)
Update 08/09/15 - USB 3.0 not working, USB 2.0 not working after sleep

Toetje · September 11, 2015

OSX 10.10.4, wanted to install 10.10.5 but unsure how to do it.

Mobo: MSI 970 Gaming AM3+
CPU: FX 8350
Ram: LP 1600 Corsair
GPU: Club3D R9 270

Sound: ALC1150 (Not working)

External sound card: Creative Soundblaster 5.1 USB Working.
SSD1: Samsung EVO 250GB (OSX BOOT)(TRIM Enables)
SSD2: Kingston HyperX 120GB (Windows Boot)

HDD1: 500GB Seagate
HDD2: 500GB Seagate
HDD3: 1 TB HDD Seagate
USB2.0/3 Working

Bootloader clover: ncpi=0x2000 -v (Spakk Kernel)

IOPCIFamily.kext + AppleACPIPlattform.kext > http://www.insanelymac.com/forum/files/file/354-amd-replace-kext-for-yosemite/ (Losing serial number after installing) but needed to get the GPU working, otherwise spinning rainbow cursor on boot.

ArgenLant · October 5, 2015

in addition to 10.8.5 I used my intel hack for installing 10.10.4 with 10.10.3 Kernel: installed 10.10.4 on second HDD of intel hack, installed kernel and NullCPUPowermanagement with AMD Installer, made dmg from that system and restored dmg to free partition on my amd hack

patched IOPCIFamily.kext + AppleACPIPlattform.kext from above messages required for working system without crashes and freezes

Replaced kexts in /S/L/E/ - patched IOPCIFamily.kext + AppleACPIPlattform.kext and pthread.kext from AMD Installer

All other kexts inject by Clover 2953 from /EFI/CLOVER/kexts/10.10

Geforce GTX 670 - works without injecting or with web-driver

M-Audio Revolution 7.1 works with the same Envy24HTPCIAudioDriver.kext as in 10.8.5

LAN Realtek8111 works with Realtek8111.kext v2.0.0

USB 3 - works with GenericUSBXHCI.kext

USB 2 incompatible with sleep, but works

Also my Wacom Intuos 2 5x4 tablet works with old unsigned driver 6.2.0w4, but can't use prefpanel: need to backup settings from 10.8.5 and restore it in 10.10.4 (but this problem with all Intuos2 tablets in 10.10)

Bootargs in clover: npci=0x2000 -v

Bootarg in system com.apple.Boot.plist: kext-dev-mode=1

Just updated to 10.10.5 and 14.5.0 SSEPlus_v3 kernel.

disconnected hdd with yosemite from amd hack and connected it to intel hack through usb-sata adapter

booted from yosemite from usb with clover

updated system with the official update OSXUpd10.10.5.pkg

rebooted

replaced kernel and installed patched IOPCIFamily.kext + AppleACPIPlattform.kext with Kext Utility 2.6.4

ensured system alive on intel hack and moved hdd back to AMD hack

I also replaced Wacom Intuos 2 5x4 by Intus 3 A5 and now not need backup/restore settings from 10.8.5

Gudv1n · October 5, 2015

MB: ASRock N68-S

CPU: AMD Athlon II X2 215

RAM: 2GB DDR2

GPU: NVidia Geforce GT 630 works with InjectNVIDIA

HDD: 250GB Maxtor

Bootloader: Clover EFI on MBR

Kernel: 10.10.5 forgot author,without pthread.kext

OS X Version: Yosemite 10.10.5, fully updated.

Mr. Xtreme · October 8, 2015

My build:

AMD Athlon II X3 OCed from 3.21 GHZ to 3.6x GHZ (~~Hoping to reach 4.00 GHZ~~ I couldn't do up to 4.0 GHz I got a FX 6300 and am hoping to install yosemite on this build with it).

Asus M5A78L-M/USB3 Motherboard

1 Ballistix 4 GB 1600 MHZ DDR3 RAM Stick

ZOTAC GeForce GT 220 Video Card

OS X 10.10 Yosemite with Bronya's RC3 kernel

And a lot of patience

Oh and these boot flags "GraphicsEnabler=Yes kext-dev-mode=1 npci=0x3000"

Drivers/Kexts VoodooHDA for Audio, RTL81111 network kext and generic USB 3.0 kext

Usability status unknown: PS2 USB 3.0 HDMI (Onboard and on video card) SPDI/F Audio.

First of all I couldn't have done this without the help of Spakk, Manumental, Bronya, Mieze and others :sorcerer: .

So the above was my build it was decomissioned as a hackintosh and was running windows but now its running Yosemite 10.10.3 with Spakk's 1010.3 kernel found in AMD Yosemite Kernel Release Page 2.

Specs:

My build:

AMD FX 6300
Asus M5A78L-M/USB3 Motherboard
8GB Ram 1 Ballistix 4 GB 1600 MHZ DDR3 and 2 x 2GB 1066 Ghz other DDR3 Ram
~~ZOGIS GeForce GTS450 Video Card~~ ~~XFX ATI Radeon 5850 Device ID 6899~~ It started artifacting in both os x and windows so I ordered a GTX 750 Ti for $125 CAD and I'll update this for neccasary steps taken to get it too work right now I'm using my backup GTS 450.
OS X 10.10.3 Yosemite with Spakk's 1010.3
And a lot of patience
Oh and these boot flags " -x GraphicsEnabler=Yes kext-dev-mode=1 npci=0x3000" (~~Just set it up I am going to remove the need of -x~~ -x Not needed on OOB installation ).
Drivers/Kexts ~~VoodooHDA for Audio~~ (haven't tested audio yet), RTL81111 network kext and generic USB 3.0 kext
Usability status unknown: PS2 ~~USB 3.0~~ HDMI (Onboard and on video card) SPDI/F Audio.
What works: Network with Mieze's RTL 8111 Kext, ~~can't test qe/ci cause I'm in safe mode~~ Full QE/CI

How to:
Install Yosemite as usual but open the log by pressing cmd + L (or windows key + L if your using a non os x keyboard).
Once the installation has finished (It probably says installation failed, ignore that) then open terminal and type this; "mkdir /Volumes/NameOfTheHDYouInstalledYosemiteOn/System/Library/Kernels" (without the quotes) and press enter. Then type; cp /System/Library/Kernels/kernel /Volumes/NameOfTheHDYouInstalledYosemiteOn/System/Library/Kernels and reboot and use the same boot args but boot from the drive you installed yosemite on.
Notes. I used Chameleon bootloader for this, I will try clover and update this if necessary. I created the drive manually, as in I didn't use something like pandora or u n i b e a s t or createinstallmedia, I used the disk utility method.
Bios setting are default unless stated;
virtual machine mode ---> ~~Disabled~~ Enabled after installation
Sata Mode ----------------> AHCI

Edited November 15, 2015 by XtremeHacker

ElEg Eg · October 19, 2015

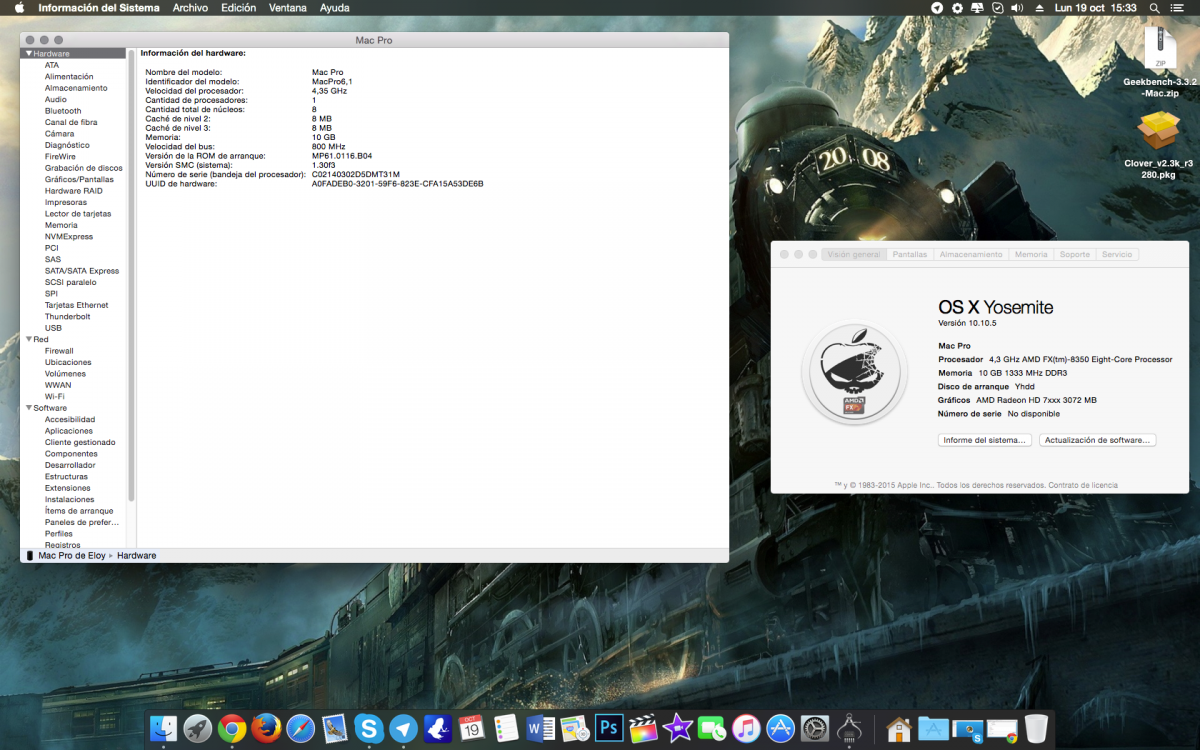

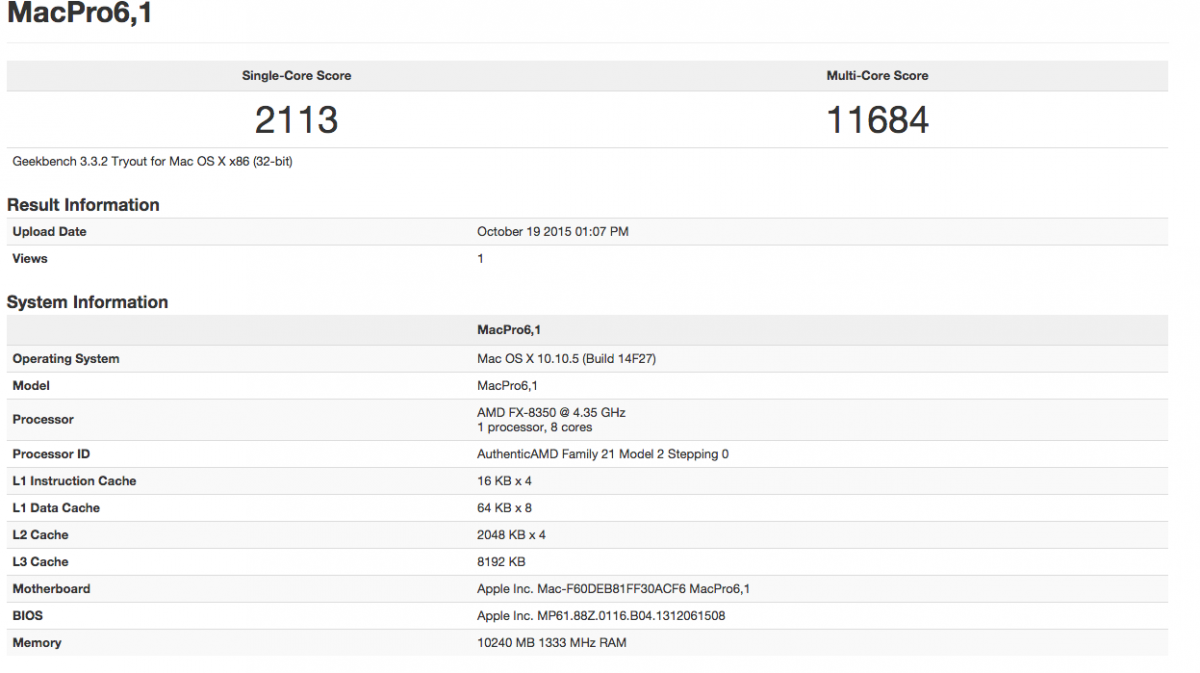

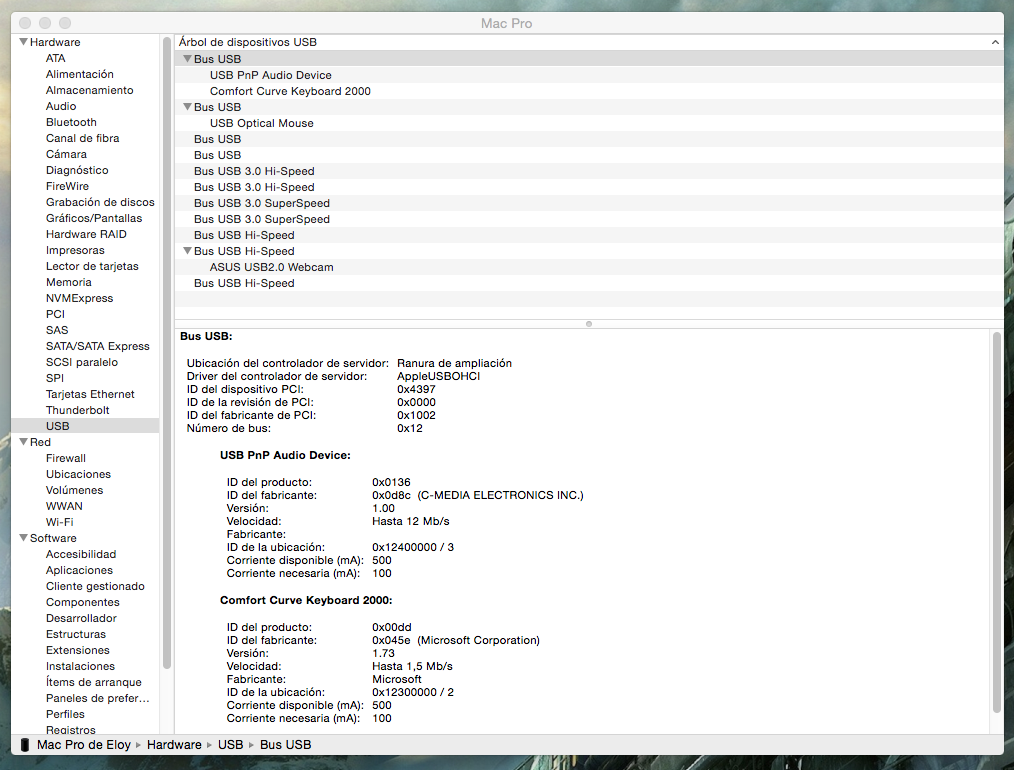

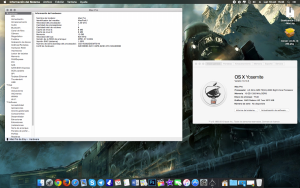

My Build!

Hardware:

AMD FX- 8350 (OC 4.3)

Gigabyte 990FXA UD5 REV 1.0

10 GB Ram DDR3 1333Mhz

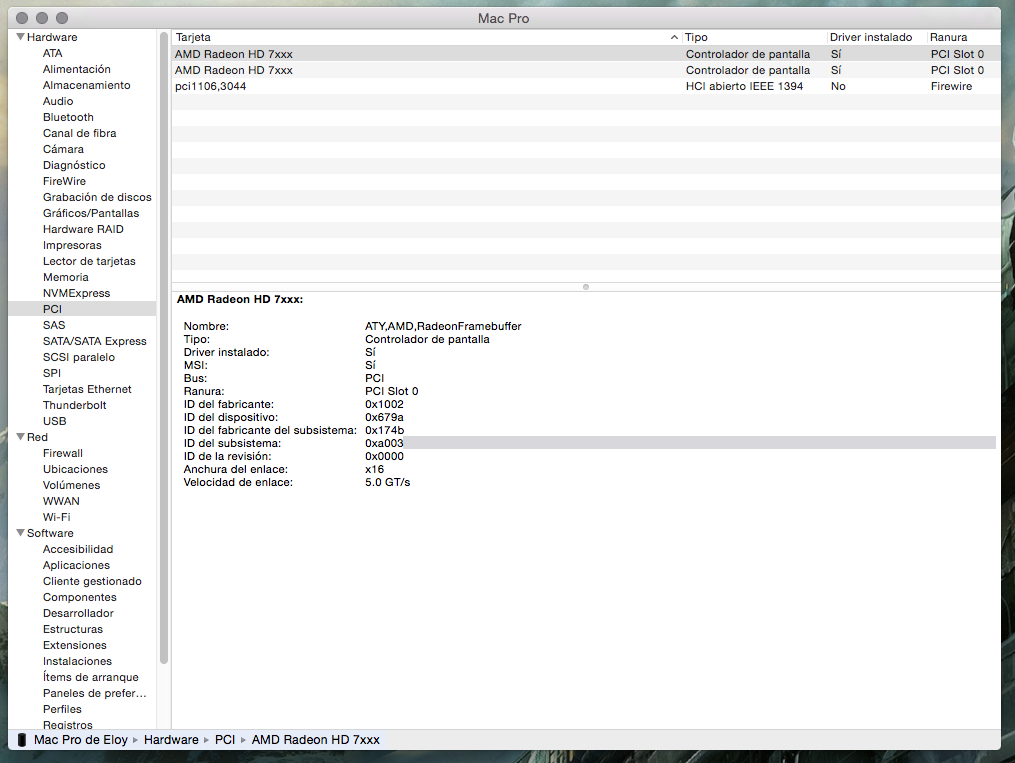

R9 280X Dual 3Gb DDR5 x2

HDD Segate 1Tb (3 - S.O [Yosemite - Win 10 - LinuxMint] )

Bios Config:

AHCI Mode HDD

Disable AMD for OC

BOOTLOADER:

CLOVER EFI:

Config;

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<true/>
				<key>Firewire</key>
				<false/>
				<key>HDA</key>
				<false/>
				<key>HDMI</key>
				<false/>
				<key>IDE</key>
				<false/>
				<key>IntelGFX</key>
				<false/>
				<key>LAN</key>
				<true/>
				<key>LPC</key>
				<false/>
				<key>NVidia</key>
				<false/>
				<key>SATA</key>
				<false/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<false/>
				<key>WIFI</key>
				<false/>
			</dict>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<true/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
				<key>FixSBUS_0080</key>
				<true/>
				<key>NewWay_80000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>npci=0x2000 kext-dev-mode=1</string>
		<key>Debug</key>
		<false/>
		<key>DefaultLoader</key>
		<string>boot.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>ResetHDA</key>
			<true/>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Ps2KeyboardDxe</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>es:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1440x900</string>
		<key>Theme</key>
		<string>CloverX</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x67</string>
		<key>MLB</key>
		<string>C02032109R5DC771H</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>06/12/13</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MP61.88Z.0116.B04.1312061508</string>
		<key>Board-ID</key>
		<string>Mac-F60DEB81FF30ACF6</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>11</integer>
		<key>ChassisAssetTag</key>
		<string>Pro-Enclosure</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>06</string>
		<key>Family</key>
		<string>Mac Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>MacPro6,1</string>
		<key>SerialNumber</key>
		<string>F5KLCW72F693</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

KETXS and Drivers and Kernel:

Audio: VooDooHDA

LAN: RealtekRTL8111.kext

GPU: ATY,AMD,RadeonFramebuffer

Kernel: AMD Kernel Yosemite 10.10.5_SSEPlus V2

Not if I forget something: D

Screenshots:

tokenduemon · October 24, 2015

OS X Version: 10.10.5 Build(14F27)

CPU: AMD FX 8320 8 Core Processor

Motherboard: Gigabyte GA-970A-DS3P Rev 1.0
RAM: Corsair Vengeance 8GB 1600 MHz
HDD: 1TB Western Digital
USB : 2.0 and 3.0 All Works
GPU: Sapphire R9 280 Dual-x 3GB

LAN: Realtek Pci Gbe Family( Using RealtekRTL81xx v0.0.90 kext for Yosemite )
Sound: Realtek ALC887( VodooHda )

Bootloader: Enoch Bootloader

Kernel: y2k4u's 10.10.5R1

Installation Guide: https://www.reddit.com/r/hackintosh/comments/2ml7il/amd_fx_yosemite_guide/

If you have got a problem with your Sapphire R9 280 Dual-X than check my thread : http://www.insanelymac.com/forum/topic/308972-sapphire-r9-280-dual-x-3gb-stuck-at-rainbow-cursor-yosemite-10105/?do=findComment&comment=2181497

Thank you @spakk for helping me

atlee · October 28, 2015

I'm going to be getting my new system up and running.

Asrock 970 Extreme3 2.0

AMD FX 8350

16GB Corsair LP DDR3 1600

Nvidia 560SE 1.5GB - I will be getting either a AMD R9 290 or AMD R9 390 / Just maybe the X model for Christmas not sure.

Kingston HyperX 3K 256GB

2x 3TB WD REDS

1x 2TB WD

Realtek audio will be patched via AppleHDA.

Realtek network

Bootloader easier to boot with Cham then Clover but will juggle between both depending on what I want.

... will update soon when I get a few jobs out of the road.

Blaggah · October 30, 2015

OS X Version: 10.10.5 Build(14F27)

CPU: AMD FX 8320 8 Core Processor

Motherboard: Gigabyte GA-970A-DS3P Rev 1.0

RAM: Corsair Vengeance 8GB 1600 MHz

HDD: 1TB Western Digital

USB : 2.0 and 3.0 All Works

GPU: Sapphire R9 280 Dual-x 3GB

LAN: Realtek Pci Gbe Family( Using RealtekRTL81xx v0.0.90 kext for Yosemite )

Sound: Realtek ALC887( VodooHda )

Bootloader: Enoch Bootloader

Kernel: y2k4u's 10.10.5R1

Installation Guide: https://www.reddit.com/r/hackintosh/comments/2ml7il/amd_fx_yosemite_guide/

If you have got a problem with your Sapphire R9 280 Dual-X than check my thread : http://www.insanelymac.com/forum/topic/308972-sapphire-r9-280-dual-x-3gb-stuck-at-rainbow-cursor-yosemite-10105/?do=findComment&comment=2181497

Thank you @spakk for helping me

Is it possible to guide me where you have your working kernel please?

So this kernel posted above will work with 10.10.5? Just want to know, thanks.

[AMD] Working Builds!

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
