Clover General discussion

[Slice]

32 minutes ago, D-an-W said:

Could someone please remind me which UUID I choose from a USB stick (With two installers on) to get it correctly detected in the Clover GUI?



Currently I get this but it should just say "Install macOS Catalina" (Same for Mojave installer)...







You can see UUID in Clover preboot.log

[D-an-W]

1 hour ago, Slice said:

You can see UUID in Clover preboot.log



Hi Slice, this is taken from the preboot.log for one of the entries, if I am right it can't find what it is looking for?



Edited August 27, 2019 by D-an-W

[Badruzeus]

On my case, I could just simply run this command to get Partition UUID:

diskutil info diskXsY | grep "Partition UUID"

// where "diskXsY" is specific Partition's Identifier. Good luck!

[Slice]

5 minutes ago, D-an-W said:



Hi Slice, this is taken from the preboot.log for one of the entries, if I am right it can't find what it is looking for?



8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped



The log is larger.

Did you have apfs and HFS+ drivers installed?

[D-an-W]

I didn't include the whole log sorry, here it is below...



0:100  0:100  MemLog inited, TSC freq: 3503438653
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 27.8.2019,  8:15:16 (GMT)
0:100  0:000  Starting Clover revision: 5050 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:203  0:056  Loading AudioDxe.efi  status=Success
0:205  0:001   - driver needs connecting
0:205  0:000  Loading HFSPlus.efi  status=Success
0:208  0:002   - driver needs connecting
0:208  0:000  Loading OSXAptioFix3Drv.efi  status=Success
0:210  0:001  Loading APFSDriverLoader.efi  status=Success
0:211  0:001   - driver needs connecting
0:211  0:000  3 drivers needs connecting ...
0:211  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:211  0:000  HFS+ driver loaded
0:211  0:000  APFS driver loaded
0:211  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:067  4:855  === [ InitScreen ] ========================================
5:067  0:000  Console modes reported: 5, available modes:
5:067  0:000   - [01]: 80x25 (current mode)
5:067  0:000   - [02]: 80x50
5:067  0:000   - [03]: 100x31
5:067  0:000   - [04]: 128x30
5:067  0:000   - [05]: 100x60
5:067  0:000  SetScreenResolution: 1920x1200 - already set
5:067  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:067  0:000  === [ GetMacAddress ] =====================================
5:067  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:067  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:067  0:000  === [ ScanSPD ] ===========================================
5:068  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:087  0:018  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:106  0:018  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:125  0:018  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:144  0:018  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:144  0:000  === [ GetAcpiTablesList ] =================================
5:163  0:018  Get Acpi Tables List from RSDT:
5:163  0:000   - [00]: FACP  A M I len=132
5:163  0:000   - [01]: APIC  A M I len=146
5:163  0:000   - [02]: MCFG  A M I len=60
5:163  0:000   - [03]: HPET  A M I len=56
5:163  0:000   - [04]: SSDT  SataTabl len=877
5:163  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:163  0:000   - [06]: SSDT  CpuPm len=2706
5:163  0:000   - [07]: BGRT  A M I len=56
5:163  0:000   - [08]: MATS  A M I len=52
5:163  0:000  Calibrated TSC Frequency = 3503438653 = 3503MHz
5:163  0:000  === [ GetUserSettings ] ===================================
5:163  0:000  Add 1 devices:
5:163  0:000  Dropping 3 tables:
5:163  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:163  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:163  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:163  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:163  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:163  0:000           - set table: 5354414D,                0 to drop: yes
5:163  0:000   - final DSDT Fix mask=00004000
5:163  0:000  PatchesDSDT: 3 requested
5:163  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:163  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:163  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:163  0:000  Using ProductName from config: Macmini6,2
5:163  0:000  Using latest BiosVersion from clover
5:163  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:163  0:000  BiosReleaseDate: 06/13/2019
5:163  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:163  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:163  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:163  0:000  Using PlatformFeature from clover: 0x1
5:163  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:163  0:000  BoardType: 0xA
5:163  0:000  ChassisType: 0x6
5:163  0:000  Slots->Devices:
5:163  0:000   - PCIe Slot 1
5:163  0:000  === [ Found DSDT tables ] =================================
5:313  0:149  === [ ScanVolumes ] =======================================
5:313  0:000  Found 15 volumes with blockIO
5:313  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:314  0:000          USB volume
5:314  0:000          USB volume
5:314  0:000          USB volume
5:314  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:315  0:000          Result of bootcode detection: bootable unknown (legacy)
5:315  0:000          USB volume
5:315  0:000          USB volume
5:315  0:000          USB volume
5:405  0:090  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:406  0:000          USB volume
5:406  0:000          USB volume
5:406  0:000          USB volume
5:406  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:407  0:000          USB volume
5:407  0:000          USB volume
5:407  0:000          USB volume
5:407  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:407  0:000          Found optical drive
5:407  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:408  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:408  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:409  0:000          Result of bootcode detection: bootable unknown (legacy)
5:417  0:007          This is SelfVolume !!
5:417  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:417  0:000          Result of bootcode detection: bootable unknown (legacy)
5:417  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:418  0:000          Result of bootcode detection: bootable unknown (legacy)
5:434  0:016  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:435  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:435  0:000          hiding this volume
5:435  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:435  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:435  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:435  0:000  found 2 handles with audio
5:437  0:001  got index=1
5:437  0:000  got volume 60
5:437  0:000  === [ InitTheme ] =========================================
5:437  0:000  use night theme
5:443  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:443  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:443  0:000  OS main and drive as badge
5:443  0:000  file sound read: sound_night.wav Not Found
5:446  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:446  0:000  output to channel 1 with volume 60, len=228736
5:446  0:000   sound channels=1 bits=16 freq=44100
8:657  3:210  free sound
8:657  0:000  sound play end with status=Success
8:658  0:001  Loading font from ThemeDir: Success
8:659  0:000  theme inited
8:659  0:000  Chosen theme Mojave
8:659  0:000  after NVRAM boot-args=
8:659  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:659  0:000  found AppleSMC protocol
8:727  0:067  Registered 16 SMC keys
8:728  0:001  === [ AddCustomEntries ] ==================================
8:728  0:000  Custom entry 0 FullTitle:"macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"7A8A513B-CECD-439C-8DC1-3B1C758B1B9C"
8:728  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:728  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:728  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:728  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:728  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:728  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:728  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:728  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... match!
8:756  0:027      hibernated: set as never
8:768  0:012  Custom settings: <null string>.plist will  be applied
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped because path does not exist
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped because path does not exist
8:768  0:000  Custom entry 1 skipped because it is hidden.
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:768  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:768  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:768  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:768  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:768  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:768  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:768  0:000  === [ ScanLoader ] ========================================
8:768  0:000  - [01]: 'EFI'
8:796  0:027          AddLoaderEntry for Volume Name=EFI
8:796  0:000          skipped because entry is hidden
8:796  0:000  - [02]: 'Install macOS Catalina'
8:798  0:002          AddLoaderEntry for Volume Name=Install macOS Catalina
8:798  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:827  0:028  - [03]: 'Install macOS Mojave'
8:828  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:828  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:856  0:028  - [07]: 'EFI'
8:882  0:025          AddLoaderEntry for Volume Name=EFI
8:882  0:000          skipped because entry is hidden
8:882  0:000  - [09]: 'EFI'
8:906  0:023  - [10]: 'Media'
8:930  0:024  - [11]: 'Preboot', hidden
8:930  0:000  - [12]: 'Macintosh HD'
8:937  0:007          AddLoaderEntry for Volume Name=Macintosh HD
8:937  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)\System\Library\CoreServices\boot.efii` already exists for another entry!
8:961  0:023  - [13]: 'Recovery'
8:961  0:000          AddLoaderEntry for Volume Name=Recovery
8:961  0:000      Skipped because matching custom entry 1!
8:985  0:023  - [14]: 'VM'
9:009  0:023  === [ AddCustomTool ] =====================================
9:012  0:003  found tool \EFI\CLOVER\tools\Shell64U.efi
9:012  0:000  Checking EFI partition Volume 1 for Clover
9:022  0:009   Found Clover
9:024  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:025  0:001  Default boot entry not found
9:025  0:000  DefaultIndex=-1 and MainMenu.EntryCount=9
9:288  0:262  GUI ready
13:270  3:981  exit from MainMenu 7
40:701  27:431  exit from MainMenu 1
40:702  0:000  Boot option Boot0000 not found
40:702  0:000  === [ StartLoader ] =======================================
40:702  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
40:702  0:000  Loading boot.efi  status=Success
40:736  0:034  GetOSVersion: 10.14.6 (18G87)
40:736  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
40:736  0:000  Filtering KextPatches:
40:736  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
40:736  0:000  Will not patch boot.efi
40:736  0:000  === [ PatchSmbios ] =======================================
40:736  0:000  insert table 9 for dev 0:0
40:736  0:000  insert table 9 for dev 0:0
40:736  0:000  insert table 9 for dev 1:0
40:736  0:000  Table 11 present, but rewritten for us
40:737  0:000  Trusting SMBIOS...
40:737  0:000  Channels: 2
40:737  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
40:737  0:000   partNum=BLS8G3D1609DS1S00.
40:737  0:000  SMBIOS Type 17 Index = 0 => 0 0:
40:737  0:000  BANK 0 DIMM0 1600MHz 8192MB
40:737  0:000   partNum=BLS8G3D1609DS1S00.
40:737  0:000  SMBIOS Type 17 Index = 1 => 2 2:
40:737  0:000  BANK 1 DIMM0 1600MHz 8192MB
40:737  0:000   partNum=BLS8G3D1609DS1S00.
40:737  0:000  SMBIOS Type 17 Index = 2 => 1 1:
40:737  0:000  BANK 0 DIMM1 1600MHz 8192MB
40:737  0:000   partNum=BLS8G3D1609DS1S00.
40:737  0:000  SMBIOS Type 17 Index = 3 => 3 3:
40:737  0:000  BANK 1 DIMM1 1600MHz 8192MB
40:737  0:000  mTotalSystemMemory = 32768
40:737  0:000  NumberOfMemoryDevices = 4
40:737  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
40:737  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
40:737  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
40:737  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
40:737  0:000  Table 131 is present, CPUType=31
40:737  0:000  Change to: 704
40:737  0:000  === [ PatchACPI ] =========================================
40:737  0:000  Xsdt reallocation done
40:737  0:000  old FADT length=F4
40:737  0:000   SignatureFixup: 0x0 -> 0x0
40:739  0:002  Apply DsdtFixMask=0x00004000
40:739  0:000     drop _DSM mask=0xFFFF
40:739  0:000  === [ FixBiosDsdt ] =======================================
40:740  0:000  Patching DSDT:
40:740  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
40:740  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
40:740  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
40:740  0:000    0 replacements
40:740  0:000  Name PXSX present at 0xA2, renaming to ARPT
40:740  0:000  Name PXSX present at 0xE0, renaming to ARPT
40:740  0:000  PreCleanup XSDT: count=9, length=108
40:740  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
40:740  0:000  === [ ACPIDropTables ] ====================================
40:740  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
40:740  0:000   Table[8]: MATS  A M I  52 dropped
40:740  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
40:740  0:000   Table[6]: SSDT  CpuPm  2706 dropped
40:740  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
40:740  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
40:740  0:000  Patching SSDT SataTabl Length=877
40:740  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
40:740  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
40:740  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
40:740  0:000    0 replacements
40:740  0:000  === [ ACPIPatchedAML ] ====================================
40:740  0:000  Unsorted
40:740  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
40:741  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
40:742  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
40:742  0:000  Cleanup XSDT: count=11, length=124
40:742  0:000  corrected XSDT count=8, length=100
40:742  0:000  === [ RestSetup macOS ] ===================================
40:742  0:000  EdidDiscovered size=128
40:742  0:000  --- Discovered EDID Table size:128
40:742  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
40:742  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
40:742  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
40:742  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
40:742  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
40:742  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
40:742  0:000  060  |  23  40  30  20  36  00  06  44  21  00
40:742  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
40:742  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
40:742  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
40:742  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
40:742  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
40:742  0:000  120  |  20  20  20  20  20  20  00  8B
40:742  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
40:742  0:000     Add key=AAPL,ig-platform-id valuelen=4
40:742  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
40:742  0:000    ig-platform-id = 0x0166000B
40:742  0:000    Intel: no default properties
40:742  0:000  Intel GFX revision  = 0x9
40:742  0:000  stringlength = 2180
40:742  0:000  CurrentMode: Width=1920 Height=1200
40:742  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB3918
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB3918
40:752  0:009  Use origin smbios table type 1 guid.
40:765  0:012  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
40:765  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
40:765  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
40:773  0:008  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
40:777  0:004  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
40:786  0:008    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
40:791  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
40:794  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
40:799  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
40:804  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
40:808  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
40:812  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
40:814  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
40:829  0:014  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
40:895  0:066  SetScreenResolution: 1920x1200 - already set
40:895  0:000  Custom boot is disabled
40:897  0:001  Closing log

Yes, have both drivers installed.

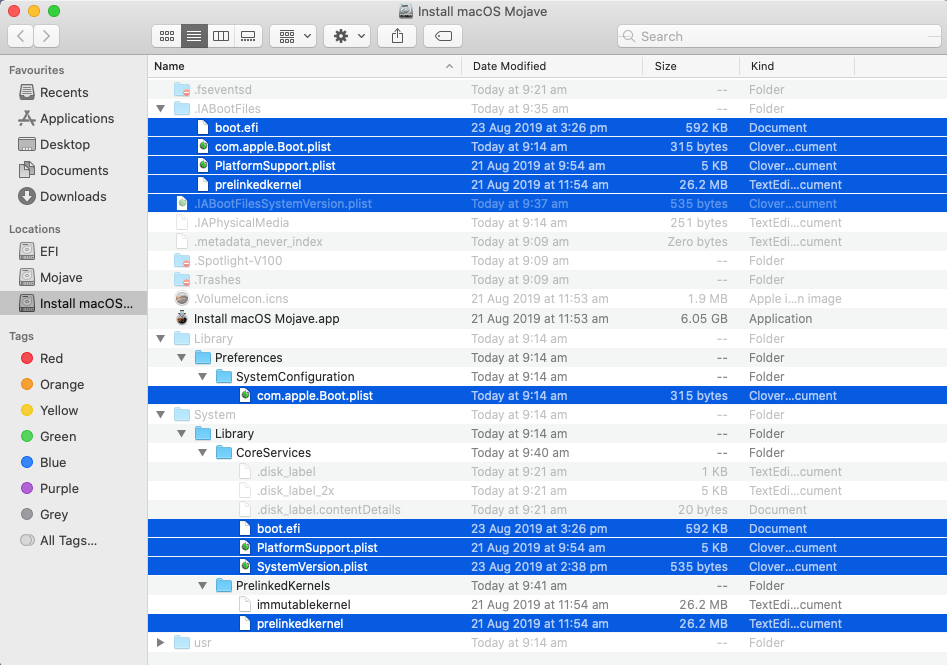

Could it be something I did wrong creating the install media perhaps or do I need to add a path to tell the entry where to look?

Edited August 27, 2019 by D-an-W

[Slice]

Yes, as I see Custom Entry can't be USB(...). Looks like a bug.

[Slice]

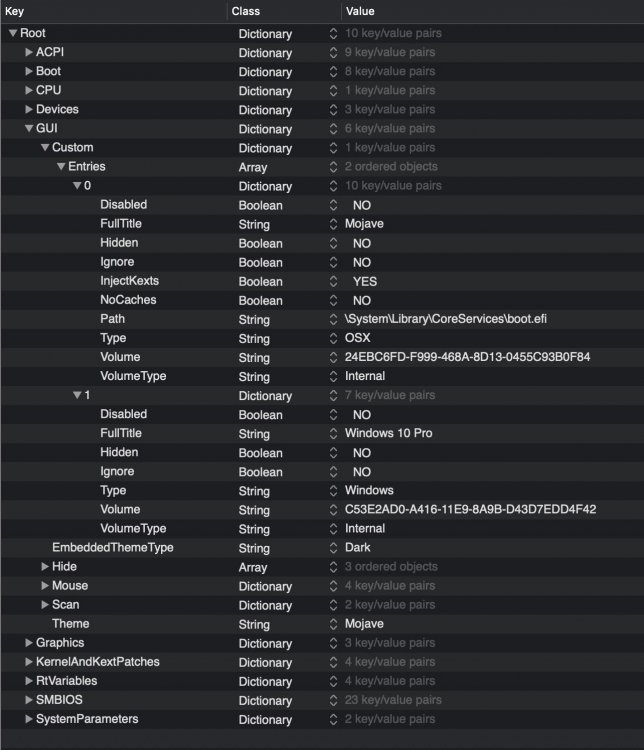

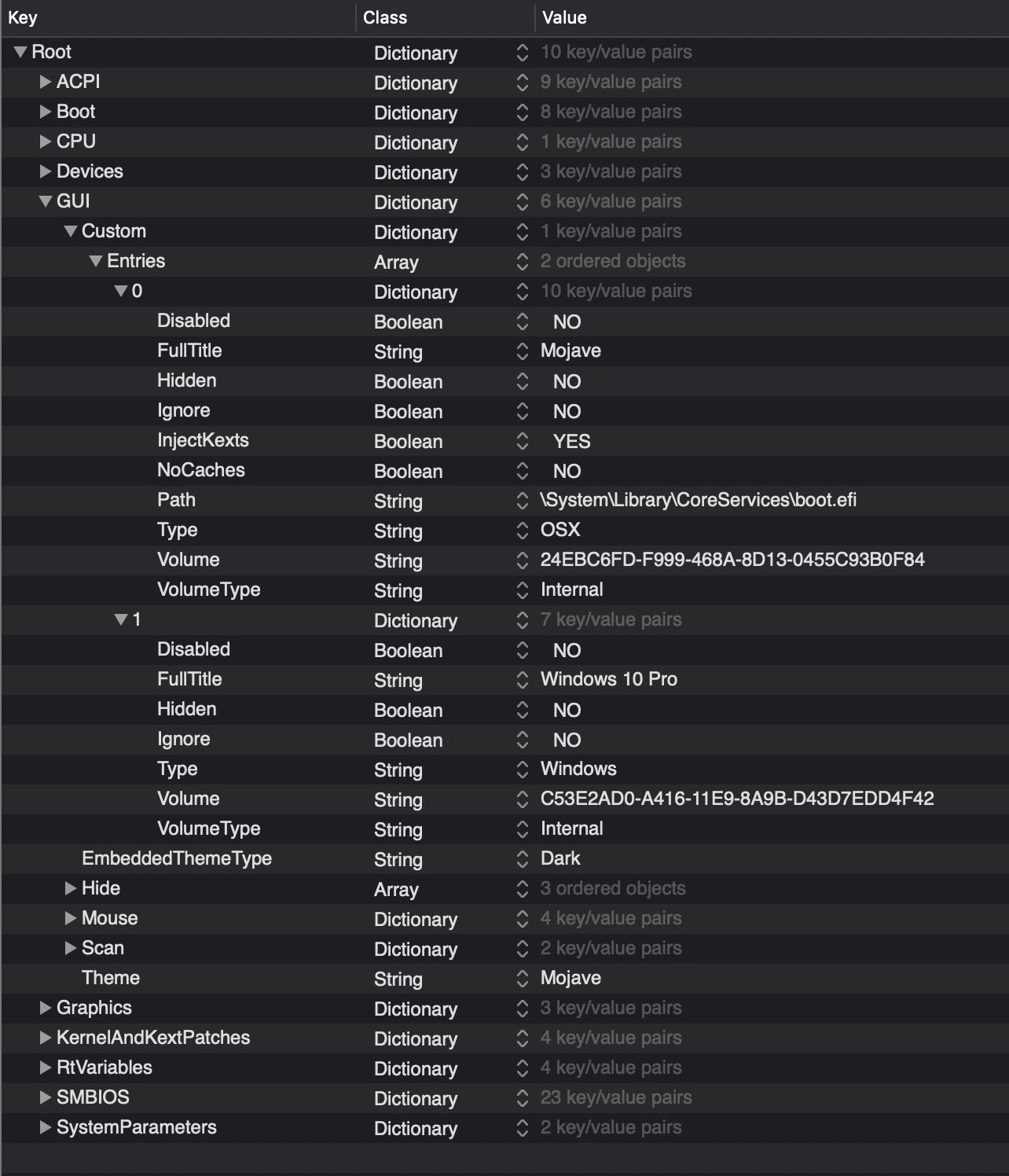

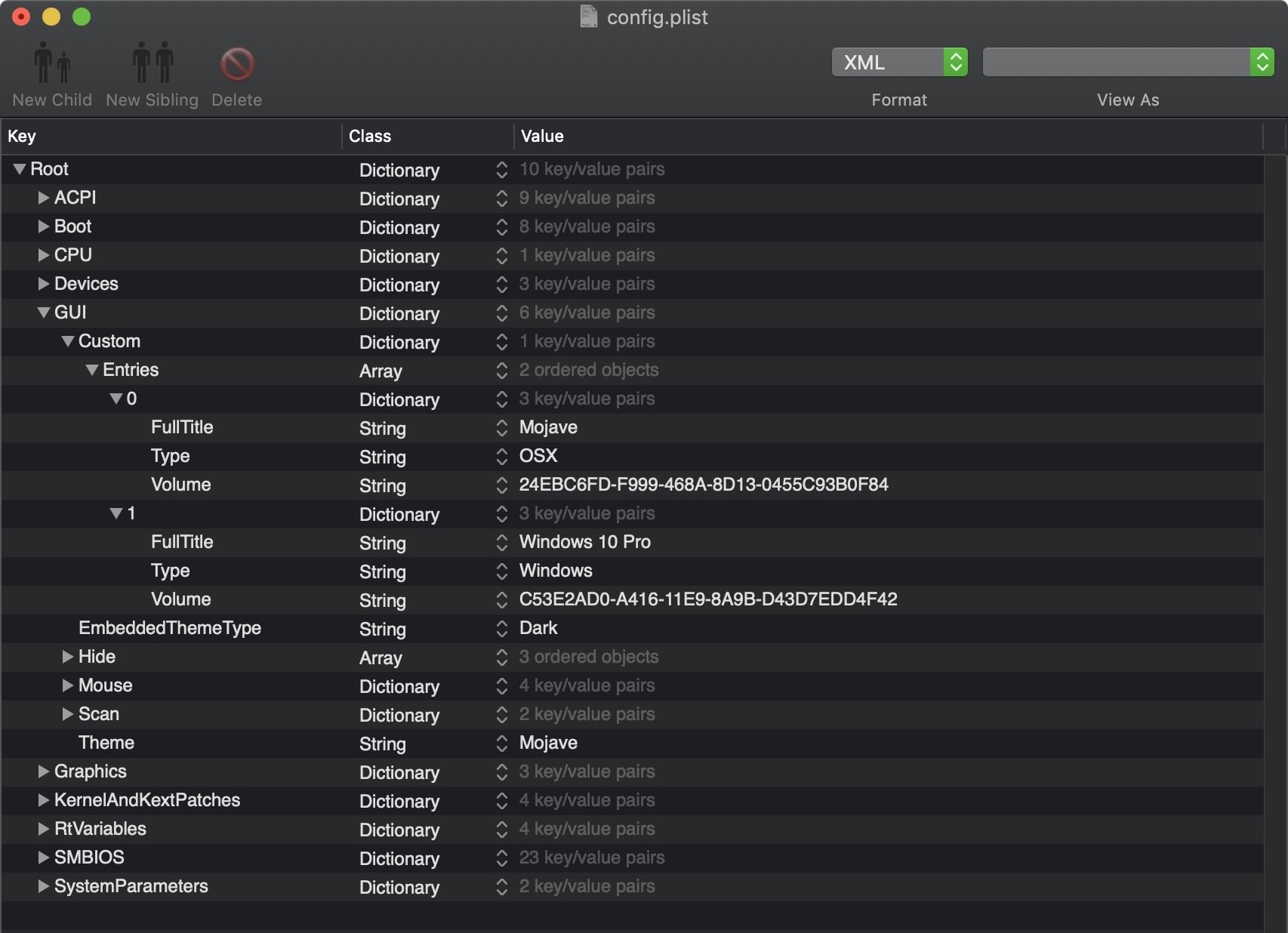

May be you should provide <key>Path</key> in each Custom Entry?

[D-an-W]

Do either of these look right?



[Slice]

Without Volumes because Clover has own partitioning.

And use only backslash "\"



So

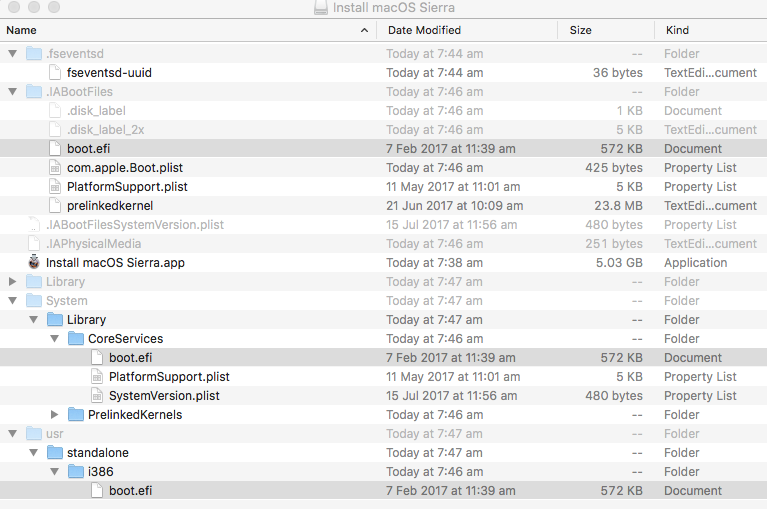

\System\Library\CoreServices\boot.efi

[D-an-W]

Latest preboot.log, still not looking right but different message in there...

0:100  0:100  MemLog inited, TSC freq: 3503451373
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 27.8.2019,  10:34:11 (GMT)
0:100  0:000  Starting Clover revision: 5050 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:203  0:057  Loading AudioDxe.efi  status=Success
0:205  0:001   - driver needs connecting
0:205  0:000  Loading HFSPlus.efi  status=Success
0:208  0:002   - driver needs connecting
0:208  0:000  Loading OSXAptioFix3Drv.efi  status=Success
0:210  0:001  Loading APFSDriverLoader.efi  status=Success
0:212  0:001   - driver needs connecting
0:212  0:000  3 drivers needs connecting ...
0:212  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:212  0:000  HFS+ driver loaded
0:212  0:000  APFS driver loaded
0:212  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:070  4:858  === [ InitScreen ] ========================================
5:070  0:000  Console modes reported: 5, available modes:
5:070  0:000   - [01]: 80x25 (current mode)
5:070  0:000   - [02]: 80x50
5:070  0:000   - [03]: 100x31
5:070  0:000   - [04]: 128x30
5:070  0:000   - [05]: 100x60
5:070  0:000  SetScreenResolution: 1920x1200 - already set
5:070  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:070  0:000  === [ GetMacAddress ] =====================================
5:070  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:070  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:070  0:000  === [ ScanSPD ] ===========================================
5:071  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:090  0:018  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:109  0:018  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:128  0:018  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:147  0:019  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:147  0:000  === [ GetAcpiTablesList ] =================================
5:166  0:018  Get Acpi Tables List from RSDT:
5:166  0:000   - [00]: FACP  A M I len=132
5:166  0:000   - [01]: APIC  A M I len=146
5:166  0:000   - [02]: MCFG  A M I len=60
5:166  0:000   - [03]: HPET  A M I len=56
5:166  0:000   - [04]: SSDT  SataTabl len=877
5:166  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:166  0:000   - [06]: SSDT  CpuPm len=2706
5:166  0:000   - [07]: BGRT  A M I len=56
5:166  0:000   - [08]: MATS  A M I len=52
5:166  0:000  Calibrated TSC Frequency = 3503451373 = 3503MHz
5:166  0:000  === [ GetUserSettings ] ===================================
5:166  0:000  Add 1 devices:
5:166  0:000  Dropping 3 tables:
5:166  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:166  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:166  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:166  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:166  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:166  0:000           - set table: 5354414D,                0 to drop: yes
5:166  0:000   - final DSDT Fix mask=00004000
5:166  0:000  PatchesDSDT: 3 requested
5:166  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:166  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:166  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:166  0:000  Using ProductName from config: Macmini6,2
5:166  0:000  Using latest BiosVersion from clover
5:166  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:166  0:000  BiosReleaseDate: 06/13/2019
5:166  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:166  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:166  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:166  0:000  Using PlatformFeature from clover: 0x1
5:166  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:166  0:000  BoardType: 0xA
5:166  0:000  ChassisType: 0x6
5:166  0:000  Slots->Devices:
5:166  0:000   - PCIe Slot 1
5:166  0:000  === [ Found DSDT tables ] =================================
5:317  0:150  === [ ScanVolumes ] =======================================
5:317  0:000  Found 15 volumes with blockIO
5:317  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:318  0:000          USB volume
5:318  0:000          USB volume
5:318  0:000          USB volume
5:318  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:319  0:000          Result of bootcode detection: bootable unknown (legacy)
5:319  0:000          USB volume
5:319  0:000          USB volume
5:319  0:000          USB volume
5:411  0:092  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:412  0:000          USB volume
5:412  0:000          USB volume
5:412  0:000          USB volume
5:412  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:413  0:000          USB volume
5:413  0:000          USB volume
5:413  0:000          USB volume
5:413  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:413  0:000          Found optical drive
5:413  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:414  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:414  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:415  0:000          Result of bootcode detection: bootable unknown (legacy)
5:423  0:008          This is SelfVolume !!
5:423  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:423  0:000          Result of bootcode detection: bootable unknown (legacy)
5:423  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:424  0:000          Result of bootcode detection: bootable unknown (legacy)
5:437  0:013  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:438  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:438  0:000          hiding this volume
5:438  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:438  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:438  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:438  0:000  found 2 handles with audio
5:440  0:001  got index=1
5:441  0:000  got volume 60
5:441  0:000  === [ InitTheme ] =========================================
5:441  0:000  use daylight theme
5:446  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:446  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:446  0:000  OS main and drive as badge
5:449  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:449  0:000  output to channel 1 with volume 60, len=228736
5:449  0:000   sound channels=1 bits=16 freq=44100
8:660  3:210  free sound
8:660  0:000  sound play end with status=Success
8:662  0:001  Loading font from ThemeDir: Success
8:662  0:000  theme inited
8:662  0:000  Chosen theme Mojave
8:663  0:000  after NVRAM boot-args=
8:663  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:663  0:000  found AppleSMC protocol
8:732  0:069  Registered 16 SMC keys
8:733  0:001  === [ AddCustomEntries ] ==================================
8:733  0:000  Custom entry 0 FullTitle:"macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"7A8A513B-CECD-439C-8DC1-3B1C758B1B9C"
8:733  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:733  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:733  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:733  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:733  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:733  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:733  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:733  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... match!
8:761  0:027      hibernated: set as never
8:773  0:012  Custom settings: <null string>.plist will  be applied
8:773  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped because path does not exist
8:773  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped because path does not exist
8:773  0:000  Custom entry 1 skipped because it is hidden.
8:773  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\System\Library\CoreServices\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped standard macOS path because volume is 2nd stage Install Media
8:773  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:773  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:773  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:773  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:773  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:773  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "Install macOS Catalina" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:773  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped standard macOS path because volume is 2nd stage Install Media
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:773  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:773  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:773  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:773  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:773  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:773  0:000  === [ ScanLoader ] ========================================
8:773  0:000  - [01]: 'EFI'
8:801  0:027          AddLoaderEntry for Volume Name=EFI
8:801  0:000          skipped because entry is hidden
8:801  0:000  - [02]: 'Install macOS Catalina'
8:804  0:002          AddLoaderEntry for Volume Name=Install macOS Catalina
8:804  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:832  0:028  - [03]: 'Install macOS Mojave'
8:833  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:833  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:861  0:028  - [07]: 'EFI'
8:887  0:025          AddLoaderEntry for Volume Name=EFI
8:887  0:000          skipped because entry is hidden
8:887  0:000  - [09]: 'EFI'
8:911  0:023  - [10]: 'Media'
8:935  0:024  - [11]: 'Preboot', hidden
8:935  0:000  - [12]: 'Macintosh HD'
8:942  0:007          AddLoaderEntry for Volume Name=Macintosh HD
8:942  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)\System\Library\CoreServices\boot.efii` already exists for another entry!
8:966  0:023  - [13]: 'Recovery'
8:967  0:000          AddLoaderEntry for Volume Name=Recovery
8:967  0:000      Skipped because matching custom entry 1!
8:990  0:023  - [14]: 'VM'
9:014  0:023  === [ AddCustomTool ] =====================================
9:017  0:003  found tool \EFI\CLOVER\tools\Shell64U.efi
9:017  0:000  Checking EFI partition Volume 1 for Clover
9:026  0:009   Found Clover
9:029  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:030  0:001  Default boot entry not found
9:030  0:000  DefaultIndex=-1 and MainMenu.EntryCount=9
9:293  0:262  GUI ready
16:618  7:325  exit from MainMenu 1
16:619  0:000  Boot option Boot0000 not found
16:619  0:000  === [ StartLoader ] =======================================
16:619  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
16:619  0:000  Loading boot.efi  status=Success
16:653  0:034  GetOSVersion: 10.14.6 (18G87)
16:653  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
16:653  0:000  Filtering KextPatches:
16:653  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
16:653  0:000  Will not patch boot.efi
16:653  0:000  === [ PatchSmbios ] =======================================
16:653  0:000  insert table 9 for dev 0:0
16:653  0:000  insert table 9 for dev 0:0
16:653  0:000  insert table 9 for dev 1:0
16:653  0:000  Table 11 present, but rewritten for us
16:654  0:000  Trusting SMBIOS...
16:654  0:000  Channels: 2
16:654  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
16:654  0:000   partNum=BLS8G3D1609DS1S00.
16:654  0:000  SMBIOS Type 17 Index = 0 => 0 0:
16:654  0:000  BANK 0 DIMM0 1600MHz 8192MB
16:654  0:000   partNum=BLS8G3D1609DS1S00.
16:654  0:000  SMBIOS Type 17 Index = 1 => 2 2:
16:654  0:000  BANK 1 DIMM0 1600MHz 8192MB
16:654  0:000   partNum=BLS8G3D1609DS1S00.
16:654  0:000  SMBIOS Type 17 Index = 2 => 1 1:
16:654  0:000  BANK 0 DIMM1 1600MHz 8192MB
16:654  0:000   partNum=BLS8G3D1609DS1S00.
16:654  0:000  SMBIOS Type 17 Index = 3 => 3 3:
16:654  0:000  BANK 1 DIMM1 1600MHz 8192MB
16:654  0:000  mTotalSystemMemory = 32768
16:654  0:000  NumberOfMemoryDevices = 4
16:654  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
16:654  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
16:654  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
16:654  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
16:654  0:000  Table 131 is present, CPUType=31
16:654  0:000  Change to: 704
16:654  0:000  === [ PatchACPI ] =========================================
16:654  0:000  Xsdt reallocation done
16:654  0:000  old FADT length=F4
16:654  0:000   SignatureFixup: 0x0 -> 0x0
16:656  0:002  Apply DsdtFixMask=0x00004000
16:656  0:000     drop _DSM mask=0xFFFF
16:656  0:000  === [ FixBiosDsdt ] =======================================
16:657  0:000  Patching DSDT:
16:657  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
16:657  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
16:657  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
16:657  0:000    0 replacements
16:657  0:000  Name PXSX present at 0xA2, renaming to ARPT
16:657  0:000  Name PXSX present at 0xE0, renaming to ARPT
16:657  0:000  PreCleanup XSDT: count=9, length=108
16:657  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
16:657  0:000  === [ ACPIDropTables ] ====================================
16:657  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
16:657  0:000   Table[8]: MATS  A M I  52 dropped
16:657  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
16:657  0:000   Table[6]: SSDT  CpuPm  2706 dropped
16:657  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
16:657  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
16:657  0:000  Patching SSDT SataTabl Length=877
16:657  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
16:657  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
16:657  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
16:657  0:000    0 replacements
16:657  0:000  === [ ACPIPatchedAML ] ====================================
16:657  0:000  Unsorted
16:657  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
16:658  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
16:658  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
16:658  0:000  Cleanup XSDT: count=11, length=124
16:658  0:000  corrected XSDT count=8, length=100
16:658  0:000  === [ RestSetup macOS ] ===================================
16:658  0:000  EdidDiscovered size=128
16:658  0:000  --- Discovered EDID Table size:128
16:658  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
16:658  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
16:658  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
16:658  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
16:658  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
16:658  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
16:658  0:000  060  |  23  40  30  20  36  00  06  44  21  00
16:658  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
16:658  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
16:658  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
16:658  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
16:658  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
16:658  0:000  120  |  20  20  20  20  20  20  00  8B
16:658  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
16:658  0:000     Add key=AAPL,ig-platform-id valuelen=4
16:658  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
16:658  0:000    ig-platform-id = 0x0166000B
16:658  0:000    Intel: no default properties
16:658  0:000  Intel GFX revision  = 0x9
16:659  0:000  stringlength = 2180
16:659  0:000  CurrentMode: Width=1920 Height=1200
16:659  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB3898
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB3898
16:671  0:011  Use origin smbios table type 1 guid.
16:684  0:012  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
16:684  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
16:684  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
16:692  0:007  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
16:696  0:004  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
16:704  0:007    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
16:709  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
16:713  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
16:717  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
16:722  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
16:726  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
16:730  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
16:732  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
16:746  0:013  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
16:811  0:065  SetScreenResolution: 1920x1200 - already set
16:811  0:000  Custom boot is disabled
16:812  0:001  Closing log



[Slice]

Shouldn't path to be one of them?

    AddLoaderEntry(L"\\Mac OS X Install Data\\boot.efi", NULL, L"Mac OS X Install", Volume, NULL, OSTYPE_OSX_INSTALLER, 0); // 10.7
    AddLoaderEntry(L"\\OS X Install Data\\boot.efi", NULL, L"OS X Install", Volume, NULL, OSTYPE_OSX_INSTALLER, 0); // 10.8 - 10.11
    AddLoaderEntry(L"\\macOS Install Data\\boot.efi", NULL, L"macOS Install", Volume, NULL, OSTYPE_OSX_INSTALLER, 0); // 10.12 - 10.12.3
    AddLoaderEntry(L"\\macOS Install Data\\Locked Files\\Boot Files\\boot.efi", NULL, L"macOS Install", Volume, NULL, OSTYPE_OSX_INSTALLER, 0); // 10.12.4+



[D-an-W]

I did wonder that, which lead me to think I had created the media wrong.



This is the folder structure of the Catalina Installer...

[Slice]

Will it work without Custom Entries?

macOS Insatall Data may be invisible

[D-an-W]

When you say without, do you mean remove them totally from the Config?



This is the latest preboot.log using newest Clover and screenshots of the info from within the Clover GUI.



Spoiler

0:100  0:100  MemLog inited, TSC freq: 3503445733
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 27.8.2019,  13:55:21 (GMT)
0:100  0:000  Starting Clover revision: 5058 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:101  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:207  0:060  Loading AudioDxe.efi  status=Success
0:209  0:001   - driver needs connecting
0:209  0:000  Loading HFSPlus.efi  status=Success
0:212  0:002   - driver needs connecting
0:212  0:000  Loading OsxAptioFix3Drv.efi  status=Success
0:214  0:001  Loading APFSDriverLoader.efi  status=Success
0:216  0:001   - driver needs connecting
0:216  0:000  3 drivers needs connecting ...
0:216  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:216  0:000  HFS+ driver loaded
0:216  0:000  APFS driver loaded
0:216  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:074  4:858  === [ InitScreen ] ========================================
5:074  0:000  Console modes reported: 5, available modes:
5:074  0:000   - [01]: 80x25 (current mode)
5:075  0:000   - [02]: 80x50
5:075  0:000   - [03]: 100x31
5:075  0:000   - [04]: 128x30
5:075  0:000   - [05]: 100x60
5:075  0:000  SetScreenResolution: 1920x1200 - already set
5:075  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:075  0:000  === [ GetMacAddress ] =====================================
5:075  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:075  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:075  0:000  === [ ScanSPD ] ===========================================
5:075  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:094  0:019  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:113  0:019  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:132  0:019  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:151  0:019  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:152  0:000  === [ GetAcpiTablesList ] =================================
5:170  0:018  Get Acpi Tables List from RSDT:
5:170  0:000   - [00]: FACP  A M I len=132
5:170  0:000   - [01]: APIC  A M I len=146
5:170  0:000   - [02]: MCFG  A M I len=60
5:170  0:000   - [03]: HPET  A M I len=56
5:170  0:000   - [04]: SSDT  SataTabl len=877
5:170  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:170  0:000   - [06]: SSDT  CpuPm len=2706
5:170  0:000   - [07]: BGRT  A M I len=56
5:170  0:000   - [08]: MATS  A M I len=52
5:170  0:000  Calibrated TSC Frequency = 3503445733 = 3503MHz
5:170  0:000  === [ GetUserSettings ] ===================================
5:170  0:000  Add 1 devices:
5:170  0:000  Dropping 3 tables:
5:170  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:170  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:170  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:170  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:170  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:170  0:000           - set table: 5354414D,                0 to drop: yes
5:170  0:000   - final DSDT Fix mask=00004000
5:170  0:000  PatchesDSDT: 3 requested
5:170  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000  Using ProductName from config: Macmini6,2
5:170  0:000  Using latest BiosVersion from clover
5:170  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:170  0:000  BiosReleaseDate: 06/13/2019
5:170  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:170  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:170  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:170  0:000  Using PlatformFeature from clover: 0x1
5:170  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:170  0:000  BoardType: 0xA
5:170  0:000  ChassisType: 0x6
5:170  0:000  Slots->Devices:
5:170  0:000   - PCIe Slot 1
5:171  0:000  === [ Found DSDT tables ] =================================
5:322  0:151  === [ ScanVolumes ] =======================================
5:322  0:000  Found 15 volumes with blockIO
5:322  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:323  0:000          USB volume
5:323  0:000          USB volume
5:323  0:000          USB volume
5:323  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:324  0:000          Result of bootcode detection: bootable unknown (legacy)
5:324  0:000          USB volume
5:324  0:000          USB volume
5:324  0:000          USB volume
5:414  0:089  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:415  0:000          USB volume
5:415  0:000          USB volume
5:415  0:000          USB volume
5:415  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:416  0:000          USB volume
5:416  0:000          USB volume
5:416  0:000          USB volume
5:416  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:416  0:000          Found optical drive
5:416  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:417  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:417  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:418  0:000          Result of bootcode detection: bootable unknown (legacy)
5:426  0:008          This is SelfVolume !!
5:426  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:426  0:000          Result of bootcode detection: bootable unknown (legacy)
5:426  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:427  0:000          Result of bootcode detection: bootable unknown (legacy)
5:442  0:014  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:442  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:442  0:000          hiding this volume
5:442  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:442  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:442  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:442  0:000  found 2 handles with audio
5:444  0:001  got index=1
5:445  0:000  got volume 60
5:445  0:000  === [ InitTheme ] =========================================
5:445  0:000  use daylight theme
5:450  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:450  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:450  0:000  OS main and drive as badge
5:454  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:454  0:000  output to channel 1 with volume 60, len=228736
5:454  0:000   sound channels=1 bits=16 freq=44100
8:664  3:210  free sound
8:664  0:000  sound play end with status=Success
8:666  0:001  Loading font from ThemeDir: Success
8:666  0:000  theme inited
8:666  0:000  Chosen theme Mojave
8:667  0:000  after NVRAM boot-args=
8:667  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:667  0:000  found AppleSMC protocol
8:741  0:073  Registered 16 SMC keys
8:742  0:001  === [ AddCustomEntries ] ==================================
8:742  0:000  Custom entry 0 FullTitle:"macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"7A8A513B-CECD-439C-8DC1-3B1C758B1B9C"
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:742  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:742  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:742  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... match!
8:770  0:027      hibernated: set as never
8:782  0:012  Custom settings: <null string>.plist will  be applied
8:784  0:001      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped because path does not exist
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped because path does not exist
8:784  0:000  Custom entry 1 skipped because it is hidden.
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  === [ ScanLoader ] ========================================
8:784  0:000  - [01]: 'EFI'
8:812  0:027          AddLoaderEntry for Volume Name=EFI
8:812  0:000          skipped because entry is hidden
8:812  0:000  - [02]: 'Install macOS Catalina Beta'
8:813  0:001          AddLoaderEntry for Volume Name=Install macOS Catalina Beta
8:813  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:843  0:029  - [03]: 'Install macOS Mojave'
8:844  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:844  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:872  0:028  - [07]: 'EFI'
8:898  0:025          AddLoaderEntry for Volume Name=EFI
8:898  0:000          skipped because entry is hidden
8:898  0:000  - [09]: 'EFI'
8:922  0:023  - [10]: 'Media'
8:946  0:024  - [11]: 'Preboot', hidden
8:946  0:000  - [12]: 'Macintosh HD'
8:953  0:007          AddLoaderEntry for Volume Name=Macintosh HD
8:953  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)\System\Library\CoreServices\boot.efii` already exists for another entry!
8:977  0:023  - [13]: 'Recovery'
8:977  0:000          AddLoaderEntry for Volume Name=Recovery
8:977  0:000      Skipped because matching custom entry 1!
9:001  0:023  - [14]: 'VM'
9:025  0:023  === [ AddCustomTool ] =====================================
9:027  0:002  found tool \EFI\CLOVER\tools\Shell64U.efi
9:027  0:000  Checking EFI partition Volume 1 for Clover
9:036  0:008   Found Clover
9:039  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:040  0:001  Default boot entry not found
9:040  0:000  DefaultIndex=-1 and MainMenu.EntryCount=9
9:303  0:263  GUI ready
29:491  20:187  exit from MainMenu 7
306:873  277:382  exit from MainMenu 1
306:873  0:000  Boot option Boot0000 not found
306:873  0:000  === [ StartLoader ] =======================================
306:873  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
306:873  0:000  Loading boot.efi  status=Success
306:908  0:034  GetOSVersion: 10.14.6 (18G87)
306:908  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
306:908  0:000  Filtering KextPatches:
306:908  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
306:908  0:000  Will not patch boot.efi
306:908  0:000  === [ PatchSmbios ] =======================================
306:908  0:000  insert table 9 for dev 0:0
306:908  0:000  insert table 9 for dev 0:0
306:908  0:000  insert table 9 for dev 1:0
306:908  0:000  Table 11 present, but rewritten for us
306:908  0:000  Trusting SMBIOS...
306:908  0:000  Channels: 2
306:908  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 0 => 0 0:
306:908  0:000  BANK 0 DIMM0 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 1 => 2 2:
306:908  0:000  BANK 1 DIMM0 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 2 => 1 1:
306:908  0:000  BANK 0 DIMM1 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 3 => 3 3:
306:908  0:000  BANK 1 DIMM1 1600MHz 8192MB
306:908  0:000  mTotalSystemMemory = 32768
306:908  0:000  NumberOfMemoryDevices = 4
306:908  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
306:908  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
306:908  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
306:908  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
306:908  0:000  Table 131 is present, CPUType=31
306:908  0:000  Change to: 704
306:908  0:000  === [ PatchACPI ] =========================================
306:908  0:000  Xsdt reallocation done
306:908  0:000  old FADT length=F4
306:908  0:000   SignatureFixup: 0x0 -> 0x0
306:912  0:003  Apply DsdtFixMask=0x00004000
306:912  0:000     drop _DSM mask=0xFFFF
306:912  0:000  === [ FixBiosDsdt ] =======================================
306:912  0:000  Patching DSDT:
306:912  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
306:912  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
306:913  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
306:913  0:000    0 replacements
306:913  0:000  Name PXSX present at 0xA2, renaming to ARPT
306:913  0:000  Name PXSX present at 0xE0, renaming to ARPT
306:913  0:000  PreCleanup XSDT: count=9, length=108
306:913  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
306:913  0:000  === [ ACPIDropTables ] ====================================
306:913  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
306:913  0:000   Table[8]: MATS  A M I  52 dropped
306:913  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
306:913  0:000   Table[6]: SSDT  CpuPm  2706 dropped
306:913  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
306:913  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
306:913  0:000  Patching SSDT SataTabl Length=877
306:913  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
306:913  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
306:913  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
306:913  0:000    0 replacements
306:913  0:000  === [ ACPIPatchedAML ] ====================================
306:913  0:000  Unsorted
306:913  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
306:914  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
306:914  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
306:914  0:000  Cleanup XSDT: count=11, length=124
306:914  0:000  corrected XSDT count=8, length=100
306:914  0:000  === [ RestSetup macOS ] ===================================
306:914  0:000  EdidDiscovered size=128
306:914  0:000  --- Discovered EDID Table size:128
306:914  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
306:914  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
306:914  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
306:914  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
306:914  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
306:914  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
306:914  0:000  060  |  23  40  30  20  36  00  06  44  21  00
306:914  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
306:914  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
306:914  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
306:914  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
306:914  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
306:914  0:000  120  |  20  20  20  20  20  20  00  8B
306:914  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
306:914  0:000     Add key=AAPL,ig-platform-id valuelen=4
306:914  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
306:914  0:000    ig-platform-id = 0x0166000B
306:914  0:000    Intel: no default properties
306:914  0:000  Intel GFX revision  = 0x9
306:915  0:000  stringlength = 2180
306:915  0:000  CurrentMode: Width=1920 Height=1200
306:915  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB7918
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB7918
306:928  0:012  Use origin smbios table type 1 guid.
306:941  0:013  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
306:941  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
306:941  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
306:951  0:009  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
306:956  0:005  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
306:963  0:007    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
306:969  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
306:972  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
306:976  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
306:982  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
306:985  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
306:989  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
306:992  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
307:005  0:013  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
307:072  0:066  SetScreenResolution: 1920x1200 - already set
307:072  0:000  Custom boot is disabled
307:073  0:001  Closing log





Spoiler







Spoiler



Edited August 27, 2019 by D-an-W

[MagicNAS]

Can anyone help me understand why this glitch appears and how to fix it, appears only when scanning for entries and not every time.

[Slice]

19 hours ago, D-an-W said:

When you say without, do you mean remove them totally from the Config?



This is the latest preboot.log using newest Clover and screenshots of the info from within the Clover GUI.



  Hide contents

0:100  0:100  MemLog inited, TSC freq: 3503445733
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 27.8.2019,  13:55:21 (GMT)
0:100  0:000  Starting Clover revision: 5058 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:101  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:207  0:060  Loading AudioDxe.efi  status=Success
0:209  0:001   - driver needs connecting
0:209  0:000  Loading HFSPlus.efi  status=Success
0:212  0:002   - driver needs connecting
0:212  0:000  Loading OsxAptioFix3Drv.efi  status=Success
0:214  0:001  Loading APFSDriverLoader.efi  status=Success
0:216  0:001   - driver needs connecting
0:216  0:000  3 drivers needs connecting ...
0:216  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:216  0:000  HFS+ driver loaded
0:216  0:000  APFS driver loaded
0:216  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:074  4:858  === [ InitScreen ] ========================================
5:074  0:000  Console modes reported: 5, available modes:
5:074  0:000   - [01]: 80x25 (current mode)
5:075  0:000   - [02]: 80x50
5:075  0:000   - [03]: 100x31
5:075  0:000   - [04]: 128x30
5:075  0:000   - [05]: 100x60
5:075  0:000  SetScreenResolution: 1920x1200 - already set
5:075  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:075  0:000  === [ GetMacAddress ] =====================================
5:075  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:075  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:075  0:000  === [ ScanSPD ] ===========================================
5:075  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:094  0:019  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:113  0:019  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:132  0:019  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:151  0:019  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:152  0:000  === [ GetAcpiTablesList ] =================================
5:170  0:018  Get Acpi Tables List from RSDT:
5:170  0:000   - [00]: FACP  A M I len=132
5:170  0:000   - [01]: APIC  A M I len=146
5:170  0:000   - [02]: MCFG  A M I len=60
5:170  0:000   - [03]: HPET  A M I len=56
5:170  0:000   - [04]: SSDT  SataTabl len=877
5:170  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:170  0:000   - [06]: SSDT  CpuPm len=2706
5:170  0:000   - [07]: BGRT  A M I len=56
5:170  0:000   - [08]: MATS  A M I len=52
5:170  0:000  Calibrated TSC Frequency = 3503445733 = 3503MHz
5:170  0:000  === [ GetUserSettings ] ===================================
5:170  0:000  Add 1 devices:
5:170  0:000  Dropping 3 tables:
5:170  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:170  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:170  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:170  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:170  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:170  0:000           - set table: 5354414D,                0 to drop: yes
5:170  0:000   - final DSDT Fix mask=00004000
5:170  0:000  PatchesDSDT: 3 requested
5:170  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:170  0:000  Using ProductName from config: Macmini6,2
5:170  0:000  Using latest BiosVersion from clover
5:170  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:170  0:000  BiosReleaseDate: 06/13/2019
5:170  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:170  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:170  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:170  0:000  Using PlatformFeature from clover: 0x1
5:170  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:170  0:000  BoardType: 0xA
5:170  0:000  ChassisType: 0x6
5:170  0:000  Slots->Devices:
5:170  0:000   - PCIe Slot 1
5:171  0:000  === [ Found DSDT tables ] =================================
5:322  0:151  === [ ScanVolumes ] =======================================
5:322  0:000  Found 15 volumes with blockIO
5:322  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:323  0:000          USB volume
5:323  0:000          USB volume
5:323  0:000          USB volume
5:323  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:324  0:000          Result of bootcode detection: bootable unknown (legacy)
5:324  0:000          USB volume
5:324  0:000          USB volume
5:324  0:000          USB volume
5:414  0:089  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:415  0:000          USB volume
5:415  0:000          USB volume
5:415  0:000          USB volume
5:415  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:416  0:000          USB volume
5:416  0:000          USB volume
5:416  0:000          USB volume
5:416  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:416  0:000          Found optical drive
5:416  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:417  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:417  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:418  0:000          Result of bootcode detection: bootable unknown (legacy)
5:426  0:008          This is SelfVolume !!
5:426  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:426  0:000          Result of bootcode detection: bootable unknown (legacy)
5:426  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:427  0:000          Result of bootcode detection: bootable unknown (legacy)
5:442  0:014  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:442  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:442  0:000          hiding this volume
5:442  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:442  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:442  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:442  0:000  found 2 handles with audio
5:444  0:001  got index=1
5:445  0:000  got volume 60
5:445  0:000  === [ InitTheme ] =========================================
5:445  0:000  use daylight theme
5:450  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:450  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:450  0:000  OS main and drive as badge
5:454  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:454  0:000  output to channel 1 with volume 60, len=228736
5:454  0:000   sound channels=1 bits=16 freq=44100
8:664  3:210  free sound
8:664  0:000  sound play end with status=Success
8:666  0:001  Loading font from ThemeDir: Success
8:666  0:000  theme inited
8:666  0:000  Chosen theme Mojave
8:667  0:000  after NVRAM boot-args=
8:667  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:667  0:000  found AppleSMC protocol
8:741  0:073  Registered 16 SMC keys
8:742  0:001  === [ AddCustomEntries ] ==================================
8:742  0:000  Custom entry 0 FullTitle:"macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"7A8A513B-CECD-439C-8DC1-3B1C758B1B9C"
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:742  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:742  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:742  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:742  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... match!
8:770  0:027      hibernated: set as never
8:782  0:012  Custom settings: <null string>.plist will  be applied
8:784  0:001      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped because path does not exist
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped because path does not exist
8:784  0:000  Custom entry 1 skipped because it is hidden.
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 2 Title:"Install macOS" FullTitle:"Install macOS Catalina" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"7BFEAECC-A09D-4FA7-918D-EE298AD68B70"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped because path does not exist
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\.IABootFiles\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\Mac OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\OS X Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  Custom entry 3 Title:"Install macOS" FullTitle:"Install macOS Mojave" Path:"\macOS Install Data\Locked Files\Boot Files\boot.efi" Type:11 Flags:0x2 matching Volume:"4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500"
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:784  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped because path does not exist
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:784  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:784  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:784  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... skipped
8:784  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped
8:784  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped
8:784  0:000  === [ ScanLoader ] ========================================
8:784  0:000  - [01]: 'EFI'
8:812  0:027          AddLoaderEntry for Volume Name=EFI
8:812  0:000          skipped because entry is hidden
8:812  0:000  - [02]: 'Install macOS Catalina Beta'
8:813  0:001          AddLoaderEntry for Volume Name=Install macOS Catalina Beta
8:813  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:843  0:029  - [03]: 'Install macOS Mojave'
8:844  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:844  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:872  0:028  - [07]: 'EFI'
8:898  0:025          AddLoaderEntry for Volume Name=EFI
8:898  0:000          skipped because entry is hidden
8:898  0:000  - [09]: 'EFI'
8:922  0:023  - [10]: 'Media'
8:946  0:024  - [11]: 'Preboot', hidden
8:946  0:000  - [12]: 'Macintosh HD'
8:953  0:007          AddLoaderEntry for Volume Name=Macintosh HD
8:953  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)\System\Library\CoreServices\boot.efii` already exists for another entry!
8:977  0:023  - [13]: 'Recovery'
8:977  0:000          AddLoaderEntry for Volume Name=Recovery
8:977  0:000      Skipped because matching custom entry 1!
9:001  0:023  - [14]: 'VM'
9:025  0:023  === [ AddCustomTool ] =====================================
9:027  0:002  found tool \EFI\CLOVER\tools\Shell64U.efi
9:027  0:000  Checking EFI partition Volume 1 for Clover
9:036  0:008   Found Clover
9:039  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:040  0:001  Default boot entry not found
9:040  0:000  DefaultIndex=-1 and MainMenu.EntryCount=9
9:303  0:263  GUI ready
29:491  20:187  exit from MainMenu 7
306:873  277:382  exit from MainMenu 1
306:873  0:000  Boot option Boot0000 not found
306:873  0:000  === [ StartLoader ] =======================================
306:873  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
306:873  0:000  Loading boot.efi  status=Success
306:908  0:034  GetOSVersion: 10.14.6 (18G87)
306:908  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
306:908  0:000  Filtering KextPatches:
306:908  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
306:908  0:000  Will not patch boot.efi
306:908  0:000  === [ PatchSmbios ] =======================================
306:908  0:000  insert table 9 for dev 0:0
306:908  0:000  insert table 9 for dev 0:0
306:908  0:000  insert table 9 for dev 1:0
306:908  0:000  Table 11 present, but rewritten for us
306:908  0:000  Trusting SMBIOS...
306:908  0:000  Channels: 2
306:908  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 0 => 0 0:
306:908  0:000  BANK 0 DIMM0 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 1 => 2 2:
306:908  0:000  BANK 1 DIMM0 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 2 => 1 1:
306:908  0:000  BANK 0 DIMM1 1600MHz 8192MB
306:908  0:000   partNum=BLS8G3D1609DS1S00.
306:908  0:000  SMBIOS Type 17 Index = 3 => 3 3:
306:908  0:000  BANK 1 DIMM1 1600MHz 8192MB
306:908  0:000  mTotalSystemMemory = 32768
306:908  0:000  NumberOfMemoryDevices = 4
306:908  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
306:908  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
306:908  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
306:908  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
306:908  0:000  Table 131 is present, CPUType=31
306:908  0:000  Change to: 704
306:908  0:000  === [ PatchACPI ] =========================================
306:908  0:000  Xsdt reallocation done
306:908  0:000  old FADT length=F4
306:908  0:000   SignatureFixup: 0x0 -> 0x0
306:912  0:003  Apply DsdtFixMask=0x00004000
306:912  0:000     drop _DSM mask=0xFFFF
306:912  0:000  === [ FixBiosDsdt ] =======================================
306:912  0:000  Patching DSDT:
306:912  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
306:912  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
306:913  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
306:913  0:000    0 replacements
306:913  0:000  Name PXSX present at 0xA2, renaming to ARPT
306:913  0:000  Name PXSX present at 0xE0, renaming to ARPT
306:913  0:000  PreCleanup XSDT: count=9, length=108
306:913  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
306:913  0:000  === [ ACPIDropTables ] ====================================
306:913  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
306:913  0:000   Table[8]: MATS  A M I  52 dropped
306:913  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
306:913  0:000   Table[6]: SSDT  CpuPm  2706 dropped
306:913  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
306:913  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
306:913  0:000  Patching SSDT SataTabl Length=877
306:913  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
306:913  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
306:913  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
306:913  0:000    0 replacements
306:913  0:000  === [ ACPIPatchedAML ] ====================================
306:913  0:000  Unsorted
306:913  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
306:914  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
306:914  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
306:914  0:000  Cleanup XSDT: count=11, length=124
306:914  0:000  corrected XSDT count=8, length=100
306:914  0:000  === [ RestSetup macOS ] ===================================
306:914  0:000  EdidDiscovered size=128
306:914  0:000  --- Discovered EDID Table size:128
306:914  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
306:914  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
306:914  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
306:914  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
306:914  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
306:914  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
306:914  0:000  060  |  23  40  30  20  36  00  06  44  21  00
306:914  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
306:914  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
306:914  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
306:914  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
306:914  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
306:914  0:000  120  |  20  20  20  20  20  20  00  8B
306:914  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
306:914  0:000     Add key=AAPL,ig-platform-id valuelen=4
306:914  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
306:914  0:000    ig-platform-id = 0x0166000B
306:914  0:000    Intel: no default properties
306:914  0:000  Intel GFX revision  = 0x9
306:915  0:000  stringlength = 2180
306:915  0:000  CurrentMode: Width=1920 Height=1200
306:915  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB7918
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CB7918
306:928  0:012  Use origin smbios table type 1 guid.
306:941  0:013  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
306:941  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
306:941  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
306:951  0:009  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
306:956  0:005  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
306:963  0:007    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
306:969  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
306:972  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
306:976  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
306:982  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
306:985  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
306:989  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
306:992  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
307:005  0:013  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
307:072  0:066  SetScreenResolution: 1920x1200 - already set
307:072  0:000  Custom boot is disabled
307:073  0:001  Closing log





  Hide contents









  Hide contents





Yes, comment out totally from config and let Clover to search where is there installation path. Then you can copy it in your custom entries.



19 hours ago, MagicNAS said:

Can anyone help me understand why this glitch appears and how to fix it, appears only when scanning for entries and not every time.

Disable CSM in BIOS.

[D-an-W]

This is the preboot.log with scanning enabled and those two entries removed...

Spoiler

0:100  0:100  MemLog inited, TSC freq: 3503450973
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 28.8.2019,  13:1:28 (GMT)
0:100  0:000  Starting Clover revision: 5058 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:202  0:056  Loading AudioDxe.efi  status=Success
0:204  0:001   - driver needs connecting
0:204  0:000  Loading HFSPlus.efi  status=Success
0:207  0:002   - driver needs connecting
0:207  0:000  Loading OSXAptioFix3Drv.efi  status=Success
0:209  0:001  Loading APFSDriverLoader.efi  status=Success
0:211  0:001   - driver needs connecting
0:211  0:000  3 drivers needs connecting ...
0:211  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:211  0:000  HFS+ driver loaded
0:211  0:000  APFS driver loaded
0:211  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:064  4:853  === [ InitScreen ] ========================================
5:064  0:000  Console modes reported: 5, available modes:
5:064  0:000   - [01]: 80x25 (current mode)
5:064  0:000   - [02]: 80x50
5:064  0:000   - [03]: 100x31
5:064  0:000   - [04]: 128x30
5:064  0:000   - [05]: 100x60
5:064  0:000  SetScreenResolution: 1920x1200 - already set
5:064  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:064  0:000  === [ GetMacAddress ] =====================================
5:064  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:064  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:064  0:000  === [ ScanSPD ] ===========================================
5:064  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:083  0:018  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:102  0:018  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:121  0:018  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:140  0:018  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:141  0:000  === [ GetAcpiTablesList ] =================================
5:159  0:018  Get Acpi Tables List from RSDT:
5:159  0:000   - [00]: FACP  A M I len=132
5:159  0:000   - [01]: APIC  A M I len=146
5:159  0:000   - [02]: MCFG  A M I len=60
5:159  0:000   - [03]: HPET  A M I len=56
5:159  0:000   - [04]: SSDT  SataTabl len=877
5:159  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:159  0:000   - [06]: SSDT  CpuPm len=2706
5:159  0:000   - [07]: BGRT  A M I len=56
5:159  0:000   - [08]: MATS  A M I len=52
5:159  0:000  Calibrated TSC Frequency = 3503450973 = 3503MHz
5:159  0:000  === [ GetUserSettings ] ===================================
5:159  0:000  Add 1 devices:
5:159  0:000  Dropping 3 tables:
5:159  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:159  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:159  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:159  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:159  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:159  0:000           - set table: 5354414D,                0 to drop: yes
5:159  0:000   - final DSDT Fix mask=00004000
5:159  0:000  PatchesDSDT: 3 requested
5:159  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:159  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:159  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:159  0:000  Using ProductName from config: Macmini6,2
5:159  0:000  Using latest BiosVersion from clover
5:159  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:159  0:000  BiosReleaseDate: 06/13/2019
5:159  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:159  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:159  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:159  0:000  Using PlatformFeature from clover: 0x1
5:159  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:159  0:000  BoardType: 0xA
5:159  0:000  ChassisType: 0x6
5:159  0:000  Slots->Devices:
5:159  0:000   - PCIe Slot 1
5:160  0:000  === [ Found DSDT tables ] =================================
5:311  0:150  === [ ScanVolumes ] =======================================
5:311  0:000  Found 15 volumes with blockIO
5:311  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:312  0:000          USB volume
5:312  0:000          USB volume
5:312  0:000          USB volume
5:312  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:313  0:000          Result of bootcode detection: bootable unknown (legacy)
5:313  0:000          USB volume
5:313  0:000          USB volume
5:313  0:000          USB volume
5:404  0:091  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:405  0:000          USB volume
5:405  0:000          USB volume
5:405  0:000          USB volume
5:405  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:406  0:000          USB volume
5:406  0:000          USB volume
5:406  0:000          USB volume
5:406  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:406  0:000          Found optical drive
5:406  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:406  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:407  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:407  0:000          Result of bootcode detection: bootable unknown (legacy)
5:415  0:007          This is SelfVolume !!
5:415  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:416  0:000          Result of bootcode detection: bootable unknown (legacy)
5:416  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:416  0:000          Result of bootcode detection: bootable unknown (legacy)
5:431  0:014  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:431  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:431  0:000          hiding this volume
5:431  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:431  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:431  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:431  0:000  found 2 handles with audio
5:434  0:002  got index=1
5:435  0:000  got volume 60
5:435  0:000  === [ InitTheme ] =========================================
5:435  0:000  use daylight theme
5:440  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:440  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:440  0:000  OS main and drive as badge
5:444  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:444  0:000  output to channel 1 with volume 60, len=228736
5:444  0:000   sound channels=1 bits=16 freq=44100
8:654  3:210  free sound
8:654  0:000  sound play end with status=Success
8:656  0:001  Loading font from ThemeDir: Success
8:656  0:000  theme inited
8:656  0:000  Chosen theme Mojave
8:657  0:000  after NVRAM boot-args=
8:657  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:657  0:000  found AppleSMC protocol
8:725  0:067  Registered 16 SMC keys
8:726  0:001  === [ AddCustomEntries ] ==================================
8:726  0:000  Custom entry 0 FullTitle:"macOS Mojave" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x2 matching Volume:"7A8A513B-CECD-439C-8DC1-3B1C758B1B9C"
8:726  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)) ... skipped
8:726  0:000      Checking volume "Install macOS Catalina Beta" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)) ... skipped
8:726  0:000      Checking volume "Install macOS Mojave" (PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)) ... skipped
8:726  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)) ... skipped
8:726  0:000      Checking volume "EFI" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)) ... skipped
8:726  0:000      Checking volume "Media" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)) ... skipped
8:726  0:000      Checking volume "Preboot" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)) ... skipped because volume is hidden
8:726  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)) ... match!
8:754  0:027      hibernated: set as never
8:766  0:012  Custom settings: <null string>.plist will  be applied
8:767  0:001      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)) ... skipped because path does not exist
8:767  0:000      Checking volume "VM" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)) ... skipped because path does not exist
8:767  0:000  Custom entry 1 skipped because it is hidden.
8:767  0:000  === [ ScanLoader ] ========================================
8:767  0:000  - [01]: 'EFI'
8:795  0:027          AddLoaderEntry for Volume Name=EFI
8:795  0:000          skipped because entry is hidden
8:795  0:000  - [02]: 'Install macOS Catalina Beta'
8:797  0:001          AddLoaderEntry for Volume Name=Install macOS Catalina Beta
8:797  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:826  0:029  - [03]: 'Install macOS Mojave'
8:827  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:827  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match
8:856  0:028  - [07]: 'EFI'
8:881  0:025          AddLoaderEntry for Volume Name=EFI
8:881  0:000          skipped because entry is hidden
8:881  0:000  - [09]: 'EFI'
8:905  0:023  - [10]: 'Media'
8:930  0:024  - [11]: 'Preboot', hidden
8:930  0:000  - [12]: 'Macintosh HD'
8:937  0:007          AddLoaderEntry for Volume Name=Macintosh HD
8:937  0:000       skipped because path `PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)\System\Library\CoreServices\boot.efii` already exists for another entry!
8:960  0:023  - [13]: 'Recovery'
8:961  0:000          AddLoaderEntry for Volume Name=Recovery
8:961  0:000      Skipped because matching custom entry 1!
8:985  0:023  - [14]: 'VM'
9:009  0:023  === [ AddCustomTool ] =====================================
9:011  0:002  found tool \EFI\CLOVER\tools\Shell64U.efi
9:011  0:000  Checking EFI partition Volume 1 for Clover
9:021  0:010   Found Clover
9:024  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:026  0:001   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efii
9:026  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)'
9:026  0:000    - LoaderPath: '\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efi'
9:026  0:000    - Guid = 7A8A513B-CECD-439C-8DC1-3B1C758B1B9C
9:026  0:000  === [ FindStartupDiskVolume ] =============================
9:026  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
9:026  0:000     - searching for that partition and loader '\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efi'
9:026  0:000      - [!] not found
9:026  0:000     - searching again, but comparing Media dev path nodes
9:026  0:000      - [!] not found
9:026  0:000     - searching for that partition
9:026  0:000      - [!] not found
9:026  0:000     - searching again, but comparing Media dev path nodes
9:026  0:000      - found entry 0. 'macOS Mojave', Volume 'Macintosh HD'
9:026  0:000  Boot redirected to Entry 0. 'macOS Mojave'
9:026  0:000  DefaultIndex=0 and MainMenu.EntryCount=9
9:289  0:263  GUI ready
38:615  29:325  exit from MainMenu 1
38:615  0:000  Boot option Boot0000 not found
38:615  0:000  === [ StartLoader ] =======================================
38:615  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
38:615  0:000  Loading boot.efi  status=Success
38:650  0:034  GetOSVersion: 10.14.6 (18G95)
38:650  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
38:650  0:000  Filtering KextPatches:
38:650  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
38:650  0:000  Will not patch boot.efi
38:650  0:000  === [ PatchSmbios ] =======================================
38:650  0:000  insert table 9 for dev 0:0
38:650  0:000  insert table 9 for dev 0:0
38:650  0:000  insert table 9 for dev 1:0
38:650  0:000  Table 11 present, but rewritten for us
38:650  0:000  Trusting SMBIOS...
38:650  0:000  Channels: 2
38:650  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
38:650  0:000   partNum=BLS8G3D1609DS1S00.
38:650  0:000  SMBIOS Type 17 Index = 0 => 0 0:
38:650  0:000  BANK 0 DIMM0 1600MHz 8192MB
38:650  0:000   partNum=BLS8G3D1609DS1S00.
38:650  0:000  SMBIOS Type 17 Index = 1 => 2 2:
38:650  0:000  BANK 1 DIMM0 1600MHz 8192MB
38:650  0:000   partNum=BLS8G3D1609DS1S00.
38:650  0:000  SMBIOS Type 17 Index = 2 => 1 1:
38:650  0:000  BANK 0 DIMM1 1600MHz 8192MB
38:650  0:000   partNum=BLS8G3D1609DS1S00.
38:650  0:000  SMBIOS Type 17 Index = 3 => 3 3:
38:650  0:000  BANK 1 DIMM1 1600MHz 8192MB
38:650  0:000  mTotalSystemMemory = 32768
38:650  0:000  NumberOfMemoryDevices = 4
38:650  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
38:650  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
38:650  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
38:650  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
38:650  0:000  Table 131 is present, CPUType=31
38:650  0:000  Change to: 704
38:650  0:000  === [ PatchACPI ] =========================================
38:650  0:000  Xsdt reallocation done
38:650  0:000  old FADT length=F4
38:650  0:000   SignatureFixup: 0x0 -> 0x0
38:653  0:002  Apply DsdtFixMask=0x00004000
38:653  0:000     drop _DSM mask=0xFFFF
38:653  0:000  === [ FixBiosDsdt ] =======================================
38:653  0:000  Patching DSDT:
38:653  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
38:653  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
38:653  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
38:653  0:000    0 replacements
38:654  0:000  Name PXSX present at 0xA2, renaming to ARPT
38:654  0:000  Name PXSX present at 0xE0, renaming to ARPT
38:654  0:000  PreCleanup XSDT: count=9, length=108
38:654  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
38:654  0:000  === [ ACPIDropTables ] ====================================
38:654  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
38:654  0:000   Table[8]: MATS  A M I  52 dropped
38:654  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
38:654  0:000   Table[6]: SSDT  CpuPm  2706 dropped
38:654  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
38:654  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
38:654  0:000  Patching SSDT SataTabl Length=877
38:654  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
38:654  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
38:654  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
38:654  0:000    0 replacements
38:654  0:000  === [ ACPIPatchedAML ] ====================================
38:654  0:000  Unsorted
38:654  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
38:654  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
38:655  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
38:655  0:000  Cleanup XSDT: count=11, length=124
38:655  0:000  corrected XSDT count=8, length=100
38:655  0:000  === [ RestSetup macOS ] ===================================
38:655  0:000  EdidDiscovered size=128
38:655  0:000  --- Discovered EDID Table size:128
38:655  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
38:655  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
38:655  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
38:655  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
38:655  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
38:655  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
38:655  0:000  060  |  23  40  30  20  36  00  06  44  21  00
38:655  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
38:655  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
38:655  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
38:655  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
38:655  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
38:655  0:000  120  |  20  20  20  20  20  20  00  8B
38:655  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
38:655  0:000     Add key=AAPL,ig-platform-id valuelen=4
38:655  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
38:655  0:000    ig-platform-id = 0x0166000B
38:655  0:000    Intel: no default properties
38:655  0:000  Intel GFX revision  = 0x9
38:655  0:000  stringlength = 2180
38:656  0:000  CurrentMode: Width=1920 Height=1200
38:656  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4E15018
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4E15018
38:665  0:009  Use origin smbios table type 1 guid.
38:678  0:012  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
38:678  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
38:678  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
38:686  0:008  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
38:690  0:004  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
38:698  0:007    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
38:704  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
38:707  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
38:712  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
38:717  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
38:721  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
38:725  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
38:727  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
38:741  0:013  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
38:807  0:065  SetScreenResolution: 1920x1200 - already set
38:807  0:000  Custom boot is disabled
38:808  0:001  Closing log





[Slice]

You have to remove custom entries to see the result, else you see

8:795  0:000  - [02]: 'Install macOS Catalina Beta'
8:797  0:001          AddLoaderEntry for Volume Name=Install macOS Catalina Beta
8:797  0:000      Not match custom entry 1: Volume: not match, Path: not match, Type: not match



[D-an-W]

Custom section removed completely...

Spoiler

0:100  0:100  MemLog inited, TSC freq: 3503445493
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 28.8.2019,  13:44:40 (GMT)
0:100  0:000  Starting Clover revision: 5058 on American Megatrends EFI
0:100  0:000  Build with: [Args: -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED --conf=/Users/dan/src/edk2/Conf -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 9 | OS: 10.14.6 | XCODE: 10.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000) @D58A7898
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A407A084
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A8009D86
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A90174A4
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = A4077008
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To be filled by O.E.M.' with board 'Z77X-UD5H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306A9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000403
0:100  0:000  MSR 0xCE              00081010_F0012300
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  MSR 0x1B0             00000000
0:100  0:000  FSBFrequency = 120 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 35.0/16
0:100  0:000  Turbo: 42/42/42/42
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4200 MHz
0:100  0:000  TSC: 4200 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  GOP found at: PciRoot(0x0)/Pci(0x2,0x0)/AcpiAdr(0x80016310)
0:100  0:000  PCI (00|00:00.00) : 8086 0150 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0162 class=030000
0:100  0:000   - GOP: Provided by device
0:100  0:000   - GFX: Model=Intel HD Graphics 4000 (Intel)
0:100  0:000  PCI (00|00:14.00) : 8086 1E31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 1E3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 1503 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 1E2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 1E20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 1E10 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 1E12 class=060400
0:100  0:000  PCI (00|02:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1C.04) : 8086 1E18 class=060400
0:100  0:000  PCI (00|03:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1C.05) : 8086 1E1A class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|05:01.00) : 1106 3044 class=0C0010
0:100  0:000  PCI (00|00:1C.06) : 8086 1E1C class=060400
0:100  0:000  PCI (00|06:00.00) : 1969 1091 class=020000
0:100  0:000   - LAN: 1 Vendor=Atheros
0:100  0:000  PCI (00|00:1C.07) : 8086 1E1E class=060400
0:100  0:000  PCI (00|07:00.00) : 1B4B 9172 class=010601
0:100  0:000  PCI (00|00:1D.00) : 8086 1E26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 1E44 class=060100
0:101  0:000  PCI (00|00:1F.02) : 8086 1E02 class=010601
0:101  0:000  PCI (00|00:1F.03) : 8086 1E22 class=0C0500
0:101  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:101  0:000  === [ GetDefaultSettings ] ================================
0:101  0:000  Clover load options size = 0 bytes
0:106  0:005  EFI\CLOVER\OEM\Z77X-UD5H\UEFI\config.plist loaded: Success
0:125  0:018  === [ GetListOfThemes ] ===================================
0:126  0:001  - [00]: Mojave
0:129  0:003  === [ Found config plists ] ===============================
0:129  0:000  - Config.plist
0:130  0:000  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to -1
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  KextsToPatch: 1 requested
0:130  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: data len: 9
0:130  0:000  Default theme: Mojave
0:130  0:000  Hiding entries with string 7C1703EB908AAD4C807AC5BF4BE0E2C2
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:002  Loading FSInject.efi  status=Success
0:135  0:002  Loading SMCHelper.efi  status=Success
0:137  0:001  Loading BootChimeDxe.efi  status=Success
0:146  0:008  Loading DataHubDxe.efi  status=Success
0:205  0:058  Loading AudioDxe.efi  status=Success
0:206  0:001   - driver needs connecting
0:206  0:000  Loading HFSPlus.efi  status=Success
0:209  0:002   - driver needs connecting
0:209  0:000  Loading OSXAptioFix3Drv.efi  status=Success
0:211  0:001  Loading APFSDriverLoader.efi  status=Success
0:213  0:001   - driver needs connecting
0:213  0:000  3 drivers needs connecting ...
0:213  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:213  0:000  HFS+ driver loaded
0:213  0:000  APFS driver loaded
0:213  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
5:066  4:852  === [ InitScreen ] ========================================
5:066  0:000  Console modes reported: 5, available modes:
5:066  0:000   - [01]: 80x25 (current mode)
5:066  0:000   - [02]: 80x50
5:066  0:000   - [03]: 100x31
5:066  0:000   - [04]: 128x30
5:066  0:000   - [05]: 100x60
5:066  0:000  SetScreenResolution: 1920x1200 - already set
5:066  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:066  0:000  === [ GetMacAddress ] =====================================
5:066  0:000  MAC address of LAN #0= 90:2B:34:D6:EF:83:
5:066  0:000  MAC address of LAN #1= 90:2B:34:D7:09:F3:
5:066  0:000  === [ ScanSPD ] ===========================================
5:066  0:000  Scanning SMBus [8086:1E22], mmio: 0xF7F35004, ioport: 0xF040, hostc: 0x1
5:085  0:018  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A04000707000008
5:104  0:019  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A080000090D0806
5:123  0:018  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A09000107040A04
5:142  0:019  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=0A0400070A000804
5:143  0:000  === [ GetAcpiTablesList ] =================================
5:161  0:018  Get Acpi Tables List from RSDT:
5:161  0:000   - [00]: FACP  A M I len=132
5:161  0:000   - [01]: APIC  A M I len=146
5:161  0:000   - [02]: MCFG  A M I len=60
5:161  0:000   - [03]: HPET  A M I len=56
5:161  0:000   - [04]: SSDT  SataTabl len=877
5:161  0:000   - [05]: SSDT  Cpu0Ist len=2474
5:161  0:000   - [06]: SSDT  CpuPm len=2706
5:161  0:000   - [07]: BGRT  A M I len=56
5:161  0:000   - [08]: MATS  A M I len=52
5:161  0:000  Calibrated TSC Frequency = 3503445493 = 3503MHz
5:161  0:000  === [ GetUserSettings ] ===================================
5:161  0:000  Add 1 devices:
5:161  0:000  Dropping 3 tables:
5:161  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
5:161  0:000           - set table: 54445353,   74734930757043 to drop: yes
5:161  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
5:161  0:000           - set table: 54445353,       6D50757043 to drop: yes
5:161  0:000   - [02]: Drop table  signature="MATS" (5354414D)
5:161  0:000           - set table: 5354414D,                0 to drop: yes
5:161  0:000   - final DSDT Fix mask=00004000
5:161  0:000  PatchesDSDT: 3 requested
5:161  0:000   - [00]: (Convert COPR to MATH) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:161  0:000   - [01]: (Convert TPMX to MEM2) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:161  0:000   - [02]: (Convert SAT0 to SATA) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
5:161  0:000  Using ProductName from config: Macmini6,2
5:161  0:000  Using latest BiosVersion from clover
5:161  0:000  BiosVersion: MM61.88Z.F000.B00.1906131921
5:161  0:000  BiosReleaseDate: 06/13/2019
5:161  0:000  Using EfiVersion from clover: 280.0.0.0.0
5:161  0:000  Using FirmwareFeatures from clover: 0xE00DE137
5:161  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
5:161  0:000  Using PlatformFeature from clover: 0x1
5:161  0:000  Board-ID set from config as Mac-F65AE981FFA204ED
5:161  0:000  BoardType: 0xA
5:161  0:000  ChassisType: 0x6
5:161  0:000  Slots->Devices:
5:161  0:000   - PCIe Slot 1
5:162  0:000  === [ Found DSDT tables ] =================================
5:313  0:151  === [ ScanVolumes ] =======================================
5:313  0:000  Found 15 volumes with blockIO
5:313  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)
5:314  0:000          USB volume
5:314  0:000          USB volume
5:314  0:000          USB volume
5:314  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(1,GPT,0593A46C-851A-4E95-BF98-6E8094A9B7C9,0x28,0x64000)
5:315  0:000          Result of bootcode detection: bootable unknown (legacy)
5:315  0:000          USB volume
5:315  0:000          USB volume
5:315  0:000          USB volume
5:410  0:094  - [02]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(2,GPT,7BFEAECC-A09D-4FA7-918D-EE298AD68B70,0x64028,0xEF0000)
5:411  0:000          USB volume
5:411  0:000          USB volume
5:411  0:000          USB volume
5:411  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x5,0x0)\USB(0x3,0x0)\HD(3,GPT,4B7DBE0C-4007-4D2F-8747-5A2B1F7FB500,0xF94028,0xE0BFB0)
5:412  0:000          USB volume
5:412  0:000          USB volume
5:412  0:000          USB volume
5:412  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1C,0x1)\Pci(0x0,0x0)\Ata(0x0)
5:412  0:000          Found optical drive
5:412  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
5:412  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
5:413  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,5BA6920C-B73F-46C4-9E37-AF687CAE5B25,0x28,0x64000)
5:413  0:000          Result of bootcode detection: bootable unknown (legacy)
5:421  0:007          This is SelfVolume !!
5:421  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)
5:421  0:000          Result of bootcode detection: bootable unknown (legacy)
5:421  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,2D647125-4520-4066-A2A6-935BC6D572E7,0x28,0x64000)
5:422  0:000          Result of bootcode detection: bootable unknown (legacy)
5:433  0:010  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,BB33EDC9-6442-4821-82F7-EE20BF155EE3,0x64028,0x2BA96B460)
5:433  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
5:433  0:000          hiding this volume
5:433  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,53AE76E517C8B235BFF2F45D1C25979C)
5:433  0:000  - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,70869E93CD158E4FB153763A9E5A2718)
5:433  0:000  - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,B231909D6CA8C147816BC60490A7B340)
5:433  0:000  found 2 handles with audio
5:435  0:001  got index=1
5:436  0:000  got volume 60
5:436  0:000  === [ InitTheme ] =========================================
5:436  0:000  use daylight theme
5:441  0:005  Using theme 'Mojave' (EFI\CLOVER\themes\Mojave)
5:441  0:000  theme Mojave defined in NVRAM found and theme.plist parsed
5:441  0:000  OS main and drive as badge
5:444  0:003    Channels: 1  Sample rate: 44100 Hz  Bits: 16
5:444  0:000  output to channel 1 with volume 60, len=228736
5:444  0:000   sound channels=1 bits=16 freq=44100
8:755  3:310  free sound
8:755  0:000  sound play end with status=Success
8:757  0:001  Loading font from ThemeDir: Success
8:757  0:000  theme inited
8:757  0:000  Chosen theme Mojave
8:758  0:000  after NVRAM boot-args=
8:758  0:000  === [ Dump SMC keys from NVRAM ] ==========================
8:758  0:000  found AppleSMC protocol
8:829  0:071  Registered 16 SMC keys
8:830  0:001  === [ ScanLoader ] ========================================
8:830  0:000  - [01]: 'EFI'
8:869  0:038          AddLoaderEntry for Volume Name=EFI
8:869  0:000          skipped because entry is hidden
8:869  0:000  - [02]: 'Install macOS Catalina Beta'
8:870  0:001          AddLoaderEntry for Volume Name=Install macOS Catalina Beta
8:901  0:031  - [03]: 'Install macOS Mojave'
8:902  0:001          AddLoaderEntry for Volume Name=Install macOS Mojave
8:931  0:028  - [07]: 'EFI'
8:956  0:025          AddLoaderEntry for Volume Name=EFI
8:956  0:000          skipped because entry is hidden
8:956  0:000  - [09]: 'EFI'
8:980  0:023  - [10]: 'Media'
9:004  0:024  - [11]: 'Preboot', hidden
9:004  0:000  - [12]: 'Macintosh HD'
9:032  0:027          AddLoaderEntry for Volume Name=Macintosh HD
9:039  0:007      hibernated: set as never
9:065  0:025  - [13]: 'Recovery'
9:065  0:000          AddLoaderEntry for Volume Name=Recovery
9:092  0:026  - [14]: 'VM'
9:116  0:023  === [ AddCustomTool ] =====================================
9:118  0:002  found tool \EFI\CLOVER\tools\Shell64U.efi
9:118  0:000  Checking EFI partition Volume 1 for Clover
9:127  0:009   Found Clover
9:130  0:002  === [ GetEfiBootDeviceFromNvram ] =========================
9:131  0:001   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efii
9:131  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)'
9:131  0:000    - LoaderPath: '\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efi'
9:131  0:000    - Guid = 7A8A513B-CECD-439C-8DC1-3B1C758B1B9C
9:131  0:000  === [ FindStartupDiskVolume ] =============================
9:131  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,7A8A513B-CECD-439C-8DC1-3B1C758B1B9C,0x64028,0x1DC8F260)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1703EB908AAD4C807AC5BF4BE0E2C2)
9:131  0:000     - searching for that partition and loader '\E576AE53-C817-35B2-BFF2-F45D1C25979C\System\Library\CoreServices\boot.efi'
9:131  0:000      - [!] not found
9:131  0:000     - searching again, but comparing Media dev path nodes
9:131  0:000      - [!] not found
9:131  0:000     - searching for that partition
9:131  0:000      - [!] not found
9:131  0:000     - searching again, but comparing Media dev path nodes
9:131  0:000      - found entry 2. 'Boot macOS from Macintosh HD', Volume 'Macintosh HD'
9:132  0:000  Boot redirected to Entry 2. 'Boot macOS from Macintosh HD'
9:132  0:000  DefaultIndex=2 and MainMenu.EntryCount=10
9:396  0:264  GUI ready
26:831  17:435  exit from MainMenu 1
26:831  0:000  Boot option Boot0000 not found
26:831  0:000  === [ StartLoader ] =======================================
26:831  0:000  Finally: ExternalClock=26MHz BusSpeed=100099kHz CPUFreq=3503MHz PIS: hw.busfrequency=104000000Hz
26:831  0:000  Loading boot.efi  status=Success
26:865  0:034  GetOSVersion: 10.14.6 (18G95)
26:865  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
26:865  0:000  Filtering KextPatches:
26:865  0:000   - [00]: IOAHCIBlockStorage (Enable TRIM Support) :: BinPatch :: [OS: 10.14.6 | MatchOS: All | MatchBuild: All] ==> allowed
26:865  0:000  Will not patch boot.efi
26:865  0:000  === [ PatchSmbios ] =======================================
26:865  0:000  insert table 9 for dev 0:0
26:865  0:000  insert table 9 for dev 0:0
26:865  0:000  insert table 9 for dev 1:0
26:865  0:000  Table 11 present, but rewritten for us
26:866  0:000  Trusting SMBIOS...
26:866  0:000  Channels: 2
26:866  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
26:866  0:000   partNum=BLS8G3D1609DS1S00.
26:866  0:000  SMBIOS Type 17 Index = 0 => 0 0:
26:866  0:000  BANK 0 DIMM0 1600MHz 8192MB
26:866  0:000   partNum=BLS8G3D1609DS1S00.
26:866  0:000  SMBIOS Type 17 Index = 1 => 2 2:
26:866  0:000  BANK 1 DIMM0 1600MHz 8192MB
26:866  0:000   partNum=BLS8G3D1609DS1S00.
26:866  0:000  SMBIOS Type 17 Index = 2 => 1 1:
26:866  0:000  BANK 0 DIMM1 1600MHz 8192MB
26:866  0:000   partNum=BLS8G3D1609DS1S00.
26:866  0:000  SMBIOS Type 17 Index = 3 => 3 3:
26:866  0:000  BANK 1 DIMM1 1600MHz 8192MB
26:866  0:000  mTotalSystemMemory = 32768
26:866  0:000  NumberOfMemoryDevices = 4
26:866  0:000  Type20[0]->End = 0x1FFFFFF, Type17[3] = 0x8000
26:866  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0xE000
26:866  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0x12000
26:866  0:000  Type20[3]->End = 0x7FFFFF, Type17[0] = 0x14000
26:866  0:000  Table 131 is present, CPUType=31
26:866  0:000  Change to: 704
26:866  0:000  === [ PatchACPI ] =========================================
26:866  0:000  Xsdt reallocation done
26:866  0:000  old FADT length=F4
26:866  0:000   SignatureFixup: 0x0 -> 0x0
26:869  0:002  Apply DsdtFixMask=0x00004000
26:869  0:000     drop _DSM mask=0xFFFF
26:869  0:000  === [ FixBiosDsdt ] =======================================
26:869  0:000  Patching DSDT:
26:869  0:000   - [Convert COPR to MATH]: pattern 434F5052, patched at: [ (3146) ]
26:869  0:000   - [Convert TPMX to MEM2]: pattern 54504D58, patched at: [ (1B50) ]
26:869  0:000   - [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (692D) ]
26:869  0:000    0 replacements
26:870  0:000  Name PXSX present at 0xA2, renaming to ARPT
26:870  0:000  Name PXSX present at 0xE0, renaming to ARPT
26:870  0:000  PreCleanup XSDT: count=9, length=108
26:870  0:000  PreCleanup XSDT, corrected XSDT: count=9, length=108
26:870  0:000  === [ ACPIDropTables ] ====================================
26:870  0:000  Drop tables from XSDT, SIGN=MATS TableID=A M I Length=52
26:870  0:000   Table[8]: MATS  A M I  52 dropped
26:870  0:000  Drop tables from XSDT, SIGN=SSDT TableID=CpuPm Length=2706
26:870  0:000   Table[6]: SSDT  CpuPm  2706 dropped
26:870  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=2474
26:870  0:000   Table[5]: SSDT  Cpu0Ist  2474 dropped
26:870  0:000  Patching SSDT SataTabl Length=877
26:870  0:000  0. [Convert COPR to MATH]: pattern 434F5052, bin not found / already patched!
26:870  0:000  1. [Convert TPMX to MEM2]: pattern 54504D58, bin not found / already patched!
26:870  0:000  2. [Convert SAT0 to SATA]: pattern 53415430, patched at: [ (B5) ]
26:870  0:000    0 replacements
26:870  0:000  === [ ACPIPatchedAML ] ====================================
26:870  0:000  Unsorted
26:870  0:000  Inserting SSDT-1.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1765 ... Success
26:870  0:000  Inserting SSDT-0.AML from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\ACPI\patched: size=1690 ... Success
26:871  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
26:871  0:000  Cleanup XSDT: count=11, length=124
26:871  0:000  corrected XSDT count=8, length=100
26:871  0:000  === [ RestSetup macOS ] ===================================
26:871  0:000  EdidDiscovered size=128
26:871  0:000  --- Discovered EDID Table size:128
26:871  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
26:871  0:000  010  |  15  F0  4C  37  36  30  1A  15  01  03
26:871  0:000  020  |  80  34  20  78  EE  1E  C5  AE  4F  34
26:871  0:000  030  |  B1  26  0E  50  54  A5  4B  00  81  80
26:871  0:000  040  |  A9  40  D1  00  71  4F  01  01  01  01
26:871  0:000  050  |  01  01  01  01  28  3C  80  A0  70  B0
26:871  0:000  060  |  23  40  30  20  36  00  06  44  21  00
26:871  0:000  070  |  00  1A  00  00  00  FF  00  46  35  32
26:871  0:000  080  |  35  4D  31  36  4C  30  36  37  4C  0A
26:871  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
26:871  0:000  100  |  55  32  34  31  30  0A  20  20  00  00
26:871  0:000  110  |  00  FD  00  38  4C  1E  51  11  00  0A
26:871  0:000  120  |  20  20  20  20  20  20  00  8B
26:871  0:000  add device: PciRoot(0x0)/Pci(0x2,0x0)
26:871  0:000     Add key=AAPL,ig-platform-id valuelen=4
26:871  0:000  Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
26:871  0:000    ig-platform-id = 0x0166000B
26:871  0:000    Intel: no default properties
26:871  0:000  Intel GFX revision  = 0x9
26:871  0:000  stringlength = 2180
26:871  0:000  CurrentMode: Width=1920 Height=1200
26:871  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CE7B98
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D4CE7B98
26:882  0:010  Use origin smbios table type 1 guid.
26:894  0:012  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\Other
26:894  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14
26:894  0:000  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\WhateverGreen.kext (v.1.3.2)
26:903  0:008  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\Lilu.kext (v.1.3.8)
26:907  0:004  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext (v.1464)
26:915  0:007    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\Marvell_88SE9172.kext (v.1.0.0)
26:921  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext (v.1464)
26:924  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID_XHCIMux.kext (v.1.3.15)
26:928  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IntelMausiEthernet.kext (v.2.5.0d14)
26:934  0:005    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\FakePCIID.kext (v.1.3.15)
26:938  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\AtherosE2200Ethernet.kext (v.2.3.0)
26:942  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\IOAHCISerialATAPI_Injector.kext (v.1.0.0)
26:944  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext (v.1464)
26:958  0:013  Extra kext: EFI\CLOVER\OEM\Z77X-UD5H\UEFI\kexts\10.14\AppleALC.kext (v.1.4.1)
27:024  0:066  SetScreenResolution: 1920x1200 - already set
27:024  0:000  Custom boot is disabled
27:026  0:001  Closing log





[MagicNAS]

7 hours ago, Slice said:

Disable CSM in BIOS.

Thanks!

[pkdesign]

On 8/26/2019 at 6:06 PM, tluck said:



here is what i did for a Custom entry for macOS and Windows on a single disk with this layout:



$ diskutil list

/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *512.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                 Apple_APFS Container disk1         459.7 GB   disk0s2
   3:       Apple_KernelCoreDump                         655.4 MB   disk0s3
   4:       Microsoft Basic Data W10                     50.6 GB    disk0s4
   5:           Windows Recovery                         995.1 MB   disk0s5



my Window bootmgr is the Microsoft folder but in the ESP/EFI (vs SYSTEM) along side CLOVER



$ cat /Library/Logs/CloverEFI/boot.log |grep Custom
0:120  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
6:657  0:001  === [ AddCustomEntries ] ==================================
6:657  0:000  Custom entry 0 FullTitle:"macOS" Path:"\System\Library\CoreServices\boot.efi" Type:1 Flags:0x6 matching Volume:"CE105F19-A28D-4A84-83D5-CDF4D547E35A"
6:709  0:000  Custom entry 1 FullTitle:"Windows 10" Path:"\EFI\Microsoft\Boot\bootmgfw.efi" Options:"-s -h" Type:7 Flags:0x0 matching Volume:"2A125BB9-B377-4701-9244-FBA3EADB8B4D"

Then looking at the clover logs i can see what GUIDs to use:

refer to the GUID for HD(1, and HD(2

HD(1 is the EFI which seems wrong but that where MS bootmgfw thing is

$ cat /Library/Logs/CloverEFI/boot.log |grep Volume
6:370  0:064  === [ ScanVolumes ] =======================================
6:370  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
6:371  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
6:371  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,2A125BB9-B377-4701-9244-FBA3EADB8B4D,0x28,0x64000)
6:379  0:007          This is SelfVolume !!
6:379  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,CE105F19-A28D-4A84-83D5-CDF4D547E35A,0x64028,0x35840BD8)
6:379  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,4539F38D-62B6-46EF-A59F-E0D35A1366D2,0x358A4C00,0x138800)
6:380  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,882E2BDA-CBF5-4C17-8404-35EC11AB98BA,0x359DD400,0x5E284CA)
6:381  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,D9951696-A967-46D5-AE22-B9CD84B2AEF0,0x3B806000,0x1DA800)

which look like this in config.plist



		<key>Custom</key>
		<dict>
			<key>Comment</key>
			<string>Windows Entries</string>
			<key>Entries</key>
			<array>
				<dict>
					<key>FullTitle</key>
					<string>macOS</string>
					<key>Type</key>
					<string>macOS</string>
					<key>Volume</key>
					<string>CE105F19-A28D-4A84-83D5-CDF4D547E35A</string>
				</dict>
				<dict>
					<key>FullTitle</key>
					<string>Windows 10</string>
					<key>Type</key>
					<string>Windows</string>
					<key>Volume</key>
					<string>2A125BB9-B377-4701-9244-FBA3EADB8B4D</string>
				</dict>
			</array>
		</dict>





I simplified my config based on tluck:



This still results in the same boot screen.





I think my point is being missed. The two options are exactly what I want. It always selects macOS as the default boot and only these two option appear. The problem is they don’t (cosmetically) appear the way I expect them to.



I assume that the "FullTitle" keys would make the boot options have that title. The macOS boot would show up as "Mojave" and the Windows boot would show up as "Windows 10 Pro" since that is what I have them labeled as in the config. Also that they would appear in the order I had them in (Mojave first, then Windows 10 Pro.)



Am I mistaken? This is purely cosmetic as both option boot just fine.





[D-an-W]

I have a similar problem with the OSXInstaller entries I have that are both situated on the same USB stick, I can't get the custom names to show up (They did used to work ok).



I wonder if our issues are related?

[pkdesign]

1 hour ago, D-an-W said:

I have a similar problem with the OSXInstaller entries I have that are both situated on the same USB stick, I can't get the custom names to show up (They did used to work ok).



I wonder if our issues are related?

It would seem so. This seems to be a simple issue. The custom title doesn't show up correctly andin the right order.

[Slice]

Each custom entry must contain correct Path.

[Badruzeus]

About "Moving Clover Project" repo to GitHub may be a POLL is needed @Slice..?
