Create Custom Entries to Hide Preboot and Recovery APFS Volumes with Clover Configurator

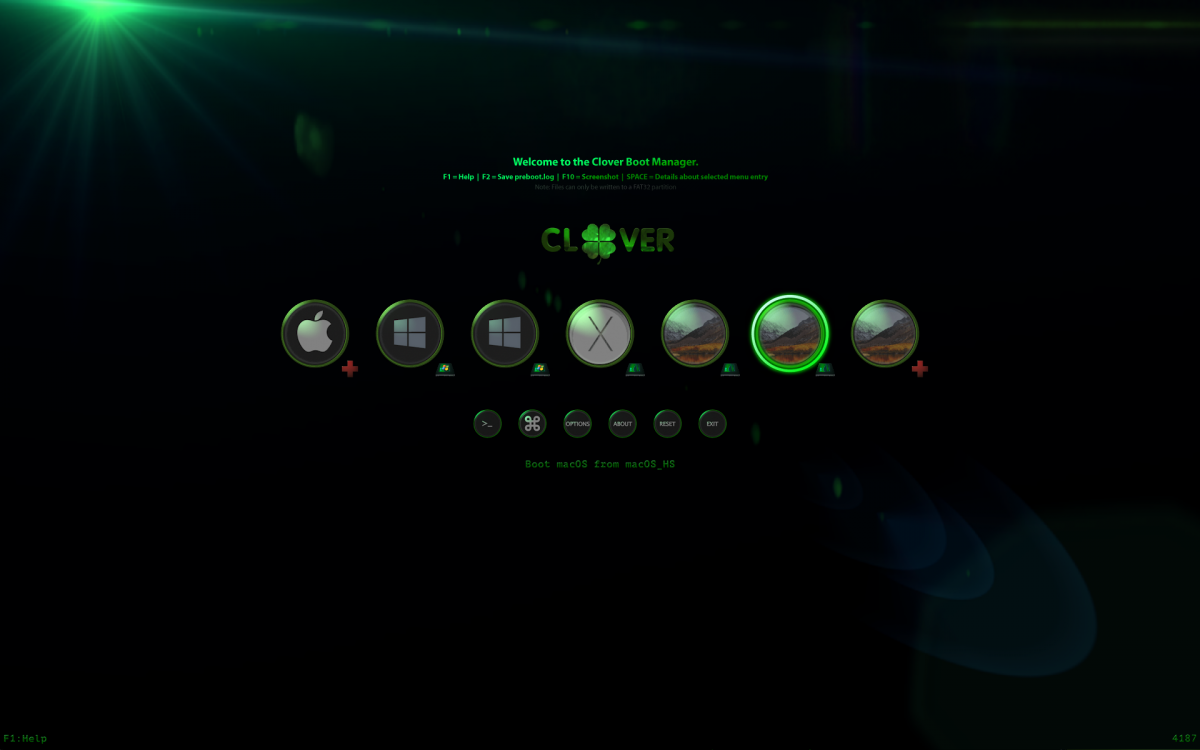

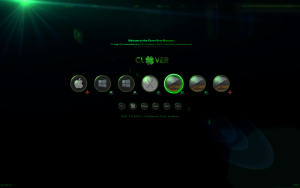

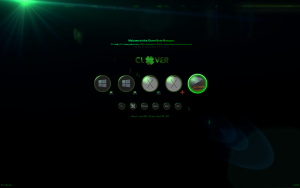

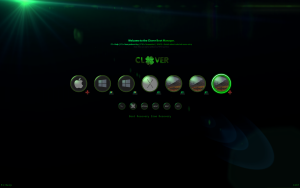

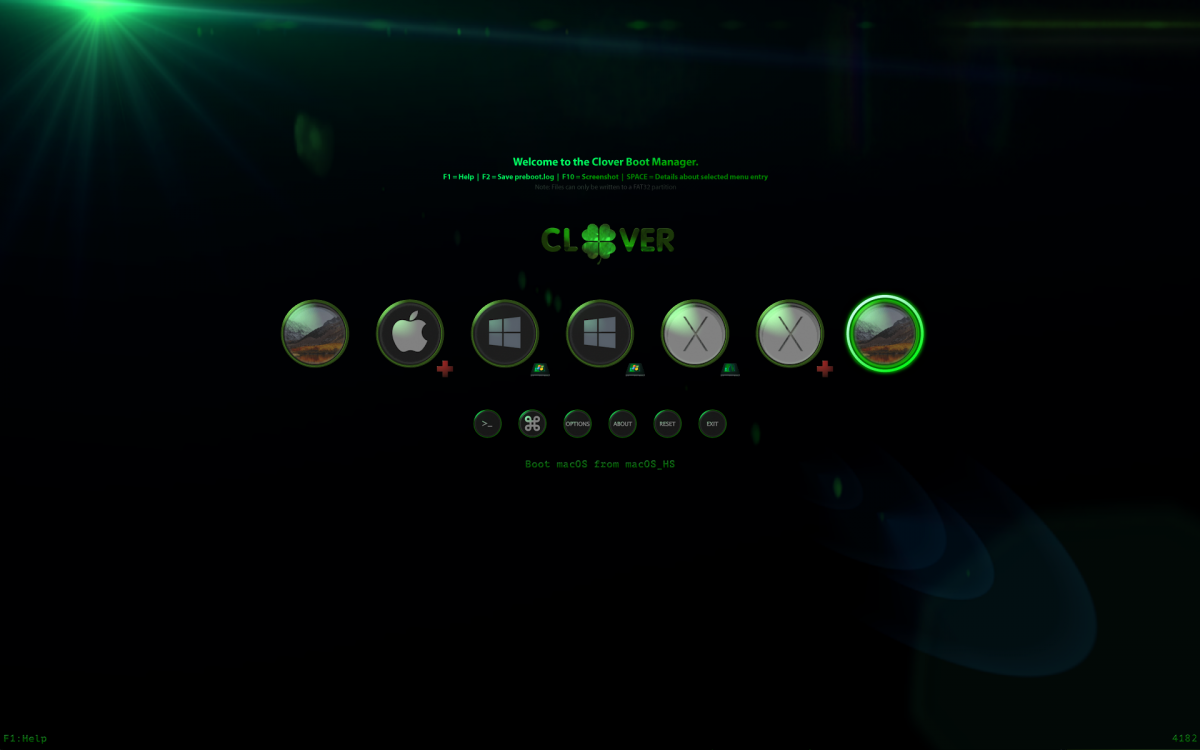

With the release of High Sierra and the APFS file system, Clover users now have "extra" entries appearing in their Main Menu - Preboot and Recovery APFS volumes.  While they are harmless and actually useful in certain circumstances (eg need Preboot to boot if using File Vault encryption, need Recovery to fix some file system problems), most users will likely want to hide them in day to day use.










Note:  This guide is tailored to those users who want to understand how to create custom APFS entries and the "nuts and bolts" of how Clover parses the file system looking for efi loader entries.

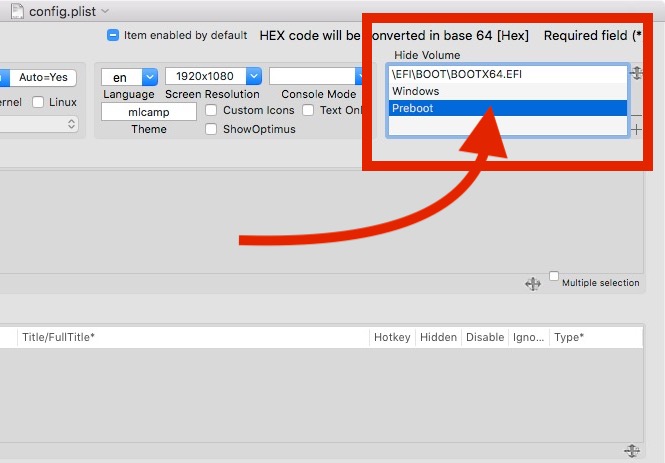

If all you want to do is hide entries, the easiest way is through the GUI/Hide section of the config.plist.  This won't allow you to rename custom entries, nor unhide them with the <F3> key (at least not till Clover r4247).

Pre-requisites
  1. macOS High Sierra installed on APFS SSD or HDD
  2. Clover r4097+ with apfs.efi installed in /EFI/CLOVER/drivers64UEFI or /EFI/CLOVER/drivers64
  3. Clover Configurator v 4.49.0.0 or later

Procedure
1.  Record output of "diskutil list" and "diskutil apfs list" to determine the layout of the actual physical disk(s) and the synthesized APFS container.

In my example, the High Sierra Volume is named macOS_HS and is installed in physical disk partition disk3s4.

fusion71aus-iMac:~ fusion71au$ diskutil list


/dev/disk3 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *1.0 TB     disk3
   1:                        EFI EFI                     209.7 MB   disk3s1
   2:       Microsoft Basic Data DATA                    935.6 GB   disk3s2
   3:         Microsoft Reserved                         134.2 MB   disk3s3
   4:                 Apple_APFS Container disk4         63.6 GB    disk3s4
   5:       Apple_KernelCoreDump                         655.4 MB   disk3s5


/dev/disk4 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +63.6 GB    disk4
                                 Physical Store disk3s4
   1:                APFS Volume macOS_HS                34.3 GB    disk4s1
   2:                APFS Volume Preboot                 20.9 MB    disk4s2
   3:                APFS Volume Recovery                519.6 MB   disk4s3
   4:                APFS Volume VM                      20.5 KB    disk4s4


2.  Generate Clover Boot Log with terminal
bdmesg > ~/Documents/bootlog.txt
Note: for easier analysis of boot log, please remove all Custom/Hidden Entries from config.plist/GUI first (leaving only Clover auto scanning) before generating it.

3.  Open bootlog.txt with a text editor and under the [ ScanLoader ] section, note the volume numbers corresponding to the Preboot, High Sierra and Recovery APFS volumes...


11:719  0:014  === [ ScanVolumes ] =======================================
11:719  0:000  Found 28 volumes with blockIO
11:719  0:000  - [00]: Volume: PcieRoot(0x0)\Pci(0x1A,0x7)\USB(0x2,0x0)
11:730  0:011          Result of bootcode detection: bootable unknown (legacy)
11:730  0:000          USB volume
11:730  0:000  - [01]: Volume: PcieRoot(0x0)\Pci(0x1A,0x7)\USB(0x2,0x0)\HD(1,MBR,0xDDF06EF8,0x80,0xF3800)
11:742  0:011          Result of bootcode detection: bootable Clover (clover)
11:742  0:000          USB volume
11:742  0:000          This is SelfVolume !!
11:742  0:000  - [02]: Volume: PcieRoot(0x0)\Pci(0x1D,0x7)\USB(0x0,0x0)\Unit(0x0)
11:742  0:000          USB volume
11:742  0:000  - [03]: Volume: PcieRoot(0x0)\Pci(0x1D,0x7)\USB(0x0,0x0)\Unit(0x1)
11:742  0:000          USB volume
11:742  0:000  - [04]: Volume: PcieRoot(0x0)\Pci(0x1D,0x7)\USB(0x0,0x0)\Unit(0x2)
11:742  0:000          USB volume
11:742  0:000  - [05]: Volume: PcieRoot(0x0)\Pci(0x1D,0x7)\USB(0x0,0x0)\Unit(0x3)
11:742  0:000          USB volume
11:742  0:000  - [06]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
11:744  0:002          Result of bootcode detection: bootable unknown (legacy)
11:744  0:000  - [07]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
11:764  0:019          Result of bootcode detection: bootable unknown (legacy)
11:764  0:000  - [08]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)
11:764  0:000          Result of bootcode detection: bootable unknown (legacy)
11:764  0:000  - [09]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0x50CFED9B,0x800,0x32000)
11:764  0:000          Result of bootcode detection: bootable Clover (clover)
11:765  0:000  - [10]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,MBR,0x50CFED9B,0x32800,0xDF61000)
11:765  0:000          Result of bootcode detection: bootable Windows (vista,win)
11:765  0:000  - [11]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,1B386756-0922-4B96-BD59-1FC3B79E189E,0x800,0x64000)
11:769  0:003          Result of bootcode detection: bootable Clover (clover)
11:769  0:000  - [12]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,55225B2F-270E-453A-88B9-E12C5D9F6F12,0x64800,0xC99A3800)
11:769  0:000          Result of bootcode detection: bootable Windows (vista,win)
11:769  0:000  - [13]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,1FE507E9-E82B-43BF-8A8C-2249DFF67874,0xC9A08000,0xF8C68E0)
11:769  0:000  - [14]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(4,GPT,06C99874-BE94-4641-9935-2BDC5778B0E9,0xD92CE8E0,0x135F20)
11:769  0:000  - [15]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(5,GPT,A75A0F00-1C9A-40A7-9CC9-25EFEB5BA8D4,0xD9404800,0x40000)
11:769  0:000          Result of bootcode detection: bootable unknown (legacy)
11:769  0:000  - [16]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(6,GPT,696E551C-EF37-4132-8ADD-F7E3932173C4,0xD9444800,0xF8E2000)
11:770  0:000          Result of bootcode detection: bootable Windows (vista,win)
11:770  0:000  - [17]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(7,GPT,F7710EE3-36B3-4594-9622-40ACE95BFAD9,0xE8D26800,0xE1000)
11:770  0:000          Result of bootcode detection: bootable Windows (vista,win)
11:770  0:000  - [18]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(1,GPT,5BA2531C-72D6-4B9E-8519-A17EE40D1500,0x28,0x64000)
11:770  0:000          Result of bootcode detection: bootable Clover (clover)
11:778  0:007  - [19]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(2,GPT,685228AF-4F5E-4C8A-AA24-22FE96002F84,0x64800,0x6CEA2000)
11:778  0:000          Result of bootcode detection: bootable Windows (vista,win)
11:778  0:000  - [20]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(3,GPT,7D80B5FA-7720-49DA-BC47-5637E5BD2009,0x6CF06800,0x40000)
11:779  0:000  - [21]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(4,GPT,E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)
11:779  0:000          Result of bootcode detection: bootable unknown (legacy)
11:779  0:000  - [22]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(5,GPT,4499D433-49D6-40D3-ACB4-3C5CC827EFCB,0x745CE588,0x138800)
11:805  0:025  - [23]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)
11:805  0:000          Found optical drive
11:805  0:000  - [24]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(4,GPT,E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,050BA2A72D1D0E4D8ABDE9B99632868E)
11:805  0:000  - [25]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(4,GPT,E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,67B6FC62811C594E819DACAE2F90240D)
11:805  0:000  - [26]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(4,GPT,E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F3D73FFF25C8334DAF3C183BC35433DF)
11:805  0:000  - [27]: Volume: PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(4,GPT,E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,8D3DE4AA2F63C3439A3651612754DEF1)
11:837  0:031  PutNvramPlistToRtVars: nvram.plist not found
11:837  0:000  === [ InitTheme ] =========================================
11:852  0:015  Using theme 'BGM' (EFI\CLOVER\themes\BGM)
11:852  0:000  OS main and drive as badge
11:882  0:029  Loading font from ThemeDir: Success
11:882  0:000  Choosing theme BGM
11:882  0:000  after NVRAM boot-args=dart=0 kext-dev-mode=1 -lilubeta
11:882  0:000  === [ Dump SMC keys from NVRAM ] ==========================
11:882  0:000  found AppleSMC protocol
11:882  0:000  === [ AddCustomEntries ] ==================================
11:882  0:000  Custom entry 0 skipped because it is hidden.
11:882  0:000  === [ ScanLoader ] ========================================
11:882  0:000  - [01]: 'CLOVER'
11:897  0:014  - [09]: 'SYSTEM'
11:899  0:002          AddLoaderEntry for Volume Name=SYSTEM
11:899  0:000      Not match custom entry 0: Type: not match
11:955  0:056  - [10]: 'WIN7_X64SSD'
11:957  0:002  - [11]: 'EFI'
11:989  0:031          AddLoaderEntry for Volume Name=EFI
11:989  0:000      Not match custom entry 0: Type: not match
11:992  0:002  - [12]: 'DATA_TSH'
11:997  0:004  - [13]: 'Macintosh HD'
12:039  0:041          AddLoaderEntry for Volume Name=Macintosh HD
12:039  0:000      Not match custom entry 0: Type: not match
12:074  0:034      Check if volume Is Hibernated:
12:074  0:000      Check sleep image 'by signature':
12:117  0:043      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
12:117  0:000      SleepImage name from pref: ImageVolume = 'Macintosh HD', ImageName = '\private\var\vm\sleepimage'
12:144  0:026      sleepimage not found -> Not Found
12:144  0:000      hibernated: no - sign
12:159  0:014          [!] Icon 17 (icons\vol_internal_hfs.icns) not found (path: EFI\CLOVER\themes\BGM)
12:159  0:000  - [14]: 'Recovery HD'
12:160  0:000          AddLoaderEntry for Volume Name=Recovery HD
12:160  0:000      Skipped because matching custom entry 0!
12:160  0:000  - [16]: 'WIN10'
12:162  0:002  - [17]: ''
12:165  0:002  - [18]: 'EFI'
12:190  0:025  - [19]: 'DATA'
12:193  0:002  - [24]: 'Preboot'
12:195  0:002          AddLoaderEntry for Volume Name=Preboot
12:195  0:000      Not match custom entry 0: Type: not match
12:224  0:028      Check if volume Is Hibernated:
12:224  0:000      Check sleep image 'by signature':
12:224  0:000      using default sleep image name = \private\var\vm\sleepimage
12:224  0:000      sleepimage not found -> Not Found
12:224  0:000      hibernated: no - sign
12:241  0:016  - [25]: 'macOS_HS'
12:382  0:140          AddLoaderEntry for Volume Name=macOS_HS
12:382  0:000      Not match custom entry 0: Type: not match
12:440  0:058      Check if volume Is Hibernated:
12:440  0:000      Check sleep image 'by signature':
12:555  0:115      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
12:555  0:000      using default sleep image name = \private\var\vm\sleepimage
12:600  0:045      sleepimage not found -> Not Found
12:600  0:000      hibernated: no - sign
12:603  0:002  - [26]: 'Recovery'
12:605  0:002          AddLoaderEntry for Volume Name=Recovery
12:605  0:000      Skipped because matching custom entry 0!
12:606  0:001  - [27]: 'VM'
12:606  0:000  === [ AddCustomTool ] =====================================
12:621  0:014  found tool \EFI\CLOVER\tools\Shell64U.efi
12:621  0:000  Checking EFI partition Volume 11 for Clover
12:644  0:023   Found Clover
12:660  0:015  === [ GetEfiBootDeviceFromNvram ] =========================
12:660  0:000   - found entry 0. 'Boot Microsoft EFI Boot from SYSTEM', Volume 'SYSTEM', DevicePath 'PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0x50CFED9B,0x800,0x32000)\EFI\microsoft\Boot\bootmgfw.efii'
12:660  0:000  DefaultIndex=0 and MainMenu.EntryCount=11
13:585  0:925  GUI ready


Preboot Volume ---> 24
High Sierra Volume ---> 25
Recovery Volume ---> 26

4.  Under [ ScanVolumes ] section, record the UUIDs of the above 3 Volumes
In this example

Vol 24 = Preboot: E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,050BA2A72D1D0E4D8ABDE9B99632868E
Partition UUID = E38C70C3-C1C1-4096-B2DE-2EE2660FCE41
Vol UUID = 050BA2A72D1D0E4D8ABDE9B99632868E (little endian format)

Vol 25 = macOS_HS: E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,67B6FC62811C594E819DACAE2F90240D
Partition UUID = E38C70C3-C1C1-4096-B2DE-2EE2660FCE41
Vol UUID = 67B6FC62-811C-594E-819D-ACAE2F90240D (little endian format), 62FCB667-1C81-4E59-819D-ACAE2F90240D (big endian format)

Vol 26 = Recovery: E38C70C3-C1C1-4096-B2DE-2EE2660FCE41,0x6CF46800,0x7687D88)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,F3D73FFF25C8334DAF3C183BC35433DF
Partition UUID = E38C70C3-C1C1-4096-B2DE-2EE2660FCE41
Vol UUID = F3D73FFF25C8334DAF3C183BC35433DF (little endian format)

Note the partition UUIDs for all the APFS volumes are the same because they are all formed from the same physical disk partition disk3s4 = E38C70C3-C1C1-4096-B2DE-2EE2660FCE41

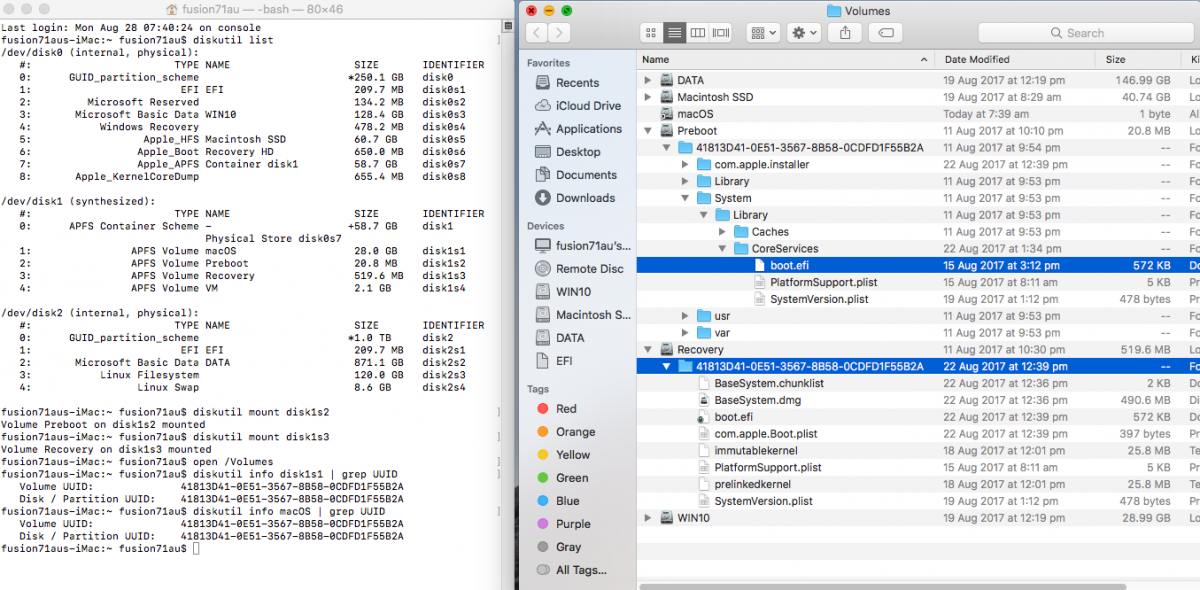

5.  Mount the APFS Volumes to determine the "path" to boot.efi for the Preboot and Recovery Volumes.

In terminal:
fusion71aus-iMac:~ fusion71au$ diskutil mount disk4s2
Volume Preboot on disk4s2 mounted
fusion71aus-iMac:~ fusion71au$ diskutil mount disk4s3
Volume Recovery on disk4s3 mounted
fusion71aus-iMac:~ fusion71au$ open /Volumes

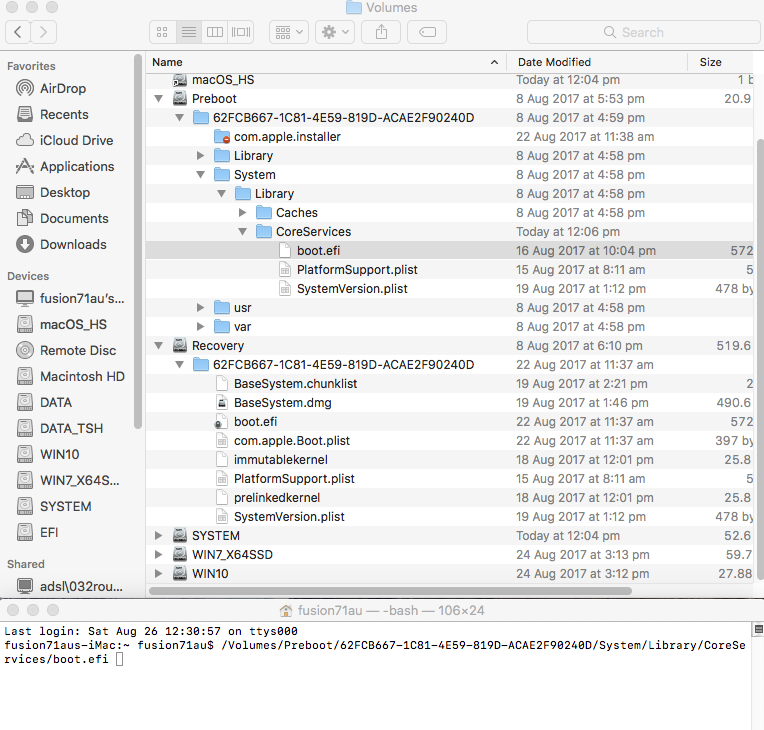

In Finder, the hidden folder /Volumes will open (or use "ShowAllFiles.app" attached)...

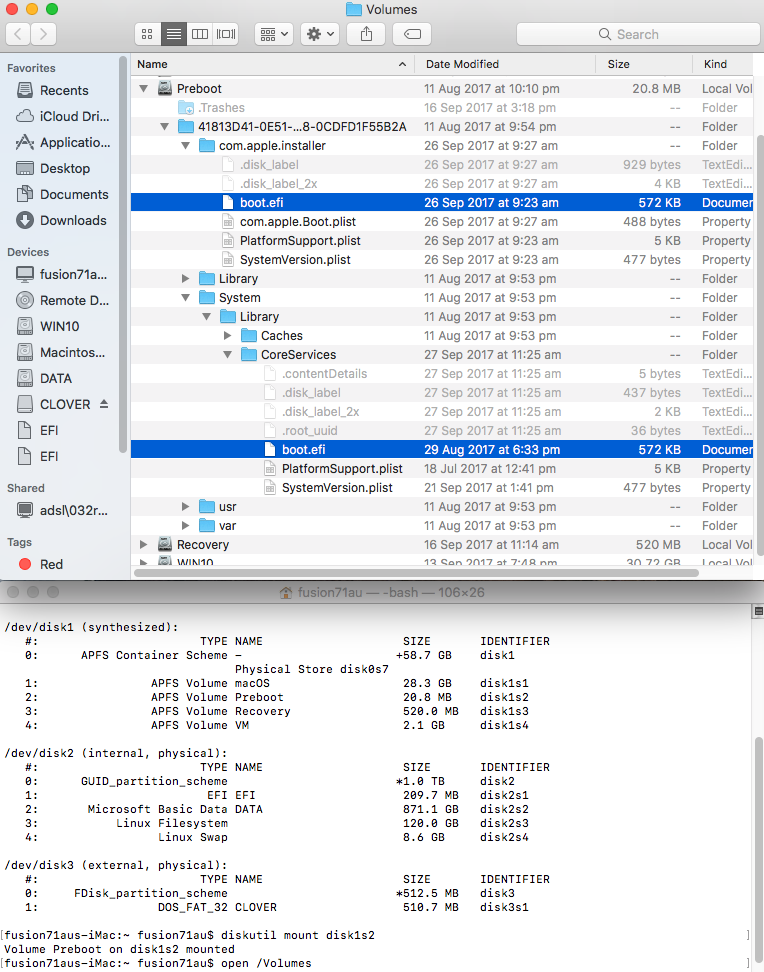

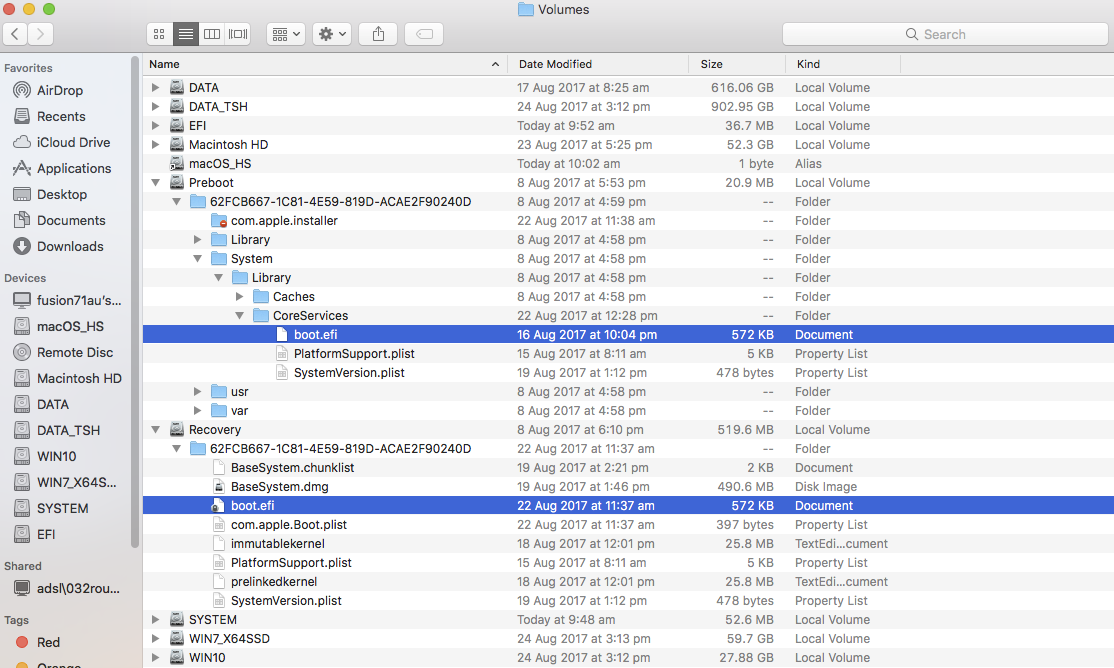

Record the "path to boot.efi" by expanding the directory tree of Preboot and Recovery (hint: drag the icon of boot.efi to a terminal window for full path):


So for Preboot Volume, path = /Volumes/Preboot/62FCB667-1C81-4E59-819D-ACAE2F90240D/System/Library/CoreServices/boot.efi
--> record as \62FCB667-1C81-4E59-819D-ACAE2F90240D\System\Library\CoreServices\boot.efi

and for Recovery Volume, path = /Volumes/Recovery/62FCB667-1C81-4E59-819D-ACAE2F90240D/boot.efi
---> record as \62FCB667-1C81-4E59-819D-ACAE2F90240D\boot.efi

Notes
  • Need backslashes in the path, including the leading \
  • The UUID in the paths to boot.efi, for both the Preboot and Recovery APFS volumes, is the same = Vol UUID of the High Sierra Volume in big endian format...

In terminal
fusion71aus-iMac:~ fusion71au$ diskutil info disk4s1 | grep UUID
   Volume UUID:              62FCB667-1C81-4E59-819D-ACAE2F90240D
   Disk / Partition UUID:    62FCB667-1C81-4E59-819D-ACAE2F90240D







6.  Open Clover Configurator, mount EFI System Partition to edit /Volumes/EFI/EFI/CLOVER/config.plist

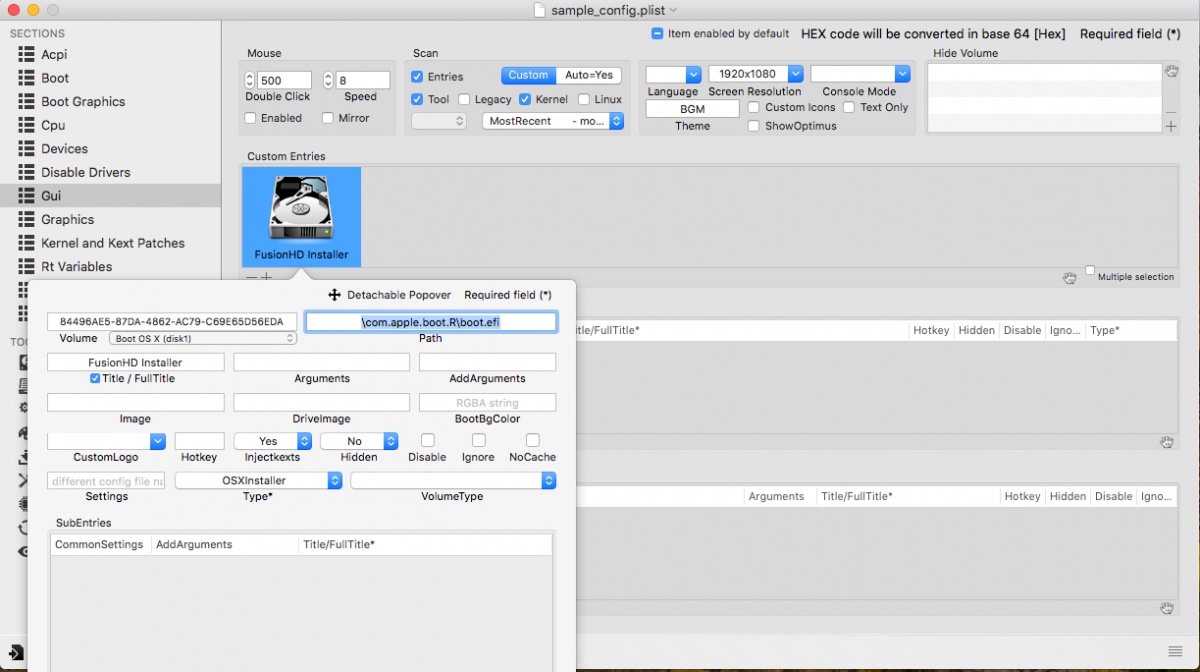

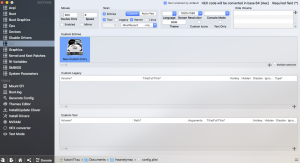

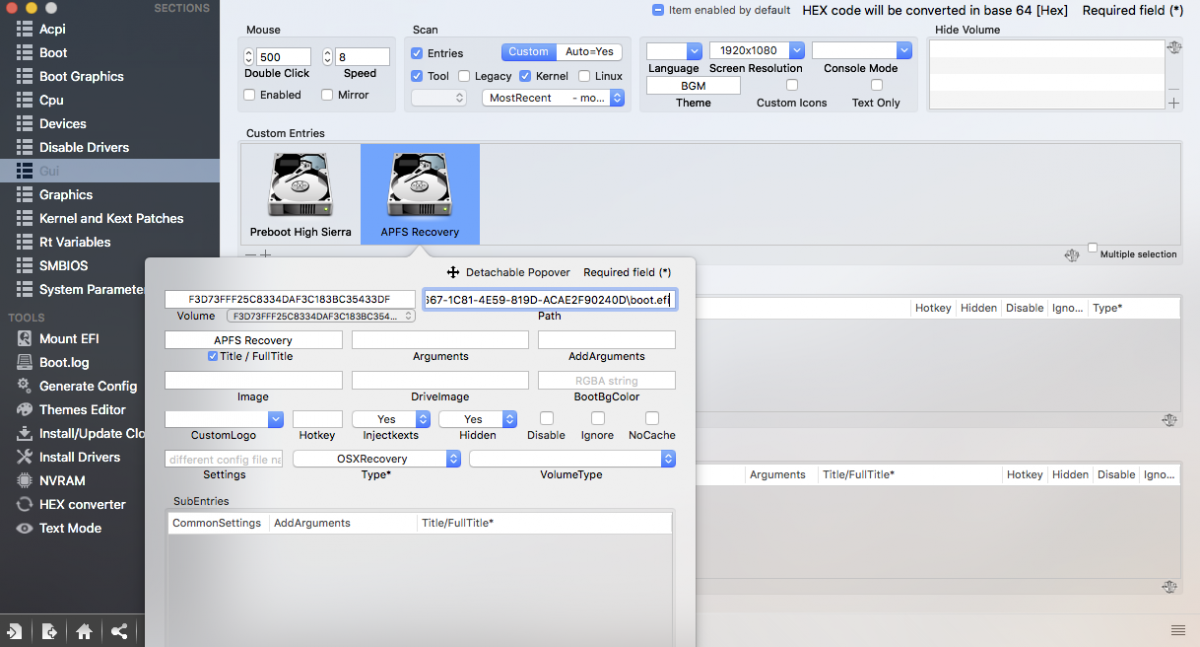

7.  Click GUI section on LHS and the + sign under Custom Entries to create New Custom Entry

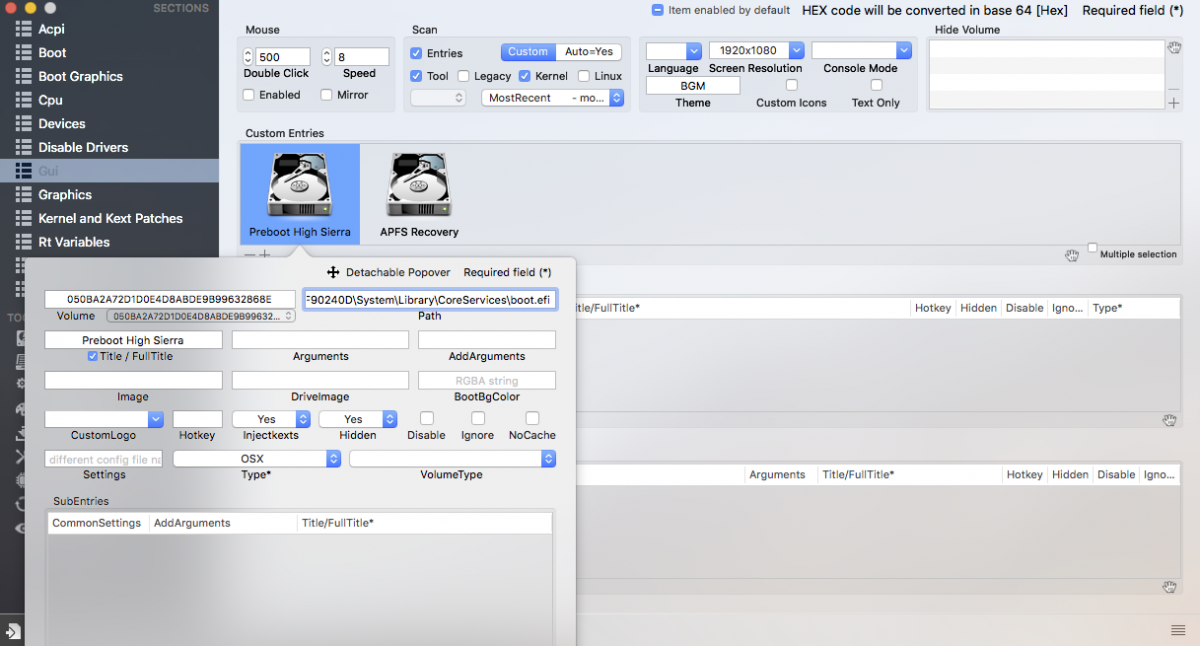

8.  Create Preboot High Sierra Custom Entry

  • In Volume, copy and paste Vol UUID of Preboot Volume from step 4
  • In Path, copy and paste path to boot.efi from step 5, including the leading \
  • Click Title/FullTitle and enter the display name you want eg "Preboot High Sierra"
  • Set Injectkexts and Hidden attributes to Yes
  • Set Entry type to OSX
  • Leave VolumeType blank

9.  Create APFS Recovery Custom Entry

  • In Volume, copy and paste Vol UUID of Recovery APFS Volume from step 4
  • In Path, copy and paste path to boot.efi from step 5, including the leading \
  • Click Title/FullTitle and enter the display name you want eg "APFS Recovery"
  • Set Injectkexts and Hidden attributes to Yes
  • Set Entry type to OSXRecovery
  • Leave VolumeType blank

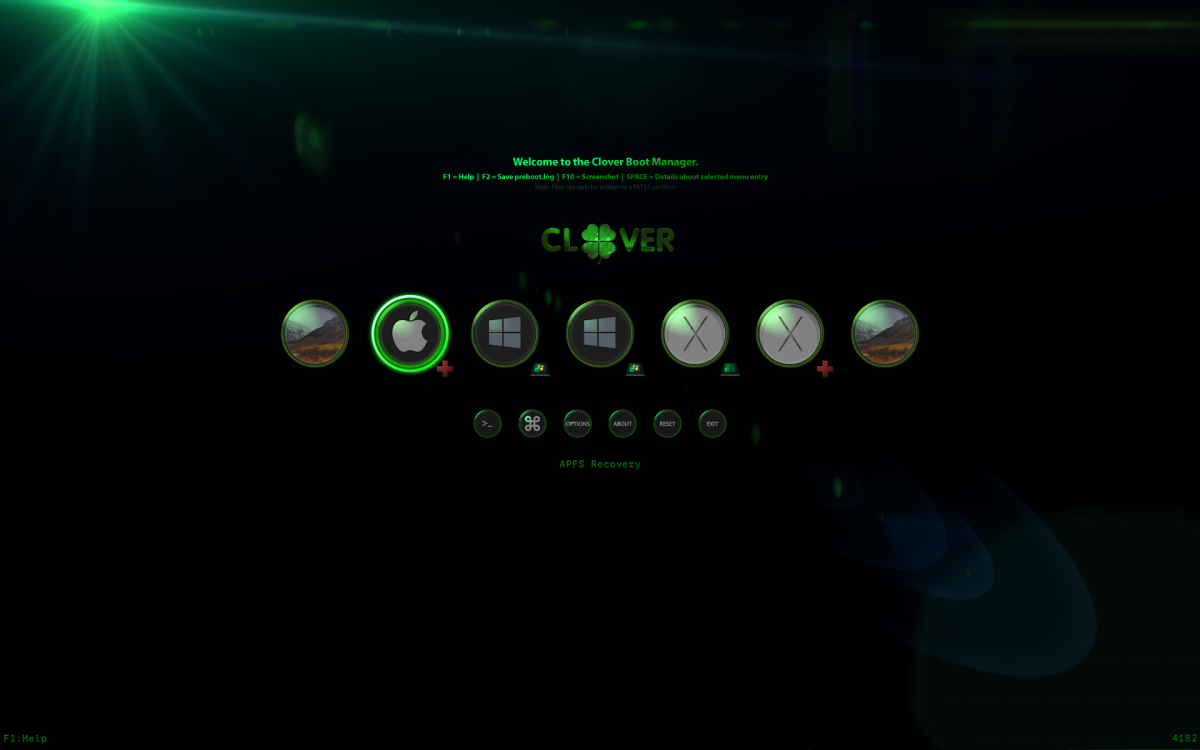

10.  Save config.plist and reboot the system.  At the main Clover Menu, you should see something like this ...


To unhide the custom APFS entries, press the F3 key :)

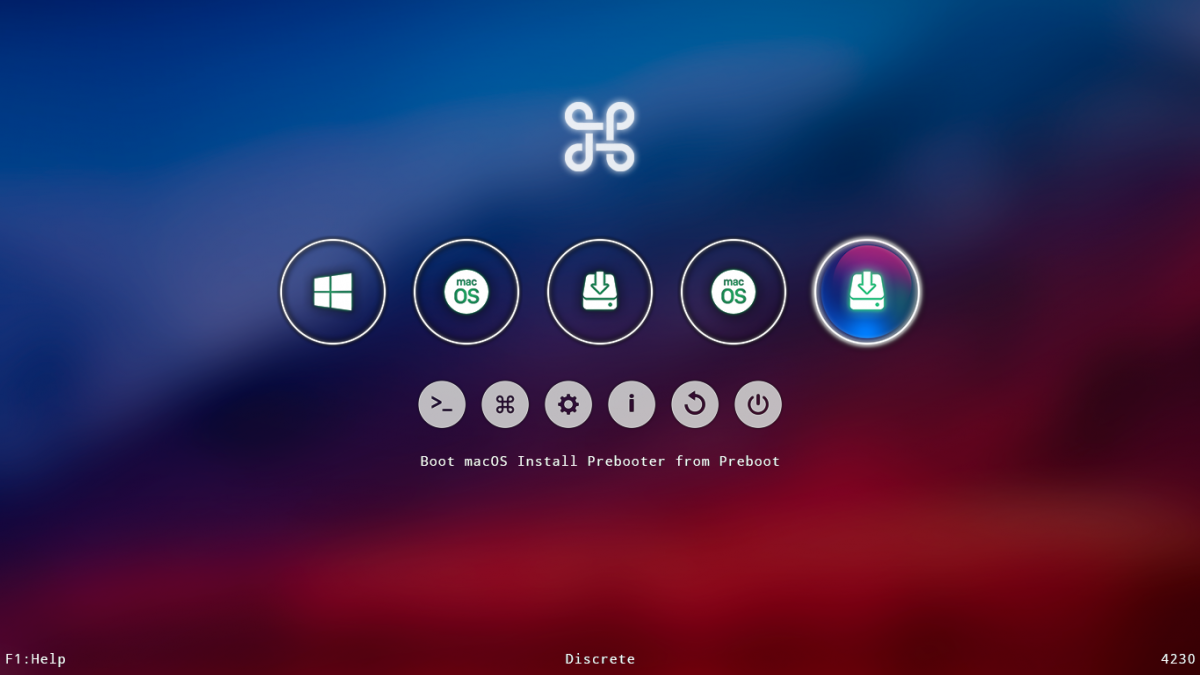

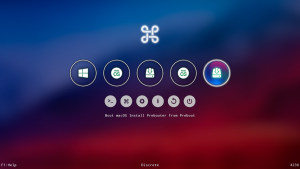

Update: New "macOS Install Prebooter" Entry with Clover r4225+

Clover r4225+ has added new code to detect OS X installer data on the Preboot Volume ---> causes an extra entry at the Clover Main Menu: "Boot macOS Install Prebooter from Preboot"...






If you mount your Preboot volume, you will see ...






Method for hiding the new entry would be similar to hiding the Preboot Entry discussed above:

  • In Volume, copy and paste Vol UUID of Preboot Volume from step 4
  • In Path, copy and paste path to boot.efi from step 5, including the leading \ (eg \UUID\com.apple.installer\boot.efi )
  • Click Title/FullTitle and enter the display name you want eg "High Sierra Install Prebooter"
  • Set Injectkexts and Hidden attributes to Yes
  • Set Entry type to OSXInstaller
  • Leave VolumeType blank

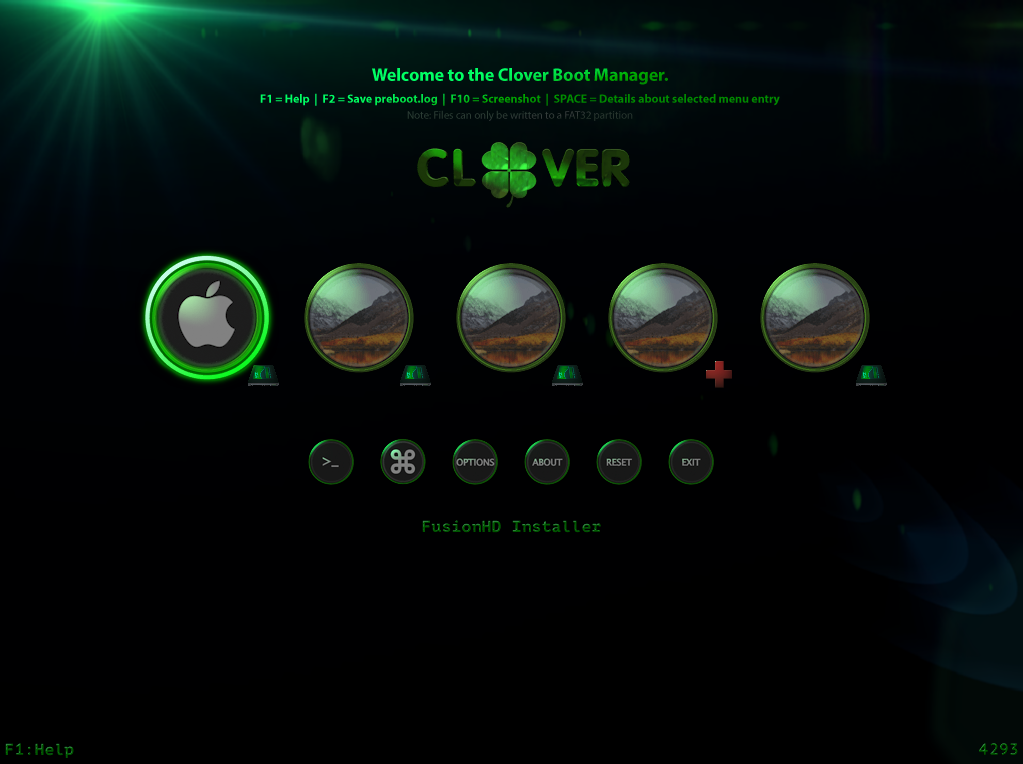

Custom Entry for Fusion Drive Installation of Sierra or High Sierra - post#22.

sample_config.plist.zip

apfs.efi.zip

ShowAllFiles.app.zip

Clover_v2.4k_r4220.zip

Share this post


Link to post
Share on other sites
Advertisement

Please help!

When I make the mount disk Preboot and Recovery, I can not find the paths to them as shown by your image under point 5. instructions.

Thank you.



My bootlog.txt





bootlog.txt.zip

Share this post


Link to post
Share on other sites

@luky35,



The /Volumes folder is normally hidden.  In terminal, type

open /Volumes

---> the hidden folder /Volumes will open in Finder (or use "ShowAllFiles.app" attached).  Record the "path to boot.efi" by expanding the directory tree of Preboot and Recovery (hint: drag the icon of boot.efi to a terminal window for full path).



From your bootlog.txt, volume UUIDs are in blue:



[08]: 'Preboot'

[08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,530D1EACF76D3F4D93B9227B2D11340B)

[09]: 'macOS High Sierra'
[09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6340DDA53663F048B1E87350FE52327A)
Vol UUID = 6340DDA5-3663-F048-B1E8-7350FE52327A (little endian)
               = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian) - see post#13564

[10]: 'Recovery'
[10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,800E618FF361FF4587B5A37CE4B6B5A7)

UUID used in "path"=Vol UUID of macOS High Sierra = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian)

Edit1

@fusion71au hi,



I'm sorry I did not rename Preboot and Recovery.



I do not know which keys are correct because there are more



High Sierra rename boot OK.



http://shrani.si/f/11/7c/4bSOySCb/preboot.png





1.  What is the output of diskutil list?

2.  Mounted Preboot and Recovery with diskutil mount?

3.  In terminal, type

open /Volumes

to open the /Volumes folder in Finder

4.  Confirm Vol UUID of macOS High Sierra volume with diskutil info "macOS High Sierra" | grep UUID






5.  The following should work in the GUI section of your config.plist





<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Preboot High Sierra</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\A5DD4063-6336-48F0-B1E8-7350FE52327A\System\Library\CoreServices\boot.efi</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>530D1EACF76D3F4D93B9227B2D11340B</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>APFS Recovery</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\A5DD4063-6336-48F0-B1E8-7350FE52327A\boot.efi</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>800E618FF361FF4587B5A37CE4B6B5A7</string>
				</dict>
			</array>
</dict>
</plist>







Edit2

@fusion71au hi,



I'm sending you my config.plist and images boot menu...


Please write where I make a mistake that I do not succeed.

Thank you.





I noticed you omitted the leading \ in the Paths for Preboot and APS Recovery.  Edited "luky35_config_edited.plist" attached.  Good luck!

ShowAllFiles.app.zip

luky35_sample_config.zip

luky35_config_edited.plist.zip

Share this post


Link to post
Share on other sites



@luky35,



The /Volumes folder is normally hidden.  You can either use the "Go" menu of Finder to navigate to that folder...



attachicon.gifFinder Go Menu.png



or the "ShowAllFiles.app" attached to the post.



From your bootlog.txt, volume UUIDs are in blue:



[08]: 'Preboot'

[08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,530D1EACF76D3F4D93B9227B2D11340B)

[09]: 'macOS High Sierra'
[09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6340DDA53663F048B1E87350FE52327A)
Vol UUID = 6340DDA5-3663-F048-B1E8-7350FE52327A (little endian)
               = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian) - see post#13564

[10]: 'Recovery'
[10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,800E618FF361FF4587B5A37CE4B6B5A7)

UUID used in "path"=Vol UUID of macOS High Sierra = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian)



@fusion71au hi,



I'm sorry I did not rename Preboot and Recovery.



I do not know which keys are correct because there are more



High Sierra rename boot OK.



http://shrani.si/f/11/7c/4bSOySCb/preboot.png

Share this post


Link to post
Share on other sites

What would you do in this use case? Even without any custom entries the recovery volume does not show on the clover boot screen. This is a fresh DB7 install.

Shanes-MBP:~ shane$ diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *500.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:         Microsoft Reserved                         16.8 MB    disk0s2
   3:       Microsoft Basic Data Windows 10              249.9 GB   disk0s3
   4:                  Apple_HFS                         125.0 GB   disk0s4
   5:                 Apple_Boot                         134.2 MB   disk0s5
   6:                 Apple_APFS Container disk1         124.9 GB   disk0s6

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +124.9 GB   disk1
                                 Physical Store disk0s6
   1:                APFS Volume macOS High Sierra       12.2 GB    disk1s1
   2:                APFS Volume Preboot                 20.6 MB    disk1s2
   3:                APFS Volume Recovery                519.6 MB   disk1s3
   4:                APFS Volume VM                      4.3 GB     disk1s4
Shanes-MBP:~ shane$

bootlog.log.txt

Share this post


Link to post
Share on other sites

@SavageAUS,



Interesting bootlog  :huh:.  Clover doesn't seem to be able to detect your Recovery APFS volume at all (only 3 APFS volumes showing up instead of 4?).



  • How did you make space for and install High Sierra?
  • What is disk0s5, size 134.2MB and can you mount it with diskutil mount disk0s5?  It looks suspicious - remnants of Recovery from previous install or did you "reserve" it and make it Apple Boot Partition type?
  • What does the GUI section of your config.plist look like?
  • What is the output of diskutil info "macOS High Sierra" | grep UUID ?
  • Can you show your /Volumes folder and expanded directory tree for Recovery in Finder ie type open /Volumes in terminal?  Can you drill down to boot.efi?

Edit1



Yes it is strange, it happening on my desktop as well, 3 instead of 4.

Shanes-MBP:/ shane$ mount /dev/disk1s3
mount: /dev/disk1s3: unknown special file or file system.
Shanes-MBP:/ shane$



You used the incorrect terminal command to mount APFS Recovery.



Should be

diskutil mount disk1s3
open /Volumes

then take screenshot of expanded directory tree for Recovery.



I suspect the problem arose because of the order of installation and which partition you installed High Sierra.  Why not install Sierra first into disk0s4 (instead of "reserving it" for install later), then install High Sierra into disk0s6?  Can you delete the partition disk0s5 e.g. with GParted or GDisk?  A normal Recovery HD for Sierra would be 650MB in size instead of the 134.2MB you "reserved" for it.



Also I noticed you didn't follow my guide for the Custom Preboot entry...



Edit2



I didnt reserve the 134 volume....



Here is recovery.

Shanes-MBP:~ shane$ diskutil mount disk1s3
Volume Recovery on disk1s3 mounted
Shanes-MBP:~ shane$ cd /Volumes/
Shanes-MBP:Volumes shane$ ls
Preboot Windows 10 macOS Sierra
Recovery macOS High Sierra
Shanes-MBP:Volumes shane$ cd Recovery/
Shanes-MBP:Recovery shane$ ls
9893F89D-1A42-4275-B34F-551DC83EED70





We now have enough info for the custom Preboot Entry but still need the Vol UUID of the Recovery APFS because bootlog doesn't show it....





		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Preboot High Sierra</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\9893F89D-1A42-4275-B34F-551DC83EED70\System\Library\CoreServices\boot.efi</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>2800BDBF670FC448A0774359BC62B595</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>APFS Recovery</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\9893F89D-1A42-4275-B34F-551DC83EED70\boot.efi</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>################################</string>
				</dict>
			</array>
		</dict>







Can you show the result of running the following commands in terminal?

diskutil info "Recovery" | grep UUID
diskutil info disk1s3 | grep UUID
diskutil apfs list

The result will need to be converted from big endian to little endian, then used for UUID of Recovery.  Maybe even try

<key>Volume</key>
<string>Recovery</string>

for Volume name if UUID doesn't work?



Edit3



I'll post output of Terminal commands when I can and config.plist gui section but still on both my machines with fresh installs the APFS recovery partition is not detected by clover so I don't think I can create a custom entry for it.
Surely it's not because of Sierra recovery? I'll check other threads and see if any one else is having same issue.





Try this to remove complicating factors:
1.  Remove all disks from system except the High Sierra Disk0.
2.  Replace the entire GUI section of your config.plist with the one below and attached to this post (has custom High Sierra, Preboot & Recovery).  You have far too many custom entries that make troubleshooting very difficult.  Don't specify Volume Type (let Clover decide).


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>macOS High Sierra PreBoot</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\05263B84-EEBE-32E6-AF1F-51A8FE57501D\System\Library\CoreServices\boot.efi</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>3A8C9026A35CE14E8903F7DF4BBDD19C</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>macOS High Sierra</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>843B2605BEEEE632AF1F51A8FE57501D</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>macOS High Sierra Recovery</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\05263B84-EEBE-32E6-AF1F-51A8FE57501D\boot.efi</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>F6A93E1CCC174B40AC09B5D229876937</string>
				</dict>
			</array>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Kernel</key>
			<string>MostRecent</string>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
	</dict>
</dict>
</plist>


3.  Hopefully all should work.  F3 should un-hide Preboot and Recovery.
4.  If doesn't work, provide new bootlog.txt with Clover autoscanning only (no Custom/Hidden Entries).
5.  Also provide another bootlog.txt with my Custom Entries added.

SavAu_GUI_config.plist.zip

Share this post


Link to post
Share on other sites

@SavageAUS,



Very weird (and interesting) bootlog  :).  Clover doesn't seem to be able to detect your Recovery APFS volume at all (only 3 APFS volumes showing up instead of 4?).



How did you install High Sierra?

Did you completely wipe the drive or just created space in an existing drive which already had other partitions first?

What does the GUI section of your config.plist look like?

What is the output of diskutil info "macOS High Sierra" | grep UUID ?

Can you show your /Volumes folder and expanded directory tree for Recovery in Finder ie type open /Volumes in terminal?  Can you drill down to boot.efi?

Yes it is strange, it happening on my desktop as well, 3 instead of 4.

I created my USB with createinstallmedia.

I completely wiped my drive with disk utility, created partitions with disk utility then installed windows 10 first then High Sierra.

<key>GUI</key>
<dict>
<key>Custom</key>
<dict>
<key>Entries</key>
<array>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>Windows 10</string>
<key>Ignore</key>
<false/>
<key>Type</key>
<string>Windows</string>
<key>Volume</key>
<string>F2FB2FB8-67D2-45FF-9956-E8EC29293114</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra</string>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Type</key>
<string>OSX</string>
<key>Volume</key>
<string>9DF89398421A7542B34F551DC83EED70</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra Recovery</string>
<key>Hidden</key>
<false/>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Path</key>
<string>\9893F89D-1A42-4275-B34F-551DC83EED70\boot.efi</string>
<key>Type</key>
<string>OSXRecovery</string>
<key>Volume</key>
<string>F4D53CC5E88ECA48B845FFF2F3A70C18</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra PreBoot</string>
<key>Hidden</key>
<false/>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Type</key>
<string>OSX</string>
<key>Volume</key>
<string>BE74FCF7-0B7C-49F3-9147-01F4042E6842</string> <- this worked to rename PreBoot on my desktop but not on this machine.
<key>VolumeType</key>
<string>Internal</string>
</dict>
</array>
</dict>
Shanes-MBP:~ shane$ diskutil info "macOS High Sierra" | grep UUID
   Volume UUID:              9893F89D-1A42-4275-B34F-551DC83EED70
   Disk / Partition UUID:    9893F89D-1A42-4275-B34F-551DC83EED70
Shanes-MBP:/ shane$ mount /dev/disk1s3
mount: /dev/disk1s3: unknown special file or file system.
Shanes-MBP:/ shane$

Shanes-MBP:~ shane$ cd /Volumes/
Shanes-MBP:Volumes shane$ ls
EFI   Preboot   macOS High Sierra
Windows 10  macOS Sierra <- not installed yet.
Shanes-MBP:Volumes shane$

Share this post


Link to post
Share on other sites

@fusion71au hi,

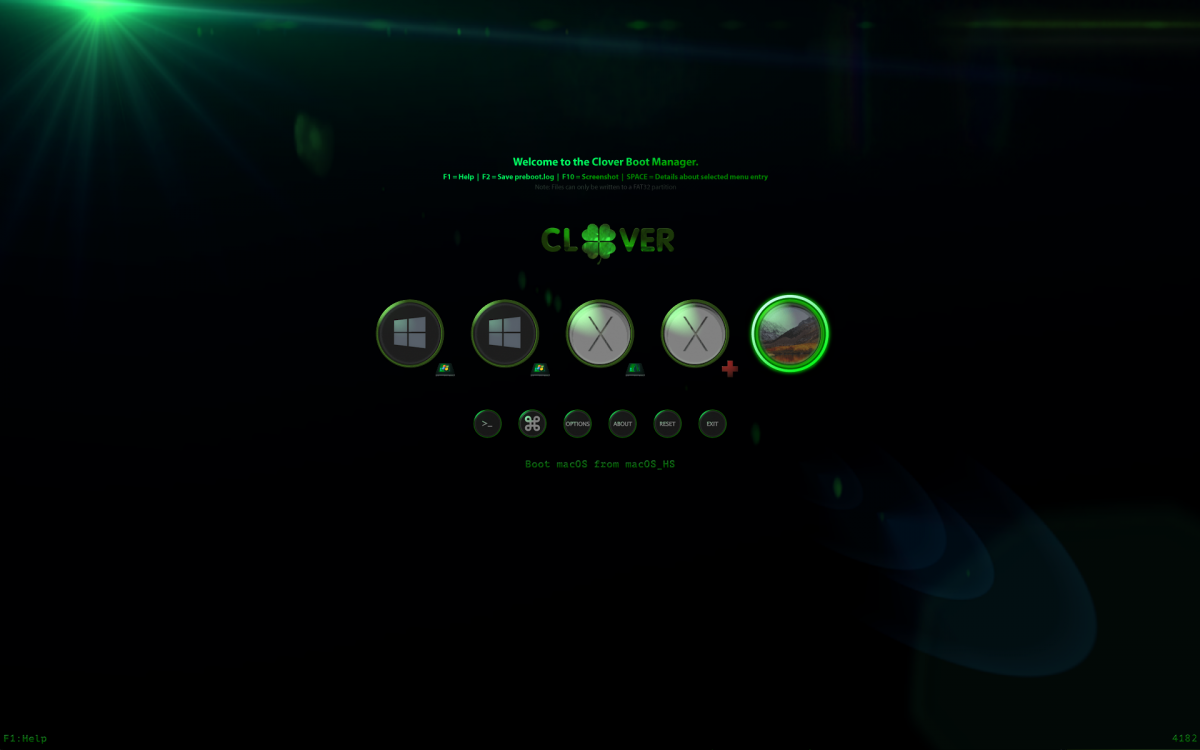

I'm sending you my config.plist and images boot menu.


In the boot menu there is no change in the preboot and recovery sign as written in the GUI config.plist.

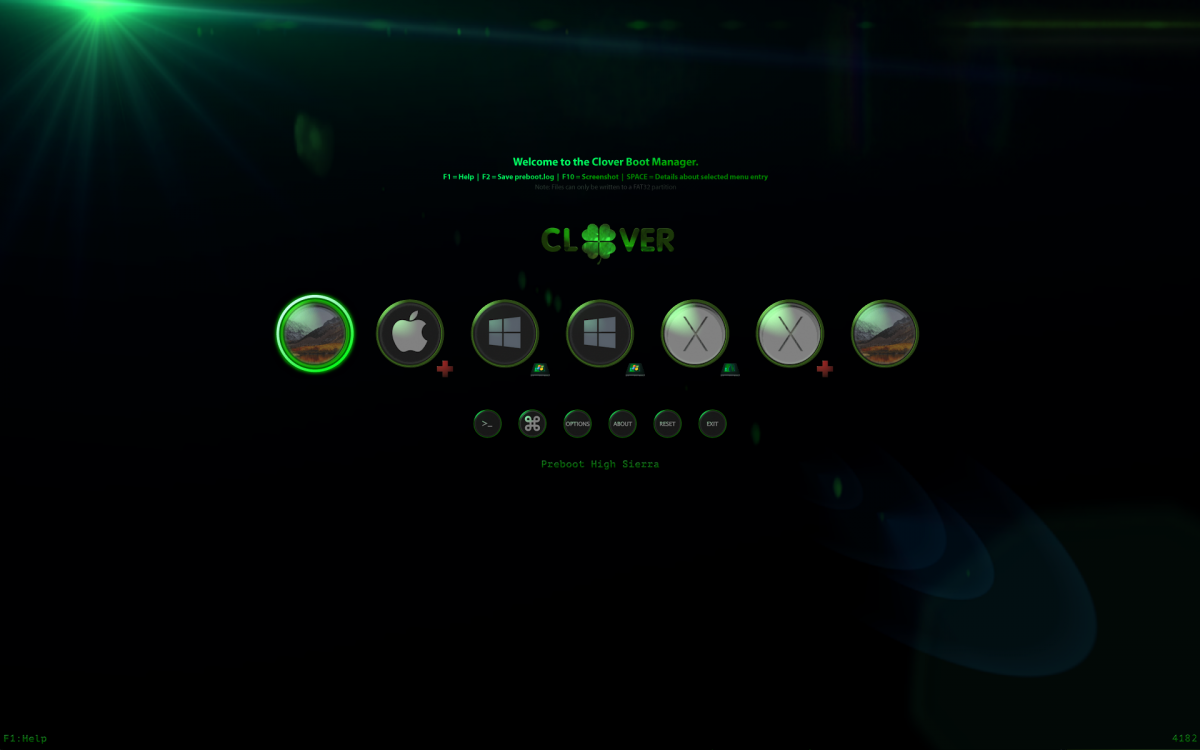

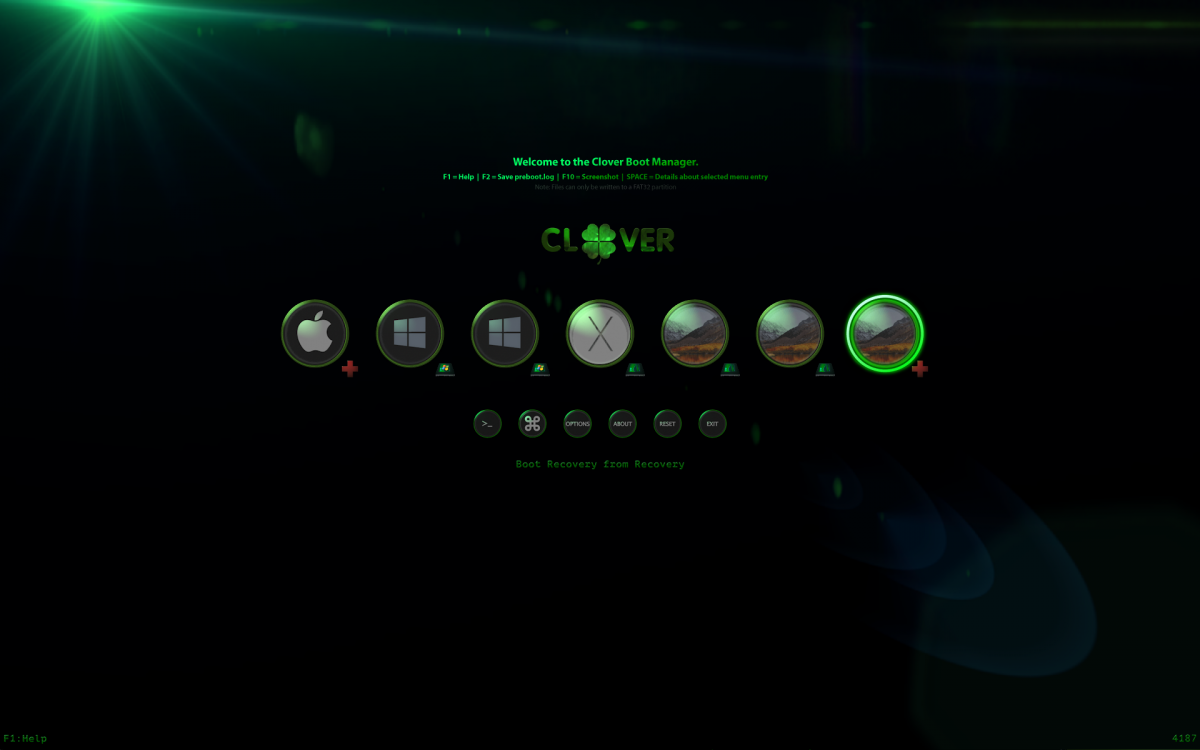

With the F3 key, the boot menu displays double preboot and recovery icons.


I also send the last bootlog.txt for review.

Please write where I make a mistake that I do not succeed.

Thank you.









Boot Menu (F3).zip

Boot Menu.zip

config.plist.zip

bootlog.txt.zip

Terminal.zip

Share this post


Link to post
Share on other sites

@SavageAUS,



Very weird (and interesting) bootlog  :).  Clover doesn't seem to be able to detect your Recovery APFS volume at all (only 3 APFS volumes showing up instead of 4?).



  • How did you make space for and install High Sierra?
  • What is disk0s5, size 134.2MB and can you mount it with diskutil mount disk0s5?  It looks suspicious - remnants of Recovery from previous install or did you "reserve" it and make it Apple Boot Partition type?
  • What does the GUI section of your config.plist look like?
  • What is the output of diskutil info "macOS High Sierra" | grep UUID ?
  • Can you show your /Volumes folder and expanded directory tree for Recovery in Finder ie type open /Volumes in terminal?  Can you drill down to boot.efi?







You used the incorrect terminal command to mount APFS Recovery.



Should be

diskutil mount disk1s3
open /Volumes

then take screenshot of expanded directory tree for Recovery.



I suspect the problem arose because of the order of installation and which partition you installed High Sierra.  Why not install Sierra first into disk0s4 (instead of "reserving it" for install later), then install High Sierra into disk0s6?  Can you delete the partition disk0s5 e.g. with GParted or GDisk?  A normal Recovery HD for Sierra would be 650MB in size instead of the 134.2MB you "reserved" for it.



Also I noticed you didn't follow my guide for the Custom Preboot entry...

I didnt reserve the 134 volume.

I created 3 partitions initially.

Half disk for Windows

Quarter for Sierra

Quarter for High Sierra

Thats it.

Here is recovery.

Shanes-MBP:~ shane$ diskutil mount disk1s3
Volume Recovery on disk1s3 mounted
Shanes-MBP:~ shane$ cd /Volumes/
Shanes-MBP:Volumes shane$ ls
Preboot   Windows 10  macOS Sierra
Recovery  macOS High Sierra
Shanes-MBP:Volumes shane$ cd Recovery/
Shanes-MBP:Recovery shane$ ls
9893F89D-1A42-4275-B34F-551DC83EED70
Shanes-MBP:Recovery shane$ cd 9893F89D-1A42-4275-B34F-551DC83EED70/
Shanes-MBP:9893F89D-1A42-4275-B34F-551DC83EED70 shane$ ls
BaseSystem.chunklist SystemVersion.plist immutablekernel
BaseSystem.dmg  boot.efi  prelinkedkernel
PlatformSupport.plist com.apple.Boot.plist
Shanes-MBP:9893F89D-1A42-4275-B34F-551DC83EED70 shane$

Share this post


Link to post
Share on other sites

@luky35,



The /Volumes folder is normally hidden.  In terminal, type

open /Volumes

---> the hidden folder /Volumes will open in Finder (or use "ShowAllFiles.app" attached).  Record the "path to boot.efi" by expanding the directory tree of Preboot and Recovery (hint: drag the icon of boot.efi to a terminal window for full path).



From your bootlog.txt, volume UUIDs are in blue:



[08]: 'Preboot'

[08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,530D1EACF76D3F4D93B9227B2D11340B)

[09]: 'macOS High Sierra'
[09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6340DDA53663F048B1E87350FE52327A)
Vol UUID = 6340DDA5-3663-F048-B1E8-7350FE52327A (little endian)
               = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian) - see post#13564

[10]: 'Recovery'
[10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,3E159462-B634-4816-A6EB-75D42730AE42,0x64028,0x16B946B0)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,800E618FF361FF4587B5A37CE4B6B5A7)

UUID used in "path"=Vol UUID of macOS High Sierra = A5DD4063-6336-48F0-B1E8-7350FE52327A (big endian)

Edit1





1.  What is the output of diskutil list?

2.  Mounted Preboot and Recovery with diskutil mount?

3.  In terminal, type

open /Volumes

to open the /Volumes folder in Finder

4.  Confirm Vol UUID of macOS High Sierra volume with diskutil info "macOS High Sierra" | grep UUID



attachicon.gifOpen :Volumes in Terminal.png



5.  The following should work in the GUI section of your config.plist





<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Preboot High Sierra</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\A5DD4063-6336-48F0-B1E8-7350FE52327A\System\Library\CoreServices\boot.efi</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>530D1EACF76D3F4D93B9227B2D11340B</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>APFS Recovery</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\A5DD4063-6336-48F0-B1E8-7350FE52327A\boot.efi</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>800E618FF361FF4587B5A37CE4B6B5A7</string>
				</dict>
			</array>
</dict>
</plist>







Edit2





I noticed you omitted the leading \ in the Paths for Preboot and APS Recovery.  Edited "luky35_config_edited.plist" attached.  Good luck!

It works great. :hysterical:

Thank you

Share this post


Link to post
Share on other sites

I'll post output of Terminal commands when I can and config.plist gui section but still on both my machines with fresh installs the APFS recovery partition is not detected by clover so I don't think I can create a custom entry for it.
Surely it's not because of Sierra recovery? I'll check other threads and see if any one else is having same issue.

Sent from my SM-G930F using Tapatalk



Entries GUI

<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS Sierra</string>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Type</key>
<string>OSX</string>
<key>Volume</key>
<string>543B37C3-8FD3-45DF-B6A9-5B9A4258D004</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS Sierra recovery</string>
<key>Hidden</key>
<true/>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Type</key>
<string>OSXRecovery</string>
<key>Volume</key>
<string>8C67363E-92F5-4491-AF0A-64A4ABF419FE</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra</string>
<key>Ignore</key>
<false/>
<key>NoCaches</key>
<false/>
<key>Type</key>
<string>OSX</string>
<key>Volume</key>
<string>843B2605BEEEE632AF1F51A8FE57501D</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra Recovery</string>
<key>Hidden</key>
<true/>
<key>Ignore</key>
<false/>
<key>InjectKexts</key>
<true/>
<key>NoCaches</key>
<false/>
<key>Path</key>
<string>\05263B84-EEBE-32E6-AF1F-51A8FE57501D\boot.efi</string>
<key>Type</key>
<string>OSXRecovery</string>
<key>Volume</key>
<string>C96A5300AE920F4AA444B84EB1E1C4D7</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>
<dict>
<key>Disabled</key>
<false/>
<key>FullTitle</key>
<string>macOS High Sierra PreBoot</string>
<key>Hidden</key>
<true/>
<key>Ignore</key>
<false/>
<key>InjectKexts</key>
<true/>
<key>NoCaches</key>
<false/>
<key>Path</key>
<string>\05263B84-EEBE-32E6-AF1F-51A8FE57501D\System\Library\CoreServices\boot.efi</string>
<key>Type</key>
<string>OSX</string>
<key>Volume</key>
<string>3A8C9026A35CE14E8903F7DF4BBDD19C</string>
<key>VolumeType</key>
<string>Internal</string>
</dict>

Diskutil list
Shanes-iMac:~ shane$ diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *240.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                 Apple_APFS Container disk4         239.8 GB   disk0s2

/dev/disk1 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *240.1 GB   disk1
   1:                        EFI EFI                     209.7 MB   disk1s1
   2:                  Apple_HFS macOS Sierra            239.2 GB   disk1s2
   3:                 Apple_Boot Recovery HD             650.0 MB   disk1s3

/dev/disk4 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +239.8 GB   disk4
                                 Physical Store disk0s2
   1:                APFS Volume macOS High Sierra       14.0 GB    disk4s1
   2:                APFS Volume Preboot                 20.1 MB    disk4s2
   3:                APFS Volume Recovery                519.6 MB   disk4s3
   4:                APFS Volume VM                      2.1 GB     disk4s4

Bootlog

bootlog.log.txt

Shanes-iMac:~ shane$ diskutil info "Recovery" | grep UUID
   Volume UUID:              1C3EA9F6-17CC-404B-AC09-B5D229876937
   Disk / Partition UUID:    1C3EA9F6-17CC-404B-AC09-B5D229876937
Shanes-iMac:~ shane$
Shanes-iMac:~ shane$ diskutil info disk4s3 | grep UUID
   Volume UUID:              1C3EA9F6-17CC-404B-AC09-B5D229876937
   Disk / Partition UUID:    1C3EA9F6-17CC-404B-AC09-B5D229876937
Shanes-iMac:~ shane$
Shanes-iMac:~ shane$ diskutil apfs list
APFS Container (1 found)
|
+-- Container disk4 7501D715-3201-4AED-A9AD-0CDD62150409
    ====================================================
    APFS Container Reference:     disk4
    Capacity Ceiling (Size):      239847653376 B (239.8 GB)
    Capacity In Use By Volumes:   16798076928 B (16.8 GB) (7.0% used)
    Capacity Available:           223049576448 B (223.0 GB) (93.0% free)
    |
    +-< Physical Store disk0s2 9B77FC33-F245-4183-8B31-58A45927D823
    |   -----------------------------------------------------------
    |   APFS Physical Store Disk:   disk0s2
    |   Size:                       239847653376 B (239.8 GB)
    |
    +-> Volume disk4s1 05263B84-EEBE-32E6-AF1F-51A8FE57501D
    |   ---------------------------------------------------
    |   APFS Volume Disk (Role):   disk4s1 (No specific role)
    |   Name:                      macOS High Sierra (Case-insensitive)
    |   Mount Point:               /
    |   Capacity Consumed:         13973471232 B (14.0 GB)
    |   Encrypted:                 No
    |
    +-> Volume disk4s2 26908C3A-5CA3-4EE1-8903-F7DF4BBDD19C
    |   ---------------------------------------------------
    |   APFS Volume Disk (Role):   disk4s2 (Preboot)
    |   Name:                      Preboot (Case-insensitive)
    |   Mount Point:               Not Mounted
    |   Capacity Consumed:         20127744 B (20.1 MB)
    |   Encrypted:                 No
    |
    +-> Volume disk4s3 1C3EA9F6-17CC-404B-AC09-B5D229876937
    |   ---------------------------------------------------
    |   APFS Volume Disk (Role):   disk4s3 (Recovery)
    |   Name:                      Recovery (Case-insensitive)
    |   Mount Point:               Not Mounted
    |   Capacity Consumed:         519626752 B (519.6 MB)
    |   Encrypted:                 No
    |
    +-> Volume disk4s4 00536AC9-92AE-4A0F-A444-B84EB1E1C4D7
        ---------------------------------------------------
        APFS Volume Disk (Role):   disk4s4 (VM)
        Name:                      VM (Case-insensitive)
        Mount Point:               /private/var/vm
        Capacity Consumed:         2147504128 B (2.1 GB)
        Encrypted:                 No
Shanes-iMac:~ shane$



Share this post


Link to post
Share on other sites

Thanks for this post. I've been trying to get custom entries to work on High Sierra GM. Have latest version Clover installed-4220. No luck.

Below is my info.



terminal diskutil info:



/dev/disk0 (internal, physical):

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *120.0 GB   disk0

   1:                        EFI EFI                     209.7 MB   disk0s1

   2:                 Apple_APFS Container disk1         119.8 GB   disk0s2



/dev/disk1 (synthesized):

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      APFS Container Scheme -                      +119.8 GB   disk1

                                 Physical Store disk0s2

   1:                APFS Volume Macintosh HD            85.2 GB    disk1s1

   2:                APFS Volume Preboot                 25.7 MB    disk1s2

   3:                APFS Volume Recovery                517.0 MB   disk1s3

   4:                APFS Volume VM                      2.1 GB     disk1s4



/dev/disk2 (external, physical):

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *3.0 TB     disk2

   1:                        EFI EFI                     314.6 MB   disk2s1

   2:                  Apple_HFS Time Machine            1000.0 GB  disk2s2

   3:                  Apple_HFS Data                    2.0 TB     disk2s3





APFS Container (1 found)

|

+-- Container disk1 4CDFE3DE-3408-453E-9310-54E5D4D35FB4

    ====================================================

    APFS Container Reference:     disk1

    Capacity Ceiling (Size):      119824367616 B (119.8 GB)

    Capacity In Use By Volumes:   88045780992 B (88.0 GB) (73.5% used)

    Capacity Available:           31778586624 B (31.8 GB) (26.5% free)

    |

    +-< Physical Store disk0s2 B28A57DC-973D-4499-BDBE-5720A6349D01

    |   -----------------------------------------------------------

    |   APFS Physical Store Disk:   disk0s2

    |   Size:                       119824367616 B (119.8 GB)

    |

    +-> Volume disk1s1 876A0EA7-5A83-40D1-BDE7-F9CA2C4160BE

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s1 (No specific role)

    |   Name:                      Macintosh HD (Case-insensitive)

    |   Mount Point:               /

    |   Capacity Consumed:         85229309952 B (85.2 GB)

    |   Encrypted:                 No

    |

    +-> Volume disk1s2 97726A50-329C-48E5-9C2C-515EA4439FC8

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s2 (Preboot)

    |   Name:                      Preboot (Case-insensitive)

    |   Mount Point:               Not Mounted

    |   Capacity Consumed:         25690112 B (25.7 MB)

    |   Encrypted:                 No

    |

    +-> Volume disk1s3 02C1C443-E695-48B9-A598-F55615A75392

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s3 (Recovery)

    |   Name:                      Recovery (Case-insensitive)

    |   Mount Point:               Not Mounted

    |   Capacity Consumed:         517029888 B (517.0 MB)

    |   Encrypted:                 No

    |

    +-> Volume disk1s4 2FF46437-E60D-4EF0-A333-4452639A4848

        ---------------------------------------------------

        APFS Volume Disk (Role):   disk1s4 (VM)

        Name:                      VM (Case-insensitive)

        Mount Point:               /private/var/vm

        Capacity Consumed:         2147504128 B (2.1 GB)

        Encrypted:                 No



I've attached my config.plist and bootlog info. Not sure why clover is not matching entries?





bootlog.log.txt

config.plist.zip

Share this post


Link to post
Share on other sites

@mustangmd,



Your custom High Sierra Entry was missing a path to boot.efi, and the path you used for the Recovery Entry had forward slashes (/) instead of backslashes (\)  :).



1:791  0:000      Checking volume "Macintosh HD" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,B28A57DC-973D-4499-BDBE-5720A6349D01,0x64028,0xDF30B60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A70E6A87835AD140BDE7F9CA2C4160BE)) ... skipped because path does not exist




1:792  0:000      Checking volume "Recovery" (PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,B28A57DC-973D-4499-BDBE-5720A6349D01,0x64028,0xDF30B60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,43C4C10295E6B948A598F55615A75392)) ... skipped because path does not exist



Here are the relevant UUIDs from your boot-log & sample custom entries (High Sierra, Recovery, Preboot) for your config.plist/GUI....



[12]: 'Preboot' UUID = 506A72979C32E5489C2C515EA4439FC8
[13]: 'Macintosh HD' UUID = A70E6A87-835A-D140-BDE7-F9CA2C4160BE (Little Endian) 876A0EA7-5A83-40D1-BDE7-F9CA2C4160BE (Big Endian)
[14]: 'Recovery' UUID = 43C4C10295E6B948A598F55615A75392

		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>macOS High SIerra</string>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<string>Detect</string>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\System\Library\CoreServices\boot.efi</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>A70E6A87835AD140BDE7F9CA2C4160BE</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Recovery HD</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\876A0EA7-5A83-40D1-BDE7-F9CA2C4160BE\boot.efi</string>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>43C4C10295E6B948A598F55615A75392</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<string>Detect</string>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\876A0EA7-5A83-40D1-BDE7-F9CA2C4160BE\System\Library\CoreServices\boot.efi</string>
					<key>Title</key>
					<string>Preboot APFS</string>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>506A72979C32E5489C2C515EA4439FC8</string>
				</dict>
			</array>
		</dict>

config_mustangmd_edited.zip

Share this post


Link to post
Share on other sites

can someone help me? trying to disable preboot and recovery but in bootlog and terminal everything is different what would you need if you decide to help?

Share this post


Link to post
Share on other sites

@bennyasf



This guide is very thorough and accurate if you follow all the steps. You create custom entries and make them "hidden" in GUI section of Clover configurator.



If you are simply just trying to hide the volumes, you can enter them in the top right section of GUI section under "Hide Volume" and add one line for Preboot and add a second line for Recovery.



Doing that in this manner hides them permanently though.

Share this post


Link to post
Share on other sites

Why so complex approach by creation of custom Entries to Hide Preboot and Recovery APFS Volumes with Clover Configurator?






You can just add Preboot into Hide Volume's section.



Otherwise of course good tutorial ;)

Share this post


Link to post
Share on other sites

Why so complex approach by creation of custom Entries to Hide Preboot and Recovery APFS Volumes with Clover Configurator?






You can just add Preboot into Hide Volume's section.



Otherwise of course good tutorial ;)

It's because sometimes you need to have access to boot from such partitions.

Share this post


Link to post
Share on other sites

I have 2 entries of Preboot partition, one for Filevault and one for macOS update. So hide macOS partition and use Preboot should be a solution with me

Share this post


Link to post
Share on other sites

It's because sometimes you need to have access to boot from such partitions.

Than you press F3 and have all your volumes back.





Why so complex approach by creation of custom Entries to Hide Preboot and Recovery APFS Volumes with Clover Configurator?






You can just add Preboot into Hide Volume's section.



Otherwise of course good tutorial ;)



Agree:



easiest way seems to be just to add the following:

<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Recovery</string>
			<string>Preboot</string>
			<string>VM</string>
		</array>
		<key>Scan</key>
		<true/>

	</dict>

Share this post


Link to post
Share on other sites

Creating a Custom Entry for Sierra/High Sierra Installation on a Fusion Drive

At the time of writing this guide, Clover r4297 does not yet have the code to detect the boot files created by the Sierra/High Sierra installer on the "Boot OS X" partitions of the physical drives comprising a Fusion Drive.  As a consequence, after the first phase of installation and reboot, there is no "Boot macOS install" entry for the Fusion Drive ---> installation cannot continue without creating a Custom Entry in Clover's config.plist that points to these boot files (located in com.apple.boot.R folder - reference post#15322 in Clover General Discussion thread).



Prerequisites
1.  Existing OS X installation or Sierra/High Sierra USB installer with Clover installed in EFI partition
2.  1 x Standard SATA SSD
3.  1 x Standard SATA HD

Create Fusion Drive
1.  Boot from the USB Installer and format both of the drives you want to use with Disk Utility as jHFS+.
2.  Launch terminal and type "diskutil list".  Note the disk numbers of the SSD and HD (eg disk0, disk1).
3.  In terminal, create the Fusion Drive with the following command: "diskutil CS create "FusionHD" <SSD> <HD>" where <SSD>=SSD number, <HD>=Hard Disk number.
-bash-3.2# diskutil CS create "FusionHD" disk0 disk1
Started CoreStorage operation
Unmounting disk0
Repartitioning disk0
Unmounting disk
Creating the partition map
Rediscovering disk0
Adding disk0s2 to Logical Volume Group
Unmounting disk1
Repartitioning disk1
Unmounting disk
Creating the partition map
Rediscovering disk1
Adding disk1s2 to Logical Volume Group
Creating Core Storage Logical Volume Group
Switching disk0s2 to Core Storage
Switching disk1s2 to Core Storage
Waiting for Logical Volume Group to appear
Discovered new Logical Volume Group "F77C452C-BEAD-4D8C-8359-C3D745B68E85"
Core Storage LVG UUID: F77C452C-BEAD-4D8C-8359-C3D745B68E85
Finished CoreStorage operation
Note the UUID of the Logical Volume Group eg in this case, F77C452C-BEAD-4D8C-8359-C3D745B68E85 ---> will be needed again in step 5.

4.  Once the fusion of the two drives has finished, in terminal type "diskutil CS list" ---> this will show the layout structure of your new CoreStorage (LVG) Logical Volume Group.
-bash-3.2# diskutil CS list
5.  You won't be able to create the first partition on the new (LVG) Logical Volume Group with Disk Utility. In preparation for the Sierra/High Sierra installation, type "diskutil CS createVolume UUID jhfs+ "FusionHD" 100%" in terminal:
-bash-3.2# diskutil CS createVolume F77C452C-BEAD-4D8C-8359-C3D745B68E85 jhfs+ FusionHD 100%
Started CoreStorage operation
Waiting for Logical Volume to appear
Formatting file system for Logical Volume
Initialized /dev/rdisk21 as a 89 GB case-insensitive HFS Plus volume with a 8192k journal
Mounting disk
Core Storage LV UUID: 60E582DB-A590-44B5-8386-7FCAE66D7A88
Core Storage disk: disk21
Finished CoreStorage operation
    Your Logical Volume is now complete, formatted as jHFS+, and ready for installation.

Add Custom Entry to Clover's config.plist on the USB Installer
This is most easily done with Clover configurator in an existing OS X installation but can also be done with a plist/text editor.  The custom entry should point to either of the "Boot OS X" volumes on the physical drives, loader path is \com.apple.boot.R\boot.efi:


1.  Partition UUID of "Boot OS X" can be determined by running the diskutil info command in terminal...
-bash-3.2# diskutil info "Boot OS X" | grep UUID
Volume UUID:              1DF31F9F-B27C-3244-9778-BA81B8B5142D
Disk / Partition UUID:    84496AE5-87DA-4862-AC79-C69E65D56EDA
2.  Mount the EFI partition on the USB Installer and edit Clover's config.plist, adding the custom entry as shown below...


	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>FusionHD Installer</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\com.apple.boot.R\boot.efi</string>
					<key>Type</key>
					<string>OSXInstaller</string>
					<key>Volume</key>
					<string>Boot OS X</string> #or replace with Partition UUID of "Boot OS X"
				</dict>
			</array>
		</dict>
    </dict>

Installation of Sierra/High Sierra and Clover on the Fusion Drive
1.  Boot to USB Installer via Clover Main Menu
2.  Open Disk Utility to erase FusionHD as jHFS+
3.  Choose to install Sierra/High Sierra ---> files copied to "macOS Install Data" folder on FusionHD and boot files to "Boot OS X" partitions.  System will reboot when complete...
4.  Select FusionHD Installer custom entry from Clover Main Menu ---> pkg files will be extracted to final locations.


     System will reboot when complete...
5.  Choose to "Boot macOS from Boot OS X (or from Recovery HD)" ---> complete update of boot caches, setup new user etc.
6.  Mount EFI partitions of the physical drives (SSD, HD and USB Installer) with Clover Configurator and copy EFI folder from USB installer to the EFI partitions of the physical drives comprising the Fusion Drive.

Update:  Clover r4301 code now recognizes Fusion Drives for Sierra and High Sierra.

Share this post


Link to post
Share on other sites

Creating a Custom Entry for Sierra/High Sierra Installation on a Fusion Drive

At the time of writing this guide, Clover r4297 does not yet have the code to detect the boot files created by the Sierra/High Sierra installer on the "Boot OS X" partitions of the physical drives comprising a Fusion Drive.  As a consequence, after the first phase of installation and reboot, there is no "Boot macOS install" entry for the Fusion Drive ---> installation cannot continue without creating a Custom Entry in Clover's config.plist that points to these boot files (located in com.apple.boot.R folder - reference post#15322 in Clover General Discussion thread).



Prerequisites

1.  Existing OS X installation or Sierra/High Sierra USB installer with Clover installed in EFI partition

2.  1 x Standard SATA SSD

3.  1 x Standard SATA HD



Create Fusion Drive

1.  Boot from the USB Installer and format both of the drives you want to use with Disk Utility as jHFS+.

2.  Launch terminal and type "diskutil list".  Note the disk numbers of the SSD and HD (eg disk0, disk1).

3.  In terminal, create the Fusion Drive with the following command: "diskutil CS create "FusionHD" <SSD> <HD>" where <SSD>=SSD number, <HD>=Hard Disk number.





-bash-3.2# diskutil CS create "FusionHD" disk0 disk1
Started CoreStorage operation
Unmounting disk0
Repartitioning disk0
Unmounting disk
Creating the partition map
Rediscovering disk0
Adding disk0s2 to Logical Volume Group
Unmounting disk1
Repartitioning disk1
Unmounting disk
Creating the partition map
Rediscovering disk1
Adding disk1s2 to Logical Volume Group
Creating Core Storage Logical Volume Group
Switching disk0s2 to Core Storage
Switching disk1s2 to Core Storage
Waiting for Logical Volume Group to appear
Discovered new Logical Volume Group "F77C452C-BEAD-4D8C-8359-C3D745B68E85"
Core Storage LVG UUID: F77C452C-BEAD-4D8C-8359-C3D745B68E85
Finished CoreStorage operation
Note the UUID of the Logical Volume Group eg in this case, F77C452C-BEAD-4D8C-8359-C3D745B68E85 ---> will be needed again in step 5.



4.  Once the fusion of the two drives has finished, in terminal type "diskutil CS list" ---> this will show the layout structure of your new CoreStorage (LVG) Logical Volume Group.



-bash-3.2# diskutil CS list
5.  You won't be able to create the first partition on the new (LVG) Logical Volume Group with Disk Utility. In preparation for the Sierra/High Sierra installation, type "diskutil CS createVolume UUID jhfs+ "FusionHD" 100%" in terminal:



-bash-3.2# diskutil CS createVolume F77C452C-BEAD-4D8C-8359-C3D745B68E85 jhfs+ FusionHD 100%
Started CoreStorage operation
Waiting for Logical Volume to appear
Formatting file system for Logical Volume
Initialized /dev/rdisk21 as a 89 GB case-insensitive HFS Plus volume with a 8192k journal
Mounting disk
Core Storage LV UUID: 60E582DB-A590-44B5-8386-7FCAE66D7A88
Core Storage disk: disk21
Finished CoreStorage operation
    Your Logical Volume is now complete, formatted as jHFS+, and ready for installation.



Add Custom Entry to Clover's config.plist on the USB Installer

This is most easily done with Clover configurator in an existing OS X installation but can also be done with a plist/text editor.  The custom entry should point to either of the "Boot OS X" volumes on the physical drives, loader path is \com.apple.boot.R\boot.efi:



attachicon.gifBoot OS X com.apple.boot.R.png



1.  Partition UUID of "Boot OS X" can be determined by running the diskutil info command in terminal...



-bash-3.2# diskutil info "Boot OS X" | grep UUID
Volume UUID:              1DF31F9F-B27C-3244-9778-BA81B8B5142D
Disk / Partition UUID:    84496AE5-87DA-4862-AC79-C69E65D56EDA
2.  Mount the EFI partition on the USB Installer and edit Clover's config.plist, adding the custom entry as shown below...



attachicon.gifFusionHD Installer Custom Entry.png





<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>FusionHD Installer</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>\com.apple.boot.R\boot.efi</string>
					<key>Type</key>
					<string>OSXInstaller</string>
					<key>Volume</key>
					<string>Boot OS X</string> #or replace with Partition UUID of "Boot OS X"
				</dict>
			</array>
		</dict>
    </dict>


Installation of Sierra/High Sierra and Clover on the Fusion Drive

1.  Boot to USB Installer via Clover Main Menu

2.  Open Disk Utility to erase FusionHD as jHFS+

3.  Choose to install Sierra/High Sierra ---> files copied to "macOS Install Data" folder on FusionHD and boot files to "Boot OS X" partitions.  System will reboot when complete...

4.  Select FusionHD Installer custom entry from Clover Main Menu ---> pkg files will be extracted to final locations.



attachicon.gifBoot from FusionHD Installer.png



     System will reboot when complete...

5.  Choose to "Boot macOS from FusionHD" ---> complete update of boot caches, setup new user etc.

6.  Mount EFI partitions of the physical drives (SSD, HD and USB Installer) with Clover Configurator and copy EFI folder from USB installer to the EFI partitions of the physical drives comprising the Fusion Drive.

Hi, after create the custom entries at first reboot when I boot from custom I’ve an error:



OSInstall.mpkg missing or damaged



Any solution??

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By moman2000
      Hi,

      I thought it would be nice that I would be the first here to give my experience with getting Mojave running and mostly working on my system.

      My specifications are as follows:

      iMac 14,2

      GIGABYTE GA-Z97X-UD5H / Intel Core i7-4770k @ 4.4GHz / 16GB Corsair Vengeance DDR3 @ 1600MHz
      MSI AMD Radeon HD 7870 2GB OC
      250GB SanDisk Ultra 3D NAND SSD / 120GB OCZ Agility 3 SSD
      1TB 5.4K HDD

      I used the config that @MaLd0n helped me with. Seriously, he is a legend. HERE is my Clover Config including everything I use for 10.13 High Sierra and 10.14 Mojave.

      Installation Procedure:


      Create bootable USB media with createinstallmedia - sudo /Applications/Install\ macOS\ 10.14\ Beta.app/Contents/Resources/createinstallmedia --volume /Volumes/"Insert Volume Name here"  ***** Remove quotation marks!!!

      **"--Applicationpath" is now depreciated and should not be used when making a 10.14 Mojave USB. I do not know if this will change in upcoming releases.

      ** ConvertToAPFS is now depreciated and no longer works when installing 10.14 Mojave beta 1. Using the command "--converttoapfs NO" will not work if you use it with "createinstallmedia".

      Editing "minstallconfig.xml" within the "macOS Install Data" folder on the target partition chosen during installation to change "ConvertToAPFS" from "TRUE" to "FALSE" would also not disable APFS conversion.

      Installation ran through well, but it did restart just after installation began which seemed to have been caused by a crash, but it seemed like it was normal as this happened twice as I tried installing Mojave earlier and the same thing happened. Rebooting again into the installation on the target drive that was selected before described as "macOS Install"  and named "macOS 10.14" resumed installation.

      Everything from then on was easy and smooth. I set-up my iCloud and things as such and was brought to the desktop of macOS 10.14 Mojave!


      What does work:

      Graphics (Acceleration/Metal) // 4K video dropped 0 frames // Picture-in-Picture
      Mouse and Keyboard
      USB 3.0 -  Full 5 GBP/s - Only ports above HDMI Port and front I/O
      USB 3.0 under both Intel and Killer Ethernet ports function with USB 2.0 devices.
      Ethernet (only Intel NIC so far) Both NIC's work, Intel I217-V and Killer E2200
      iMessage
      Sleep and Wake
      Shutdown
      Restart

      Update #1:

      Temporary Fix: ***I have gotten audio to work after browsing Reddit, I stumbled across this post: https://www.reddit.com/r/hackintosh/comments/8orn7w/mojave_files_needed/e05kkj9/

      Update #2:

      I have just found a kext for the on-board Killer E2200 NIC after searching with device and vendor ID's on this forum.
      https://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/

      Update #3:

      Audio is now fully operational with new version 1.2.8 of AppleALC, from here:

      What does NOT work:

      USB 3 under Intel I217-V NIC and Killer E2200 NIC Ethernet Ports // Only function with USB 2.0 devices.
      Audio Temporary fix in Update #1 above   Fixed in Update #3
      Killer E2200 NIC Fixed in Update #2 above



      This is the information I have been able to gather thus far whilst using Mojave.

      I hope this helps someone in getting Mojave running on their system.

      Regards,
      Mohamed


      CLOVER_moman2000 No SN.zip







    • By crazybirdy
      Patched OSInstaller.framework to allow macOS 10.13 installation on MBR partition.

      To use those patched files you must follow HowTo-10.13.x to create an USB installer. You can't just run the app downloaded from Mac App Store.

      The patch is made base on 落下爱@pcbeta 10.10.x MBR patch method, and more patch for 10.13 Firmware check by crazybirdy.

      What is this patched OSInstaller doing?
      1. Patch the MBR check, allow macOS 10.14 installation on MBR partition.
      2. Patch the Firmware check, bypass the error of "An error occurred while verifying firmware".
      3. This patched MBR OSInstaller method works with both MBR and GPT partition (GPT+recovery).

      No longer need to set new SMbiosversion, FirmwareFeatures, and FirmwareFeaturesMask with this MBR-patch.

      How to make 10.13 installer for MBR?
      Read HowTo-10.13.x.txt inside the zip file first, different with 10.12.
      Read HowTo Q/A Q7. How to install in different computer with only one USB partition?
      Read HowTo Q/A Q8. How to update 10.13.x combo-update to MBR without downloading the full installer app again?
      Read HowTo Q/A Q9. How to update 10.13.x combo-update to MBR and GPT with installScript directly?

      Just use 13MBRinstallerMaker to make installer, it works with both MBR and GPT.

      And, need a SMBIOS supported with /System/Library/CoreServices/PlatformSupport.plist.

    • By fusion71au
      Clover r4542 ISO compiled with GCC and minimal config.plist compatible for use in VMWare Workstation.

      Tested with unlocked Workstation 14 running OSX 10.9 -->10.14 guest in Windows X64 host.

      Installation
      1. Download and unzip "EFI_Clover_r4542 for VMware.zip". Mount Clover-v2.4k-4542-X64.iso by double clicking on it.
      2. Mount your VM's EFI System Partition eg in terminal
      sudo diskutil mount disk0s1   3. Copy EFI folder from step 1 into the EFI partition
      4. Shutdown the VM, add bios.bootDelay = "3000" to your VM's vmx file
      5. Reboot your VM, press <F2> to access the VMware Boot Manager and add CLOVERX64.efi to the boot menu.

      Substitute your own unique and valid MLB and ROM variables in the /EFI/CLOVER/config.plist (Rt Variables section) to activate iMessage/Facetime on your VM.
    • By rvxtm
      Hello,

      Maybe i am the only one seeing this or maybe i am doing something wrong but my resize animation performance in HS 10.13.5 is terrible.
      I did a clean install of 10.13.5, installed the latest nvidia drivers 387.10.10.10.35.106.
      My GPU is a GTX1060 connected via DP to a 4k display.
      Now, the issue, when i open an empty TextEdit for example, if i drag the corner of the window to make it larger, it lags more and more as the size increases.
      I also have Adobe Audition CC installed for my work, the interface is very slow compared to the windows version (my 2011 macbook pro is much faster, but it's not 4k).
      Is there a known issue when running 4k on nvidia web drivers ?
      It's very frustrating because i've been using custom machines with 1080p displays and nvidia cards since Snow Leopard, but i was always butter smooth.

      Thanks.

    • By nysander
      I start this topic to make my Lenovo Thinkpad W540 usable with High Sierra

      I followed many guides but this one started by @tluck made me most progress:
      My setup as in signature

      I will update first post with statuses of working features:

      Graphics:
      Nvidia Quadro - disabled
      Intel HD 4600 - working @ 1920x1080 and 1,5GB RAM (had to set ig-plaform-id as Haswell desktop, mobile do not work)
      using intelGraphicsFixUp.kext

      Sound:
      internal speakers and mic works with AppleACL.kext and profile 28

      USB:
      i boot MacOS from USB drive and it works, mouse and pendrive also works
      USB power not work yet, so USB WiFi dongle and iPhone connection not work (no power @ USB)
      IOReq finds only USB 3.0 controller not USB 2.0 even though I have 2 ports USB 3.0 and 2 ports USB 2.0


      Integrated Camera:
      recognised in IOReq but not working now (probably due to USB)

      Bluetooth:
      as USB but works without problem

      Ethernet:
      works with intelMausiEthernet.kext

      Keyboard:
      internal is PS2 so VoodooPS2Controller.kext is needed - some mappings I would like to have different but works

      Touchpad:
      works with VoodooPS2Controller.kext from @tluck topic

      Trackpoint:
      One time works mostly not - debugging in progress

      Batery Status:
      not working

      Integrated WiFi:
      intel -  not working

      Sleep / Hibernate:
      not working

      Backlight:
      not working

      Other found issues:
      besides that graphics works @ 1920x1080 and have a lots of ram window shadows (especially dock shadow) looks bad

      External VGA:
      not tested yet

      External Mini Display Port / Thunderbolt:
      not tested yet

      I will post my clover / debug config later


×
