Clover General discussion

[cecekpawon]

From your EFI.zip



binary:

rev 4233

preboot.log:

rev 4305

0:100  0:000  Starting Clover revision: 4305 on American Megatrends EFI

You have 2 ESP, and currently booted from [01]:

9:265  0:000  Found 16 volumes with blockIO
9:266  0:001  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(1,GPT,D886BDB6-45F2-46DC-B862-4A61037BF7C5,0x28,0x64000)
9:278  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,497436B5-EF46-4A05-8225-C645AB0E982F,0x800,0x64000)

Make sure to edit & post the files from booted ESP only to avoid confusions.

[MICKHAEL]

From your EFI.zip



binary:

rev 4233

preboot.log:

rev 4305

0:100  0:000  Starting Clover revision: 4305 on American Megatrends EFI

You have 2 ESP, and currently booted from [01]:

9:265  0:000  Found 16 volumes with blockIO
9:266  0:001  - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x1)\Pci(0x0,0x0)\NVMe(0x1,00-00-00-00-00-00-00-00)\HD(1,GPT,D886BDB6-45F2-46DC-B862-4A61037BF7C5,0x28,0x64000)
9:278  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,497436B5-EF46-4A05-8225-C645AB0E982F,0x800,0x64000)

Make sure to edit & post the files from booted ESP only to avoid confusions.

Thanks. I will check. That second EFI partition it's empty (I think)

[Slice]



some posts above i uploaded my efi. all ok in my config

EFI with preboot

Attached Files

•   EFI.zip   2.21MB   10 downloads
•



Folder "other" must be "Other".

The file system is case-sensitive.

[MICKHAEL]

Folder "other" must be "Other".

The file system is case-sensitive.

Ok. Thanks. Will report

[artur_pt]

hello



4308 rev start working with embedded theme



only if is build with XCODE5 toolchain



for me not working with default xcode



I'm using xcode 9.1



using build clover script 4.5.7



thanks

[magnifico]

   Dev Master  ( Sergey    )



what is this in my log ?

0:105  0:000  ** Warning: unknown custom entry Type 'other'

and this

0:251  0:000  no AppleSMC protocol

and this





1:856  1:523  Boot option Boot0000 not found

[Slice]

hello



4308 rev start working with embedded theme



only if is build with XCODE5 toolchain



for me not working with default xcode



I'm using xcode 9.1



using build clover script 4.5.7



thanks

Show bad screen, please.







   Dev Master  ( Sergey    )



what is this in my log ?

0:105  0:000  ** Warning: unknown custom entry Type 'other'

and this

0:251  0:000  no AppleSMC protocol

and this

1:856  1:523  Boot option Boot0000 not found



1. I don't know what is entry type "other" written in your config.plist

2. Install SMChelper.

3. Doesn't matter.

[magnifico]

you mean SmcHelper.64 EFi ?

[artur_pt]

Show bad screen, please.





Hello Slice

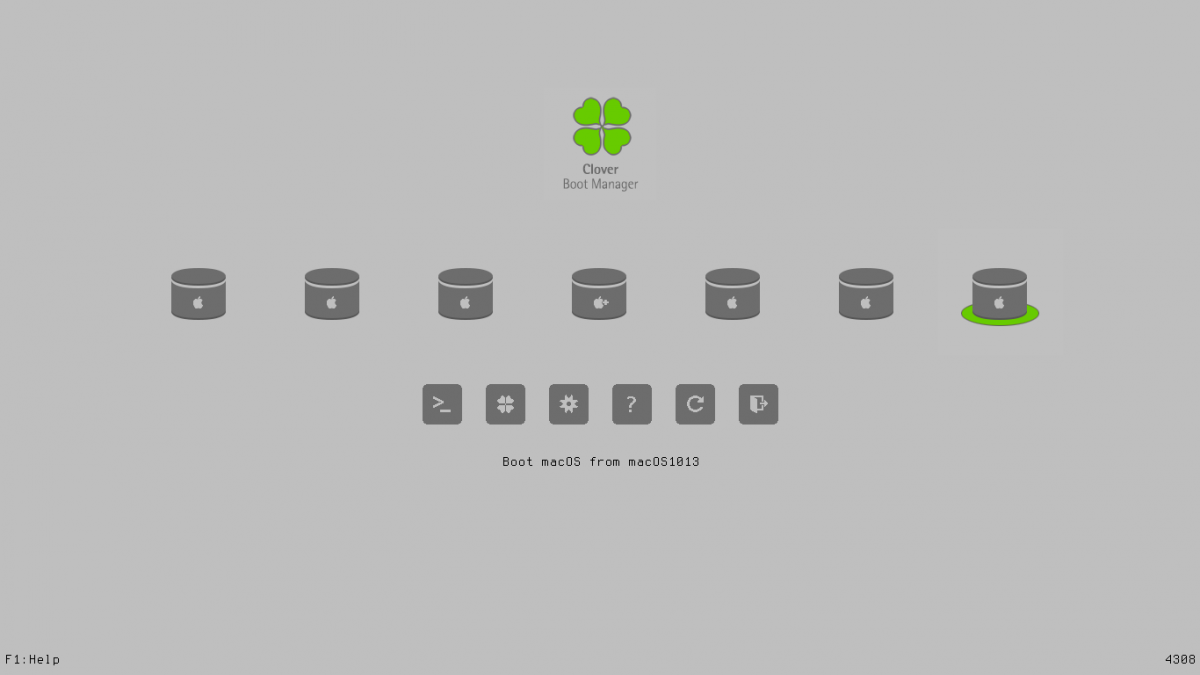

good embedded with xcode5

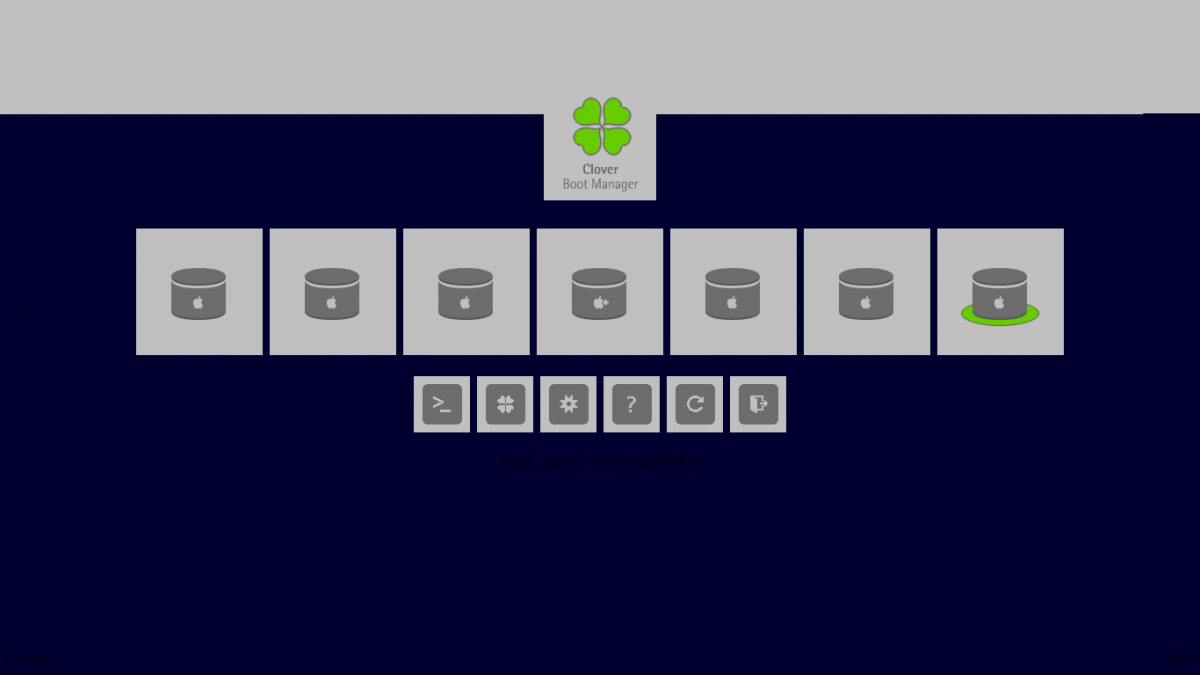

the bad one with xcode8





thanks

[MICKHAEL]

Folder "other" must be "Other".

The file system is case-sensitive.

ok ok ok. after that this is the culprit - Other and not other. thanks. but not another problem) not loading Nvidia web drivers. what to try? changing from Nvidia driver manager not worked.

try test r4239 and r4241

the problem was kext location, renaming other to Other loaded system. Nvidia web drivers now not loading



fixed  nvram -c

thanks

[Slice]

Hello Slice



good embedded with xcode5






the bad one with xcode8






thanks

Thanks,

and attach, please, your bad CloverX64.efi

[artur_pt]

Thanks,

and attach, please, your bad CloverX64.efi



hello Slice



there u have it



CLOVERX64.efi.zip



thanks

[Slice]

hello Slice



there u have it



CLOVERX64.efi.zip



thanks

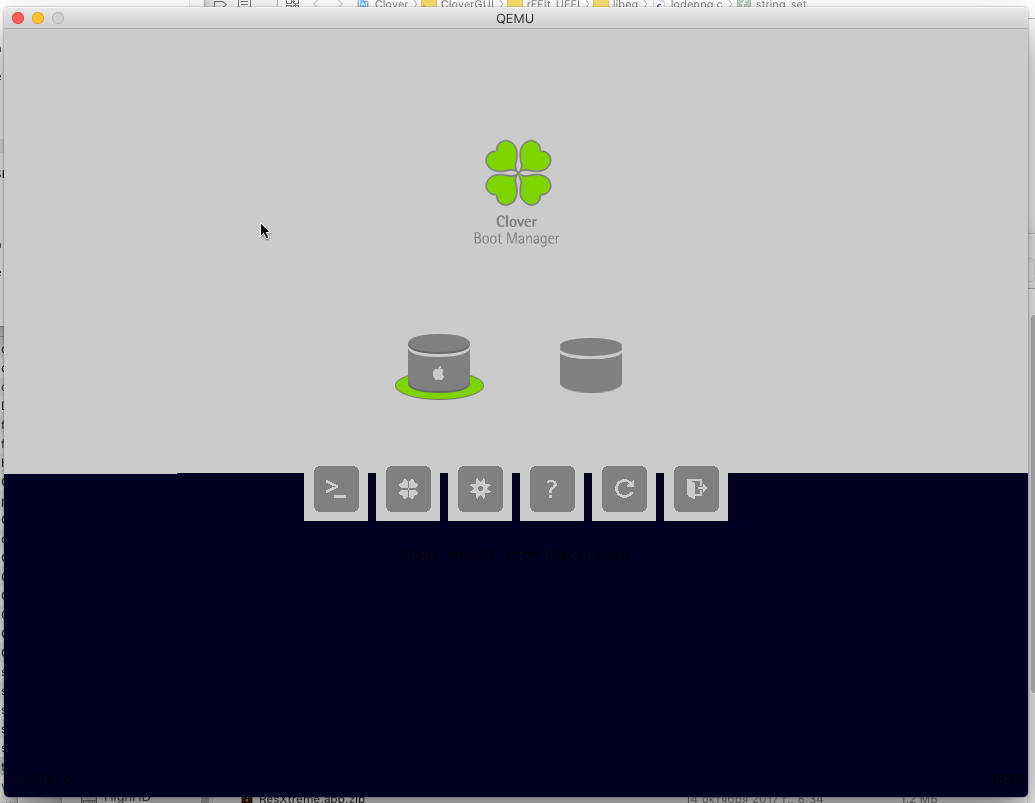

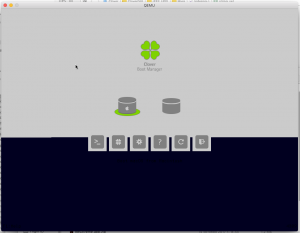

I got this result

[Cyberdevs]

Hi guys,



I have a question.

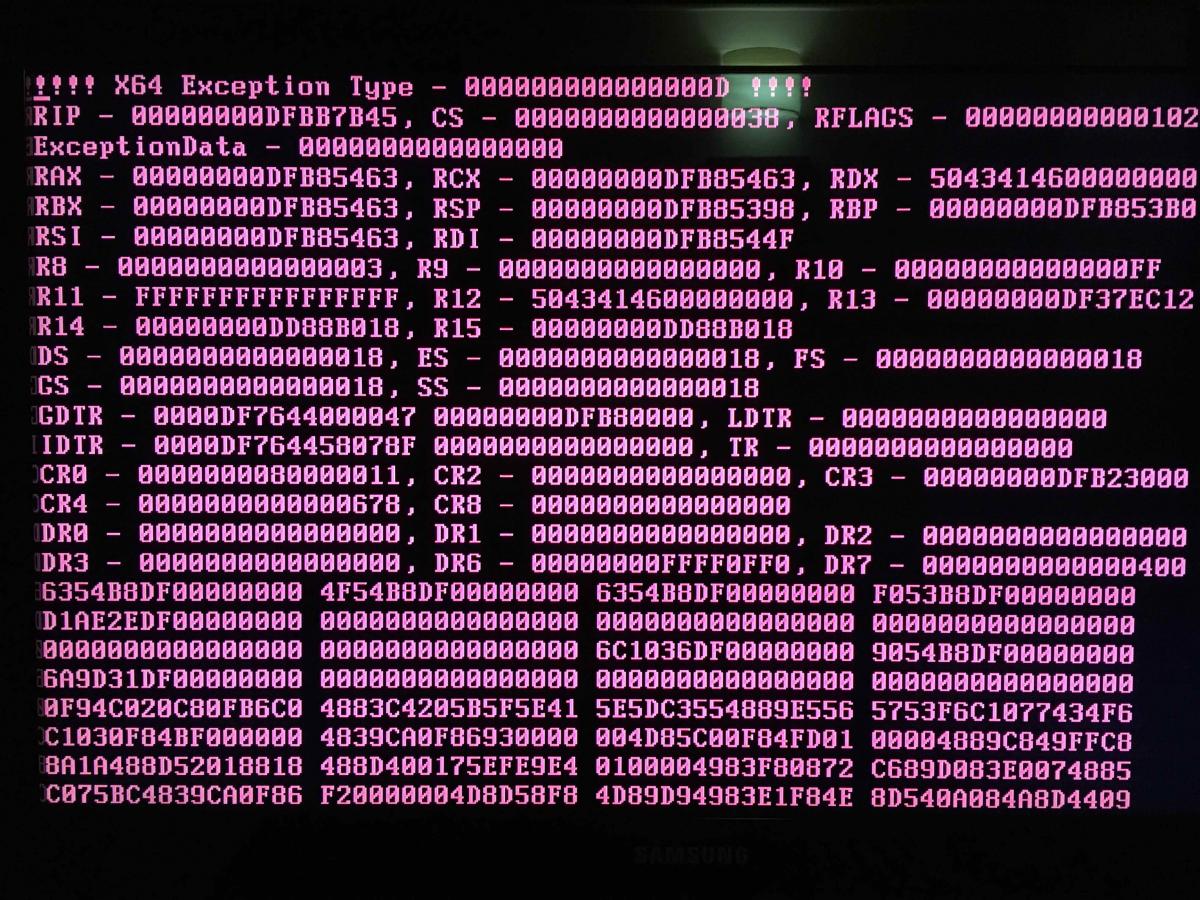

When I try to dump the ACPI tables using F4 via clover (Legacy) r43xx on my Legacy Asus P5H77-USB3 rig or any other Legacy systems that I tried I get the following error.

So here is the question: I wonder if the problem is with Legacy BIOS which is most likely the case or is there anything related to the new Clover builds.



Thanks a lot in advance for you support and hard work.

bootlog-Asus P5H77-USB3-Clover r4309.zip

[Sherlocks]

Hi guys,



I have a question.



When I try to dump the ACPI tables using F4 via clover (Legacy) r43xx on my Legacy Asus P5H77-USB3 rig or any other Legacy systems that I tried I get the following error.

So here is the question: I wonder if the problem is with Legacy BIOS which is most likely the case or is there anything related to the new Clover builds.



Thanks a lot in advance for you support and hard work.



how about this error on r4289 official?

[Cyberdevs]

how about this error on r4289 official?

I haven't tested with the official build. I'll test it and see if that makes any difference and report back.



Thanks

[Slice]

Hello Slice



good embedded with xcode5






the bad one with xcode8






thanks

Is it legacy boot? Or UEFI with CsmVideoDxe?

[Cyberdevs]

how about this error on r4289 official?

The same thing happens with official r4289.



It's not a big deal though, I see that the ACPI tables get dumped but it ends up with the error I posted earlier. The same thing happens with all the newer versions of clover. It dumps the tables but the error happens anyway and I have to reset the pc.

[Sherlocks]

The same thing happens with official r4289.



It's not a big deal though, I see that the ACPI tables get dumped but it ends up with the error I posted earlier. The same thing happens with all the newer versions of clover. It dumps the tables but the error happens anyway and I have to reset the pc.



Try r4278

r4278.zip

[Slice]

The same thing happens with official r4289.



It's not a big deal though, I see that the ACPI tables get dumped but it ends up with the error I posted earlier. The same thing happens with all the newer versions of clover. It dumps the tables but the error happens anyway and I have to reset the pc.

Any revision before 4276?

[Cyberdevs]

Any revision before 4276?

I tried with 4273 (not the official build) and it's still happening. Could it be some misconfiguration in the system's BIOS settings?

Try r4278

The same thing happens.

[Slice]

4273 should not crash at F4. The problem began at 4276.

[Cyberdevs]

4273 should not crash at F4. The problem began at 4276.

So it might be some error on my end. Thanks for the confirmation I'll figure it out

[Sherlocks]

4273 should not crash at F4. The problem began at 4276.



ACPIpatcher has problem now. some users suffer issue for boot

https://sourceforge.net/p/cloverefiboot/tickets/421/

[Picasso]

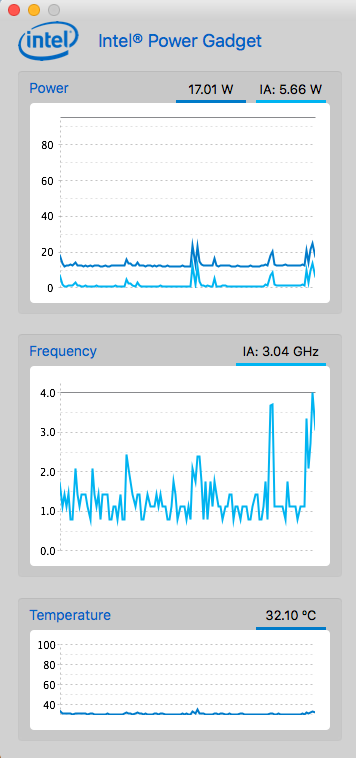

Upload clover bootlog after overclocked your cpu.



나의 LG-F800S 의 Tapatalk에서 보냄

@Sherlocks



Attached Boot Log with SSDT and without

Archive.zip
