1.temp test to check read other folder.zip file

-i temporarily disabled systemversion check for fusion drive to check to read other folder if os is null



2.rc test

-completely done



please test on each files, then report. thanks in advance.



For temp test version, GetOSVersion incorrectly finds 10.12 and Clover injects kexts from /Other and /10.12...





78:972  0:000  Loading boot.efi  status=Success
79:074  0:102  GetOSVersion: 10.12

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE725918
79:362  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
79:362  0:000  Use origin smbios table type 1 guid.
79:363  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\Other
79:363  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\RTL8192SUs.kext
79:398  0:034  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext
79:400  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext
79:404  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
79:405  0:001    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
79:407  0:001  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext
79:417  0:010    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\VoodooBatterySMC.kext
79:421  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\PC8739x.kext
79:424  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
79:427  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\GeforceSensor.kext
79:430  0:003  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\10.12
79:430  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\10.12\NullEthernet.kext





Block injected kexts menu only shows /Other folder...








For rc test version, GetOSVersion correctly finds 10.13 and Clover injects kexts from /Other and /10.13...





65:372  0:000  Loading boot.efi  status=Success
65:475  0:103  GetOSVersion: 10.13.1

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE72E718
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE72E718
65:762  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
65:762  0:000  Use origin smbios table type 1 guid.
65:763  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\Other
65:763  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\RTL8192SUs.kext
65:797  0:034  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext
65:799  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext
65:803  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
65:805  0:001    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
65:806  0:001  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext
65:816  0:010    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\VoodooBatterySMC.kext
65:820  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\PC8739x.kext
65:823  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
65:826  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\GeforceSensor.kext
65:829  0:003  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\10.13
65:829  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\10.13\NullEthernet.kext





Block injected kexts menu shows /Other and /10.13 folders...











Thanks Sherlocks.

I think your rc version is ready to go  :).

  • Like 1
Link to comment
Share on other sites

For temp test version, GetOSVersion incorrectly finds 10.12 and Clover injects kexts from /Other and /10.12...





78:972  0:000  Loading boot.efi  status=Success
79:074  0:102  GetOSVersion: 10.12

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE725918
79:362  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
79:362  0:000  Use origin smbios table type 1 guid.
79:363  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\Other
79:363  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\RTL8192SUs.kext
79:398  0:034  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext
79:400  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext
79:404  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
79:405  0:001    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
79:407  0:001  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext
79:417  0:010    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\VoodooBatterySMC.kext
79:421  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\PC8739x.kext
79:424  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
79:427  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\GeforceSensor.kext
79:430  0:003  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\10.12
79:430  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\10.12\NullEthernet.kext





Block injected kexts menu only shows /Other folder...







For rc test version, GetOSVersion correctly finds 10.13 and Clover injects kexts from /Other and /10.13...





65:372  0:000  Loading boot.efi  status=Success
65:475  0:103  GetOSVersion: 10.13.1

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE72E718
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: DE72E718
65:762  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
65:762  0:000  Use origin smbios table type 1 guid.
65:763  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\Other
65:763  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\RTL8192SUs.kext
65:797  0:034  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext
65:799  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Trackpad.kext
65:803  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
65:805  0:001    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
65:806  0:001  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext
65:816  0:010    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\VoodooBatterySMC.kext
65:820  0:004    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\PC8739x.kext
65:823  0:002    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\IntelCPUMonitor.kext
65:826  0:003    |-- PlugIn kext: EFI\CLOVER\OEM\XPS M1530 \kexts\Other\FakeSMC.kext\Contents\PlugIns\GeforceSensor.kext
65:829  0:003  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\OEM\XPS M1530 \kexts\10.13
65:829  0:000  Extra kext: EFI\CLOVER\OEM\XPS M1530 \kexts\10.13\NullEthernet.kext





Block injected kexts menu shows /Other and /10.13 folders...





Thanks Sherlocks.

I think your rc version is ready to go  :).

committed.

test all again. fusion drive.

thanks in advance.

Link to comment
Share on other sites

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!



So, so, so, so, so many build errors.


Stuck here and reboot instantly...


从我的 iPhone 发送,使用 Tapatalk



You have ACPI error loading table?? So ACPI sensors looks like it fails. What's up with that table? Looks like you didn't drop a table but reinjected it.



EDIT: Actually, it appears that namespace is declared in another table already and you are redeclaring it in that table...


Anyone else with EmuVariable problem please try that AptioFix? I think gujiangjiang may also have another issue.



EDIT: Anyone can try it. It (hopefully) should still work for working nvram.

EDIT2: I need reports people!

  • Like 1
Link to comment
Share on other sites

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!



So, so, so, so, so many build errors.





You have ACPI error loading table?? So ACPI sensors looks like it fails. What's up with that table? Looks like you didn't drop a table but reinjected it.



EDIT: Actually, it appears that namespace is declared in another table already and you are redeclaring it in that table...



Anyone else with EmuVariable problem please try that AptioFix? I think gujiangjiang may also have another issue.

My dsdt have no error with hotpatch ssdts.



I have try to delete acpisensors.kext but have no use.



I only drop dmar in my dropping table Id





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

My dsdt have no error with hotpatch ssdts.



I have try to delete acpisensors.kext but have no use.



I only drop dmar in my dropping table Id





从我的 iPhone 发送,使用 Tapatalk



Looks like you do have an error. Maybe it wasn't known cause you did not have correctly working system. You have add IMEI fix set? Maybe disable it.



EDIT: You may also need to set some nvram variables, that are set by nvram.plist in EFI shell before booting.

  • Like 1
Link to comment
Share on other sites

do you have fixheaders / fixheader20000000 patch maybe you need it.

I don’t need fix header or drop bgrt.





从我的 iPhone 发送,使用 Tapatalk

Looks like you do have an error. Maybe it wasn't known cause you did not have correctly working system. You have add IMEI fix set? Maybe disable it.



EDIT: You may also need to set some nvram variables, that are set by nvram.plist in EFI shell before booting.

Yes I have add SSDT-IMEI.aml to fix Imei because imei could cause many problem in video playback.





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

I don’t need fix header or drop bgrt.





从我的 iPhone 发送,使用 Tapatalk



Yes I have add SSDT-IMEI.aml to fix Imei because imei could cause many problem in video playback.





从我的 iPhone 发送,使用 Tapatalk



You are redefining it, it's already defined. You need to edit your original tables and remove or fix it, or make sure you don't have add IMEI dsdt fix enabled. Don't reinject that table without removing the previous definition.



EDIT: Also, reconcile your nvram since all the stuff from nvram.plist needs added back.

  • Like 1
Link to comment
Share on other sites

You are redefining it, it's already defined. You need to edit your original tables and remove or fix it, or make sure you don't have add IMEI dsdt fix enabled. Don't reinject that table without removing the previous definition.



EDIT: Also, reconcile your nvram since all the stuff from nvram.plist needs added back.

When I use official osxaptiov2 have no problem.



I will test more and give some feedback.





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

When I use official osxaptiov2 have no problem.



I will test more and give some feedback.





从我的 iPhone 发送,使用 Tapatalk



Yes, I am aware but the fixes have bugs, three of which I am aware, maybe more. I'm trying to fix them. I modified to prevent from moving runtime code areas, where SMM would be located, SMM uses physical mode so cannot be moved because the moving means that you have to adjust the physical addresses which can't be done, only virtual mode addresses can be changed.

Link to comment
Share on other sites

I test again with drop SSDT-IMEI but no use.



Try to remove IMEI Dsdt parched from heci but still can’t boot into OS X and always reboot.







从我的 iPhone 发送,使用 Tapatalk

Now I test add fix headers and drop bgrt but still reboot.





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

I test again with drop SSDT-IMEI but no use.



Try to remove IMEI Dsdt parched from heci but still can’t boot into OS X and always reboot.







从我的 iPhone 发送,使用 Tapatalk



I don't know what you mean. Are you injecting that table? Are you using the dsdt fix mask from clover? Did you edit your original table where IMEI is? Did you restore the values from your nvram.plist into your actual nvram? It may be easier for you to run the installer again to get proper nvram. See if you can launch the installer.

Link to comment
Share on other sites

I replaced with official osxaptiofixdrv2 with no emu driver and can run into the OS X.





从我的 iPhone 发送,使用 Tapatalk

I don't know what you mean. Are you injecting that table? Are you using the dsdt fix mask from clover? Did you edit your original table where IMEI is? Did you restore the values from your nvram.plist into your actual nvram? It may be easier for you to run the installer again to get proper nvram. See if you can launch the installer.

1. I don’t inject that table and I delete the dsdt patch (heci to Imei) and delete dsdt-imei.aml but still.



2. I didn’t need restore full nvram to native native because when I use official osxfix2 it works well.



3. Both system ,recoveryhd and installer can’t boot anymore.





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

I replaced with official osxaptiofixdrv2 with no emu driver and can run into the OS X.





从我的 iPhone 发送,使用 Tapatalk



Dude, I get that. There's a huge difference if you have working runtime that was not before. Do you still get message about it failing to load table because IMEI was already defined?

  • Like 1
Link to comment
Share on other sites

Dude, I get that. There's a huge difference if you have working runtime that was not before. Do you still get message about it failing to load table because IMEI was already defined?

Yes I have removed all the patch and ssdt related with Imei but with no use.



I want test this kext but can’t boot into OS X.





从我的 iPhone 发送,使用 Tapatalk

Link to comment
Share on other sites

committed.

test all again. fusion drive.

thanks in advance.



@Sherlocks,

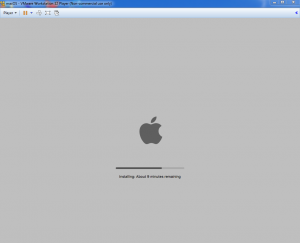

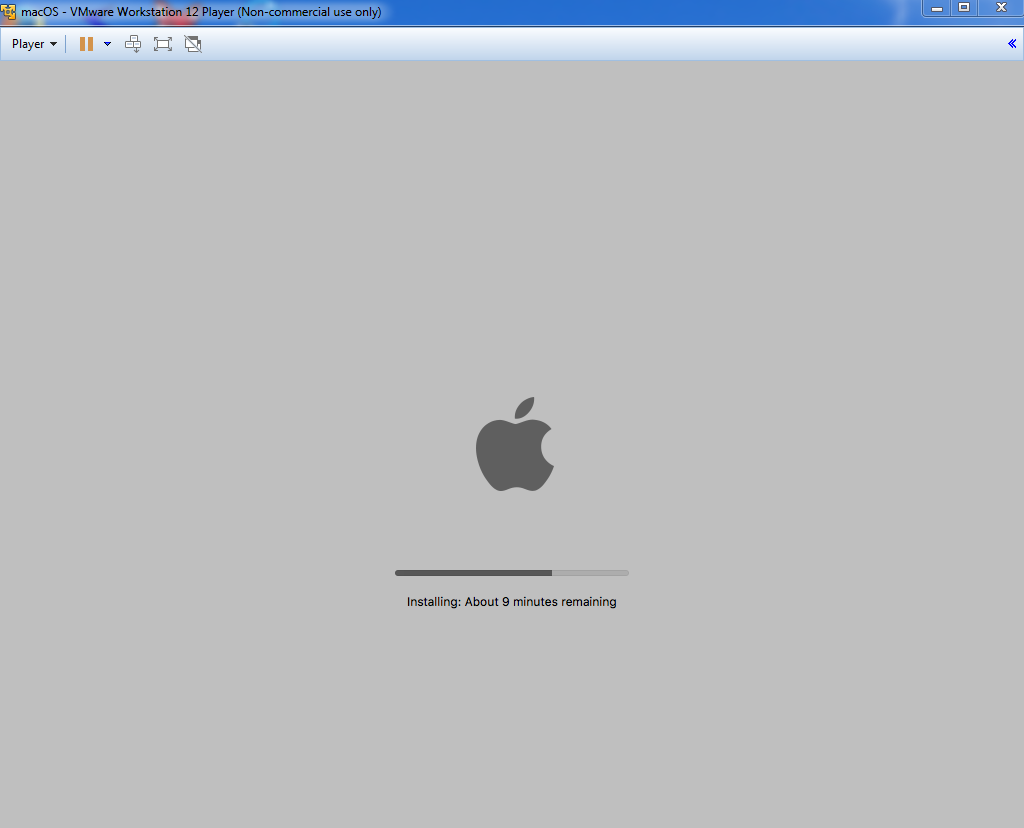

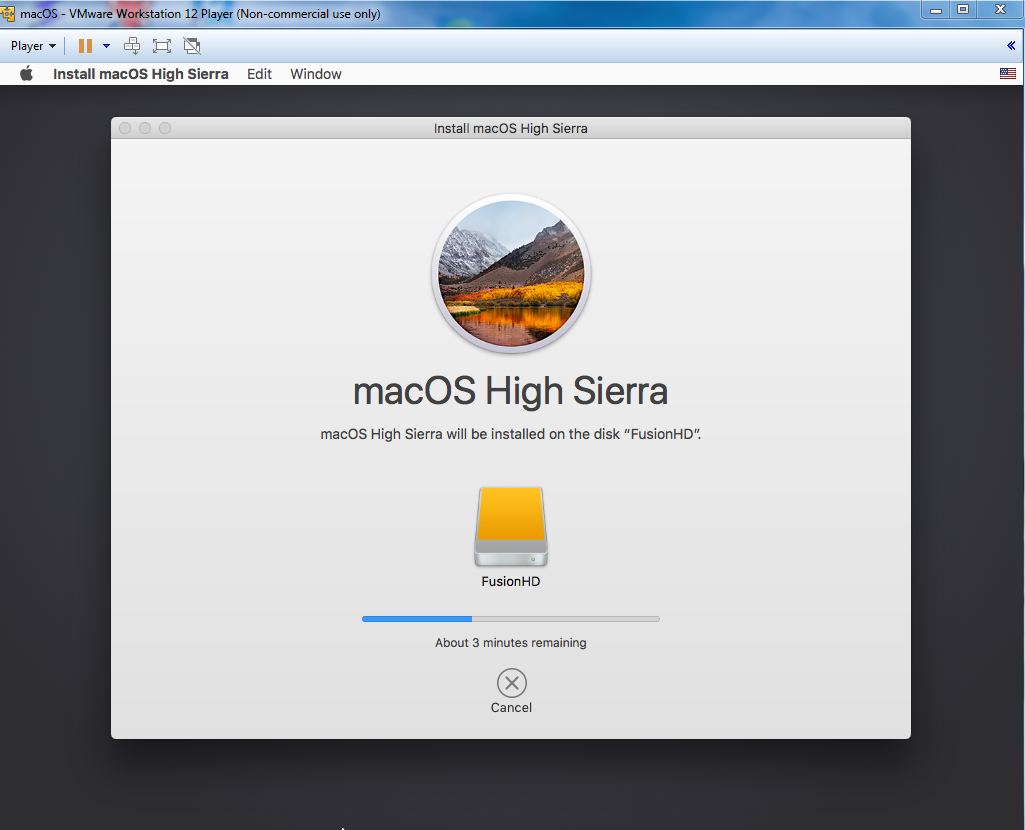

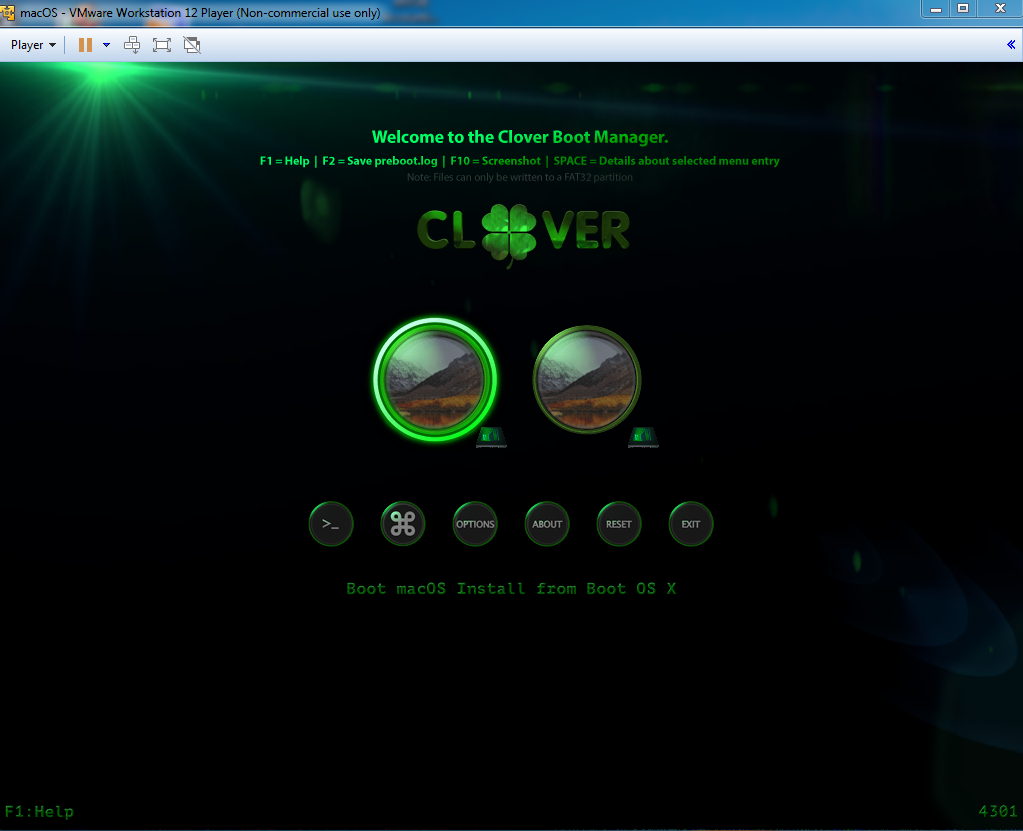

Clover r4301 working as expected, like rc test, for High Sierra installation on Fusion Drive.  ScanLoader finds 2 macOS install entries after first reboot, since the Apple installer creates a com.apple.boot.R folder in each "Boot OS X" partition...









0:661  0:004  === [ ScanLoader ] ========================================
0:661  0:000  - [03]: 'EFI'
0:661  0:000  - [05]: 'Boot OS X'
0:669  0:007          AddLoaderEntry for Volume Name=Boot OS X
0:688  0:019  - [06]: 'EFI'
0:703  0:014  - [08]: 'Boot OS X'
0:716  0:012          AddLoaderEntry for Volume Name=Boot OS X

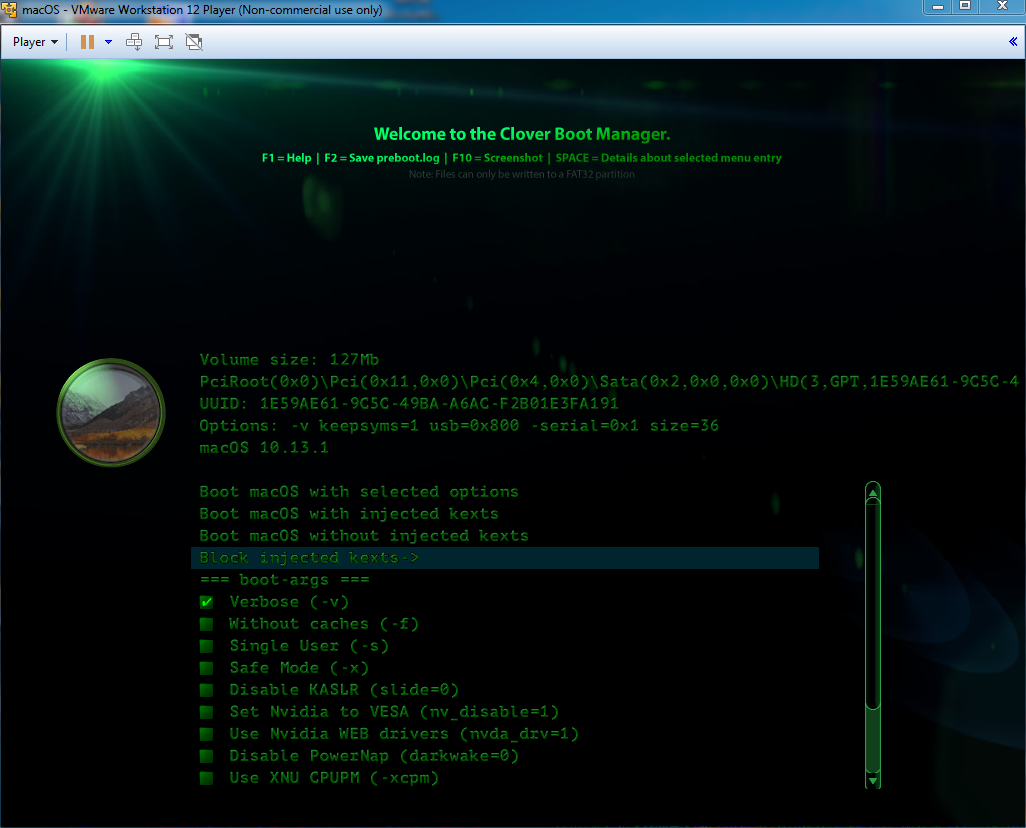

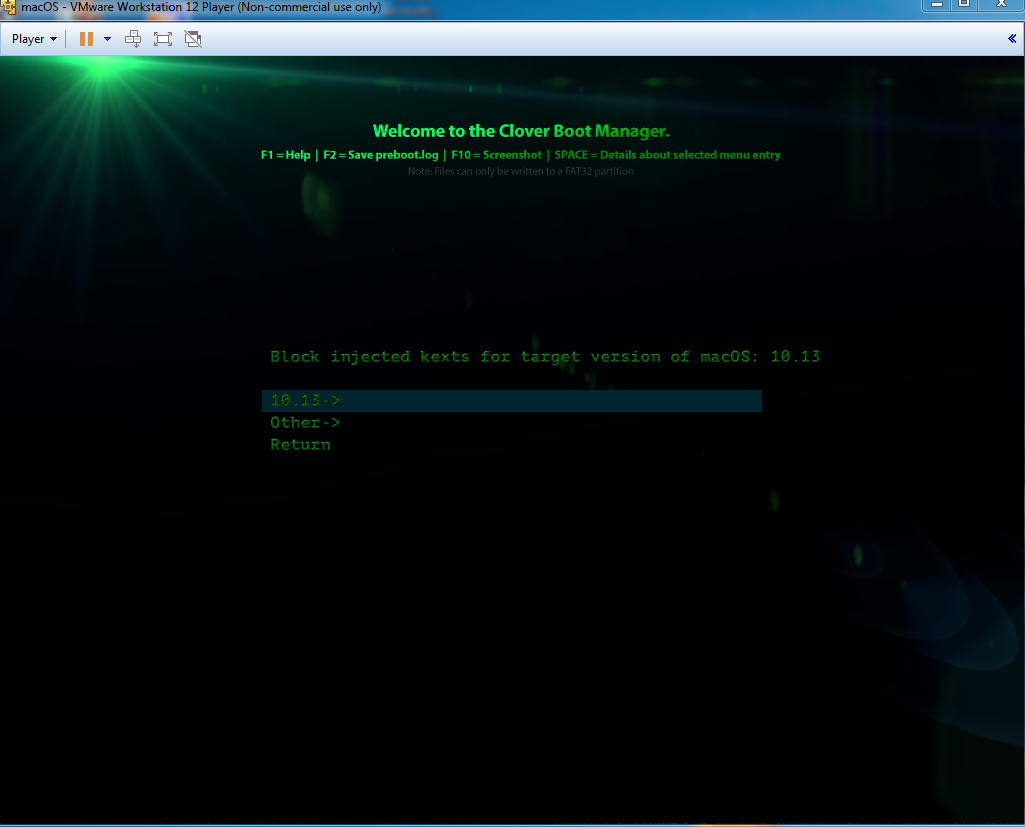

GetOSVersion correctly finds 10.13 and Clover injects kexts from /Other and /10.13...







27:650  0:000  Loading boot.efi  status=Success
27:672  0:021  GetOSVersion: 10.13.1

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BD4D2798
27:760  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
27:764  0:004  Use origin smbios table type 1 guid.
27:766  0:002  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
27:766  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
27:766  0:000  SetStartupDiskVolume:
27:766  0:000    * Volume: 'Boot OS X'
27:766  0:000    * LoaderPath: '\com.apple.boot.R\boot.efi'







Block injected kexts menu also shows /Other and /10.13 folders etc...
















Thanks Sherlocks :).

  • Like 2
Link to comment
Share on other sites

Nope, although I've never had a OsxAptioFix Issue .



Cause I made a mistake.... Did not remove something that still relocates runtime code areas, lol. I only have a virtual machine currently, trying to get physical install so I can test with real firmware. Give me a bit, I will give another test driver. Need it to work for everyone still though, so your test is helpful.

  • Like 1
Link to comment
Share on other sites

lol good to know, I just spent half an hour trying to figure out how to rename a file in efi using windows 10 power shell LOL the answer is also no it did not boot



You would have easier time with command prompt or EFI shell, lol.

  • Like 1
Link to comment
Share on other sites

@Sherlocks,



Clover r4301 working as expected, like rc test, for High Sierra installation on Fusion Drive. ScanLoader finds 2 macOS install entries after first reboot, since the Apple installer creates a com.apple.boot.R folder in each "Boot OS X" partition...









attachicon.gifInstalling on FusionHD first phase.png

attachicon.gifBoot macOS Install from Boot OS X.png

0:661  0:004  === [ ScanLoader ] ========================================
0:661  0:000  - [03]: 'EFI'
0:661  0:000  - [05]: 'Boot OS X'
0:669  0:007		  AddLoaderEntry for Volume Name=Boot OS X
0:688  0:019  - [06]: 'EFI'
0:703  0:014  - [08]: 'Boot OS X'
0:716  0:012		  AddLoaderEntry for Volume Name=Boot OS X





GetOSVersion correctly finds 10.13 and Clover injects kexts from /Other and /10.13...





27:650  0:000  Loading boot.efi  status=Success
27:672  0:021  GetOSVersion: 10.13.1

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BD4D2798
27:760  0:000  ** Warning: Your MLB is not suitable for iMessage(must be 17 chars long) !
27:764  0:004  Use origin smbios table type 1 guid.
27:766  0:002  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
27:766  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.13
27:766  0:000  SetStartupDiskVolume:
27:766  0:000    * Volume: 'Boot OS X'
27:766  0:000    * LoaderPath: '\com.apple.boot.R\boot.efi'





Block injected kexts menu also shows /Other and /10.13 folders etc...









Thanks Sherlocks :).

Thank you so much. Have a good day:)



나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 2
Link to comment
Share on other sites

So, apparently, there IS an AICPUPM problem in clover past r4180 r4073 somewhere. I really don't feel like tracing the problem, so I'll leave this for now.... Because I can't boot without AICPUPM panic. Can anyone who downloaded that previous driver give me screen shot if you hit space menu on entry and select the options verbose, keep symbols on panic, and don't reboot on panic? I want to see if it is AICPUPM related or not.



EDIT: I attached it again, if anyone could please try and post pic.

EDIT2: Looked what revision I last made a change at, the only one I know for sure I was last at I think was r4073, but I thought I had r4180 after that, should have checked before I replaced...

EDIT3: AAAAAAAAaaaaaaaaaaaaaaaaaarrrrrrrrrrrrrrrrrrrgggggggggggggggggggggggggggghhhhhhhhhhhhhhhhhhhh.... HULK SMASH.

OsxAptioFix2Drv-64.efi

  • Like 3
Link to comment
Share on other sites

×
×
  • Create New...
