Clover General discussion

ErmaC

By ErmaC,
in Clover

 Share
30960 posts in this topic

Recommended Posts

mhaeuser
mhaeuser
Posted
Posted

So I guess the code is fine, but something goes wrong in these funcs/vars?

Idk, I don't know or care about Clover personally, but a few buds use it, so it should be working. ;)

Can you make a build that prints os_version and the output of the single ToUint64 calls?

PMheart
PMheart
Posted
Posted

@PmHeart

For unsupported cpu, are kernel location for various reboot fix located in the same place?



TY

Oops, I don't know and I don't have much time on this... Maybe tomorrow? I really appreciate for your understand.





Idk, I don't know or care for Clover personally, but a few buds use it, so it should be working. ;)

Can you make a build that prints os_version and the output of the single ToUint64 calls?



Not very familiar with Clover code... I guess you mean something like this?

DBG_RT(Entry, "os_version: %s", os_version);

By the way, time to sleep now, and I hope everything will work fine tomorrow ;)

Sherlocks
Sherlocks
Posted
Posted

if anyone has intel kabylake graphics,



here is dvmt patch

com.apple.driver.AppleIntelKBLGraphicsFramebuffer

4C 89 5D C0 76 46

4C 89 5D C0 EB 46



detail information,

https://github.com/BarbaraPalvin/IntelGraphicsDVMTFixup/commit/52ccd2220532ee47ad44df980732a1b467f984cf#diff-34456cca29782c5994988c21d8a5ef26R265



also updated kabylake dvmt patches.



usage

lilu 1.1.4 + dvmtfixup 1.1.6 + boot flag "-igdvmtbeta", "-lilubeta"



i will update kabylake gma source.



thank you

  • Like 2
wern apfel
wern apfel
Posted
Posted

attachicon.gifinject_patcher.zip



And then, last try... (This pkg version)



attachicon.giftest_Clover_v2.4k_r4079.zip

So I guess the code is fine, but something goes wrong in these funcs/vars?

Thanks PMheart, with this build kext injection is working, 10.11, 10.12 too.

  • Like 2
vandroiy2012
vandroiy2012
Posted
Posted

Really weird then... Hmm, well, I'm actually not familiar with these procedures, I wish someone may help me check the source code:



attachicon.gifinject_patcher.zip



And then, last try... (This pkg version)



attachicon.giftest_Clover_v2.4k_r4079.zip

So I guess the code is fine, but something goes wrong in these funcs/vars?



This version worked for me. Sierra & High Sierra are OK :thumbsup_anim:

Riley Freeman
Riley Freeman
Posted
Posted

Really weird then... Hmm, well, I'm actually not familiar with these procedures, I wish someone may help me check the source code:



attachicon.gifinject_patcher.zip



And then, last try... (This pkg version)



attachicon.giftest_Clover_v2.4k_r4079.zip

So I guess the code is fine, but something goes wrong in these funcs/vars?



Neither of these are working for me with 10.13 (they do for 10.11 and 10.12).



I built a custom Clover with these kext inject files and edits for FirmwareFeaturesMask but with no working injection I can't get anywhere.

polyzargone
polyzargone
Posted
Posted

-lilubeta. Not -liludbg :)



Works :D !



-alcbeta



-lilubeta



From EFI/CLOVER/kexts/Other







FakeSMC_LPCSensors.kext (1758) org.hwsensors.driver.LPCSensors EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext
AppleALC.kext (1.1.1) as.vit9696.AppleALC EFI\CLOVER\kexts\Other\AppleALC.kext
VoodooPS2Trackpad.kext (1111) org.voodoo.driver.PS2Trackpad EFI\CLOVER\kexts\Other\VoodooPS2Trackpad.kext
FakeSMC.kext (1758) org.netkas.driver.FakeSMC EFI\CLOVER\kexts\Other\FakeSMC.kext
tufsfs.kext (2015.11.5) com.tuxera.filesystems.tufsfs.fusefs_txantfs /Library/Filesystems/fusefs_txantfs.fs//Contents/Resources/Support/10.9/tufs/tufsfs.kext
Lilu.kext (1.1.1) as.vit9696.Lilu EFI\CLOVER\kexts\Other\Lilu.kext
RealtekRTL8111.kext (2.2.1) com.insanelymac.RealtekRTL8111 EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
AppleACPIPS2Nub.kext (1.0.0d1) com.yourcompany.driver.AppleACPIPS2Nub EFI\CLOVER\kexts\Other\AppleACPIPS2Nub.kext
FakeSMC_GPUSensors.kext (1758) org.hwsensors.driver.GPUSensors EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext
FakeSMC_CPUSensors.kext (1758) org.hwsensors.driver.CPUSensors EFI\CLOVER\kexts\Other\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext





  • Like 1
Slice
Slice
Posted
Posted

When you're build a new Clover can you also build one with FirmwareFeatures and FirmwareFeaturesMask set to 0xFFFFFFFF? The installer is tripping up because the "firmware" isn't reporting that it supports APFS. The hope is that setting it to FFFFFFFF might pass the check.

c u



Oops, I think now my brain is a total mess! There was an variable error in the previous version, I hope this one should work:



attachicon.gifnew_src.zip



Binaries:



attachicon.gifClover_4079_injectkext_kern_patch_test.zip

That should override Num, instead of NumHighSie...



Variable Num is unused here.

I accepted your patch... almost....

CLOVERX64.efi-rev4080.zip

  • Like 2
Riley Freeman
Riley Freeman
Posted
Posted

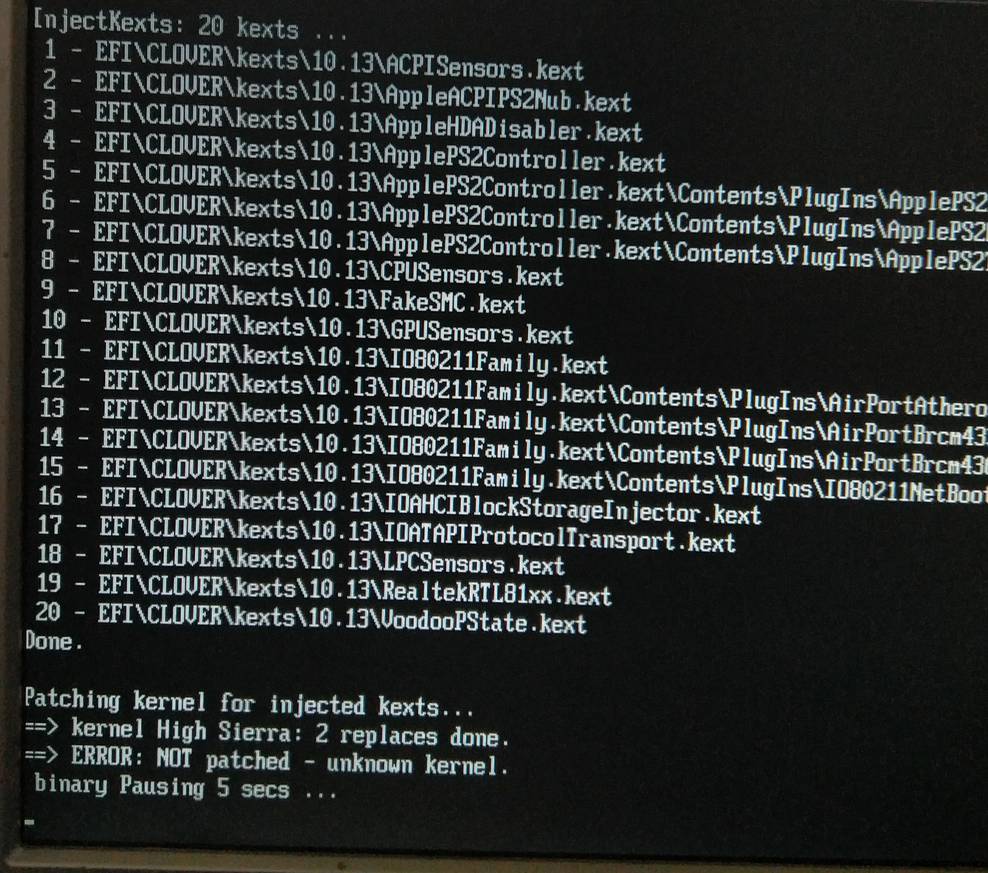

There's more work needed for the kext inject patch to detect 10.13. So far the only patched Clover builds that work are hard-coded for 10.13 only.



This one also doesn't work (makes no attempt to patch the kernel).

Sherlocks
Sherlocks
Posted
Posted

There's more work needed for the kext inject patch to detect 10.13. So far the only patched Clover builds that work are hard-coded for 10.13 only.



This one also doesn't work (makes no attempt to patch the kernel).

Yes

OSVersion code is not working properly in high sierra.

I try to fix clearly with debug.

I changed setting code and main code about osversion. Still no luck



It seems strange behavior.



4080 still works only 10.12 and under.



Kext injection of 10.13 is not working



나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 1
crazybirdy
crazybirdy
Posted
Posted

Yes

OSVersion code is not working properly in high sierra.

I try to fix clearly with debug.

I changed setting code and main code about osversion. Still no luck



It seems strange behavior.



4080 still works only 10.12 and under.



Kext injection of 10.13 is not working



나의 LG-F800S 의 Tapatalk에서 보냄



Is it ok to use NumHighSie for this code?

kext_inject.c

else if ((os_version >= AsciiOSVersionToUint64("10.13")) && (os_version < AsciiOSVersionToUint64("10.14"))) {
    NumHighSie = SearchAndReplace(Kernel, KERNEL_MAX_SIZE, KBEYosECSieHighSearchEXT, sizeof(KBEYosECSieHighSearchEXT), KBEYosECSieHighReplaceEXT, 1) +
                 SearchAndReplace(Kernel, KERNEL_MAX_SIZE, KBEHighSieSearchSIP, sizeof(KBEHighSieSearchSIP), KBEHighSieReplaceSIP, 1);
    DBG_RT(Entry, "==> kernel High Sierra (DP1): %d replaces done.\n", Num);
  }

NumHighSie should be Num here, right?

Sherlocks
Sherlocks
Posted
Posted

hello



all fixed injection



enjoy :)



i will arrange source and clear and upload source



let's install gogo


Is it ok to use NumHighSie for this code?
kext_inject.c

else if ((os_version >= AsciiOSVersionToUint64("10.13")) && (os_version < AsciiOSVersionToUint64("10.14"))) {
    NumHighSie = SearchAndReplace(Kernel, KERNEL_MAX_SIZE, KBEYosECSieHighSearchEXT, sizeof(KBEYosECSieHighSearchEXT), KBEYosECSieHighReplaceEXT, 1) +
                 SearchAndReplace(Kernel, KERNEL_MAX_SIZE, KBEHighSieSearchSIP, sizeof(KBEHighSieSearchSIP), KBEHighSieReplaceSIP, 1);
    DBG_RT(Entry, "==> kernel High Sierra (DP1): %d replaces done.\n", Num);
  }
NumHighSie should be Num here, right?
Fixed try my attached file

나의 LG-F800S 의 Tapatalk에서 보냄

Sherlocks-injectionfix.zip

  • Like 1
Riley Freeman
Riley Freeman
Posted
Posted

I'm in the middle of installing 10.13 so I'll check when it's finished. DId you make any changes to Clover detecting 10.13? There's also a fix needed for FirmwareFeaturesMask. See here.



I added an entry for fixing the boot glitch for my HD4000 and set MatchOS to 10.13.x. Looking at the debug output it gets marked as disabled (along with the 10.11 patch) while it looks like it tries to apply the 10.12 patch instead.

  • Like 1
Sherlocks
Sherlocks
Posted
Posted

I'm in the middle of installing 10.13 so I'll check when it's finished. DId you make any changes to Clover detecting 10.13? There's also a fix needed for FirmwareFeaturesMask. See here.



I added an entry for fixing the boot glitch for my HD4000 and set MatchOS to 10.13.x. Looking at the debug output it gets marked as disabled (along with the 10.11 patch) while it looks like it tries to apply the 10.12 patch instead.

No problem. Wait.



I will added all 10.13 information.:)



나의 LG-F800S 의 Tapatalk에서 보냄

  • Like 1
Guest ricoc90
Guest ricoc90
Posted
Posted

Hi guys,

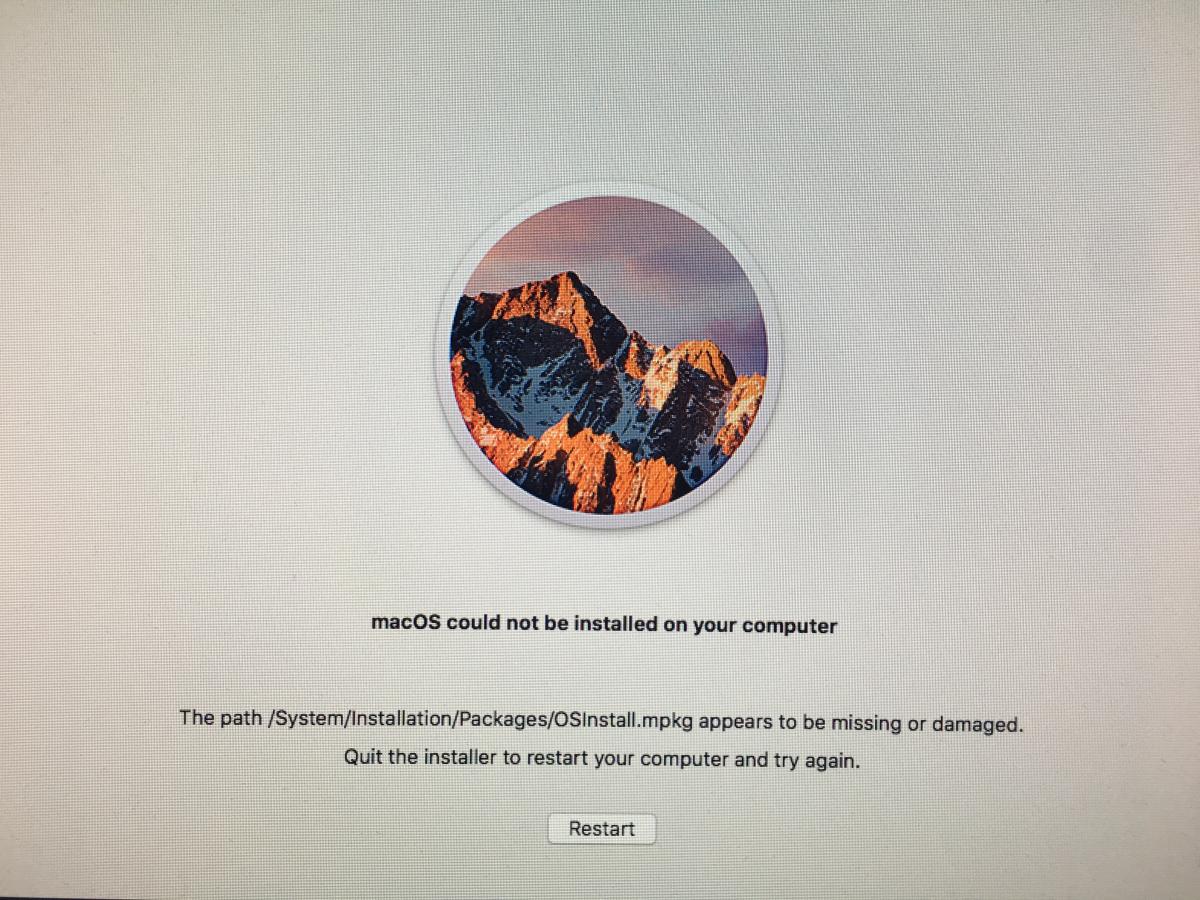

Any idea why is this happening with macOS 10.13?






Needless to say that OSInstall.mpkg file is there and...well, it shouldn't be damaged in any way.

Same here. I thought maybe it got damaged somehow, so I remade the USB. Same problem. So I re downloaded the beta app:



Optiplex-van-Rico:~ rico$ sudo /Applications/Install\ macOS\ 10.13\ Beta.app/Contents/Resources/createinstallmedia --volume /Volumes/Install\ macOS\ 10.13\ Beta --applicationpath /Applications/Install\ macOS\ 10.13\ Beta.app/ --nointeraction
/Applications/Install macOS 10.13 Beta.app/ does not appear to be a valid OS installer application.

:wallbash:

savvas
savvas
Posted
Posted

Same here. I thought maybe it got damaged somehow, so I remade the USB. Same problem. So I re downloaded the beta app:



Optiplex-van-Rico:~ rico$ sudo /Applications/Install\ macOS\ 10.13\ Beta.app/Contents/Resources/createinstallmedia --volume /Volumes/Install\ macOS\ 10.13\ Beta --applicationpath /Applications/Install\ macOS\ 10.13\ Beta.app/ --nointeraction
/Applications/Install macOS 10.13 Beta.app/ does not appear to be a valid OS installer application.

:wallbash:

After fail with firmware check, installation files corrupted.

You should remove all installation files which was expanded on install volume, and then re-run macOS 10.13 Beta.app

crazybirdy
crazybirdy
Posted
Posted



hello



all fixed injection



enjoy :)



i will arrange source and clear and upload source



let's install gogo

Fixed try my attached file



나의 LG-F800S 의 Tapatalk에서 보냄





Kext injection works fine now! :thumbsup_anim: :thumbsup_anim:




  • Like 1
Sherlocks
Sherlocks
Posted
Posted

here is v2 file

try test

v2 info
add savvamitrofanov's firmware info
add 10.13 os info


Okay fw passed. Thanks @savvamitrofanov again. Youre great!!!

Enjoy Clover users.

I will send source @Slice soon.
In korea, too early morning, maybe upload afternoon.



arrived


Sherlocks-v2.zip

  • Like 12
cecekpawon
cecekpawon
Posted
Posted
DBG_RT(Entry, "os_version: %s", os_version);



To debug current OSVersion string from plist I think you could do something like this

VOID EFIAPI KernelBooterExtensionsPatch(IN UINT8 *Kernel, LOADER_ENTRY *Entry)
{
  ...

  else {
    DBG_RT(Entry, "==> ERROR: NOT patched - unknown kernel (OSVersion: %a).\n", Entry->OSVersion);
  }
}
  • Like 1
blayze®
blayze®
Posted
Posted

I can't even reach the installer. Why do i keep getting "mach reboot" and appleapciplatform errors on the blackscreen when i'm trying to boot? Can, i get a sample working config or something? I'm using the latest clover posted on here. My current config worked excellent on Sierra.
