Demonbane
Demonbane
Posted
Posted

hi all,



i was trying only to use the external screen but not the internal screen, and i found a tutorial said that i should set

sudo nvram boot-args="iog=0x0"

to disable the internal screen at login.



but even if i set the nvram or i added the argument into the boot args of Clover, it doesn't work...



is that because Clover doesn't support any other boot args? or just because this argument "iog-0x0" is not supported by hackintosh?

Link to comment
Share on other sites
fusion71au
fusion71au
Posted
Posted

Search in your log wich uuid have recovery hd



And try this in config plist



<key>Hide</key>
        <array>
            <string> your UUID </string>
@ Sergey can you fix in boot loader this problem ?





It seems to be a bug in the Yosemite Recovery Update and not a problem with Clover or our hacks.  Mac owners are also having problems - see this thread on Mac Rumors: Yosemite Recovery Update 1.0 bug.



Easy workaround is to replace the com.apple.Boot.plist in the folder com.apple.boot.S with the one from com.apple.recovery.boot (credit @ALManimation and @pokenguyen).  You can rename/backup the original Boot.plist if you like ....






So is it safe to assume that it's impossible to recreate a missing Recovery HD? Mine is gone. Don't know what happened to it lol

I've found this handy tool to work perfectly in creating a recovery partition for Mavericks if you didn't create one during your initial install of OSX.  Haven't tested for Yosemite though....



Create Recovery Partition Installer 1.1

Requirements

  1. GUID partition scheme
  2. Mac Appstore Lion,ML or Mavericks Install.app
  3. Create.Recovery.Partition.Installer-1.1.dmg
  • Simply download and double click on Create.Recovery.Partition.Installer-1.1.dmg
  • Double click on Create Recovery Partition Installer.app
  • Drag your Appstore Install OS X Mavericks.app over to the above window--->RecoveryPartitionInstaller-10.9.pkg is created
  • Double click RecoveryPartitionInstaller-10.9.pkg and follow the prompts to create a recovery partition
  • Like 2
Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

Another quick question, probably more relevant to this topic… when I boot Clover legacy, my HD3000 is able to boot in proper resolution for my monitor, but not in UEFI boot. Any ideas why?

  • Like 1
Link to comment
Share on other sites
GhostRaider
GhostRaider
Posted
Posted

I'm not sure if I'm the only one but I tried upgrading to Clover r2758 and r2774 but something in these releases has caused my laptop keyboard and touchpad to not work anymore. The touchpad was dead and sometimes if i press a button on the keyboard, it starts glitching out. I downgraded back to r2747 and my keyboard and touchpad work fine again. Any ideas?

Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

Did you install CsmVideoDxe.efi

When I had that driver installed, Clover wouldn't boot at all. Just got stuck with the white blinking line on the black screen that usually shows before Clover GUI.

  • Like 2
Link to comment
Share on other sites
Slice
Slice
Posted
Posted

When I had that driver installed, Clover wouldn't boot at all. Just got stuck with the white blinking line on the black screen that usually shows before Clover GUI.

Set PatchVBios=FALSE



Hey, guys.



Boot.log for Yosemite boot drive being displayed twice in Clover UI, attached to this post.  I hope it helps.

As already said Recovery HD has two entries:

3:627  0:003  found PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,BBE5118D-D6FD-400C-BAB3-6A1950BE3C6D,0x4D9B2A28,0x135F20)\System\Library\CoreServices\boot.efi
3:633  0:005  found PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,BBE5118D-D6FD-400C-BAB3-6A1950BE3C6D,0x4D9B2A28,0x135F20)\com.apple.recovery.boot\boot.efi

And Clover account the first entry as an OSX. In this case it is Yosemite.

  • Like 2
Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted

As already said Recovery HD has two entries:

3:627  0:003  found PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,BBE5118D-D6FD-400C-BAB3-6A1950BE3C6D,0x4D9B2A28,0x135F20)\System\Library\CoreServices\boot.efi
3:633  0:005  found PcieRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,BBE5118D-D6FD-400C-BAB3-6A1950BE3C6D,0x4D9B2A28,0x135F20)\com.apple.recovery.boot\boot.efi
And Clover account the first entry as an OSX. In this case it is Yosemite.



Ok, I got it. Thank you. :)

It seems to be a bug in the Yosemite Recovery Update and not a problem with Clover or our hacks.  Mac owners are also having problems - see this thread on Mac Rumors: Yosemite Recovery Update 1.0 bug.



Easy workaround is to replace the com.apple.Boot.plist in the folder com.apple.boot.S with the one from com.apple.recovery.boot (credit @ALManimation and @pokenguyen).  You can rename/backup the original Boot.plist if you like ....

So will this workaround solve the Recovery HD partition being displayed twice? Once as an OSX and once as the actual Recovery HD partition?

What about future updates from Apple? Will this workaround affect that in any way? I don't mind leaving it as it is, for example. I'm not booting in Recovery everyday. :)) And the OSX partition works fine. So I could simply wait for the next update. But I'm just curious if this workaround is also safe for future updates.

And, as usual, big thank you for your very well detailed posts. :)

Link to comment
Share on other sites
magnifico
magnifico
Posted
Posted

It seems to be a bug in the Yosemite Recovery Update and not a problem with Clover or our hacks.  Mac owners are also having problems - see this thread on Mac Rumors: Yosemite Recovery Update 1.0 bug.



Easy workaround is to replace the com.apple.Boot.plist in the folder com.apple.boot.S with the one from com.apple.recovery.boot (credit @ALManimation and @pokenguyen).  You can rename/backup the original Boot.plist if you like ....

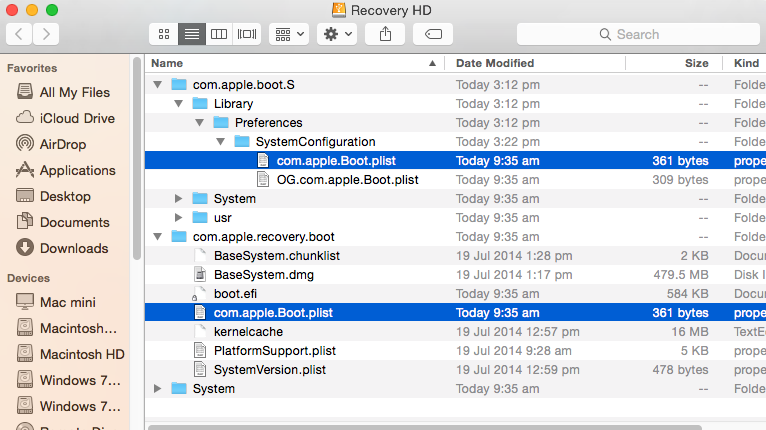

attachicon.gifReplace com.apple.Boot.plist.png







I've found this handy tool to work perfectly in creating a recovery partition for Mavericks if you didn't create one during your initial install of OSX.  Haven't tested for Yosemite though....



Create Recovery Partition Installer 1.1

Requirements

  • Simply download and double click on Create.Recovery.Partition.Installer-1.1.dmg
  • Double click on Create Recovery Partition Installer.app
  • Drag your Appstore Install OS X Mavericks.app over to the above window--->RecoveryPartitionInstaller-10.9.pkg is created
  • Double click RecoveryPartitionInstaller-10.9.pkg and follow the prompts to create a recovery partition

I did not say that this is' a bug in clover, I mean if it was possible to do a fix with clover...lol

Link to comment
Share on other sites
Riley Freeman
Riley Freeman
Posted
Posted

So is it safe to assume that it's impossible to recreate a missing Recovery HD? Mine is gone. Don't know what happened to it lol



You can use the dmtest utility from the recovery update to create one from scratch. You need the dmtest file from the Tools folder and the two BaseSystem files from the dmg. Pacifist will let you extract these. Put them all into the same folder and run the following command from that folder in the terminal:



sudo dmtest ensureRecoveryPartition / /path/to/BaseSystem.dmg 0 0 path/to/BaseSystem.chunklist



The first slash after ensureRecoveryPartition is the destination. You will normally pick your boot drive so that's /



  • Like 2
Link to comment
Share on other sites
fusion71au
fusion71au
Posted
Posted

Ok, I got it. Thank you. :)

So will this workaround solve the Recovery HD partition being displayed twice? Once as an OSX and once as the actual Recovery HD partition?

What about future updates from Apple? Will this workaround affect that in any way? I don't mind leaving it as it is, for example. I'm not booting in Recovery everyday. :)) And the OSX partition works fine. So I could simply wait for the next update. But I'm just curious if this workaround is also safe for future updates.

And, as usual, big thank you for your very well detailed posts. :)

Hi @arsradu,



Yes, the workaround fixes the duplicate entries so that there is only a single Yosemite partition and a single Recovery HD partition and each entry boots correctly.  Below are screenshots from my desktop hack after the fix has been applied....

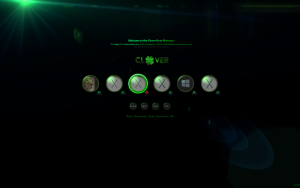

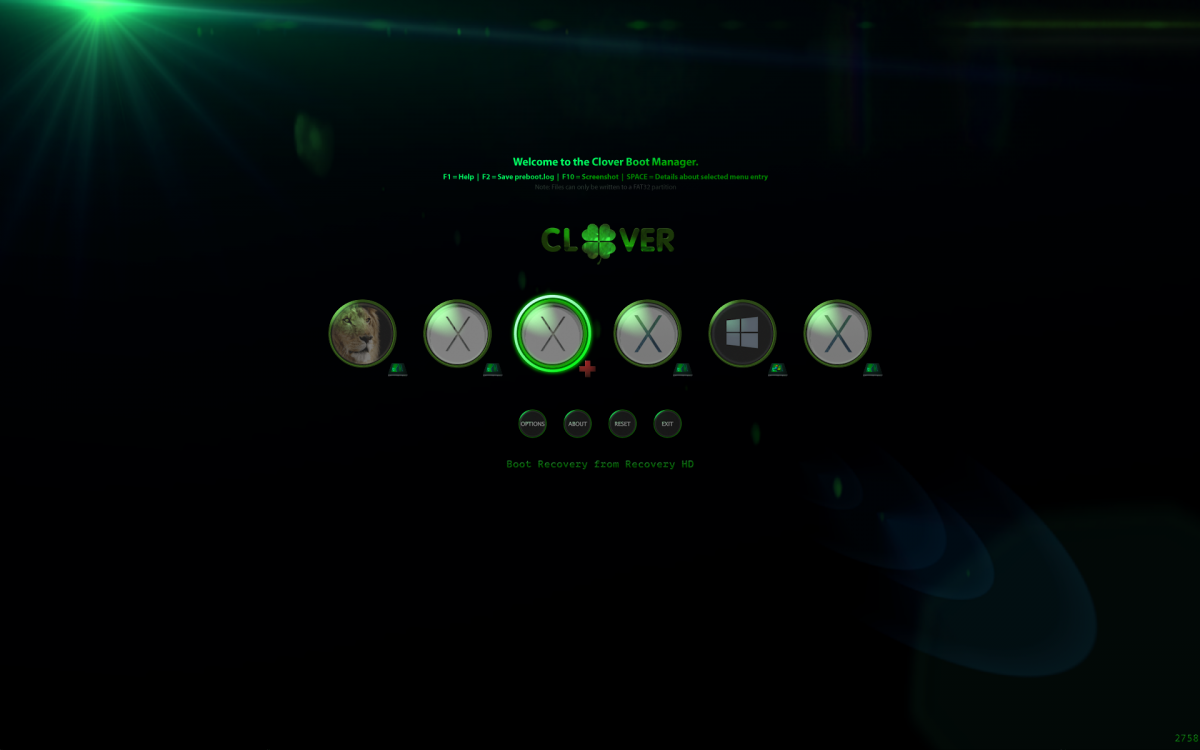

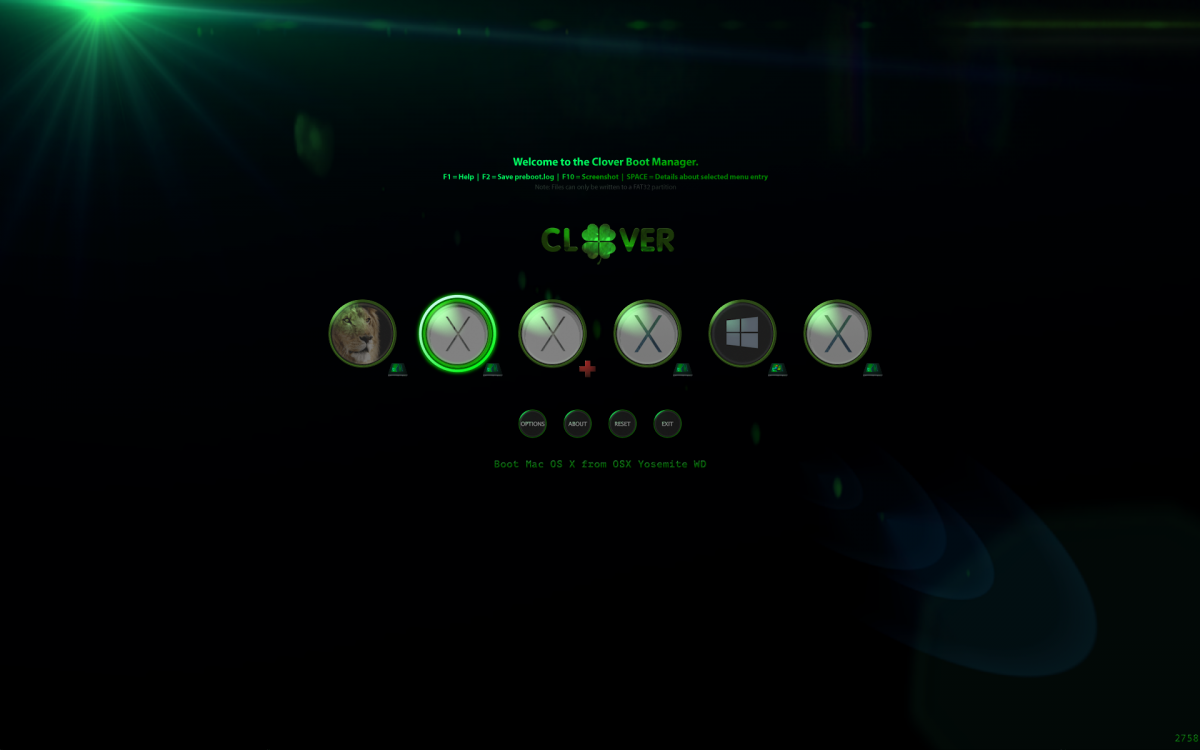

from L-->R:  Lion, Yosemite, Recovery HD, Mavericks Installer Partition, Windows_7X64 and Mavericks :D.







I don't believe the workaround will prevent any future updates from Apple - it is also easily reversed by swapping back the original boot.plist (before you apply future updates that affect the recovery partition).



If you can live with the cosmetic problem of 2 Yosemite entries and don't use the Recovery Partition, then you can always leave things as they are and wait for Apple to fix it :).

  • Like 1
Link to comment
Share on other sites
arsradu
arsradu
Posted
Posted

Hi @arsradu,



Yes, the workaround fixes the duplicate entries so that there is only a single Yosemite partition and a single Recovery HD partition and each entry boots correctly.  Below are screenshots from my desktop hack after the fix has been applied....

from L-->R:  Lion, Yosemite, Recovery HD, Mavericks Installer Partition, Windows_7X64 and Mavericks :D.



attachicon.gifRecovery HD.png




I don't believe the workaround will prevent any future updates from Apple - it is also easily reversed by swapping back the original boot.plist (before you apply future updates that affect the recovery partition).



If you can live with the cosmetic problem of 2 Yosemite entries and don't use the Recovery Partition, then you can always leave things as they are and wait for Apple to fix it :).



Thank you! :)

I've got a question, it's not related to the issue itself, but it is related to Clover and your pictures, in particular: how the hell did you take those perfect pictures? It doesn't look like they have been taken using a phone or a camera. Looks like screen captures. How? Does Clover have such a tool built-in? Cause I don't remember seeing one.

Link to comment
Share on other sites
Demonbane
Demonbane
Posted
Posted

hi all,





i was trying only to use the external screen but not the internal screen, and i found a tutorial said that i should set




sudo nvram boot-args="iog=0x0"

to disable the internal screen at login.





but even if i set the nvram or i added the argument into the boot args of Clover, it doesn't work...





is that because Clover doesn't support any other boot args? or just because this argument "iog=0x0" is not supported by hackintosh?


Link to comment
Share on other sites
kyndder
kyndder
Posted
Posted



hi all,



i was trying only to use the external screen but not the internal screen, and i found a tutorial said that i should set

sudo nvram boot-args="iog=0x0"

to disable the internal screen at login.



but even if i set the nvram or i added the argument into the boot args of Clover, it doesn't work...



is that because Clover doesn't support any other boot args? or just because this argument "iog=0x0" is not supported by hackintosh?





This isn't a bootloader flag but a kernel flag... Is almost sure that Clover itself has nothing to do

with this...



The system is Mavericks or Yosemite? Do you have working NVRAM?



If no, do you have RC scripts installed with Clover's installer?



You can also add the flag to your config.plist and use IgnoreNvramBoot=true to try...

Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

You can use the dmtest utility from the recovery update to create one from scratch. You need the dmtest file from the Tools folder and the two BaseSystem files from the dmg. Pacifist will let you extract these. Put them all into the same folder and run the following command from that folder in the terminal:



sudo dmtest ensureRecoveryPartition / /path/to/BaseSystem.dmg 0 0 path/to/BaseSystem.chunklist



The first slash after ensureRecoveryPartition is the destination. You will normally pick your boot drive so that's /



Thanks man, been asking this question for days… will try it out when I get home. I'll let you know if I have any questions, thanks again.

Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

You can use the dmtest utility from the recovery update to create one from scratch. You need the dmtest file from the Tools folder and the two BaseSystem files from the dmg. Pacifist will let you extract these. Put them all into the same folder and run the following command from that folder in the terminal:



sudo dmtest ensureRecoveryPartition / /path/to/BaseSystem.dmg 0 0 path/to/BaseSystem.chunklist



The first slash after ensureRecoveryPartition is the destination. You will normally pick your boot drive so that's /





Where do I find this "recovery update" ?

Set PatchVBios=FALSE



I already have this in my config.plist:

<key>Graphics</key>
<dict>
     <key>PatchVBios</key>
     <false/>
</dict>

...and it gets stuck before booting into Clover GUI with the blinking line in the upper left corner.  Should I maybe try setting it to true?  I'm using Clover r2758 at the moment.  r2774 wouldn't boot for me.

  • Like 1
Link to comment
Share on other sites
theconnactic
theconnactic
Posted
Posted

I've been having this very same problem for years now, ADHD. No suggested solution managed to fix it. It's not Slice's or Clover's fault. It seems some Intel IGPUs' VBIOSes haven't as much resolutions available for UEFI a mode, compared to legacy mode (my HD4000 displays the correct 1080p resolution with Chameleon).



I thought the CSMDriver worked unlocking all the legacy boot resolutions for UEFI boot, but it appears not to be that simple. I remember someone solving this by binary patching the IGPU VBIOS. Well, if this is the only way, I'll endure the stretched boot screen: it's really not a deal breaker, but a bummer, and definitely not as big a bummer as the ones always caused when you bin patch your IGPU's VBIOS (yes, you got it right: that binary patches ended up creating far more problems than it solved; shame I cannot find the posts about it).

  • Like 1
Link to comment
Share on other sites
ADHDMedia
ADHDMedia
Posted
Posted

Ya, frustrating but not the end of the world I guess. Just wish I could enable the HD3000 without having to set it as first in my BIOS, cuz then Clover would just load up on the screen connected to my GTX650 (which is the main screen anyway) instead of sideways on my vertical monitor that's connected to the IGFX.

  • Like 1
Link to comment
Share on other sites
