XLR Posted October 24, 2010 Share Posted October 24, 2010 Yes, looks like your NVclock clocked the clock up... Bdmesg is very easy to use, you just run it and it gives you info. Link to comment Share on other sites More sharing options...
THe KiNG Posted October 24, 2010 Share Posted October 24, 2010 Hi The King Any clues on how you got all 5 fans to show? I have the same Winbond chip on an Asus Rampage II Gene mobo (very similar DSDT to yours), but I always get just one fan showing up. Does it depend on any of the bios settings relating to fan control?? Thanks Not sure on Gene but on Extreme it use additional chips(ROG marked) for temps/fans, REXIII has 2 ROG chips + Winbond(my guess just rebranded Winbond, but not sure) On my case I just added FAN names in plist, and did the above paste in source, and all works just fine, no special setting in BIOS. If you have a ROG chip might explain why not all FAN's are on Winbond one... Link to comment Share on other sites More sharing options...
MacKonsti Posted October 24, 2010 Share Posted October 24, 2010 Guys, mozodojo, can you please confirm the following: 1. Your kexts in /E/E work well with any version of 10.6.x and don't necessarily require 10.6.4 (latest). 2. The fan names cannot have spaces in the Info.plist aliases; i.e. I wrote <string>Left Fan</string> and on iStat Menus it says "LeftFan". 3. What exactly is the Ambient temperature reading? Does it really exist on the board as a sensor? It appeared after you added <string>Auxiliary</string> in the Info.plist of the IT87x.kext. Ambient seems to have the same temperature as CPU Heatsink... 4. On my other mobo, using Gigabyte P55M-UD4 board with Core i7-860, I get a "Northbridge" reading although the P55 platform does not have any Northbridge or Southbridge architecture, right? So how come I get this reading? Anybody else with P55 chipset? On this hackintosh, the NvClockX.kext fails and causes a Kernel Panic (10.6.4 64-bit) as soon as I get to the desktop i.e. the VGA initializes. I use a GeForce 9500 with Device ID: 0x0640 and Revision ID: 0x00a1 Thanks Link to comment Share on other sites More sharing options...
wojnar0 Posted October 24, 2010 Share Posted October 24, 2010 Please add my device: Winbond wpc8763laodg I can't find data sheet. Thanks Link to comment Share on other sites More sharing options...
chibchan Posted October 25, 2010 Share Posted October 25, 2010 Yes, looks like your NVclock clocked the clock up... Why is nvclock trying to overclock my gpu and how do i resolve that? Link to comment Share on other sites More sharing options...
mitch_de Posted October 25, 2010 Share Posted October 25, 2010 I dont think it got overclocked (the screenshoot of KP cant show that). Maybe only the 7900GT isnt usable with that because shown GPU Type 4000 ? Link to comment Share on other sites More sharing options...
aleister Crowley Posted October 25, 2010 Share Posted October 25, 2010 Ive a Problen with the compile from 22.10 Since the SuperIOFamily.kext is included with the Plugins (i use only W836X.kext in Plugins Folder) my System cant wakeup from Hibernate( Mode 1). All i get is a blank Screen. No Problems with Hibernate/Deep Sleep with the older/other Versions without the seperate SuperIOFamiliy.kext. I was using FakeSMC /Intelthermal/W836X without Problems Ive Asus P7P55LX ,Core i5 750, Ati 5750 ( Kabyl Bootloader ,GraphicsEnabler=Yes, 64Bit) Problems with Sleep(Hibernate Mode0) too when i use your FakeMSC i get Kernel Panic after wake from Sleep. No Problem with Netkas v2.5 I dont know why... Link to comment Share on other sites More sharing options...
chibchan Posted October 25, 2010 Share Posted October 25, 2010 I dont think it got overclocked (the screenshoot of KP cant show that).Maybe only the 7900GT isnt usable with that because shown GPU Type 4000 ? Ok, Google on GPU Type 4000 yields nothing regarding 7900GT or its G71 chipset. The open source version works fine from s/l/e. Is anyone else getting a KP with the Geforce 7 series graphic cards using nvclock from E/E? Link to comment Share on other sites More sharing options...
CooSee Posted October 25, 2010 Share Posted October 25, 2010 thank you so much everthing worked ' /S/L/E ', except Nvidia Temp didn't show up kernel NVClockX: startedkernel NVClockX: Vendor ID: 10de, Device ID: 5e2 kernel NVClockX: Architecture: 800000 kernel NVClockX: GT200 [GeForce GTX 260] kernel Hw PCI location: bus: 4h dev: 1h func: 0h (invalid under 98se) < --- WHAT kernel NVDANV50HAL loaded and registered. EDIT: Unknown Winbond chip found this is what i get with ' lm_sensors ' ( GenToo Linux ) Driver `it87': * ISA bus, address 0x290 Chip `ITE IT8718F Super IO Sensors' (confidence: 9) Driver `adt7475': * Bus `NVIDIA i2c adapter ' Busdriver `nvidia', I2C address 0x2e Chip `Analog Devices ADT7473' (confidence: 5) is it possible to add Winbond ' adt7475 ' ? THX CooSee ' Ya Link to comment Share on other sites More sharing options...
factory Posted October 27, 2010 Share Posted October 27, 2010 Hello, Is there a possibility to add my device id to NVClockK.kext because this message appears. NVClockX: G96 [GeForce G 110M] Error reading BIOS My video card ID is 0x0651 Thanks for your work!! Link to comment Share on other sites More sharing options...
29.Diego Posted October 28, 2010 Share Posted October 28, 2010 We have neither dual-processor computers nor FB-DIMMs. If somebody say to me where and what looks i can provide feedback. Link to comment Share on other sites More sharing options...
sw170 Posted October 28, 2010 Share Posted October 28, 2010 Is anyone else getting a KP with the Geforce 7 series graphic cards using nvclock from E/E? Geforce 7600go on HP Pavilion here -> nvclock KP from E/E, didn't try S/L/E Link to comment Share on other sites More sharing options...
RaMDaY Posted October 29, 2010 Share Posted October 29, 2010 Nvclock KP on my 7600 GO from S/L/E. Link to comment Share on other sites More sharing options...
h.M.M Posted October 30, 2010 Share Posted October 30, 2010 Thanks works great. ^^ To bad iStat Menu doesn't display all sensor readings. :/ Link to comment Share on other sites More sharing options...
The Real Deal Posted October 31, 2010 Share Posted October 31, 2010 Try the 3.0.1 version. Link to comment Share on other sites More sharing options...
kozlek Posted October 31, 2010 Author Share Posted October 31, 2010 Who waiting for radeon and acpimonitor, be patient, I am planing to port all available plugins soon. I have iStat 3.10 with all sensors working. I am using custom mac model GigaMac3,1 (iMac11,3 CPU part + Macpro3,1 GPU part). Link to comment Share on other sites More sharing options...
MacKonsti Posted October 31, 2010 Share Posted October 31, 2010 Who waiting for radeon and acpimonitor, be patient, I am planing to port all available plugins soon. I have iStat 3.10 with all sensors working. I am using custom mac model GigaMac3,1 (iMac11,3 CPU part + Macpro3,1 GPU part). Now that is quite interesting, dear mozodojo! I wouldn't mind a very brief tutorial on how you did that custom model. Did you get hardware same as Apple, that's why you could combine them? I hope you can find some time and explain to us, someday. At least, I am sure you're getting SpeedStepping, right? Link to comment Share on other sites More sharing options...
snackole Posted October 31, 2010 Share Posted October 31, 2010 I changed the TjMax to 100 but kernel.log still shows 90. Any ideas how to make the change stick? Link to comment Share on other sites More sharing options...
Pietruszka Posted November 1, 2010 Share Posted November 1, 2010 KP here with 7600gs (nvclockx) Link to comment Share on other sites More sharing options...
chibchan Posted November 1, 2010 Share Posted November 1, 2010 It seems many geforce 7 series video cards are causing KP with nvclock from E/E. Are we out of luck with this one? Link to comment Share on other sites More sharing options...

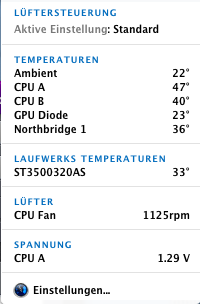

Carstiman Posted November 2, 2010 Share Posted November 2, 2010 hello, i used HWSensors from 01.10.2010 worked well without any panic and now i´ve got an ambient sensor if i switch TEMPIN0FORCED to yes, W836x.kext found CPU Heatsink is there a way to get both ? Ambient_log.rtf Heatsink_log.rtf Link to comment Share on other sites More sharing options...
aleister Crowley Posted November 2, 2010 Share Posted November 2, 2010 Who waiting for radeon and acpimonitor, be patient, I am planing to port all available plugins soon. I have iStat 3.10 with all sensors working. I am using custom mac model GigaMac3,1 (iMac11,3 CPU part + Macpro3,1 GPU part). Can you post your smbios.plist ? Link to comment Share on other sites More sharing options...
kozlek Posted November 2, 2010 Author Share Posted November 2, 2010 You can download old one from my signature. But I need to update it, later. Link to comment Share on other sites More sharing options...
mightycrown Posted November 2, 2010 Share Posted November 2, 2010 Hello My Thinkpad has PC87385 Super I/O. i Saw you have PC8739. Is it possible to build a plugin for 87385? I got kernel panic when PC8739 loaded Thanks for ya great work. - Sorry abut the false info, I got PC8739X to load. However I could not get sensor readings. Link to comment Share on other sites More sharing options...
mitch_de Posted November 2, 2010 Share Posted November 2, 2010 Litte Offtopic: Why are the 10.5 builds much bigger (double sized) ? Thanks Link to comment Share on other sites More sharing options...
