mitch_de
mitch_de
Posted
Posted
The 10.6.x are actually larger (2x) than the 10.5.x, no? I believe it is due to the Snow Leopard being a x64 system.



YEP, thats it. 10.6 is bigger as 10.5 .kexts (i wrote opposite by failure). 64 Bit seems to be the reason.

Link to comment
Share on other sites
kozlek
kozlek
Posted
  • Author
Posted
For my information, are QPI VTT and DRAM voltages, implementable values?



Maybe, if Apple's SMC has keys for these voltages. Anyway it's possible to implement additional voltage readings. Not sure if SuperIO chips supports VTT voltages but DIMM I could see in everest.

Link to comment
Share on other sites
chuuey
chuuey
Posted
Posted

nice, however what if i don't really care about any monitoring, is this version more compatible with hardware etc than the original netkas 2.5 version? Is there any point using these newer versions and can i do it without the monitoring plugins?

Link to comment
Share on other sites
kozlek
kozlek
Posted
  • Author
Posted

Test it and say to us is it better or not. The only difference from netkas release is various SMC key types support and plugins interface. In general I did not see any difference on how the system works.

Link to comment
Share on other sites
FKA
FKA
Posted
Posted

Hi Mozodojo



Thanks so much for your work!



I'm not getting fan monitoring anymore with this latest build?



FakeSMC: Opensource SMC device emulator by netkas © 2009
FakeSMC: Modified for plugins support by mozodojo © 2010
FakeSMC: Idea of FakeSMC plugins and code sample by usr-sse2
FakeSMC: Thanks to slice for help with hardware support code and plugins
FakeSMCDevice: 16 keys added
IntelThermal: CPU family 0x6, model 0x17, stepping 0x7, cores 4, threads 0
IntelThermal: CPU Tjmax 100
FakeSMC: adding key TC0D with handler, type sp78, size 2
FakeSMC: adding key TC1D with handler, type sp78, size 2
FakeSMC: adding key TC2D with handler, type sp78, size 2
FakeSMC: adding key TC3D with handler, type sp78, size 2
AppleIntelCPUPowerManagement: initialization completeVoodooMonitor: © 2009 Mojodojo, All
Rights Reserved. Based on VoodooPower code by superhai. Special thanks to markswell for cpuid utilities.

FireWire runtime power conservation disabled. (2)
FireWire (OHCI) VendorID 1106 ID 3403 PCI now active, GUID xxxxxxxxxxxxxx; max speed s400.
W836x: found Winbond W83667HG
FakeSMC: adding key Th0H with handler, type sp78, size 2
FakeSMC: adding key TN0P with handler, type sp78, size 2
FakeSMC: adding key VC0C with handler, type fp2e, size 2
mbinit: done (64 MB memory set for mbuf pool)








EDIT - just to confirm have corrected key for my Mac model (iMac9,1)





And this is what I get from Everest:



--------[ Sensor ]------------------------------------------------------------------------------------------------------



Sensor Properties:

Sensor Type Winbond W83667HG (ISA 290h)

GPU Sensor Type Diode (ATI-Diode)

Motherboard Name Asus P5Q / P5Q3 / P5QL Series

Chassis Intrusion Detected No



Temperatures:

Motherboard 20 °C (68 °F)

CPU 38 °C (100 °F)

CPU #1 / Core #1 50 °C (122 °F)

CPU #1 / Core #2 49 °C (120 °F)

CPU #1 / Core #3 51 °C (124 °F)

CPU #1 / Core #4 52 °C (126 °F)

GPU Diode (DispIO) 44 °C (111 °F)

GPU Diode (MemIO) 48 °C (118 °F)

GPU Diode (Shader) 50 °C (122 °F)

ExcelStor Technology J9250S 29 °C (84 °F)

Hitachi HDT725025VLA380 38 °C (100 °F)

SAMSUNG HD321KJ 28 °C (82 °F)

SAMSUNG HD322HJ 22 °C (72 °F)



Cooling Fans:

CPU 917 RPM

Chassis #2 1854 RPM

GPU 35%



Voltage Values:

CPU Core 1.25 V

+3.3 V 3.31 V

+5 V 5.02 V

+12 V 12.10 V

+5 V Standby 5.14 V



Current Values:

CPU 19.53 A



Power Values:

CPU 19.56 W

Debug Info F FF 5C FF / 5B FF

Debug Info T 20 38 43 / 00

Debug Info V 9C D8 D1 CF D1 FF 58 (03)

Debug Info I C1 A513













Cheers

D

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
Hi Mozodojo



Thanks so much for your work!

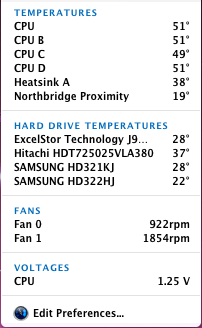

I'm not getting fan monitoring anymore with this latest build?



Solved by changing W836x.kext info.plist



<key>FANINLIMIT</key>

<integer>0</integer>



to



<key>FANINLIMIT</key>

<integer>4</integer>





Bit odd to default it to 0 ??

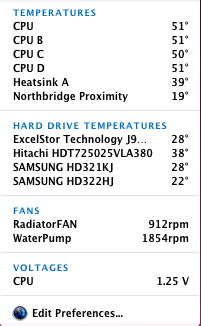

Or even better:






with



<key>FANIN0</key>

<string></string>

<key>FANIN1</key>

<string>Radiator FAN</string>

<key>FANIN2</key>

<string></string>

<key>FANIN3</key>

<string>Water Pump</string>

<key>FANIN4</key>

<string></string>

<key>FANINLIMIT</key>

<integer>4</integer>



Very nice. Thanks a lot again :)

Cheers

D

Link to comment
Share on other sites
Carstiman
Carstiman
Posted
Posted
It seems that my snow leopard cannot load 2010-11-06's compiled binaries. :unsure:



for me too.



kxld[org.netkas.FakeSMC]: The following symbols are unresolved for this kext:

kxld[org.netkas.FakeSMC]: __ZN10FakeSMCKey10setHandlerEP9IOService

Can't load kext org.netkas.FakeSMC - link failed.

Failed to load executable for kext org.netkas.FakeSMC.

Kext org.netkas.FakeSMC failed to load (0xdc008016).

Dependency org.netkas.FakeSMC of kext org.mozodojo.IntelThermal failed to load.

Kext org.mozodojo.IntelThermal failed to load (0xdc008015).

Failed to load kext org.mozodojo.IntelThermal (error 0xdc008015).

Kext org.usrsse2.NVClockX - library kext org.netkas.FakeSMC not found.

Can't load kext org.usrsse2.NVClockX - failed to resolve library dependencies.

Kext org.usrsse2.NVClockX failed to load (0xdc00800e).

Failed to load kext org.usrsse2.NVClockX (error 0xdc00800e).

Kext org.mozodojo.SuperIOFamily - library kext org.netkas.FakeSMC not found.

Can't load kext org.mozodojo.W836x - failed to resolve library dependencies.

Kext org.mozodojo.W836x failed to load (0xdc00800e).

Failed to load kext org.mozodojo.W836x (error 0xdc00800e).

Couldn't alloc class "IntelThermal"

Couldn't alloc class "NVClockX"

Couldn't alloc class "W836x"

Link to comment
Share on other sites
aschar1
aschar1
Posted
Posted
Same here with current SL compiled.

I'm using previous build from 22-10-2010.



D



same here - version from 22 th oct works great - the new nvclock changes doesnt load the whole {censored} - no kp



same here - version from 22 th oct works great - the new nvclock changes doesnt load the whole {censored} - no kp



new version posted some minutes ago with the fakesmc kext not loading fix results in kp

Link to comment
Share on other sites
Eps
Eps
Posted
Posted
same here - version from 22 th oct works great - the new nvclock changes doesnt load the whole {censored} - no kp







new version posted some minutes ago with the fakesmc kext not loading fix results in kp



Me,too.

FakeSMC results in a AppleSMC kp. :)

Link to comment
Share on other sites
stefano.85
stefano.85
Posted
Posted
for me too.



kxld[org.netkas.FakeSMC]: The following symbols are unresolved for this kext:

kxld[org.netkas.FakeSMC]: __ZN10FakeSMCKey10setHandlerEP9IOService

Can't load kext org.netkas.FakeSMC - link failed.

Failed to load executable for kext org.netkas.FakeSMC.

Kext org.netkas.FakeSMC failed to load (0xdc008016).

Dependency org.netkas.FakeSMC of kext org.mozodojo.IntelThermal failed to load.

Kext org.mozodojo.IntelThermal failed to load (0xdc008015).

Failed to load kext org.mozodojo.IntelThermal (error 0xdc008015).

Kext org.usrsse2.NVClockX - library kext org.netkas.FakeSMC not found.

Can't load kext org.usrsse2.NVClockX - failed to resolve library dependencies.

Kext org.usrsse2.NVClockX failed to load (0xdc00800e).

Failed to load kext org.usrsse2.NVClockX (error 0xdc00800e).

Kext org.mozodojo.SuperIOFamily - library kext org.netkas.FakeSMC not found.

Can't load kext org.mozodojo.W836x - failed to resolve library dependencies.

Kext org.mozodojo.W836x failed to load (0xdc00800e).

Failed to load kext org.mozodojo.W836x (error 0xdc00800e).

Couldn't alloc class "IntelThermal"

Couldn't alloc class "NVClockX"

Couldn't alloc class "W836x"



same here... and same errors while boot... 22th version works fine...

Link to comment
Share on other sites
kozlek
kozlek
Posted
  • Author
Posted
Bit odd to default it to 0 ??



Value 0 means not to override default hardcoded value. I've got default values from the datasheets. If you think default value is wrong you could override it.



Im not a senior developer. I don't want to make second everest. My drivers sometimes not working properly oob so you need to configure it manually. :wacko:

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
Value 0 means not to override default hardcoded value. I've got default values from the datasheets. If you think default value is wrong you could override it.



Im not a senior developer. I don't want to make second everest. My drivers sometimes not working properly oob so you need to configure it manually. :dev:



I knew it would be for some reason I didn't understand LOL.



and I'm more than happy to have to tweak things a wee bit :D



D

Link to comment
Share on other sites
ileikcaek
ileikcaek
Posted
Posted

Thank you for this.



I have the kexts installed in E/E but I had to get rid of the NVClockX one as it was causing random KP's when booting. without it OS X boots a lot quicker with these kexts, a huge improvement, it no longer stalls for a while waiting for DSMOS. I have all temp/RPM sensors showing but no Voltage and obviously no GPU stuff due to the NVClockX not being present.



It is more than I had before with FakeSMC 2.5 so I cannot complain, Here's to the future of this fantastic project :D

Link to comment
Share on other sites
MacUser2525
MacUser2525
Posted
Posted
What does it means? How do you know the voltage is right or wrong?



I can tell mine is wrong because it never changes and the voltage it shows (1.23v) is higher than the highest set by both my BIOS and in my DSDT.aml which is 1.196 after the vdroop of my board and this latter voltage is the highest I see when I open the Voodoo Monitor. Even if it was picking up the default VID of my chip then it is still wrong as that is 1.2125.

Link to comment
Share on other sites
