[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell

[Gymnae]

moved to

Accidentally posted in the wrong thread, oops.

Edited May 5, 2018 by Gymnae

[skyfly555]

Hi,



I realised right now this another thread exists: https://www.insanelymac.com/forum/topic/323184-guide-el-capitan-sierra-high-sierra-on-intel-lga-775-motherboards-dsdt/



So, I'm out-of-topic here. Please, MaLd0n, can you move my last 3 posts to this other thread?



Thank you,

[MaLd0n]

20 hours ago, skyfly555 said:

Hello, MaLd0n,

I wonder if you read my last two posts, related to my Acer Aspire 5315 with High Sierra 10.13.



The main two issues I’m trying to solve are:

1- When I boot, one of two times I get the attached image, and I have to shutdown and switch on again the laptop to get the desktop loaded. This happened before, with Sierra, but maybe one of every three boots.

2- Only 2 of 3 USBs work. This happened with Sierra too.



I hope this can be solved with DSDT patching, but I don’t know what I have to do.

Thank you again.



post files, check first post

16 hours ago, Gymnae said:

moved to

Accidentally posted in the wrong thread, oops.

use zippyshare

http://www.zippyshare.com/

[skyfly555]

Thank you, MaLd0n,



I've uploaded the requested files: https://www94.zippyshare.com/v/uzI3IzSL/file.html



Using your CLOVER Install.zip as it is, just adding GMAX3100 kexts.



NOTE: With your CLOVER install, the three USBs are working, not two as before, thank you for that

Edited May 6, 2018 by skyfly555

[MaLd0n]

46 minutes ago, skyfly555 said:

Thank you, MaLd0n,



I've uploaded the requested files: https://www94.zippyshare.com/v/uzI3IzSL/file.html



Using your CLOVER Install.zip as it is, just adding GMAX3100 kexts.



DSDT.aml.zip

put dsdt in clover/acpi/patched, drop oem tables in config.plist, reboot and send me new dump

[skyfly555]

2 hours ago, MaLd0n said:

DSDT.aml.zip

put dsdt in clover/acpi/patched, drop oem tables in config.plist, reboot and send me new dump

Did I understand "drop oem  tables"?

I added

<false/>

below

<key>#DropOEM_DSM</key>
and

added

<key>Name</key>
                        <string>DSDT.aml</string>

just before

<key>#Patches</key>



Or maybe did I have to change from

<key>#DropOem</key>
            <true/>

to <key>#DropOem</key>
            <false/>

in <key>SSDT</key> section?



This is what I got after rebooting:

https://www11.zippyshare.com/v/hb8KR0yX/file.html



Thank you,

EDIT: Please, forget this, look at the following post.

Edited May 6, 2018 by skyfly555

[skyfly555]

Hello,

I realised that was not correct.

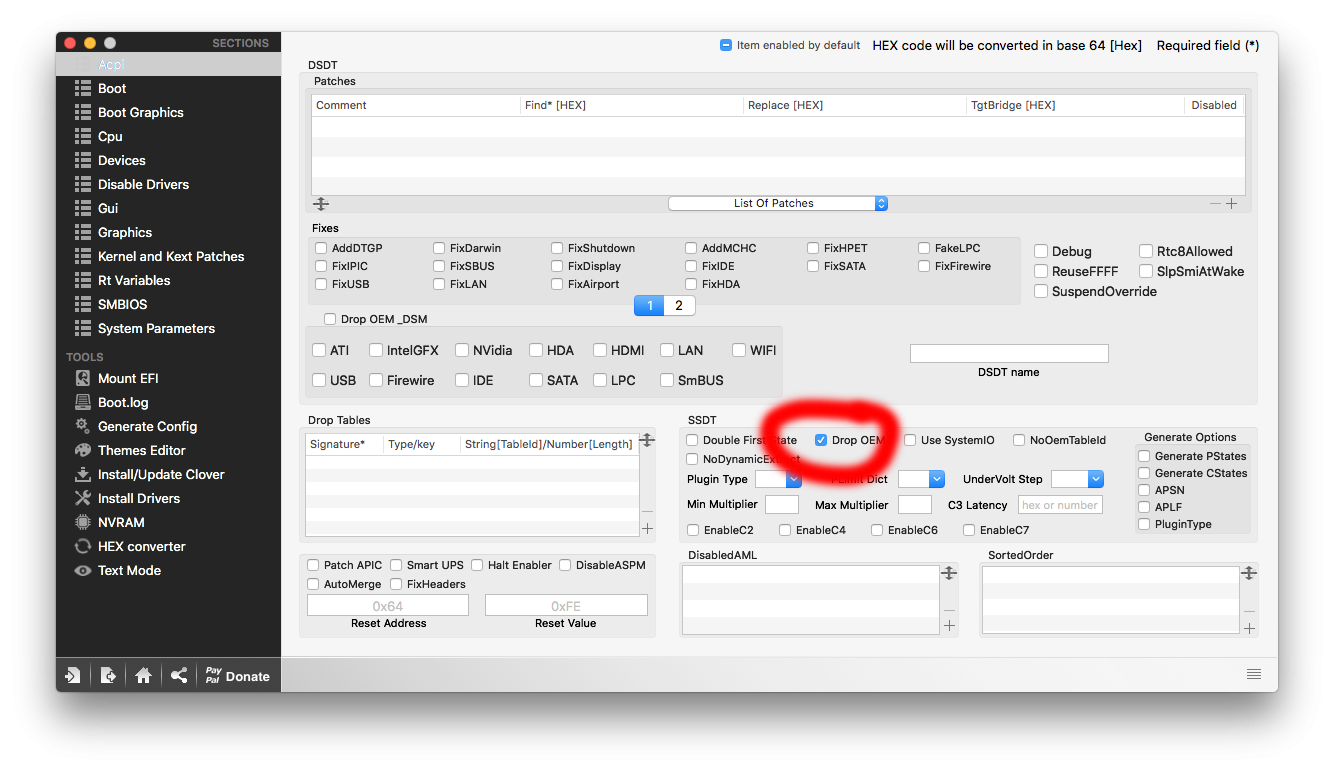

I dropped oem tables with Clover Configurator, rebooted, now this is what I get: https://www109.zippyshare.com/v/fOGepBSP/file.html



Thank you again,

[MaLd0n]

24 minutes ago, skyfly555 said:

Hello,

I realised that was not correct.

I dropped oem tables with Clover Configurator, rebooted, now this is what I get: https://www109.zippyshare.com/v/fOGepBSP/file.html



Thank you again,

[skyfly555]

7 hours ago, MaLd0n said:

Thank you, it's done.

The results: https://www53.zippyshare.com/v/rRyGS5g2/file.html



[MaLd0n]

8 hours ago, skyfly555 said:

Thank you, it's done.

The results: https://www53.zippyshare.com/v/rRyGS5g2/file.html



Looks good, now check Power Management, u use NullCpuPM, this kext kill PM

[skyfly555]

Thank you, NullCPUPowerManagement.kext deleted.



One last question: do you think we can improve something with the booting issue related to GMA X3100 kexts?

Since I changed SMBIOS from Macbook 5,1 to iMac 10,1, it boots correctly one of every three/four times, this aspect seems to be worse. With Macbook 5,1, it happened one very two/three although I didn't have the third USB port recognised. Is there, maybe, anyway to use MacBook 5,1 SMBIOS and to have the three USB ports working at the same time?

Thanks again,

[MaLd0n]

u need a correct smbios, ur usb work native

[skyfly555]

I'll check again with MB 5,1 SMBIOS, thank you.

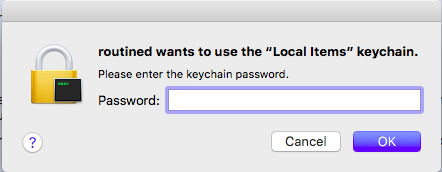

Oops! Everytime I boot I get this and I have to intro password, this didn't happen before. Do you know what can it be?

[MaLd0n]

no idea, use a fresh install and start tests

[skyfly555]

Thank you very much, Mald0n, I rebuilt kext caches and now no more booting troubles!

Quote





Please, MaLd0n, one more DSDT patch?

We have just made an Acer Aspire 5315, and it's great, it runs much smoother!



Now I'm requesting an Acer Aspire 5715z, it's nearly the same computer, only audio codec is different. I cloned the SDD to this computer, taking out the "Drop OEM" and your patched DSDT.aml and it booted. I wonder if you can apply the same patches you applied to my 5315, to get a smoother High Sierra on it. This is the ZIP: https://www48.zippyshare.com/v/NpZDf70I/file.html



Thank you again

[MaLd0n]

1 hour ago, skyfly555 said:

Thank you very much, Mald0n, I rebuilt kext caches and now no more booting troubles!



Please, MaLd0n, one more DSDT patch?

We have just made an Acer Aspire 5315, and it's great, it runs much smoother!



Now I'm requesting an Acer Aspire 5715z, it's nearly the same computer, only audio codec is different. I cloned the SDD to this computer, taking out the "Drop OEM" and your patched DSDT.aml and it booted. I wonder if you can apply the same patches you applied to my 5315, to get a smoother High Sierra on it. This is the ZIP: https://www48.zippyshare.com/v/NpZDf70I/file.html



Thank you again

DSDT.aml.zip

[skyfly555]

13 hours ago, MaLd0n said:

DSDT.aml.zip

Thank you again, it works like a charm, faster and more smoothly.

[MaLd0n]

4 hours ago, skyfly555 said:

Thank you again, it works like a charm, faster and more smoothly.

welcome

enjoy

[skyfly555]

Yesterday upgraded my Acer 5315 from 10.13 to 10.13.4

Perfect. No troubles, just as my lap was a real mac. Thank youuu MaLd0n

[MaLd0n]

3 minutes ago, skyfly555 said:

Yesterday upgraded my Acer 5315 from 10.13 to 10.13.4

Perfect. No troubles, just as my lap was a real mac. Thank youuu MaLd0n

[Balamut]

Hey guys, I'm loosing my mind here, been at this on and off for days and still can't figure out.



10.3.3 instals and runs fine, upgrade to 10.3.4 goes fine, fresh install from the usb installer goes fine, to install from USB I just have to disable LiLu and NvidiFix kext oh and I have to remove second GPU or gpuLock thing happens,  but the on the first start after complete, fresh  install  I get kernel panics, system lockups to the point of even the reset button doesn't work, also EXTREMELY slow initial boot to clover with the latest apfs.efi.

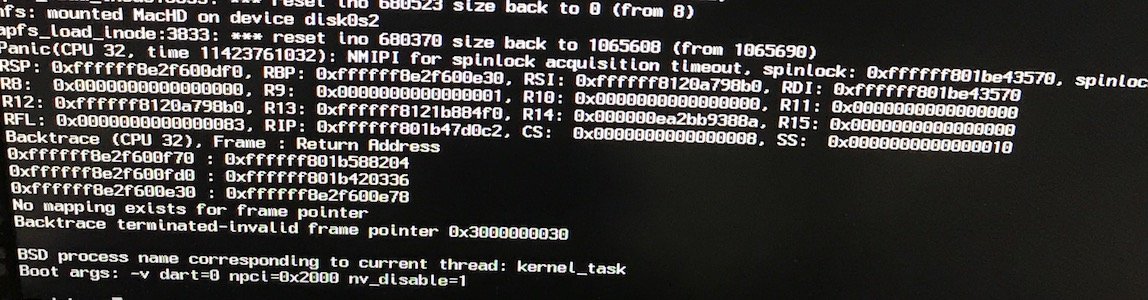

What the hell is NMIPI lock?





YELP!!!!







https://www.dropbox.com/s/tftdu6vv0ubufad/CLOVER.zip?dl=0





Edited May 13, 2018 by Balamut

[MaLd0n]

43 minutes ago, Balamut said:

Hey guys, I'm loosing my mind here, been at this on and off for days and still can't figure out.



10.3.3 instals and runs fine, upgrade to 10.3.4 goes fine, fresh install from the usb installer goes fine, to install from USB I just have to disable LiLu and NvidiFix kext oh and I have to remove second GPU or gpuLock thing happens,  but the on the first start after complete, fresh  install  I get kernel panics, system lockups to the point of even the reset button doesn't work, also EXTREMELY slow initial boot to clover with the latest apfs.efi.





What the hell is NMIPI lock?





YELP!!!!







https://www.dropbox.com/s/tftdu6vv0ubufad/CLOVER.zip?dl=0





cpu 32, is not a limit OSX 64 threads problem?

[Balamut]

Same as before lowered it down to 16 cores per cpu. Never had this kind of issues with any of the previous 10.3 versions



ingonna try the os on hpfs instead apfs see if it does anything.



I even tried removing all dsdt ssdt patches. Same {censored}

Edited May 13, 2018 by Balamut

[Balamut]

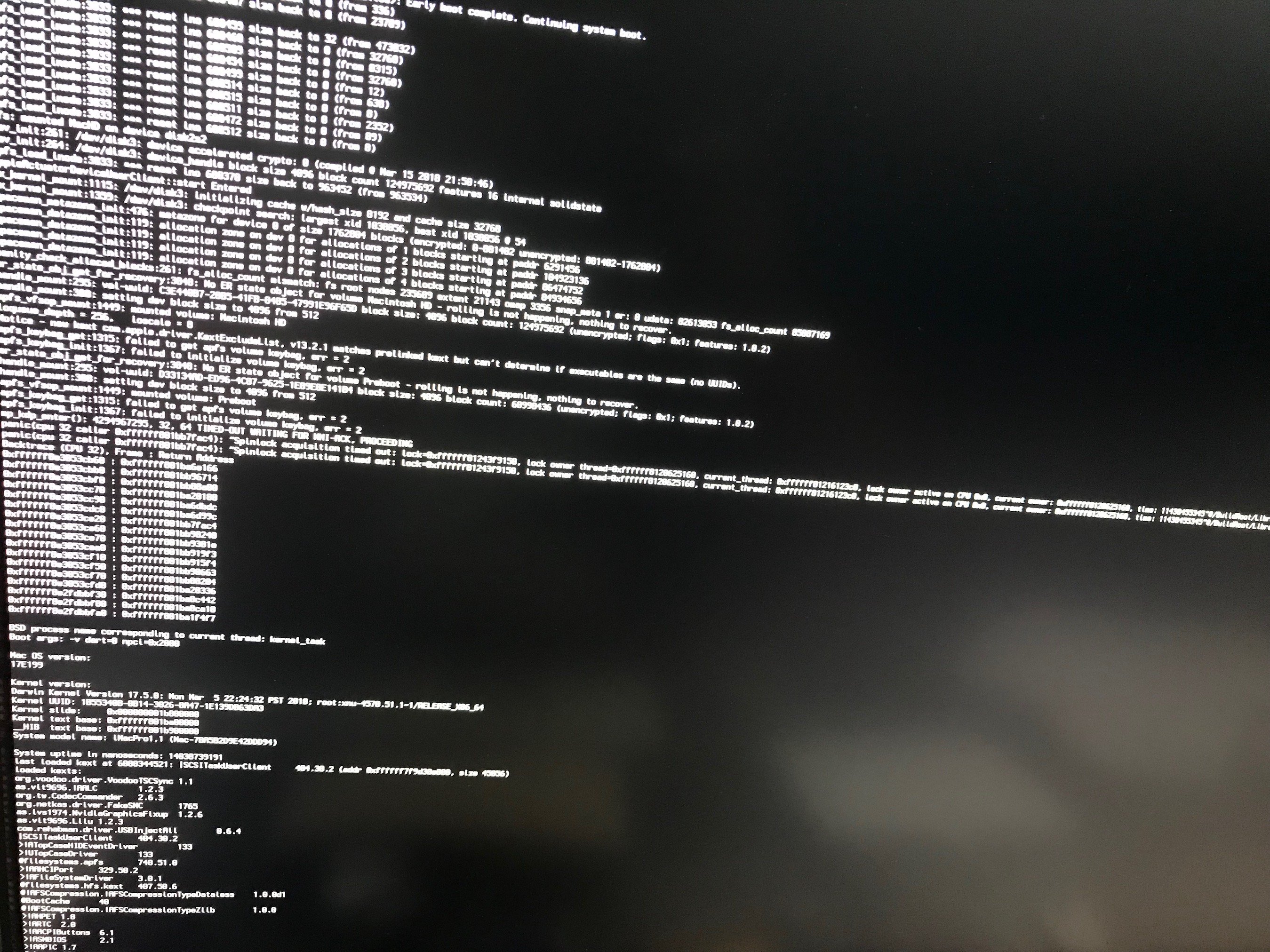

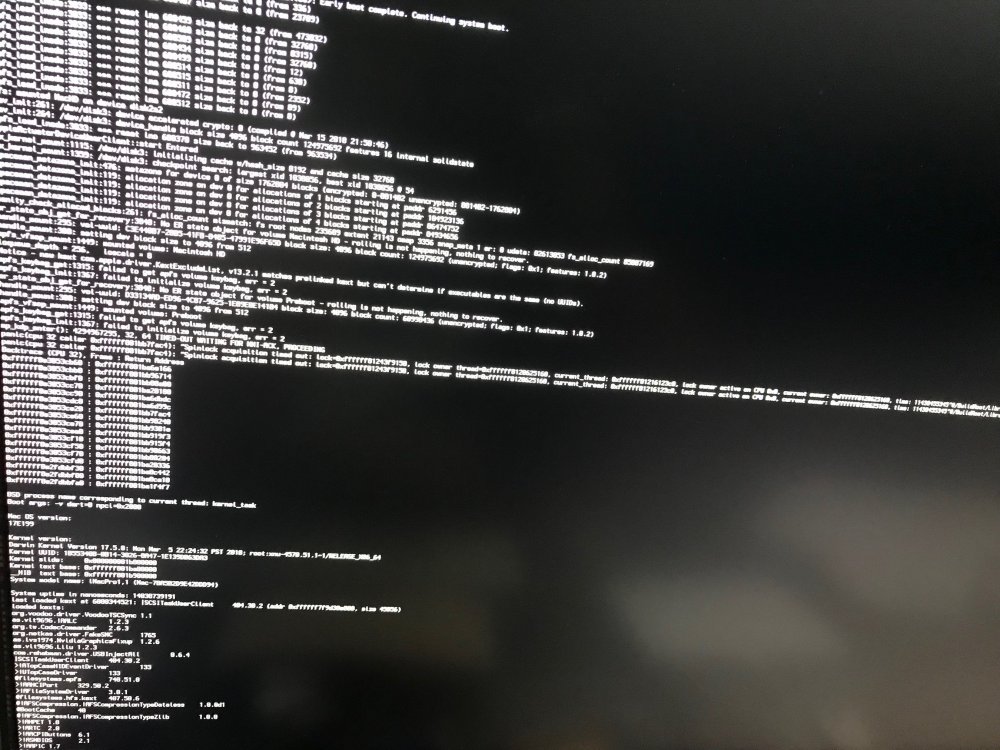

Same issue with HFS so its not APFS issue, I've managed to get a new Kernel Panic, gurus any thoughts why is this happening?



[MaLd0n]

6 hours ago, Balamut said:

Same issue with HFS so its not APFS issue, I've managed to get a new Kernel Panic, gurus any thoughts why is this happening?



try, use last clover version

CLOVER.zip
