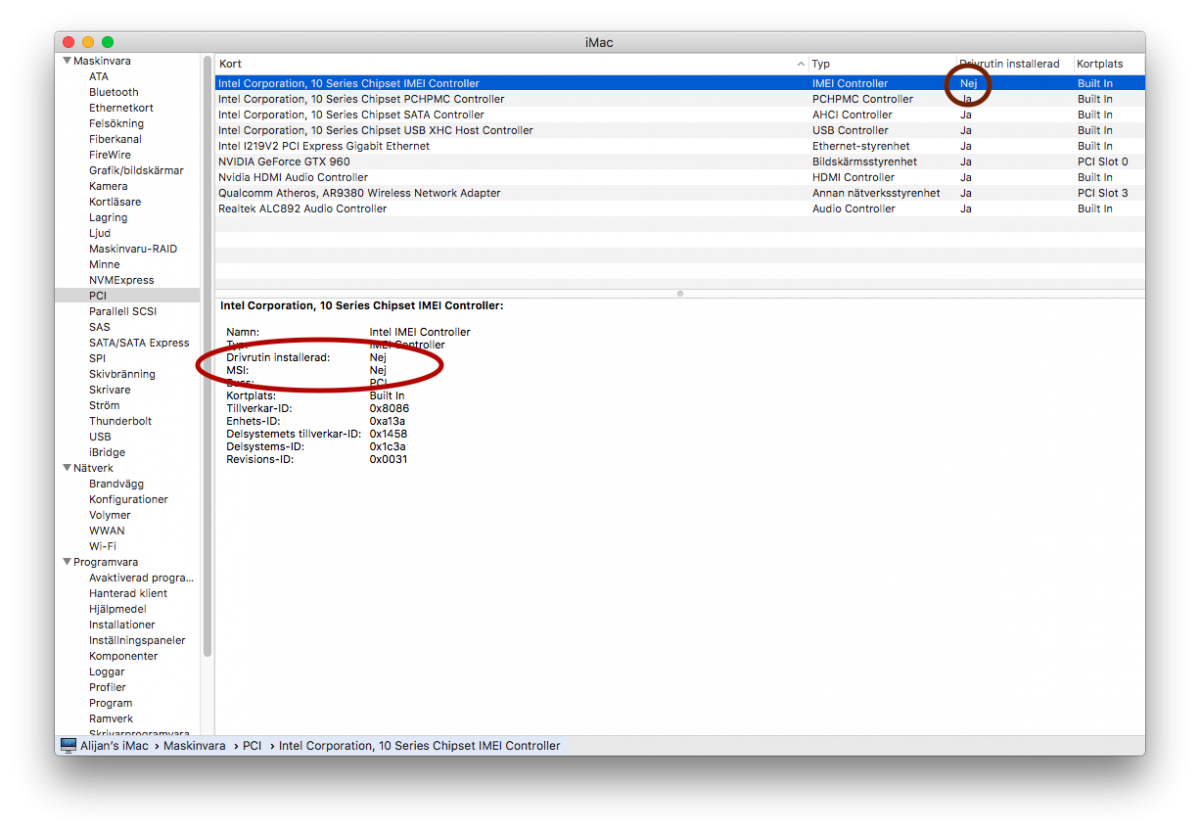

swede420 Posted June 19, 2017 Share Posted June 19, 2017 Hi again! Is this ok or am I missing something? 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2447249 Share on other sites More sharing options...
MaLd0n Posted June 19, 2017 Author Share Posted June 19, 2017 IntelHDGraphics on, imei load! U use nvidia, imei off, ofc 2 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2447316 Share on other sites More sharing options...
swede420 Posted June 19, 2017 Share Posted June 19, 2017 IntelHDGraphics on, imei load! U use nvidia, imei off, ofc ok! Thanks. 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2447753 Share on other sites More sharing options...
MaLd0n Posted June 20, 2017 Author Share Posted June 20, 2017 Welcome! 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2447882 Share on other sites More sharing options...
MiKM Posted July 5, 2017 Share Posted July 5, 2017 Hi @MaLd0n! Thanks for your effort in supporting the community by your very complete and working DSDT's! Few weeks ago i bought this ASUS Z170M-PLUS board and got very happy to see your ready-to-start DSDT here. Before, on my older Hack i used to configure ACPI via SSDT hotpatches (no patched DSDT) like Rehabman preaches around at the other board... But a good prepared DSDT with everything inside is okay too for me. I helps a lot when you're unfamiliar with a more recent platform. A few things catched my eyes: Will you change your tutorial to use PluginType=1 solution for CPU PM some time? Because you added it in DSDT but your guide offers the "old" way by Ssdtprgen.sh... And btw your Clover config looks a little weird in some points... --> Smart UPS? Generate P & C States? USB Injection? External Icons patch? I having a feeling that says, they're not needed. Your zipped config.plist looks a lot better. Just needless USB injection properties. Don't get me wrong. Those properties just catched my attention and i simply wanted to notify you. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457590 Share on other sites More sharing options...
MaLd0n Posted July 5, 2017 Author Share Posted July 5, 2017 first, with ssdts u dont have a essentials patch, like realocate, it's a nonsense method nothing is wrong, all is checked in my config.plist work in all configs, read about, take many tests -plug in type, many ppl like a tests, dont need sucks ssdts, have all in DSDT if u can test a hwp, but remember, Apple dont use it in iMacs, not now(btw, pike ssdt have a pt1) -https://clover-wiki.zetam.org/Configuration/ACPI#acpi_smartups -u dont need SSDT for PM, just use generate p and c states, generate c3, c6, c7 -use ever usb injection, ownership and clockid, work in all cases, no problems if u use or not -external icons, use ever too, solve old problem with dvd error... the people need to read, 90% is here, other 10%, find in a book Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457601 Share on other sites More sharing options...
MiKM Posted July 5, 2017 Share Posted July 5, 2017 Yes, like i was trying to say: There are more ways to do ACPI corrections. Depends on, what you're trying to do and what is needed to change... i fully agree with you that its more clean to do all the mods locally in their files. There wasn't any criticism. And i didn't say your config.plist is wrong. Those options are rather redundant or not needed. They give u a working system, of course... External Icons patch: I didn't use dvd anymore. So you're probably right here. Usb injection got added by you in DSDT. Ownership is same like Hands-On in bios etc... that's what i wanted to say. Those things are dedundant, but not "wrong". Okay, i see you did all that on purpose. Then im mistaken here. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457656 Share on other sites More sharing options...
MaLd0n Posted July 5, 2017 Author Share Posted July 5, 2017 many tests before post tuto many things u can stay checked, no diff, no problems Clover is amaziing Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457664 Share on other sites More sharing options...
MiKM Posted July 5, 2017 Share Posted July 5, 2017 I did recognise your effort and lots of work you did here for the community. And that was basically my primary intend, to thank for. Not to spit fire... Your DSDT works absolutely perfect here! But i'm not using P&C States injection by Clover. I'm relying on toleda's recent guide for native CPU PM. But it's NOT the only one working, like you said. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457674 Share on other sites More sharing options...
MaLd0n Posted July 6, 2017 Author Share Posted July 6, 2017 for pm u can use clover and extract ssdts or Pike SSDT same good result 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2457728 Share on other sites More sharing options...
badformat Posted August 13, 2017 Share Posted August 13, 2017 help me with dsdt and ssdt, please. i've made ssdt with ssdtPRGen i've download dsdt from the first post of this thread. my specs: i5-6600k (3.5GHz overclocked up to 4.5Ghz) ASUS Z170-A http://dropmefiles.com/fanab(full EFI Clover folder) Send me iMac — Artur.zip Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478497 Share on other sites More sharing options...
MiKM Posted August 13, 2017 Share Posted August 13, 2017 @badformat Hi. First thing i see, you didn't add any kexts like FakeSMC. Secondly your board differs between Z170M-Plus. Don't use this DSDT for your board. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478593 Share on other sites More sharing options...
badformat Posted August 13, 2017 Share Posted August 13, 2017 @badformat Hi. First thing i see, you didn't add any kexts like FakeSMC. Secondly your board differs between Z170M-Plus. Don't use this DSDT for your board. Hi, MiKM. I've got my FakeSMC kexts in /Library/Extensions folder (i've attached it). What DSDT should i use if i don't have any? Extensions.zip Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478649 Share on other sites More sharing options...
MiKM Posted August 13, 2017 Share Posted August 13, 2017 (edited) Hi, MiKM. I've got my FakeSMC kexts in /Library/Extensions folder (i've attached it). Okay, but its better to place those unsigned kexts in EFI/Clover/Kexts/Other folder. Please post your clean ACPI files. Reboot into Clover menu and press F4. Then post all files in EFI/Clover/ACPI/origin here. Those in "Send me...zip" are already patched ones. You can mount your EFI partition by Clover Configurator or ESP Mounter Pro. Edited August 13, 2017 by MiKM Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478656 Share on other sites More sharing options...
badformat Posted August 13, 2017 Share Posted August 13, 2017 Okay, but its better to place those unsigned kexts in EFI/Clover/Kexts/Other folder. Please post your clean ACPI files. Reboot into Clover menu and press F4. Then post all files in EFI/Clover/ACPI/origin here. Those in "Send me...zip" are already patched ones. You can mount your EFI partition by Clover Configurator or ESP Mounter Pro. Do i need to place all my kexts files to EFI/Clover/Kexts/Other folder? Or only FakeSMC? Do i need to replace files or just copy? I've attached my "origin folder". origin.zip Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478664 Share on other sites More sharing options...
MiKM Posted August 13, 2017 Share Posted August 13, 2017 Don't get me wrong. It's not needed to move those kexts. But it's more clean to keep "hacking" kexts out of your system partition...Affected kexts are: FakeSMC*.kext (all of them), CodecCommander.kext, IntelMausiEthernet.kext, realtekALC.kextMove (not copy) them to EFI/Clover/Kexts/Other folder. You can use system specific folders like 10.12 but don't forget that they are only used for that specific macOS version. After that refresh your kext cache. sudo touch /Library/Extensions && sudo kextcache -u / What is AppleUSBXHCI for? Is it a patched one? I would recommend to delete it (in /Library/Extensions, NOT in S/L/E) and use USBInjectAll.kext from Rehabman and to create a port injection config. I will try to look over your ACPI files within coming week. Or maybe MaLd0n will do it before, if he gets time... Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2478673 Share on other sites More sharing options...
badformat Posted August 14, 2017 Share Posted August 14, 2017 Don't get me wrong. It's not needed to move those kexts. But it's more clean to keep "hacking" kexts out of your system partition... Affected kexts are: FakeSMC*.kext (all of them), CodecCommander.kext, IntelMausiEthernet.kext, realtekALC.kext Move (not copy) them to EFI/Clover/Kexts/Other folder. You can use system specific folders like 10.12 but don't forget that they are only used for that specific macOS version. After that refresh your kext cache. sudo touch /Library/Extensions && sudo kextcache -u / What is AppleUSBXHCI for? Is it a patched one? I would recommend to delete it (in /Library/Extensions, NOT in S/L/E) and use USBInjectAll.kext from Rehabman and to create a port injection config. I will try to look over your ACPI files within coming week. Or maybe MaLd0n will do it before, if he gets time... Thank you. I did what you advise. Still waiting for the help with dsdt. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2479123 Share on other sites More sharing options...
MiKM Posted August 14, 2017 Share Posted August 14, 2017 You will get a custom DSDT. It's just a matter of few days. Around Wednesday i will have time to patch your DSDT. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2479130 Share on other sites More sharing options...
badformat Posted August 14, 2017 Share Posted August 14, 2017 You will get a custom DSDT. It's just a matter of few days. Around Wednesday i will have time to patch your DSDT. Wow, thanks in advance. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2479142 Share on other sites More sharing options...
MaLd0n Posted August 16, 2017 Author Share Posted August 16, 2017 ASUS Z170-A CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2480380 Share on other sites More sharing options...
badformat Posted August 18, 2017 Share Posted August 18, 2017 CLOVER.zip Thank you, everything works perfect. Do i really need all this boot log on a startup? With my previous clover i've got only standard mac boot screen with apple logo and loader. Can i return my previous boot screen without all this text? Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2481437 Share on other sites More sharing options...
MiKM Posted August 18, 2017 Share Posted August 18, 2017 Yes, by opening Clover config.plist in Clover Configurator. In Boot you see Verbose boot flag. Just disable it. 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2481445 Share on other sites More sharing options...
apt Posted November 11, 2017 Share Posted November 11, 2017 Hey Mald0n, You helped me out earlier in the year with my DSDT and got everything running smoothly, I’ve just updated to High Sierra and my install boots ok but gets to the login screen then looses signal from the monitor, the only way I can boot is if I disable nvidia web drivers in clover options at boot. I’ve seen reports of this on other forums and wonder if it’s down to my DSDT file causing the issue. Do I need to edit anything? Any help greatly appreciated 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2533057 Share on other sites More sharing options...
MaLd0n Posted November 11, 2017 Author Share Posted November 11, 2017 Hey Mald0n, You helped me out earlier in the year with my DSDT and got everything running smoothly, I’ve just updated to High Sierra and my install boots ok but gets to the login screen then looses signal from the monitor, the only way I can boot is if I disable nvidia web drivers in clover options at boot. I’ve seen reports of this on other forums and wonder if it’s down to my DSDT file causing the issue. Do I need to edit anything? Any help greatly appreciated dont need other edit, just update kext NvidiaGraphicsFixup.kext.zip and use EmuVariableUefi-64.efi 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2533094 Share on other sites More sharing options...
apt Posted November 11, 2017 Share Posted November 11, 2017 dont need other edit, just update kext NvidiaGraphicsFixup.kext.zip and use EmuVariableUefi-64.efi Thats doesn't seem to have worked. Used Clover configurator to enable EmuVaribleUefi-64.efi and dropped the .kext into /EFI/Clover/kexts/Other. Any ideas? Do I need to install an uptown date version of Lilu? EDIT: OK I went ahead and updated Lilu, FakeSMC etc and all working now Many thanks. 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/12/#findComment-2533103 Share on other sites More sharing options...
