MaLd0n

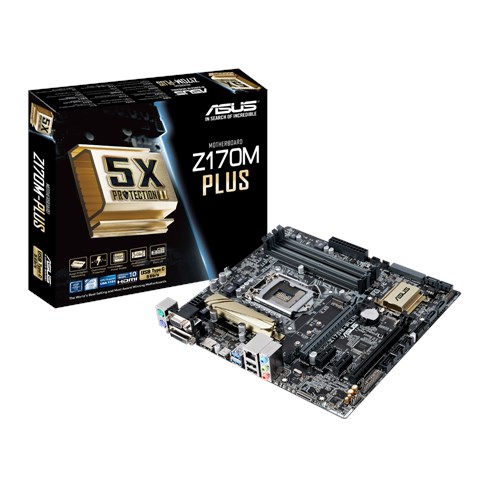

[Guide] Sierra / High Sierra on ASUS Z170M PLUS / DSDT

350 posts in this topic

Recommended Posts

Now have a Olarila app, just download app and clover folder for your Chipset!


Install MacOS with Olarila Image, Step by Step, Install and Post Install



https://olarila.com/forum/viewtopic.php?f=50&t=8685


First...
If you need DSDT edits for SkyLake, KabyLake or CoffeeLake...
-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)
-Run it, post files generated in your desktop
Installation

--Create a bootable copy of macOS Sierra
Check out the link

--Create a bootable copy of macOS HighSierra
Check out the link

--Install Clover in USB stick

--Replace with my Clover folder

--Install Sierra/High Sierra and boot into system!

Post Installation

--Install Clover in HDD/SSD and replace with my folder

--Reboot and activate video!

-Nvidia WebDriver Sierra
-Nvidia WebDriver High Sierra
-Cuda

--DSDT
My DSDT with patches for Skylake

Patches
-FIX ERRORS AND WARNINGS
-HPET
-SATA
-SLPB
-DMAC
-DARWIN
-LPC
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-USBX
-PMCR
-EC
-IMEI
-PNLF
-HDMI

--FakeSMC


--Audio

--USB

--LAN

-Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!

We're all here to have fun and learn from each other!

ENJOY!

Share this post


Link to post
Share on other sites
Advertisement

:lol:  :lol:  :lol:  :lol:



He is returned to the man of the night, the man of dsdt. the crazy black and white man, you are welcome



PS: This fake smc is a fake  :yes:  :yes:

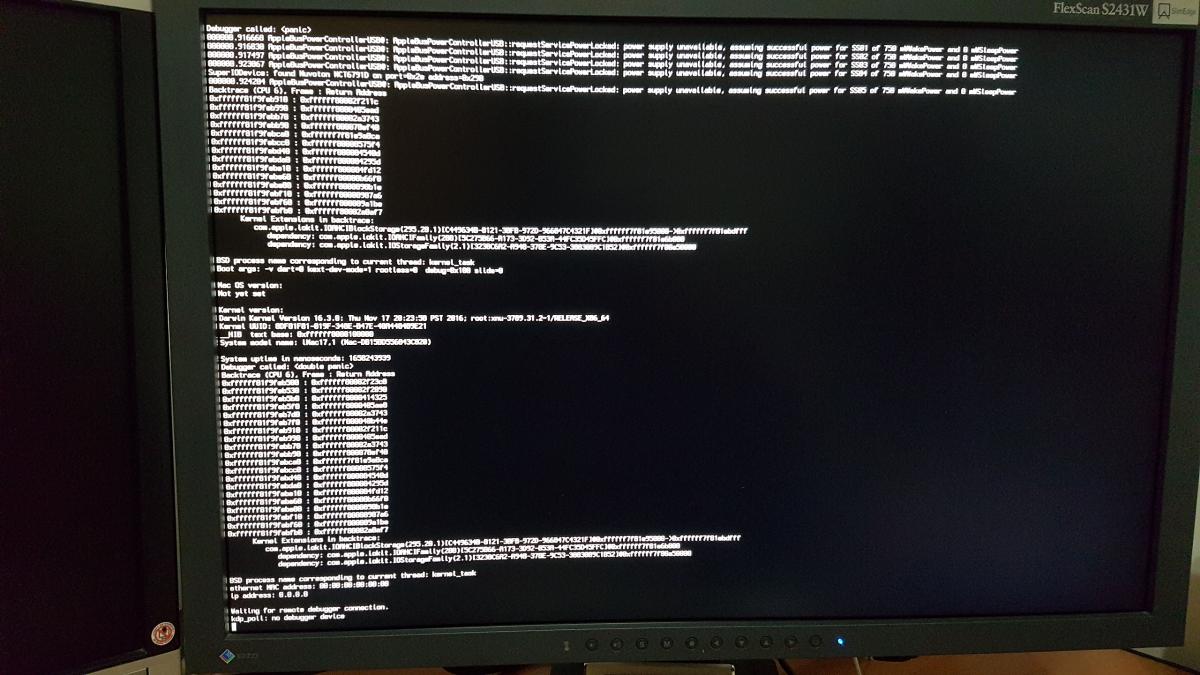

kp in many mobos, need edit for u! z170m work like a charm!

Share this post


Link to post
Share on other sites

MaLd0n, please I need 2 helps!!



My motherboard is GA-Z170m-D3H, and is possible use this configuration for clover and same plist?



My processor is Skylake i7 and my Nvidia is GTX 980 Hall Of Fame and i can't fix recognition for this.



Im not know edit dsdt, so im not use (its necessary?)



Tks!!

Share this post


Link to post
Share on other sites

Nvidia Drivers

http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-12152016/



i apply smbios iMac14,2 for easy activate video, after u need a iMac 17,1



replace full folder

CLOVER max.1974.zip





native PM run in terminal

curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh
chmod +x ~/ssdtPRGen.sh
sudo ~/ssdtPRGen.sh

Share this post


Link to post
Share on other sites



easy way

sudo nvram -c
sudo purge
sudo kextcache -system-prelinked-kernel -a x86_64 -z -v 2
sudo kextcache -system-caches -v 2
sudo touch /S*/L*/E*
sudo touch /L*/E*

and where is sudo -c nubbies ?

Share this post


Link to post
Share on other sites
