cookiez Posted April 29, 2017 Share Posted April 29, 2017 Hello Mald0n, I have no audio on my Gigabyte Z270 Gaming 7 (CA0132) and sleep/wake also not working. Here is my files. Thx. Send me iMac.zip GBZ270Gaming7rev1_IOREG.zip EFI.zip 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414180 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Author Share Posted April 29, 2017 What ur audio codec? ALC1220? The mobo is Gigabyte Z270X Gaming 7? Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414190 Share on other sites More sharing options...
cookiez Posted April 29, 2017 Share Posted April 29, 2017 What ur audio codec? ALC1220? The mobo is Gigabyte Z270X Gaming 7? Audio Codec is CA0132. Yes, mobo is a Gigabyte Z270-X Gaming 7 rev 1.0 http://www.gigabyte.com/Motherboard/GA-Z270X-Gaming-7-rev-10#kf 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414220 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Author Share Posted April 29, 2017 Gigabyte Z270-X Gaming 7 rev 1.0 Replace CLOVER.zip Run it Olarila.command.zip Reboot Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414228 Share on other sites More sharing options...
cookiez Posted April 29, 2017 Share Posted April 29, 2017 Replace CLOVER.zip Run it Olarila.command.zip Reboot kernel panic AppleUSBXHCIPCI: unable to get device memory 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414235 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Author Share Posted April 29, 2017 U have a fresh install? What u use for USB before? Check ur config.plist, wrong USB patch Use it config.plist.zip Use Clover 4049 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2414243 Share on other sites More sharing options...
cookiez Posted April 30, 2017 Share Posted April 30, 2017 U have a fresh install? What u use for USB before? Check ur config.plist, wrong USB patch Use it config.plist.zip Use Clover 4049 Reinstalled Sierra using your http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-mobos-serie-200-kabylake-dsdt/ tutorial - NVMe_patches_10_12_4.plist in config.plist KextsToPatch (https://github.com/RehabMan/patch-nvme) to be able to install on my Samsung 950 Pro SSD and SSD's EFI CLOVER config.plist after installation. - Clover_v2.4k_r4061 - Working audio using layout-id 2 (CA0132) with AppleALC and Lilu kexts (rename HDAS to HDEF - DSDT Patches) - USBInjectAll.kext (0.5.17) and XHCI-200-series-injector.kext (0.5.0) and AppleUSBXHCIPCI (change 15 port limit to 26 in XHCI kext (100-series) ) patch Issues: Apple logo glitch on boot Sleep/Wake New files attached. Not tested: USB 3.1, Messages, FaceTime Hardware: Mobo: GA Z270-X Gaming 7 bios F5 GPU: HD530 CPU: i7-6700K SSD: Samsung 950 Pro Send me iMac.zip GBZ270Gaming7rev1_IOREG.zip origin.zip 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2415081 Share on other sites More sharing options...
MaLd0n Posted April 30, 2017 Author Share Posted April 30, 2017 DSDT.cookiez.zip Generate ur SSDT for Power Management with Pike script Run it ssdtPRGen.command.zip Save and compile -> SSDT.aml and put in same folder with DSDT, Clover/Acpi/Patched Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2415089 Share on other sites More sharing options...
cookiez Posted May 1, 2017 Share Posted May 1, 2017 DSDT.cookiez.zip Generate ur SSDT for Power Management with Pike script Run it ssdtPRGen.command.zip Save and compile -> SSDT.aml and put in same folder with DSDT, Clover/Acpi/Patched Using your dsdt and the compiled ssdt.aml computer sleeps. Waking it up screen stays black and after a while computer turns off as If I shut it down normally. Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2415293 Share on other sites More sharing options...
MaLd0n Posted May 1, 2017 Author Share Posted May 1, 2017 i think is a Intel GPU, in many cases have a problem with sleep/wake Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2415480 Share on other sites More sharing options...
Ikerox Posted May 8, 2017 Share Posted May 8, 2017 Hi, My new build is here: i7 6700 Asus Z170M Plus Gigabyte Nvidia GeForce GTX 1050 D5 2G 2x8Gb GSkill Ripjaws 2400Mhz Here are my Send me and clover folders. Im a little bit noobie on patching etc, but ill do my best. I have no audio working also... Thanx in advance for your amazing work Send me iMac de Jokin.zip CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2419721 Share on other sites More sharing options...
MaLd0n Posted May 8, 2017 Author Share Posted May 8, 2017 test it CLOVER.zip Let me know if work 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2419796 Share on other sites More sharing options...

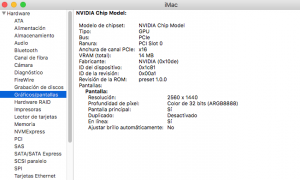

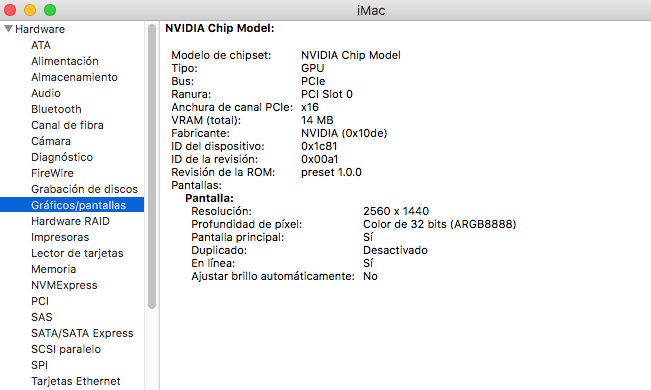

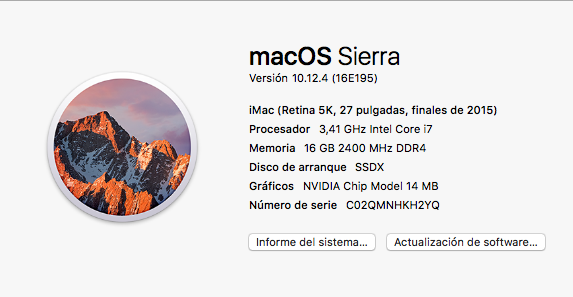

Ikerox Posted May 8, 2017 Share Posted May 8, 2017 test it CLOVER.zip Let me know if work Works ok, except graphics... I think I have no full acceleration, some strange lines at startup, fan is not blowing and the system says I have 14 Mb.. 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2420000 Share on other sites More sharing options...
MaLd0n Posted May 8, 2017 Author Share Posted May 8, 2017 U install webdriver? Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2420133 Share on other sites More sharing options...
Ikerox Posted May 8, 2017 Share Posted May 8, 2017 U install webdriver? Yes, last version... From here: http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-04192017/ 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2420154 Share on other sites More sharing options...
Ikerox Posted May 8, 2017 Share Posted May 8, 2017 Issue solved... I removed: kext-dev-mode=1 nv_disable=1 Thank you MaLd0n and duffs for your advices.... 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2420184 Share on other sites More sharing options...
MaLd0n Posted May 8, 2017 Author Share Posted May 8, 2017 Kext-dev-mode=1 nv_disable=1 Thank you MaLd0n and duffs for your advices.... only nv_disable=1, the other in Sierra = no diff Welcome! 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2420205 Share on other sites More sharing options...
Ikerox Posted May 11, 2017 Share Posted May 11, 2017 --SSDT Native PM for 6600k use ssdtPRGen and freqVectorsEdit.command by Piker-Alpha https://github.com/Piker-Alpha run in terminal curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh chmod +x ~/ssdtPRGen.sh sudo ~/ssdtPRGen.sh ssdtPRGen.command.zip freqVectorsEdit.command.zip MaLd0n I have a doubt... Should I run these scripts in my build? 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2421663 Share on other sites More sharing options...
MaLd0n Posted May 11, 2017 Author Share Posted May 11, 2017 MaLd0n I have a doubt... Should I run these scripts in my build? no, u need a Clover PM Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2421701 Share on other sites More sharing options...
MaLd0n Posted May 16, 2017 Author Share Posted May 16, 2017 UPDATE FIRST POST DSDT FIXs CLOVER FOLDER Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2424618 Share on other sites More sharing options...
Ikerox Posted May 16, 2017 Share Posted May 16, 2017 no, u need a Clover PM Sorry man, PM means Power Management? What should I click on Clover for this? Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2424852 Share on other sites More sharing options...
MaLd0n Posted May 16, 2017 Author Share Posted May 16, 2017 Clover Generate P and C States too or use Clover for it or Pike SSDT 1 Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2424861 Share on other sites More sharing options...
Ikerox Posted May 16, 2017 Share Posted May 16, 2017 Clover Generate P and C States too or use Clover for it or Pike SSDT Thanks Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2424867 Share on other sites More sharing options...
cookiez Posted May 17, 2017 Share Posted May 17, 2017 Updated to 10.12.5 after restart I got this on my Gigabyte Z720-X Gaming 7 Intel HD530 [iGPU] ************************************************ [iGPU] Failed to initialize graphics firmware. Failing back to host-side scheduling [iGPU] Scheduler interface revision = 1: Default EL Scheduler [iGPU] ************************************************ macOS loading stops on 50%. Recovery 10.12.4 boots correctly with injected kexts. Did not have any Inject Intel, ig-platform-id in my current config.plist working with 10.12.4. Any idea? Thanks Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2425292 Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 try new Clover_v2.4k_r4076.pkg.zip Link to comment https://www.insanelymac.com/forum/topic/320288-guide-sierra-high-sierra-on-asus-z170m-plus-dsdt/page/7/#findComment-2425577 Share on other sites More sharing options...
