[FIX] macOS Sierra DP1 BCM94532Z WiFi


132 posts in this topic

Recommended Posts



On macOS Sierra DP1, when using a BMC94532Z NGFF WiFi card, AirportBrcm4360.kext no longer successfully loads.



This problem is caused by the driver not being able to initialize the fvco (frequency voltage controlled oscillator).



Apply the following patch in Clover to enable WiFi using the BCM94352Z:

Kext:    AirPortBrcm4360
Find:    81F952AA00007529
Replace: 81F952AA00006690

Through Clover config.plist:

<dict>
	<key>Comment</key>
	<string>AirPortBrcm4360 - fcvo</string>
	<key>Disabled</key>
	<false/>
	<key>Find</key>
	<data>gflSqgAAdSk=</data>
	<key>Name</key>
	<string>AirPortBrcm4360</string>
	<key>Replace</key>
	<data>gflSqgAAZpA=</data>
</dict>



After this patch my wifi has started working in sierra installation

But after installation result is the same (no wifi)

Any ideas?

  • 2 weeks later...

So I followed these steps and my wifi was working with 10.12. After updating to 10.12.1 it no longer works. If I click on the wifi symbol in the menu bar it says "Wi-Fi: No hardware installed." Is there something else that has to be done for 10.12.1 now?



I made it work by using darkvoid's patch, and also replacing an existing device ID with my own on AirPortBrcm4360.kext:

<dict>
	<key>Comment</key>
	<string>BCM94352HMB add 0x43b114e4</string>
	<key>Disabled</key>
	<false/>
	<key>Find</key>
	<data>
	PHN0cmluZz5wY2kxNGU0LDQzYmE8L3N0cmluZz4=
	</data>
	<key>InfoPlistPatch</key>
	<true/>
	<key>Name</key>
	<string>AirPortBrcm4360</string>
	<key>Replace</key>
	<data>
	PHN0cmluZz5wY2kxNGU0LDQzYjE8L3N0cmluZz4=
	</data>
</dict>

Don't use any additional kexts, and don't apply anything related on Clover's DSDT fixes.

After you're done with the changes on your config.plist run the following on Terminal:

sudo touch /System/Library/Extensions && sudo kextcache -u /

Now Restart.

okay everything works again i enabled  "AddDTGP" and "FixAirport"  in ACPI Section and added the DeviceID in in the Device Section. with darkvoids patch my WIFI is working on 10.12.1 :D

I made it work by using darkvoid's patch, and also replacing an existing device ID with my own on AirPortBrcm4360.kext:

<dict>
	<key>Comment</key>
	<string>BCM94352HMB add 0x43b114e4</string>
	<key>Disabled</key>
	<false/>
	<key>Find</key>
	<data>
	PHN0cmluZz5wY2kxNGU0LDQzYmE8L3N0cmluZz4=
	</data>
	<key>InfoPlistPatch</key>
	<true/>
	<key>Name</key>
	<string>AirPortBrcm4360</string>
	<key>Replace</key>
	<data>
	PHN0cmluZz5wY2kxNGU0LDQzYjE8L3N0cmluZz4=
	</data>
</dict>

Don't use any additional kexts, and don't apply anything related on Clover's DSDT fixes.

After you're done with the changes on your config.plist run the following on Terminal:

sudo touch /System/Library/Extensions && sudo kextcache -u /
Now Restart.

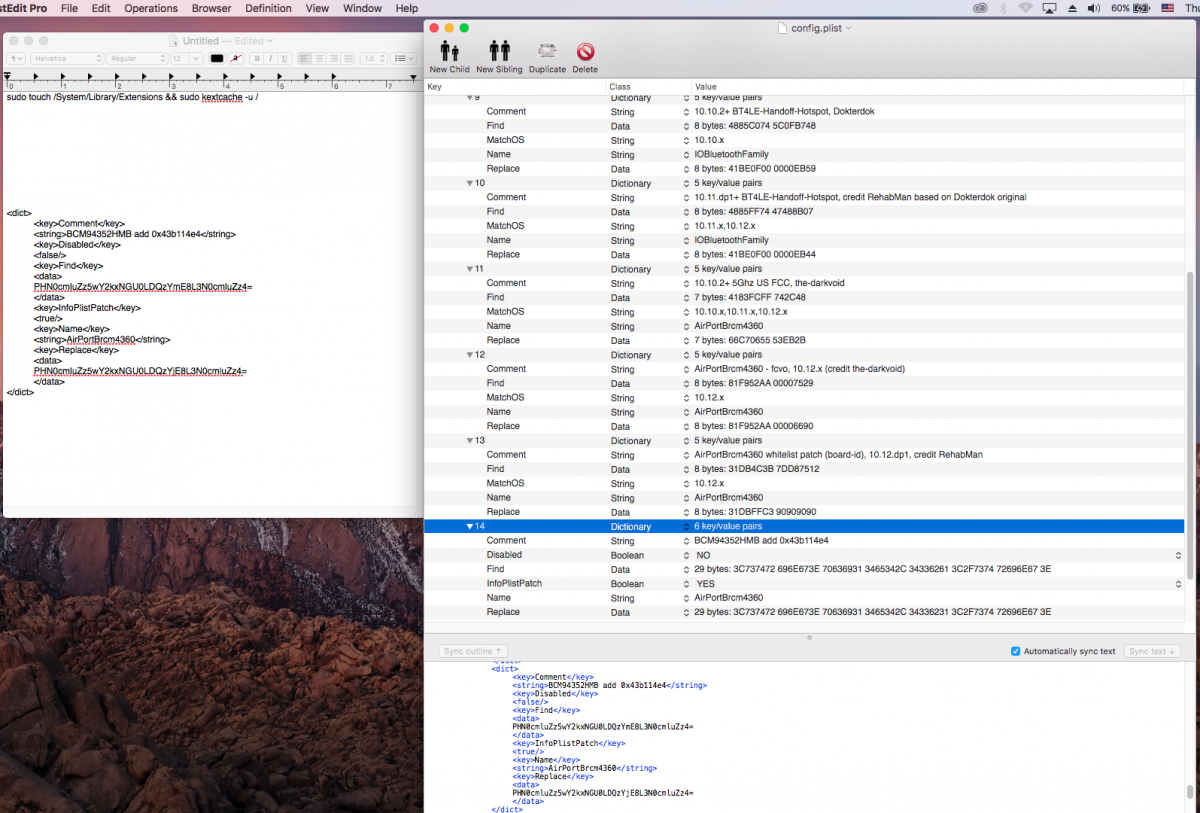

Would the device ID be the same for all similar chips? I have an Azurewave BCM94352HMB. Also, is there a certain spot in AirPortBRCM4360.kext that I need to put this? I added it already and it is still not working.

Would the device ID be the same for all similar chips? I have an Azurewave BCM94352HMB. Also, is there a certain spot in AirPortBRCM4360.kext that I need to put this? I added it already and it is still not working.



If you open this patch on Clover Configurator, you will see the actual String representation and not the Base64 encoding. Then it's easy to change the value to reflect your Device ID.

Alternatively you can decode the Base64 String online (on a utility site), change it's value to your Device ID, and then encode it again to Base64.

If you open this patch on Clover Configurator, you will see the actual String representation and not the Base64 encoding. Then it's easy to change the value to reflect your Device ID.

Alternatively you can decode the Base64 String online (on a utility site), change it's value to your Device ID, and then encode it again to Base64.

I already have it :



<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				gflSqgAAdSk=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				gflSqgAAZpA=
				</data>
			</dict>
		</array>








With 10.12 with same settings but without IO80211Family.kext




Hi All,



I'm really newbie on using clover, please enlighten me for this.

Just had upgrade from Yosemite to Sierra with clean install, all works now left Wifi and BT.



I have bcm94360cd with BCM20702A0 bluetooth as half mini pcie.

Mb. Gigabyte H97N-Wifi (changed the wifi card)



From DPCI Manager it shows
14E4, 43B1, 11AD, 6646, Broadcom Corporation, BCM4352 802.11ac Wireless Network Adapter



Tried to put darkvoid patch into my config.plist

include

sudo touch /System/Library/Extensions && sudo kextcache -/



But seems not working.

Is there anything I missed ?
