New AppleHDA Patcher

Mirone

By Mirone,
in Front Page News and Rumors

 Share
306 posts in this topic

Recommended Posts

kylon
kylon
Posted
Posted

Upgrading from 10.11.3 should be a problem because the info.plist under 'OSBundleLibraries' miss some new personalities to match. Off course doing the Dummy kext from scratch in 10.10.4 is ok because the OSBundleLibraries  is taken directly from the original 10.10.4 kext. Otherwise can cause problem.. older must be trashed.

i did an upgrade from .3 (App Store)



the patcher 1.2 does not work





terminal output:

 93    2 0xffffff7f82727000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (274.7) 5EC202A0-B89D-351A-9F42-C77FDA32C9AD <5 4 3 1>
   94    1 0xffffff7f827ef000 0x1e000    0x1e000    com.apple.driver.AppleHDAController (274.7) CFF7F97F-6E1F-3CF9-A8E3-76125E9CA414 <93 79 24 12 7 6 5 4 3 1>
  121    0 0xffffff7f82a8d000 0xb3000    0xb3000    com.apple.driver.AppleHDA (999.1.1fc1) FE47EADA-C810-3253-BE41-0776D253D256 <120 95 94 93 79 24 12 11 6 5 4 3 1>
  123    0 0xffffff7f82736000 0x2000     0x2000     com.apple.driver.AppleHDAHardwareConfigDriver (274.7) 02119379-A1A7-3C9B-8A12-5D3A82C41A4A <4 3>

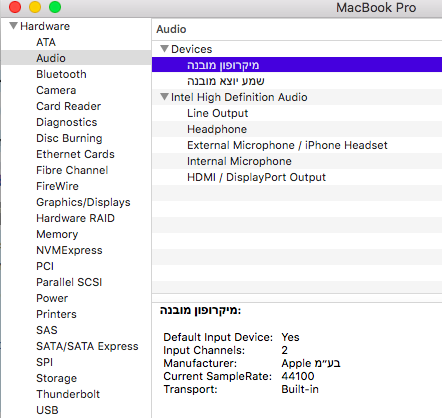

system informations is NOT empty



iojones report attached



sound icon is grey

Micky1979
Micky1979
Posted
Posted

@lollo, looking here: http://www.insanelymac.com/forum/topic/311275-alc269vc-acer-laptop/page-1 was not working for you also the v1.1 :hysterical:

Sorry but now I need to understand if is working for those was working before. :wink_anim:



EDIT

Anyway I don't use iojones



EDIT II

Mirone was asking for your dsdt in his Topic, but he can't opened it for some reason. Provide the .dsl so he can take a look.

chriz74
chriz74
Posted
Posted

Guys please test this app:attachicon.gifAppleHDA Patcher.app_v1.2.zip

bin patch should be ok, I hope ^_^

A lot of difference between beta and final release of 10.11.4



I tried it on ALC270 and this is working, I put my platforms and verbs in the dummy kext as explained above to Mirone, I put the dummy kext + reinstated untouched appleHDA and used kernel patches in clover.

  • Like 1
Micky1979
Micky1979
Posted
Posted

Thanks. To make me understand better..so the kextstopatch provided by the app is ok now? or you are using a customized one by you?








mirone attached a patchedHDA for me, i tested it and it was working, so i tought that he already fixed the codec for my card

anyway my dsdt is already patched



Try this: Clover.zip  also import to your config all entries from the config.plist sample. no guarantees

kylon
kylon
Posted
Posted

nope



just to recap:



in 10.11.3 was working with this dummyHDA + vanilla HDA

my dsdt is patched (layout-id, irq and hpet), i don t need to add layout 3 in clover config

my clover config has that HDA patches since 10.11x to make audio working



i found this in the log

23/03/16 22:48:28,000 kernel[0]: CodecCommander: stopping due to codec profile Disable flag


pet1
pet1
Posted
Posted

I just updated to 10.11.4 and my alc892 is no longer working. I tried to repatch using both 885 and 1988b and replacing the dummy.kext along with the clover patch info. I also used your recently posted 1.2 version but didn't work. In the speaker drop down menu there is a list but line in is detected as headphones. But it's just cosmetic at the moment. No sound. Any help would be greatly appreciated.

kylon
kylon
Posted
Posted

kindly you can run this:http://www.insanelymac.com/forum/files/file/535-kextstatx86/

kextstatx86 -n

and post the result?







i fixed my audio with AppleALC (from source)

it s working with hda 274.1 and no dummyHDA



thank you for the help

wartomato
wartomato
Posted
Posted

Guys please test this app:attachicon.gifAppleHDA Patcher.app_v1.2.zip

bin patch should be ok, I hope ^_^

A lot of difference between beta and final release of 10.11.4



I can also confirm that v1.2 is working (again). Used it on my ALC271 and it generates the same Clover config.plist and a working aDummy.kext. Copied over and everything is fine.



Good (and fast) work, Micky  :thumbsup_anim:

  • Like 1
René_
René_
Posted
Posted

Guys please test this app:attachicon.gifAppleHDA Patcher.app_v1.2.zip

bin patch should be ok, I hope ^_^

A lot of difference between beta and final release of 10.11.4



Working on Gigabyte Z87M-D3H using Clover with ALC892

Tried both methods:

ALC892 -> ADI1988B

ALC892 -> ALC885



The last method did not work. I was only hearing a plop so now and then. After searching I found the issue:

http://www.insanelymac.com/forum/topic/284004-script-to-patch-applehda-binary-for-osx107108109/page-2?do=findComment&comment=1888843



Maybe you could mention when selecting ALC892 -> ALC885 with Gigabyte boards that you should not use this option.



Note: after replacing ALC892 -> ALC885 with the ALC892 -> ADI1988B it still didn't work. I had to shutdown the PC and wait several minutes before I had sound back.



Thanks for your hard work guys, much appreciated :)

  • Like 3
Zackptg5
Zackptg5
Posted
Posted

I was using a DummyHDA w/ clover I patched myself since yosemite and it worked fine until the 10.11.4 update. I then used the aDummyHDA generated with this app (providing my files from before) and it works great! Perhaps having the "a" in the beginning affects the load order or something. To anyone else having issues with this, maybe this will help. Great app guys!

nguyenlc1993
nguyenlc1993
Posted
Posted

I was using a DummyHDA w/ clover I patched myself since yosemite and it worked fine until the 10.11.4 update. I then used the aDummyHDA generated with this app (providing my files from before) and it works great! Perhaps having the "a" in the beginning affects the load order or something. To anyone else having issues with this, maybe this will help. Great app guys!



LOL, just a problem of new dependencies in 10.11.4 AppleHDA.kext that make the old dummy kext not working. Compare the OSBundleLibraries entry in Info.plist and you will find out the new dependencies:

com.apple.iokit.IOACPIFamily 1.2.0a1
com.apple.iokit.IOPCIFamily 1.1
pet1
pet1
Posted
Posted

Working on Gigabyte Z87M-D3H using Clover with ALC892

Tried both methods:

ALC892 -> ADI1988B

ALC892 -> ALC885



The last method did not work. I was only hearing a plop so now and then. After searching I found the issue:

http://www.insanelymac.com/forum/topic/284004-script-to-patch-applehda-binary-for-osx107108109/page-2?do=findComment&comment=1888843



Maybe you could mention when selecting ALC892 -> ALC885 with Gigabyte boards that you should not use this option.



Note: after replacing ALC892 -> ALC885 with the ALC892 -> ADI1988B it still didn't work. I had to shutdown the PC and wait several minutes before I had sound back.



Thanks for your hard work guys, much appreciated :)





Thanks for the posting this info. I have an asus z97 usb 3.1. I patched both alc885 and adi1988b and I repeated the cold boot procedure on both and 1988b worked. I just copied the adummy.kext, clover info (was 3 entries) and codec commander.

Mirone
Mirone
Posted
  • Author
Posted



LOL, just a problem of new dependencies in 10.11.4 AppleHDA.kext that make the old dummy kext not working. Compare the OSBundleLibraries entry in Info.plist and you will find out the new dependencies:

com.apple.iokit.IOACPIFamily 1.2.0a1
com.apple.iokit.IOPCIFamily 1.1
You only need to generate another
Dummy.kext with AppleHDA Patcher and everything returns to

Normal, it has already been said several times here or there.

Vudo
Vudo
Posted
Posted

want to create one from the new applehda of 10.11.4 for my ga-z97x-ud3h mainboard (alc1150) but the patched one don't work, because no active device found. i only copied the patched one to s/l/e and override the original one, don't use the hdaenabler this has been patched in my dsdt file also. before i use a applehda from toleda this works fine but is an old one. can anybody help me because has some one a already patched applehda to share?!

cwestpha
cwestpha
Posted
Posted

Having some difficulty getting my AppleHDA patched using the CloverEFI method (aDummyHDA.kext + Clover patches). I have tried both full patched HDA method produced by the appleHDA patcher and the before mentioned. The full patched method breaks appleHDA detection of some of my external devices (seems like a load failure?).

I have attached the output from the MironeAudio folder plus the config.plist from my clover to see if that helps.



ALC1150 on 10.11.4, mobo is Asrock  Z170 Extreme 6+



Since I have a Z170 I have tried both with and without the HDAS [bellow] patch with no improvement (not sure if this is needed for your aDummyHDA method)



HDAS to HDEF patch

<key>Patches</key>
<array>
                <dict>
                    <key>Comment</key>
                    <string>Rename HDAS to HDEF</string>
                    <key>Find</key>
                    <data>
                    SERBUw==
                    </data>
                    <key>Replace</key>
                    <data>
                    SERFRg==
                    </data>
                </dict>
</array>

MironeAudioZ170.zip

Mirone
Mirone
Posted
  • Author
Posted



Having some difficulty getting my AppleHDA patched using the CloverEFI method (aDummyHDA.kext + Clover patches). I have tried both full patched HDA method produced by the appleHDA patcher and the before mentioned. The full patched method breaks appleHDA detection of some of my external devices (seems like a load failure?).

I have attached the output from the MironeAudio folder plus the config.plist from my clover to see if that helps.



ALC1150 on 10.11.4, mobo is Asrock  Z170 Extreme 6+



Since I have a Z170 I have tried both with and without the HDAS [bellow] patch with no improvement (not sure if this is needed for your aDummyHDA method)



HDAS to HDEF patch

<key>Patches</key>
<array>
                <dict>
                    <key>Comment</key>
                    <string>Rename HDAS to HDEF</string>
                    <key>Find</key>
                    <data>
                    SERBUw==
                    </data>
                    <key>Replace</key>
                    <data>
                    SERFRg==
                    </data>
                </dict>
</array>

try this: config.plist.zip
