Ozmosis

blackosx · September 14, 2013

I've been following this with interest and thanks to a nudge by STLVNUB to have a play with this Ozmosis loader, I've been running some test here on my Asus Maximum IV Gene-Z with a SandyBridge i7 2600 and have a couple of questions.

~~Is there any way to change FSB as my processor is shown as running at 5.9GHz?~~

~~EDIT: I actually meant Frequency as my standard processor runs using a BCLK at 100Mhz with 34x multipler.~~



03:773 00:090 Found Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz (2A.06.00) Cores 4 Threads 8

03:773 00:000  P-State Coordination Type HW_ALL -> SW_ANY = SW_ANY

03:773 00:000  Disabling Invalid Flex-Ratio 90000 -> 80000 = 80000

03:773 00:000 Calculated TSC Frequency 3411MHz (3411663333)

03:773 00:000 Calculated CPU Frequency 5920MHz (5920239301)

03:773 00:000 Calculated FSB Frequency  100MHz (100343039)



13:878 00:000 Generated SMBIOS Type 004 Handle 0x0004 123 bytes

13:878 00:000  Vendor                           GenuineIntel

13:878 00:000  Version                          Intel(R) Core(TM) i7-2600 CPU @ 3.40GHz

13:878 00:000  Signature                        0x206A7

13:878 00:000  Feature Flags                    0xBFEBFBFF

13:879 00:000  Socket                           CPU-A (00)

13:879 00:000  External Clock                   0 MHz

13:879 00:000  Max Speed                        5900 MHz

13:879 00:000  Current Speed                    5900 MHz

13:879 00:000  L1 Cache Handle                  0x8

13:879 00:000  L2 Cache Handle                  0xA

13:879 00:000  L3 Cache Handle                  0xB

13:879 00:000  Serial Number                    N/A

13:879 00:000  AssetTag                         N/A

13:879 00:000  PartNumber                       N/A

13:879 00:000  Core Count                       4

13:879 00:000  Enabled Core Count               4

13:879 00:000  Thread Count                     8

13:879 00:000  Processor Characteristics        0x0

~~And for the life of me I can't figure out how to overcome the following issue. I see this in my dmesg~~



P-State Stepper Error 18 at step 2 in context 2 on CPU 0

P-State Stepper Error 18 at step 2 in context 2 on CPU 1

P-State Stepper Error 18 at step 2 in context 2 on CPU 7

P-State Stepper Error 18 at step 2 in context 2 on CPU 6

P-State Stepper Error 18 at step 2 in context 2 on CPU 4

P-State Stepper Error 18 at step 2 in context 2 on CPU 2

P-State Stepper Error 18 at step 2 in context 2 on CPU 3

P-State Stepper Error 18 at step 2 in context 2 on CPU 5

~~I have:~~



sudo kextstat | grep LPC

   80    0 0xffffff7f81ad2000 0x3000     0x3000     com.apple.driver.AppleLPC (1.6.0) <77 10 5 4 3>

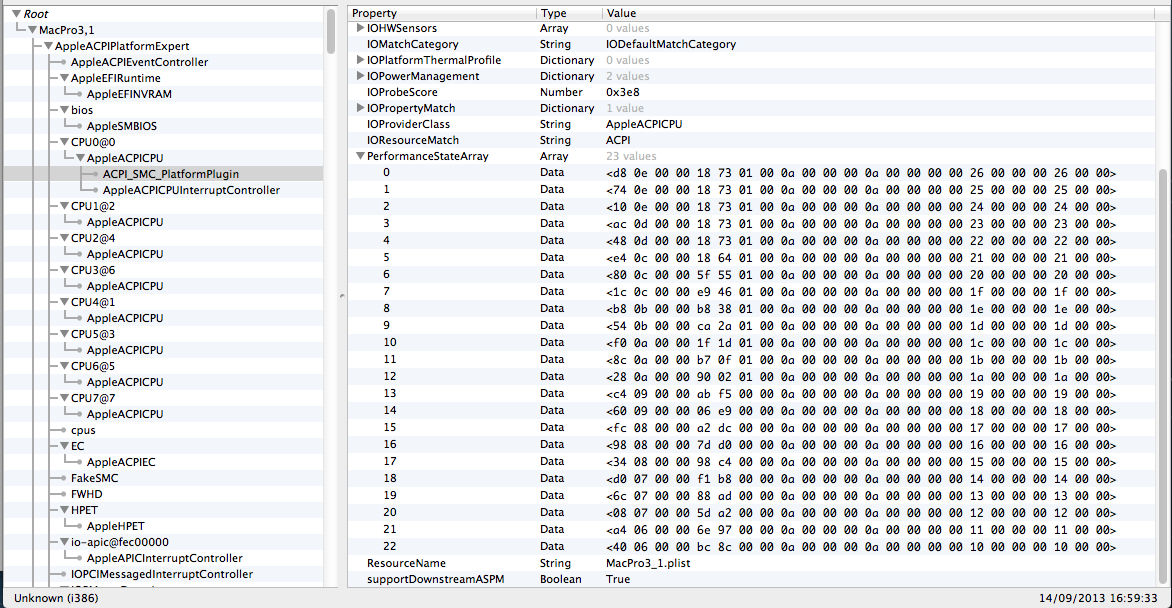

~~I've combined the stepping data from my SSDT in to my DSDT and have 100Mhz increments in my p-states~~

I've run a few tests with different BIOS versions, nvram can be read and written correctly, and I have successfully tested with changing to my normal iMac 12,2 SMBIOS settings, though for now I'm retracing my steps and back to using the default Ozmosis settings.

~~So what am I missing?~~

~~Thanks in advance.~~

EDIT: Stupid me!!! Flashing my BIOS defaulted the Turbo Ratio setting to 'All cores mode' and not Auto. Changing this solved the problem.. Doh!

SyJet · September 14, 2013

If you put your specs in your signature, maybe we could have helped more.

Clover is good, but Oz is ....

Asus P8Z77-M/i5-3570/GTX 650ti (UEFI)/Clover/10.8.5

I waited for this project, from the moment of the publication on kickstarter. Seems to me, this excellent continuation of idea of Cartri. But without participation of developers - I doubt that it is possible to make something. I try to persuade the Clover developers to pay attention to this project, but everyone thinks it's a bad idea. Sorry for my English.

blackosx · September 14, 2013

Hi STLVNUB, Thanks.

I did previously try the following MacMini5,3 settings (by a small script)

#!/bin/sh
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:BiosVersion=MM51.88Z.0077.B0E.1110141154
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:BiosDate=23/02/12
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:ProductName=Macmini5,3
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:ProductFamily=Macmini
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:SystemVersion=1.0
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:SystemSerial=C07JL4SGDY3H
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:ProductId=Mac-7BA5B2794B2CDB12
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:BoardVersion=1.0
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:BaseBoardSerial=""
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:Manufacturer="Apple Inc."
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:SystemSKU=Mac-7BA5B2794B2CDB12
sudo nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:CpuType=%03%07
sudo nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args="-v dart=0"

but after a reboot all I got was a black screen with the small hyphen bottom middle of the screen (as normally briefly seen before the kernel is loaded and the boot process starts). I haven't tried those settings since.

EvgeniX · September 14, 2013

https://www.dropbox.com/sh/nuvjypuatz4wk3q/ZdyWK6Lzyr

here u go.

Isint much faster to extract it from asrock bios ?

1 min job.

asrock.com download open mmtool extract

good luck

but how to convert to EFI from ffs??

Riley Freeman · September 14, 2013

but how to convert to EFI from ffs??

Open the extracted file in a hex editor. Remove everything from the start up to MZ and zero out the FDFD at the end.

blackosx · September 14, 2013

Probably just a matter or hitting on the right combination of things to make it work on that MB/cpu, but hey, that is what makes a Hackintosh so much fun

Absolutely!.. That's why we do what we do

But how does it run?

It runs well and I like the detailed boot log. Haven't figured out how to use the UI yet, other than what's been reported, but I'm using verbose mode anyway. And since I'm back to flashing my mobo (it's been a while since doing it), It's fun to test with different kexts and drivers in BIOS too.

Do you know of anyway to force/override a systemID so I can keep my Hardware UUID?

credit to the Developers whoever you are.

+1

EDIT: Cleaned up line spacing.

Riley Freeman · September 14, 2013

Do you know of anyway to force/override a systemID so I can keep my Hardware UUID?

I have a theory that it might be possible to add the SMBIOS data (and more) to ozmosisdefaults. Perhaps it's in the same format as Clover. But I'm just spectating Ozmosis for now hoping that someone who is using it will try this out.

truemac · September 14, 2013

And for the life of me I can't figure out how to overcome the following issue. I see this in my dmesg
P-State Stepper Error 18 at step 2 in context 2 on CPU 0
P-State Stepper Error 18 at step 2 in context 2 on CPU 1
P-State Stepper Error 18 at step 2 in context 2 on CPU 7
P-State Stepper Error 18 at step 2 in context 2 on CPU 6
P-State Stepper Error 18 at step 2 in context 2 on CPU 4
P-State Stepper Error 18 at step 2 in context 2 on CPU 2
P-State Stepper Error 18 at step 2 in context 2 on CPU 3
P-State Stepper Error 18 at step 2 in context 2 on CPU 5
I have:
sudo kextstat | grep LPC
   80    0 0xffffff7f81ad2000 0x3000     0x3000     com.apple.driver.AppleLPC (1.6.0) <77 10 5 4 3>
I've combined the stepping data from my SSDT in to my DSDT and have 100Mhz increments in my p-states


I've run a few tests with different BIOS versions, nvram can be read and written correctly, and I have successfully tested with changing to my normal iMac 12,2 SMBIOS settings, though for now I'm retracing my steps and back to using the default Ozmosis settings.

So what am I missing?

Thanks in advance.

hi blackosx

i have also a Sandy Bridge and i fix the P-State Stepper Error with this DSDT.

Peep purely maybe does it help.

here P-State works fine.

AICPUPMI: CPU P-States [ 16 20 24 29 33 34 35 36 (37) ]

Good Hack

System DSDT.zip

blackosx · September 14, 2013

I have a theory that it might be possible to add the SMBIOS data (and more) to ozmosisdefaults. Perhaps it's in the same format as Clover. But I'm just spectating Ozmosis for now hoping that someone who is using it will try this out.

Maybe..

For now all I see is a plist file.

hexdump -C /Users/blackosx/Desktop/DefaultsUnCompressed
00000000  9c 83 f2 99 c3 57 1e 41  ab c3 ad e5 26 7d 96 0d  |.....W.A....&}..|
00000010  6c aa 02 00 28 01 00 f8  ea 00 00 19 3c 3f 78 6d  |l...(.......<?xm|
00000020  6c 20 76 65 72 73 69 6f  6e 3d 22 31 2e 30 22 20  |l version="1.0" |
00000030  65 6e 63 6f 64 69 6e 67  3d 22 55 54 46 2d 38 22  |encoding="UTF-8"|
00000040  3f 3e 0a 3c 21 44 4f 43  54 59 50 45 20 70 6c 69  |?>.<!DOCTYPE pli|
00000050  73 74 20 50 55 42 4c 49  43 20 22 2d 2f 2f 41 70  |st PUBLIC "-//Ap|
00000060  70 6c 65 2f 2f 44 54 44  20 50 4c 49 53 54 20 31  |ple//DTD PLIST 1|
00000070  2e 30 2f 2f 45 4e 22 20  22 68 74 74 70 3a 2f 2f  |.0//EN" "http://|
00000080  77 77 77 2e 61 70 70 6c  65 2e 63 6f 6d 2f 44 54  |www.apple.com/DT|
00000090  44 73 2f 50 72 6f 70 65  72 74 79 4c 69 73 74 2d  |Ds/PropertyList-|
000000a0  31 2e 30 2e 64 74 64 22  3e 0a 3c 70 6c 69 73 74  |1.0.dtd">.<plist|
000000b0  20 76 65 72 73 69 6f 6e  3d 22 31 2e 30 22 3e 0a  | version="1.0">.|
000000c0  3c 64 69 63 74 3e 0a 09  3c 6b 65 79 3e 56 65 72  |<dict>..<key>Ver|
000000d0  73 69 6f 6e 3c 2f 6b 65  79 3e 0a 09 3c 73 74 72  |sion</key>..<str|
000000e0  69 6e 67 3e 31 2e 30 3c  2f 73 74 72 69 6e 67 3e  |ing>1.0</string>|
000000f0  0a 3c 2f 64 69 63 74 3e  0a 3c 2f 70 6c 69 73 74  |.</dict>.</plist|
00000100  3e 0a fd fd 24 00 00 15  4f 00 7a 00 6d 00 6f 00  |>...$...O.z.m.o.|
00000110  73 00 69 00 73 00 44 00  65 00 66 00 61 00 75 00  |s.i.s.D.e.f.a.u.|
00000120  6c 00 74 00 73 00 00 00                           |l.t.s...|
00000128

úÉÚô√WA´√≠Â&}ñ
l™(¯Í<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Version</key>
<string>1.0</string>
</dict>
</plist>
˝˝$OzmosisDefaults

EvgeniX · September 14, 2013

Open the extracted file in a hex editor. Remove everything from the start up to MZ and zero out the FDFD at the end.

it does not have any FDFD at the end....

but it worked! Thx!

if any one need it ntfs(from asrock).efi.zip

I had problem with clover one... this one works fast!

blackosx · September 14, 2013

hi blackosx

i have also a Sandy Bridge and i fix the P-State Stepper Error with this DSDT.

Peep purely maybe does it help.

here P-State works fine.

AICPUPMI: CPU P-States [ 16 20 24 29 33 34 35 36 (37) ]

Thanks Truesoldier. I'll take a look.

EDIT:

I've compared yours to mine, but there's no real difference.

Looking at your Scope (_PR) we have very similar data with yours set for multiplier (inc. turbo) 16-37, where as mine is set for 16-38.

Is there anything else I should be looking at in your DSDT?

EDIT2: My problem is solved.. It was due to an incorrect BIOS setting.. Doh!

dgsga · September 14, 2013

Hi blackosx, good to see you here! I've been following this with interest too. Have had successful CPUPM using the attached DSDT embedded in amiboardinfo module in bios.I have been using the same model identifier as yourself. The only thing that I've yet to fix is the incorrect FSB calculation. This causes sound distortion with AppleHDA from 10.8.5 and 10.9 DP's, I think it's the same bug that affected Clover before Pene improved the TSC calculation. Bit of a bugger...

DSDT.dsl.zip

blackosx · September 14, 2013

Hi dgsga. Good to see you too

Thanks for sharing your file. I'll take a look.

Regards

EDIT: Quote removed and paragraph edited.

EDIT2:

Have had successful CPUPM using the attached DSDT embedded in amiboardinfo module in bios.

But you didn't have to embed this in to the amiboardinfo module for it to work though did you? Would it not have worked when loaded from disk?

I've just dumped all the modules of the Ozmosis ROM with PhoenixTools and extracted all the ACPI tables using Sam's acpi-extract.pl script to take a look.

EDIT3:

I see the AmiBoardInfo Module with the DSDT is 9F3A0016-AE55-4288-829D-D22FD344C347

|016|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|000938CB|00AF29|DRVR|

Which ties in with the output from the script.

22046D50-F390-498C-92E5-5BA4F8E7F8B6 SSDT-SataTabl.aml
22046D50-F390-498C-92E5-5BA4F8E7F8B6 SSDT-IdeTable.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-CpuPm.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-Cpu0Ist.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-ApIst.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-Cpu0Tst.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-ApTst.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-Cpu0Cst.aml
299141BB-211A-48A5-92C0-6F9A0A3A006E SSDT-ApCst.aml
60AC3A8F-4D66-4CD4-895A-C3F06E6665EE SSDT-IffsAsl.aml
9F3A0016-AE55-4288-829D-D22FD344C347 DSDT.aml
FB045DB2-598E-485A-BA30-5D7B1B1BD54D SSDT-AoacTabl.am

Riley Freeman · September 14, 2013

Maybe..

For now all I see is a plist file.

Yeah it's empty right now. I'm thinking it can be used to override the hardcoded settings. The Ozmosis log format looks a lot like Clovers to me so it made me wonder if adding some keys in the same format (pre-r2000 I'd imagine, the format has changed recently) to that file would have any effect.

Also I just tried booting my 10.9 install from Clover and got that same P-State stepper error on CPU0. It boots 10.8.5 fine.

bs0d · September 14, 2013

Yeah it's empty right now. I'm thinking it can be used to override the hardcoded settings. The Ozmosis log format looks a lot like Clovers to me so it made me wonder if adding some keys in the same format (pre-r2000 I'd imagine, the format has changed recently) to that file would have any effect.

Also I just tried booting my 10.9 install from Clover and got that same P-State stepper error on CPU0. It boots 10.8.5 fine.

its not currently used.

truemac · September 14, 2013

Thanks Truesoldier. I'll take a look.

EDIT:

I've compared yours to mine, but there's no real difference.

Looking at your Scope (_PR) we have very similar data with yours set for multiplier (inc. turbo) 16-37, where as mine is set for 16-38.

Is there anything else I should be looking at in your DSDT?

not really,thought would help.

I think it is difficult for Asus Boards.

Good hack

iztech · September 15, 2013

8.5 audio via TB works without distortion.

ivanwinkel · September 15, 2013

I found a wat to get firmware file with needed nvram. This file can be modded without THE need of changing THE nvram everytime we flash THE bios.

So at first a bios with nvram writing capability.

Then we write THE needed nvram variables.

THE we save THE bios with q-flash.

Know we can mod This saved bios file for ozmosis.

When we flash This. THE nvram is there. Tested iT And iT works.

We can even save bios settings This way.

richtig · September 15, 2013

Anyone try taking a look at exact cloning a "genuine" Mac bios mainboard firmware?

Seems like it might be possible to clone a MacBook Pro, iMac or Mac Pro's bios, for example, and make OSX behave completely natively.

So that: a Hackintosh Thunderbolt port would work correctly with a PCIe video card + Apple's 27" TB monitor, for example.

Yes: I'm aware that Apple uses their own special EFI firmware, which is AFAIK not accessible or configurable (unlike normal PC bioses).

And yet: a Windows installer can be booted from a DVD or USB thumb drive and installed on a genuine Mac, so therefore the bios can't be all that different from a normal PC bios.

Question: how does a MacPro bios firmware compare in size to the 8 Mb. bios size in current model Z87 Gigabyte boards?

Can a genuine Mac bios be saved, viewed and manipulated with standard PC bios management tools, for example?

iLeopod · September 15, 2013

mac book pro 8.2?

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          FFS FV               |   00181000   |  30F000   |    150    |
|  01  |          FFS FV               |   00490000   |  028000   |    011    |
|  02  |          FFS FV               |   004B8000   |  1CA000   |    179    |
|  03  |          Non-FFS FV           |   00682000   |  010000   |    000    |
|  04  |          FFS FV               |   00692000   |  003000   |    025    |
|  05  |          FFS FV               |   00695000   |  003000   |    025    |
|  06  |          Non-FFS FV           |   00698000   |  020000   |    000    |
|  07  |          Non-FFS FV           |   006B8000   |  020000   |    000    |
|  08  |          NVRAM FV             |   006D8000   |  028000   |    000    |
|  09  |          FFS FV               |   00700000   |  070000   |    035    |
|  0A  |          FFS FV               |   00770000   |  070000   |    035    |
|  0B  |          Non-FFS FV           |   007E0000   |  010000   |    000    |
|  0C  |          Boot Block FV        |   007F0000   |  010000   |    000    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
| Image contains no nested firmware                                           |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  181000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00181000   Length :  30F000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |4D37DA42-3A0C-4EDA-B9EB-BC0E1DB4713B|00181048|002B1E|PEIM|
|001|               |35B898CA-B6A9-49CE-8C72-904735CC49B7|00183B68|00736D|DXEC|
|002|               |C3E36D09-8294-4B97-A857-D5288FE33E28|0018AED8|00009E|FRFM|
|003|               |BAE7599F-3C6B-43B7-BDF0-9CE07AA91AA6|0018AF78|0005C6|DRVR|
|004|               |B601F8C4-43B7-4784-95B1-F4226CB40CEE|0018B540|00086B|DRVR|
|005|               |51C9F40C-5243-4473-B265-B3C8FFAFF9FA|0018BDB0|000293|DRVR|
|006|               |53BCC14F-C24F-434C-B294-8ED2D4CC1860|0018C048|000582|DRVR|
|007|               |CA515306-00CE-4032-874E-11B755FF6866|0018C5D0|00032F|DRVR|
|008|               |A62D933A-9293-4D9F-9A16-CE81994CC4F2|0018C900|0022DF|DRVR|
|009|               |B22D18CC-18C5-4223-B8C3-DF98C56C3B7F|0018EBE0|000986|DRVR|
|010|               |1C6B2FAF-D8BD-44D1-A91E-7321B4C2F3D1|0018F568|0006C5|DRVR|
|011|               |2BDED685-F733-455F-A840-43A22B791FB3|0018FC30|00075A|DRVR|
|012|               |F1EFB523-3D59-4888-BB71-EAA5A96628FA|00190390|00016E|DRVR|
|013|               |A6F691AC-31C8-4444-854C-E2C1A6950F92|00190500|00666D|DRVR|
|014|               |07A9330A-F347-11D4-9A49-0090273FC14D|00196B70|0002B8|DRVR|
|015|               |91538AC9-A5D3-4DEF-9A70-28A087DEFA79|00196E28|002368|DRVR|
|016|               |79CA4208-BBA1-4A9A-8456-E1E66A81484E|00199190|000527|DRVR|
|017|               |BFD59D42-FE0F-4251-B772-4B098A1AEC85|001996B8|000360|DRVR|
|018|               |C194C6EA-B68C-4981-B64B-9BD271474B20|00199A18|001580|DRVR|
|019|               |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|0019AF98|000427|DRVR|
|020|               |E052D8A6-224A-4C32-8D37-2E0AE162364D|0019B3C0|000EC2|DRVR|
|021|               |C1C418F9-591D-461C-82A2-B9CD96DFEA86|0019C288|0004B6|DRVR|
|022|               |C7EA9787-CA0A-43B4-B1E5-25EF87391F8D|0019C740|00069E|DRVR|
|023|               |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|0019CDE0|0008F3|DRVR|
|024|               |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|0019D6D8|00042D|DRVR|
|025|               |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|0019DB08|003B00|DRVR|
|026|               |271DD6F2-54CB-45E6-8585-8C923C1AC706|001A1608|000C6C|PEIM|
|027|               |2374EDDF-F203-4FC0-A20E-61BAD73089D6|001A2278|000C59|DRVR|
|028|               |B0D6ED53-B844-43F5-BD2F-61095264E77E|001A2ED8|001E60|DRVR|
|029|               |BB65942B-521F-4EC3-BAF9-A92540CF60D2|001A4D38|000C09|DRVR|
|030|               |1E843AD6-E237-42FC-BDA2-DE78542E16DD|001A5948|001399|DRVR|
|031|               |29D8DD19-C836-45D9-8F05-322C27129C2A|001A6CE8|0021BE|DRVR|
|032|               |CBD2E4D5-7068-4FF5-B462-9822B4AD8D60|001A8EA8|00251E|DRVR|
|033|               |106F04DF-DD40-42C3-B786-70432C1AFAAA|001AB3C8|000859|DRVR|
|034|               |AD608272-D07F-4964-801E-7BD3B7888652|001ABC28|00034E|DRVR|
|035|               |45424D0C-E6AF-4AF2-AD99-FA77168742D1|001ABF78|0003F6|DRVR|
|036|               |378D7B65-8DA9-4773-B6E4-A47826A833E1|001AC370|00121E|DRVR|
|037|               |F099D67F-71AE-4C36-B2A3-DCEB0EB2B7D8|001AD590|00036E|DRVR|
|038|               |2564AF8F-568D-49AA-8BAA-2FF068B7D052|001AD900|000912|DRVR|
|039|               |818544B5-1B9D-4E7B-8F7D-835AAEAF3B5C|001AE218|003BD8|DRVR|
|040|               |8C363D8B-392D-47B3-9243-8839794A9FCE|001B1DF0|0004C6|DRVR|
|041|               |62D171CB-78CD-4480-8678-C6A2A797A8DE|001B22B8|005FA5|DRVR|
|042|               |F0CE024A-617E-45B4-A8E5-0CED8D53771E|001B8260|0021A6|DRVR|
|043|               |DBC227B1-39CC-46EE-86C4-B9D081ECA75B|001BA408|0028EB|DRVR|
|044|               |D5B366C7-DB85-455F-B50B-900A694E4C8C|001BCCF8|011C3E|APPN|
|045|               |E27D5CDC-BF27-415A-8F43-8189BB5F0D5E|001CE938|000998|DRVR|
|046|               |1323C7F8-DAD5-4126-A54B-7A05FBF41515|001CF2D0|000887|DRVR|
|047|               |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|001CFB58|00157A|DRVR|
|048|               |A89EC8E0-0BA1-40AA-A03E-ABDDA5295CDE|001D10D8|001B13|DRVR|
|049|               |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|001D2BF0|04ED4F|DRVR|
|050|               |506533A6-E626-4500-B14F-17939C0E5B60|00221940|000C01|DRVR|
|051|               |FC90EB7A-3E0A-483C-A26C-484D36593FF4|00222548|001119|DRVR|
|052|               |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|00223668|001A28|DRVR|
|053|               |FCD337AB-B1D3-4EF8-957C-8048606FF670|00225090|00232B|DRVR|
|054|               |60A14F6F-55B9-47A3-B067-01A93027F3FE|002273C0|000A9D|DRVR|
|055|               |BDFDE060-7E41-4EAE-AD9B-E5BBA7A48A3A|00227E60|000C9C|DRVR|
|056|               |AC4CE557-F5CD-439E-963C-40F09683DAC5|00228B00|000533|DRVR|
|057|               |398262C1-5165-4725-87FC-BB786A972582|00229038|000366|DRVR|
|058|               |508A61DC-2C57-4848-A54A-58015179C94A|002293A0|000837|DRVR|
|059|               |662AD66E-F52D-47F6-A350-488DB9F8AF68|00229BD8|003FBB|DRVR|
|060|               |6A504489-884E-4465-A02F-03B248CDEF13|0022DB98|0003D8|DRVR|
|061|               |9E85F0D5-5185-482B-8D50-5671307FEA80|0022DF70|000C09|DRVR|
|062|               |351EDA1E-4F68-4277-89E4-B7830AAF2AF2|0022EB80|0008CD|DRVR|
|063|               |95AF7E4D-C45D-47FF-AEB2-D9BC13466B3F|0022F450|002D3B|DRVR|
|064|               |5552575A-7E00-4D61-A3A4-F7547351B49E|00232190|001410|DRVR|
|065|               |9CC55D7D-FBFF-431C-BC14-334EAEA6052B|002335A0|0020F5|DRVR|
|066|               |7FED72EE-0170-4814-9878-A8FB1864DFAF|00235698|000940|DRVR|
|067|               |ABB74F50-FD2D-4072-A321-CAFC72977EFA|00235FD8|000F34|PEIM|
|068|               |CB73C3D9-2F01-4342-AE67-04DDE5264092|00236F10|000CFE|DRVR|
|069|               |3F7753EF-D36F-45CC-8A1A-2EAAFF1038B6|00237C10|00063F|DRVR|
|070|               |062C9472-7835-434A-B004-89CBF6546B4E|00238250|000386|DRVR|
|071|               |938CAD17-342E-4612-99F6-27ED14671B4E|002385D8|0004B4|DRVR|
|072|               |EAF59C0E-BD46-413A-9AE9-DD9F6D1A927D|00238A90|001BCF|DRVR|
|073|               |E121EC07-9C42-45EE-B0B6-FFF8EF03C521|0023A660|000601|DRVR|
|074|               |F7731B4C-58A2-4DF4-8980-5645D39ECE58|0023AC68|001EC3|DRVR|
|075|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|0023CB30|00085D|FRFM|
|076|               |8A107CC5-DCDA-4FB7-A272-4243B41AFBFE|0023D390|003F28|DRVR|
|077|               |A9FBF34B-E2A2-41D1-BA00-A274A55CD164|002412B8|000588|DRVR|
|078|               |0E9E5679-9333-447C-A6C7-1E4132598632|00241840|000233|DRVR|
|079|               |55E76644-78A5-4A82-A900-7126A5798892|00241A78|001A40|DRVR|
|080|               |69FD8E47-A161-4550-B01A-5594CEB2B2B2|002434B8|0036BE|DRVR|
|081|               |AD70855E-0CC5-4ABF-8979-BE762A949EA3|00246B78|0002FD|DRVR|
|082|               |93B80004-9FB3-11D4-9A3A-0090273FC14D|00246E78|005CCC|DRVR|
|083|               |240612B5-A063-11D4-9A3A-0090273FC14D|0024CB48|001104|DRVR|
|084|               |93B80003-9FB3-11D4-9A3A-0090273FC14D|0024DC50|001637|DRVR|
|085|               |1E82B556-4EB6-479F-955A-78A5FE0C0CB2|0024F288|07072F|DRVR|
|086|               |BDFE430E-8F2A-4DB0-9991-6F856594777E|002BF9B8|003065|DRVR|
|087|               |E0FF720B-0140-43FE-9528-7A781357E42E|002C2A20|002CA0|DRVR|
|088|               |2FB92EFA-2EE0-4BAE-9EB6-7464125E1EF7|002C56C0|0026A6|DRVR|
|089|               |335B0F6A-FCBD-402A-B4BB-0C3EEDAAF9D3|002C7D68|00031A|DRVR|
|090|               |240612B7-A063-11D4-9A3A-0090273FC14D|002C8088|002F34|DRVR|
|091|               |B40612B9-A063-11D4-9A3A-0090273FC14D|002CAFC0|001005|DRVR|
|092|               |A3527D16-E6CC-42F5-BADB-BF3DE177742B|002CBFC8|000CE3|DRVR|
|093|               |B40612B2-A063-11D4-9A3A-0090273FC14D|002CCCB0|00095C|DRVR|
|094|               |A5C6D68B-E78A-4426-9278-A8F0D9EB4D8F|002CD610|001A4C|DRVR|
|095|               |2D2E62CF-9ECF-43B7-8219-94E7FC713DFE|002CF060|00123F|DRVR|
|096|               |2D2E62AA-9ECF-43B7-8219-94E7FC713DFE|002D02A0|000FAB|DRVR|
|097|               |07B37006-9302-408E-B416-B524D110DD7F|002D1250|000A0C|DRVR|
|098|               |A3CF349D-639C-4D08-AC4A-C95341FB4F94|002D1C60|000A9E|DRVR|
|099|               |DDB04BBC-6977-4202-8855-5ECE4BAC8247|002D2700|0003B6|DRVR|
|100|               |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|002D2AB8|0036A3|DRVR|
|101|               |714845FE-F8B8-4B45-9AAE-708ECDDFCB77|002D6160|002586|DRVR|
|102|               |144880E7-8251-4409-BED6-C7F6340C6345|002D86E8|000A87|DRVR|
|103|               |D59A538B-69BE-4D37-9827-C8829C3D7D50|002D9170|005F81|DRVR|
|104|               |5B0FD7A8-CFE8-4850-B645-0503794241E7|002DF0F8|000AE9|DRVR|
|105|               |BA246BC7-7E2F-4AE4-817A-FFDE572E39DE|002DFBE8|00093F|DRVR|
|106|               |51CCF399-4FDF-4E55-A45B-E123F84D456A|002E0528|000940|DRVR|
|107|               |408EDCEC-CF6D-477C-A5A8-B4844E3DE281|002E0E68|00217F|DRVR|
|108|               |CCCB0C28-4B24-11D5-9A5A-0090273FC14D|002E2FE8|0016F6|DRVR|
|109|               |9E863906-A40F-4875-977F-5B93FF237FC6|002E46E0|00206F|DRVR|
|110|               |CA261A26-7718-4B9B-8A07-5178B1AE3A02|002E6750|0007E0|DRVR|
|111|               |5058F21C-BC34-11D4-BD18-0080C73C8881|002E6F30|004954|DRVR|
|112|               |43B93232-AFBE-11D4-BD0F-0080C73C8881|002EB888|0017D6|DRVR|
|113|               |8F26EF0A-4F7F-4E4B-9802-8C22B700FFAC|002ED060|0004B2|DRVR|
|114|               |1C41D73F-0EB4-4F5C-922C-1956E7218459|002ED518|000227|DRVR|
|115|               |E41A9651-43B2-484F-8EFA-D54AC7419C24|002ED740|001117|DRVR|
|116|               |AB8DDBAA-9C47-429B-9D12-326F273D9B88|002EE858|000589|DRVR|
|117|               |8E6BD67D-1872-4932-A39A-FC9DCA4A98CF|002EEDE8|0018E0|DRVR|
|118|               |AC6993CF-43C8-4FCB-840C-B7CF2E079977|002F06C8|00061B|DRVR|
|119|               |C5C88D3C-49FE-4637-91AF-B430AFBD99C5|002F0CE8|00032B|DRVR|
|120|               |A4F2909C-5E2A-438A-91BA-272B0923049A|002F1018|005EF4|DRVR|
|121|               |8B24E4D4-C84C-4FFC-81E5-D3EACC3F08DD|002F6F10|0007ED|DRVR|
|122|               |EF0C99B6-B1D3-4025-9405-BF6A560FE0E0|002F7700|0016EA|DRVR|
|123|               |7E374E25-8E01-4FEE-87F2-390C23C606CD|002F8DF0|0032DB|FRFM|
|124|               |4391AA92-6644-4D8A-9A84-DDD405C312F3|002FC0D0|000738|DRVR|
|125|               |CC582C73-F48F-4B62-83E8-A586B4C88F84|002FC808|000E82|DRVR|
|126|               |15FFF79E-866F-49A2-AAA4-6F743FE0BB69|002FD690|000ABF|DRVR|
|127|               |BCCAD460-4F7D-4E51-8A5D-3BBA236D9EBB|002FE150|001D48|DRVR|
|128|               |1F9CABF9-3F3C-4CFF-AED8-5FDF745A0DCC|002FFE98|00ABB2|FRFM|
|129|               |2D61B52A-69EF-497D-8317-5574AEC89BE4|0030AA50|000476|DRVR|
|130|               |EF33C296-F64C-4146-AD04-347899702C84|0030AEC8|002D6E|DRVR|
|131|               |AD21F7A0-7F5B-47FE-8CC0-241F318CABF5|0030DC38|00122B|DRVR|
|132|               |1F36527E-A97C-45F8-B24A-9D95B0A940FE|0030EE68|000A18|DRVR|
|133|               |2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7|0030F880|001326|APPN|
|134|               |9204A71D-2050-4AB7-AD42-749CF9ADB4EB|00310BA8|00062E|DRVR|
|135|               |0412A7A1-C050-42C2-877A-77C379F9F5F1|003111D8|006CD1|DRVR|
|136|               |6074610C-93C6-4A50-9AAA-0927DE7C6975|00317EB0|001E15|DRVR|
|137|               |8CE0E1E9-26DC-4F24-ADBD-6871B8223703|00319CC8|0020A0|DRVR|
|138|               |9D1A8B60-6CB0-11DE-8E91-0002A5D5C51B|0031BD68|00A0D6|DRVR|
|139|               |05FFB44D-EE01-40E1-9866-FD27FD4FBE92|00325E40|0019EF|DRVR|
|140|               |3DE7656E-F224-4D8F-83DE-54097D5CCE5F|00327830|003831|DRVR|
|141|               |6A5F1EF9-C478-42BA-A4DB-C7846CC7DB57|0032B068|009504|FRFM|
|142|               |B87F85B7-03B0-4DA5-90DF-53CD3F832A01|00334570|00B97F|DRVR|
|143|               |F9F91A0D-F031-4383-8289-63C3F9D54440|0033FEF0|009F60|FRFM|
|144|               |0606E5F2-F031-4383-8289-63C3F9D54440|00349E50|009FFE|FRFM|
|145|               |5F581766-F1B6-4C5F-835D-8B4372ADE35A|00353E50|009D94|FRFM|
|146|               |962B7023-FC73-43B4-AF2C-AD212EB3BC47|0035DBE8|009D93|FRFM|
|147|               |B0B1FF94-AF4D-4950-AF6E-E35BFF28A88A|00367980|009DC5|FRFM|
|148|               |891E0B25-2C61-416D-9ACD-F87E0B03A04C|00371748|00AB4B|DRVR|
|149|               |7833B87F-C8D2-4DEF-874F-9999ACA7ED42|0037C298|009C95|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 10A0D0 (1064 KB)    Bytes Used       : 204F30 (2067 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00490000   Length :  028000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |C3E36D09-8294-4B97-A857-D5288FE33E28|00490048|00009E|FRFM|
|001|               |5BDDE605-B107-419E-9510-AA3C434EBBE4|004900E8|001008|DRVR|
|002|               |8C9F5C9A-00AE-4461-932A-A9912B19FCD4|004910F0|0005F3|DRVR|
|003|               |208117F2-25F8-479D-B726-10C10BED6DC1|004916E8|000307|DRVR|
|004|               |F122A15C-C10B-4D54-8F48-60F4F06DD1AD|004919F0|003851|DRVR|
|005|               |5479662B-6AE4-49E8-A6BD-6DE4B625811F|00495248|0006AA|DRVR|
|006|               |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|004958F8|0015C6|DRVR|
|007|               |1547B4F3-3E8A-4FEF-81C8-328ED647AB1A|00496EC0|009E7C|FRFM|
|008|               |DF9A9591-B646-4621-AF0D-18143A73289F|004A0D40|000D2C|DRVR|
|009|               |9F2A114A-834B-4916-945C-1C09F4944819|004A1A70|000529|DRVR|
|010|               |8D3BE215-D6F6-4264-BEA6-28073FB13AEA|004A1FA0|000760|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 015900 ( 86 KB)    Bytes Used       : 012700 ( 73 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  004B8000   Length :  1CA000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |C3E36D09-8294-4B97-A857-D5288FE33E28|004B8048|00009E|FRFM|
|001|               |A2F436EA-A127-4EF8-957C-8048606FF670|004B80E8|001D1D|DRVR|
|002|               |A210F973-229D-4F4D-AA37-9895E6C9EABA|004B9E08|000362|DRVR|
|003|               |025BBFC7-E6A9-4B8B-82AD-6815A1AEAF4A|004BA170|001CFA|DRVR|
|004|               |529D3F93-E8E9-4E73-B1E1-BDF6A9D50113|004BBE70|0019BE|DRVR|
|005|               |9FB1A1F3-3B71-4324-B39A-745CBB015FFF|004BD830|004A66|DRVR|
|006|               |26841BDE-920A-4E7A-9FBE-637F477143A6|004C2298|0012C8|DRVR|
|007|               |6D6963AB-906D-4A65-A7CA-BD40E5D6AF2B|004C3560|002DA8|DRVR|
|008|               |DC3641B8-2FA8-4ED3-BC1F-F9962A03454B|004C6308|003001|DRVR|
|009|               |6D6963AB-906D-4A65-A7CA-BD40E5D6AF4D|004C9310|004FE2|DRVR|
|010|               |76FDC1AE-A42A-416A-98E3-A2F29146DAC3|004CE2F8|0038C3|DRVR|
|011|               |320E0C11-B5FE-4C20-B8A8-815A20700CEF|004D1BC0|00145A|DRVR|
|012|               |F77CB08E-6682-4DF7-82A3-BBBB52704C1F|004D3020|002CF1|DRVR|
|013|               |F4FA2E94-36CA-455C-B449-9AC710B8E79D|004D5D18|0015C6|DRVR|
|014|               |69B8D0A9-5A57-482F-A85F-8AD986A8DEEF|004D72E0|000AD5|DRVR|
|015|               |5BF3654C-7E7D-4FBA-8BC6-2AEBCD6F68EB|004D7DB8|0011CF|DRVR|
|016|               |0C76E32C-04FD-4267-B2A2-7828341A81B2|004D8F88|00057D|DRVR|
|017|               |E1628C66-2A2D-4DC5-BD41-B20F3538AAF7|004D9508|00B63C|APPN|
|018|               |9EBA2D25-BBE3-4AC2-A2C6-C87F44A1278C|004E4B48|002CFA|APPN|
|019|               |E364A338-2842-4F57-A7C7-CDC8CFDF6CD7|004E7848|0015F3|DRVR|
|020|               |56AAA799-5273-406E-85D7-05A8DF24BF2C|004E8E40|0010E2|DRVR|
|021|               |FF478412-38C3-4770-85F6-5D076C62125F|004E9F28|00137E|DRVR|
|022|               |F2C1819D-10F5-4223-9236-9B4EBF1B9AE7|004EB2A8|001DB9|FRFM|
|023|               |410C1D0C-656F-4769-8DFB-90F9A0303E9F|004ED068|0034DA|FRFM|
|024|               |E646C3A8-C7E2-4DC2-A7F2-E32A270B0B26|004F0548|001A13|FRFM|
|025|               |D3231048-B7D7-46FC-80F8-2F7B229586C5|004F1F60|001B83|APPN|
|026|               |CD51358D-6E7E-45CA-B450-57C046BDFDDC|004F3AE8|000509|DRVR|
|027|               |CCEC84CD-CDC5-4C75-8637-D4508FC79CCD|004F3FF8|0068BC|DRVR|
|028|               |BD87394D-465C-40A9-9657-FBED21789860|004FA8B8|000337|DRVR|
|029|               |5C08E2E2-AD70-4C99-94A2-AE604EA033DA|004FABF0|000423|DRVR|
|030|               |1A10742F-FA80-4B79-9DA6-357058CC397B|004FB018|0002D0|FRFM|
|031|               |E8A59290-A2AF-4099-B0AF-323FF9B7AB41|004FB2E8|000578|FRFM|
|032|               |B4339807-7CAC-49BA-9FB7-6231C622F270|004FB860|000736|FRFM|
|033|               |C0512F00-0181-48C0-8B71-90504B8F991E|004FBF98|0000FF|FRFM|
|034|               |21A05FD5-DB4A-4CFC-B84B-EB0DBB569934|004FC098|005181|FRFM|
|035|               |809FBBFD-127A-4249-88BC-FD0E767F4FFD|00501220|005A96|FRFM|
|036|               |D872AEFA-7C5F-4C66-8836-AA57EFF0D9F8|00506CB8|0033CB|FRFM|
|037|               |5B6DAB96-195D-4D24-9727-A7D0E93665C6|0050A088|001E78|FRFM|
|038|               |E6F930E0-BAE5-40E6-98C9-4CD2298278E7|0050BF00|0045C5|FRFM|
|039|               |1BFC532E-F48A-4EBE-B2FB-2B286D70A6EB|005104C8|0032E2|FRFM|
|040|               |A0AAFF71-35DA-41EE-863F-A24F429E59E4|005137B0|0003BF|FRFM|
|041|               |6776572C-FE56-42CA-9B93-3D0960E7583A|00513B70|0003F5|FRFM|
|042|               |8F98528C-F736-4A84-AAA3-376A8E43BF51|00513F68|00014F|FRFM|
|043|               |5D8111C9-B4F9-46F3-9DDB-73A41AC696C5|005140B8|0001A9|FRFM|
|044|               |71F3B066-936A-4C84-9228-23230FD47C79|00514268|00013E|FRFM|
|045|               |BB1A3984-D171-4003-9094-46AF866B45A2|005143A8|000400|FRFM|
|046|               |689CDA29-29A8-42F6-93FC-46BA5F180651|005147A8|0002A5|FRFM|
|047|               |13ECD928-87AB-4460-BBE0-B520F9EB1D32|00514A50|00246B|FRFM|
|048|               |6F92E393-03C0-427B-BBEB-4EF807B55BD8|00516EC0|002CD5|FRFM|
|049|               |4308B1F6-60F0-49FE-9E51-3A25992515BF|00519B98|0031B0|FRFM|
|050|               |03DBB540-E186-4615-8A7F-A427863B4E56|0051CD48|00391B|FRFM|
|051|               |79C3AC4A-DEC6-48F1-AFFE-E7B95A1CCB32|00520668|0038C4|FRFM|
|052|               |C6A957E4-8303-4761-A084-92C0692D90F9|00523F30|0029C2|FRFM|
|053|               |F38C34DE-9C38-438C-9AF6-69F584F17EC0|005268F8|001555|FRFM|
|054|               |F5D14DB5-2F0C-4611-9DDC-7C182B173A71|00527E50|000201|FRFM|
|055|               |B10ADFA1-9E43-487F-AAF3-A7A9BDEAF4AC|00528058|0001FA|FRFM|
|056|               |EA449C41-8236-4B97-9FF9-084E4BA70020|00528258|000128|FRFM|
|057|               |7EF21E8C-2FC1-4BC3-A84A-73025EAAB896|00528380|000113|FRFM|
|058|               |1448C340-0202-4711-9C4B-2D063AA6475B|00528498|0001F1|FRFM|
|059|               |6B309956-6617-472B-BBC7-2A09E55E3E52|00528690|000205|FRFM|
|060|               |7914C493-F439-4C6C-AB23-7F72150E72D4|00528898|000886|FRFM|
|061|               |6E72A82C-14A5-4F02-A377-4A423BB1817F|00529120|000117|FRFM|
|062|               |FA2FD4A6-ECE4-4CA0-8A22-C2CC06E0D018|00529238|00017A|FRFM|
|063|               |2E0ECDFE-BB1C-4D0A-BBC8-7B1AA25CEA2C|005293B8|000194|FRFM|
|064|               |6B141B15-B00A-456F-914E-2F78D32D0595|00529550|000195|FRFM|
|065|               |F12F047A-B952-4634-8418-E14DDCC4B800|005296E8|0001B3|FRFM|
|066|               |46F85AC5-A151-43F5-ABF2-29568BC5F1C5|005298A0|0001C4|FRFM|
|067|               |AA57B619-3288-53E2-A932-012FF336507B|00529A68|00058F|FRFM|
|068|               |8D19A405-933F-5E49-9997-A151D5977FE1|00529FF8|000767|FRFM|
|069|               |D7D12963-724A-58BE-85F5-11E03ACED0FC|0052A760|00089D|FRFM|
|070|               |AC42ACB9-5E4F-50DF-8CA1-96A7A4E09775|0052B000|000617|FRFM|
|071|               |67DB94A5-4DCD-5D0C-A5E3-73DB92729B44|0052B618|00073C|FRFM|
|072|               |405B6889-84AF-56A6-B4F8-7F341B5574A6|0052BD58|0006E5|FRFM|
|073|               |D478C511-B310-5596-9FB9-EFFE65A83487|0052C440|0007B4|FRFM|
|074|               |848C0D54-38C0-5DF0-8F89-EC6BD4CCBB6D|0052CBF8|0006DB|FRFM|
|075|               |45B8D81D-5122-5AFD-B026-9763A2E42D6E|0052D2D8|00081A|FRFM|
|076|               |AD27668D-1378-5900-8D3D-30D964F10281|0052DAF8|00078A|FRFM|
|077|               |9D4409D3-C1D5-5B48-81D8-18C762A6CE13|0052E288|0007C2|FRFM|
|078|               |67DCD697-7671-570F-A9E9-9AF37B1D1E91|0052EA50|00085D|FRFM|
|079|               |43544783-B242-56C2-998E-C04CD6D63006|0052F2B0|0008BC|FRFM|
|080|               |1CE0134E-6D58-5B7D-96BB-F8F6B733DADB|0052FB70|0007D5|FRFM|
|081|               |9A01B4F6-17A4-55FF-801C-58E57ED9CCEE|00530348|0006F7|FRFM|
|082|               |76A51573-5EF4-53BD-96ED-FC605D81135E|00530A40|000722|FRFM|
|083|               |4B9D5907-E49A-56A0-8CD0-6A980FA131B0|00531168|000890|FRFM|
|084|               |6C5E432D-AF52-5FAD-9EA5-31034895C300|005319F8|0007A0|FRFM|
|085|               |AA1A8DC4-8F64-5E39-A15B-57F702EA7810|00532198|00075F|FRFM|
|086|               |1EBF6DD6-9CF1-5DF7-A477-334FE8FB5EEE|005328F8|000833|FRFM|
|087|               |0862259B-A62F-5D02-9A05-10C1554487E8|00533130|000710|FRFM|
|088|               |BE1939A3-F2C6-52F0-A181-8960201E5F77|00533840|00055C|FRFM|
|089|               |D9F11A26-249C-46AC-9CB5-E4F77E035C90|00533DA0|000175|FRFM|
|090|               |FC788727-C2D0-469C-BD03-5AEA03323C67|00533F18|0008F9|FRFM|
|091|               |6E66DAE5-4108-40B5-89A9-C6103F0639EC|00534818|0016E1|FRFM|
|092|               |3BEB6B06-09CE-4386-8884-F323ADD04F1F|00535F00|003575|FRFM|
|093|               |022218B8-FE5E-4EBC-BC96-74058A4E7E83|00539478|0015F6|FRFM|
|094|               |AD0D149F-BA67-4E0B-A6A2-4E8853673EA5|0053AA70|0035EA|FRFM|
|095|               |290B026F-6905-4612-BA0F-F635DDE35285|0053E060|001125|FRFM|
|096|               |224FBFE4-ADB6-4DF2-B835-602182AEEF20|0053F188|000C5C|FRFM|
|097|               |FA4585F1-303B-4725-80E4-BB42BBD0249C|0053FDE8|000768|FRFM|
|098|               |681A0BB1-0CC1-5D66-BAC0-1C3AE85924E1|00540550|000E42|FRFM|
|099|               |5CFC956D-41AD-51DA-9B48-CADC013E8A4B|00541398|0017D2|FRFM|
|100|               |4B359EC7-17A3-5243-891F-1B1B6E4FAE7F|00542B70|001524|FRFM|
|101|               |A830E58D-E0FC-51C9-967A-8D4762F02467|00544098|00139F|FRFM|
|102|               |8A1B0E00-C1BD-55A9-9973-D1BFBA1D41B1|00545438|001024|FRFM|
|103|               |A1D6F2D1-0C09-5FAB-8B07-4025CDBDAB42|00546460|000CA5|FRFM|
|104|               |3DDB79F1-C119-52F7-BEDB-3939C22BAC9D|00547108|000F9B|FRFM|
|105|               |04DDC987-B098-5F37-BEAE-1DC7623DF106|005480A8|000FA8|FRFM|
|106|               |8CACE6D1-B2E6-51BE-88CC-85581E6C6A2C|00549050|00149A|FRFM|
|107|               |294C0365-B5A1-53F3-A8D1-EB9435C89507|0054A4F0|001348|FRFM|
|108|               |AF3B4463-526C-5D03-B938-FA183DF3542D|0054B838|00103D|FRFM|
|109|               |ECF69A07-7712-5EE6-9736-4BC5EBB0280F|0054C878|001291|FRFM|
|110|               |D93523E1-8E3D-5867-BF3B-FCE75CF8CFE4|0054DB10|001C15|FRFM|
|111|               |23D56AD2-428B-54B5-9A84-844D95C41438|0054F728|001618|FRFM|
|112|               |4F6DF9C1-CBCA-5994-9CE8-58D417B9EB3C|00550D40|00107E|FRFM|
|113|               |BAE1EA36-D0DC-5F6F-9F1A-FB05E2500F82|00551DC0|00132A|FRFM|
|114|               |406452D6-3AEA-56FB-AD75-7FAC9FD1CF14|005530F0|0013DD|FRFM|
|115|               |68B9F70B-9657-5F85-8971-40C753ED1A66|005544D0|001223|FRFM|
|116|               |09C43291-9447-53A6-B3F8-8D35193C9424|005556F8|0015E5|FRFM|
|117|               |297638DB-1BDC-57CB-96C4-8C6B9D78B22D|00556CE0|00147E|FRFM|
|118|               |0E4BEBC8-4765-59A3-960D-D8AEBC38A32C|00558160|000E05|FRFM|
|119|               |0C160584-AE83-5AB0-B94C-54EA808CF0E0|00558F68|001143|FRFM|
|120|               |6ECEFFFD-614D-452E-A81D-25E56B0DEF98|0055A0B0|002339|FRFM|
|121|               |23D1280D-43F0-4713-90B2-0E5E4221AF4C|0055C3F0|0025AB|FRFM|
|122|               |53531469-558E-4AF1-803A-F966F27C573B|0055E9A0|002783|FRFM|
|123|               |3BBCB209-26C8-4BA9-AD25-B95B45A04D26|00561128|002910|FRFM|
|124|               |ED8DCDD5-D037-4B1F-98DD-BDFDAD4DD7DD|00563A38|002B27|FRFM|
|125|               |637E0BA6-C5BB-41B7-A23B-3A65CFC3E9DB|00566560|002C9C|FRFM|
|126|               |7A627E16-679D-4814-8F82-EEAF3881F098|00569200|002D04|FRFM|
|127|               |D0CFD67C-E8BE-499E-A6C7-5A90348A170B|0056BF08|01FCD1|FRFM|
|128|               |C6C071D0-50FC-4347-A19B-FDA8AB37C39B|0058BBE0|00370E|DRVR|
|129|               |7EC21E57-CE8A-4FDE-B147-0F7C0959CD3F|0058F2F0|018870|DRVR|
|130|               |386A4B1C-DDE4-4FC5-9B03-9C928FCC6FD2|005A7B60|000293|FRFM|
|131|               |9759BD61-F11E-4FEE-9004-1E8C88E72223|005A7DF8|000294|FRFM|
|132|               |8C542316-A1E5-4001-89E7-15EDFF12577D|005A8090|000285|FRFM|
|133|               |BA87DD62-AB60-46DE-8FD8-023510D52D11|005A8318|00028C|FRFM|
|134|               |E1CF12E4-762B-4576-A158-9B255A828AA7|005A85A8|000294|FRFM|
|135|               |FB547927-DAEC-4884-A12E-94109FEDF18C|005A8840|000294|FRFM|
|136|               |C9E057D7-3B6D-475C-B8C2-7C955D2F58B3|005A8AD8|00029A|FRFM|
|137|               |5DF9946D-8170-4FB5-854F-A98865F9878F|005A8D78|000288|FRFM|
|138|               |563C75D2-045D-43FD-A7C0-A472B0AD0255|005A9000|00028A|FRFM|
|139|               |B7E329EC-AD60-4D61-86E3-01A7904E223D|005A9290|00028B|FRFM|
|140|               |EA5D72C1-4455-4FF8-91A1-4352DC1EE112|005A9520|000287|FRFM|
|141|               |8977B212-0A43-4048-993B-B39AC7B0FE21|005A97A8|00028A|FRFM|
|142|               |704EA695-F373-42D4-BF1B-44BB7F60C295|005A9A38|0001DD|FRFM|
|143|               |0C5FCE90-1C03-4ED2-9EFE-B1D02E72B3B0|005A9C18|000119|FRFM|
|144|               |3399DA41-CE44-4FDD-8D32-E578381FEBE0|005A9D38|0001DC|FRFM|
|145|               |DA9F192F-BAE4-4F20-8C6C-55C1ACDE80B0|005A9F18|0001BB|FRFM|
|146|               |8D4A8276-1994-4E82-983A-A71753617797|005AA0D8|00019B|FRFM|
|147|               |94796E10-7CF6-4A20-A3A0-4CF1A8341A16|005AA278|000F6B|FRFM|
|148|               |21ADC483-021F-4F3B-8DCE-613CC981A269|005AB1E8|000F5E|FRFM|
|149|               |47FD99EB-C1E6-4F77-A31A-9F7FB4A8E7DE|005AC148|000F6F|FRFM|
|150|               |A6077307-B297-4051-9AC0-A0DC8147E601|005AD0B8|000FA6|FRFM|
|151|               |36B37F21-9D04-44B5-95EC-4DE4CB2FE6FB|005AE060|000F88|FRFM|
|152|               |C19783FD-E21E-451A-830E-C7CB23DB52CC|005AEFE8|0000BB|FRFM|
|153|               |A023D3F6-F297-4307-8552-E6572B30B520|005AF0A8|000F27|FRFM|
|154|               |F866AD0F-1FBB-4D52-813D-7EB95E2F19D4|005AFFD0|0000BA|FRFM|
|155|               |C54F4B67-E527-4379-BF61-193C7A68C661|005B0090|00100C|FRFM|
|156|               |97E35ADE-233D-4F18-828A-8A0524EBEDDE|005B10A0|000FCF|FRFM|
|157|               |0284F846-2CB7-4960-8DB2-47AA71513AD5|005B2070|0000B3|FRFM|
|158|               |FB15CB3F-D373-45A1-B9B1-0079D4E9D6B2|005B2128|000F2B|FRFM|
|159|               |9DC0DDAA-56BD-447A-95CC-5180433110F9|005B3058|00018D|FRFM|
|160|               |6D5C61C2-7694-4775-9F03-ED1E80DEC318|005B31E8|000112|FRFM|
|161|               |180636A5-871B-496D-B8F3-E83EF196D100|005B3300|0001B0|FRFM|
|162|               |2E5CFC2C-9CC0-4D78-BEAF-D84CBF20D1C8|005B34B0|001049|FRFM|
|163|               |B703C820-4D3D-4658-8EED-5B2F9DE54711|005B4500|001040|FRFM|
|164|               |2A9D5E7F-A43A-4FC7-A25E-6E28D412FA6F|005B5540|001109|FRFM|
|165|               |8962C28B-0DFE-4739-A73F-092D374A7A13|005B6650|0010F4|FRFM|
|166|               |BA658945-DEE1-42B3-9FA4-BB6B22FB03E4|005B7748|000F5A|FRFM|
|167|               |795231E2-A205-4B8D-8C8D-7353B713DF7D|005B86A8|000F56|FRFM|
|168|               |04F75442-A593-4281-BD4B-095935B7D2F8|005B9600|0010ED|FRFM|
|169|               |3FFFB2AA-4692-42E8-865E-7E111986FABE|005BA6F0|0010F4|FRFM|
|170|               |16A4ADD0-EF11-4C86-B159-88A2A8C4501C|005BB7E8|0010FA|FRFM|
|171|               |81E67795-D8A3-43B2-8B5F-E0326F76AB91|005BC8E8|001086|FRFM|
|172|               |73F70B77-943B-4090-99E8-4F8E4D824A43|005BD970|0010E1|FRFM|
|173|               |63FA7900-6DD2-4BB3-9976-870FE27A53C2|005BEA58|0010EE|FRFM|
|174|               |728CAE6C-1FFC-449B-8681-BB2A621E0022|005BFB48|001116|FRFM|
|175|               |2F08C089-2073-4BD9-9E7E-308A18327B53|005C0C60|0002E0|FRFM|
|176|               |88C61F0D-DFA9-4087-8687-626A8B010E0C|005C0F40|000FD0|FRFM|
|177|               |9D60F495-DBF2-4B06-AFCA-F62C1C89647F|005C1F10|000FD2|FRFM|
|178|               |F19B5EA5-7CDF-4CB2-9C37-F1BE08AC588B|005C2EE8|0089C3|DRVR|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 0B6750 (729 KB)    Bytes Used       : 1138B0 (1102 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00682000   Length :  010000  |
+-----------------------------------------------------------------------------+
| Firmware Volume : 04               Location :  00692000   Length :  003000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |95C8C131-4467-4447-8A71-F087AFCA07A5|00692048|00001F|FRFM|
|001|               |4E6C7E95-8DE2-437F-A773-C584A06661F8|00692068|00009C|FRFM|
|002|               |B2CB10B1-714A-4E0C-9ED3-35688B2C99F0|00692108|000590|FRFM|
|003|               |64ED8B7E-B1D0-4E9E-9D2A-696718CB8347|00692698|000034|FRFM|
|004|               |693CB617-2F91-44D2-9F40-0747F77DF3E6|006926D0|000070|FRFM|
|005|               |BF7F6F3A-5523-488E-8A60-F04863B975C3|00692740|0002AC|FRFM|
|006|               |89EFCFE7-1601-4DF4-9469-CF8C5C6A6F6F|006929F0|0003A8|FRFM|
|007|               |E6FD74BA-5D61-4050-AB75-5FAF824969E1|00692D98|0000E0|FRFM|
|008|               |8A8B3310-5C24-4789-AC59-29FC409D8035|00692E78|000148|FRFM|
|009|               |D409CBA9-1BA8-4F07-9703-D02DEA45E0FC|00692FC0|00009C|FRFM|
|010|               |6F078C4F-6542-431C-8255-BA66D828A8EC|00693060|000034|FRFM|
|011|               |D1A04D55-75B9-41A3-9036-8F4A261CBBA2|00693098|000058|FRFM|
|012|               |0E8028EB-7594-4EB3-B3C9-13ADAD2EA35A|006930F0|000878|FRFM|
|013|               |124021FC-EE78-45EC-887B-C9A479C8376F|00693968|0000B0|FRFM|
|014|               |06F4C15C-DBA1-43D4-A525-E8F5CC5CD6EE|00693A18|000110|FRFM|
|015|               |9B37A7AD-D40B-4121-8F9B-ACBF590EC449|00693B28|000050|FRFM|
|016|               |3EEF5A5F-0D3E-410A-B194-CEAAD4AC2B51|00693B78|000A14|FRFM|
|017|               |6A9586F3-A9D0-4AB4-9486-3B78C799AA10|00694590|000310|FRFM|
|018|               |9707F7B9-2C0F-42EC-B847-D03C65DE45DD|006948A0|000144|FRFM|
|019|               |2F221C54-0D61-4741-8659-BC4CCAFC87FE|006949E8|000098|FRFM|
|020|               |F282204D-D58A-4A82-B285-F775377BE683|00694A80|0000C8|FRFM|
|021|               |D4A4B482-D4C6-4B0F-97B3-5A3775D18CF3|00694B48|00008C|FRFM|
|022|               |BC3906BD-7712-4197-BD2F-72B951C1C39C|00694BD8|000050|FRFM|
|023|               |339370BD-CFC6-4454-8EF7-704653120818|00694C28|000130|FRFM|
|024|               |37A34ED8-7B10-4E8C-98D8-E582F0003727|00694D58|000048|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000260 (  0 KB)    Bytes Used       : 002DA0 ( 11 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 05               Location :  00695000   Length :  003000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |95C8C131-4467-4447-8A71-F087AFCA07A5|00695048|00001F|FRFM|
|001|               |4E6C7E95-8DE2-437F-A773-C584A06661F8|00695068|00009C|FRFM|
|002|               |B2CB10B1-714A-4E0C-9ED3-35688B2C99F0|00695108|000590|FRFM|
|003|               |64ED8B7E-B1D0-4E9E-9D2A-696718CB8347|00695698|000034|FRFM|
|004|               |693CB617-2F91-44D2-9F40-0747F77DF3E6|006956D0|000070|FRFM|
|005|               |BF7F6F3A-5523-488E-8A60-F04863B975C3|00695740|0002AC|FRFM|
|006|               |89EFCFE7-1601-4DF4-9469-CF8C5C6A6F6F|006959F0|0003A8|FRFM|
|007|               |E6FD74BA-5D61-4050-AB75-5FAF824969E1|00695D98|0000E0|FRFM|
|008|               |8A8B3310-5C24-4789-AC59-29FC409D8035|00695E78|000148|FRFM|
|009|               |D409CBA9-1BA8-4F07-9703-D02DEA45E0FC|00695FC0|00009C|FRFM|
|010|               |6F078C4F-6542-431C-8255-BA66D828A8EC|00696060|000034|FRFM|
|011|               |D1A04D55-75B9-41A3-9036-8F4A261CBBA2|00696098|000058|FRFM|
|012|               |0E8028EB-7594-4EB3-B3C9-13ADAD2EA35A|006960F0|000878|FRFM|
|013|               |124021FC-EE78-45EC-887B-C9A479C8376F|00696968|0000B0|FRFM|
|014|               |06F4C15C-DBA1-43D4-A525-E8F5CC5CD6EE|00696A18|000110|FRFM|
|015|               |9B37A7AD-D40B-4121-8F9B-ACBF590EC449|00696B28|000050|FRFM|
|016|               |3EEF5A5F-0D3E-410A-B194-CEAAD4AC2B51|00696B78|000A14|FRFM|
|017|               |6A9586F3-A9D0-4AB4-9486-3B78C799AA10|00697590|000310|FRFM|
|018|               |9707F7B9-2C0F-42EC-B847-D03C65DE45DD|006978A0|000144|FRFM|
|019|               |2F221C54-0D61-4741-8659-BC4CCAFC87FE|006979E8|000098|FRFM|
|020|               |F282204D-D58A-4A82-B285-F775377BE683|00697A80|0000C8|FRFM|
|021|               |D4A4B482-D4C6-4B0F-97B3-5A3775D18CF3|00697B48|00008C|FRFM|
|022|               |BC3906BD-7712-4197-BD2F-72B951C1C39C|00697BD8|000050|FRFM|
|023|               |339370BD-CFC6-4454-8EF7-704653120818|00697C28|000130|FRFM|
|024|               |37A34ED8-7B10-4E8C-98D8-E582F0003727|00697D58|000048|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000260 (  0 KB)    Bytes Used       : 002DA0 ( 11 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 06               Location :  00698000   Length :  020000  |
+-----------------------------------------------------------------------------+
| Firmware Volume : 07               Location :  006B8000   Length :  020000  |
+-----------------------------------------------------------------------------+
| Firmware Volume : 08               Location :  006D8000   Length :  028000  |
+-----------------------------------------------------------------------------+
| Firmware Volume : 09               Location :  00700000   Length :  070000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |52C05B14-0B98-496C-BC3B-04B50211D680|00700048|00200C|PEIC|
|001|               |C46DC410-D875-464F-8864-0292C33747ED|00702058|00392C|PEIM|
|002|               |80F1DE13-3C6E-4A78-A802-1AC5FF3750FB|00705988|000734|PEIM|
|003|               |38317FC0-2795-4DE6-B207-680CA768CFB1|007060C0|000844|PEIM|
|004|               |8A78B107-0FDD-4CC8-B7BA-DC3E13CB8524|00706908|0006B4|PEIM|
|005|               |27A5159D-5E61-4809-919A-422E887101EF|00706FC0|0003A4|PEIM|
|006|               |01359D99-9446-456D-ADA4-50A711C03ADA|00707368|000DB4|PEIM|
|007|               |EDF59D2E-D5D6-4A63-A298-8FF2FA47D20B|00708120|000614|PEIM|
|008|               |53984C6A-1B4A-4174-9512-A65E5BC8B278|00708738|0013B4|PEIM|
|009|               |996D8FF2-703F-492C-9A50-1DBEB32AAEB1|00709AF0|000F04|PEIM|
|010|               |320A5BFC-E508-4D92-9255-BBB10AEF6A30|0070A9F8|0005D8|PEIM|
|011|               |01187BBB-DD3E-4D06-BA29-F09B92496599|0070AFD0|001418|PEIM|
|012|               |C779F6D8-7113-4AA1-9648-EB1633C7D53B|0070C3E8|003864|PEIM|
|013|               |233DF097-3218-47B2-9E09-FE58C2B20D22|0070FC50|001104|PEIM|
|014|               |FD236AE7-0791-48C4-B29E-29BDEEE1A838|00710D58|001FAC|PEIM|
|015|               |643DF777-F312-42ED-81CC-1B1F57E18AD6|00712D08|000824|PEIM|
|016|               |1D88C542-9DF7-424A-AA90-02B61F286938|00713530|0005EC|PEIM|
|017|               |3B42EF57-16D3-44CB-8632-9FDB06B41451|00713B20|01533C|PEIM|
|018|               |FD236AE7-0791-48C4-B29E-29BDEEE1A811|00728E60|0015F0|PEIM|
|019|               |B6A2AFF3-767C-5658-C37A-D1C82EF76543|0072A450|0004E8|PEIM|
|020|               |4862AFF3-667C-5458-B274-A1C62DF8BA80|0072A938|0009D4|PEIM|
|021|               |8BCEDDD7-E285-4168-9B3F-09AF66C93FFE|0072B310|0019CC|PEIM|
|022|               |8AC57518-8934-423D-BB39-F5FC88840CCF|0072CCE0|000A14|PEIM|
|023|               |1ACEEB06-5A6F-4077-A934-865B78C8DC03|0072D6F8|0005EC|PEIM|
|024|               |4B30B764-6C1C-4BF9-95DA-9782918EB398|0072DCE8|001114|PEIM|
|025|               |CD2B6EB3-EA11-4848-B687-AFE57D3D1C0F|0072EE00|000704|PEIM|
|026|               |6ECFCE51-5724-450C-A38A-58553E954422|0072F508|000644|PEIM|
|027|               |C866BD71-7C79-4BF1-A93B-066B830D8F9A|0072FB50|000F88|PEIM|
|028|               |8B8214F9-4ADB-47DD-AC62-8313C537E9FA|00730AD8|000394|PEIM|
|029|               |610E687C-7CE7-4563-87D6-226E02CE20A9|00730E70|0008D4|PEIM|
|030|               |6406C7D3-B5E4-4F76-B35A-BF07D1CF58D2|00731748|00366C|PEIM|
|031|               |9D3CFB39-E3B3-4BAA-8BF5-6F0E6BCB2287|00734DB8|001330|PEIM|
|032|               |3D17205B-4C49-47E2-8157-864CD3D80DBD|007360E8|0019AF|PEIM|
|033|               |66ACB016-A1D4-4E74-BA7D-EF93A85F112F|00737A98|001151|PEIM|
|034|               |C3E36D09-8294-4B97-A857-D5288FE33E28|00738BF0|00009E|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 037370 (220 KB)    Bytes Used       : 038C90 (227 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 0A               Location :  00770000   Length :  070000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |52C05B14-0B98-496C-BC3B-04B50211D680|00770048|00200C|PEIC|
|001|               |C46DC410-D875-464F-8864-0292C33747ED|00772058|00392C|PEIM|
|002|               |80F1DE13-3C6E-4A78-A802-1AC5FF3750FB|00775988|000734|PEIM|
|003|               |38317FC0-2795-4DE6-B207-680CA768CFB1|007760C0|000844|PEIM|
|004|               |8A78B107-0FDD-4CC8-B7BA-DC3E13CB8524|00776908|0006B4|PEIM|
|005|               |27A5159D-5E61-4809-919A-422E887101EF|00776FC0|0003A4|PEIM|
|006|               |01359D99-9446-456D-ADA4-50A711C03ADA|00777368|000DB4|PEIM|
|007|               |EDF59D2E-D5D6-4A63-A298-8FF2FA47D20B|00778120|000614|PEIM|
|008|               |53984C6A-1B4A-4174-9512-A65E5BC8B278|00778738|0013B4|PEIM|
|009|               |996D8FF2-703F-492C-9A50-1DBEB32AAEB1|00779AF0|000F04|PEIM|
|010|               |320A5BFC-E508-4D92-9255-BBB10AEF6A30|0077A9F8|0005D8|PEIM|
|011|               |01187BBB-DD3E-4D06-BA29-F09B92496599|0077AFD0|001418|PEIM|
|012|               |C779F6D8-7113-4AA1-9648-EB1633C7D53B|0077C3E8|003864|PEIM|
|013|               |233DF097-3218-47B2-9E09-FE58C2B20D22|0077FC50|001104|PEIM|
|014|               |FD236AE7-0791-48C4-B29E-29BDEEE1A838|00780D58|001FAC|PEIM|
|015|               |643DF777-F312-42ED-81CC-1B1F57E18AD6|00782D08|000824|PEIM|
|016|               |1D88C542-9DF7-424A-AA90-02B61F286938|00783530|0005EC|PEIM|
|017|               |3B42EF57-16D3-44CB-8632-9FDB06B41451|00783B20|01533C|PEIM|
|018|               |FD236AE7-0791-48C4-B29E-29BDEEE1A811|00798E60|0015F0|PEIM|
|019|               |B6A2AFF3-767C-5658-C37A-D1C82EF76543|0079A450|0004E8|PEIM|
|020|               |4862AFF3-667C-5458-B274-A1C62DF8BA80|0079A938|0009D4|PEIM|
|021|               |8BCEDDD7-E285-4168-9B3F-09AF66C93FFE|0079B310|0019CC|PEIM|
|022|               |8AC57518-8934-423D-BB39-F5FC88840CCF|0079CCE0|000A14|PEIM|
|023|               |1ACEEB06-5A6F-4077-A934-865B78C8DC03|0079D6F8|0005EC|PEIM|
|024|               |4B30B764-6C1C-4BF9-95DA-9782918EB398|0079DCE8|001114|PEIM|
|025|               |CD2B6EB3-EA11-4848-B687-AFE57D3D1C0F|0079EE00|000704|PEIM|
|026|               |6ECFCE51-5724-450C-A38A-58553E954422|0079F508|000644|PEIM|
|027|               |C866BD71-7C79-4BF1-A93B-066B830D8F9A|0079FB50|000F88|PEIM|
|028|               |8B8214F9-4ADB-47DD-AC62-8313C537E9FA|007A0AD8|000394|PEIM|
|029|               |610E687C-7CE7-4563-87D6-226E02CE20A9|007A0E70|0008D4|PEIM|
|030|               |6406C7D3-B5E4-4F76-B35A-BF07D1CF58D2|007A1748|00366C|PEIM|
|031|               |9D3CFB39-E3B3-4BAA-8BF5-6F0E6BCB2287|007A4DB8|001330|PEIM|
|032|               |3D17205B-4C49-47E2-8157-864CD3D80DBD|007A60E8|0019AF|PEIM|
|033|               |66ACB016-A1D4-4E74-BA7D-EF93A85F112F|007A7A98|001151|PEIM|
|034|               |C3E36D09-8294-4B97-A857-D5288FE33E28|007A8BF0|00009E|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 037370 (220 KB)    Bytes Used       : 038C90 (227 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 0B               Location :  007E0000   Length :  010000  |
+-----------------------------------------------------------------------------+
| Firmware Volume : 0C               Location :  007F0000   Length :  010000  |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 244CC0 (2323 KB)   Total Bytes Used : 5BB340 (5868 KB)   |
+-----------------------------------------------------------------------------+

bios

maleorderbride · September 15, 2013

So at first a bios with nvram writing capability.

How do you get this crucial first step? I have tried several BIOS iterations so far with my P9X79 PRO and none of them are allowing me to write to NVRAM.

TimeWalker75a · September 16, 2013

For Secure Boot you need signed drivers and executables... since there are no signing keys in the wilds it's just not happening.

xpamamadeus · September 16, 2013

Ok guys Ozmosis 801M

https://dl.dropboxusercontent.com/u/81717403/Z77MXQUOAOS.H3A.801M.ROM.zip

Looks like hacked FW then

Thx.

Ozmosis and injectorkext changed,all other same like 723m

blackosx · September 16, 2013

Ok guys Ozmosis 801M

Thanks for the link. I now see a boot option for 'Built-In EDK Shell' - very handy. And not that I use the GUI much, as I don't know how to, but I now see a mouse cursor which I swear wasn't there before, though it only shows it's updated position after a left click.

EDIT: Can't seem to boot with it though.. Maybe I added the FW incorrectly?

Yeah it's empty right now. I'm thinking it can be used to override the hardcoded settings. The Ozmosis log format looks a lot like Clovers to me so it made me wonder if adding some keys in the same format (pre-r2000 I'd imagine, the format has changed recently) to that file would have any effect.

Sorry for not getting what you meant the other day. Yeah - that would be useful though I see bs0d answered the question.

bs0d · September 16, 2013

For Secure Boot you need signed drivers and executables... since there are no signing keys in the wilds it's just not happening.

You can enable secure boot and install the keys and still boot OS X with Ozmosis.

Ozmosis

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
