kozlek Posted March 4, 2012 Author Share Posted March 4, 2012 How can we get a fan to register if it had no value? By modifying plugin's info.plist. Just set the name for one of FANINx Link to comment Share on other sites More sharing options...
kozlek Posted March 4, 2012 Author Share Posted March 4, 2012 this is the windows report with your last update i lose all the sensors New revision should fix this problem. Also you can add more voltages via info.plist, if you want. Maybe you'll find your memory voltage sensor. You could check readings from OpenHardwareMonitor and set VINx for your specific voltage sensors. See it87x's default profile to get sensors names you could use in info.plist 1 Link to comment Share on other sites More sharing options...
jazzyguy Posted March 4, 2012 Share Posted March 4, 2012 Which kext is the kext that we need to edit for fan? (for a CPU fan) Would that be IntelCPUMonitor? Link to comment Share on other sites More sharing options...
kozlek Posted March 5, 2012 Author Share Posted March 5, 2012 Which kext is the kext that we need to edit for fan? (for a CPU fan) Would that be IntelCPUMonitor? You need to edit info.plist of one of the SuperIO plugins. Link to comment Share on other sites More sharing options...

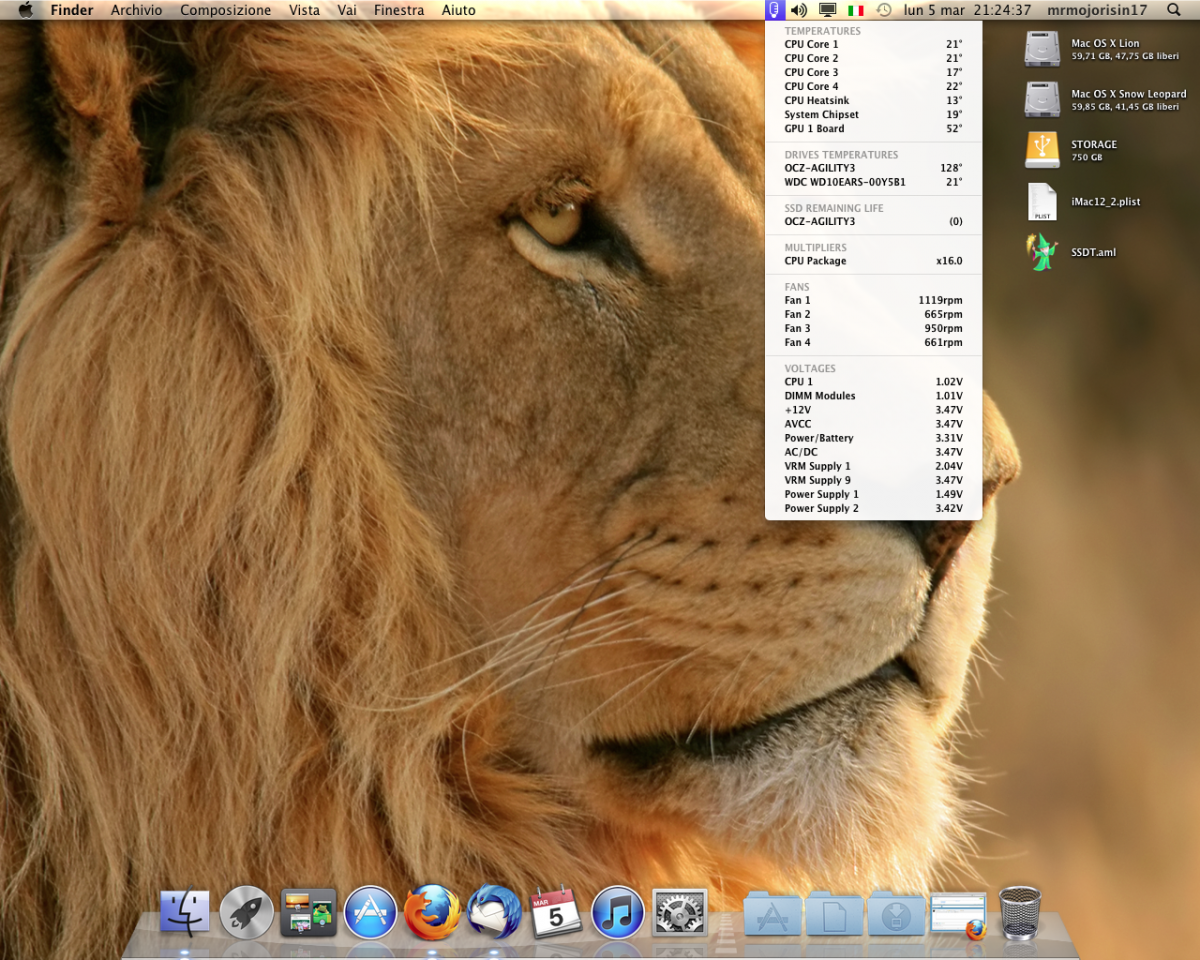

mrmojorisin17 Posted March 5, 2012 Share Posted March 5, 2012 Hi kozlek Overall thanks for your work, really appreciated. That's what I get with FakeSMC and IntelThermal.kext, NuvotonNCT677x.kext and RadeonX.kext PlugIns into it: I've a P8P67 Sabertooth with an i5-2500K and a Sapphire 6450 1GB GDDR3 passive. Link to comment Share on other sites More sharing options...
Goron Posted March 5, 2012 Share Posted March 5, 2012 Hi kozlek Overall thanks for your work, really appreciated. That's what I get with FakeSMC and IntelThermal.kext, NuvotonNCT677x.kext and RadeonX.kext PlugIns into it: I've a P8P67 Sabertooth with an i5-2500K and a Sapphire 6450 1GB GDDR3 passive. I´m interested in your dsdt and your ssdt, as i also have Sabertooth P67 and 2500K ... ioreg seems alright, as kozlek also stated, but no HDD temps show up ??? Could you send me your .aml´s to make a diff? Also: which UEFI version do you use? Cheers Goron Link to comment Share on other sites More sharing options...
mrmojorisin17 Posted March 5, 2012 Share Posted March 5, 2012 Hi Goron Now I'm on my bed with netbook, no hack. BTW I'm testing a SSDT, but is not ready yet. I don't use a DSDT. Tomorrow I'll send you all! Link to comment Share on other sites More sharing options...
x1a0 Posted March 6, 2012 Share Posted March 6, 2012 I got kernel panic after install the newest version (2012-03-06) from Github. Does anybody know how to restore it...? Link to comment Share on other sites More sharing options...
kozlek Posted March 6, 2012 Author Share Posted March 6, 2012 I got kernel panic after install the newest version (2012-03-06) from Github. Does anybody know how to restore it...? Which kexts did you installed? Please, get the screen shot of kernel panic. Link to comment Share on other sites More sharing options...
x1a0 Posted March 6, 2012 Share Posted March 6, 2012 Which kexts did you installed? Please, get the screen shot of kernel panic. Hi, Finally I used a bootable installation usb disk to boot into Lion installation. Download a new FakeSMC from http://www.projectosx.com/forum/index.php?showtopic=1643 (the top one). Delete the FakeSMC.kext from /S/L/E and put all new kexts from the new one into /S/L/E. Now system can boot. However something is wrong. System menu on the top right corner seems to be broken. when I run: sudo kextcache -prelinked-kernel I got: W836x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. W836x.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) PC8739x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. PC8739x.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) IT87x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. IT87x.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) F718x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. F718x.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) ACPIMonitor.kext - no compatible dependency found for org.netkas.FakeSMC. ACPIMonitor.kext is missing dependencies (including anyway; dependencies may be available from elsewhere) W836x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. PC8739x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. IT87x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. F718x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. ACPIMonitor.kext - no compatible dependency found for org.netkas.FakeSMC. /System/Library/Extensions/System.kext/PlugIns/Libkern6.0.kext doesn't support architecture x86_64; omitting from prelinked kernel. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.mozodojo.SuperIOFamily; omitting from prelinked kernel. W836x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.mozodojo.W836x; omitting from prelinked kernel. PC8739x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.slice.PC8739x; omitting from prelinked kernel. IT87x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.mozodojo.IT87x; omitting from prelinked kernel. F718x.kext - no compatible dependency found for org.netkas.FakeSMC. SuperIOFamily.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.mozodojo.F718x; omitting from prelinked kernel. ACPIMonitor.kext - no compatible dependency found for org.netkas.FakeSMC. Prelink failed for org.slice.ACPIMonitor; omitting from prelinked kernel. Looks like some mismatch version problem. How can I fix that? Thanks! Link to comment Share on other sites More sharing options...
x1a0 Posted March 6, 2012 Share Posted March 6, 2012 Which kexts did you installed? Please, get the screen shot of kernel panic. I did not take a screenshot. The options I checked were: Utilities HWMonitor HWMonitor Menu [*]FakeSMC [*]Misc Plug-Ins Intelthermal [*]Graphics Card Plug-Ins NVClockX [*]Motherboard Plug-Ins Winbond W836x When it's panic the backtrace shows something wrong within FakeSMC and WinbondW836x. Link to comment Share on other sites More sharing options...
kozlek Posted March 6, 2012 Author Share Posted March 6, 2012 I did not take a screenshot. The options I checked were: Utilities HWMonitor HWMonitor Menu [*]FakeSMC [*]Misc Plug-Ins Intelthermal [*]Graphics Card Plug-Ins NVClockX [*]Motherboard Plug-Ins Winbond W836x When it's panic the backtrace shows something wrong within FakeSMC and WinbondW836x. Ok, I'll see on it Link to comment Share on other sites More sharing options...
DarwinX Posted March 6, 2012 Share Posted March 6, 2012 Hi, Finally I used a bootable installation usb disk to boot into Lion installation. Download a new FakeSMC from http://www.projectos...?showtopic=1643 (the top one). Delete the FakeSMC.kext from /S/L/E and put all new kexts from the new one into /S/L/E. Now system can boot. However something is wrong. System menu on the top right corner seems to be broken. when I run: sudo kextcache -prelinked-kernel I got: Looks like some mismatch version problem. How can I fix that? Thanks! You must use either the Kozlek's branch on the Github or the Slice's branch on Assembla, NOT BOTH. DO NOT combine the branches as they are incompatible and therefore, they are not interchangeable. Link to comment Share on other sites More sharing options...
shatterhenner Posted March 6, 2012 Share Posted March 6, 2012 I did not take a screenshot. The options I checked were: Utilities HWMonitor HWMonitor Menu [*]FakeSMC [*]Misc Plug-Ins Intelthermal [*]Graphics Card Plug-Ins NVClockX [*]Motherboard Plug-Ins Winbond W836x When it's panic the backtrace shows something wrong within FakeSMC and WinbondW836x. Same here...kernel panic with winbond!!! Link to comment Share on other sites More sharing options...
kozlek Posted March 6, 2012 Author Share Posted March 6, 2012 shatterhenner, zhangxiao I have uploaded the new version, please, try it. If it will not work, also try to install attached debug version of plugin and start mac os x with -v argument and see what happening in kernel log. WinbondW836x.kext.zip Link to comment Share on other sites More sharing options...

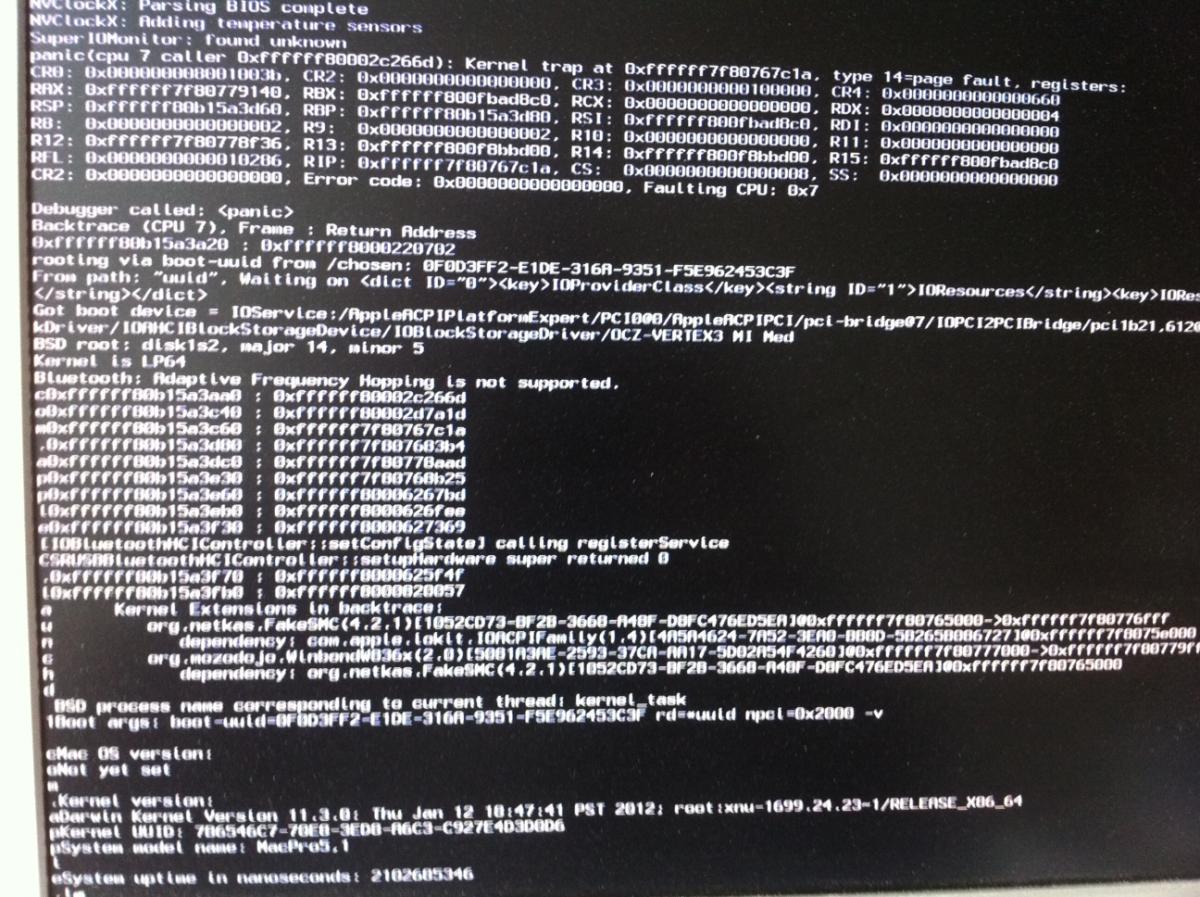

shatterhenner Posted March 7, 2012 Share Posted March 7, 2012 hi there, still kernel panic...log attached!!! Link to comment Share on other sites More sharing options...
sacaman1 Posted March 7, 2012 Share Posted March 7, 2012 New revision should fix this problem. Also you can add more voltages via info.plist, if you want. Maybe you'll find your memory voltage sensor. You could check readings from OpenHardwareMonitor and set VINx for your specific voltage sensors. See it87x's default profile to get sensors names you could use in info.plist thanks kozlek great job now i should found the real name for each sensor but really great job thank you i will update the real name and upload it here Sacaman :-) Link to comment Share on other sites More sharing options...
kozlek Posted March 8, 2012 Author Share Posted March 8, 2012 hi there, still kernel panic...log attached!!! Try the new version, it shouldfix the problem. Link to comment Share on other sites More sharing options...
DarwinX Posted March 8, 2012 Share Posted March 8, 2012 The latest available revision of the NSCPC8739x.kext plugin fails to load with the following output: kernel: Can't load kext org.slice.NSCPC8739x - link failed. kernel: Failed to load executable for kext org.slice.NSCPC8739x. kernel: Failed to load kext org.slice.NSCPC8739x (error 0xdc008016). kernel: Kext org.slice.NSCPC8739x failed to load (0xdc008016). kernel: kxld[org.slice.NSCPC8739x]: The vtable '__ZTV7PC8739x' is malformed. Make sure your kext has been built against the correct headers. com.apple.kextd: Failed to load /System/Library/Extensions/FakeSMC.kext/Contents/PlugIns/NSCPC8739x.kext - (libkern/kext) link error. Link to comment Share on other sites More sharing options...
kozlek Posted March 8, 2012 Author Share Posted March 8, 2012 The latest available revision of the NSCPC8739x.kext plugin fails to load with the following output: kernel: Can't load kext org.slice.NSCPC8739x - link failed. kernel: Failed to load executable for kext org.slice.NSCPC8739x. kernel: Failed to load kext org.slice.NSCPC8739x (error 0xdc008016). kernel: Kext org.slice.NSCPC8739x failed to load (0xdc008016). kernel: kxld[org.slice.NSCPC8739x]: The vtable '__ZTV7PC8739x' is malformed. Make sure your kext has been built against the correct headers. com.apple.kextd: Failed to load /System/Library/Extensions/FakeSMC.kext/Contents/PlugIns/NSCPC8739x.kext - (libkern/kext) link error. I got rid off this plugin because it uses hack to work only on specific hardware Link to comment Share on other sites More sharing options...
shatterhenner Posted March 8, 2012 Share Posted March 8, 2012 thanx...working ;-) but missing fans, voltages, and i got 128 degrees on my vertex 3!!!! Link to comment Share on other sites More sharing options...
kozlek Posted March 8, 2012 Author Share Posted March 8, 2012 thanx...working ;-) but missing fans, voltages, and i got 128 degrees on my vertex 3!!!! Could you upload, please, you kernel log and ioreg dump (dumped with IORegistryExplorer) Link to comment Share on other sites More sharing options...
shatterhenner Posted March 10, 2012 Share Posted March 10, 2012 Edit !!!! Not working properly!!!! Mar 10 10:12:00 localhost kernel[0]: kxld[org.slice.NSCPC8739x]: The vtable '__ZTV7PC8739x' is malformed. Make sure your kext has been built against the correct headers. Mar 10 10:12:00 localhost kernel[0]: Can't load kext org.slice.NSCPC8739x - link failed. Mar 10 10:12:00 localhost kernel[0]: Failed to load executable for kext org.slice.NSCPC8739x. Mar 10 10:12:00 localhost kernel[0]: Kext org.slice.NSCPC8739x failed to load (0xdc008016). Mar 10 10:12:00 localhost kernel[0]: Failed to load kext org.slice.NSCPC8739x (error 0xdc008016). Mar 10 10:12:00 localhost kernel[0]: kxld[org.mozodojo.WinbondW836x]: The vtable '__ZTV5W836x' is malformed. Make sure your kext has been built against the correct headers. Mar 10 10:12:00 localhost kernel[0]: Can't load kext org.mozodojo.WinbondW836x - link failed. Mar 10 10:12:00 localhost kernel[0]: Failed to load executable for kext org.mozodojo.WinbondW836x. Mar 10 10:12:00 localhost kernel[0]: Kext org.mozodojo.WinbondW836x failed to load (0xdc008016). Mar 10 10:12:00 localhost kernel[0]: Failed to load kext org.mozodojo.WinbondW836x (error 0xdc008016). Link to comment Share on other sites More sharing options...
sacaman1 Posted March 10, 2012 Share Posted March 10, 2012 hi kozlek your new update is not working i lose all my sensors only the CPU's and HDD's with GFX are shown i get this on the log file Mar 10 23:16:55 localhost kernel[0]: SuperIO: found Fintek F71869A on port=0x4e address=0x290 Mar 10 23:16:55 localhost kernel[0]: F718x: [Warning] wrong vendor id=0xffff Link to comment Share on other sites More sharing options...
Bism4rck Posted March 10, 2012 Share Posted March 10, 2012 That's what I get with FakeSMC and IntelThermal.kext, NuvotonNCT677x.kext and RadeonX.kext PlugIns into it: Thanks for this, now HWS is working here like a charm. First, this is really a great piece of software, but it needs a better description in the OP, so people know how to use it. Second, in a earlier version I could check the CPU MHz, but now it's missing?! Or just me doing something wrong? Link to comment Share on other sites More sharing options...
