Callisto Technical Discussion

[SleepO]

munky: heh, yeah i used a dvd downloaded... i think my current osx version acually is 10.4.5 so i am trying to install 10.4.6 to see whats happening. But is the ATI kext files on the dvd?



I have been using mac for 4 days now, so I don't know a lot of stuff yet



sorry for bad english, from norway ;P



edit: had to reinstall after 10.4.6 update, system crashed so I'll test more later

[El Massman]

don't know if this is going to help anyone but whenever i've tried changing resolution my screen becomes all messed up showing a doubled desktop. earlier i tried an external monitor, (i'm using a laptop) and after changing the resolution on the external monitor then changing back to the laptops lcd the image is perfect. dunno if thats going to help anyone but i thought i'd let you guys know anyways. running 1280x800 perfectly on an x200.

[thedopefishlives]

It works when I have the CRT plugged in. As soon as I unplugged it, though, it went right back to being all messed up.

[alex16s]

lol, btw ive never said the driver doesnt work at all, just said no use to figure out on manual how to install it as this guys seemed to be a noob, and he will crash his system having the white screen + blue stripe so tha'ts no a good idea to try it when u dont have a minimum knowledge of the consequences.





Oui je ne suis pas un habitué du terminal. De la a dire que je suis nouveau... J'admin des serveur mac depuis mac os 10.0.4 sortie en juillet 2001. j'ai connu mac os depuis sa version 7.6 de 1996 ou 1997 . Je trouve que c'est inutile de manier le terminal au lieu d'utiliser des scripts ou des applications!





Traduction :



Yes I one am not accustomed of the terminal. A statement that I am newbie... I admin of the mac waiter since mac os 10.0.4 exit in July 2001. I knew mac bone since his version 7.6 of 1996 or 1997 . I find that it is useless to handle the terminal instead of using scripts or of the applications!

[nautikah]

Just wanted to let you guys know

I got it to work for x300 128MB on Dell Inspiron 6000

loaded callisto, got 1400x1050 no QE/CI

No mouse tearring

will try again to get QE/CI

Just a note: when i first tried to change resolution i got a black screen but don't panic just use

keyboard arrows up and down, it took a couple of pushes up and down to get "1400x1050".

Thanks Omni.



dev id: 5460

OSX 10.4.6

[xtraa]

Just wanted to let you know that there is - no matter what driver you take - NEVER any

mousetearing *if* CI and QE is disabled.



If you take the 10.4.5. AtiXXXX.plugin, it shows you that ci and qe is enabled in the sys-info, but in fact it is not. You can prove that by clicking on any turnaround button in the widgets. If it does not rotate but simply switch, it is disabled.



the driver is working fine here with an pcie x300 and dual display. I just configured one display in the windowserver.plist, not a display-set, so the other is mirrored atm.



Sometimes the driver starts up funny, showing me some flickering 2 in one screens or 4 in one screens, but you can still see the system settings, and if you change the resolution temporarely, it is gone.



Also the display seems to be crisper here. I swear this is not a placebo



Anyway thank you for the effort, nice job





Now i will switch to my nvidia GF6600 to see what macvidia is all about.

[dbunder]

i haven't tried with my crt plugged in. hmmm... will try. but when i use verbose mode, the driver *does* detect my lcd's native resolution and settings perfectly. so there shouldn't be an issue with it.



also, i have tried both the AIT*.kext from 10.4.6 and 10.4.5 and no-go both ways. tons of others have my card (mobility 9600) working fine, i just can't get mine to. frustrating.

[Tiburon]

Are we supposed to remove the ATIRadeon9700.kext before installing this driver?





(Because I see both loaded, Callisto/CallistoHAL and ATIRadeon9700.kext)

[macprodan]

Yes, Callisto if mainly a frame buffer, you still need it in conjunction with ATIRadeon9700.kext and ATIRadeon9700GA.plugin for full CI and Quartz support

[osxgus]

x300 (id 5460) on a native 1680x1050 screen



i am using a dell inspiron 6000



did anyone else with my specs get this aswell? I can get 1400x1050 to work with QE/CI now, but not native, but then as soon as i move a window, the contents get totally garbeld...

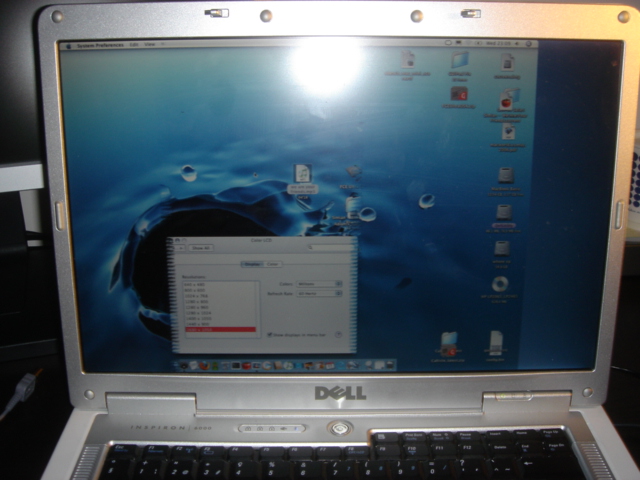

please see pic for result in native 1680x1050 res.. .





i tried remedy the problem with "cscreen" but i realized that i had no idea of what i was doing.. any help to remedy this problem is greatly appreciated.. otherwise i will stick around patiently and wait for a.3: thanks again omni!!





cheers!

osxG

[flow]

Mine is inspiron6000 x300 64M 1200x800

os 10.4.6 with Koverg 9700.kext

after I installed the callisto, in the system profiler showed

before

Type: VGA-Compatible Controller

Bus: PCIe

VRAM (Total): 128 MB

Vendor: ATI (0x1002)

Device ID: 0x5460

Revision ID: 0x0000

Displays:

Display:

Resolution: 1024 x 768

Depth: 32-bit Color

Core Image: Supported

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Supported



Now

Chipset Model: Radeon Mobility M300 (M22)

Type: Display

Bus: PCIe

VRAM (Total): 64 MB<-------------------before showed as 128M

Vendor: ATI (0x1002)

Device ID: 0x5460

Revision ID: 0x0000

Displays:

Color LCD:

Resolution: 1280 x 800 @ 60 Hz

Depth: 32-bit Color

Core Image: Not Supported<-----------------I can still play chess, strange...

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported

when I swith it from 1024x768 to 1280x800

the whole screen shifted to the left side, and right side didnt expande, and in the center a blurry line showed up (some pixels mixing).

I tried to put the original ATIradeon9700.kext back, then the chess cannt be played, and the center is still blurry lines.



how did you make it work?





Just wanted to let you guys know

I got it to work for x300 128MB on Dell Inspiron 6000

loaded callisto, got 1400x1050 no QE/CI

No mouse tearring

will try again to get QE/CI

Just a note: when i first tried to change resolution i got a black screen but don't panic just use

keyboard arrows up and down, it took a couple of pushes up and down to get "1400x1050".

Thanks Omni.



dev id: 5460

OSX 10.4.6

[rogabean]

Mine is inspiron6000 x300 64M 1200x800

os 10.4.6 with Koverg 9700.kext

after I installed the callisto, in the system profiler showed



Chipset Model: Radeon Mobility M300 (M22)

Type: Display

Bus: PCIe

VRAM (Total): 64 MB<-------------------before showed as 128M

Vendor: ATI (0x1002)

Device ID: 0x5460

Revision ID: 0x0000

Displays:

Color LCD:

Resolution: 1280 x 800 @ 60 Hz

Depth: 32-bit Color

Core Image: Not Supported<-----------------I can still play chess, strange...

Main Display: Yes

Mirror: Off

Online: Yes

Quartz Extreme: Not Supported

when I swith it from 1024x768 to 1280x800

the whole screen shifted to the left side, and right side didnt expande, and in the center a blurry line showed up (some pixels mixing).

I tried to put the original ATIradeon9700.kext back, then the chess cannt be played, and the center is still blurry lines.



how did you make it work?



Just to clear one thing up. Chess is OpenGL. That's the requirement. Being able to play Chess just proves the OpenGL is still working fine.

[flow]

Just like Mine , the left side extended, right side stayed, and center has vertical blurry lines

x300 (id 5460) on a native 1680x1050 screen



i am using a dell inspiron 6000



did anyone else with my specs get this aswell? I can get 1400x1050 to work with QE/CI now, but not native, but then as soon as i move a window, the contents get totally garbeld...



please see pic for result in native 1680x1050 res.. .

i tried remedy the problem with "cscreen" but i realized that i had no idea of what i was doing.. any help to remedy this problem is greatly appreciated.. otherwise i will stick around patiently and wait for a.3: thanks again omni!!

cheers!

osxG

[FancyNatra]

If you take the 10.4.5. AtiXXXX.plugin, it shows you that ci and qe is enabled in the sys-info, but in fact it is not. You can prove that by clicking on any turnaround button in the widgets. If it does not rotate but simply switch, it is disabled.

http://forum.osx86project.org/index.php?s=...ndpost&p=110481



It fixed my flipping effect on ATI.

[xtraa]

http://forum.osx86project.org/index.php?s=...ndpost&p=110481



It fixed my flipping effect on ATI.



w00t



thank you, thats the real deal. now frontrow and co. should work with full efx, too

[Takuro]

I tried a second attempt to install the driver in case it was an error I had made during installation. Still no go. The login window never appears and the boot screen gets tearing.





I tried deleting the kexts again, but the prompt said "callisto.kext is a directory." I tried just deleting the entire contents of Callisto.kext and CallistoHAL.kext, and now I still can't get into the login screen for some reason.



Ugh...

[Mac Boy]

I got v002 to work on:



Chipset Model: Radeon X800GT/SE (PCIE)

Vendor: ATI (0x1002)

Device ID: 0x554b

Resolution: 1280 x 1024 @ 75 Hz



75Hz is much better than 60Hz on my SyncMaster CRT! I moved all my ATI*.kexts to /System/Library/Extensions_10.4.5_Disabled/ but that might not have been needed. I'll try to move them back and apply the koverg patch to see if I can get acceleration again.



It's not completely bug-free, though. Sometimes selecting another res or refresh rate causes the screen to flash like a strobe light. And when I first tried it, the screen went blank and I was stuck for a while. But I'm glad I have this alpha.

[dbunder]

Hmmm, do omni's drivers depend on the ATI*.kexts to work? I have all mine deleted. I can't get sound otherwise. True story. Got that tip from an old post on these forums somewhere. If it does, in fact, depend on them, what could I get by with to get my 9600 mobility running with QE/CI, and hopefully opengl? I'll have to dig up the ATI*.kexts somewhere again, but I'm sure I can find them - or find the 10.4.5 ones like it says in his troubleshooting or FAQ.



Oh, and in the field where you put your device ID, is <string>0x4e501002&0xffffffff</string> proper, like it is in his config files, or is that where my problem lies?

[jjoe]

to dbunder:

I also have a not working mobility 9600 64mb, and I don't see any success on this card from omni's website.



ps. Does anybody know any software that can be setup to notify you if specific web pages are updated?

Checking omni's site for a new driver several times a day is panic, especially find no new release.

[kday]

I have a Radeon 9600 Mobility, and the driver doesn't seem to work correctly. I have an idea how to fix it, but unfortunately, I just corrupted my OS X installation. Anyways, I'm no programmer, but here's my idea on how you may be able to get this card working correctly on your laptop:



If you are dual booting OS X and Windows, boot to Windows and download the latest PowerStrip beta here:

http://www.entechtaiwan.com/files/psbeta.exe



After you install PowerStrip, right click the tray icon, go to Display Profiles, and click on Configure. Inside this window you will see an icon labeled advanced timing options. Click on this icon, and Write down the pixel clock, and all the info under horizontal and vertical geometry.



After you have all this info, boot back to OS X and download SwitchResX:

http://www.madrau.com/html/SRX/About.html



After you install SwitchResX, create a custom resolution, and set all the values to the values you have written down.





If anyone can try this, please post what happens. I would like to try this, but I have work to do, and I don't have the time to reinstall OS X.

[Tek_No]

If you have been reading this (and other ATI related) topic you'll notice that that was one of the things I have been trying for a longer time: doesn't work for me



As already said before: the driver is forcing the pixel clock to use a value at boot time (in my case: 71000) but this value is not 100% correct and I don't think SwitchResX is overwriting the pixel clock value...



As also saif before: this was the exact same problem for me when I was running BeOS/Zeta on my laptop and the only way to have the pixel clock use the correct value for my Radeon 9000 (4c66) was by going around the calculation of the pixel clock in the driver (detect.c) and forcing it to use the value shown by PowerStrip. Recompiling the driver and rebooting resulted in a correct display...



This is also what I have emailed to omni but I don't know if he is reading our emails...



Take care,

Tek_No

[autoy]

I have a Radeon 9600 Mobility, and the driver doesn't seem to work correctly. I have an idea how to fix it, but unfortunately, I just corrupted my OS X installation. Anyways, I'm no programmer, but here's my idea on how you may be able to get this card working correctly on your laptop:



If you are dual booting OS X and Windows, boot to Windows and download the latest PowerStrip beta here:

http://www.entechtaiwan.com/files/psbeta.exe



After you install PowerStrip, right click the tray icon, go to Display Profiles, and click on Configure. Inside this window you will see an icon labeled advanced timing options. Click on this icon, and Write down the pixel clock, and all the info under horizontal and vertical geometry.



After you have all this info, boot back to OS X and download SwitchResX:

http://www.madrau.com/html/SRX/About.html



After you install SwitchResX, create a custom resolution, and set all the values to the values you have written down.

If anyone can try this, please post what happens. I would like to try this, but I have work to do, and I don't have the time to reinstall OS X.





I have already posted my results with this a few posts back. It doesn't work because switchresX doesn't have the basic monitor information because the framebuffer doesn't inform of it and so it can't perform the necessary tests for other resolutions to be activated. But if it could be informed by the framebuffer there would be no need for switchresX, as we would have our precious resolutions working.



Conclusion: switchresX is useless for what we need.

[harrysdt]

I have installed the omni driver and booted up with no problem

however , No QE or CI

I use a ATI 9100 which is equ. to 8500

the ATIRadeon9700.kext not work for me , when I load it at boot it has no GUI

then I tried 8500.kext and i'm able to boot , but no QE CI



there is an error for openGL

this is what I get when I open the screensaver menu



Date/Time: 2006-05-11 15:57:41.035 +0800

OS Version: 10.4.5 (Build 8G1454)

Report Version: 4



Command: System Preferences

Path: /Applications/System Preferences.app/Contents/MacOS/System Preferences

Parent: WindowServer [105]



Version: 3.1.1 (3.1.1)

Build Version: 77

Project Name: SystemPrefsApp

Source Version: 1260400



PID: 363

Thread: 0



Exception: EXC_BAD_ACCESS (0x0001)

Codes: KERN_PROTECTION_FAILURE (0x0002) at 0x00000004



Thread 0 Crashed:

0 ...apple.ATIRadeon8500GLDriver 0x0dac0284 gldChoosePixelFormat + 1974

1 GLEngine 0x0d963cbc gliChoosePixelFormat + 100

2 com.apple.opengl 0x9fff2e8c glcPluginChoosePixelFormat + 148

3 com.apple.opengl 0x9fff14ac cglChoosePixelFormat + 804

4 com.apple.opengl 0x9fff1108 CGLChoosePixelFormat + 104

5 com.apple.AppKit 0x9347483e createPixelFormat + 62

6 com.apple.AppKit 0x934747d9 -[NSOpenGLPixelFormat initWithAttributes:] + 63

7 ...apple.ScreenSaver.SlideShow 0x0d93f16d 0xd939000 + 24941

8 com.apple.ScreenSaver 0x998430c3 -[screenSaverModules loadModuleWithPath:frame:isPreview:] + 985

9 ...pscreeneffect.screeneffects 0x0d448d47 appendInfoSection + 5737

10 ...pscreeneffect.screeneffects 0x0d448702 appendInfoSection + 4132

11 com.apple.Foundation 0x9270e0d3 __NSFireDelayedPerform + 403

12 com.apple.CoreFoundation 0x90822e8d CFRunLoopRunSpecific + 3341

13 com.apple.CoreFoundation 0x90822179 CFRunLoopRunInMode + 61

14 com.apple.HIToolbox 0x92ed18e0 RunCurrentEventLoopInMode + 285

15 com.apple.HIToolbox 0x92ed0fe7 ReceiveNextEventCommon + 385

16 com.apple.HIToolbox 0x92ed0e3e BlockUntilNextEventMatchingListInMode + 81

17 com.apple.AppKit 0x93351ad1 _DPSNextEvent + 576

18 com.apple.AppKit 0x933516be -[NSApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 137

19 com.apple.AppKit 0x9334b443 -[NSApplication run] + 512

20 com.apple.AppKit 0x9333f397 NSApplicationMain + 573

21 com.apple.systempreferences 0x0000deea 0x1000 + 52970

22 com.apple.systempreferences 0x0000de05 0x1000 + 52741



Thread 1:

0 libSystem.B.dylib 0x900251e7 semaphore_wait_signal_trap + 7

1 com.apple.Foundation 0x9274e18c -[NSConditionLock lockWhenCondition:] + 39

2 ...desktopscreeneffect.desktop 0x0d6f9bdb appendInfoSection + 17485

3 com.apple.Foundation 0x926f83b0 forkThreadForFunction + 123

4 libSystem.B.dylib 0x90024b47 _pthread_body + 84



Thread 2:

0 libSystem.B.dylib 0x900251e7 semaphore_wait_signal_trap + 7

1 com.apple.Foundation 0x9274e18c -[NSConditionLock lockWhenCondition:] + 39

2 ...desktopscreeneffect.desktop 0x0d6f9bdb appendInfoSection + 17485

3 com.apple.Foundation 0x926f83b0 forkThreadForFunction + 123

4 libSystem.B.dylib 0x90024b47 _pthread_body + 84



Thread 0 crashed with i386 Thread State:

eax: 0x0000001a ebx: 0x08000000 ecx:0x00000001 edx: 0x00000000

edi: 0x00000000 esi: 0xbfffe95c ebp:0xbfffe938 esp: 0xbfffe7d0

ss: 0x0000002f efl: 0x00010246 eip:0x0dac0284 cs: 0x00000027

ds: 0x0000002f es: 0x0000002f fs:0x00000000 gs: 0x00000037



Binary Images Description:

0x1000 - 0x17fff com.apple.systempreferences 3.1.1 /Applications/System Preferences.app/Contents/MacOS/System Preferences

0x79f000 - 0x7a0fff com.apple.preference.desktopscreeneffect 1.3.1 /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/MacOS/DesktopScreenEffectsPref

0xd446000 - 0xd450fff com.apple.preference.desktopscreeneffect.screeneffects 1.3.1 /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/Resources/ScreenEffects.prefPane/Contents/MacOS/ScreenEffects

0xd6f4000 - 0xd701fff com.apple.preference.desktopscreeneffect.desktop 1.3.1 /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/Resources/DesktopPictures.prefPane/Contents/MacOS/DesktopPictures

0xd939000 - 0xd94afff com.apple.ScreenSaver.SlideShow 1.7 /System/Library/Frameworks/ScreenSaver.framework/Versions/A/Resources/Pictures Folder.saver/Contents/MacOS/Pictures Folder

0xd962000 - 0xda90fff GLEngine /System/Library/Frameworks/OpenGL.framework/Resources/GLEngine.bundle/GLEngine

0xdab9000 - 0xdd43fff com.apple.ATIRadeon8500GLDriver 1.4.24 (4.2.4) /System/Library/Extensions/ATIRadeon8500GLDriver.bundle/Contents/MacOS/ATIRadeon8500GLDriver

0xdd4f000 - 0xdd6cfff GLDriver /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLDriver.bundle/GLDriver

0xdd72000 - 0xdd95fff GLRendererFloat /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLRendererFloat.bundle/GLRendererFloat

0x8fe00000 - 0x8fe4bfff dyld 44.17 /usr/lib/dyld

0x90000000 - 0x9016efff libSystem.B.dylib /usr/lib/libSystem.B.dylib

0x901be000 - 0x901c0fff libmathCommon.A.dylib /usr/lib/system/libmathCommon.A.dylib

0x901c2000 - 0x901fefff com.apple.CoreText 1.1.0 (???) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreText.framework/Versions/A/CoreText

0x90225000 - 0x902fafff ATS /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS

0x9031a000 - 0x90769fff com.apple.CoreGraphics 1.258.23 (???) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics

0x90800000 - 0x908c8fff com.apple.CoreFoundation 6.4.5 (368.26) /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation

0x90906000 - 0x90906fff com.apple.CoreServices 10.4 (???) /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices

0x90908000 - 0x909fbfff libicucore.A.dylib /usr/lib/libicucore.A.dylib

0x90a4b000 - 0x90acafff libobjc.A.dylib /usr/lib/libobjc.A.dylib

0x90af3000 - 0x90b56fff libstdc++.6.dylib /usr/lib/libstdc++.6.dylib

0x90bc5000 - 0x90bccfff libgcc_s.1.dylib /usr/lib/libgcc_s.1.dylib

0x90bd1000 - 0x90c41fff com.apple.framework.IOKit 1.4.2 (???) /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit

0x90c56000 - 0x90c68fff libauto.dylib /usr/lib/libauto.dylib

0x90c6e000 - 0x90f13fff com.apple.CoreServices.CarbonCore 682.9 (679) /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore

0x90f56000 - 0x90fbefff com.apple.CoreServices.OSServices 4.1 /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices

0x90ff6000 - 0x91033fff com.apple.CFNetwork 129.10 /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CFNetwork.framework/Versions/A/CFNetwork

0x91045000 - 0x91055fff com.apple.WebServices 1.1.3 (1.1.0) /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/WebServicesCore.framework/Versions/A/WebServicesCore

0x91060000 - 0x910defff com.apple.SearchKit 1.0.5 /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit

0x91113000 - 0x91131fff com.apple.Metadata 10.4.4 (121.35) /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata

0x9113d000 - 0x9114bfff libz.1.dylib /usr/lib/libz.1.dylib

0x9114e000 - 0x91301fff com.apple.security 4.2.1 (24989) /System/Library/Frameworks/Security.framework/Versions/A/Security

0x913ef000 - 0x913f7fff com.apple.DiskArbitration 2.1 /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration

0x913fe000 - 0x91424fff com.apple.SystemConfiguration 1.8.5 /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration

0x91436000 - 0x9143dfff libbsm.dylib /usr/lib/libbsm.dylib

0x91441000 - 0x914bafff com.apple.audio.CoreAudio 3.0.2 /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio

0x91508000 - 0x91508fff com.apple.ApplicationServices 10.4 (???) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices

0x9150a000 - 0x91535fff com.apple.AE 314 (313) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE

0x91548000 - 0x9161cfff com.apple.ColorSync 4.4.6 /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync

0x91655000 - 0x916d2fff com.apple.print.framework.PrintCore 4.4 (177.6) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore

0x916ff000 - 0x917a9fff com.apple.QD 3.10.7 (???) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD

0x917cf000 - 0x9181afff com.apple.HIServices 1.5.2 (???) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices

0x91839000 - 0x9184ffff com.apple.LangAnalysis 1.6.3 /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis

0x9185b000 - 0x91875fff com.apple.FindByContent 1.5 /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/FindByContent.framework/Versions/A/FindByContent

0x9187f000 - 0x918bbfff com.apple.LaunchServices 10.4.6 (172) /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices

0x918cf000 - 0x918dafff com.apple.speech.synthesis.framework 3.4 /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis

0x918e1000 - 0x91915fff com.apple.ImageIO.framework 1.4.4 /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/ImageIO

0x91927000 - 0x919d9fff libcrypto.0.9.7.dylib /usr/lib/libcrypto.0.9.7.dylib

0x91a1f000 - 0x91a35fff libcups.2.dylib /usr/lib/libcups.2.dylib

0x91a3a000 - 0x91a56fff libJPEG.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib

0x91a5b000 - 0x91ab9fff libJP2.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib

0x91ac9000 - 0x91acdfff libGIF.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib

0x91acf000 - 0x91b06fff libRaw.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libRaw.dylib

0x91b09000 - 0x91b4cfff libTIFF.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib

0x91b52000 - 0x91b6cfff libPng.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib

0x91b71000 - 0x91b73fff libRadiance.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib

0x91b75000 - 0x91b75fff com.apple.Accelerate 1.2.1 (Accelerate 1.2.1) /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate

0x91b77000 - 0x91bfafff com.apple.vImage 2.2 /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage

0x91c01000 - 0x91c01fff com.apple.Accelerate.vecLib 3.2.1 (vecLib 3.2.1) /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib

0x91c03000 - 0x91c48fff libvMisc.dylib /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib

0x91c50000 - 0x91c75fff libvDSP.dylib /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib

0x91c7c000 - 0x921fffff libBLAS.dylib /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib

0x9223c000 - 0x925eefff libLAPACK.dylib /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib

0x9261b000 - 0x9269ffff com.apple.DesktopServices 1.3.2 /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv

0x926db000 - 0x9290dfff com.apple.Foundation 6.4.4 (567.25) /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation

0x92a19000 - 0x92af7fff libxml2.2.dylib /usr/lib/libxml2.2.dylib

0x92b14000 - 0x92c01fff libiconv.2.dylib /usr/lib/libiconv.2.dylib

0x92c9e000 - 0x92c9efff com.apple.Carbon 10.4 (???) /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon

0x92ca0000 - 0x92cb0fff com.apple.ImageCapture 3.0.3 /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture

0x92cbe000 - 0x92cc6fff com.apple.speech.recognition.framework 3.5 /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition

0x92ccc000 - 0x92cd1fff com.apple.securityhi 2.0.1 (24742) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI

0x92d67000 - 0x92d80fff libGL.dylib /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib

0x92d8b000 - 0x92de7fff libGLU.dylib /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib

0x92e42000 - 0x92e83fff com.apple.NavigationServices 3.4.3 /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/NavigationServices.framework/Versions/A/NavigationServices

0x92eaa000 - 0x92eb7fff com.apple.audio.SoundManager 3.9.1 /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CarbonSound.framework/Versions/A/CarbonSound

0x92ebe000 - 0x92ec3fff com.apple.CommonPanels 1.2.3 (73) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels

0x92ec8000 - 0x931bafff com.apple.HIToolbox 1.4.5 (???) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox

0x93338000 - 0x93338fff com.apple.Cocoa 6.4 (???) /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa

0x9333a000 - 0x939f3fff com.apple.AppKit 6.4.5 (824.35) /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit

0x93d74000 - 0x93deefff com.apple.CoreData 90 /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData

0x93e27000 - 0x93ee7fff com.apple.audio.toolbox.AudioToolbox 1.4.2 /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox

0x93f26000 - 0x93f26fff com.apple.audio.units.AudioUnit 1.4.2 /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit

0x93f28000 - 0x940ddfff com.apple.QuartzCore 1.4.4 /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore

0x94123000 - 0x94164fff libsqlite3.0.dylib /usr/lib/libsqlite3.0.dylib

0x94289000 - 0x9429cfff com.apple.frameworks.preferencepanes 11.1 /System/Library/Frameworks/PreferencePanes.framework/Versions/A/PreferencePanes

0x942b7000 - 0x942cefff libGLImage.dylib /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib

0x94320000 - 0x9432ffff libCGATS.A.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGATS.A.dylib

0x94336000 - 0x94341fff libCSync.A.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCSync.A.dylib

0x9438d000 - 0x943a7fff libRIP.A.dylib /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib

0x943ad000 - 0x9465efff com.apple.QuickTime 7.0.4 /System/Library/Frameworks/QuickTime.framework/Versions/A/QuickTime

0x95a7f000 - 0x95a95fff libJapaneseConverter.dylib /System/Library/CoreServices/Encodings/libJapaneseConverter.dylib

0x95a97000 - 0x95ab8fff libKoreanConverter.dylib /System/Library/CoreServices/Encodings/libKoreanConverter.dylib

0x95adb000 - 0x95aedfff libTraditionalChineseConverter.dylib /System/Library/CoreServices/Encodings/libTraditionalChineseConverter.dylib

0x96adb000 - 0x96b1ffff com.apple.glut 3.3.8 (GLUT-3.3.8) /System/Library/Frameworks/GLUT.framework/Versions/A/GLUT

0x97096000 - 0x97127fff libGLProgrammability.dylib /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLProgrammability.dylib

0x9714d000 - 0x9714efff libGLSystem.dylib /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLSystem.dylib

0x9983f000 - 0x99846fff com.apple.ScreenSaver 1.5 /System/Library/Frameworks/ScreenSaver.framework/Versions/A/ScreenSaver

0x9fe0f000 - 0x9fe72fff com.apple.htmlrendering 66.1 (1.1.3) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HTMLRendering.framework/Versions/A/HTMLRendering

0x9fe96000 - 0x9fe9cfff com.apple.print.framework.Print 5.1 (192.3) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print

0x9fea2000 - 0x9febffff com.apple.openscripting 1.2.3 (???) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting

0x9fecf000 - 0x9fed2fff com.apple.help 1.0.3 (32.1) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help

0x9fed5000 - 0x9ff66fff com.apple.ink.framework 101.2.1 (71) /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink

0x9ff7a000 - 0x9ffb7fff com.apple.securityinterface 2.1.1 (24989) /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface

0x9ffd3000 - 0x9ffe3fff com.apple.securityfoundation 2.1.1 (26040) /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation

0x9fff0000 - 0x9fffbfff com.apple.opengl 1.4.1 /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL



Model: ADP2,1, BootROM 6.00 PG (Phoenix Technologies, LTD), 1 processors, Intel® Celeron® CPU, 2.4 GHz, 1 GB

Graphics: Radeon 9100, Radeon 9100, PCI, 128 MB

Memory Module: A0/Bank0/1, 512 MB, SDRAM, unknown

Memory Module: A1/Bank2/3, 512 MB, SDRAM, unknown

Bluetooth: Version 1.7.2f10, 2 service, 1 devices, 1 incoming serial ports

Network Service: Built-in Ethernet, Ethernet, en0

PCI Card: pci1106,3044, sppci_ieee1394openhci, PCI2

PCI Card: ethernet, sppci_ethernet, PCI3

Parallel ATA Device: ST340810A, 37.27 GB

Parallel ATA Device: WDC WD400EB-00CPF0, 37.27 GB

Parallel ATA Device: HL-DT-ST DVDRAM GSA-4167B, 4.38 GB

Parallel ATA Device: Maxtor 6Y080L0, 76.33 GB

USB Device: USB Storage Device, Generic, Up to 480 Mb/sec, 500 mA

USB Device: ISSCBTA, Up to 12 Mb/sec, 500 mA

USB Device: Generic USB Hub, ALCOR, Up to 12 Mb/sec, 500 mA

USB Device: PS/2+USB Mouse, Up to 1.5 Mb/sec, 500 mA





can anyone help?

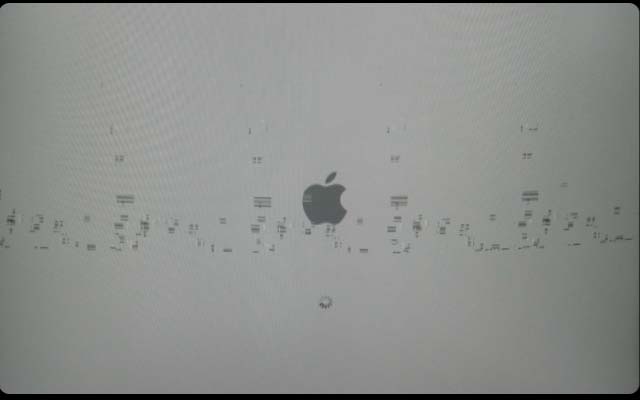

seems the ATIRadeon8500GL.bundle has some problem that I was not able to solve

[cyclonefr]

TEkNO and autoy as i said before OMNI should know by now that JAS's prerelease version is working fine (no pixel clock prob) and we have to mail him to get this version on his blog, as it only takes a minute to upload that workin driver.

[autoy]

TEkNO and autoy as i said before OMNI should know by now that JAS's prerelease version is working fine (no pixel clock prob) and we have to mail him to get this version on his blog, as it only takes a minute to upload that workin driver.



I am shure Omni is aware of this but does not wat to release it for whatever reasons he has.
