[Guide] Dell Inspiron 6400/9400/1520/1720/E1405/E1505/E1705 Intel Core Duo

devilhood

By devilhood,
in Installation Guides

 Share
2,614 posts in this topic

Recommended Posts

sonotone
sonotone
Posted
Posted

Here mine (same speakers issue):

Intel High Definition Audio:



Device ID: 0x102801CD

Audio ID: 12

Available Devices:

S/P-DIF Out:

Connection: RCA

Headphone:

Connection: 1/8 inch Jack

Speaker:

Connection: Internal

Microphone:

Connection: 1/8 inch Jack

AppleACPIPlatform: version 1.1.0

Subsytem ID is ending in CD, so maybe the problem is not connected with it.

Link to comment
Share on other sites
TheGreatDeceiver
TheGreatDeceiver
Posted
Posted
Here mine (same speakers issue):

Intel High Definition Audio:





AppleACPIPlatform: version 1.1.0

Subsytem ID is ending in CD, so maybe the problem is not connected with it.



got version 1.1.0 from a backup folder, probably from one of the installs or updates. Interestingly I loose my keyboard when I use this version. I remember that there are PS2 issues with certain kexts and that the laptop keyboard acts as a PS2. I plugged my external keyboard in and reversed back to v 1.0.3. Works fine now. Is there a way to get 1.1.0 to work on the 6400?



thanks

Link to comment
Share on other sites
rmojo
rmojo
Posted
Posted

To all E 1505 owners:



I have the following system:



Dell Inspiron 6400/E1505

Mobile DualCore Intel Core Duo T2050, 1600 MHz (12 x 133)

1024 MB (DDR2-533 DDR2 SDRAM)

ATI Mobility Radeon X1300

SigmaTel STAC9200

SONY DVD+-RW DW-Q58A

Hitachi HTS541060G9SA00 (60 GB, 5400 RPM, SATA)

Intel® PRO/Wireless 3945ABG

Broadcom 440x 10/100 Integrated Controller

Conexant HDA D110 MDC V.92 Modem







Any advice as to what osx would give me the best start? (Kalyway 10.5.2??) I know they are working on the 3945abg to get it working but I need some Idea where to start.



Thanks in advance

Link to comment
Share on other sites
TheGreatDeceiver
TheGreatDeceiver
Posted
Posted
To all E 1505 owners:



I have the following system:



Dell Inspiron 6400/E1505

Mobile DualCore Intel Core Duo T2050, 1600 MHz (12 x 133)

1024 MB (DDR2-533 DDR2 SDRAM)

ATI Mobility Radeon X1300

SigmaTel STAC9200

SONY DVD+-RW DW-Q58A

Hitachi HTS541060G9SA00 (60 GB, 5400 RPM, SATA)

Intel® PRO/Wireless 3945ABG

Broadcom 440x 10/100 Integrated Controller

Conexant HDA D110 MDC V.92 Modem

Any advice as to what osx would give me the best start? (Kalyway 10.5.2??) I know they are working on the 3945abg to get it working but I need some Idea where to start.



Thanks in advance



I realize this is a long thread, but it's all here. buy a Dell wireless on ebay for cheap and you have everything working except maybe both cores and/or sleep. Kalyway 10.5.2 is a good choice. I never had problems with it.

Link to comment
Share on other sites
sonotone
sonotone
Posted
Posted

Just one more think about both core support. I've tried this evening to use the stock AppleACPIPlatform, then after reboot my system wont works with both cores enabled.

Even replacing my old AppleACPIPlatform, i can just boot with cpus=1. So, issue is defenetly connected with this kext, and it appears that only AppleACPIPlatform installed from kalyway's DVD alow dual core.

Link to comment
Share on other sites
TheGreatDeceiver
TheGreatDeceiver
Posted
Posted
Just one more think about both core support. I've tried this evening to use the stock AppleACPIPlatform, then after reboot my system wont works with both cores enabled.

Even replacing my old AppleACPIPlatform, i can just boot with cpus=1. So, issue is defenetly connected with this kext, and it appears that only AppleACPIPlatform installed from kalyway's DVD alow dual core.



hmm, so the v1.1.0 I tried was probably stock and I should try the one from kalyway dvd. will check this later. thanks for the hint. I thought this kext was stock and only stock. Getting all confused after some time and forget things like this.

Link to comment
Share on other sites
fueltank
fueltank
Posted
Posted
To all E 1505 owners:



I have the following system:



Dell Inspiron 6400/E1505

Mobile DualCore Intel Core Duo T2050, 1600 MHz (12 x 133)

1024 MB (DDR2-533 DDR2 SDRAM)

ATI Mobility Radeon X1300

SigmaTel STAC9200

SONY DVD+-RW DW-Q58A

Hitachi HTS541060G9SA00 (60 GB, 5400 RPM, SATA)

Intel® PRO/Wireless 3945ABG

Broadcom 440x 10/100 Integrated Controller

Conexant HDA D110 MDC V.92 Modem







Any advice as to what osx would give me the best start? (Kalyway 10.5.2??) I know they are working on the 3945abg to get it working but I need some Idea where to start.



Thanks in advance

That is what I used (Kalyway 10.5.2).

I replaced my 3945 with a 1490 from ebay :)

Link to comment
Share on other sites
sonotone
sonotone
Posted
Posted
hmm, so the v1.1.0 I tried was probably stock and I should try the one from kalyway dvd. will check this later. thanks for the hint. I thought this kext was stock and only stock. Getting all confused after some time and forget things like this.

Yes, but the very weird thing is even if i reinstall the good one, system won't boot with BC. I tried to clean kernel, extensions and various system caches but issue persist. I would like to understand why and how to get it again without resintall the whole system.



EDIT: Ok, works again after complete cleaning process with ONYX.

I attach here my AppleACPIPlatform.kext for those who want to try it.

After installing, use ONYX then Clean/rebuild/repair... everything you can :hysterical:

AppleACPIPlatform.kext.zip

Link to comment
Share on other sites
auqs10
auqs10
Posted
Posted

Hi folks, yesterday the new 10.5.4 cat was launched and again I managed to install it respecting the method used for 10.5.2 and 10.5.3 (see some posts above).

All parts are working (except 3in1 card reader) and scores reported by XBench 103 or GeekBench 1860 by using only one core (settings to start in com.apple.Boot.plist) are good, the speed is fine.

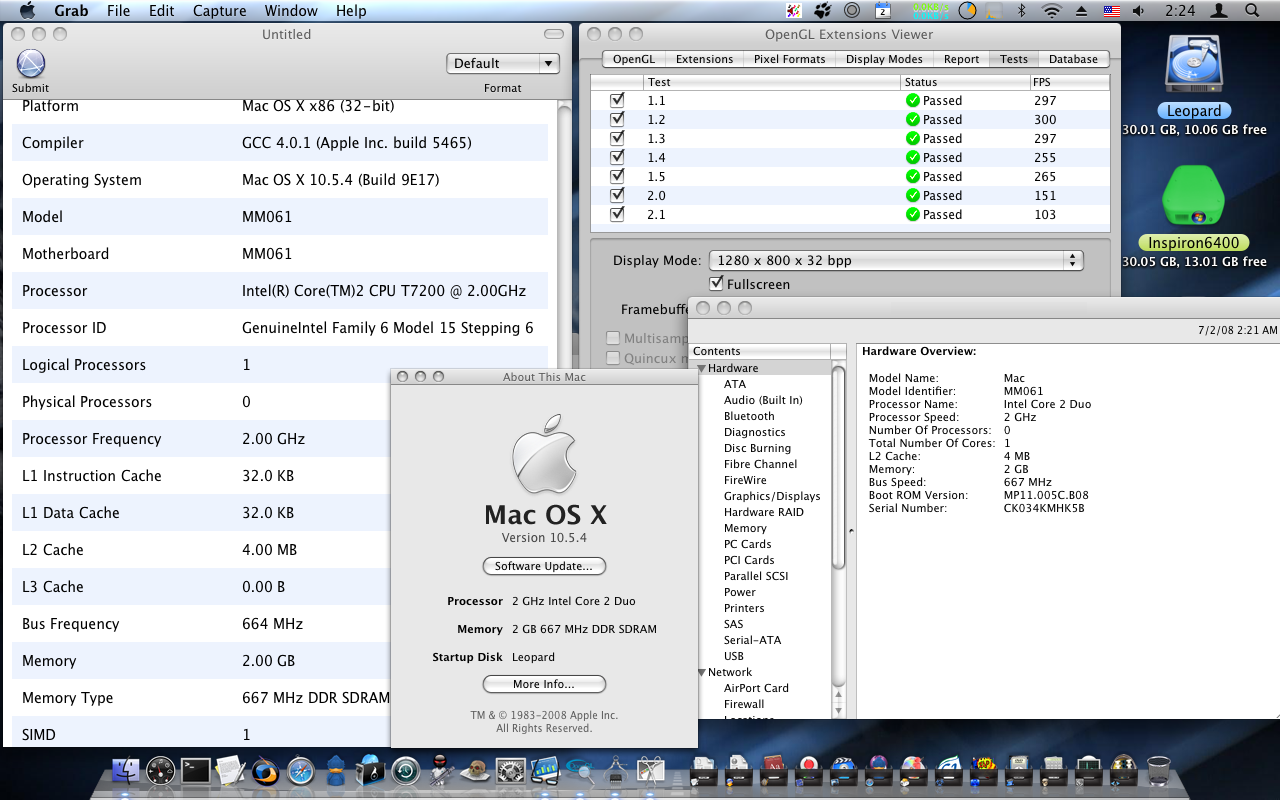

Again I attached a screen capture to prove it.

Wonderful job from developers of Leo4All v3, thank you guys. ;)


Link to comment
Share on other sites
sonotone
sonotone
Posted
Posted
Strange - this kext causes a kernel panic at boot for me (and yes, I've deleted AppleEFIRuntime). I recall the same thing happened with the kext on the Kalyway DVD. I mucked about with my own (picking and choosing from the stock and various other sources) that seems to work for me, but booting both cores is as haphazard as always. Anyway, I'm going to attach it in the off-chance that it fixes the headphones issue, though I suspect the cause lies elsewhere. I promise to test this a bit more when I get the time, but right now I'm starved for it - and I promise that muting does work on my machine, so it must be possible on others.

This is the one from Kalyway DVD (with some ajustments). Witch distrib do you use?

I will try yours tomorrow (it's late), and if you want, i can test your others kext for sound, to see if speakers work. Just Pm me Links, i'll give you reports.

Link to comment
Share on other sites
tbcarey
tbcarey
Posted
Posted
This is the one from Kalyway DVD (with some ajustments). Witch distrib do you use?

I will try yours tomorrow (it's late), and if you want, i can test your others kext for sound, to see if speakers work. Just Pm me Links, i'll give you reports.







I've just tested an alternate AppleACPIPlatform.kext and speaker muting still works, so it's not related. Will keep digging. If anyone is willing to test and has MSN, it'd be a lot easier to do over there rather than uploading the kexts to an FTP site.





Cheers,



-T.

Link to comment
Share on other sites
Fourof4
Fourof4
Posted
Posted

Hi I recently managed to install Kalyway's 10.5.2 with vanilla kernel



And I found that my cpu is running without speedstep and gets fairly hot..



Pretty much everything is working except this..



So I did some research on it and I thought it is impossible to enable speedstep with vanilla kerner



but I saw auqs10's got his speedstep worked with vanilla kernel



Does anyone know how to enable speedstep with vanilla kernel?





My laptop is E1705 with Intel Core 2 Duo T7200 2.0Ghz

Link to comment
Share on other sites
TheGreatDeceiver
TheGreatDeceiver
Posted
Posted

Just updated to 10.5.4. Everything runs fine, except that I cannot get my external monitor to work anymore. I plug it in and it tries to switch but leaves the main laptop display black with the menus on the laptop display (cause there is nothing on the external). When I boot without external display, everything seems fine until I hit detect displays. then my laptop main display goes black, apparently to sleep. I can wake it up with sleep/wake to active corner function.



anybody else has this problem? Is this fixable? I may try the gma950 kexts from 10.5.3, otherwise I will go entirely back to 10.5.3



thanks

Link to comment
Share on other sites
str8edgepunker
str8edgepunker
Posted
Posted
Hi I recently managed to install Kalyway's 10.5.2 with vanilla kernel



And I found that my cpu is running without speedstep and gets fairly hot..



Pretty much everything is working except this..



So I did some research on it and I thought it is impossible to enable speedstep with vanilla kerner



but I saw auqs10's got his speedstep worked with vanilla kernel



Does anyone know how to enable speedstep with vanilla kernel?

My laptop is E1705 with Intel Core 2 Duo T7200 2.0Ghz



There is no way to do this because AFAIK there needs to be specific code in the kernel to enable speedstep. Sorry.

Link to comment
Share on other sites
str8edgepunker
str8edgepunker
Posted
Posted
Hi I recently managed to install Kalyway's 10.5.2 with vanilla kernel



And I found that my cpu is running without speedstep and gets fairly hot..



Pretty much everything is working except this..



So I did some research on it and I thought it is impossible to enable speedstep with vanilla kerner



but I saw auqs10's got his speedstep worked with vanilla kernel



Does anyone know how to enable speedstep with vanilla kernel?

My laptop is E1705 with Intel Core 2 Duo T7200 2.0Ghz



There is no way to do this because AFAIK there needs to be specific code in the kernel to enable speedstep. Sorry.

Link to comment
Share on other sites
Fourof4
Fourof4
Posted
Posted

Hi.. I just reinstall my osx with speedstep kernel.. (Kalyway 10.5.2)



BUT!!! I think my speedstep is still not working!!



ryan-hwangs-mac-pro:~ ryan$ sysctl -a | grep freq

kern.exec: unknown type returned

hw.busfrequency = 664000000

hw.cpufrequency = 2000000000

hw.tbfrequency = 1000000000

hw.tbfrequency: 1000000000

hw.cpufrequency_max: 2000000000

hw.cpufrequency_min: 2000000000

hw.cpufrequency: 2000000000

hw.busfrequency_max: 664000000

hw.busfrequency_min: 664000000

hw.busfrequency: 664000000





This is the result... this means it's not working right?



Is it possible to enable speedstep at all?







Dell Inspiron E1705 Core 2 Duo T7200 2Ghz/ 4GB Ram/ WD Scorpio 320GB/ Go 7950GTX 512MB/

Sigmatel 9200/ Dell Wireless/

Link to comment
Share on other sites
Chrysaor
Chrysaor
Posted
Posted
Hi.. I just reinstall my osx with speedstep kernel.. (Kalyway 10.5.2)



BUT!!! I think my speedstep is still not working!!



ryan-hwangs-mac-pro:~ ryan$ sysctl -a | grep freq

kern.exec: unknown type returned

hw.busfrequency = 664000000

hw.cpufrequency = 2000000000

hw.tbfrequency = 1000000000

hw.tbfrequency: 1000000000

hw.cpufrequency_max: 2000000000

hw.cpufrequency_min: 2000000000

hw.cpufrequency: 2000000000

hw.busfrequency_max: 664000000

hw.busfrequency_min: 664000000

hw.busfrequency: 664000000

This is the result... this means it's not working right?



Is it possible to enable speedstep at all?

Dell Inspiron E1705 Core 2 Duo T7200 2Ghz/ 4GB Ram/ WD Scorpio 320GB/ Go 7950GTX 512MB/

Sigmatel 9200/ Dell Wireless/



Speedstep kernel alone won't enable it, you need ACPICPUThrottle.kext and Speedstep.app also.

Link to comment
Share on other sites
robi62
robi62
Posted
Posted
Hi I recently managed to install Kalyway's 10.5.2 with vanilla kernel



And I found that my cpu is running without speedstep and gets fairly hot..



Pretty much everything is working except this..



So I did some research on it and I thought it is impossible to enable speedstep with vanilla kerner



but I saw auqs10's got his speedstep worked with vanilla kernel



Does anyone know how to enable speedstep with vanilla kernel?

My laptop is E1705 with Intel Core 2 Duo T7200 2.0Ghz



working for me vanilla kernel with full throttle [speedstep] with coolbook

check this post

http://forum.insanelymac.com/index.php?s=&...st&p=770798

Link to comment
Share on other sites
Fourof4
Fourof4
Posted
Posted

First of all, thx robi62 for the solution..



But it did not work for me



I think I did something wrong



Ok.. this is what I did



1. Updated to 10.5.3 w/ vanilla 9.3 kernel (Kalyway combo)

2. Installed 2 kexts that u posted by using kexthelper and rebooted

3. Downloaded Coolbook 2.9 and ran..

4. All I could see were temp of the cpu and clock when I ran it and nothing was activated.



Plz correct me.. and again thanks



*EDIT : Im so retarded lol... I thought this was freeware so I did not buy it that's why everything was inactivated

I bought it and it works perfectly!!! Thanks a lot!!

Link to comment
Share on other sites
