Anto65
Anto65
Posted
Posted (edited)

I'd say you have a week to recover, if not more. 🤣



USBPorts.kext.zip

This is your kext fished in one of the many EFI, already modified for Tahoe , disable ssdt-uiac



PXSX are not present (Maybe you hadn't mapped it before)  they still work even if you don't see them in Hackintool



kext matches with your ssdt-uiac





Edited by Anto65
  • Like 1
fernando.c.neves
fernando.c.neves
Posted
Posted

Trying to make my AMD Radeon RX 570 4GB (AMD VBIOS) to work with macOS Tahoe 26.



Already tried to put some kexts in Tahoe's /S/L/E, but nothing works beside a black screen after boot.

When set -x to boot-args it works, but without AMD Radeon RX 570 (Safe-Mode)



Someone having issue (Black Screen after boot) with those AMD Radeon RX 570 4GB?



Already tried a lot of Bios and different Board iD's / SSID



my EFI:



EFI - OC - B560M-H - 16-06-2025 - All Working.zip

EFI - OC - B560M-H - 16-06-2025 - All Working.zip

maly70
maly70
Posted
Posted
27 minutes ago, fernando.c.neves said:

Trying to make my AMD Radeon RX 570 4GB (AMD VBIOS) to work with macOS Tahoe 26.



Already tried to put some kexts in Tahoe's /S/L/E, but nothing works beside a black screen after boot.

When set -x to boot-args it works, but without AMD Radeon RX 570 (Safe-Mode)



Someone having issue (Black Screen after boot) with those AMD Radeon RX 570 4GB?



Already tried a lot of Bios and different Board iD's / SSID



my EFI:



EFI - OC - B560M-H - 16-06-2025 - All Working.zip

EFI - OC - B560M-H - 16-06-2025 - All Working.zip 8.53 MB · 0 downloads

Fernando, did you try without NootRed.kext? try this and see



  • Like 1
bluenote56
bluenote56
Posted
Posted
10 hours ago, arsradu said:

Guys, this past couple of days have been really challenging for me, with Tahoe and all that. And...unfortunately, it kinda did some damage on my current Sequoia installation, even though it was installed on a separate partition.

I kept running into black screens, no matter what I do. I even reverted everything to the old versions of OC and kexts, and STILL got the same issue. The only way I was able to boot into the os was after a fresh clean nvram. So something was really f-ed up there.



In the end, I wiped the Tahoe partition, thinking it might fix it somehow. It didn't.



I thought maybe the config was somehow corrupted or so, so I reverted to the backup one. Nope. Same issue.



It was getting frustrating because I didn't know what the hell was going on! So, what I did, and what I would recommend you do, too, in case you come to this issue, is reinstall Sequoia from Recovery. No need for wipe, just use the Reinstall option from recovery. That (finally!) fixed it for me.

Also, another frustrating fact was that OCLP was complaining that my SIP was enabled and SecureBootModel was set to Default instead of Disabled (they were not). And OpenCoreConfigurator was complaining that: "The bootloader looks like it is not installed or your NVRAM isn't native". Both issues have been fixed, thankfully, with that reinstall.



So yeah, quite a roller coaster. Personally I'll be waiting for some updates from Apple before I give it another try. I'm not giving up. Just giving it time. :)

Same thing happend here with my Sequoia on a separate ssd. I fixed it booting Sequoia from another ssd with Clover. I could run OCLP again. I don't know why and at the probably 40th attempt for Tahoe I'll not investigate. I'm torn between giving up and keep on trying. After all it's just a 9600k /Kepler build and I saw someone succeeded in installing.

  • Like 1
Mirone
Mirone
Posted
Posted
3 hours ago, eSaF said:

I am greeted with a black screen with the cursor appearing every 3 or so seconds.

This is right after the Apple logo and the loading bar. The screen is not frozen as the keyboard caps light can be toggled on and off also the mouse can be moved when it appears.





Hi everyone, I've made some progress here but I'm stuck at the same point as @eSaF, with a black screen flashing every 3 seconds, but using my RX560. Does anyone have any idea how to fix this?

  • Like 2
kgp
kgp
Posted
Posted (edited)

A bit older but still not dead when talking about myself or my X299 system 🙂.. Following the actual USB discussion along  this [pre-release] macOS Tahoe thread, I could not resist in actively returning to InsanelyMac to contribute to the ongoing discussion.



With up-to-date Lilu.kext, Lilu-Family-kexts and latest opencore 1.0.5 release from https://dortania.github.io/builds/?product=OpenCorePkg&viewall=true, I was able to make a clean install of macOS Tahoe without further issues.

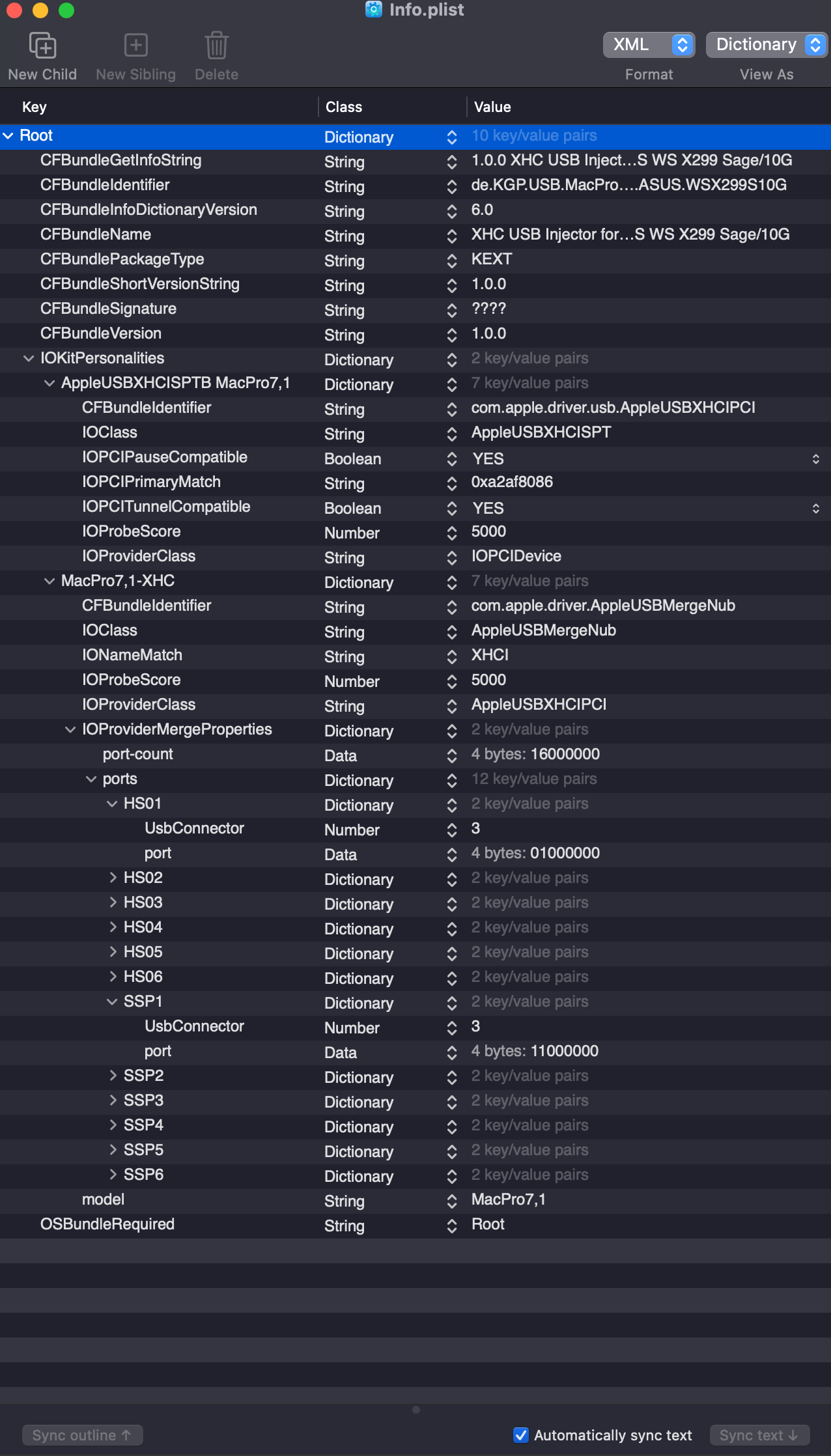

Now to the reason of this post:  My USB-Kext for the X299 Sage 10G created in 2018 (KGP-MacPro-ASUS-WSX299S10G-XHCI.kext attached below) worked asap with macOS Tahoe without any issues or modifications. My USB kext however is somewhat different from those published along [pre-release] macOS Tahoe. I guess the important difference from other USB-kexts published along this [pre-release] macOS Tahoe thread are the AppleUSBXHCISTB details, which are crucial for implementing the correct XHCI controller and driver.

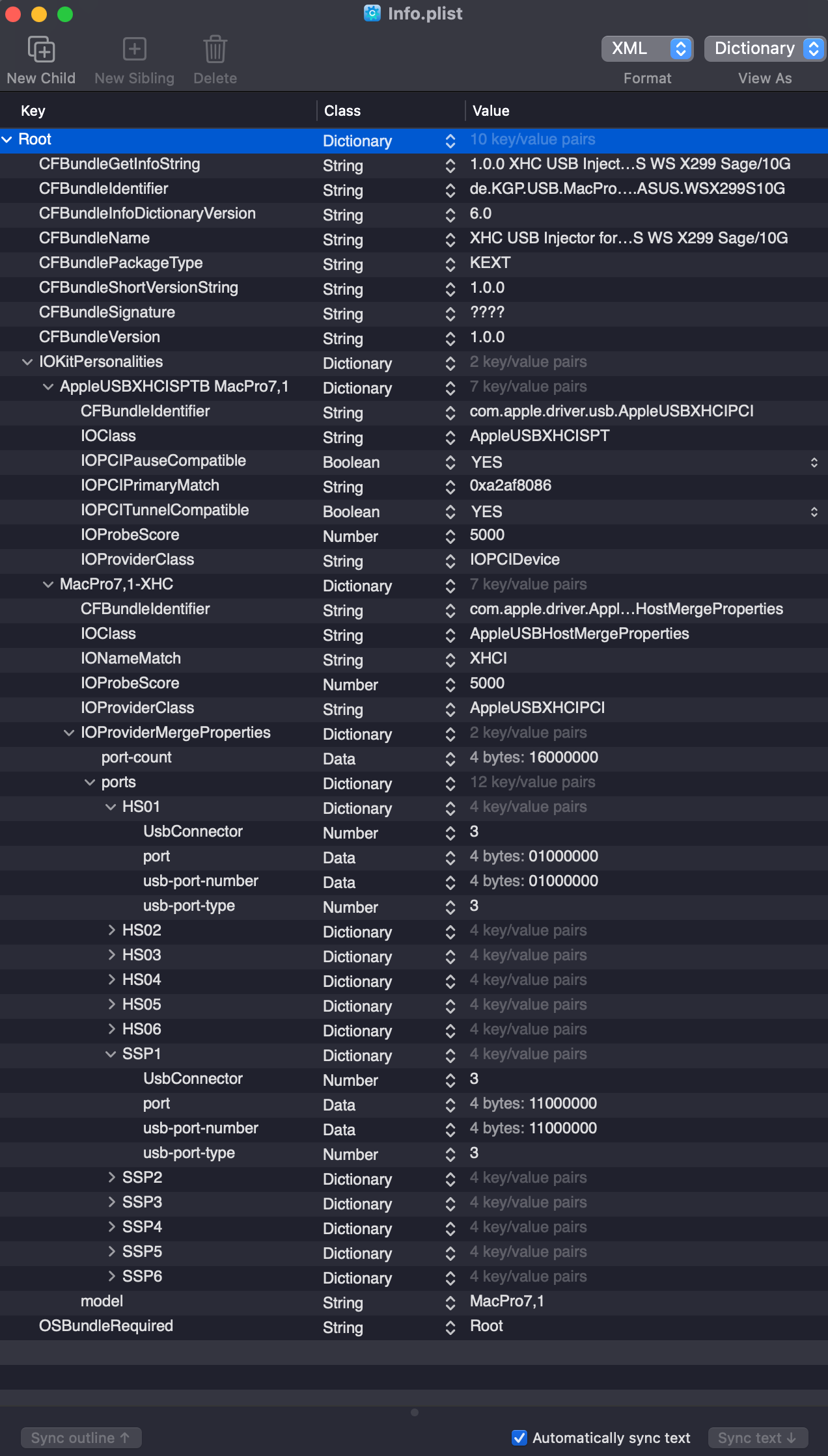

For testing purposes, I also added the two proposed lines at to each port entry (KGP-MacPro-ASUS-WSX299S10G-XHCI-Tahoe.kextattached below) without achieving any difference in kext or system USB functionality/performance:

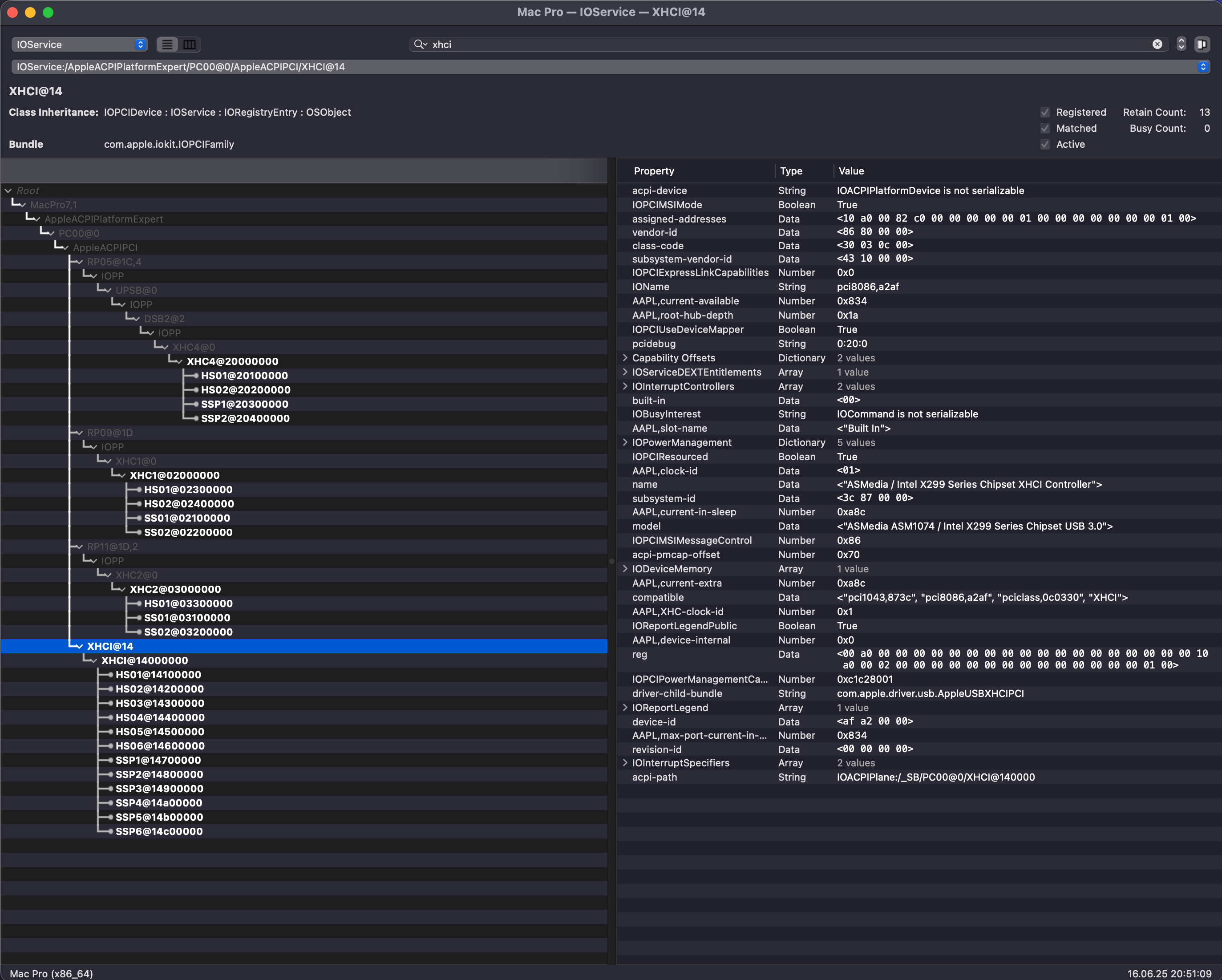

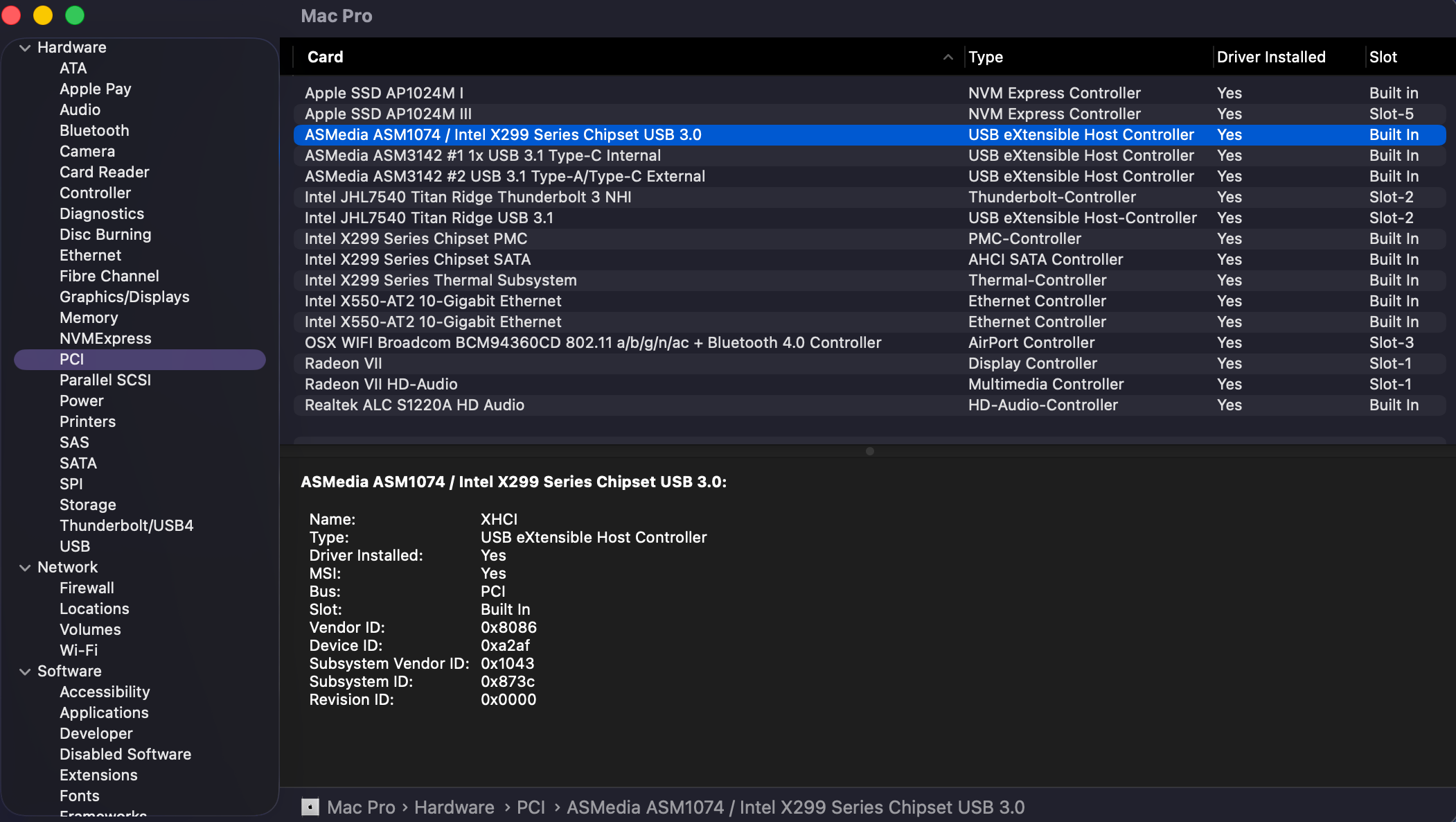

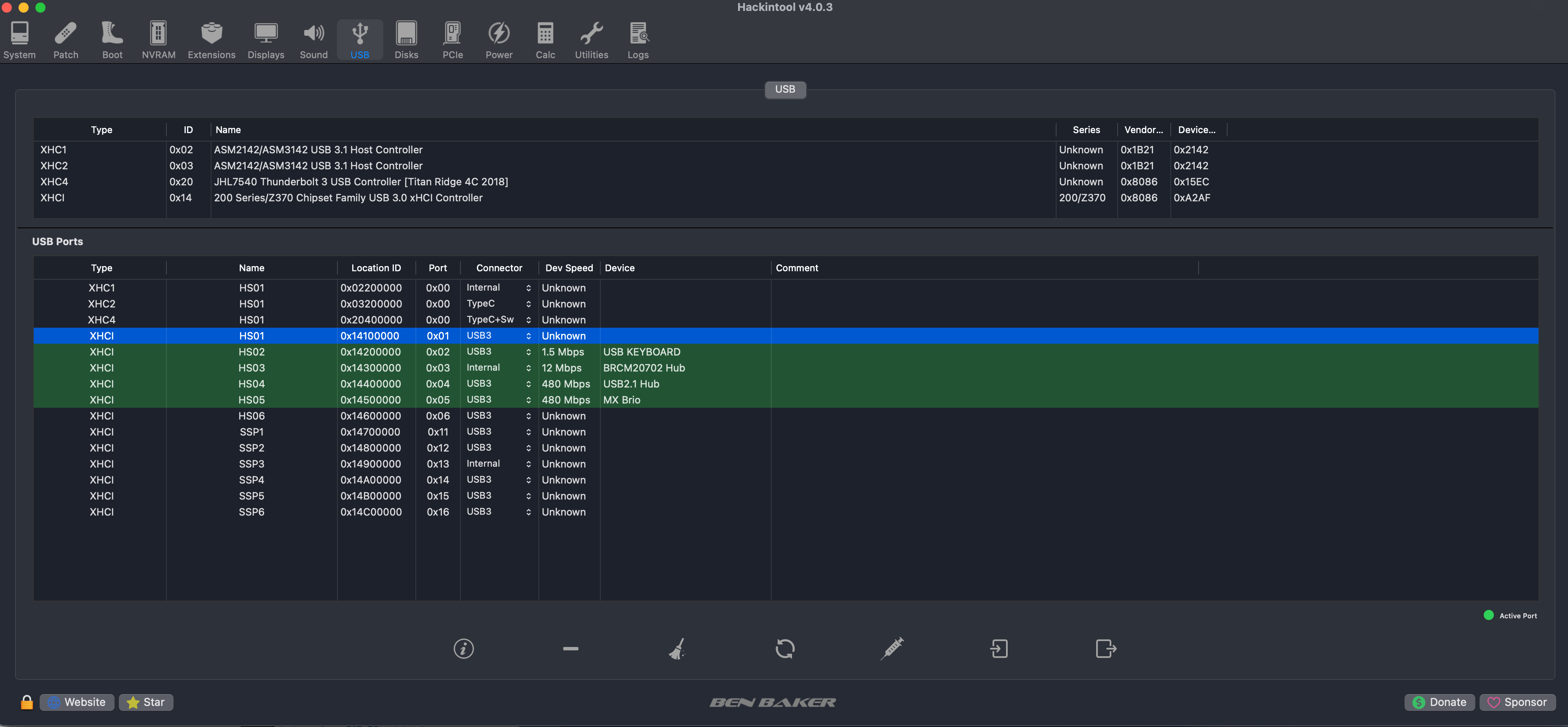

Same result with both kexts:









For anybody interested in more details, for sure there is still my „usb kext creation guideline“ (originally proposed by brumbaer)  around in this forum or the other forum that I cannot link here, where all important steps are outlined. Google is your friend, if you want to find it.

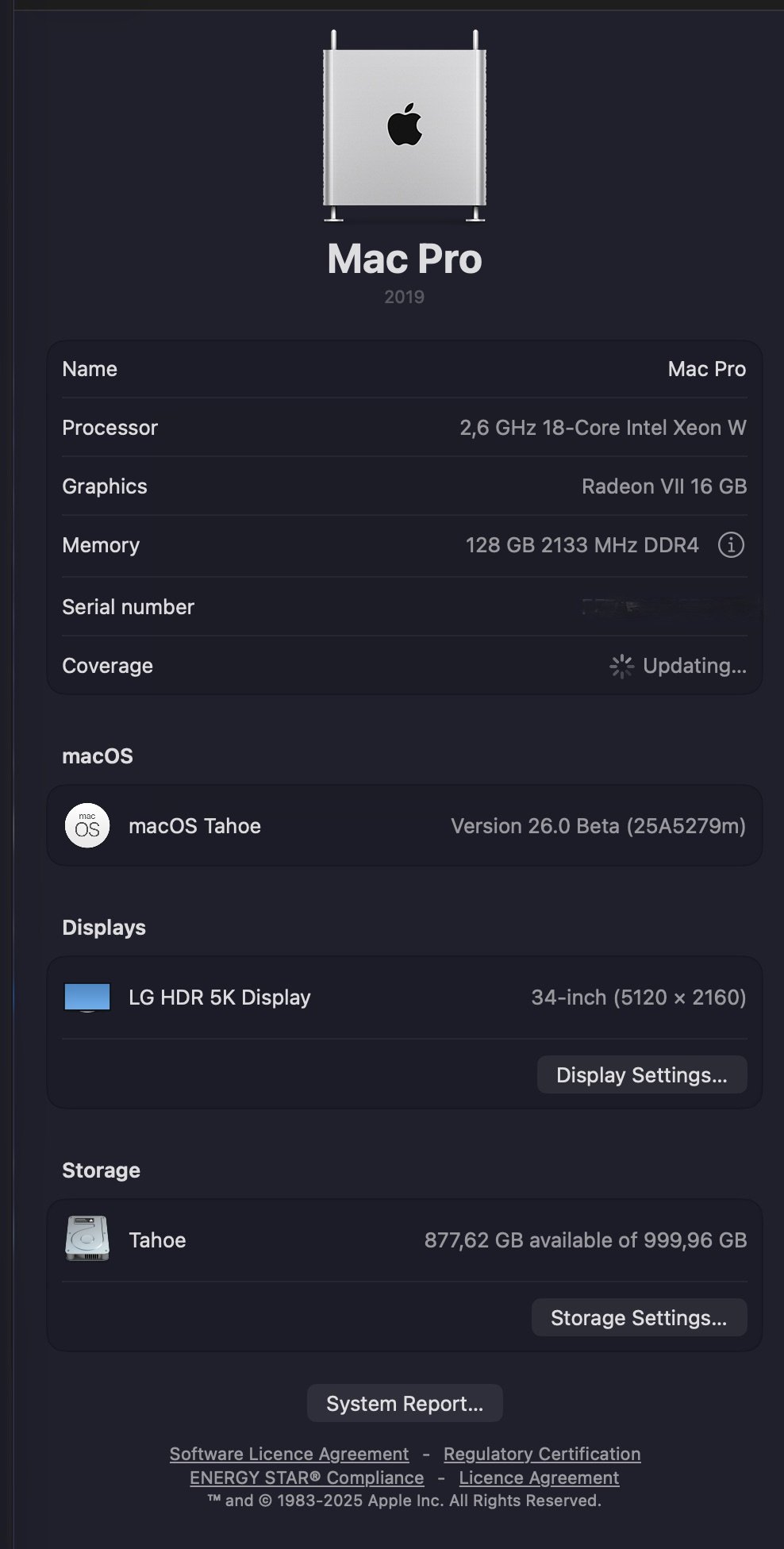

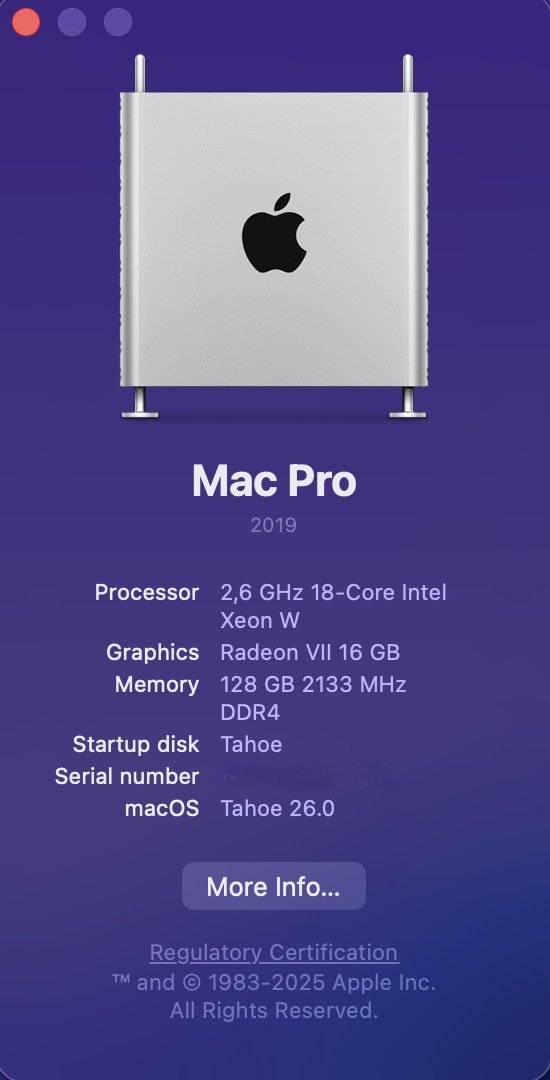

Else, macOS 26 is up and running on my X299 System well known to most of you from the past:

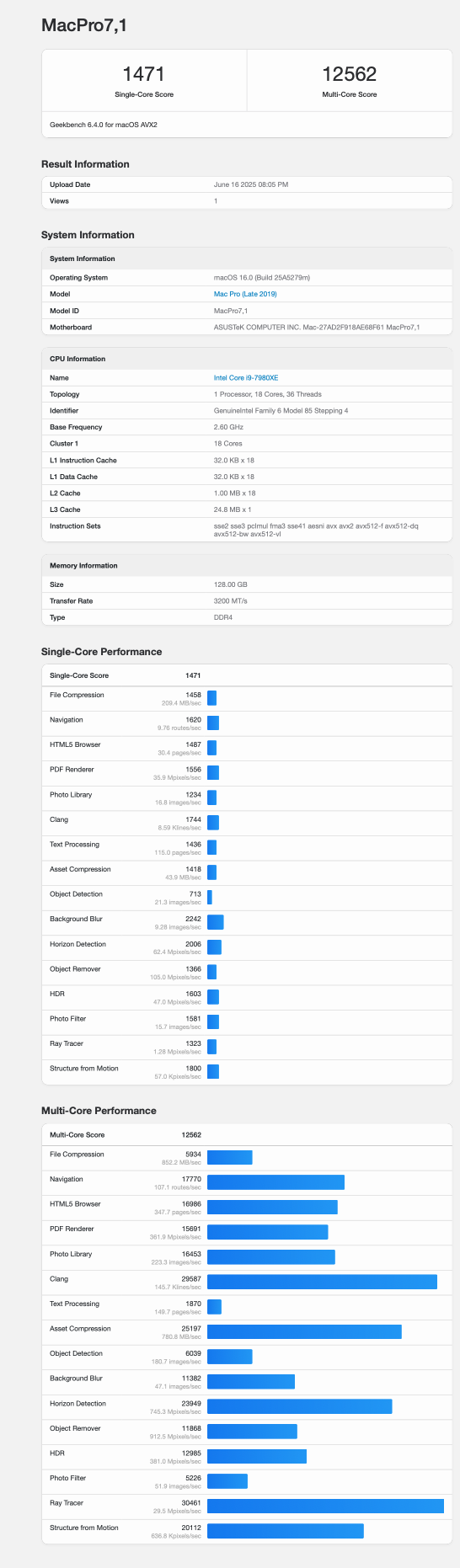

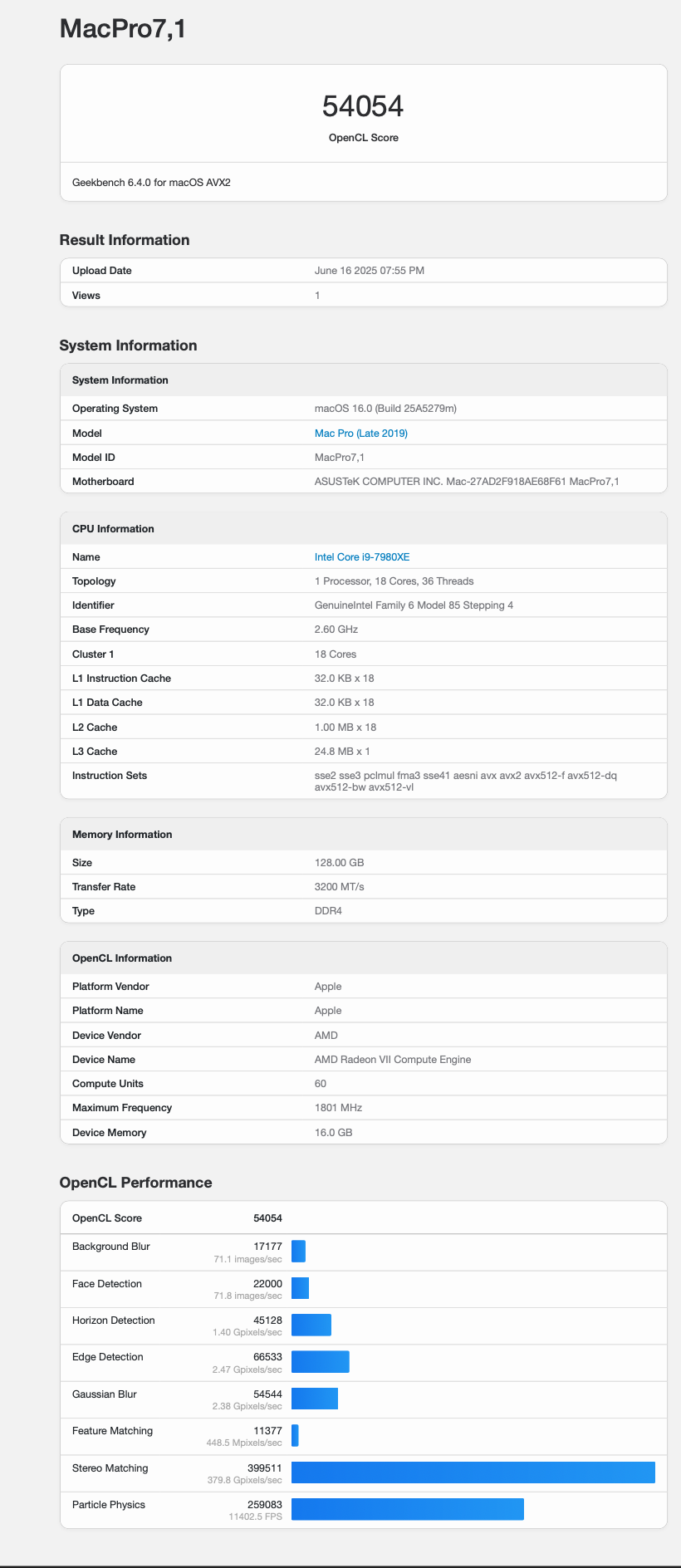

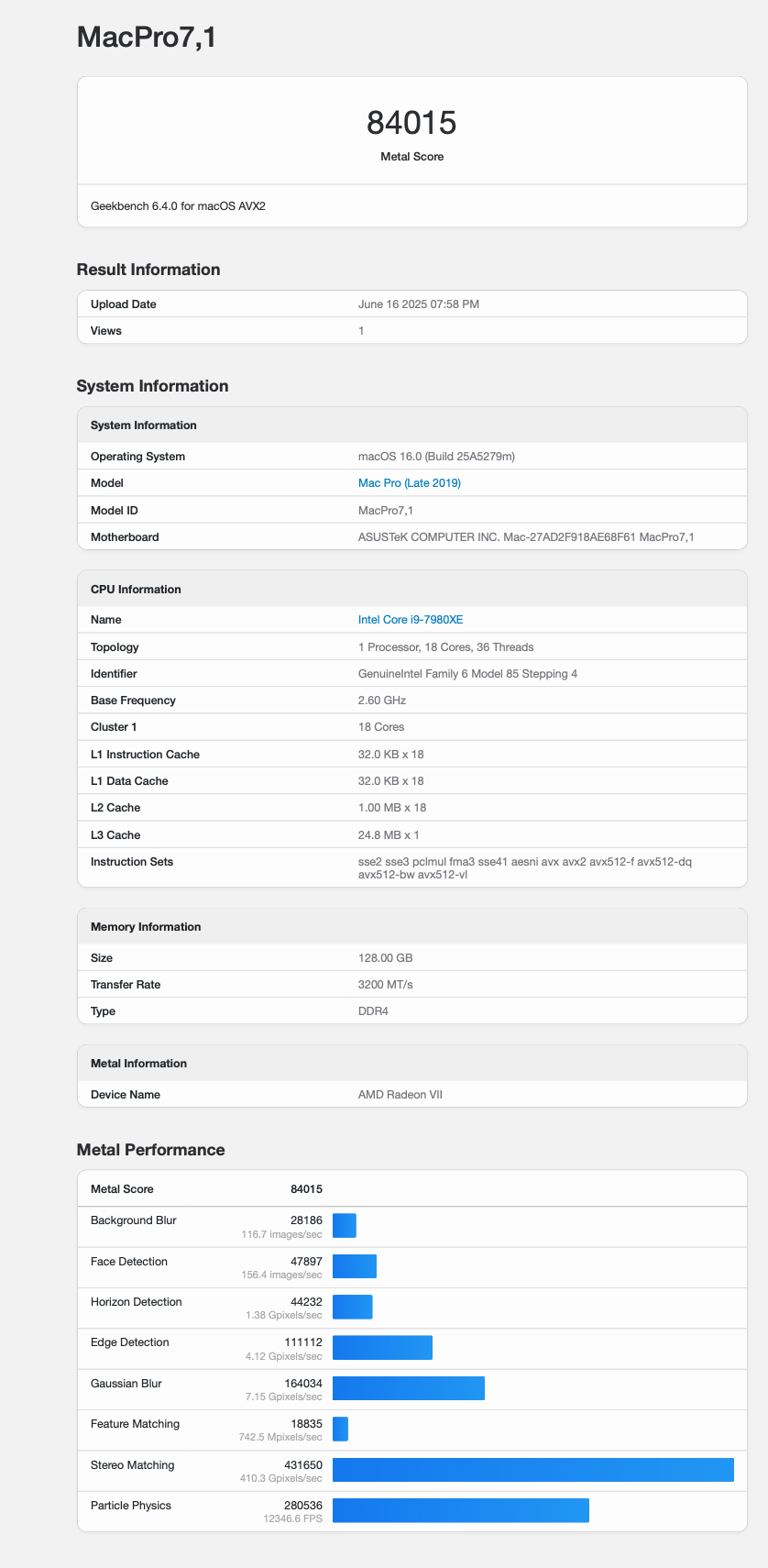

Geekbench:

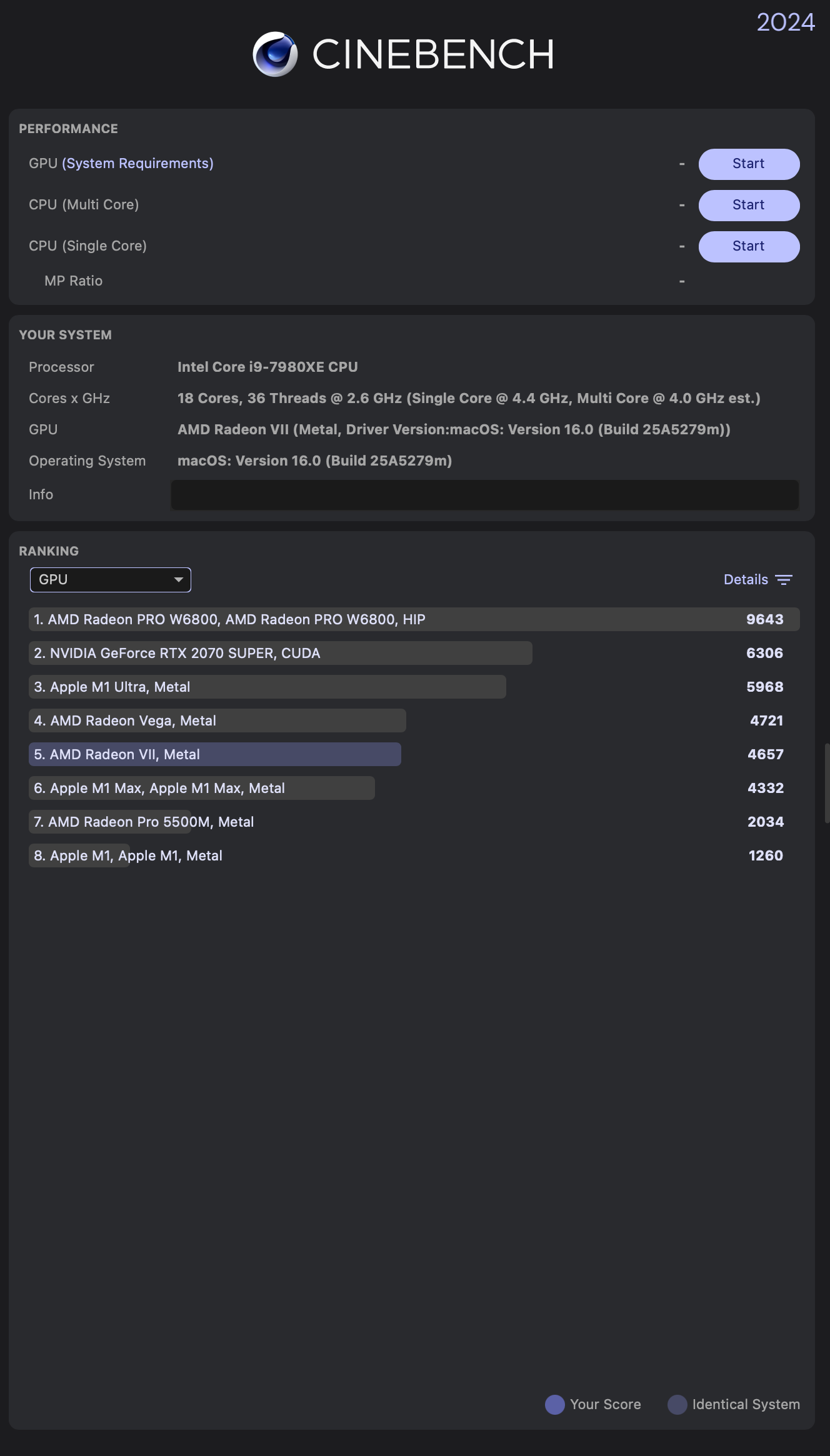

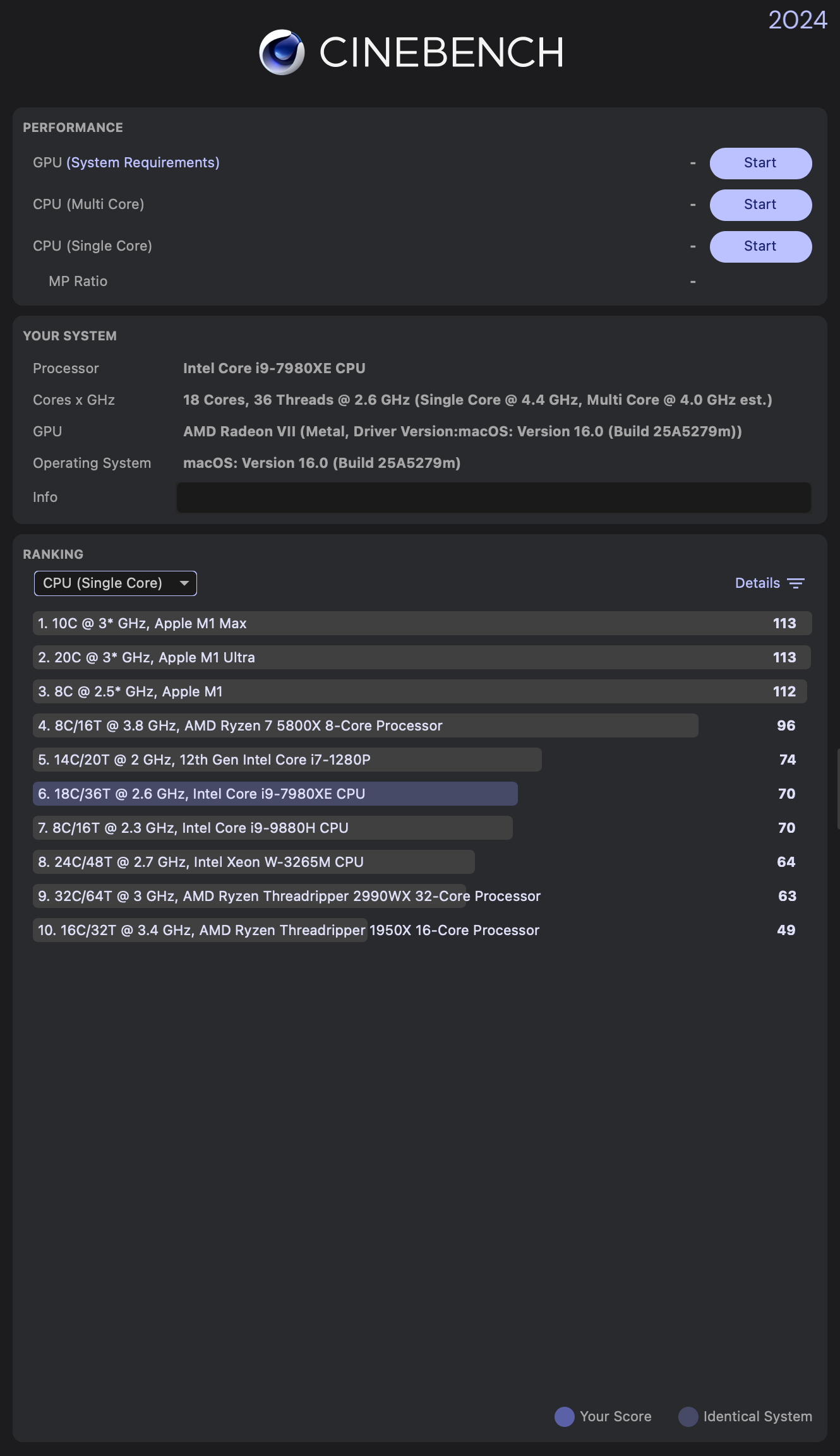

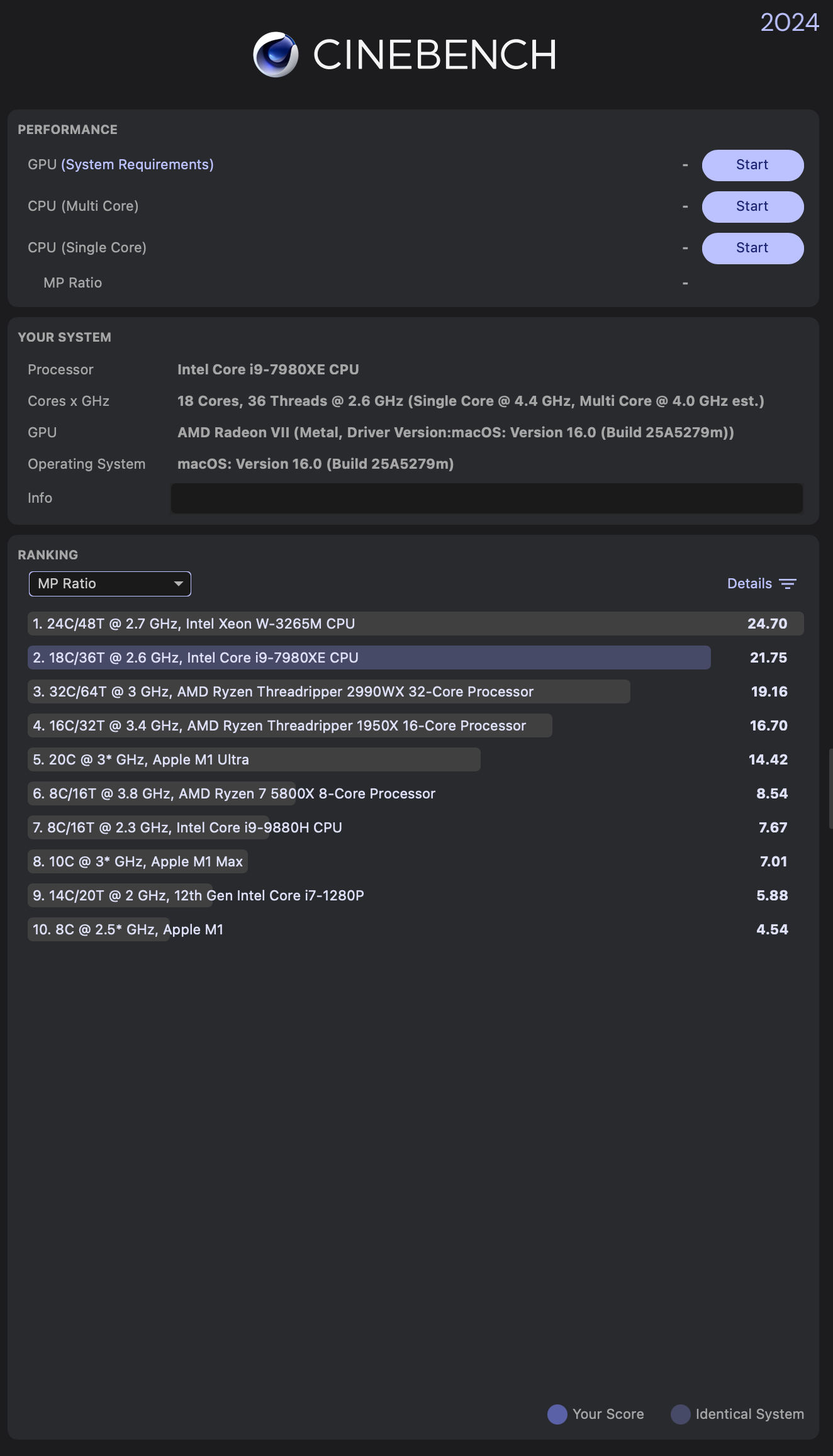

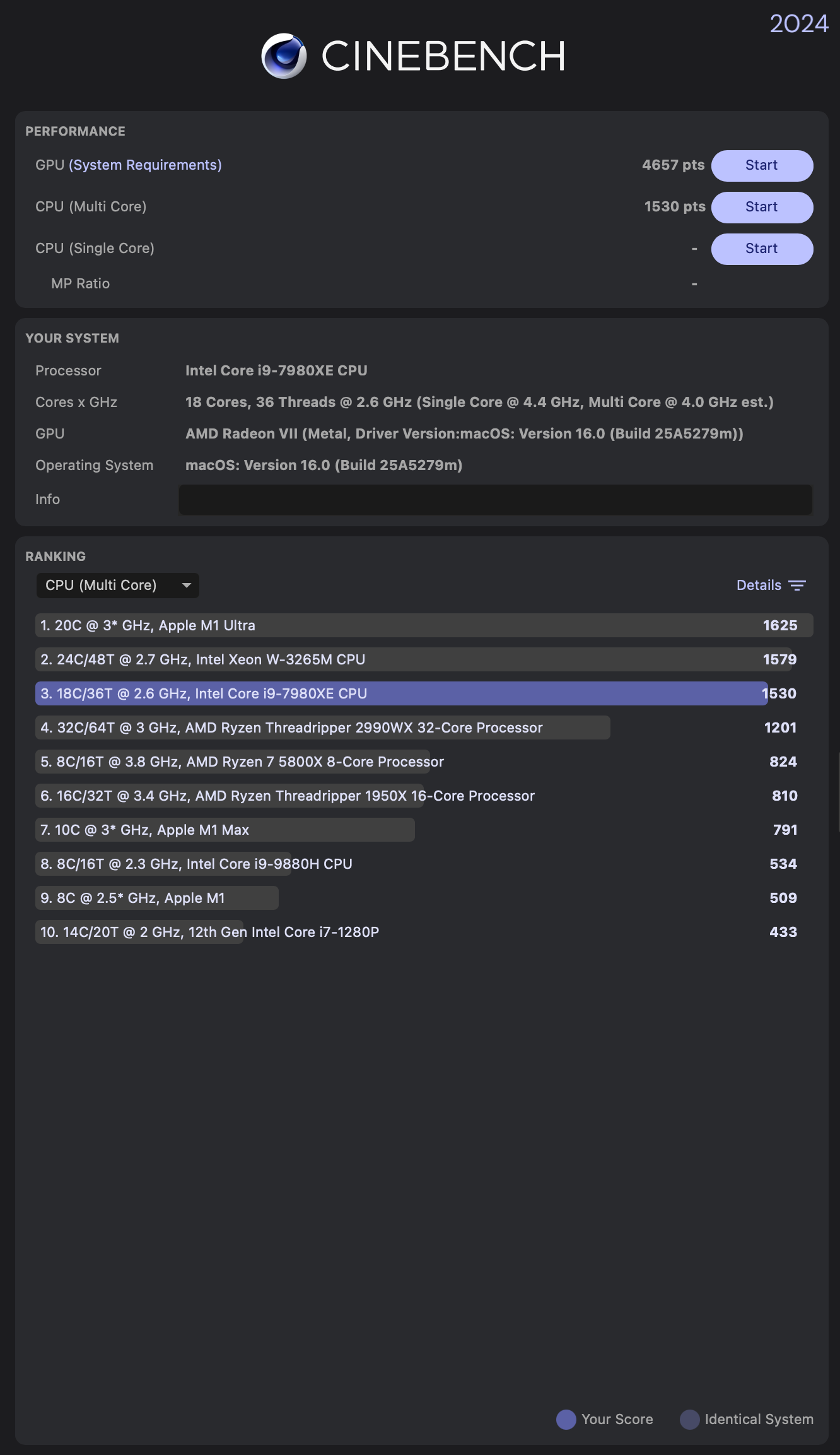

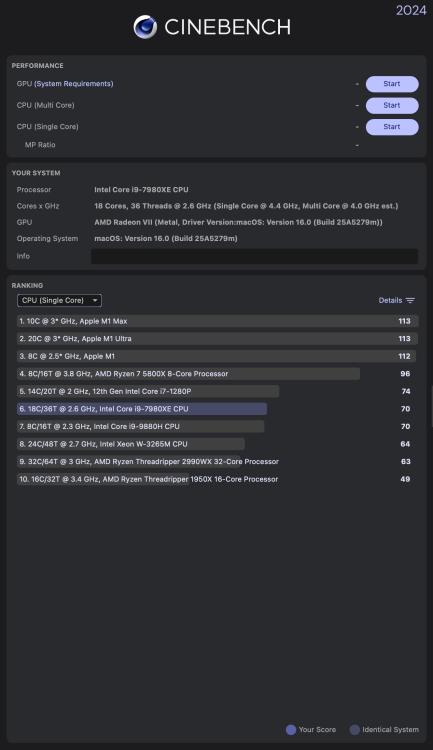

Cinebench:















Last but not least, I also share my actual EFI-Folder working with Sequoia and Tahoe. It is still somewhat build specific, although the respective ACPI configuration is mostly disabled. However,  SmallTreeIntel8259x.kext, KGP-MacPro-ASUS-WSX299S10G-XHCI.kext, RadeonBoost.kext and other build specific kexts are still enabled. To be able to upload the EFI here, I also deleted IO80211FamilyLegacy.kext and IOSkywalkFamily.kext, which I use under Sequoia together with the OCLP Broadcom root patch, as well as everything under Resources/Audio.



For further information concerning the EFI setup see my installation guideline, which was however for Clover and macOS Mojave and therefore is partly outdated.



KGP-MacPro-ASUS-WSX299S10G-XHCI.kext.zip



KGP-MacPro-ASUS-WSX299S10G-XHCI-Tahoe.kext.zip



EFI-Tahoe-opencore1.0.5-SMBIOS-MacPRO7,1- public.zip





Edited by KGP-iMacPro
Adding EFI-Folder
  • Like 4
  • Thanks 1
jlrycm
jlrycm
Posted
Posted (edited)

Hey there guys. I decided to start the adventure of installing the macOS Tahoe DB1 and after some initial hiccups that I addressed by removing the pikera boot arg, disabling whatevergreen and any other intel Bluetooth kexts I forgot to initially disable, the installation continued until the screen went dark. The drive is active because I see the case light blinking. I remember reading here that this dark screen could happen but that after a while it will be done and will eventually load the desktop. I’m wondering how much time this dark screen phase is lasting for some of you and when should I press the restart button and troubleshoot.



Update: the dark screen finished and after turning off and on the monitor, voila the macOS Tahoe desktop and final steps showed up. The FileVault was auto enabled which is something I was expecting based on the forum posts. Intel Wifi (itlwm + heliport) is working and USB mapping is working as well since I manually updated the UTBMAp.kext adding the new format for each USB port I have enabled in the kext. I’ll enable the intel Bluetooth kexts now and reboot.

Edited by jlrycm
  • Like 1
fernando.c.neves
fernando.c.neves
Posted
Posted
47 minutes ago, Mirone said:

Hi everyone, I've made some progress here but I'm stuck at the same point as @eSaF, with a black screen flashing every 3 seconds, but using my RX560. Does anyone have any idea how to fix this?

Same thing here. AMD Radeon RX 570 4GB AMD VBIOS.

24 minutes ago, jlrycm said:

Hey there guys. I decided to start the adventure of installing the macOS Tahoe DB1 and after some initial hiccups that I addressed by removing the pikera boot arg, disabling whatevergreen and any other intel Bluetooth kexts I forgot to initially disable, the installation continued until the screen went dark. The drive is active because I see the case light blinking. I remember reading here that this dark screen could happen but that after a while it will be done and will eventually load the desktop. I’m wondering how much time this dark screen phase is lasting for some of you and when should I press the restart button and troubleshoot.

Same thing here, Dark screen. Tried everything here, Done some kext /s/l/e without any lucky...



Anyone has passed the black screen?

  • Sad 1
jlrycm
jlrycm
Posted
Posted (edited)
43 minutes ago, fernando.c.neves said:

Same thing here. AMD Radeon RX 570 4GB AMD VBIOS.

Same thing here, Dark screen. Tried everything here, Done some kext /s/l/e without any lucky...



Anyone has passed the black screen?

@fernando.c.neves I updated my previous post informing that I got the installation (first attempt solving the hiccups above noted in the process). This is great considering all the issues some of you had. i’ll share my EFI later but basically I updated OC downloading one of the latest commits, disabled intel Bluetooth kexts, whatevergreen kext and securebootmodel setting in the config file and updated the kexts downloading the relevant ones for me from @lorys89's post here including all updated kexts.

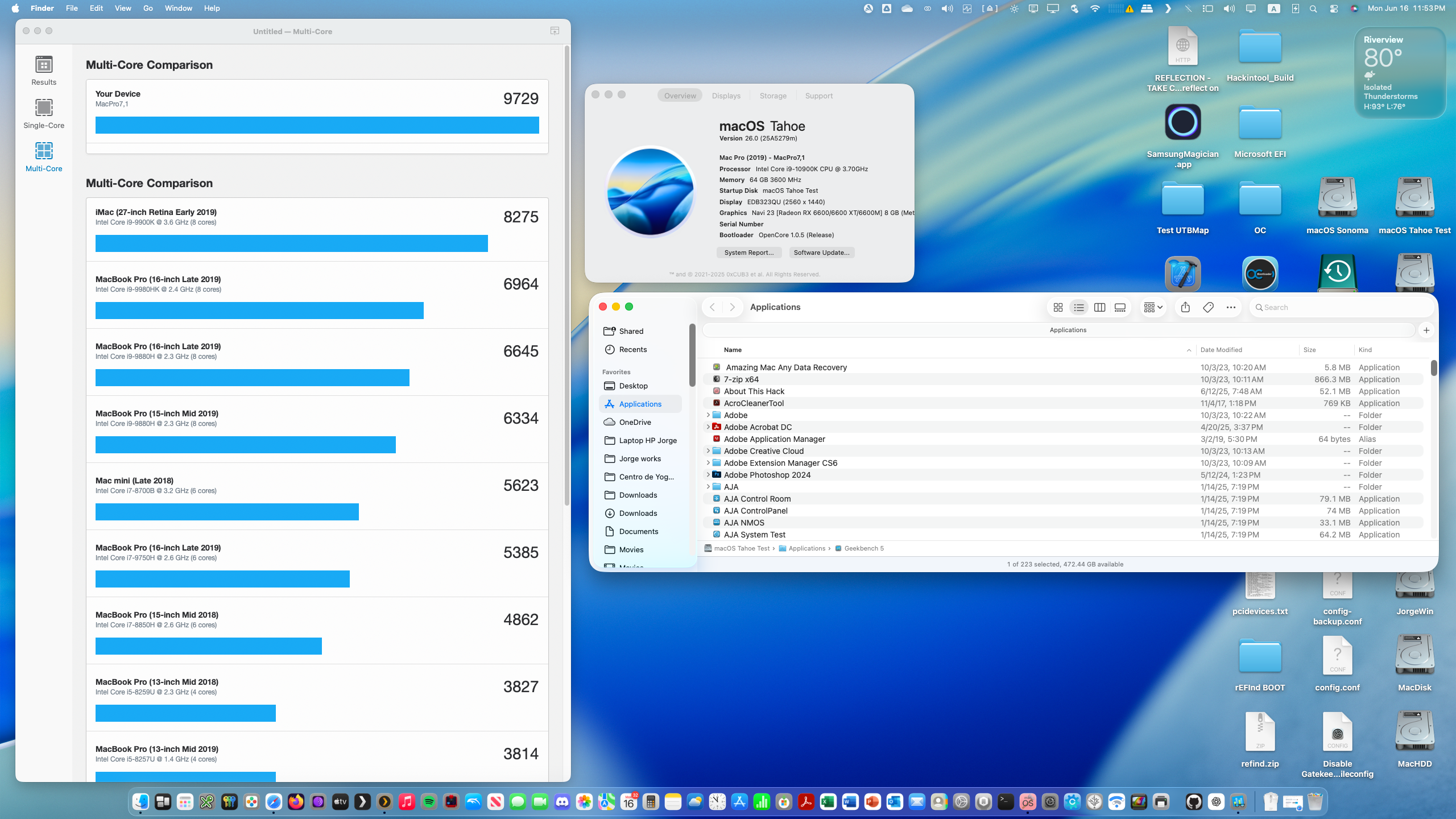

Screenshot 2025-06-16 at 11.53.15 PM.png

Edited by jlrycm
  • Like 1
macky1
macky1
Posted
Posted (edited)
40 minutes ago, eSaF said:

Guys, small problem to solve.

It seems Fire Vault is a default setting and has locked me out.



I cant remember where my rescue key is, how do I get past that point to log on?

Another problem I have, on my machine I usually have one EFI to run all the macOS, now Tahoe has to have it's own EFI Folder to bootup.



How do you get over that problem?

Getting over the Fire Vault Logon is more important at the moment.

@Anto65 you are my Hero thank you very much for the USB Port Map, that will save me more head scratching.



A big shout out to all who reached out and to those who shared their success and tips.

Without you all, I would be silently sending myself crazy.

Hi eSaF

I did a search for you on how to recover your key. Hope this helps.

https://support.apple.com/en-al/guide/mac-help/mh35881/mac



i also found this :-

Turn off FileVault on Mac

If you have a Mac with Apple silicon or an Apple T2 Security Chip, your data is encrypted automatically. FileVault provides further protection by requiring your login password to access your data. Turning off FileVault removes that extra layer of protection.

  1. Choose Apple menu

    2f77cc85238452e25cb517130188bf99.png > System Settings, click Privacy & Security f9979df145e31ea9fb18995403d2b2f6.png in the sidebar, then click FileVault. (You may need to scroll down.)



  2. Click Turn Off.

  3. Click Turn Off Encryption.



Edited by macky1
surenmunoo
surenmunoo
Posted
Posted
4 hours ago, Anto65 said:

I'd say you have a week to recover, if not more. 🤣



USBPorts.kext.zip 2.66 kB · 1 download

This is your kext fished in one of the many EFI, already modified for Tahoe , disable ssdt-uiac



PXSX are not present (Maybe you hadn't mapped it before)  they still work even if you don't see them in Hackintool



kext matches with your ssdt-uiac





Hey mate, Can you help me with this usb kext. I am trying to get the names from the USBPorts.kext tot eh USBMap.kext so it shows as the name of the USB ports in Hackintool but after editing and saving it in Xcode, it only loads my TB4 and TB5 ports and not the HS/SS ports. I know I am doing something wrong but don't know what that wrong is.





USBPorts.kext.zip USBMap.kext.zip

49 minutes ago, eSaF said:

Guys, small problem to solve.

It seems Fire Vault is a default setting and has locked me out.



I cant remember where my rescue key is, how do I get past that point to log on?

Another problem I have, on my machine I usually have one EFI to run all the macOS, now Tahoe has to have it's own EFI Folder to bootup.



How do you get over that problem?

Getting over the Fire Vault Logon is more important at the moment.

@Anto65 you are my Hero thank you very much for the USB Port Map, that will save me more head scratching.



A big shout out to all who reached out and to those who shared their success and tips.

Without you all, I would be silently sending myself crazy.

Sounds like Apple copied Windows here. With the new Windows update it enable Bitlocker which is super crazy because you need to find that key on your Microsoft account and enter it every time you boot windows. Was easy enough to turn it off though.

jlrycm
jlrycm
Posted
Posted (edited)
39 minutes ago, eSaF said:

Hiya, If you haven't already to get past the Black Screen,

Disable WhateverGreen.kext, reboot clean NVRAM and you should be good to go.

That tip was offered up by a kind IM Family Member.

Cheers.

I’m having the same FileVault problem as @eSaF . I’m trying to decrypt the volume booting in recovery but I’m getting an error in Terminal saying that there’s an encryption process underway. I guess I need to wait until the volume is fully encrypted to then try decrypting it.

Edited by jlrycm
jm26200
jm26200
Posted
Posted
5 minutes ago, jlrycm said:

I’m having the same FileVault problem as @eSaF . I’m trying to decrypt the volume booting in recovery but I’m getting an error in Terminal saying that there’s an encryption process underway. I guess I need to wait until the volume is fully encrypted to then try decrypting it.

hi all. morning good new success install macOS Tahoe 😅


  • Like 3
D-an-W
D-an-W
Posted
Posted
8 minutes ago, jlrycm said:

I’m having the same FileVault problem as @eSaF . I’m trying to decrypt the volume booting in recovery but I’m getting an error in Terminal saying that there’s an encryption process underway. I guess I need to wait until the volume is fully encrypted to then try decrypting it.


Not sure if this will help but I was enable to disable FileVault in a previous OS with info on Reddit…



https://www.insanelymac.com/forum/topic/359530-pre-release-macos-sequoia/page/4/#elControls_2820981_menu

  • Like 3
bluenote56
bluenote56
Posted
Posted (edited)
On 6/10/2025 at 12:37 PM, Anto65 said:

iMac20.1 / 20.2



Or apply the patch in Booter and continue with iMac19.1





config.plist 936 B · 119 downloads



Well, I mus admit I'm "a little" exhausted from days of trying but we know this is the game. Btw, I made an USB following all the tips found here (maybe making mistakes) and it boots Sequoia but it doesn't work with Tahoe. I applied also the booter patch. Could you just check main errors ? I erased only the smbios data. Thanks.

config 2.plist

Edited by bluenote56
SavageAUS
SavageAUS
Posted
Posted

I am yet to try a fresh install of Tahoe on my AMD rig but I just wanted to see if anyone else was experiencing the gray bar on the login screen (approx 1/3 screen) instead of the full screen wallpaper?

I am about to install Sequoia on a separate partition then reinstall Tahoe fresh as it was an upgrade from previous Sequoia mistakenly.

jm26200
jm26200
Posted
Posted

some brief news...




Motherboard: The Foundation

  • For the Sweet Spot (Intel): A high-quality Z490 or Z590 motherboard is the gold standard. Brands like Gigabyte (Designare, Aorus) and ASUS (ProArt, ROG Strix) are well-documented and offer the stability needed for a final build.
  • For the Enthusiast’s Choice (Intel): Z690 and Z790 motherboards are necessary for newer CPUs. Ensure the board has a compatible Intel I225-V or I226-V Ethernet controller.
  • For the AMD Path: B650E or X870E motherboards are excellent choices, offering the latest connectivity like USB4.
  • Key Feature – Wi-Fi: No motherboard’s built-in Wi-Fi/Bluetooth will work out of the box. You must either disable it and use a PCIe card or replace the onboard M.2 module with a compatible Broadcom one. Fenvi cards (like the T919) are plug-and-play favorites.



have now  wifi  with heliport







  • Like 2
